Wharfedale Pro Programme 105 Guide

OPERATINGMANUALANDUSERGUIDE
PROFESSIONALSOUNDSYSTEMS
www.wharfedalepro.com
Programme series
105 / 105T
108 / 108T
205 / 205T
206 / 206T
406 / 406T
Subwoofer
Programme

OPERATINGMANUALANDUSERGUIDE
1
IMPORTANTWARNINGS&SAFETYINSTRUCTIONS
1. READ ALL INSTRUCTIONS – carefully and become familiar with the features and functions of these
products before operating them.
2. RETAIN THESE INSTRUCTIONS – for future reference.
3. COMPLY WITH ALL WARNINGS – All warnings and instructions for this product should be adhered to.
4. USE WITH AMPLIFIERS – In order to avoid damage to drivers and other equipment, it is advisable to
establish and follow a routine for powering up and powering down a sound system. With all system
components connected, turn on source equipment (mixers, signal processors, record and playback
units, etc.) BEFORE powering up amplifiers. Transient voltages from powering up source equipment
can damage speakers if amplifiers are already turned on. Make sure that amplifier volumes are
set to their minimum settings and power up any system amplifiers LAST. It is recommended that
all system components be allowed to stabilize for several seconds before any source signals are
introduced or level setting adjustments are made. Similarly, when shutting systems down, turn all
amplifiers off first, before powering down any other system components.
5. CABLES – Do not use shielded or microphone cables for connection between amplifiers and speakers.
Use only approved speaker cables with proper connectors.
6. RIGGING – SUSPENDING – MOUNTING – Rigging, suspending and mounting of these speaker
systems can expose members of the public to serious health risks and even death. UNDER NO
CIRCUMSTANCES ATTEMPT TO RIG, SUSPEND OR OTHERWISE MOUNT THESE SPEAKERS UNLESS
YOU ARE FULLY QUALIFIED AND CERTIFIED TO DO SO BY RELEVANT LOCAL, STATE AND NATIONAL
AUTHORITIES. ALL RELEVANT SAFETY REGULATIONS MUST BE FOLLOWED. IF YOU ARE NOT
PROPERLY QUALIFIED OR DO NOT KNOW OF PERTINENT REGULATIONS, CONSULT QUALIFIED
PERSONNEL FOR ADVICE.
7. CAUTION – These professional loudspeaker systems are capable of generating very high sound
pressure levels. Use care with placement and operation to avoid exposure to excessive volume levels.
Permanent hearing damage can result when operated to extreme levels.
8. SERVICE – There are no user serviceable parts inside this product. Users should not attempt to service
this product. Warranty nullification could result if this is attempted.

Programme series
2
1. Important Warnings and Safety Instructions…………………………....….…
2. What about the Programme Series………………………………………………
3. Introduction/Programme Series Overview……………………………....….…
4. Features……………………….…………………………………….…………….....
5. Setting up/ Speaker Placement…………………………….………..................
6. Connections/ Wiring……………………………………………………................
7. High-Impedance / Constant-Voltage Systems………………………........
8. Connections/Crossover/Transformers………………………………........
9. Specifications …………………………………….………………………….………

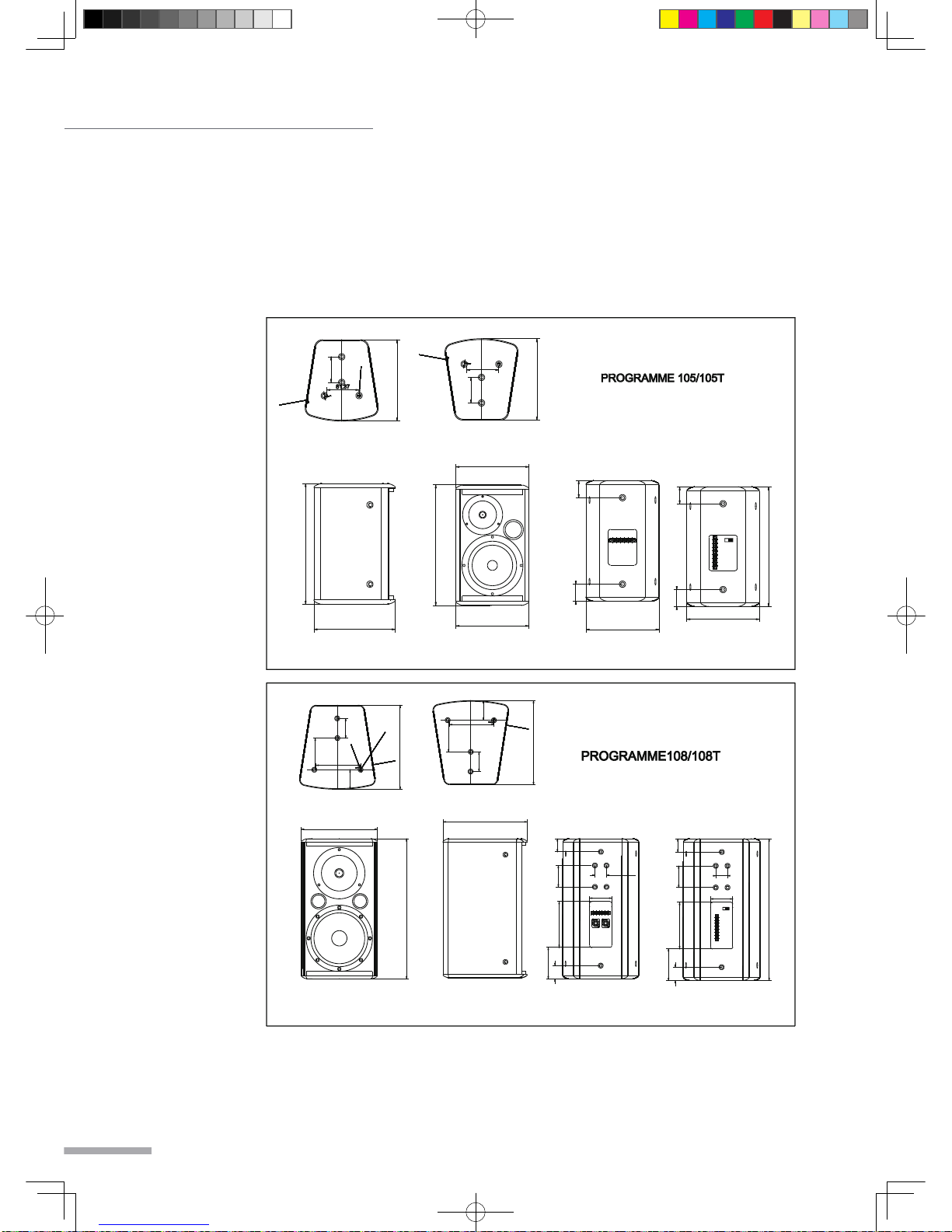

10. Dimensional Drawings Programme 105/105T + 108/108T...............

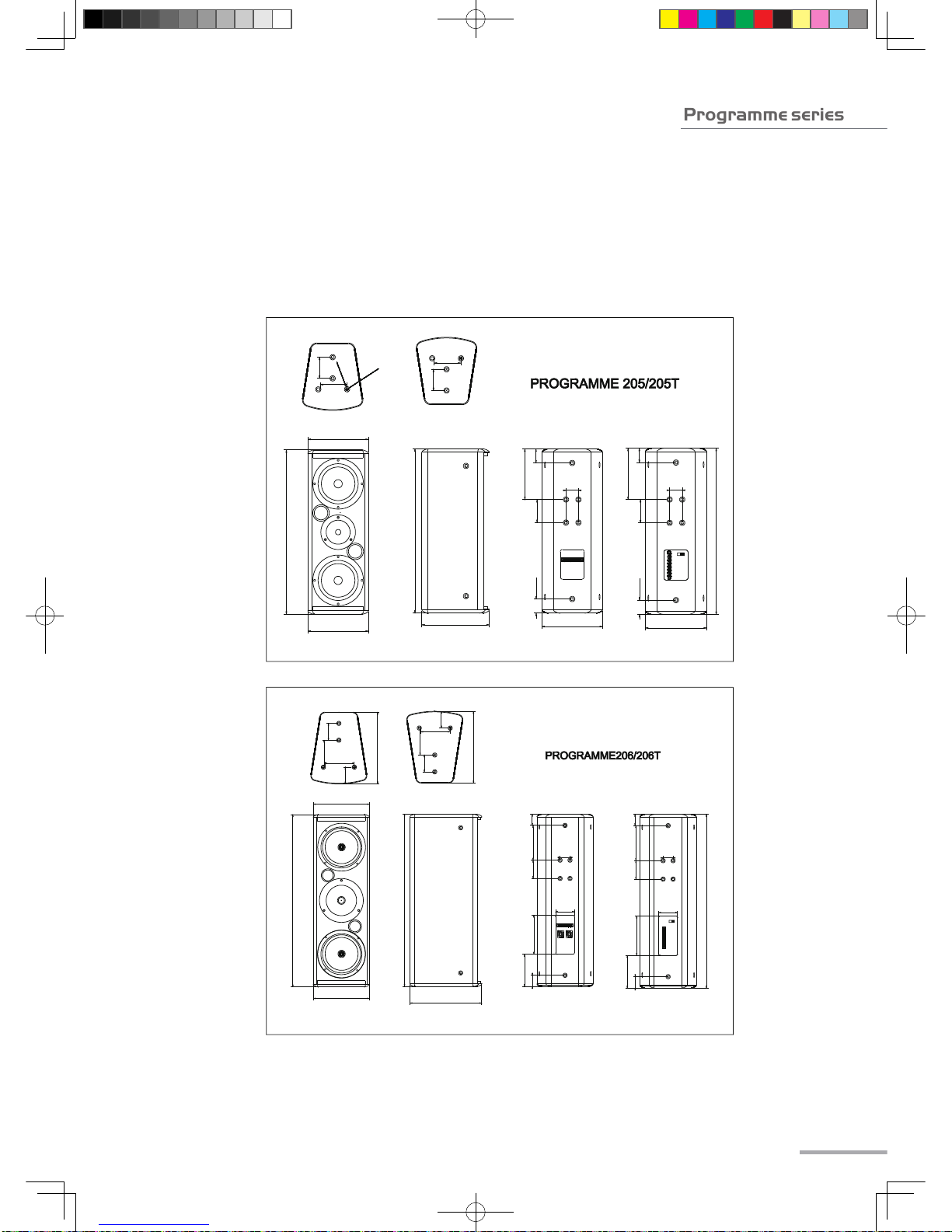

11. Dimensional Drawings Programme 205/205T + 206/206T.............
12. Dimensional Drawings Programme 406/406T.........................
13. Dimensional Drawings Programme Subwoofer............................
14. Warranty…………………………..……....…………………………..……...........
TABLEOFCONTENTS
1
3
4
5
7
7
11
12
15
17
18
19
19
20

OPERATINGMANUALANDUSERGUIDE
3
Wharfedale Programme Series foreground/back-ground music speakers are designed for
demanding professional applications such as reproduction and reinforcement of music and
sound in venues as diverse as airports, houses of worship, schools, retail shops, restaurants
and public houses.
When you need a powerful, easy to install and use sound reinforcement or background
music system, you choose the system that can deliver the biggest sound for your money the
Programme Series system is just what you asked for.
With its powerful 10 inch (254mm), dual coil woofer, and High-Pass Left and Right outputs,
The Programme Sub is the perfect addition to the full range speakers in the Series.
WHATABOUT THEPROGRAMMESUBWOOFER?
6XEZRRIHU    

Programme series
4
Wharfedale Programme Series loudspeakers are the result of many years of experience in
the use, design and manufacturing of professional loudspeaker products. We take great
pride in engineering and building every Wharfedale Pro loudspeaker and wish to thank you
for entrusting us with your sound.
Please take a few minutes to read this manual completely in order to ensure that you get
the most out of your Programme Series Loudspeaker system.
PROGRAMME SERIES OVERVIEW:
The Programme Series loudspeaker systems are designed to deliver accurate, high power
sound in a lightweight, compact and easy to install package.
Each Programme Series speaker may also be used in constant voltage distributed systems.
With an internal, switchable transformer, you can economically install a background music
or paging system, while still only using one amplifier.
The Programme Series has a speaker to fit your sound requirements. From the compact,
lightweight Programme105 to the multiple driver Programme406, or adding the Programme
Sub, you have the flexibility you need to provide the best sound value. With the included
mounting brackets, transformer option (full range), you will be impressed with the ease of
wall or ceiling mounting as well as the clear, accurate sound coming out of these speakers.
INTRODUCTION

OPERATINGMANUALANDUSERGUIDE
5
♦2-way loudspeaker systems
♦1” (25.4mm) Titanium Dome HF (105/205)
♦1” (25.4mm) Titanium Compression Driver (206/406/108)
♦Low distortion, high power woofers
o Programme 105: 5” (133.4mm) woofer
o Programme 108: 8” (203.2mm) woofer
o Programme 205: 5” x 2 (133.4mm) woofer
o Programme 206: 6.5” x 2 (165.1mm) woofer
o Programme 406: 6.5” x 4 (165.1mm) woofer
♦80 – 250 Watts Continuous Power Handling
♦High strength Trapezoidal cabinet
♦Pro-tech®(PTC) driver protection (Programme 105)
♦Pro-tech®(Bulb) driver protection (108/205/206/406)
♦M8 High Strength Hanging Points
♦Barrier Strip or SpeakOn™ Input Connectors
♦Models available with 70v/100v Transformer (‘T’ version)
FEATURES

Programme series
6
♦Subwoofer loudspeaker system
♦10” (254 mm) Dual coil woofer
♦2 x 2” (50.8mm) voice coils
♦400 Watts Continuous Power Handling (both inputs driven)
♦High strength rectangular cabinet
♦High pass output for other Programme Series speakers
♦Low and High Pass filters for smooth frequency response
♦Barrier Strip Input & Output Connectors
♦Wall mount bracket included
♦M8 High Strength Hanging Points
FEATURES(ProgrammeSubwoofer)

OPERATINGMANUALANDUSERGUIDE
7
The uniform dispersion of the Programme Series makes it easy to place the speakers where
you need them, rather than trying to rearrange the room to accommodate the sound
system. For the best coverage and highest quality sound, the speakers should be located
above head. A set of wall mounting brackets is included with each pair of speakers to make
installation easy and safe.
The Programme Series are an excellent sound reinforcement or background music speaker
and can be oriented in a vertical or horizontal position. All models have been designed
for tabletop or bookshelf installation or, with the use of the included brackets they can be
mounted on the wall or ceiling.
Don’t worry about big rooms or rooms with hard to reach seats. The Programme “T” Series
speakers have a transformer to allow the use of many more speakers than you would
normally use. Use of the transformer is highlighted in the Connections/ Wiring Section.
Because the Programme subwoofer has crossovers built-in, you don’t have to invest too
much money to assemble a great sounding, foreground or background music system. The
full range Programme Series speakers come with mounting brackets, and to keep the sub
out of sight, you may use the mounting bracket that is included with the Sub.
The Programme Sub is an excellent low frequency speaker and can be placed anywhere
in the room,mounted in the ceiling or on the wall. Heavy-duty rigging hardware makes
installation easy and safe (see safety instructions at the beginning of this manual).
SETTINGUP/SPEAKERPLACEMENT
CONNECTIONS/WIRING
LOW IMPEDANCE SPEAKER BARRIER STRIP
NOT USED(FOR LOOP)
INPUT PARALLEL OUTPUT

Programme series
8
LOW IMPEDANCE 8Ω MODEL CONNECTIONS
Normal Connection
Series Connection
Last Speaker
+
-
Parallel Connection
+
-NEXT
SPEAKER
CONNECTIONS/WIRING

OPERATINGMANUALANDUSERGUIDE
CONNECTIONS/WIRING
Wiring and setting up your Programme Series is as easy as plugging in a household
appliance. You simply run your speaker cables from your amplifier to one of the parallel
spring style input connectors or on the Programme Series input panel.
The Programme Series accept stripped bare end cables and SpeakOn™ connectors
(108/206/406). Attach the speaker cable securely to your Programme Series unit and power
amplifier (the amplifier should be off). Use the correct gauge of speaker cable according to
the power handling ability of your Programme Series cabinet. Use stranded insulated cable
for speaker runs. It is always advisable to use heavier gauge (lower number) cables on
longer runs.

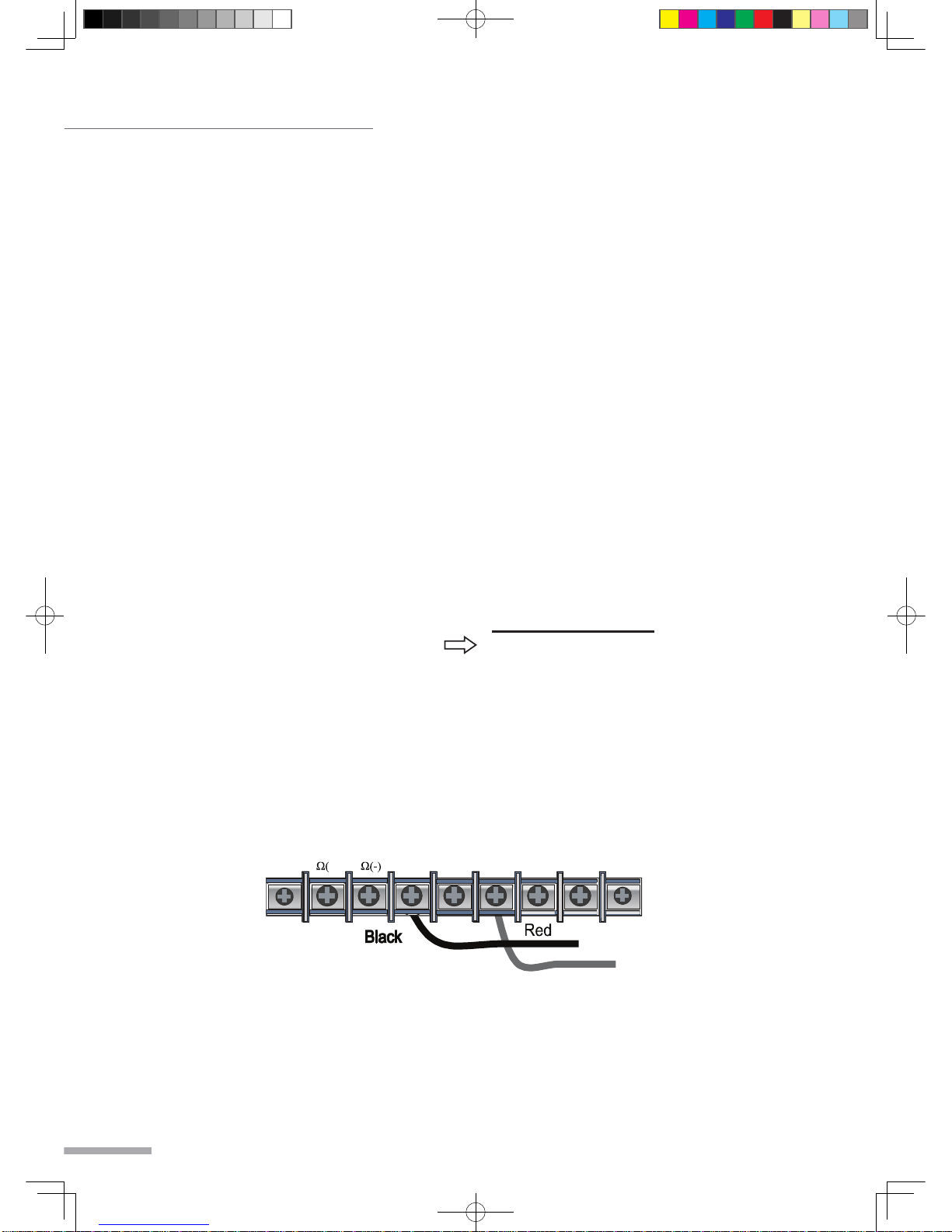

Be sure to connect your speakers in proper polarity (what many refer to erroneously, as
phase). This means that in normal operation; connect one end of the same wire to the Red
terminal on the amplifier and the other end to the 8Ω (+) connector on the speaker. Black is
always the ground or common and should be connected to the 8Ω (-).
70V C
100V C8 +) 8 30W60W 60W 15W
30W 7.5W 15WN/C
LOW IMPEDANCE CONNECTION (T) MODELS
9

Programme series

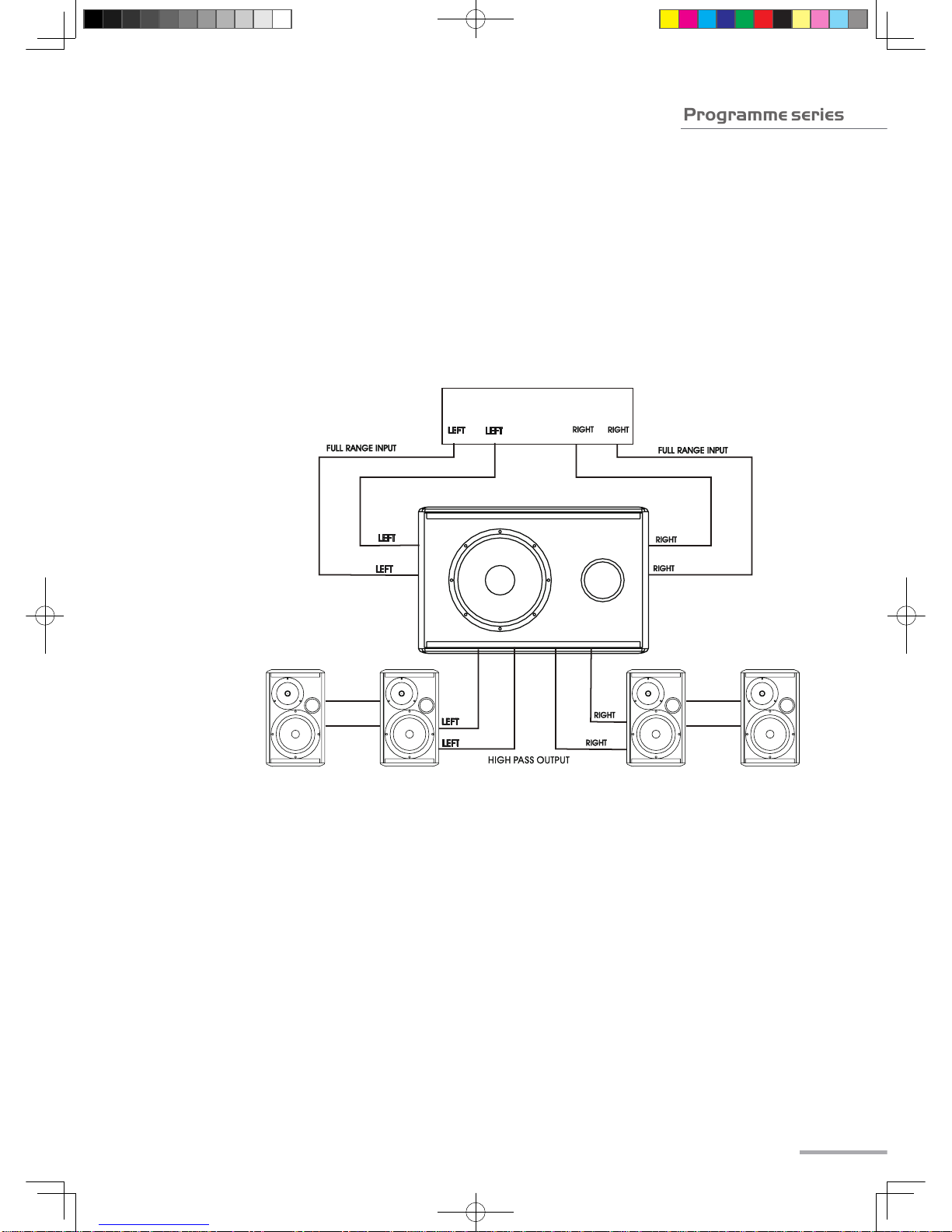

The Programme Subwoofer has left and right channel high-pass filters to allow the use of
one 2-channel amplifier for a set of (up to) two Programme Series full range speakers per
channel (See the diagram below).
CONNECTIONS/WIRING
Four programme 105 satellite speakers(two on each 105 satellite
output)provide optimum sensitivity balance and impedance loading
resulting in full-range35Hz-20kHz system performance. Broad band
impedance is 4ohm per inputx2 channels
Optimun System
Configuration˖
4 OHM LOAD
Porgramme105x2 Porgramme105x2
4 OHM LOAD
OUTPUT OF STEREO POWER
AMPLIFIER OR POWERED MIXER
+
-
-
+
PROGRAMME SUB
-
+
-
+
-
+
-
+
10

OPERATINGMANUALANDUSERGUIDE
The Programme Series features an internal line-matching transformer with four power/
impedance selections for 70/100-volt line. In speaker systems, anything over 32Ω is
considered high impedance. Smaller wire can be used without excessive power loss. The
four power taps vary for each model.
• Programme 105: 7.5/15/30/60 Watts
• Programme 108/206/406: 15/30/60/120 Watts
If you are using these models, wiring is just as easy - with a few more steps. You connect
your speaker cable from the 70v or 100v output of your amplifier (or through an external
transformer) to the input terminals of the speaker. You will then have to adjust the wattage
of the transformer to the correct setting.
As you would with any audio system, you will need to figure out how many speakers that
you want to use and then divide that into the wattage of your power amplifier - you should
not exceed that load, otherwise, you will encounter distortion.
Because of the low wattage limitations of the individual speakers, this set up is normally
used in sound systems and areas where you only want to hear background music, or
occasional messages to everyone within a facility.

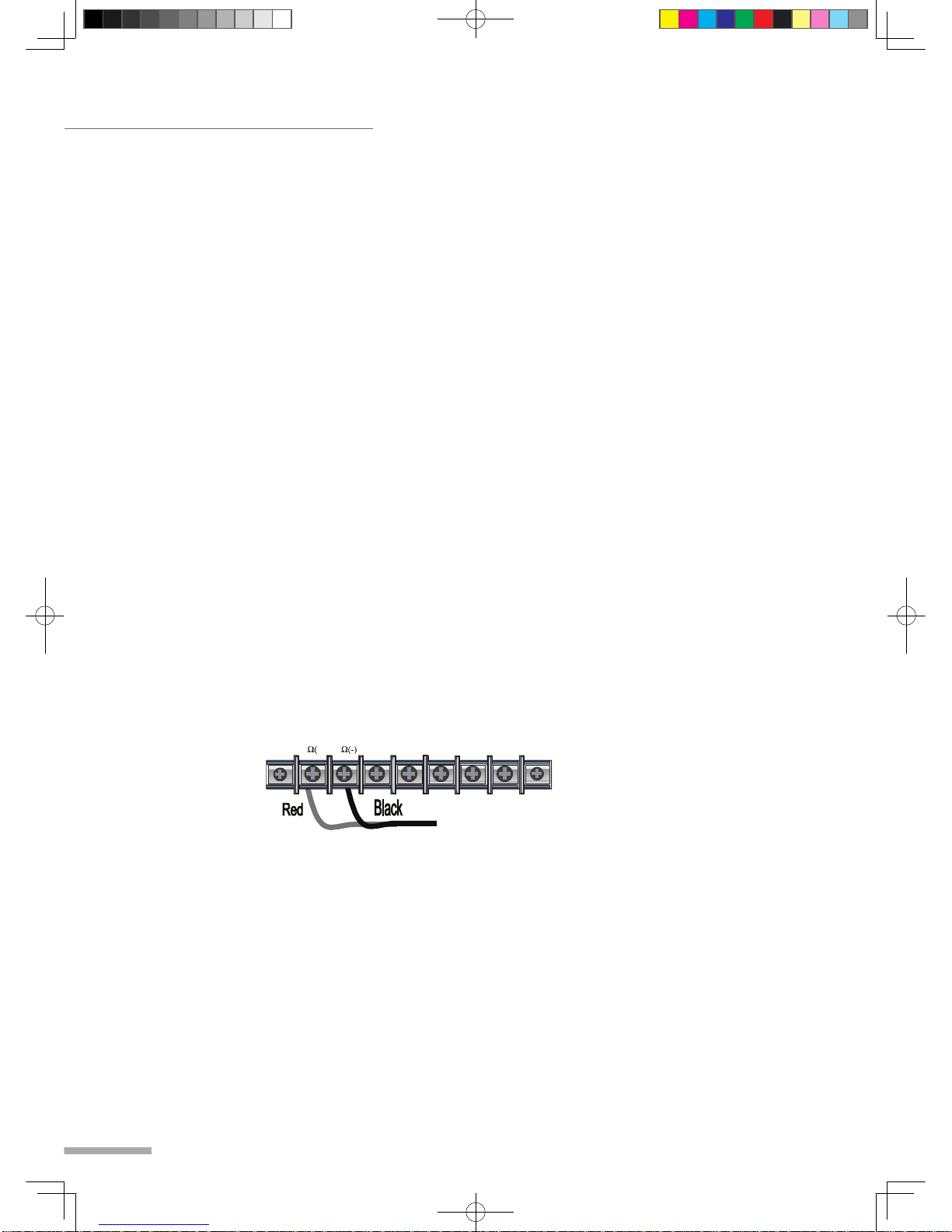

You connect the + (positive) side to the connector labled with the power rating and the
– (negative) to the ground (70V C/ 100V C) connector. If you are adding more speakers,
connect your speaker wire from the Red to Red and Black to Black.
HIGH-IMPEDANCE/CONSTANT-VOLTAGESYSTEM:
Transformer tap (W)
Amplifier Power
Number of Speakers
70V C
100V C8 +) 8 30W60W 60W 15W
30W 7.5W 15W
N/C
11

Programme series
BLOCKDIAGRAM
105 / 105T
205 / 205T
12

OPERATINGMANUALANDUSERGUIDE

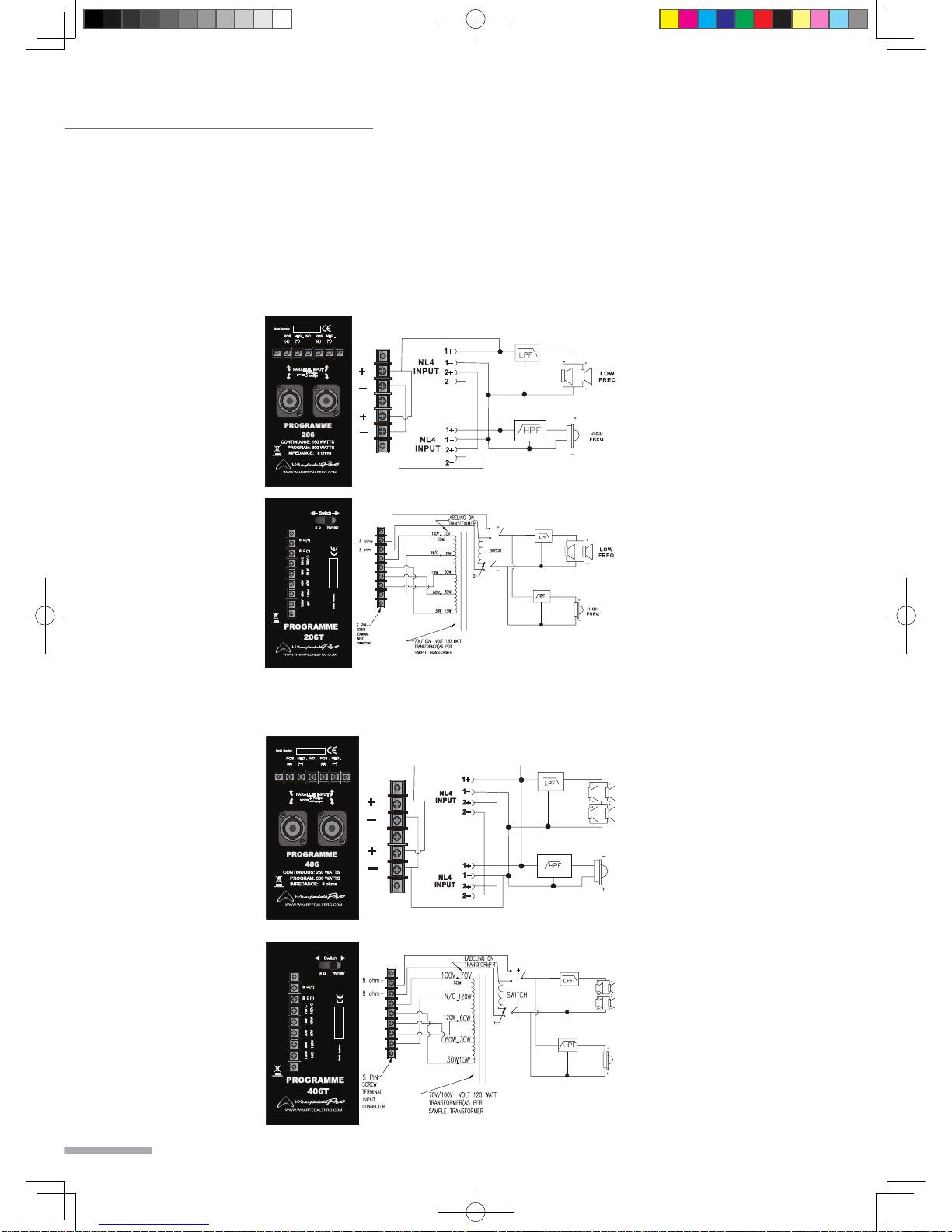

BLOCKDIAGRAM
206 / 206T
406 / 406T
13

Programme series
MID/HI
OUTPUT
MID/HI
OUTPUT
BLOCKDIAGRAM
108 / 108T
Subwoofer
14

OPERATINGMANUALANDUSERGUIDE
SPECIFICATIONS
105(T)
2 - way
75Hz-20KHz
80W
320W
89dB
114dB
8 ohm
60 x 60
5"
1" Titanium dome
Pro-tect (PTC)
2.3KHZ
Trapezoidal
304 x 184 x 205
5.22Kg
Black/ white Paint
MDF
Black/ white full
(steel)
M8 x 14
barrier strip
barrier strip
100V/70V
7.5,15,30,60W
15,30,60W
black/white bracket
Type
Frequency Response
Continuous Power
Peak Power
Sensitivity: dB-SPL
(1W @1M)
Max SPL
Impedance
Dispersion angle:
(degrees)
LF driver
HF driver
HF protection type
Crossover Point
Enclosure shape
Dimensions: HxWxD (mm)
Weight (kg)
Finish colour
Cabinet material
Grille
Rigging
Input Connectors
Input Connectors (T)
Transformer (T)
Transformer Taps (70v)
Transformer Taps (100v)
Included accessory
205(T)
2 - way
70Hz-20KHz
100W
400W
91dB
117dB
8 ohm
60 x 60
5" x 2
1" Titanium dome
Pro-tect (BULB)
2.3KHZ
Trapezoidal
500 x 184 x 205
7.689Kg
Black/ white Paint
MDF
Black/ white full
(steel)
M8 x 18
barrier strip
barrier strip
100V/70V
10,20,40,80W
20,40,80W
black/white bracket
206(T)
2 - way
65Hz-20KHz
150W
600W
93dB
120dB
8 ohm
60 x 60
6.5" x 2
1" Titanium
compression driver
Pro-tect (BULB)
2.3KHZ
Trapezoidal
660.5 x 215 x 275
11.36Kg
Black/ white Paint
MDF
Black/ white full
(steel)
M8 x 18
2 x Speakon + barrier
strip
barrier strip
100V/70V
15,30,60,120W
30,60,120W
black/white bracket
406(T)
2 - way
60Hz-20KHz
250W
1000W
96dB
126dB
8 ohm
60 x 60
6.5" x 4
1" Titanium
compression driver
Pro-tect (BULB)
2.3KHZ
Trapezoidal
980 x 215 x 275
17.8Kg
Black/ white Paint
MDF
Black/ white full
(steel)
M8 x 18
2 x Speakon + barrier
strip
barrier strip
100V/70V
15,30,60,120W
30,60,120W
black/white bracket
108(T)
2 - way
60Hz-20KHz
150W
600W
90dB
118dB
8 ohm
60 x 60
8"
1" Titanium
compression driver
Pro-tect (BULB)
2.3KHZ
Trapezoidal
458 x 248 x 275
9.34Kg
Black/ white Paint
MDF
Black/ white full
(steel)
M8 x 18
2 x Speakon + barrier
strip
barrier strip
100V/70V
15,30,60,120W
30,60,120W
black/white bracket
15

Programme series
SPECIFICATIONS(Subwoofer)
Model name
Feature
Frequency Response (-3dB)
Power handling (both inputs driven)
Power handling (each input driven)
Sensitivity (each input): dB-SPL (1W
(2.83v) @1M)at corner junction
Sensitivity (both inputs): dB-SPL (1W
(2.83v) @1M) at corner junction
Max SPL (both inputs driven)
Impedance
Dispersion @ -6dB (degrees)
LF driver
Crossover Point (12dB/octave low-
pass, 6dB/ octave high-pass)
Enclosure shape
Dimensions: H x W x D (mm)
Dimensions: H x W x D (in)
Weight: (kg/lb)
Finish colour
Cabinet material
Grille
Rigging
Input Connectors
High-Pass Output Connectors
Included accessory
Optimum System Configuration:
Four programme 105 satellite speakers (two
on each 105 satellite
output) provide optimum sensitivity balance
and impedance loading
resulting in full-range 35Hz-20 kHz system
performance. Broadband
impedance is 4 ohm per input x 2 channels
Programme Sub
Bass Reflex Subwoofer
45Hz-170Hz
400W
200W
98dB
101dB
124dB
8 ohm per input/
4 ohm both inputs paralleled
NA
10" (254 mm)
170HZ
Rectangle
413 x 635 x 392
16.25 x 25.0 x 15.4
18.4 kg (40.5 lb.)
Black and White Paint
15 mm MDF
1.2 mm Steel
M8 x 12
Screw terminal strip connector
Screw terminal strip connector
black and white wall mount bracket
16

OPERATINGMANUALANDUSERGUIDE
DIMENSIONALDRAWINGS
103.50
43.00
275.00
BOTTOM VIEW
64.50
145.00
64.00
458.00
FRONT VIEW
248.0
SIDE VIEW
275.0
275.00
9.50
103.50
64.00
TOP VIEW
145.00
43.00
16.00
64.50
43.00
REAR VIEW
38.00
150.00
43.00
102.56
72.00
70.00
43.00
43.00
REAR VIEW(PRO108T)
150.00
102.50
72.00
38.00
70.00
458.00
304.00
184.00
184.00
43.00
184.00
REAR VIEW(PRO105T)
43.00
304.00
43.00
205.00
64.50
81.0
BOTTOM VIEW
43.00
184.00
43.00
REAR VIEW
205.00
304.00
FRONT VIEW SIDE VIEW
205.0
64.50
9.50
43.00
TOP VIEW
17

Programme series
BOTTOM VIEW
103.50
275.00
64.50
112.51
64.00
660.50
FRONT VIEW
215.14
215.00
275.00
64.00
TOP VIEW
103.50
112.50
64.50
660.50
SIDE VIEW
275.00
70.00
150.00
123.60
43.00
REAR VIEW
72.00
43.00
133.30
38.00
43.00
REAR VIEW(206T)
43.00
70.00
123.60
150.00 133.30
72.00
38.00
660.50
64.50
BOTTOM VIEW
81.37
500.00
FRONT VIEW
184.00
184.00
500.00
205.00
SIDE VIEW
38.00
154.30
43.00
184.00
REAR VIEW
70.00 43.00
TOP VIEW
64.50
16.00
81.37
9.50
184.00
43.00
REAR VIEW(PRO205T)
70.00
38.00
154.30
43.00
500.00
18
DIMENSIONALDRAWINGS

OPERATINGMANUALANDUSERGUIDE
BOTTOM VIEW
43.00
275.00
43.00
103.50
64.50
64.00
112.50
PROGRAMME406/406T
275.00
9.50
43.00
TOP VIEW
64.50
103.50
16.00
112.51
64.00
43.00
980.00
FRONT VIEW
215.00
980.00
275.00
SIDE VIEW
150.00
REAR VIEW
265.00
43.00 314.00
70.00
72.00
38.00
43.00
REAR VIEW(PRO406T)
265.00
43.00 150.00
72.00
314.00
70.00
38.00
43.00
980.00
19
DIMENSIONALDRAWINGS
