Wharfedale Pro TOURUS Series User manual

WWW.WHARFEDALEPRO.COM
Tourus-AX15
Tourus-AX15-MBT
Tourus-AX12
Tourus-AX12-MBT
Tourus-AX8
Tourus-AX8-MBT
Wharfedale Pro TOURUS Series User Manual

TABLE OF CONTENTS
MULTIPLE INPUTS…....WITH MAXIMUM POWER OUTPUT! ……………………… 3
BLUETOOTH AND USB OPERATION …………………………………………………… 4
IMPORTANT WARNINGS & SAFETY INSTRUCTIONS ……………………………… 1 - 2
REAR PANEL FEATURES ……..……..……..……..……..…………………………….. 5 - 6
TECHNICAL DRAWINGS …………………………………………………………………. 7 - 8
BLOCK DIAGRAM …………………………………………………………………………. 9 - 10
SPECIFICATIONS …………………………………………………………………………. 11 - 13

1
IMPORTANTWARNINGS & SAFETY INSTRUCTIONS
1. Read these instructions – All the safety and operating instructions should be read
before this product is operated.
2. Keep these instructions – The safety and operating instructions should be retained
for future reference.
3. Heed all warnings – All warnings on the appliance and in the operating instructions
should be adhered to.
4. Follow all instructions – All operating and use instructions should be followed.
5. Do not use this apparatus near water – The appliance should not be used near water
or moisture – for example, in a wet basement or near a swimming pool, and the like.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacture’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding plug. A polarized
plug has two blades with one wider than the other. A grounding plug has two blades
and a third grounding prong. The wide blade or the third prong is provided for your
safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the plugs,
convenience receptacles, and at the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the apparatus. When a cart or rack is used, use caution when moving
the cart/apparatus combination to avoid injury from tip-over.
13. Unplug the apparatus during lightning storms or when unused for long periods of
time.
14. Refer all servicing to qualified personnel. Servicing is required when the apparatus
has been damaged in any way, such as power supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus has been exposed to rain
or moisture, does not operate normally, or has been dropped.

2
17.
- This lightning flash with arrowhead symbol within an equilateral triangle is intended
to alert the user to the presence of non-insulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of electric
shock.
- Warning: To reduce the risk of electric shock, do not remove cover (or back) as there
are no user-serviceable parts inside. Refer servicing to qualified personnel.
- The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance instructions in the literature
accompanying the appliance.
18. Protective earthing terminal. The apparatus should be connected to a mains
socket outlet with a protective earthing connection.
19. The ventilation should not be impeded by covering the ventilation openings with
items, such as newspapers, table-cloths, curtains, etc.;
20. No naked flame sources, such as lighted candles, should be placed on the apparatus.
21. Attention should be drawn to environmental aspects of battery disposal.
22. The mains plug is used as disconnect device, the disconnect device shall remain
readily operable.
23. The product is designed to use in moderate climates.
15. CAUTION: These servicing instructions are for use by qualified service personnel
only. To reduce the risk of electric shock, do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do so.
16. WARNING：To reduce the risk of fire or electric shock, do not expose this apparatus
to rain or moisture. The apparatus shall not be exposed to dripping or splashing and
that objects filled with liquids, such as vases, shall not be placed on apparatus.

3
Multiple inputs…....with MAXIMUM power output!
The TOURUS series of plastic, active loudspeakers deliver power, value and versatility.
With an 8", 12” and a 15” version, also available with “MBT” models featuring USB
mp3 playback and Bluetooth connectivity with TWS stereo link mode, the TOURUS is for
anyone needing big power and features on a compact budget.
Custom WP drivers have been selected to ensure that this affordable series have the
power and timbre expected from a Wharfedale Pro loudspeaker. In addition, the
amplification stages of the 12" and 15" models deploy both Class D (LF) and Class AB
(HF) to bring power and value to this series.
With full steel grilles, multiple handles and 4 x M8 rigging points, TOURUS is well suited
for installations and for hard work on the road.
A new illuminated Wharfedale Pro logo badge is also proudly shown on the front so that
TOURUS looks as good as it sounds.
SETTING UP
1. Ensure the mains switch is in the OFF position.
2. Set the level controls to minimum (Fully anticlockwise).
3. Connect all signal cables.
4. Connect the power cable.
5. Switch on source equipment, ensuring that the master level is at minimum.
6. Switch on the Tourus active loudspeaker.
7. Raise the level controls on the Tourus active loudspeaker.
8. If the limit LED illuminates lower the channel level control, if more level is required
you will need more speakers. Occasional flashes are acceptable.
9. When powering down your system ensure that the level control has been lowered
to minimum before switching off the power.
Features
• 12" and 15" models bi-amplified with Class D and Class AB amps.
8" models powered with single Class D amp.
• Full frontal steel grilles
• 4 x M8 rigging points
• Multiple inputs - 2 channel mixer
• USB .mp3, .flac & .wav playback (MBT models)
• Bluetooth input with TWS (True Wireless Stereo) link mode (MBT models)
• RCA Stereo inputs

USB operation :
Insert a USB disk loaded with .mp3, .wav or.flac files into the USB socket. Use the rear
panel transport controls to control playback. Next track / Pause / Play etc. In Playback
mode the LED will flash red. In Pause mode the LED will be solid red.
Bluetooth operation :
Press and hold the Bluetooth button for 2 secs to turn Bluetooth ON or OFF. A quick
‘double-click’ on the Bluetooth button (0.7 sec) puts Tourus into TWS link mode. In this
mode the Primary Tourus will automatically search for another Tourus (Secondary)
nearby to create a stereo pair.
Do the same button presses on the Secondary Tourus, and the pair will link. The LEDs
of both Primary and Secondary will flicker between Red and Blue during pairing and
then will stay blue when paired successfully.
The rear panel transport buttons can even remotely control the Bluetooth source.
Next track / Pause / Play etc.
4
BLUETOOTH and USB OPERATION. (MBT models only)
Bluetooth connection
Stereo Link mode connection

1. Bluetooth LED for pairing. USB activity LED. (*MBT models only).
(see BLUETOOTH and USB OPERATION section for more information).
2. Treble and Bass EQ controls. Use these to boost or cut the high and low frequencies
by +/-12dB
3. Transport controls for USB and BT. Play, pause, skip forward and skip backward
buttons to control USB file playback or BT source device. (*MBT models only)
4. Balanced XLR line output connector for direct connection to a second active
loudspeaker such as another Tourus.
5. USB input socket. For connecting a USB thumbdrive for file playback. (*MBT models
only)
6. Convection cooling plate. Tourus uses convection cooling. This means there are no
internal fans. Always leave space around a Tourus to ensure that any heat can be
dissipated.
7. 2 Input channels. For 12" and 15" models, Channel 1 can accept mic level inputs when
the switch is in the Mic position. The 6.3mm input jack is balanced and is also selectable
between mic and line levels depending on the position of the switch above.
8. Mic/Line Volume controls. These control the balance between the 2 channels. Channel
1 is mic/line. Channel 2 is Line plus BT/USB and the RCA connector inputs.
9. POWER cord receptacle: This is a receptacle for a standard IEC, three prong, grounded
AC electrical connection cord. Be sure that you are plugging into the correct source
voltage that matches what is indicated just below the power cord jack.
5

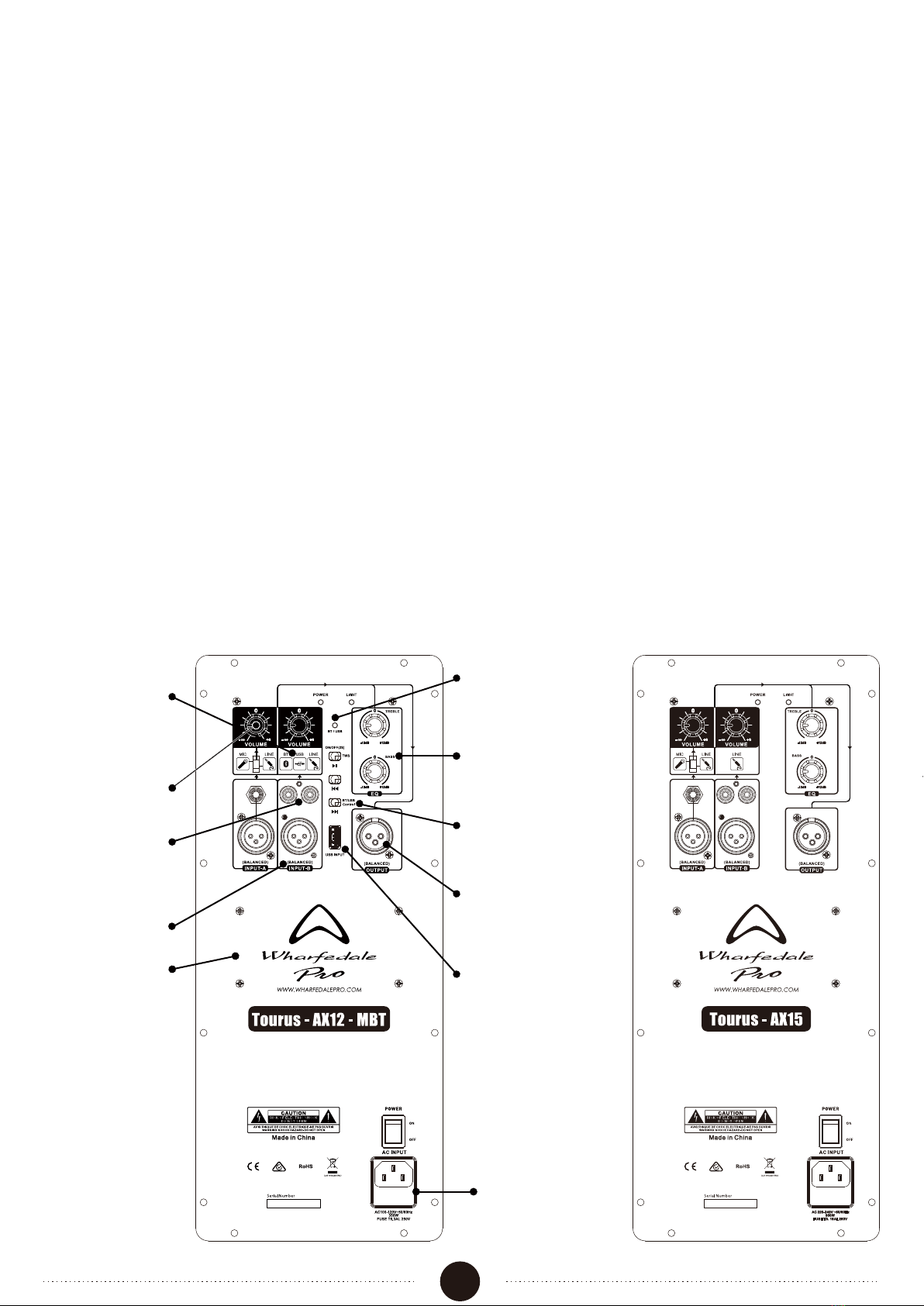

REAR PANEL FEATURES
Tourus-AX12 and Tourus-AX15Tourus-AX12-MBT and Tourus-AX15-MBT
Line, USB &
Bluetooth
volume control
1. Bluetooth LED
for pairing
2. Treble & Bass EQ
3. Transport
controls
USB & BT
4. Balanced
link output
5. USB input
mp3, flac and .wav
playback compatible
8. Mic / Line
volume control
RCA connectors
7. 2 input
channels
6. Convection cooling
No Fans
9. POWER cord
receptacle

AC220-240V~50/60Hz
250W
FUSE T2AL 250V
AC220-240V~50/60Hz
250W
FUSE T2AL 250V
6
Line, USB &
Bluetooth
volume control
Treble & Bass
EQ controls
Transport
controls
USB & BT
Balanced
link output
USB input
mp3, flac and .wav
playback compatible
Mic / Line
input switch
RCA connectors
2 input
channels
RCA connectors
2 input
channels
Mic / Line
volume controls
Treble & Bass
EQ controls
Convection cooling
No Fans
Balanced
link output
Convection cooling
No Fans
Mic / Line
input switch
Tourus-AX8-MBT
Tourus-AX8

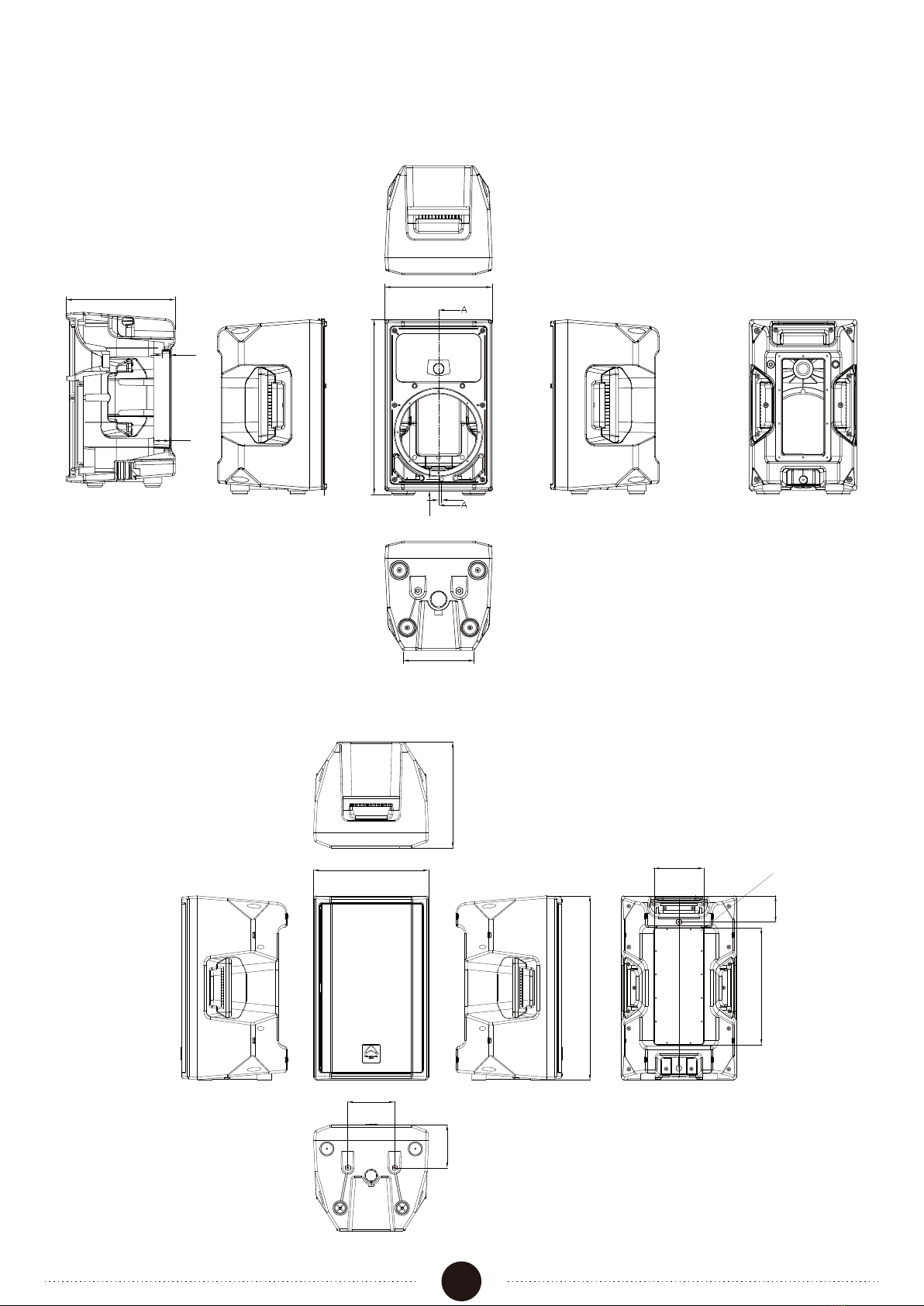

TECHNICAL DRAWINGS
Tourus-AX8 and Tourus-AX8-MBT
Tourus-AX12 and Tourus-AX12-MBT
603.1
346.4
377.1
140.5
153.0
85.6
381.9
161.8
R9.0
7
263.2 259.0
7.0
27.0
421.4
171.9
20.0
40.0

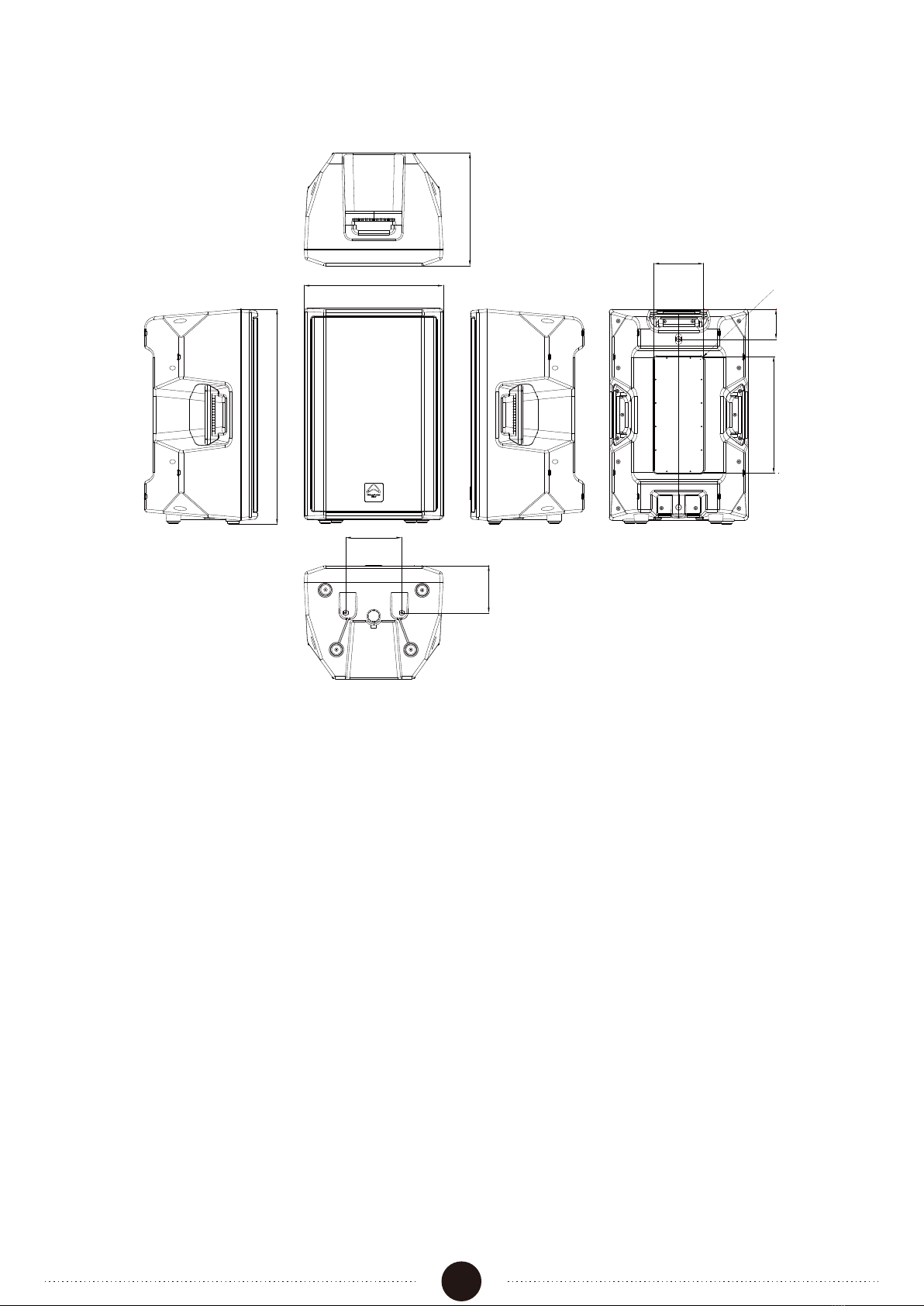

TECHNICAL DRAWINGS
Tourus-AX15 and Tourus-AX15-MBT
704.4
370.3
455.3
98.5
382.5
162.5
R9.3
183.6
154.4
8

BLOCK DIAGRAM
Tourus-AX8
Tourus-AX8-MBT
9

10

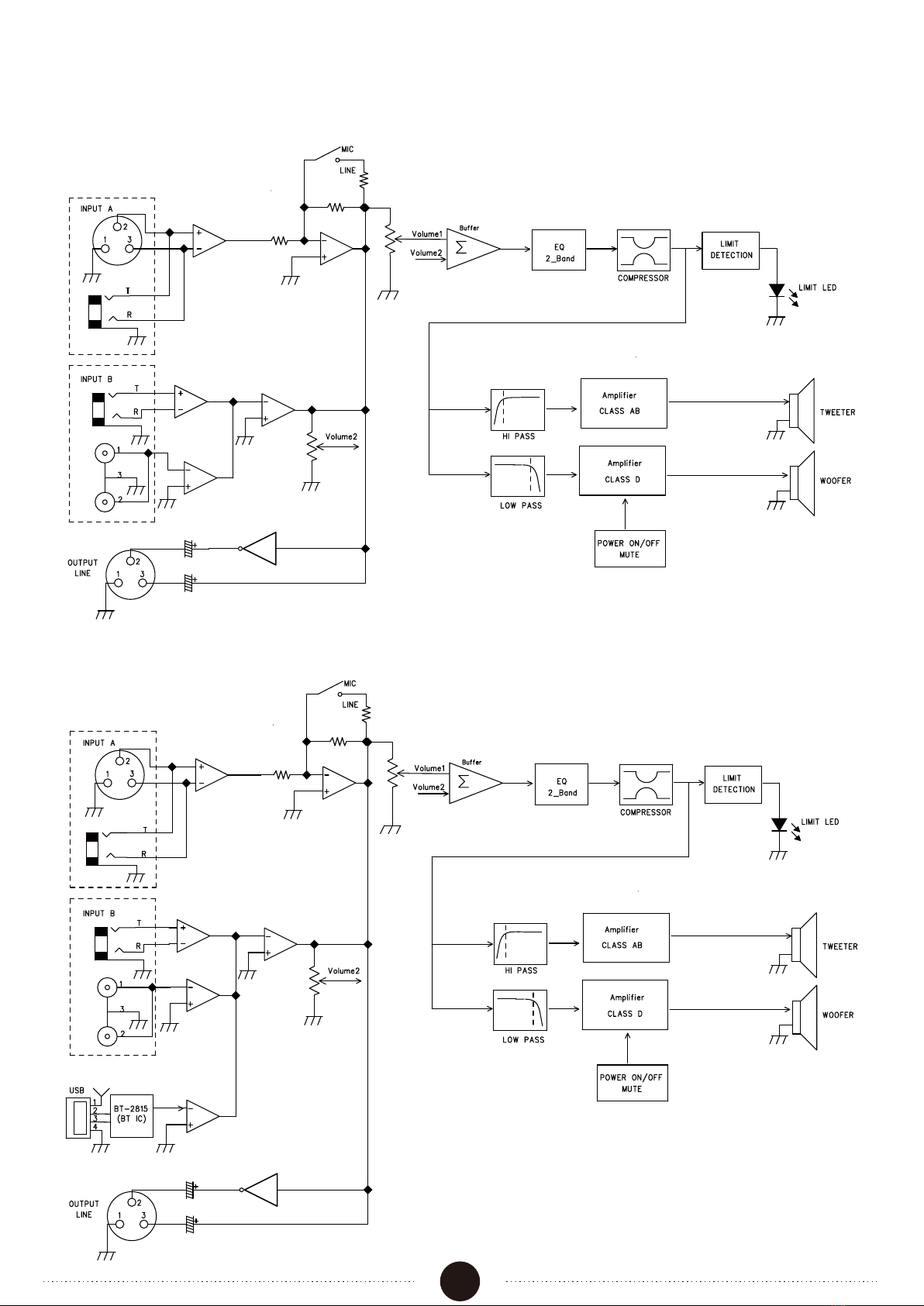

BLOCK DIAGRAM
Tourus-AX12 and Tourus-AX15
Tourus-AX12-MBT and Tourus-AX15-MBT

11
SPECIFICATIONS
Tourus-AX8
Active 8” 2-way Bi-Amplified
65-20kHz
95dB
124 dB
38.86mm / 1.53"
203mm / 8"
4Ω
25mm / 1”
Compression Driver
44.5mm / 1.75”
Titanium
8Ω
90° x 60°
2.6kHz
150w Continuous / 300w Peak
100w Continuous / 200w Peak
+/-12dB Gain for bass and treble
MALE XLR
8.0kg / 17.6lbs
SMPS
100V-120V and 220V-240V
4 x M8
35mm Pole-mount with lock screw
3 carry handles (one on each side, one on top)
Optional wall-mount bracket (WPB-2)
9.2kg / 20.24lbs
black
Injection Moulded Polypropylene
Yes
TRS JACK / FEMALE XLR / RCA
Power switch on / off mute
Amplifier shutdown, auto reset
Red LED
Green LED / BLUE LED(LOGO)
Balanced / unbalanced
47KΩ Balanced
5V
-10dB
-40dB
259mm / 10.2”
470mm / 18.5”
1.2mm steel
421.4mm / 16.6”
171.9mm / 6.7"
263.2mm / 10.4”
315mm / 12.4”
307mm / 12.1”
LED
Model Name
System Type
Frequency Response (+/-3dB)
Sensitivity @ 1w / 1m
Maximum SPL (peak @1m)
Low Frequency Transducer
Size (mm / inches)
Coil Size (mm / inches)
Impedance
High Frequency Transducer
Type
Coil Size (mm / inches)
Exit Size (mm / inches)
Diaphragm Material
Impedance
High Frequency Coverage (H x V)
Amplifiers
Low-Frequency Power Amplifier
High- Frequency Power Amplifier
Electronic Crossover
Crossover Frequency
Controls
Equalization
Line Output Connector
AC Power details
Power Supply
AC Power Options
Power On Indicator
Rigging / Bracket / Mounting Options
Enclosure
Enclosure Material
Colour
Amplifier Protection
Power On Protection
Thermal Protection
Driver, DC and Short Protection
Limiter Indicator
Power Indicator
Input type
Input Connectors
Input Impedance
Maximum Input Level
Line Input Sensitivity
Mic Input Sensitivity
Grille
Dimensions (Unpacked)
Height
Width - Front
Width - Rear
Depth
Dimensions (packed)
Height
Width
Depth
Weight
Net Weight (kg / lbs)
Gross Weight (kg / lbs)
Tourus-AX8-MBT
Active 8” 2-way Bi-Amplified
65-20kHz
95dB
124 dB
38.86mm / 1.53"
203mm / 8"
4Ω
25mm / 1”
Compression Driver
44.5mm / 1.75”
Titanium
8Ω
90° x 60°
Class D Class D
2.6kHz
150w Continuous / 300w Peak
100w Continuous / 200w Peak
+/-12dB Gain for bass and treble
MALE XLR
8.0kg / 17.6lbs
SMPS
100V-120V and 220V-240V
4 x M8
35mm Pole-mount with lock screw
3 carry handles (one on each side, one on top)
Optional wall-mount bracket (WPB-2)
9.2kg / 20.24lbs
black
Injection Moulded Polypropylene
Yes
TRS JACK / FEMALE XLR / RCA / USB
Power switch on / off mute
Amplifier shutdown, auto reset
Red LED
Green LED / BLUE LED(LOGO)
Balanced / unbalanced / Bluetooth / USB
47KΩ Balanced
5V
-10dB
-40dB
259mm / 10.2”
470mm / 18.5”
1.2mm steel
421.4mm / 16.6”
171.9mm / 6.7"
263.2mm / 10.4”
315mm / 12.4”
307mm / 12.1”
LED

12
SPECIFICATIONS
Tourus-AX12
Active 12” 2-way Bi-Amplified
55-20kHz
96dB
128 dB
50.8mm / 2.0”
305mm / 12”
4Ω
25mm / 1”
Compression Driver
44.5mm / 1.75”
Titanium
8Ω
90° x 60°
HI PASS 2.5kHz LOW PASS 2.5kHz
250w Continuous / 500w Peak
100w Continuous / 200w Peak
+/-12dB Gain for bass and treble
MALE XLR
15.0kg / 33.0lbs
SMPS
100V-120V and 200V-240V
4 x M8
35mm Pole-mount with lock screw
3 carry handles (one on each side, one on top)
Optional wall-mount bracket (WPB-2)
17.0kg / 37.4lbs
black
Injection Moulded Polypropylene
Yes
2 x TRS JACK, 2 x RCA AND 2 x FEMALE XLR
Power switch on / off mute
Amplifier shutdown, auto reset
Red LED
Green LED
Balanced
47KΩ Balanced
5V
-10dB
-40dB
377mm / 14.8”
666mm / 26.2”
1.2mm steel
603mm / 23.7”
217mm / 8.54"
347mm / 13.7”
430mm / 16.9”
408mm / 16.1”
LED
Model Name
System Type
Frequency Response (+/-3dB)
Sensitivity @ 1w / 1m
Maximum SPL (peak @1m)
Low Frequency Transducer
Size (mm / inches)
Coil Size (mm / inches)
Impedance
High Frequency Transducer
Type
Coil Size (mm / inches)
Exit Size (mm / inches)
Diaphragm Material
Impedance
High Frequency Coverage (H x V)
Amplifiers
Low-Frequency Power Amplifier
High- Frequency Power Amplifier
Electronic Crossover
Crossover Frequency
Controls
Equalization
Line Output Connector
AC Power details
Power Supply
AC Power Options
Power On Indicator
Rigging / Bracket / Mounting Options
Enclosure
Enclosure Material
Colour
Amplifier Protection
Power On Protection
Thermal Protection
Driver, DC and Short Protection
Limiter Indicator
Power Indicator
Input type
Input Connectors
Input Impedance
Maximum Input Level
Line Input Sensitivity
Mic Input Sensitivity
Grille
Dimensions (Unpacked)
Height
Width - Front
Width - Rear
Depth
Dimensions (packed)
Height
Width
Depth
Weight
Net Weight (kg / lbs)
Gross Weight (kg / lbs)
Tourus-AX12-MBT
Active 12” 2-way Bi-Amplified
55-20kHz
96dB
128 dB
50.8mm / 2.0”
305mm / 12”
4Ω
25mm / 1”
Compression Driver
44.5mm / 1.75”
Titanium
8Ω
90° x 60°
HF Amp Class AB : LF Amp Class D HF Amp Class AB : LF Amp Class D
HI PASS 2.5kHz LOW PASS 2.5kHz
250w Continuous / 500w Peak
100w Continuous / 200w Peak
+/-12dB Gain for bass and treble
MALE XLR
15.0kg / 33.0lbs
SMPS
100V-120V and 200V-240V
4 x M8
35mm Pole-mount with lock screw
3 carry handles (one on each side, one on top)
Optional wall-mount bracket (WPB-2)
17.0kg / 37.4lbs
black
Injection Moulded Polypropylene
Yes
2 x TRS JACK, 2 x RCA AND 2 x FEMALE XLR
Power switch on / off mute
Amplifier shutdown, auto reset
Red LED
Green LED
Balanced / BT / USB
47KΩ Balanced
5V
-10dB
-40dB
377mm / 14.8”
666mm / 26.2”
1.2mm steel
603mm / 23.7”
217mm / 8.54"
347mm / 13.7”
430mm / 16.9”
408mm / 16.1”
LED

13
SPECIFICATIONS
Model Name
System Type
Frequency Response (+/-3dB)
Sensitivity @ 1w / 1m
Maximum SPL (peak @1m)
Low Frequency Transducer
Size (mm / inches)
Coil Size (mm / inches)
Impedance
High Frequency Transducer
Type
Coil Size (mm / inches)
Exit Size (mm / inches)
Diaphragm Material
Impedance
High Frequency Coverage (H x V)
Amplifiers
Low-Frequency Power Amplifier
High- Frequency Power Amplifier
Electronic Crossover
Crossover Frequency
Controls
Equalization
Line Output Connector
AC Power details
Power Supply
AC Power Options
Power On Indicator
Rigging / Bracket / Mounting Options
Enclosure
Enclosure Material
Colour
Amplifier Protection
Power On Protection
Thermal Protection
Driver, DC and Short Protection
Limiter Indicator
Power Indicator
Input type
Input Connectors
Input Impedance
Maximum Input Level
Line Input Sensitivity
Mic Input Sensitivity
Grille
Dimensions (Unpacked)
Height
Width - Front
Width - Rear
Depth
Dimensions (packed)
Height
Width
Depth
Weight
Net Weight (kg / lbs)
Gross Weight (kg / lbs)
Tourus-AX15
Active 15” 2-way Bi-Amplified
50-20kHz
97dB
130 dB
50.8mm / 2.0”
381mm / 15”
4Ω
25mm / 1”
Compression Driver
44.5mm / 1.75”
Titanium
8Ω
90° x 60°
HI PASS 2.4kHz LOW PASS 2.4kHz
350w Continuous / 700w Peak
100w Continuous / 200w Peak
+/-12dB Gain for bass and treble
MALE XLR
19.2kg / 42.2lbs
SMPS
100V-120V and 200V-240V
4 x M8
35mm Pole-mount with lock screw
3 carry handles (one on each side, one on top)
Optional wall-mount bracket (WPB-2)
22.0kg / 48.4lbs
black
Injection Moulded Polypropylene
Yes
2 x TRS JACK, 2 x RCA AND 2 x FEMALE XLR
Power switch on / off mute
Amplifier shutdown, auto reset
Red LED
Green LED
Balanced
47KΩ Balanced
5V
-10dB
-40dB
455mm / 17.9”
762mm / 30.0”
1.2mm steel
693mm / 27.3”
262mm / 10.3"
401.8m / 15.1”
508mm / 20.0”
425mm / 16.7”
LED
Tourus-AX15-MBT
Active 15” 2-way Bi-Amplified
50-20kHz
97dB
130 dB
50.8mm / 2.0”
381mm / 15”
4Ω
25mm / 1”
Compression Driver
44.5mm / 1.75”
Titanium
8Ω
90° x 60°
HF Amp Class AB : LF Amp Class D HF Amp Class AB : LF Amp Class D
HI PASS 2.4kHz LOW PASS 2.4kHz
350w Continuous / 700w Peak
100w Continuous / 200w Peak
+/-12dB Gain for bass and treble
MALE XLR
19.2kg / 42.2lbs
SMPS
100V-120V and 200V-240V
4 x M8
35mm Pole-mount with lock screw
3 carry handles (one on each side, one on top)
Optional wall-mount bracket (WPB-2)
22.0kg / 48.4lbs
black
Injection Moulded Polypropylene
Yes
2 x TRS JACK, 2 x RCA AND 2 x FEMALE XLR
Power switch on / off mute
Amplifier shutdown, auto reset
Red LED
Green LED
Balanced / BT / USB
47KΩ Balanced
5V
-10dB
-40dB
455mm / 17.9”
762mm / 30.0”
1.2mm steel
693mm / 27.3”
262mm / 10.3"
401.8m / 15.1”
508mm / 20.0”
425mm / 16.7”
LED

2020
Wharfedale Pro products are warranted of manufacturing or material defects for a period
of one year from the original date of purchase. In the event of malfunction, contact your
authorised Wharfedale Pro dealer or distributor for information.
Please be aware that the warranty details may differ from country to country. Contact your
dealer or distributor for information (available at www.wharfedalepro.com). These terms do
not infringe your statutory rights.
September 2020
