Whirlpool X05002X0 User manual

ROPER”
UseAndCare
PART NO. 1159417 Rev. A
A Note to You ................. 2
Air Conditioner
Safety .............................. 3
Parts and Features ........ 4
Operating Your
Air Conditioner .............. 5
Caring For Your
Air Conditioner .............. 7
Troubleshooting .......... 10
Requesting
Assistance
or Service ...................., 11
Index ............................m
15
Warranty ....................... 16
I-800-44-ROPER
Call us with questions or comments.
AIR CONDITIONER
“h5
MODELS: X05002X0 X07002X0

A Note To You
Thank you for buying a ROPER@ appliance.
ROPER appliances give you all the functionality of name brand appliances at a value price.
To ensure you enjoy years of trouble-free operation, we developed this Use and Care Guide.
It contains valuable information about how to operate and maintain your appliance properly
and safely. Please read it carefully. Also, please complete and mail the Ownership Registra-
tion Card provided with your appliance. This card helps us notify you about any new informa-
tion on your appliance.
Please record your model’s information.
Whenever you call to request servioe on
Model Number
your appliance, you need to know your
complete model number and serial number.
Serial Number
You can find this information on the model
Purchase Date
and serial number label (see diagram on
page 4 for location of label).
Dealer Name
Please also record the purchase date of
your appliance and your dealer’s name,
address, and telephone number.
Dealer Address
Dealer Phone
Keep this book and the sales slip together in a safe place for
future reference.
WITH QUESTIONS OR COMMENTS
2

_ .

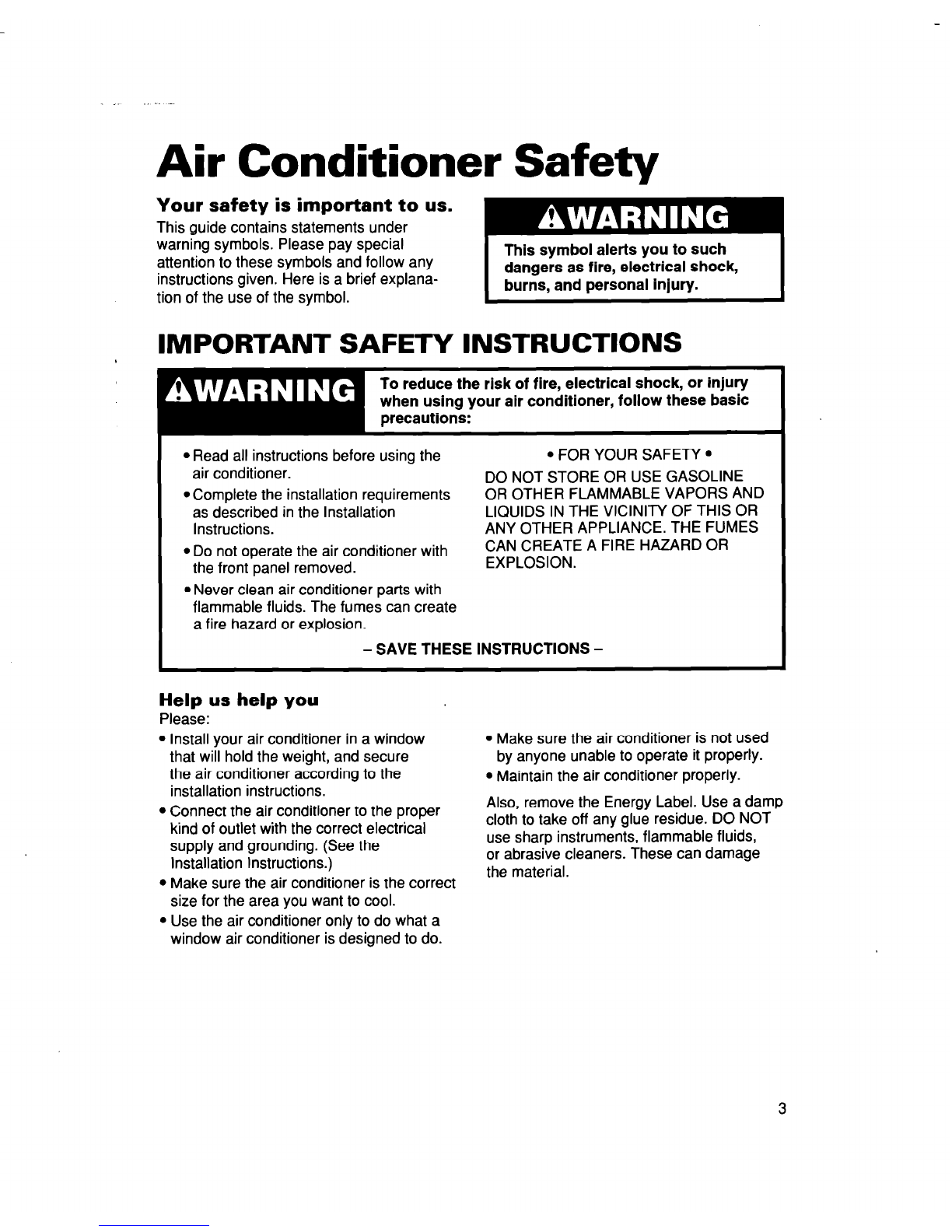

Air Conditioner Safety
Your safety is important to us.
This guide contains statements under
warning symbols. Please pay special
attention to these symbols and follow any
instructions given. Here is a brief explana-
tion of the use of the symbol.
This symbol alerts you to such
dangers as fire, electrical shock,
burns, and personal injury.
IMPORTANT SAFETY INSTRUCTIONS
l Read all instructions before using the . FOR YOUR SAFETY l
air conditioner. DO NOT STORE OR USE GASOLINE
@Complete the installation requirements OR OTHER FLAMMABLE VAPORS AND
as described in the Installation LIQUIDS IN THE VICINITY OF THIS OR
Instructions. ANY OTHER APPLIANCE. THE FUMES
l Do not operate the air conditioner with CAN CREATE A FIRE HAZARD OR
the front panel removed. EXPLOSION.
l Never clean air conditioner parts with
flammable fluids. The fumes can create
a fire hazard or explosion.
- SAVE THESE INSTRUCTIONS -
Help us help you
Please:
l Install your air conditioner in a window l Make sure the air conditioner is not used
that will hold the weight, and secure by anyone unable to operate it properly.
the air conditioner according to the l Maintain the air conditioner properly.
. . .. .. . _.
rnstallatron rnstructrons.
l Connect the air conditioner to the proper Also, remove the Energy Label. Use a damp
kind of outlet with the correct electrical cloth to take off any glue residue. DO NOT
supply and grounding. (See the use sharp instruments, flammable fluids,
Installation Instructions.) or abrasive cleaners. These can damage
l Make sure the air conditioner is the correct the material.
size for the area you want to cool.
l Use the air conditioner only to do what a
window air conditioner is designed to do.
3

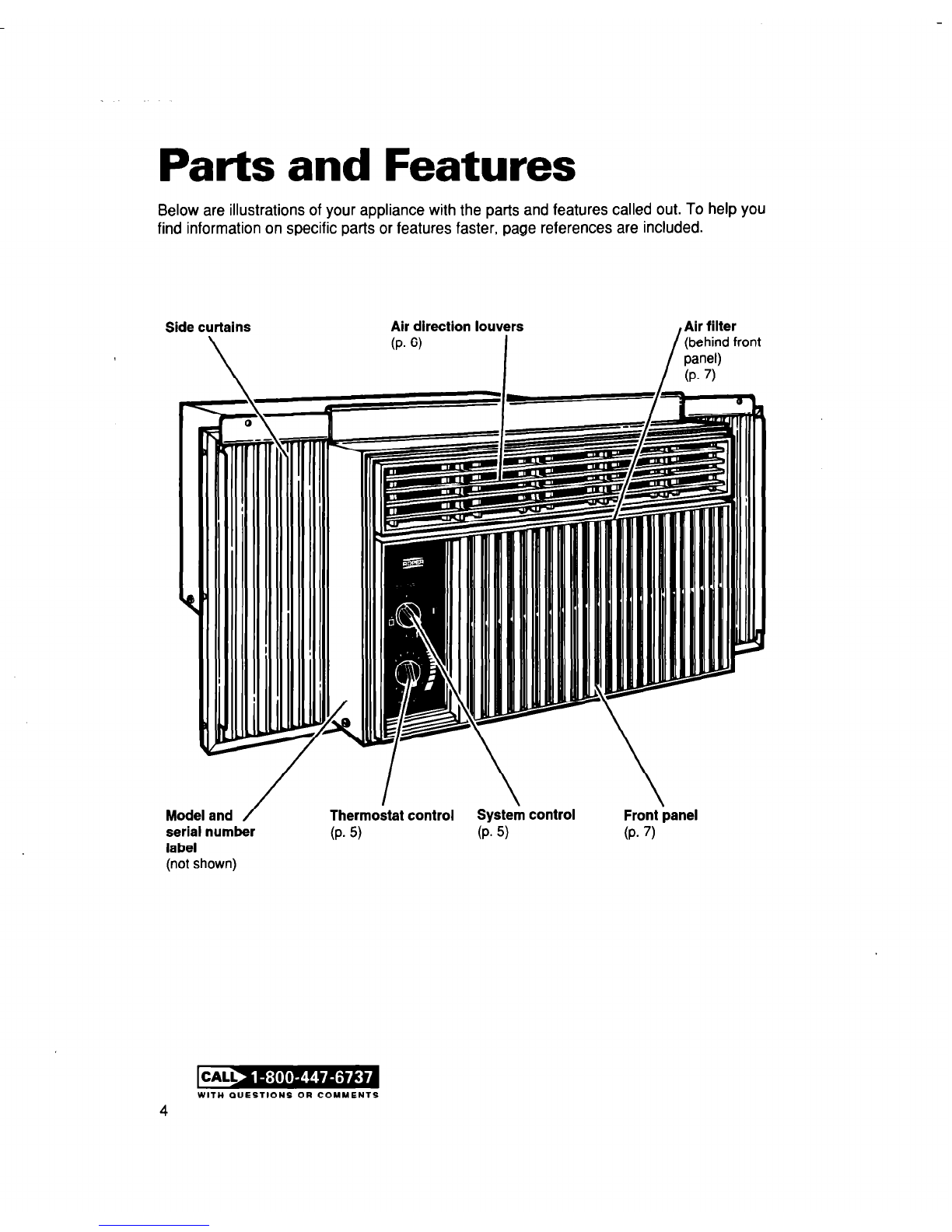

Parts and Features
Below are illustrations of your appliance with the parts and features called out. To help you
find information on specific parts or features faster, page references are included.
Side curtains Air direction louvers
\
(P.6) I
I Air filter
(behind front
Model and /
serial number
label
(not shown)
Thermostat control System control
(P.5) (P.5)
Front bane1
(P.7)
WITH QUESTIONS OR COMMENTS
4

Operating Your Air
Conditioner
To obtain the best possible results from your air conditioner, it is important that you operate it
properly. This section tells you how to set the controls and how to direct the cooled air.
Starting your air conditioner
Fire Hazard
Do not use an extension cord.
Doing so can result in death, fire, or
electrical shock.
1. Set the System Control to the
desired setting.
LO COOL - for sleeping comfort
Hi COOL - for maximum cooling
FAN ONLY -to circulate room air
without cooling it
2. Turn the Thermostat Control to number
6 (mid setting). You can adjust the air
conditioner’s cooling performance by
setting the Thermostat Control to a higher
number for more cooling or to a lower
number for less cooling. Experiment to
find the setting(s) that suits you best.
IMPORTANT: If you turn the air condi-
tioner off, or if the compressor turns off
when you lower the Thermostat Control,
wait at least three minutes before turning
the air conditioner back on. If you don’t
wait, you may blow a fuse or trip a
circuit breaker.
Electrical Shock Hazard
Plug into a grounded 3-prong outlet.
Do not remove ground prong.
Failure to follow these instructions
can result in death or electrical shock.
5

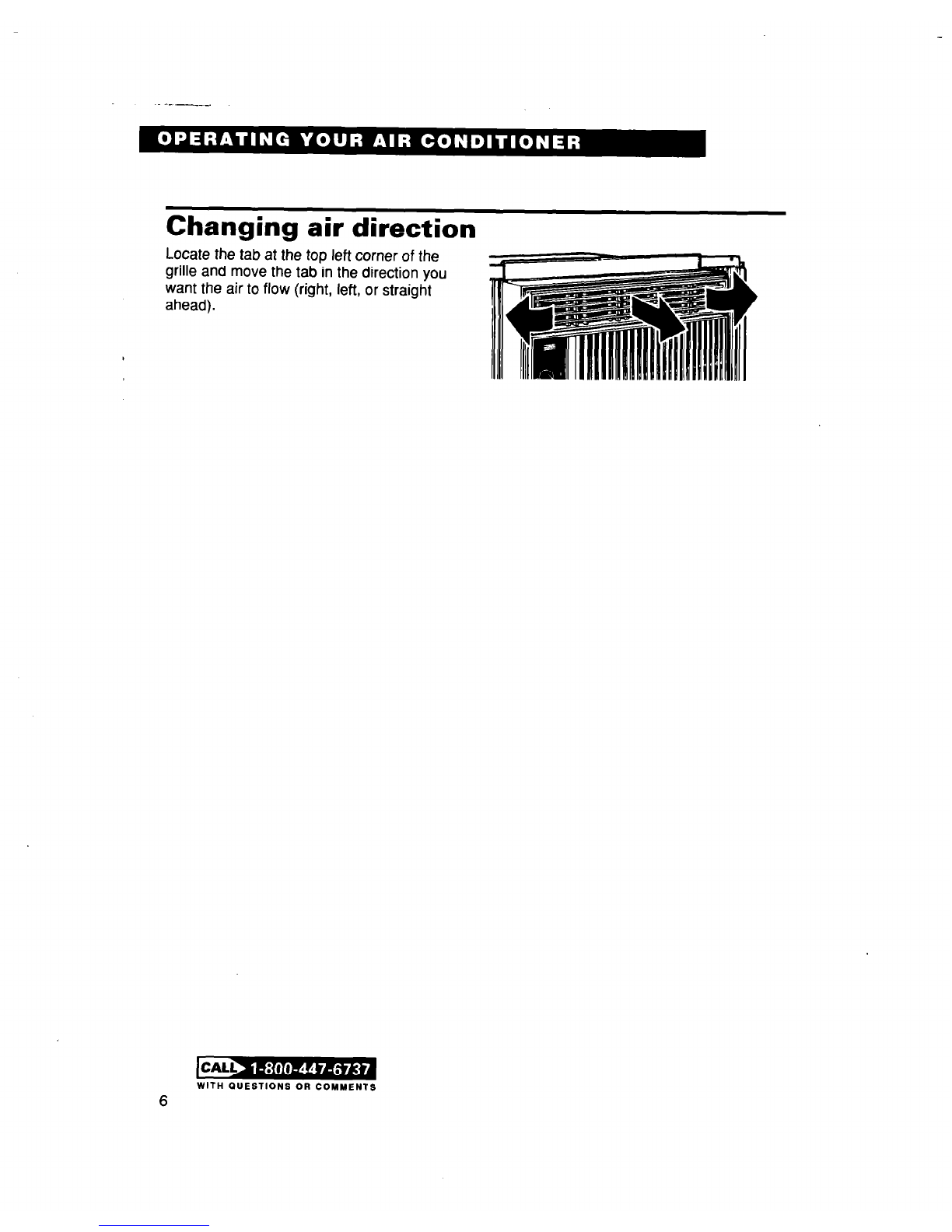

Changing air direction
Locate the tab at the top left corn
grille and move the tab in the direction you
want the air to flow (right, left, or straight
ahead).
WITH QUESTIONS OR COMMENTS
6

Caring For Your Air
Conditioner
Proper care of your air conditioner helps ensure longer life of the unit and lower operating
costs. Follow these instructions carefully. Call your authorized servicing dealer for an
annual checkup.
Cleaning the front panel and air filter
Explosion Hazard
Unplug power cord from outlet
before cleaning air conditioner.
Use only nonflammable cleaners.
Failure to follow these instructions
can result in death, explosion, fire,
or electrical shock.
1. Set System Control to OFF and discon-
nect power cord from outlet.
2. Remove the front panel from the unit for
cleaning. Press down at the top of the
front panel to release it from the top of
the cabinet.
3. Pull the top of the front panel toward you.
4. Lift front panel up and away from the
bottom spring clips.
5. Remove filter from back of front panel
by removing the elastic band that holds
it in place.
6. Clean the filter using a vacuum cleaner.
If filter is very dirty, wash it in warm
water and mild detergent. Air dry filter
thoroughly before replacing it. Do not
use a hot air dryer on the air filter.
continued on next page 7

._.---.-...
7. Clean the front panel with a soft cloth,
warm water, and a mild detergent. Rinse
and dry thoroughly.
8. Replace air filter in front panel and
replace the elastic band.
9. Wipe the control panel clean with a soft,
dry cloth.
10. Replace the front panel. Set bottom of
front panel on bottom spring clips. Then
press down on top edge of front panel
and push it onto unit until the tabs snap
into place.
11. Reconnect power cord to outlet.
Performing annual maintenance
Your air conditioner needs annual mainte-
nance to ensure steady, top performance
throughout the year. Call the service com-
pany recommended by your dealer to:
l Inspect and clean the coils and condensate
water passages.
l Check fan.
The compressor and fan motor are sealed
and need no oiling. The expense of an
annual inspection is the consumer’s
responsibility.
OR
If you are familiar with electrical appliances,
you can do the inspection and maintenance
yourself. If you choose to do so, follow
these steps:
1. Set System Control to OFF and discon-
nect air conditioner from power supply.
2. Remove air conditioner from window.
3. Press down on the top edge of the front
panel until it releases from the cabinet.
Pull front panel toward you. Lift up and
away from bottom spring clips.
Electrical Shock Hazard
Unplug power cord from outlet
before servicing.
Be sure no liquid gets into the
motor, electrical control box, or
compressor terminals.
Failure to follow these instructions
can result in death, electrical shock,
or serious injury.
Excessive Weight Hazard
Use 2 or more people to move and
install air conditioner.
Failure to do so can result in back or
other injury.
WITH OUESTIONS OR COMMENTS
8

4. Slide curtains out to their fullest width.
From the back side, remove the Phillips-
head screws (A) holding the curtains to
the cabinet.
5. Remove the slotted hex-head screws
(B) holding the top channel.
6. Remove the slotted hex-head screws
(C) on the sides of the cabinet.
7. Holding both sides of the cabinet,
carefully lift the cabinet off the base.
Watch out for the sharp metal fins on
the front and rear coils.
8. Wrap the motor, electrical control box,
and the compressor terminal box in
plastic film to make sure no water or
other liquid gets inside. Water or other
liquids could damage the insulation and
cause serious mechanical problems.
9. Clean and hose out the base, coils, and
condensate pans. Clean at leas? once a
year, or more often if the condenser
coils and pans collect dir?, sand, leaves,
insects, or algae. Also, clean if you
detect an odor coming from the air con-
ditioner. Do not use the water collected
in the air conditioner for drinking pur-
poses. It is not sanitary.
10. Remove plastic film from motor and
electrical parts.
11. Replace unit in the cabinet. Reattach
top channel and side curtains.
12. Reinstall unit in the window.
13. Replace the front panel.
14. Plug in the power cord.
NOTE: It is a good idea to wait 24 hours
before starting the unit again. This allows
time for all areas to dry thoroughly. The
water from rainfall or from normal operation
does not harm the components.
Saving energy
l Improve your home’s insulation. Seal
all doors and windows. Close the
fireplace flue.
l Close blinds or drapes on the sunny side
of the house. Add window awnings.
l Keep the air filter clean.
l Do not block the airflow from the air
conditioner with drapes or furniture.
l Ventilate the attic. High temperatures in
the attic add to the cooling load.
l Try not to use heat-producing appliances
during the hottest par? of the day.
l Turn lights and appliances off when
not needed.
l Keep heat registers and cool-air
returns closed.
l Use exhaust venting fans while cooking,
doing laundry, or bathing.
9

_.
Troubleshooting
Listed in the chart below are the most common problems consumers run into with their air
conditioners. Please read through this chart before calling for service. It could save you the
cost of a service call.
PROBLEM CHECK THE FOLLOWING
Air conditioner
won’t run
Is the unit plugged into a live circuit with proper voltage?
Has the time-delay fuse blown or circuit breaker tripped?
Is the System Control set to OFF?
Is the Thermostat Control set correctly?
Has the local power failed?
Unit blows
Are time-delay fuses being used?
fuses or trips
circuit breaker
Is an extension cord being used? Do not use an extension cord
with this or any other appliance.
Are you waiting three minutes before trying to restart the unit?
Unit turns on
Is the air filter clean?
and off
OR does not
cool the room
Are the coils clean (both inside evaporator and outside
condenser)?
Is the System Control set too low?
Is the Thermostat Control set too low?
Normal operating sounds
When your air conditioner operates nor-
mally, you will hear sounds such as:
l Pinging or clicking as water droplets hit
the condenser. Water droplets help cool
the condenser.
l Air movement from the fan, especially on
HI COOL setting.
l Clicks from the cooling cycle.
Sounds may also be caused by house
construction - such as vibration of the unit
due to wall construction or an unsteady
window mounting area.
WITH QUESTIONS OR COMMENTS
10

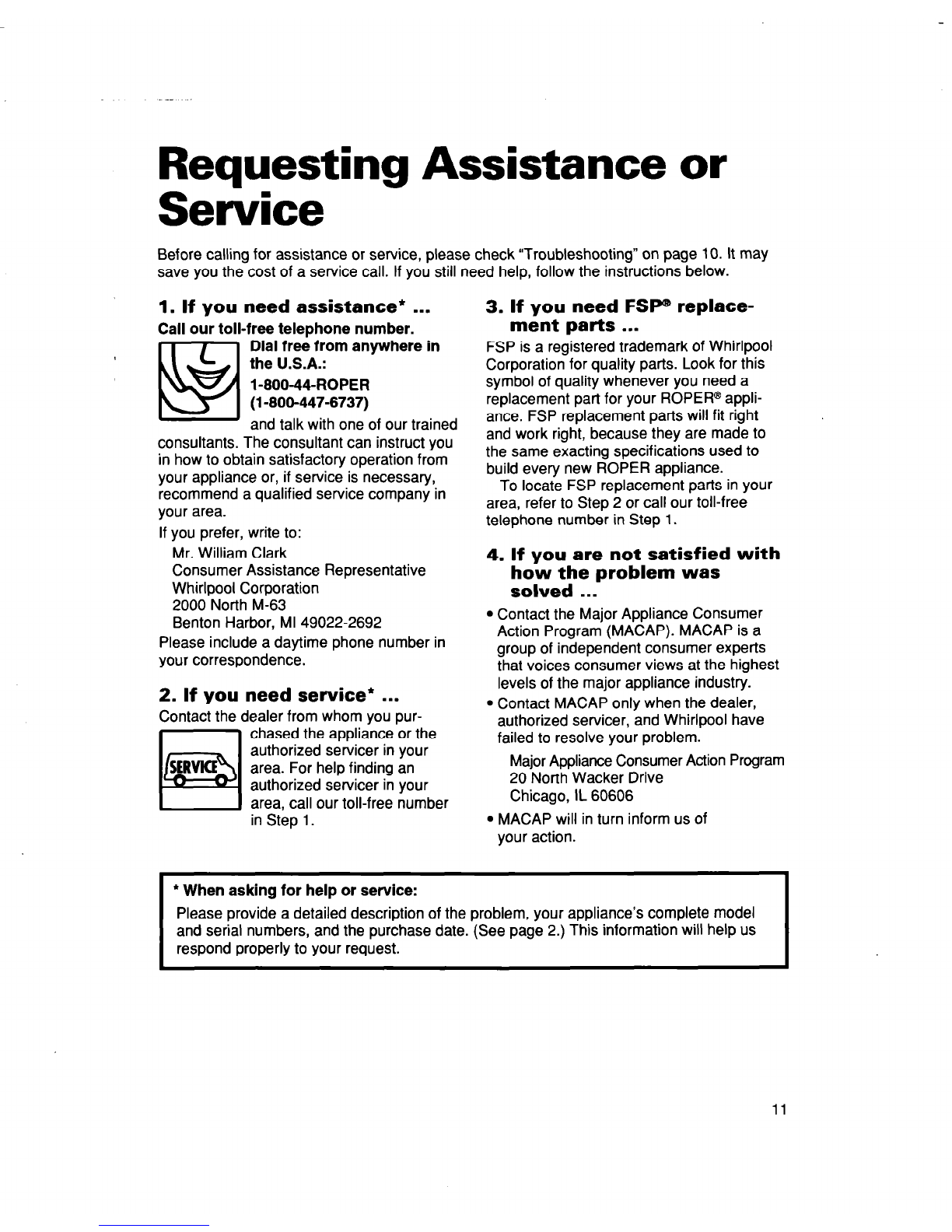

Requesting Assistance or
Service
Before calling for assistance or service, please check “Troubleshooting” on page 10. I?may
save you the cost of a service call. If you still need help, follow the instructions below.
1. If you need assistance* ...
Call our toil-free telephone number.
Dial fr& from anywhere in
l-800-44-ROPER
(l-800-447-6737)
1 -
’ and talk with one of our trained
consultants. The consultant can instruct you
in how to obtain satisfactory operation from
your appliance or, if service is necessary,
recommend a qualified service company in
your area.
If you prefer, write to:
Mr. William Clark
Consumer Assistance Representative
Whirlpool Corporation
2000 North M-63
Benton Harbor, Ml 49022-2692
Please include a daytime phone number in
your correspondence.
2. If you need service* ...
Contact the dealer from whom you pur-
chased the appliance or the
authorized servicer in your
area. For help finding an
authorized servicer in your
area, call our toll-free number
in Step 1.
3. If you need FSP replace-
ment parts ...
FSP is a registered trademark of Whirlpool
Corporation for quality parts. Look for this
symbol of quality whenever you need a
replacement part for your ROPER@ appli-
ance. FSP replacement parts will fit right
and work right, because they are made to
the same exacting specifications used to
build every new ROPER appliance.
To locate FSP replacement parts in your
area, refer to Step 2 or call our toll-free
telephone number in Step 1.
4. If you are not satisfied with
how the problem was
solved ...
l Contact the Major Appliance Consumer
Action Program (MACAP). MACAP is a
group of independent consumer experts
that voices consumer views at the highest
levels of the major appliance industry.
l Contact MACAP only when the dealer,
authorized servicer, and Whirlpool have
failed to resolve your problem.
Major Appliance Consumer Action Program
20 North Wacker Drive
Chicago, IL 60606
l MACAP will in turn inform us of
your action.
+When asking for help or service:
Please provide a detailed description of the problem, your appliance’s complete model
and serial numbers, and the purchase date. (See page 2.) This information will help us
respond properly to your request.
11

Index
This index is alphabetical. Look for the word or phrase you are interested in, then look for the
page number.
TOPIC PAGE
AIRFLOW
Directing .................................................. 6
CLEANING
Air filter .................................................... 7
Front panel .............................................. 7
FEATURES/PARTS ................................... 4
MAINTENANCE
Annual, performing .................................. 6
PARTS/FEATURES ................................... 4
SAFETY ..................................................... 3
SERVICE
Parts.. .................................................... 11
Requesting ............................................ 11
STARTING AIR CONDITIONER ................ 5
TROUBLESHOOTING ............................. 10
WARRANTY.. ........................................... 16
15

ROPER”
Room Air Conditioner
Warranty
LENGTH OF WARRANTY
FULL ONE-YEAR
WARRANTY
(from date of purchase)
FULL FIVE-YEAR
WARRANTY
(from date of purchase)
WE WILL NOT PAY FOR
WE WILL PAY FOR
FSP@replacement parts and repair labor to correct defects
in materials or workmanship. Service must be provided by
an authorized Roper service company.
FSP replacement parts and repair labor for the sealed air
conditioner system (compressor, evaporator, condenser,
drier or connecting tubing) which we find to be defective in
materials or workmanship. Service must be provided by an
authorized Roper service company.
A. Service calls to:
1. Correct the installation of your air conditioner.
2. Instruct you how to use your air conditioner.
3. Replace house fuses or correct house wiring.
B. Repairs when your air conditioner is used in other than normal, single-family
household use.
C. Pickup and delivery. Your air conditioner is designed to be repaired in the home.
D. Damage to your air conditioner caused by accident, misuse, fire, flood, acts of God,
or use of products not approved by us.
E. Repairs to parts or systems caused by unauthorized modifications made to
the appliance.
6/94
This ROPER appliance is warranted by Whirlpool Corporation. Under no circumstances shall
it be liable under this warranty for incidental or consequential damages. Some states do not
allow the exclusion or limitation of incidental or consequential damages, so this exclusion or
limitation may not apply to you. This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
Outside the United States, a different warranty may apply. For details, please contact
your authorized Roper dealer.
If you need service, first see the “Troubleshooting” section of this book. After checking
“Troubleshooting,” additional help can be found by checking the “Requesting Assistance
or Service” section, or by calling our toll-free telephone number, l-80044-ROPER
(l-800-447-6737), from anywhere in the U.S.A.
PART NO. 1159417 Rev. A
0 1995 Whirlpool Corporation @ Registered Trademark of Whirlpool. U.S.A. 11/95
Printed in U.S.A.
