INSTALLATION INSTRUCTIONS FOR ICE MAKER PART NO. W10190965
1. Unplug refrigerator or disconnect power.
2. Remove defective ice maker from freezer. The ice
maker may be held in place by three screws (Figure 1)
or by two clips and one screw (Figure 2).
IS025 (2/18)
To avoid risk of electrical shock, personal injury or death; disconnect electrical power before servicing.
WARNING! Electrical Shock Hazard
3. When replacing certain ice makers there will be a
mounting plate as an intregal part of the defective unit.
This must be removed and attached to the W10190965
(Figure 3).
FIG. 1 FIG. 2
4. Install lower bracket using the one on the defective unit
with a self tapping screw (Figure 4).
5. If the harness from the defective unit has a thermal
fuse, as shown in Figure 5A, reuse the harness. If the
harness does not have a thermal fuse or the thermal
fuse is blown, as shown in Figure 5B, you must
purchase a new wiring harness.
6. Remove knock-out from end as indicated in Figure 6.
FIG. 3
FIG. 4
FIG. 5A
FIG. 5B
Thermal fuses
7. Mount with screws removed from the defective unit.
Plug harness into the receptacle in freezer and mount
unit.
8. Check position of the inlet tube and position properly.
Make sure the shut off is in the down position.
9. Plug in refrigerator or reconnect power. It may take up
to 24 hours for your ice maker to begin producing ice.
FIG. 6

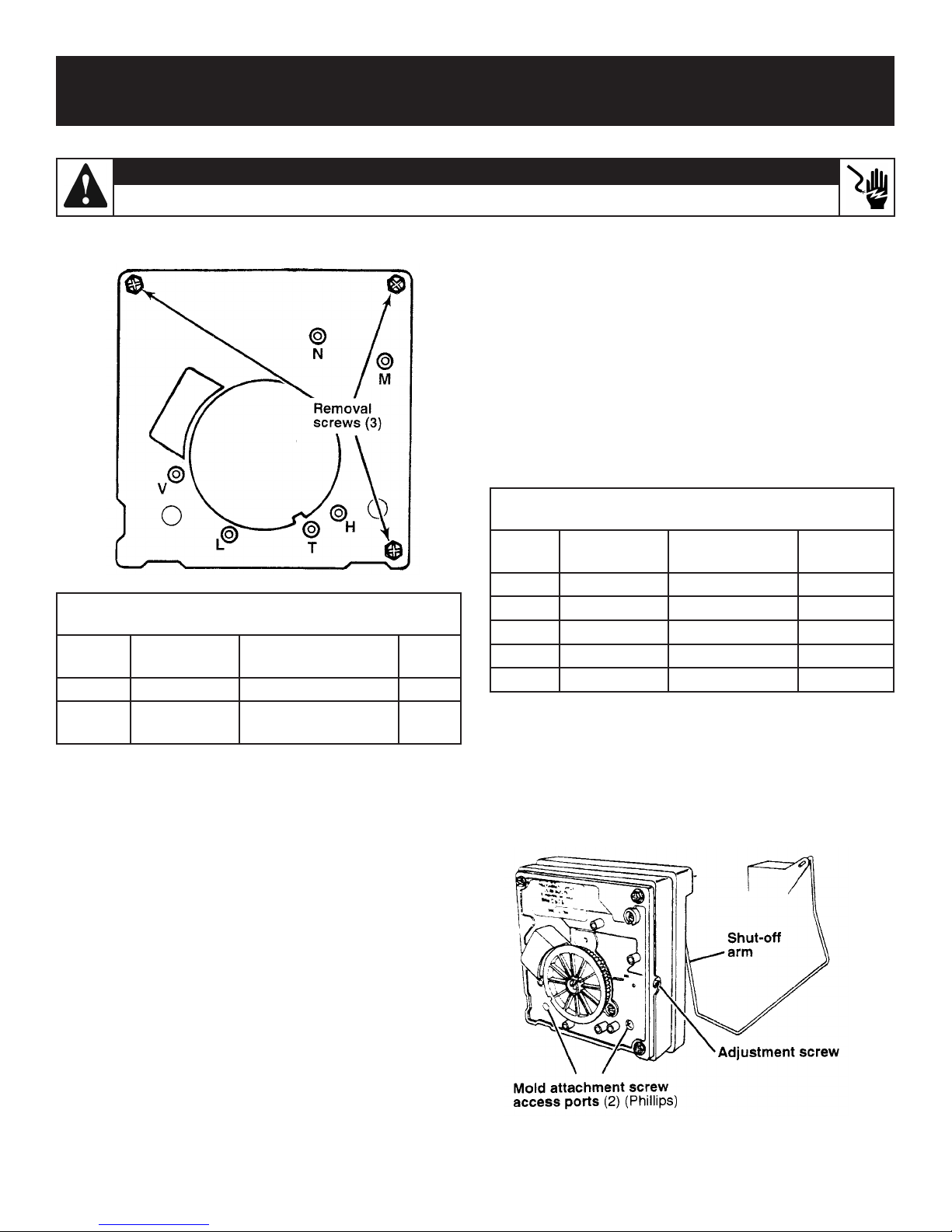

MODULE TEST POINTS Ejector blades or stripper: Remove module, motor, and
assembly. When reinstalling ejector blades, realign “D”
coupling with module cam.
SPECIFICATIONS
Mold heater – 185 watts, 72 ohms
Thermostat – Close 17˚ ±3˚
(Bimetal) Open 32˚ ±3˚
Water fill – 140 cc, 7.5 sec.
Motor – 1.5 watts, 8800 ohms
Module – Stamped circuit, plug-in connectors
Cycle – One revolution (ejects and water fill)
For 120 volt model
IS026 (2/18)
SERVICE SHEET FOR MODULAR ICE MAKER
To avoid risk of electrical shock, personal injury or death; disconnect electrical power before servicing.
WARNING! Electrical Shock Hazard
Unplug refrigerator or disconnect power.
SERVICE PROCEDURES
Cover: Pull water adjustment knob first and snap off
cover. Index knob and reinstall in same position for same
water fill.
Module, motor, and support assembly: Insert Phillips
driver in access ports in module. Loosen both screws.
Disconnect shut-off arm. Pull mold from support assembly.
Shut-off arm: Pull out from support. Reinstall to full depth.
Mold and heater: Remove module, motor, and support
assembly.
Bimetal: Remove module, motor, and support assembly.
Pull out retaining clips with bimetal.
Fill cup: Remove module, motor, and support assembly.
Remove ejector blades and shut-off arm. Pull fill cup from
mold.
Module ohmmeter checks
(no power to ice maker and ejector blades in park)
Test
Points Component Module Position Ohms
L - H Mold heater Attached to support 72
L - M Motor Disconnect from
support 8800
Module voltage checks with meter or test light
(power to ice maker)
Test
Points Component Line Voltage O Volts
L - N Module Power OK No power
T - H Bimetal Open Closed
L - H Heater On Off
L - M Motor On Off
N - V Water Valve On Off
WATER LEVEL ADJUSTMENT
Turning the screw clockwise decreases the water fill.
• 1/2 turn equals 20 cc or 1.2 sec.
• Full turn equals 40 cc or 2.4 sec.
• Maximum adjustment is one full turn in either direction.
Additional rotation could damage module.
Plug in refrigerator or reconnect power.
