INSTALLATION INSTRUCTIONS
AND OWNER'S MANUAL
LOG SET FOR UNVENTED
GAS LOG HEATER
OR
VENTED DECORATIVE APPLIANCE
MODELS
LS-18RS-1/LS-18RSS-1
LS-24RS-2/LS-24RSS-1
LS-30RS-2/LS-30RSS-1
WARNING: If not installed, operated and maintained
in accordance with the manufacturer's instructions,
this product could expose you to substances in fuel
or from fuel combustion which can cause death or
serious illness.
Log sets comply with ANSI Z21.11.2 Unvented Heaters
and also comply with ANSI Z21.60 Decorative Vented
Appliances for Solid Fuel Burning Fireplaces. State or
local codes may only allow operation of log sets in a
vented conguration. Check your state or local codes.
The White Mountain Log Collection
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
SASSAFRAS and
SASSAFRAS SUPER SIZE
GAS-FIRED
WARNING: If the information in these instructions
are not followed exactly, a re or explosion may
result causing property damage, personal injury or
loss of life.
— Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
re department.
— Installation and service must be performed by a
qualied installer, service agency or the gas sup-
plier.
The QR Codes below provide a link to our helpful
“how-to” videos. To get started, scan the code with
your smart phone or tablet.
Sassafras Log Assembly Sassafras Super Size
Log Assembly

28189-2-0315Page 2
Section Page
Important Installation Guidelines .................................................................................................... 3
General Information........................................................................................................................ 3
Requirements for Canada .............................................................................................................. 4
Sassafras Super Size Log Placement............................................................................................ 5
Ember Placement LS-18RSS-1 Photos ......................................................................................... 6
Ember Placement LS-24RSS-1 Photos ......................................................................................... 7
Ember Placement LS-30RSS-1 Photos ......................................................................................... 8
Sassafras Log Placement .............................................................................................................. 9
Ember Placement LS-18RS Photos ............................................................................................. 10
Ember Placement LS-24RS Photos ............................................................................................. 11
Ember Placement LS-30RS Photos ............................................................................................. 12
Parts Lists and Parts Views.......................................................................................................... 13
Master Parts Distributor List ......................................................................................................... 14
How to Order Repair Parts ........................................................................................................... 14
Appliance Service History ............................................................................................................ 15
TABLE OF CONTENTS

28189-2-0315 Page 3
Proper Log Placement

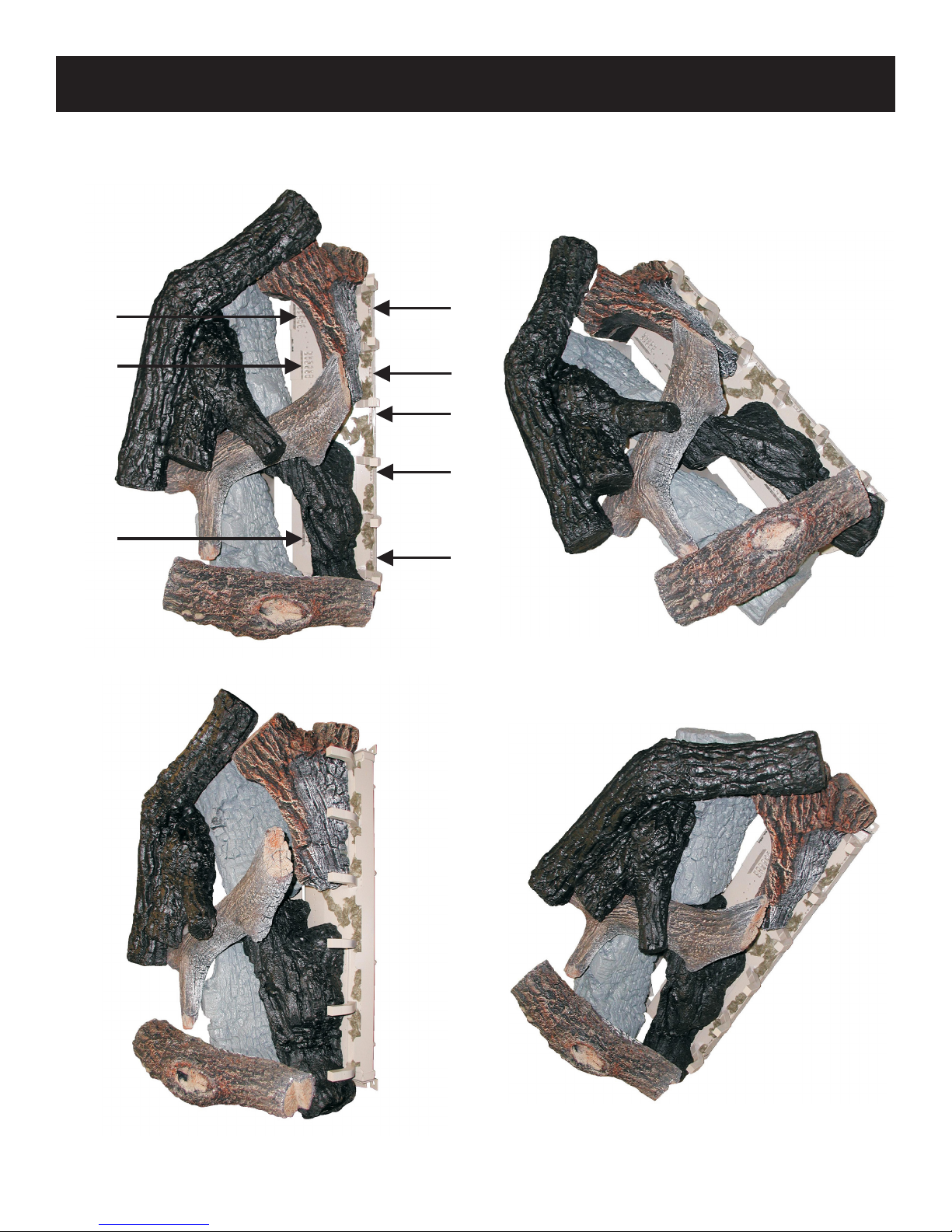

Log placement is critical to proper burner performance. Logs must
be correctly positioned onto the burner. The photos in this manual
show the proper pinned position for logs on this set. Owners need
to be shown proper log placement and instructed not to move the
logs.
Logs must t rmly onto the burner when positioned as shown in
the photos. Malformed logs or logs with sloppy pin holes must be
replaced.

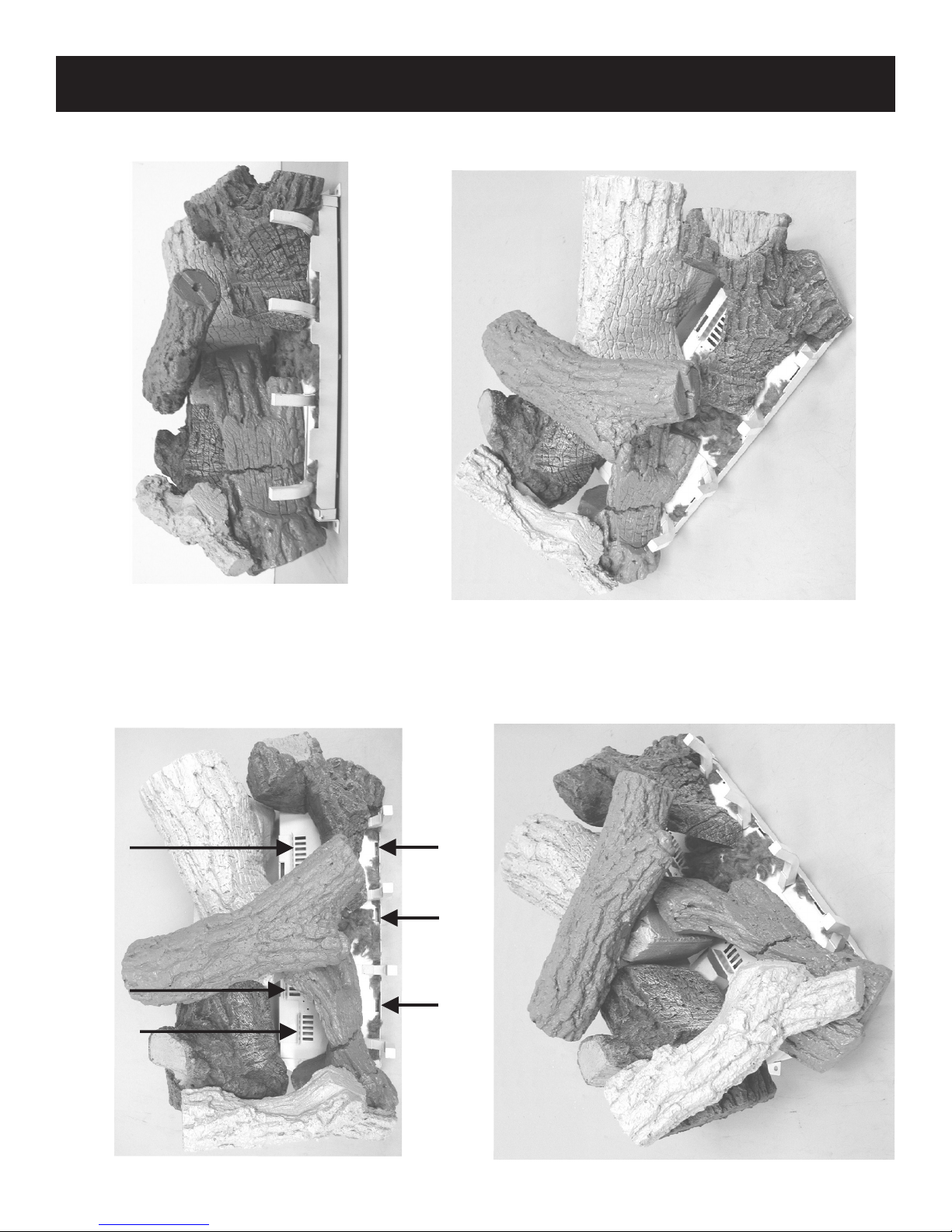

Proper Placement of Rock Wool and Decorative Lava Rock
Rock wool can be added to burners for a glowing ember effect. It
must be positioned only on the front portion of the burner. The photos
in this manual show the proper placement of rock wool.
Decorative lava rock or small wood pieces should never be placed
on the burner. These items are only for placement on the oor of
the replace or rebox.
Proper Primary Airow into Burner
For proper burner operation and ame appearance, the ow of
primary air into the venturi tube, located on the rear of the burner,
must not be reduced. This ow of air is reduced if dirt, lint or other
obstructions build-up around or inside the venturi. Any obstruction
in the venturi tube area must be removed. The ow of air into the
venturi is also reduced if the gas orice isn’t centered in the venturi
inlet and/or is not aligned with the venturi. Any misalignment of the
burner orice may be corrected by bending the shutter cap holding
the orice to the inlet of the venturi tube.
Ceiling Fans, Portable Fans or Logs Installed Near Cold Air
Returns
Ceiling fans or oscillating oor type fans need to be monitored
during the operation of vent-free logs. If the air blows directly into
the ame causing it to impinge on the log set, or rebox, it should be
turned off or redirected. Ceiling fans could be reversed to possibly
eliminate ame impingement, and the oor fan could be redirected.
Upon installation, be aware of any cold air returns or vents in the
proximity of the log set. Any draft created around a vent-free log
set can cause the ame to impinge on the log and create a sooting
situation.
WARNING: Do not allow fans to blow directly into the replace.
Avoid any drafts that alter burner ame patterns.
WARNING: Do not use a blower insert, heat exchanger insert or
other accessory not approved for use with this heater.
Candles
Avoid the use of scented or decorative candles while the log set is in
operation. Candles produce a residue in the air that creates a soot like
substance. Burning candles while the log set is operating magnies
the problem. It should be noted that candles, in general, produce
soot. The amount of time burned and the quantity of candles burned
will determine the amount of soot produced and deposited.
Make Owners Aware of Proper Log Set Operation
Properly installed and properly maintained log sets do not deposit
soot on the logs. If users see soot appear on a log, call for service.
Do not continue to operate the log set.
Sunken Fireplace
If installing this unit into a sunken replace, you must raise the oor
to insure adequate airow and guard against sooting. Raise replace
oor using a non-combustible material, which is secure.
Glass Doors
Make sure that glass doors are open during all operations of the
logset. The opening of the glass door frame should be the dimension
used for the minimum front opening of the rebox.
Wood Burning Fireplaces
The interior of the rebox and the chimney should be cleaned and
free of all creosote before installing a gas burning log set. Creosote
will soften when heated and can drop on the logset causing odors
and possibly sooting.
WARNING: Before installing in a solid-fuel burning replace, the
chimney ue and rebox must be cleaned of soot, creosote, ashes
and loose paint by a qualied chimney cleaner.
Qualied Installing Agency
Installation and replacement of gas piping, gas utilization equip-
ment or accessories and repair and servicing of equipment shall be
performed only by a qualied agency. The term "qualied agency"
means any individual, rm, corporation, or company that either in
person or through a representative is engaged in and is responsible
for (a) the installation, testing, or replacement of gas piping or (b) the
connection, installation, testing, repair, or servicing of equipment;
that is experienced in such work; that is familiar with all precautions
required, and that has complied with all the requirements of the
authority having jurisdiction.
The installation must conform with local codes or, in the absence
of local codes, with the National Fuel Gas Code, ANSI Z223.1/
NFPA54.*
*Available from the American National Standards Institute, Inc. 11 West
42nd St., New York, N.Y. 10018.
State of Massachusetts: The installation must be made by a
licensed plumber or gas tter in the Commonwealth of Massa-
chusetts.
Sellers of unvented propane or natural gas-red supplemental
room heaters shall provide to each purchaser a copy of 527
CMR 30 upon sale of the unit.
In the State of Massachusetts, unvented propane and natural
gas-red space heaters shall be prohibited in bedrooms and
bathrooms.
IMPORTANT INSTALLATION GUIDELINES
GENERAL INFORMATION

28189-2-0315Page 4
REQUIREMENTS FOR CANADA
This unit cannot be installed in a UNVENTED application,
this unit can only be installed as a VENTED application
with these requirements.
IMPORTANT SAFETY INFORMATION
This unit complies with ANSI Z21.60and CGA 2.26 Decora-
tive Gas Appliances For Installation In Solid Fuel Burning
Fireplaces. Do not burn wood or solid fuels in a replace
where a decorative gas log set is installed. This appliance is
for installation only in a solid fuel burning replace, masonry
replace or manufactured replace.
Warning: Any modication to this gas log set or to controls
can be dangerous. Improper installation or use of the gas
log set can cause serious injury or death from re, burns,
explosion or carbon monoxide poisoning.
1. Please follow all local codes regarding installation,
combustion and ventilation air or in the absence of
local codes follow the National Fuel Gas Code ANSI
Z223.1(U.S. installation), or CAN/CGA-B149, Installa-
tion Code (Canada installation).
2. Proper installation, burner pan location and log place-
ment is important to achieve optimum look and perfor-
mance of your gas log set. The logs have been designed
for easy location and placement on the grate and must
be followed for proper operation.
3. Do not operate this log set with glass doors in the closed
position. A replace screen must be in place when the
log set is burning. Adequate combustion air must be
provided for proper venting. All ames should go up and
out the top of the rebox into the ue vent. If any ames
oat or curl forward into the room do not operate appli-
ance. Check for an open ue and adequate combustion
air into the room. A damper clamp must be installed on
the rebox damper to maintain an open ue vent condi-
tion. Refer to replace owners manual INSTALLING
DAMPER CLAMP section.
4. Young children must be carefully supervised when they
are in the same room as the gas log while in operation.
Do not place stockings, clothing or any ammable ma-
terial above or near the replace.
5. Do not substitute or use materials other than those sup-
plied for use with the log set.
6. Also refer to IMPORTANT SAFETY INFORMATION in
the replace Owner's Manual.
WARNING; DO NOT OPERATE THIS GAS LOG SET
WITH GLASS DOORS CLOSED
• Clothing or other ammable material should not be
placed on or near the appliance.
• Do not place trash or other articles on the log set during
operation.
• During manufacturing, fabricating and shipping, various
components of this appliance are treated with certain
oils, lms or bonding agents. These bonding agents
are not harmful but may produce annoying smoke and
smells as they are burned off during initial operation of
the appliance. This is a normal temporary occurrence.
A window should be opened during the initial bake out
period.
• Keep burner and control compartment clean.
• WARNING: Before installing in a solid fuel burning re-
place, the chimney ue and rebox must be cleaned
of soot, creosote, ashes and loose paint by a qualied
chimney cleaner.
• Installation and repair should be done by a qualied
service person. The appliance should be inspected
before use and at least annually by a qualied service
person. More frequent cleaning may be required due to
excessive lint from carpeting, bedding materials, etc. It
is imperative that control compartments, burners and
circulating air passageways of the appliance be kept
clean.
• Do not put anything around the replace that will ob-
struct the ow of ventilation air.
• Do keep the appliance area clear and free from com-
bustible material, gasoline and other ammable vapors
and liquids.
• A yearly examination and cleaning of the venting system
of the solid-fuel burning replace must be performed by
a qualied agency.
• Do make a periodic visual check of pilot and burners.
Clean and replace damaged parts.
• Do not use this appliance if any part has been under
water. Immediately call a qualied service technician
to inspect the appliance and to replace any part of the
control system and any gas control which has been un-
der water.
• Never burn solid fuels in replace where a gas log set is
installed.
• This unit complies with ANSI Z21.60 Decorative Vented
Appliances for Solid Fuel Burning Fireplaces. State or
local codes may only allow operation of this appliance
in a vented conguration. Check your state or local
codes.

28189-2-0315 Page 5
PROPER INSTALLATION SEQUENCE:
LS-(18, 24, 30)RSS
(Figure 1)
1. Place left, rear (#1) log onto left, rear pin on rear log support.
2. Place right, rear (#2) log onto right, rear pin on rear log
support.
3. Place left, front (#3) log onto two (2) left, front pins on burner
pan.
4. Place right, front (#4) log onto two (2) right, front pins on burner
pan.
5. Insert boss on left, top (#5) log into recess on left side of left,
rear (#1) log and onto left side of left, front (#3) log.
6. Insert boss on center, top (#6) log into recess on right side of
left, front (#3) log.
7. Insert round boss and square recess on (#7) right, top log into
recess and boss on center, top (#6) log.
8. Compare the completed log installation with the appropriate
photo from pages 6 through 8. Review previous steps to make
any necessary adjustments.
9. Log placement is completed.
Attention: Do not use Figure 1 to order replacement logs. Refer to
Page 13 Parts List and Parts View to order logs for your appropriate
model number.
Apply loose material (glowing embers) per appropriate Installation
Instructions and Owner's Manual. Replacement of loose material
(glowing embers) must be purchased from Empire Comfort Systems,
Inc. Application of excess loose material (glowing embers) may
adversely affect performance of the heater.
WARNING: All previously applied loose material must be removed
prior to reapplication.
Replacement Loose Material (glowing embers) Part Number
LS-18RSS 15999
LS-24RSS 15970
LS-30RSS 15970
Platinum Bright Embers PE20-1
Note: A single layer of embers is to be used when applying Platinum
Bright Embers (alone or in combination with production embers)
to the burner.
Before you begin: Do not, handle these logs with your bare hands! Always wear gloves to prevent skin irritation. After handling logs, wash
your hands gently with soap and water.
All Logs
The positioning of the logs is critical to the safe and clean operation of this heater. Sooting and other problems may result if the logs are
not properly and rmly positioned in the appliance.
Refer to Figure 1 for the following warning.
Warning: Failure to position the parts in accordance with this diagram or failure to use only parts specically approved with this
appliance may result in property damage or personal injury.

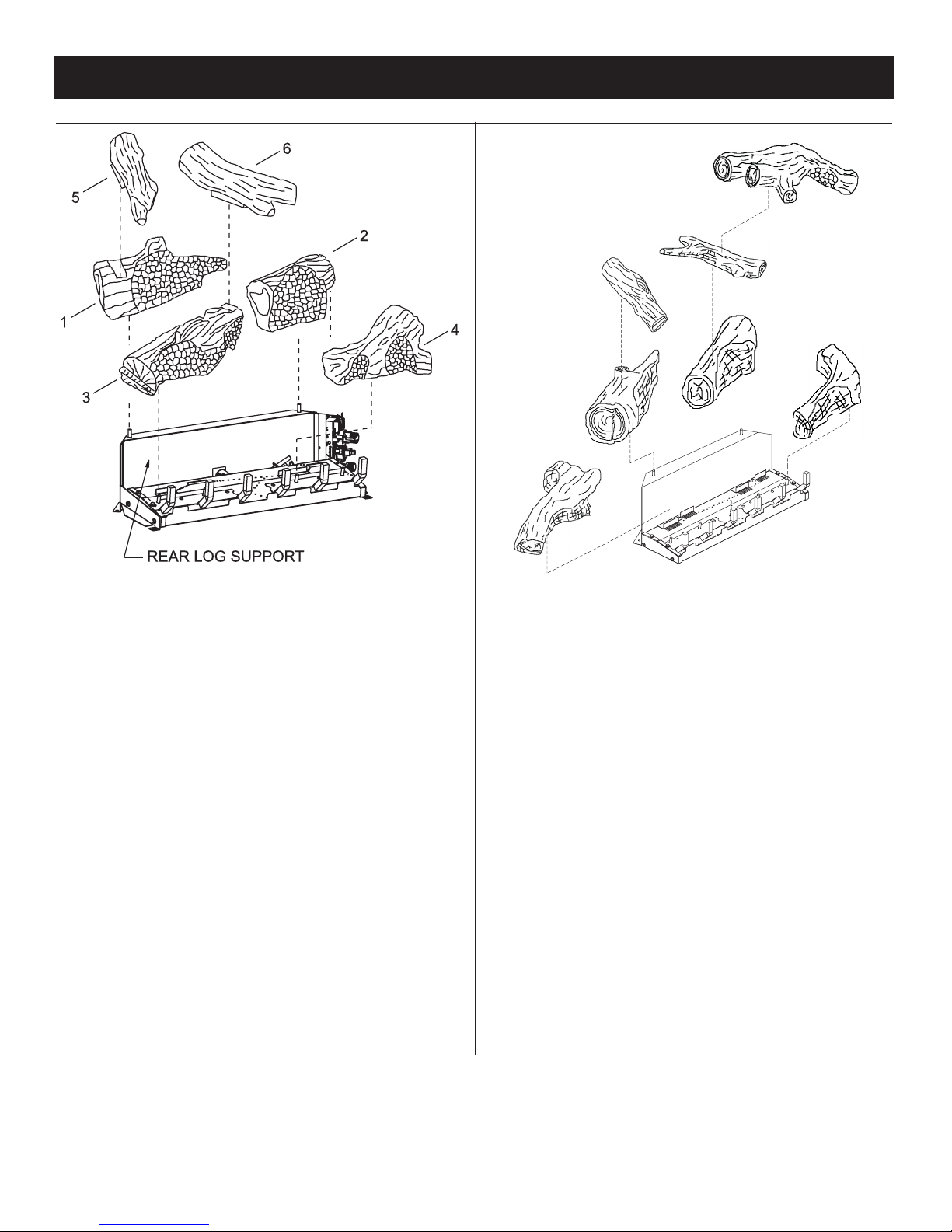

Log Placement
LS-(18, 24, 30)RSS Logs
Figure 1
The following WARNING applies when log set is installed onto an
unvented gas burner assembly.
WARNING: This appliance is equipped for (natural or
propane) gas. Field conversion is not permitted.
12
3
4
5
6
7
SASSAFRAS SUPER SIZE LOG PLACEMENT
Scan this code to see the log assembly video.

28189-2-0315Page 6
Photo 1
Photo 2
Photo 3 Photo 4
Do not cover any large rear ports with
loose material (glowing embers)
Do not cover any large front ports with
loose material (glowing embers).
Some
logs have been removed for clarity Some logs have been removed for
clarity
EMBER PLACEMENT LS-18RSS-1 PHOTOS

28189-2-0315 Page 7
Photo 1 Photo 2
Photo 3
Photo 4
Do not cover any large front ports with
loose material (glowing embers)
Some logs have been removed for clarity
Do not cover any large rear ports with
loose material (glowing embers).
Some logs have been removed for clarity Some logs have been removed for clarity
EMBER PLACEMENT LS-24RSS-1 PHOTOS

28189-2-0315Page 8
Photo 1 Photo 2
Photo 3 Photo 4
Some logs have been removed for clarity
Do not cover any large rear ports with
loose material (glowing embers)
Some logs have been removed for clarity
Some logs have been removed for clarity
EMBER PLACEMENT LS-30RSS-1 PHOTOS

28189-2-0315 Page 9
PROPER INSTALLATION SEQUENCE:
LS-(18, 24, 30)RS
(Figure 1)
1. Place left, rear (#1) log onto left, rear pin on rear log support.
2. Place right, rear (#2) log onto right, rear pin on rear log
support.
3. Place left, front (#3) log onto two (2) left, front pins on burner
pan.
4. Place right, front (#4) log onto two (2) right, front pins on burner
pan.
5. Insert boss on left, top (#5) log into recess on left side of left,
rear (#1) log and onto left side of left, front (#3) log.
6. Insert boss on right, top (#6) log into recess on right side of
left, front (#3) log.
7. Compare the completed log installation with the appropriate
photo from pages 10 through 12. Review previous steps to
make any necessary adjustments.
8. Log placement is completed.
Attention: Do not use Figure 1 to order replacement logs. Refer to
Page 13 Parts List and Parts View to order logs for your appropriate
model number.
Apply loose material (glowing embers) per appropriate Installation
Instructions and Owner's Manual. Replacement of loose material
(glowing embers) must be purchased from Empire Comfort Systems,
Inc. Application of excess loose material (glowing embers) may
adversely affect performance of the heater. WARNING: All previously
applied loose material must be removed prior to reapplication.
Replacement Loose Material (glowing embers) Part Number
Note: A single layer of embers is to be used when applying Platinum
Bright Embers (alone or in combination with production embers)
to the burner.
Before you begin: Do not, handle these logs with your bare hands! Always wear gloves to prevent skin irritation. After handling
logs, wash your hands gently with soap and water.
All Logs
The positioning of the logs is critical to the safe and clean operation of this heater. Sooting and other problems may result
if the logs are not properly and rmly positioned in the appliance.
Refer to Figure 1 for the following warning.
Warning: Failure to position the parts in accordance with this diagram or failure to use only parts specically approved
with this appliance may result in property damage or personal injury.
Log Placement
LS-(18, 24, 30)RS Logs
Figure 1
The following WARNING applies when log set is installed onto an
unvented gas burner assembly.
WARNING: This appliance is equipped for (natural or
propane) gas. Field conversion is not permitted.
LS-18RS 15999
LS-24RS 15970
LS-30RS 15970
Platinum Bright Embers PE-20-1
SASSAFRAS LOG PLACEMENT
Scan this code to see the log assembly video.

28189-2-0315Page 10
Photo 1
Photo 3
Photo 2
Photo 4
Do not cover any large rear ports with
loose material (glowing embers).
Do not cover any large front ports with loose material (glowing embers).
EMBER PLACEMENT LS-18RS-1 PHOTOS

28189-2-0315 Page 11
Photo 1
Photo 2
Photo 3
Photo 4
Do not cover any large rear ports with loose material (glowing embers)
Do not cover any large front ports with
loose material (glowing embers).
EMBER PLACEMENT LS-24RS-2 PHOTOS

28189-2-0315Page 12
Photo 1
Photo 3
Photo 4
Photo 2
Do not cover any large rear ports with loose material (glowing embers).
Do not cover any large front ports with loose material (glowing embers).
EMBER PLACEMENT LS-30RS-2 PHOTOS

28189-2-0315 Page 13
Attention: When ordering parts, it is very important that part number and description of part coincide.
USE ONLY MANUFACTURER'S REPLACEMENT PARTS. USE OF ANY OTHER PARTS COULD CAUSE INJURY OR DEATH.
REFRACTORY SASSAFRAS LOG SETS
INDEX
NO.
PART
NO.
DESCRIPTION
1 R6370 LEFT REAR LOG (18)
1 R6377 LEFT REAR LOG (24)
1 R6382 LEFT REAR LOG (30)
2 R6371 RIGHT REAR LOG (18)
2 R6378 RIGHT REAR LOG (24)
2 R6383 RIGHT REAR LOG (30)
3 R6368 LEFT FRONT LOG (18)
3 R6375 LEFT FRONT LOG (24)
3 R6380 LEFT FRONT LOG (30)
4 R6369 RIGHT FRONT LOG (18)
4 R6376 RIGHT FRONT LOG (24)
4 R6381 RIGHT FRONT LOG (30)
5 R6372 LEFT TOP LOG - (18, 24 AND 30)
6 R6373 RIGHT TOP LOG - (18, 24 AND 30)
REFRACTORY SASSAFRAS SUPER SIZE LOG SETS
INDEX
NO.
PART
NO.
DESCRIPTION
1 R6370 LEFT REAR LOG (18)
1 R6377 LEFT REAR LOG (24)
1 R6382 LEFT REAR LOG (30)
2 R6371 RIGHT REAR LOG (18)
2 R6378 RIGHT REAR LOG (24)
2 R6383 RIGHT REAR LOG (30)
3 R6368 LEFT FRONT LOG (18)
3 R6375 LEFT FRONT LOG (24)
3 R6380 LEFT FRONT LOG (30)
4 R6369 RIGHT FRONT LOG (18)
4 R6376 RIGHT FRONT LOG (24)
4 R6381 RIGHT FRONT LOG (30)
5 R8289 LEFT TOP LOG - (18, 24 AND 30)
6 R8291 CENTER TOP LOG - (18, 24 AND 30)
7 R8290 RIGHT TOP LOG (18)
7 R8294 RIGHT TOP LOG (24)
7 R8297 RIGHT TOP LOG (30)
PARTS LIST & PARTS VIEW
12
3
4
5
6
7

28189-2-0315Page 14
To Order Parts Under Warranty, please contact your local Empire dealer. See the dealer locator at www.empirecomfort.
com. To provide warranty service, your dealer will need your name and address, purchase date and serial number, and the
nature of the problem with the unit.
To Order Parts After the Warranty Period, please contact your dealer or one of the Master Parts Distributors listed below. This
list changes from time to time. For the current list, please click on the Master Parts button at www.empirecomfort.com.
Please note: Master Parts Distributors are independent businesses that stock the most commonly ordered Original Equip-
ment repair parts for Heaters, Grills, and Fireplaces manufactured by Empire Comfort Systems Inc.
Dey Distributing
1401 Willow Lake Boulevard
Vadnais Heights, MN 55101
Phone: [phone]
Toll Free: 800-397-1339
Website: www.deydistributing.com
Parts: Heater & Hearth
East Coast Energy Products
10 East Route 36
West Long Branch, NJ 07764
Phone: [phone]
Toll Free: 800-755-8809
Fax: [phone]
Website: www.eastcoastenergy.com
Parts: Heater & Hearth and Grills
Victor Division of F. W. Webb Company
200 Locust Street
Hartford, CT 06114
Phone: [phone]
Toll Free: 800-243-9360
Fax: [phone]
Toll Free Fax: [phone]
Websites: www.fwwebb.com & www.victormfg.com
Parts: Heater & Hearth and Grills
MASTER PARTS DISTRIBUTOR LIST
Parts Not Under Warranty
Parts can be ordered through your Service Person, Dealer, or a Master Parts Distributor. See this page for the Master Parts Distribu-
tors list. For best results, the service person or dealer should order parts through the distributor. Parts can be shipped directly to the
service person/dealer.
Warranty Parts
Warranty parts will need a proof of purchase and can be ordered by your Service Person or Dealer. Proof of purchase is required for
warranty parts.
All parts listed in the Parts List have a Part Number. When ordering parts, rst obtain the Model Number and Serial Number from the
name plate on your equipment. Then determine the Part Number (not the Index Number) and the Description of each part from the fol-
lowing illustration and part list. Be sure to give all this information . . .
Appliance Model Number Part Description
Appliance Serial Number Part Number
Type of Gas (Propane or Natural)
Do not order bolts, screws, washers or nuts. They are standard hardware items and can be purchased at any local hardware store.
Shipments contingent upon strikes, res and all causes beyond our control.
HOW TO ORDER REPAIR PARTS

28189-2-0315 Page 15
APPLIANCE SERVICE HISTORY
Date Dealer Name Service Technician Name Service Performed/Notes

28189-2-0315Page 16
EMPIRE
EMPIRE
Comfort Systems
Empire Comfort Systems Inc.
918 Freeburg Ave. Belleville, IL 62220
If you have a general question about our products, please e-mail us at
[email protected].
If you have a service or repair question, please contact your dealer.
www.empirecomfort.com
