White Mountain Hearth LS-18RS-1 Quick start guide

Page 1
INSTALLATION INSTRUCTIONS
AND OWNER'S MANUAL
LOG SET FOR UNVENTED
GAS LOG HEATER
OR
VENTED DECORATIVE APPLIANCE
MODELS
LS-18RS-1/LS-18RSS-1
LS-24RS-1/LS-24RSS-1
LS-30RS-1/LS-30RSS-1
Sassafras/Sassafras Super Size
WARNING: If not installed, operated and main-
tained in accordance with the manufacturer's
instructions, this product could expose you to
substances in fuel or from fuel combustion which
can cause death or serious illness.
Log sets comply with ANSI Z21.11.2 Unvented
Heaters and also comply with ANSI Z21.60
Decorative Vented Appliances for Solid Fuel
Burning Fireplaces. State or local codes may only
allow operation of log sets in a vented configuration.
Check your state or local codes.
The White Mountain Log Collection
— Do not store or use gasoline or other flamma-
ble vapors and liquids in the vicinity of this or
any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppli-
er’s instructions.
• If you cannot reach your gas supplier, call
the fire department.
— Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
WARNING: If the information in these in-
structions are not followed exactly, a fire or ex-
plosion may result causing property damage,
personal injury or loss of life.
Installer: Leave this manual with the appli-
ance.
Consumer: Retain this manual for future refer-
ence.

20171-3-0907Page 2
Section Page
Important Installation Guidelines ....................................................................................................................3
General Information ........................................................................................................................................3
Sassafras Super Size Log Placement ...............................................................................................................4
Ember Placement LS-18RSS-1 Photos ............................................................................................................5
Ember Placement LS-24RSS-1 Photos ............................................................................................................6
Ember Placement LS-30RSS-1 Photos ............................................................................................................7
Sassafras Log Placement .................................................................................................................................8
Ember Placement LS-18RS Photos .................................................................................................................9
Ember Placement LS-24RS Photos ...............................................................................................................10
Ember Placement LS-30RS Photos ...............................................................................................................11

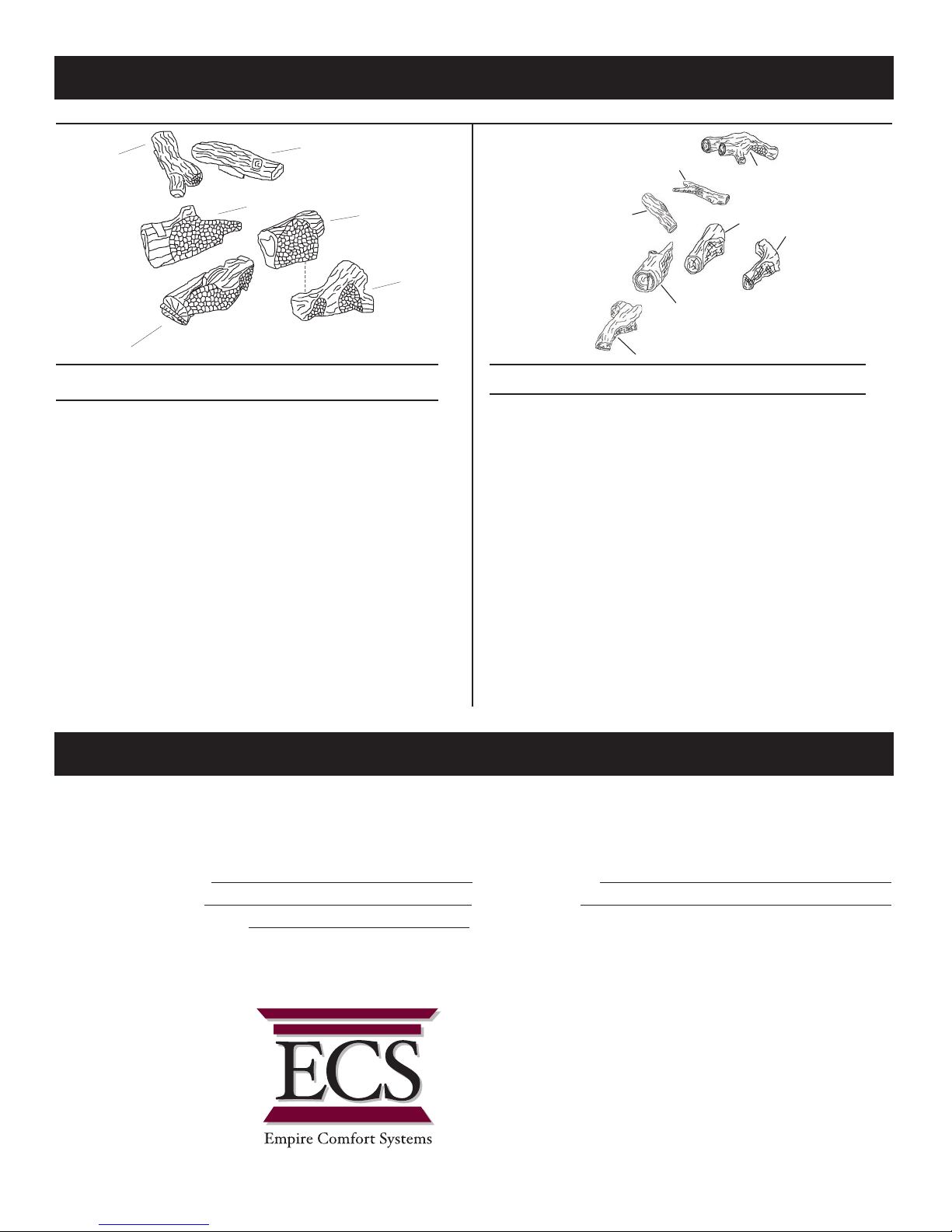

Parts Lists and Parts Views ............................................................................................................................12
How to Order Repair Parts ............................................................................................................................12
TABLE OF CONTENTS

20171-3-0907 Page 3
Proper Log Placement
Log placement is critical to proper burner performance. Logs must
be correctly positioned onto the burner. The photos in this manual
show the proper pinned position for logs on this set. Owners need
to be shown proper log placement and instructed not to move the
logs.
Logs must fit firmly onto the burner when positioned as shown in
the photos. Malformed logs or logs with sloppy pin holes must be
replaced.
Proper Placement of Rock Wool and Decorative Lava Rock
Rock wool can be added to burners for a glowing ember effect.
It must be positioned only on the front portion of the burner. The
photos in this manual show the proper placement of rock wool.
Decorative lava rock or small wood pieces should never be placed
on the burner. These items are only for placement on the floor of
the fireplace or firebox.
Proper Primary Airflow into Burner
For proper burner operation and flame appearance, the flow of
primary air into the venturi tube, located on the rear of the burner,
must not be reduced. This flow of air is reduced if dirt, lint or other
obstructions build-up around or inside the venturi. Any obstruction
in the venturi tube area must be removed. The flow of air into the
venturi is also reduced if the gas orifice isn’t centered in the venturi
inlet and/or is not aligned with the venturi. Any misalignment of the
burner orifice may be corrected by bending the shutter cap holding
the orifice to the inlet of the venturi tube.
Ceiling Fans, Portable Fans or Logs Installed Near Cold Air
Returns
Ceiling fans or oscillating floor type fans need to be monitored
during the operation of vent-free logs. If the air blows directly
into the flame causing it to impinge on the log set, or firebox, it
should be turned off or redirected. Ceiling fans could be reversed
to possibly eliminate flame impingement, and the floor fan could
be redirected. Upon installation, be aware of any cold air returns
or vents in the proximity of the log set. Any draft created around
a vent-free log set can cause the flame to impinge on the log and
create a sooting situation.
WARNING: Do not allow fans to blow directly into the fireplace.
Avoid any drafts that alter burner flame patterns.
WARNING: Do not use a blower insert, heat exchanger insert or
other accessory not approved for use with this heater.
Candles
Avoid the use of scented or decorative candles while the log set is in
operation. Candles produce a residue in the air that creates a soot like
substance. Burning candles while the log set is operating magnifies
the problem. It should be noted that candles, in general, produce
soot. The amount of time burned and the quantity of candles burned
will determine the amount of soot produced and deposited.
Make Owners Aware of Proper Log Set Operation
Properly installed and properly maintained log sets do not deposit
soot on the logs. If users see soot appear on a log, call for service.
Do not continue to operate the log set.
Sunken Fireplace
If installing this unit into a sunken fireplace, you must raise the
floor to insure adequate airflow and guard against sooting. Raise
fireplace floor using a non-combustible material, which is secure.
Glass Doors
Make sure that glass doors are open during all operations of the
logset. The opening of the glass door frame should be the dimension
used for the minimum front opening of the firebox.
Wood Burning Fireplaces
The interior of the firebox and the chimney should be cleaned and
free of all creosote before installing a gas burning log set. Creosote
will soften when heated and can drop on the logset causing odors
and possibly sooting.
WARNING: Before installing in a solid-fuel burning fireplace, the
chimney flue and firebox must be cleaned of soot, creosote, ashes
and loose paint by a qualified chimney cleaner.
Qualified Installing Agency
Installation and replacement of gas piping, gas utilization equip-
ment or accessories and repair and servicing of equipment shall be
performed only by a qualified agency. The term "qualified agency"
means any individual, firm, corporation, or company that either in
person or through a representative is engaged in and is responsible
for (a) the installation, testing, or replacement of gas piping or (b) the
connection, installation, testing, repair, or servicing of equipment;
that is experienced in such work; that is familiar with all precau-
tions required, and that has complied with all the requirements of
the authority having jurisdiction.
The installation must conform with local codes or, in the absence
of local codes, with the National Fuel Gas Code, ANSI Z223.1/
NFPA54.*
*Available from the American National Standards Institute, Inc. 11 West 42nd St.,
New York, N.Y. 10018.
State of Massachusetts: The installation must be made by a
licensed plumber or gas fitter in the Commonwealth of Mas-
sachusetts.
Sellers of unvented propane or natural gas-fired supplemental
room heaters shall provide to each purchaser a copy of 527
CMR 30 upon sale of the unit.
In the State of Massachusetts, unvented propane and natural
gas-fired space heaters shall be prohibited in bedrooms and
bathrooms.
IMPORTANT INSTALLATION GUIDELINES
GENERAL INFORMATION

20171-3-0907Page 4

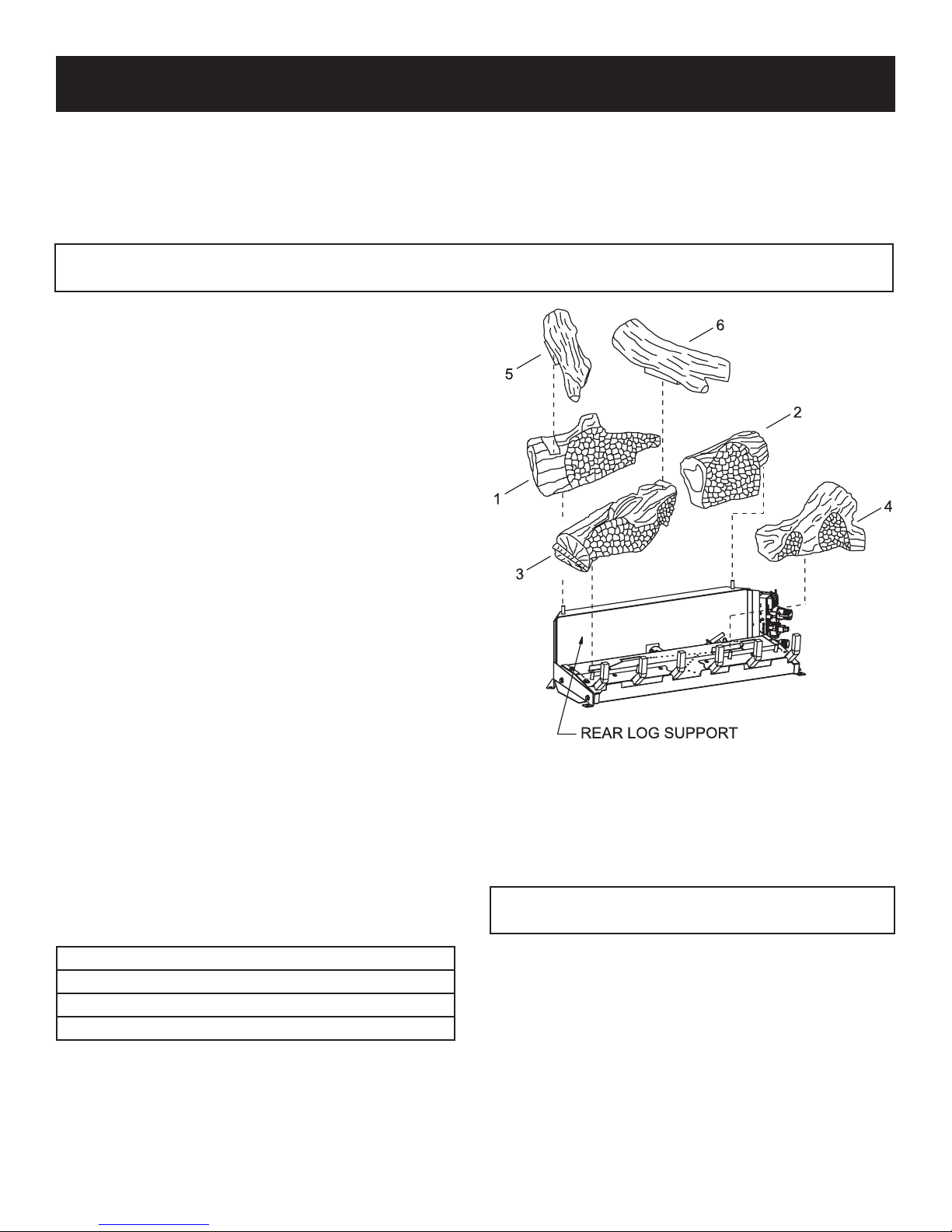

PROPER INSTALLATION SEQUENCE:
LS-(18, 24, 30)RSS
(Figure 1)
1. Place left, rear (#1) log onto left, rear pin on rear log
support.
2. Place right, rear (#2) log onto right, rear pin on rear log
support.
3. Place left, front (#3) log onto two (2) left, front pins on burner
pan.
4. Place right, front (#4) log onto two (2) right, front pins on
burner pan.
5. Insert boss on left, top (#5) log into recess on left side of left,
rear (#1) log and onto left side of left, front (#3) log.
6. Insert boss on center, top (#6) log into recess on right side of
left, front (#3) log.
7. Insert round boss and square recess on (#7) right, top log into
recess and boss on center, top (#6) log.
8. Compare the completed log installation with the appropriate
photo from pages 5 through 7. Review previous steps to make
any necessary adjustments.
9. Log placement is completed.
Attention: Do not use Figure 1 to order replacement logs. Refer to
Page 12 Parts List and Parts View to order logs for your appropriate
model number.
Apply loose material (glowing embers) per appropriate Installation
Instructions and Owner's Manual. Replacement of loose material
(glowing embers) must be purchased from Empire Comfort
Systems, Inc. Application of excess loose material (glowing
embers) may adversely affect performance of the heater.
WARNING: All previously applied loose material must be removed
prior to reapplication.
Replacement Loose Material (glowing embers) Part Number
LS-18RSS 15999
LS-24RSS 15970
LS-30RSS 15970
Platinum Bright Embers PE20-1
Note: A single layer of embers is to be used when applying Platinum
Bright Embers (alone or in combination with production embers)
to the burner.
Before you begin: Do not, handle these logs with your bare hands! Always wear gloves to prevent skin irritation. After handling logs,
wash your hands gently with soap and water.
All Logs
The positioning of the logs is critical to the safe and clean operation of this heater. Sooting and other problems may result if the logs are
not properly and firmly positioned in the appliance.
Refer to Figure 1 for the following warning.
Warning: Failure to position the parts in accordance with this diagram or failure to use only parts specifically approved with this
appliance may result in property damage or personal injury.
Log Placement
LS-(18, 24, 30)RSS Logs
Figure 1
The following WARNING applies when log set is installed onto
an unvented gas burner assembly.
WARNING: This appliance is equipped for (natural or
propane) gas. Field conversion is not permitted.
1
2
3
4
5
6
7
SASSAFRAS SUPER SIZE LOG PLACEMENT

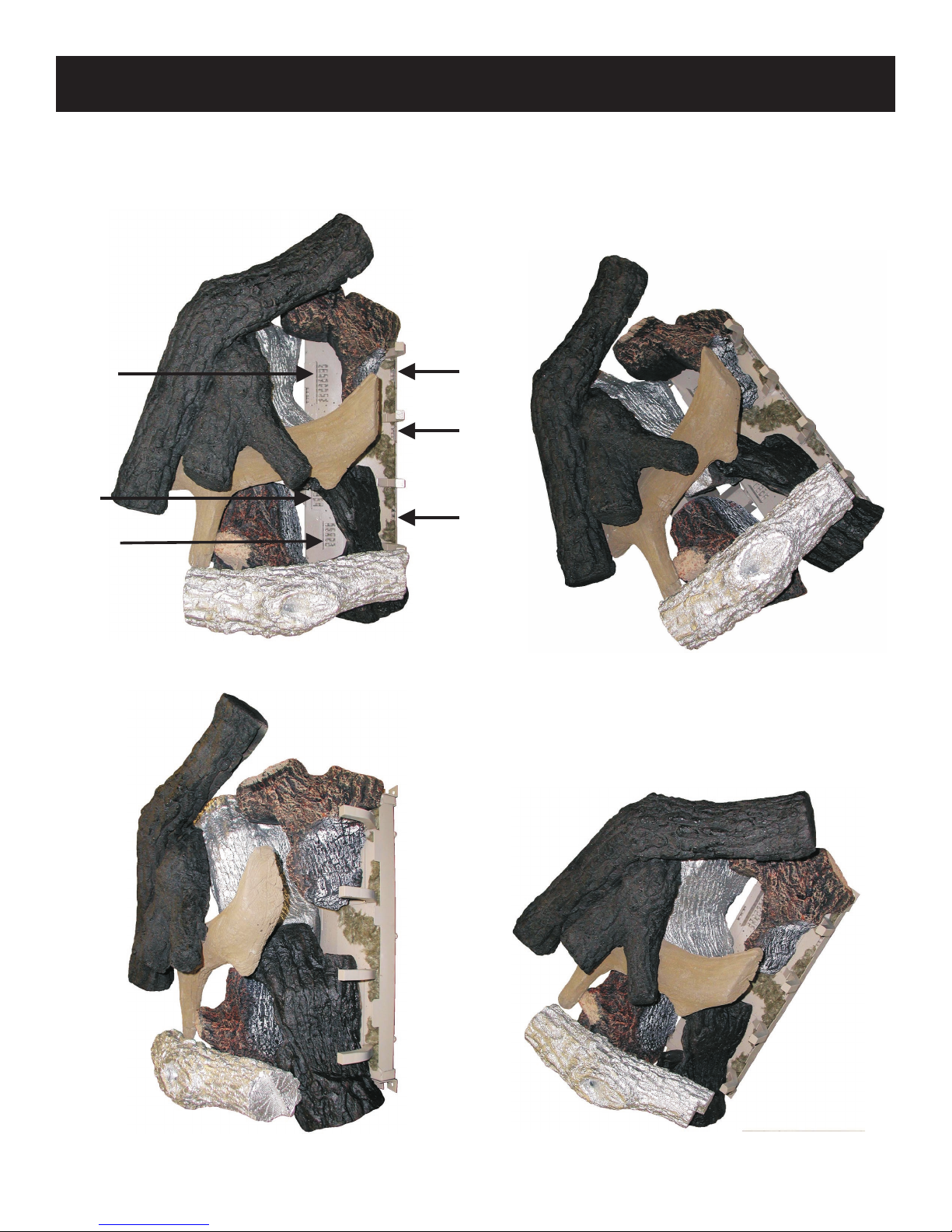

20171-3-0907 Page 5
Photo 1
Photo 2
Photo 3 Photo 4
Do not cover any large rear ports with
loose material (glowing embers)
Do not cover any large front ports with
loose material (glowing embers).
Some logs have been removed for clarity Some logs have been removed for clarity
EMBER PLACEMENT LS-18RSS-1 PHOTOS

20171-3-0907Page 6
Photo 1 Photo 2
Photo 3
Photo 4
Do not cover any large front ports with
loose material (glowing embers)
Some logs have been removed for clarity
Do not cover any large rear ports with
loose material (glowing embers).
Some logs have been removed for clarity Some logs have been removed for clarity
EMBER PLACEMENT LS-24RSS-1 PHOTOS

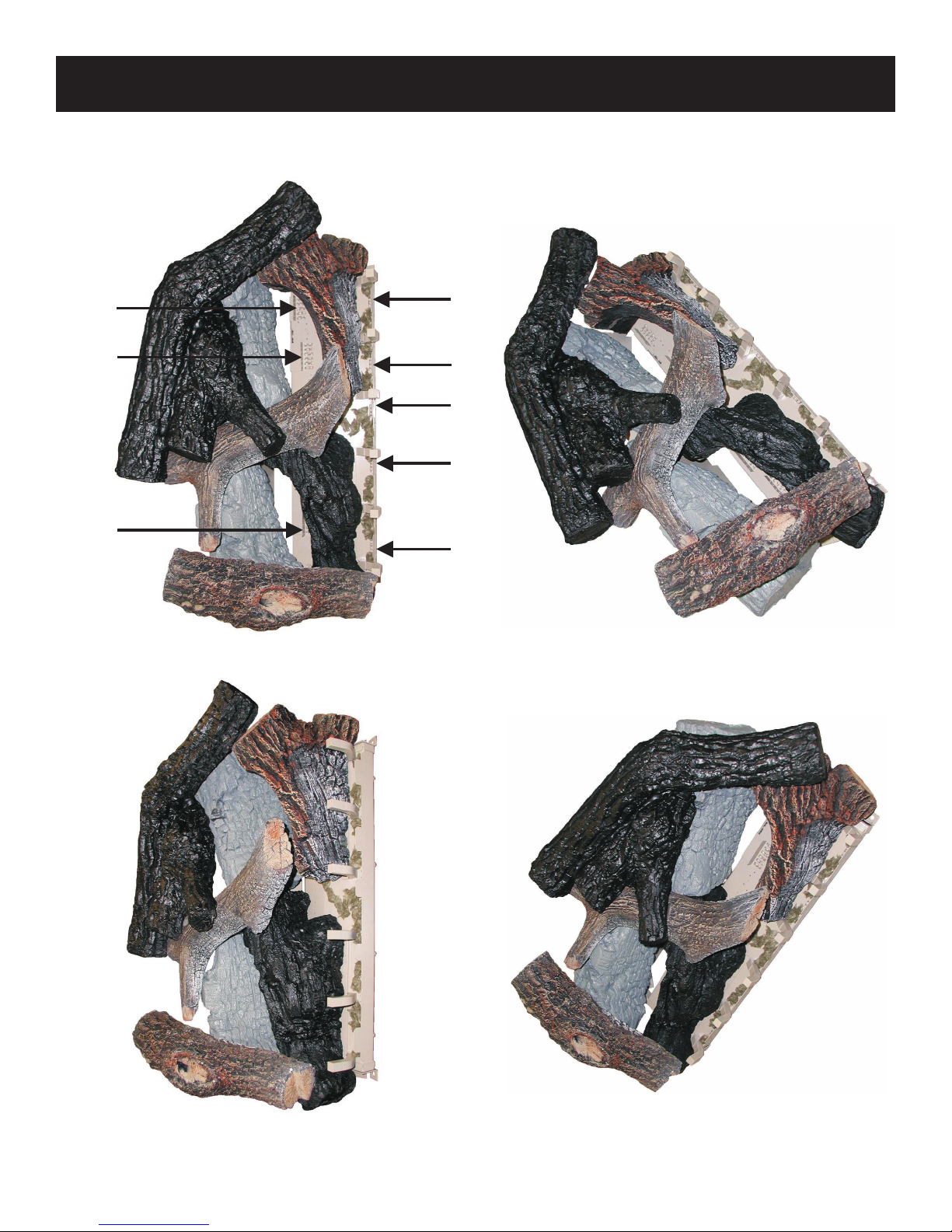

20171-3-0907 Page 7
Photo 1 Photo 2
Photo 3 Photo 4
Some logs have been removed for clarity
Do not cover any large rear ports with
loose material (glowing embers)
Some logs have been removed for clarity
Some logs have been removed for clarity
EMBER PLACEMENT LS-30RSS-1 PHOTOS

20171-3-0907Page 8
PROPER INSTALLATION SEQUENCE:
LS-(18, 24, 30)RS
(Figure 1)
1. Place left, rear (#1) log onto left, rear pin on rear log
support.
2. Place right, rear (#2) log onto right, rear pin on rear log
support.
3. Place left, front (#3) log onto two (2) left, front pins on burner
pan.
4. Place right, front (#4) log onto two (2) right, front pins on
burner pan.
5. Insert boss on left, top (#5) log into recess on left side of left,
rear (#1) log and onto left side of left, front (#3) log.
6. Insert boss on right, top (#6) log into recess on right side of
left, front (#3) log.
7. Compare the completed log installation with the appropriate
photo from pages 9 through 11. Review previous steps to make
any necessary adjustments.
8. Log placement is completed.
Attention: Do not use Figure 1 to order replacement logs. Refer to
Page 12 Parts List and Parts View to order logs for your appropriate
model number.
Apply loose material (glowing embers) per appropriate Installation
Instructions and Owner's Manual. Replacement of loose material
(glowing embers) must be purchased from Empire Comfort
Systems, Inc. Application of excess loose material (glowing embers)
may adversely affect performance of the heater. WARNING: All
previously applied loose material must be removed prior to
reapplication.
Replacement Loose Material (glowing embers) Part Number
Note: A single layer of embers is to be used when applying Platinum
Bright Embers (alone or in combination with production embers)
to the burner.
Before you begin: Do not, handle these logs with your bare hands! Always wear gloves to prevent skin irritation. After handling logs,
wash your hands gently with soap and water.
All Logs
The positioning of the logs is critical to the safe and clean operation of this heater. Sooting and other problems may result if the logs are
not properly and firmly positioned in the appliance.
Refer to Figure 1 for the following warning.
Warning: Failure to position the parts in accordance with this diagram or failure to use only parts specifically approved with this
appliance may result in property damage or personal injury.
Log Placement
LS-(18, 24, 30)RS Logs
Figure 1
The following WARNING applies when log set is installed onto
an unvented gas burner assembly.
WARNING: This appliance is equipped for (natural or
propane) gas. Field conversion is not permitted.
LS-18RS 15999
LS-24RS 15970
LS-30RS 15970
Platinum Bright Embers PE-20-1
SASSAFRAS LOG PLACEMENT

20171-3-0907 Page 9

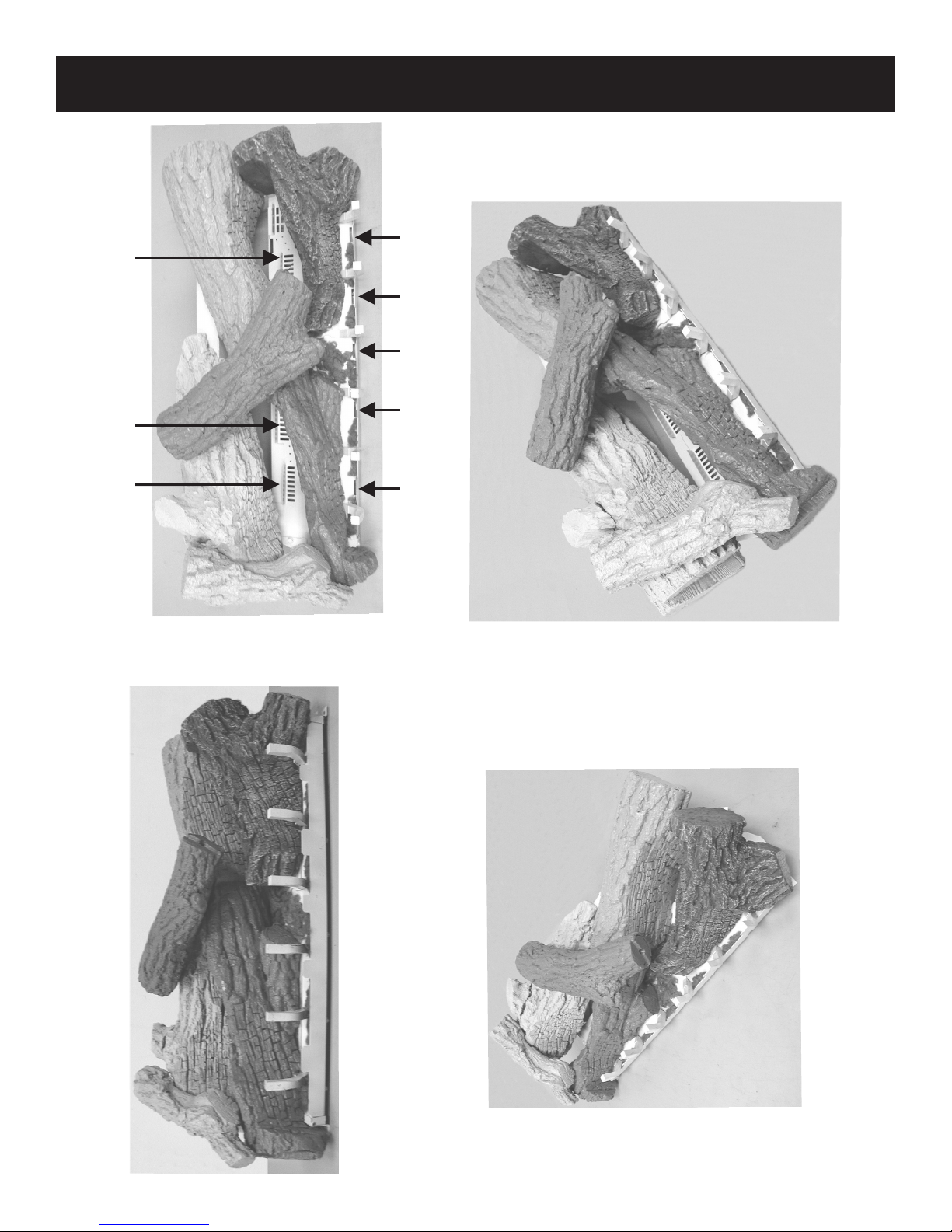

Photo 1
Photo 3
Photo 2
Photo 4
Do not cover any large rear ports with
loose material (glowing embers).
Do not cover any large front ports with loose material (glowing embers).
EMBER PLACEMENT LS-18RS-1 PHOTOS

20171-3-0907Page 10
Photo 1 Photo 2
Photo 3
Photo 4
Do not cover any large rear ports with loose material (glowing embers)
Do not cover any large front ports with
loose material (glowing embers).
EMBER PLACEMENT LS-24RS-1 PHOTOS

20171-3-0907 Page 11
Photo 1
Photo 3
Photo 4
Photo 2
Do not cover any large rear ports with
loose material (glowing embers).
Do not cover any large front ports with
loose material (glowing embers).
EMBER PLACEMENT LS-30RS-1 PHOTOS

20171-3-0907Page 12
Attention: When ordering parts, it is very important that part number and description of part coincide.
Parts can be ordered only through your service person or dealer. For best results, the service person or dealer should order parts through the distributor.
Parts can be shipped directly to the service person/dealer.
All parts listed in the Parts List have a Part Number. When ordering parts, first obtain the Model Number from the name plate on your equipment. Then
determine the Part Number (not the Index Number) and the Description of each part from the following appropriate illustration and list. Be sure to give
all this information . . .
Appliance Model Number Part Description
Appliance Serial Number Part Number
Type of Gas (Propane or Natural)
Do not order bolts, screws, washers or nuts. They are standard hardware items and can be purchased at any local hardware store.
Shipments contingent upon strikes, fires and all causes beyond our control.
USE ONLY MANUFACTURER'S REPLACEMENT PARTS. USE OF ANY OTHER PARTS COULD CAUSE INJURY OR DEATH.
4
2
3
1
5
7
6
1
2
4
5
6
3
Index
No.
Part
Number
Description
REFRACTORY SASSAFRAS LOG SETS
1 R-6369 RIGHT FRONT LOG (18)
1 R-6376 RIGHT FRONT LOG (24)
1 R-6381 RIGHT FRONT LOG (30)
2 R-6371 RIGHT REAR LOG (18)
2 R-6378 RIGHT REAR LOG (24)
2 R-6383 RIGHT REAR LOG (30)
3 R-6368 LEFT FRONT LOG (18)
3 R-6375 LEFT FRONT LOG (24)
3 R-6380 LEFT FRONT LOG (30)
4 R-6370 LEFT REAR LOG (18)
4 R-6377 LEFT REAR LOG (24)
4 R-6382 LEFT REAR LOG (30)
5 R-6373 RIGHT TOP LOG - (18, 24 AND 30)
6 R-6372 LEFT TOP LOG - (18, 24 AND 30)
Index
No.
Part
Number
Description
REFRACTORY SASSAFRAS SUPER SIZE LOG SETS
1 R-6369 RIGHT FRONT LOG (18)
1 R-6376 RIGHT FRONT LOG (24)
1 R-6381 RIGHT FRONT LOG (30)
2 R-6371 RIGHT REAR LOG (18)
2 R-6378 RIGHT REAR LOG (24)
2 R-6383 RIGHT REAR LOG (30)
3 R-6368 LEFT FRONT LOG (18)
3 R-6375 LEFT FRONT LOG (24)
3 R-6380 LEFT FRONT LOG (30)
4 R-6370 LEFT REAR LOG (18)
4 R-6377 LEFT REAR LOG (24)
4 R-6382 LEFT REAR LOG (30)
5 R-8289 LEFT TOP LOG - (18, 24 AND 30)
6 R-8290 RIGHT TOP LOG (18)
6 R-8294 RIGHT TOP LOG (24)
6 R-8297 RIGHT TOP LOG (30)
7 R-8291 CENTER TOP LOG - (18, 24 AND 30)
PARTS LIST & PARTS VIEW
HOW TO ORDER REPAIR PARTS
Empire Comfort Systems, Inc.
918 Freeburg Ave. Belleville, IL 62220
PH: 618-233-7420 or 800-851-3153
FAX: [phone] or 800-443-8648
[email protected]
www.empirecomfort.com
