White Mountain Hearth WHISKEY RIVER VFDR18LBW10N-1 Installation instructions

INSTALLATION INSTRUCTIONS
AND OWNER'S MANUAL
UNVENTED GAS LOG HEATER OR
VENTED DECORATIVE APPLIANCE
MODELS
VFDR18LBW10N-1 VFDR18LBW10P-1
VFDR18LBWN-1 VFDR18LBWP-1
VFDR24LBWN-1 VFDR24LBWP-1
VFDR30LBWN-1 VFDR30LBWP-1
VFDT18LBWN-1 VFDT18LBWP-1
VFDT24LBWN-1 VFDT24LBWP-1
VFDT30LBWN-1 VFDT30LBWP-1
VFDM18LBWN-1 VFDM18LBWP-1
VFDM24LBWN-1 VFDM24LBWP-1
VFDM30LBWN-1 VFDM30LBWP-1
Vented/Vent-Free Burner and Logs
This is an unvented gas-red heater. It uses air (oxy-
gen) from the room in which it is installed. Provisions
for adequate combustion and ventilation air must be
provided. Refer to page 9.
WARNING: If not installed, operated and maintained
in accordance with the manufacturer's instructions,
this product could expose you to substances in fuel or
from fuel combustion which can cause death or seri-
ous illness.
WATER VAPOR: A BY-PRODUCT OF UN-VENTED
ROOM HEATERS
Water vapor is a by-product of gas combustion. An
unvented room heater produces approximately one (1)
ounce (30ml) of water for every 1,000 BTU's (.3KW's)
of gas input per hour. Refer to page 6.
This appliance may be installed in an aftermarket
permanently located, manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases.
— Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
re department.
— Installation and service must be performed by a
qualied installer, service agency or the gas sup-
plier.
WARNING: If the information in this manual are
not followed exactly, a re or explosion may result
causing property damage, personal injury or loss
of life.
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
WHISKEY RIVER
Page 1

24974-1-0509Page 2
TABLE OF CONTENTS
Important Safety Information.................................................................................................3
Safety Information for Users of LP-Gas ................................................................................4
Introduction ............................................................................................................................5
 ............................................................................................................6
Water Vapor: A By-Product of Unvented Room Heaters .......................................................6
General Information ...............................................................................................................7
Requirements for Canada .......................................................................................................8
Provisions for Adequate Combustion & Ventilation Air ........................................................9

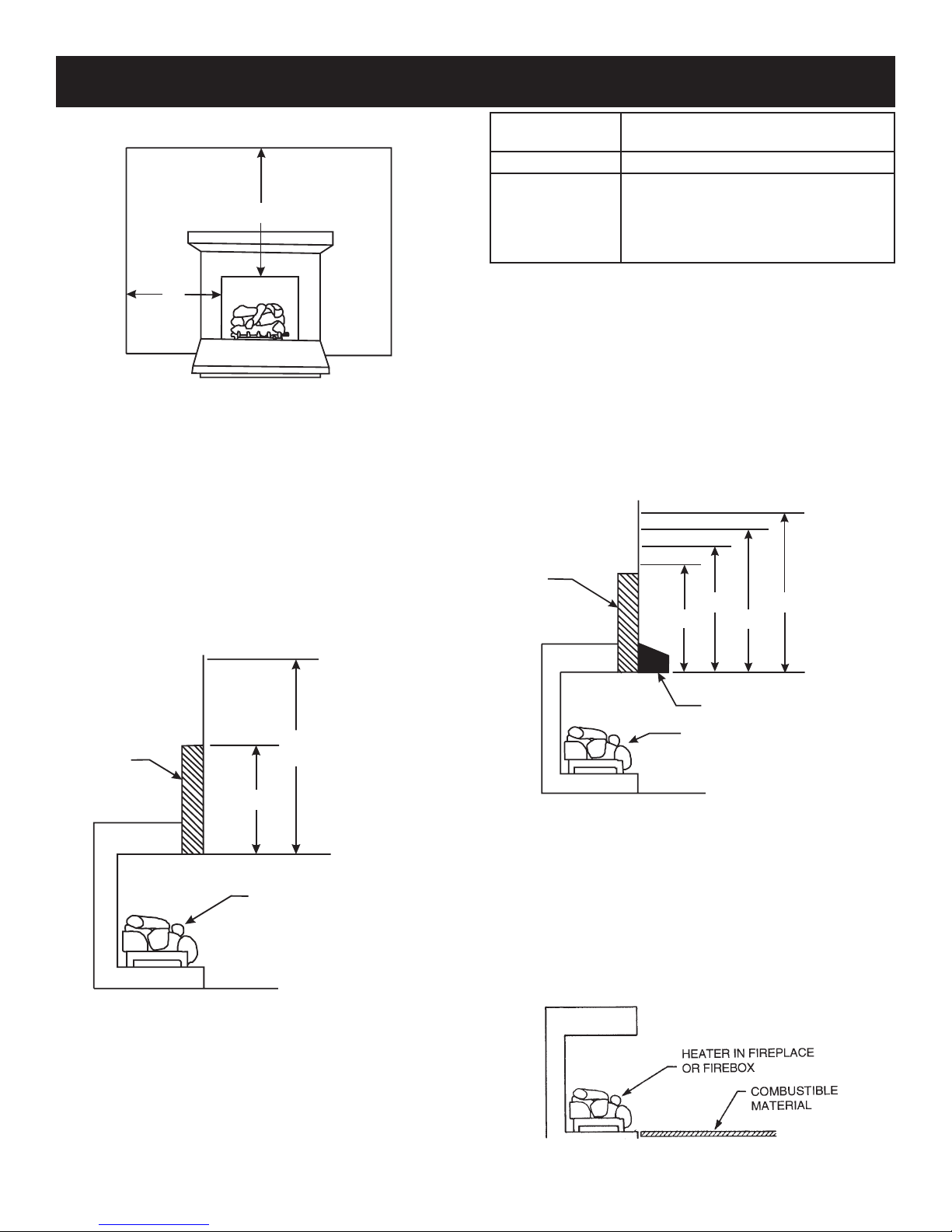

Clearances ........................................................................................................................ 9-10
Combustible Material...........................................................................................................11
Fireplace Preparation............................................................................................................11

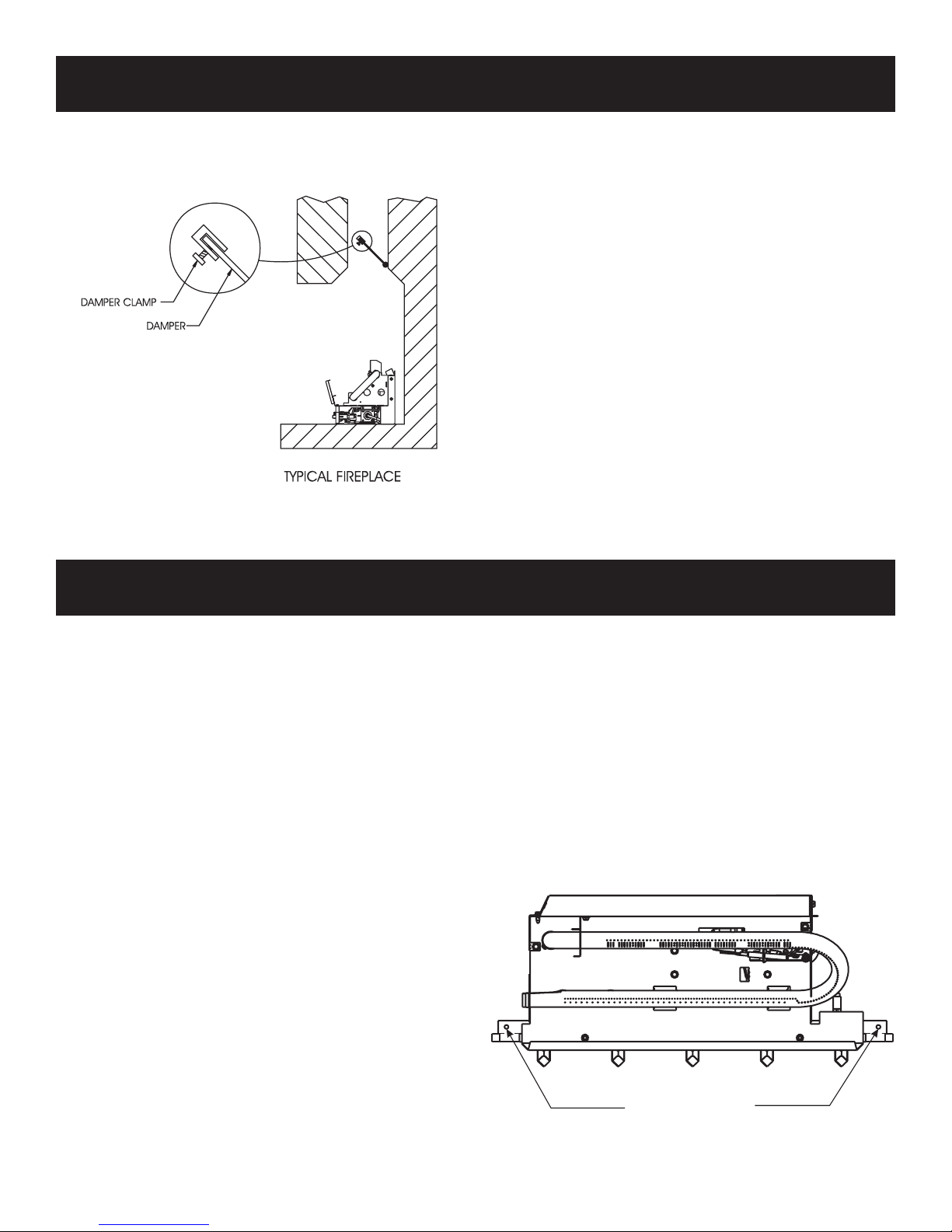

Installing as a Vented Appliance ..........................................................................................12
Before Fully Installing the Appliance ..................................................................................12
Gas Supply ...........................................................................................................................13
VFD(R,T,M)(18,24,30) & VFDR18LBW10 Log Placement...............................................14
Operation Instructions/Flame Appearance ...........................................................................15

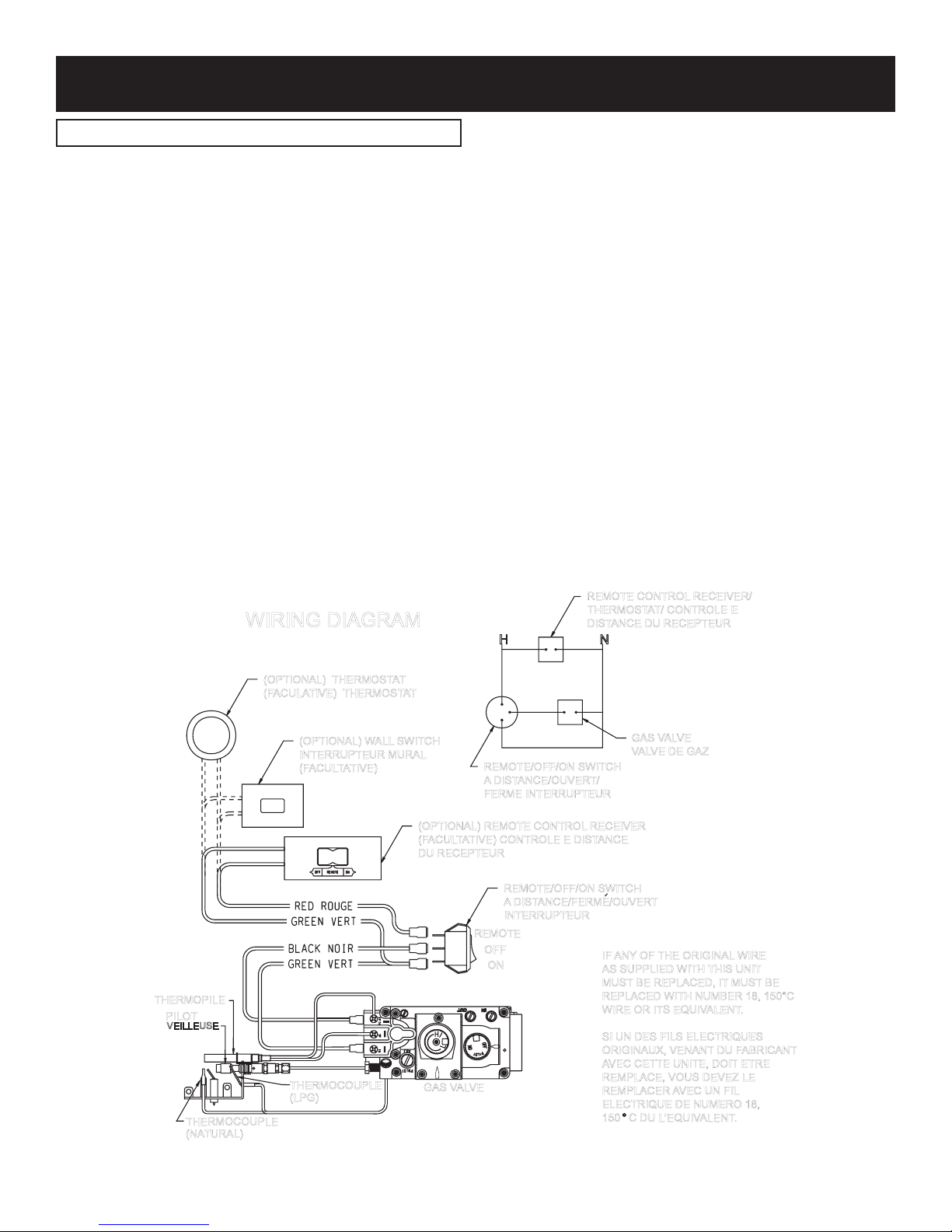

Wiring - VFDR Models Only...............................................................................................16

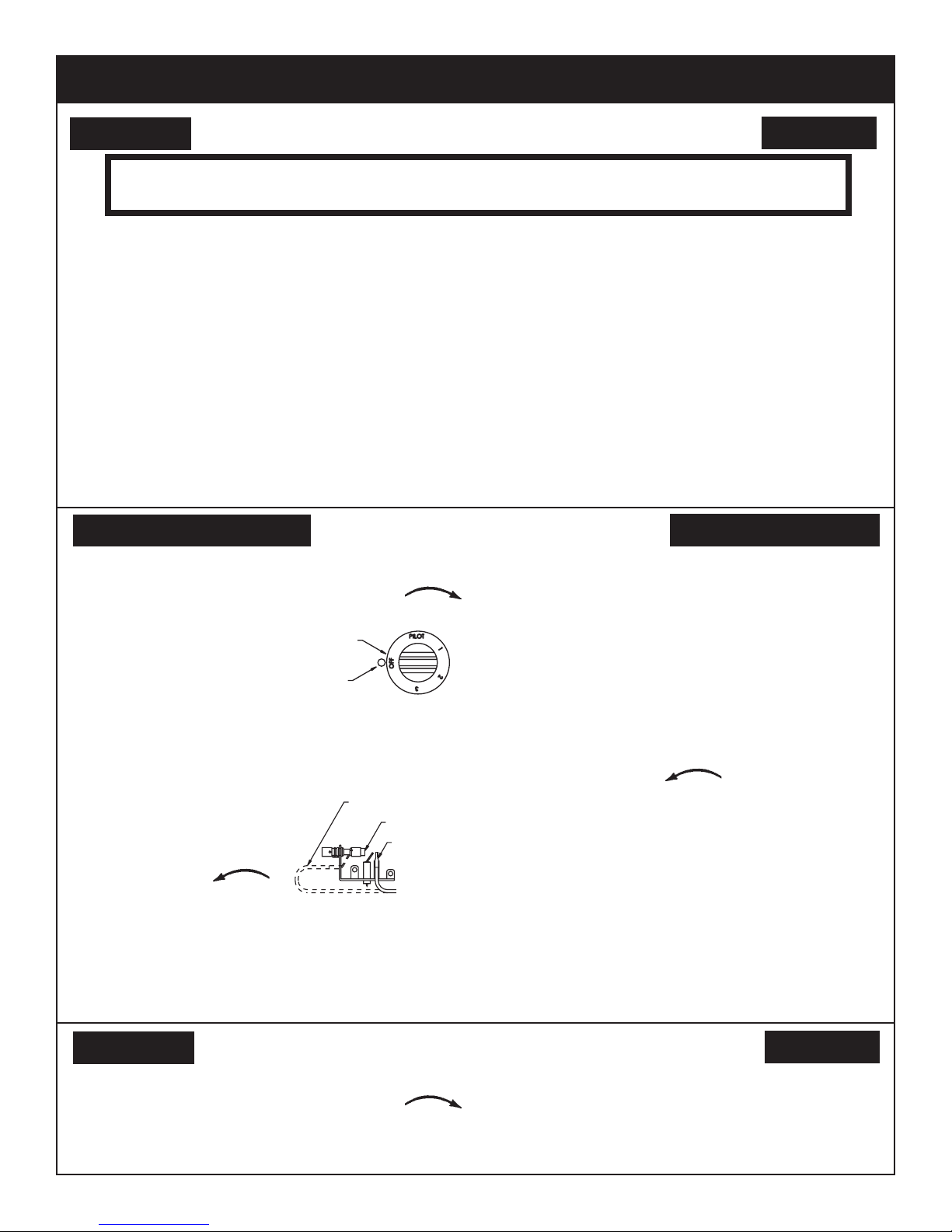

VFDR(18,24,30)LBW Lighting Instructions .......................................................................17
VFDR18LBW10(N,P) Lighting Instructions.......................................................................18
VFDT(18,24,30)LBW Lighting Instructions .......................................................................19
VFDM(18,24,30)LBW Lighting Instructions ......................................................................20
Pilot Flame Characteristics............................................................................................. 21-22
Cleaning and Servicing ........................................................................................................22
Troubleshooting....................................................................................................................23
VFDR Series Parts List ........................................................................................................24
VFDR Series Parts View ......................................................................................................25
VFDR18LBW10 Series Parts List .......................................................................................26
VFDR18LBW10 Series Parts View .....................................................................................27
VFDT Series Parts List.........................................................................................................28
VFDT Series Parts View ......................................................................................................39
VFDM Series Parts List .......................................................................................................30
VFDM Series Parts View .....................................................................................................31
How to Order Repair Parts ...................................................................................................32
SECTION PAGE

24974-1-0509 Page 3
WARNING
When used without adequate combustion and ventilation air, heater
may give off CARBON MONOXIDE, an odorless, poisonous gas.
Do not install heater until all necessary provisions are made for
combustion and ventilation air. Consult the written instructions
provided with the heater for information concerning combustion
and ventilation air. In the absence of instructions, refer to
the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Air for
Combustion and Ventilation, or applicable local codes.
This heater is equipped with a PILOT LIGHT SAFETY SYSTEM
designed to turn off the heater if not enough fresh air is available.
DO NOT TAMPER WITH PILOT LIGHT SAFETY SYSTEM!
If heater shuts off, do not relight until you provide fresh air.
If heater keeps shutting off, have it serviced. Keep burner and control
compartment clean.
CARBON MONOXIDE POISONING MAY LEAD TO DEATH.
Early signs of carbon monoxide poisoning resemble the u, with
headache, dizziness and/or nausea. If you have these signs, heater
may not be working properly. Get fresh air at once! Have heater
serviced.
Some people – pregnant women, persons with heart or lung disease,
anemia, those under the inuence of alcohol, those at high altitudes
– are more affected by carbon monoxide than others.
The pilot light safety system senses the depletion of oxygen at its
location. If this heater is installed in a structure having a high vertical
dimension, the possibility exists that the oxygen supply at the higher
levels will be less than that at the heater. In this type of application,
a fan to circulate the structure air will minimize this effect. The use
of this fan will also improve the comfort level in the structure. When
a fan is used to circulate air, it should be located so that the air ow
is not directed at the burner.
• An unvented room heater having an input rating of more than
6,000 Btu per hour shall not be installed in a bathroom
• An unvented room heater having an input rating of more than
10,000 Btu per hour shall not be installed in a bedroom or bath-
room.
• Never burn solid fuels in a replace where a gas log set is in-
stalled.
• Due to high temperatures, the appliance should be located out of
trafc and away from furniture and draperies.
• Do not place clothing or other ammable material on or near the
appliance.
• Children and adults should be alerted to the hazards of high sur-
face temperature and should stay away to avoid burns or clothing
ignition.
• Young children should be carefully supervised when they are in
the same room as the appliance.
• This unit complies with ANSI Z21.11.2 Unvented Heaters and it
also complies with ANSI Z21.60 Decorative Vented Appliances for
Solid Fuel Burning Fireplaces. State or local codes may only allow
operation of this appliance in a vented conguration. Check your
state or local codes.
• Correct installation of logs, proper location of the heater and annual
cleaning are necessary to avoid potential problems with sooting.
Sooting, resulting from improper installation or operation, can
settle on surfaces outside the replace.
• Avoid any drafts that could alter burner ame patterns. Do not
allow fans to blow directly into the replace. Do not place a blower
inside burn box area of rebox. Ceiling fans may create drafts that
alter burner ame patterns. Sooting and improper burning will
occur as a result of drafts.
• WARNING: Do not allow fans to blow directly into the replace.
Avoid any drafts that alter burner ame patterns.
• WARNING: Do not use a blower insert, heat exchanger insert or
other accessory not approved for use with this heater.
• Periodic examination and cleaning of the venting system of the
solid-fuel burning replace, including frequency of such examination
and cleaning, by a qualied agency.
• The installation must conform with local codes or, in the absence
of local codes, with the National Fuel Gas Code, ANSI Z223.1/
NFPA54.
• NOTE: Installation and repair should be done by a qualied service
person. The appliance should be inspected before use and at least
annually by a qualied service person. More frequent cleaning may
be required due to excessive lint from carpeting, bedding material,
etc. It is imperative that the control compartment, burners and
circulating air passageways of the appliance be kept clean.
• Any safety screen or guard removed for servicing an appliance must
be replaced prior to operating the appliance. Provide adequate
combustion and ventilation air.
• The ow of combustion and ventilation air MUST NOT be ob-
structed.
• Provide adequate clearances around air openings into the combus-
tion chamber and adequate accessibility clearance for servicing
and proper operation. NEVER obstruct the front opening of the
appliance.
• An unvented room heater intended for installation in a solid-fuel
burning replace shall comply with the following instructions.
• A replace screen must be in place when the appliance is operating
and, unless other provisions for combustion air are provided, the
screen shall have an opening(s) for introduction of combustion
air.
• Solid-fuels shall not be burned in a masonry or UL 127 factory-built
replace in which an unvented room heater is installed.
• Any glass doors shall be fully opened when the appliance is in
operation.
• Any outside air ducts and/or ash dumps in the replace shall be
permanently closed at time of appliance installation.
• WARNING: Failure to keep the primary air opening(s) of the
burner(s) clean may result in sooting and property damage.
• WARNING: Before installing in a solid-fuel burning replace, the
chimney ue and rebox must be cleaned of soot, creosote, ashes
and loose paint by a qualied chimney cleaner.
IMPORTANT SAFETY INFORMATION

24974-1-0509Page 4
Some people cannot smell well. Some people cannot smell the
odor of the chemical put into the gas. You must nd out if you
can smell the odorant in propane. Smoking can decrease your
ability to smell. Being around an odor for a time can affect your
sensitivity or ability to detect that odor. Sometimes other odors
in the area mask the gas odor. People may not smell the gas odor
or their minds are on something else. Thinking about smelling a
gas odor can make it easier to smell.
The odorant in LP-gas is colorless, and it can fade under some
circumstances. For example, if there is an underground leak, the

in LP-Gas also are subject to oxidation. This fading can occur if
there is rust inside the storage tank or in iron gas pipes.
The odorant in escaped gas can adsorb or absorb onto or into walls,
masonry and other materials and fabrics in a room. That will take
some of the odorant out of the gas, reducing its odor intensity.
LP-Gas may stratify in a closed area, and the odor intensity could
vary at different levels. Since it is heavier than air, there may be
more odor at lower levels. Always be sensitive to the slightest gas
odor. If you detect any odor, treat it as a serious leak. Immediately
go into action as instructed earlier.
Propane (LP-Gas) is a ammable gas which can cause res
and explosions. In its natural state, propane is odorless and
colorless. You may not know all the following safety precau-
tions which can protect both you and your family from an
accident. Read them carefully now, then review them point
by point with the members of your household. Someday when
there may not be a minute to lose, everyone's safety will depend
on knowing exactly what to do. If, after reading the following
information, you feel you still need more information, please
contact your gas supplier.
 Learn to recognize the odor of LP-gas. Your local LP-Gas
Dealer can give you a "Scratch and Sniff" pamphlet. Use it to

your LP-Gas has a weak or abnormal odor, call your LP-Gas
Dealer.
 
or make adjustments to appliances on the LP-Gas system. If

prior to and while lighting pilot lights or performing service or
making adjustments.
 
that can cover up the LP-Gas odor. Do not try to light pilot
lights, perform service, or make adjustments in an area where
the conditions are such that you may not detect the odor if there
has been a leak of LP-Gas.
 
new cylinders and tanks, is possible. Therefore, people should
be particularly alert and careful when new tanks or cylinders
are placed in service. Odor fade can occur in new tanks, or


of service for a time may develop internal rust which will cause
odor fade. If such conditions are suspected to exist, a periodic
sniff test of the gas is advisable. If you have any question about
the gas odor, call your LP-gas dealer. A periodic sniff test of
the LP-gas is a good safety measure under any condition.
 
think you should, assume you have a leak. Then take the same
immediate action recommended above for the occasion when
you do detect the odorized LP-Gas.
 
no vapor pressure), turn the tank valve off immediately. If the
container valve is left on, the container may draw in some air

new internal rusting could occur. If the valve is left open, then
treat the container as a new tank. Always be sure your container
is under vapor pressure by turning it off at the container before
-
pletely empty.
 
Do not do anything that could ignite the gas.
 
that IMMEDIATELY.
 
 
basements. When you have reason to suspect a gas leak, keep

declare them to be safe.
 
-
tinue to smell gas, do not turn on the gas again. Do not re-enter
the building, vehicle, trailer, or area.
 Finally
gas. Have them air out the area before you return. Properly
trained LP-Gas service people should repair the leak, then check
and relight the gas appliance for you.
SOME POINTS TO REMEMBER
NO ODOR DETECTED - ODOR FADE
LP-GAS WARNING ODOR
If a gas leak happens, you should be able to smell the gas because of the odorant put in the LP-Gas.
That's your signal to go into immediate action!
SAFETY INFORMATION FOR USERS OF LP-GAS

24974-1-0509 Page 5

smoke will occur. To prevent triggering of smoke alarms, ventilate
the room in which the unit is installed.
WARNING: This appliance is for installation only in a solid-
fuel burning masonry or UL 127 factory-built replace or in a
listed ventless rebox enclosure. It has been design certied for
these installations. Exception: DO NOT install this appliance
in a factory-built replace that includes instructions stating
it has not been tested or should not be used with unvented
gas logs.
WARNING: Any modication to this unvented gas heater or
its controls can be dangerous. Improper installation or use of
the heater can cause serious injury or death from re, burns,
explosion or carbon monoxide poisoning.
Well Head Gas Installations
Some natural gas utilities use "well head" gas. This may affect the
Btu output of the unit. Contact the gas company for the heating
value. Contact the manufacturer or your gas company before

IMPORTANT: Read all instructions carefully before starting
installation. Failure to follow these installation instructions may
result in a possible re hazard and will void the warranty.
Save this manual for future reference.
Please read this manual before installing and using the
appliance.
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
 
with unvented room heater/vented decorative appliance.
3. Installer should show owner how to start and operate unvented
room heater/vented decorative appliance.
Always consult your local Building Department regarding
regulations, codes or ordinances which apply to the installation of
an unvented room heater/vented decorative appliance.
This appliance may be installed in an aftermarket* manufactured
(mobile) home, where not prohibited by state or local codes.
*Aftermarket: Completion of sale, not for purpose of resale, from
the manufacturer.
This appliance is only for use with the type of gas indicated on the
rating plate. This appliance is not convertible for use with other
gases.
          
decorative appliance is installed.
A vented decorative appliance must be installed only in a solid-

combustible material.
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not shown on
the rating plate is the responsibility of the person and company
making the change.
Important
All correspondence should refer to complete Model Number, Serial
Number and type of gas.
Attention: During initial use of log you will detect an odor as
the log is cured.
ACCESSORIES for VFDR, VFDT, & VFDM
Description Color
EK-1 Embers Kit
PE-20 Platinum Embers
ELH-1 Fireplace Hood for Vent-Free Logs Black
ELH-2 Fireplace Hood for Vent-Free Logs Brass
ACCESSORIES for VFDR ONLY
FRBC Battery Operated Remote Control
FRBTC Battery Operated Remote Control with Thermostat
FREC Electric Remote Control
FWS Wall Switch
TRW Remote Wall Thermostat
TMV Wall Thermostat, Millivolt - Reed Switch
INTRODUCTION

24974-1-0509Page 6
PRODUCT SPECIFICATIONS
Water vapor is a by-product of gas combustion. An unvented room
heater produces approximately one (1) ounce (30ml) of water for

Unvented room heaters must be used as supplemental heat (a
room) rather than a primary heat source (an entire house). In most
supplemental heat applications, the water vapor does not create a
problem. In most applications, the water vapor enhances the low
humidity atmosphere experienced during cold weather.
The following steps will help insure that water vapor does not
become a problem.
1. Be sure the heater is sized properly for the application, including
ample combustion air and circulation air.
 
help lower the water vapor content of the air.
3. Do not use an unvented room heater as the primary heat source
(an entire house).
WATER VAPOR: A BY-PRODUCT OF UNVENTED ROOM HEATERS
Model Gas Valve Type Regulator Pressure
Setting
Gas Inlet Pressure
Max
Gas Inlet Pressure
Minimum
VFDR(18,24,30)LBW Natural Millivolt 3.5" W.C. 10.5" W.C. 4.5" W.C.
Propane 10.0" W.C. 13.0" W.C. 11.0" W.C.
VFDR18LBW10 Natural Millivolt 3.5" W.C. 10.5" W.C. 5.0" W.C.
Propane 10.0" W.C. 13.0" W.C. 11.0" W.C.
VFDT(18,24,30)LBW Natural Thermostat 6.0" W.C. 10.5" W.C. 7.0" W.C.
Propane 10.0" W.C. 13.0" W.C. 11.0" W.C.
VFDM(18,24,30)LBW Natural Manual 6.0" W.C. 10.5" W.C. 7.0" W.C.
Propane 10.0" W.C. 13.0" W.C. 11.0" W.C.
Model BTU/hr.
Max. Rate
BTU/hr.
Med. Rate
BTU/hr.
Min. Rate
VFDR18LBW10N 10,000 N/A N/A
VFDR18LBW10P 10,000 N/A N/A
VFDR18LBWN 28,000 N/A 19,000
VFDR18LBWP 28,000 N/A 22,000
VFDR24LBWN 34,000 N/A 24,000
VFDR24LBWP 34,000 N/A 26,000
VFDR30LBWN 40,000 N/A 27,000
VFDR30LBWP 40,000 N/A 31,000
VFDT18LBWN 28,000 N/A 19,000
VFDT18LBWP 28,000 N/A 22,000
VFDT24LBWN 34,000 N/A 24,000
VFDT24LBWP 34,000 N/A 26,000
VFDT30LBWN 40,000 N/A 27,000
VFDT30LBWP 40,000 N/A 31,000
VFDM18LBWN 28,000 23,000 19,000
VFDM18LBWP 28,000 25,000 22,000
VFDM24LBWN 34,000 29,000 24,000
VFDM24LBWP 34,000 30,000 26,000
VFDM30LBWN 40,000 32,000 27,000
VFDM30LBWP 40,000 36,000 31,000

24974-1-0509 Page 7

room in which it is installed. Provisions for adequate combustion
and ventilation air must be provided.
Keep room area clear and free from combustible materials, gasoline

Unvented gas heaters are a supplemental zone heater. They are not
intended to be a primary heating appliance. Water vapor produced
by an unvented heater can create moisture problems in a home
when operated for extended periods of time.
During manufacturing, fabricating and shipping, various

bonding agents. These chemicals are not harmful but may produce
annoying smoke and smells as they are burned off during the initial
operation of the appliance; possibly causing headaches or eye or
lung irritation. This is a normal and temporary occurrence.
The initial break-in operation should last 2-3 hours with the burner
at the highest setting. Provide maximum ventilation by opening
windows or doors to allow odors to dissipate. Any odors remaining
after this initial break-in period will be slight and will disappear
with continued use.
This appliance must not be used with glass doors in the closed
position. This can lead to pilot outages and severe sooting outside

Do not use this room heater if any part has been under water.

heater and replace any part of the control system and any gas control
which has been under water.
WARNING: This appliance is equipped for (natural or
propane) gas. Field conversion is not permitted.
Before you get started
Carefully inspect the contents for shipping damage. If any parts are
missing or damaged, immediately inform the dealer from whom
you purchased the appliance. Do not attempt to install any part of
the appliance unless you have all parts in good condition.
Make sure you have received all parts:
Check your packing list to verify that all listed parts have been
received. You should have the following:
 
 
sheet metal anchoring screws.
   
and VFDM(18,24)) (7 Piece on VFDR30, VFDT30 and
VFDM30)
 
coverage.

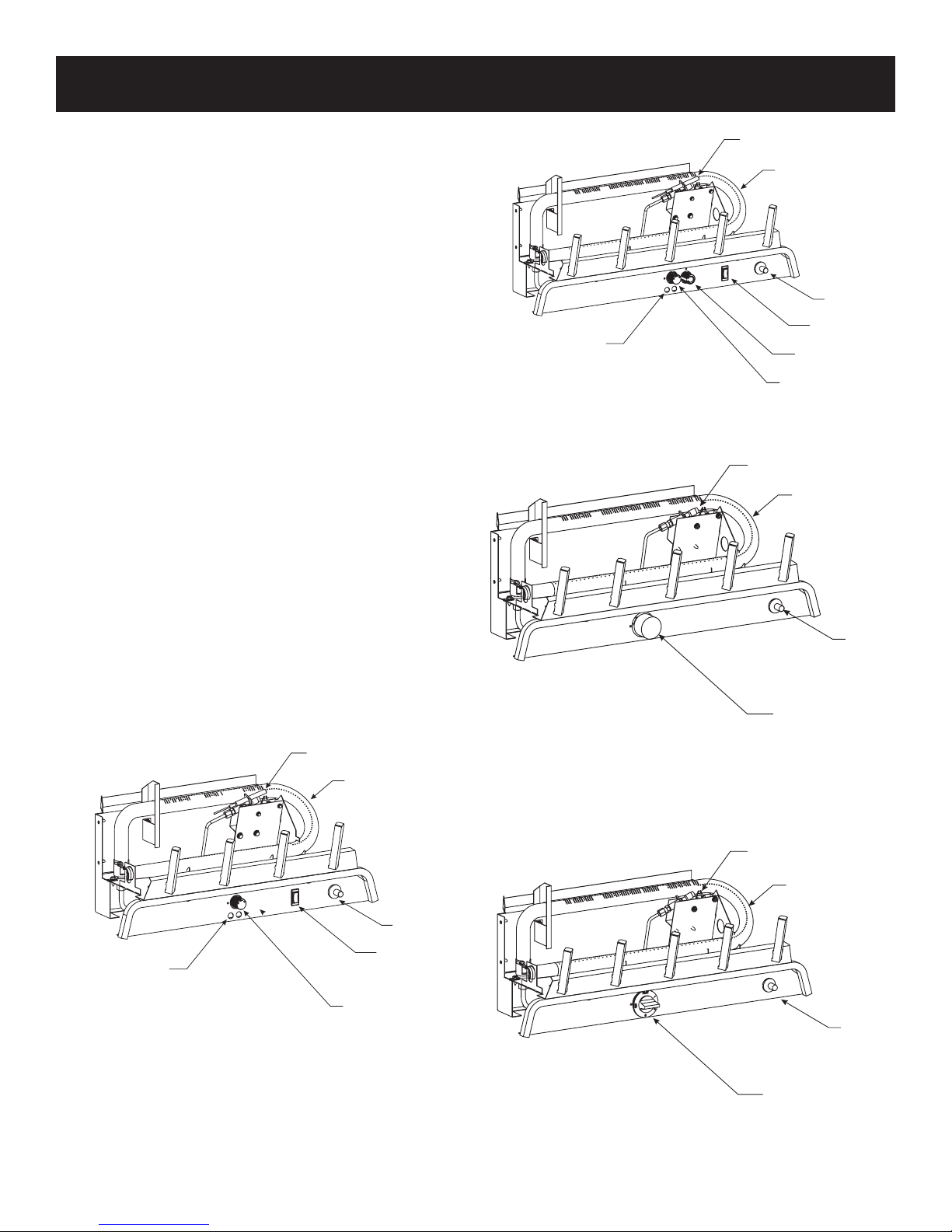

The millivolt controlled heater may be operated with optional
devices for REMOTE/OFF/ON functions.
a. Wall switch or thermostat with wire.
b. Hand held remote control with ON/OFF switch or thermostat.
Handle the gas log burner assembly by the grate and legs only.
Do not pick the unit up by the burner.
Gloves are recommended when handling logs to prevent skin
irritation. Logs are fragile - Handle with care.
Qualied Installing Agency
Installation and replacement of gas piping, gas utilization equip-
ment or accessories and repair and servicing of equipment shall be


person or through a representative is engaged in and is responsible
for (a) the installation, testing, or replacement of gas piping or (b) the
connection, installation, testing, repair, or servicing of equipment;
that is experienced in such work; that is familiar with all precau-
tions required, and that has complied with all the requirements of
the authority having jurisdiction.
State of Massachusetts: The installation must be made by
a licensed plumber or gas fitter in the Commonwealth of
Massachusetts.

room heaters shall provide to each purchaser a copy of 527
CMR-30 upon sale of the unit.
In the State of Massachusetts, unvented propane and natural
        
bathrooms.
The installation must conform with local codes or, in the absence
of local codes, with the National Fuel Gas Code, ANSI Z223.1.*
*Available from the American National Standards Institute, Inc. 11 West 42nd St.,
New York, N.Y. 10018.
High Altitude
When installing this unit at an elevation above 2,000 feet (in the
United States), it may be necessary to decrease the input rating by

input should be reduced 4 percent for each 1,000 feet above sea
level. However, if the heating value of the gas has been reduced,
this general rule may not apply. Check with local gas utility for

GENERAL INFORMATION

24974-1-0509Page 8
REQUIREMENTS FOR CANADA
This unit cannot be installed in a UNVENTED application, this
unit can only be installed as a VENTED application with these
requirements.
IMPORTANT SAFETY INFORMATION
This unit complies with ANSI Z21.60and CGA 2.26 Decorative
Gas Appliances For Installation In Solid Fuel Burning Fireplaces.

gas log set is installed. This appliance is for installation only in


Warning: 
be dangerous. Improper installation or use of the gas log set can

monoxide poisoning.
1. Please follow all local codes regarding installation, combus-
tion and ventilation air or in the absence of local codes follow
the National Fuel Gas Code ANSI Z223.1(U.S. installation),
or CAN/CGA-B149, Installation Code (Canada installation).
2. Proper installation, burner pan location and log placement is
important to achieve optimum look and performance of your
gas log set. The logs have been designed for easy location
and placement on the grate and must be followed for proper
operation.
3. Do not operate this log set with glass doors in the closed po-

is burning. Adequate combustion air must be provided for


into the room do not operate appliance. Check for an open
        
clamp must   

DAMPER CLAMP
4. Young children must be carefully supervised when they are
in the same room as the gas log while in operation. Do not


5. Do not substitute or use materials other than those supplied
for use with the log set.
6. Also refer to IMPORTANT SAFETY INFORMATION on
page 3 of this manual
WARNING; DO NOT OPERATE THIS GAS LOG SET
WITH GLASS DOORS CLOSED
 
or near the appliance.
 -
eration.
      
components of this appliance are treated with certain oils,
-
ful but may produce annoying smoke and smells as they are
burned off during initial operation of the appliance. This is a
normal temporary occurrence. A window should be opened
during the initial bake out period.
 
 WARNING:        -

-
er.
 
person. The appliance should be inspected before use and at
    
cleaning may be required due to excessive lint from carpet-
ing, bedding materials, etc. It is imperative that control com-
partments, burners and circulating air passageways of the ap-
pliance be kept clean.
 Do not   

 Do keep the appliance area clear and free from combustible

 
-

 Do make a periodic visual check of pilot and burners. Clean
and replace damaged parts.
 Do not use this appliance if any part has been under water.

appliance and to replace any part of the control system and
any gas control which has been under water.
 -
stalled.
        
Appliances for Solid Fuel Burning Fireplaces. State or local
codes may only allow operation of this appliance in a vented


24974-1-0509 Page 9
Example of Large Room with 1/2 Wall divider.
Figure 1
The following formula can be used to determine the maximum heater

Btu/Hr = (L1+ L2)FT x (W)FT x (H)FT x 1000
50


by one of the methods described in the National Fuel Gas Code, ANSI
Z223.1/NFPA54.
Adhere to all codes, or in their absence, the latest edition of THE NATIONAL
FUEL GAS CODE ANSI Z223.1/NFPA54 which can be obtained from:
American National Standards Institute
11 West 42nd St.
New York, NY 10018
OR
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
Minimum Dimensions For Solid Fuel Burning Fireplaces
UL127 Factory Built Fireplaces (Figure 2)
Model A B C D
VFDR18LBW10 17" 12" 28" 17"
VFD(R,T,M)18 17" 12" 28" 17"
VFD(R,T,M)24 23" 12" 30" 18"
VFD(R,T,M)30 26" 12" 34" 20"

instructions are minimum clearances to maintain in installing this
heater. Left and right clearances are determined when facing the
front of the heater.
Glass Doors
Make sure that glass doors are open during all operations of
the logset. The opening of the glass door frame should be the

Follow these instructions to ensure safe installation.

Figure 2

provided for adequate combustion and ventilation air.

volume is less than 50 cubic feet per 1,000 Btu per hour (4.8m3per kw) of
the aggregate input rating of all appliances installed in that space and an

per 1,000 Btu per hour (4.8 m3per kw) of the aggregate input rating of all
appliances installed in that space. Rooms communicating directly with the
space in which the appliances are installed, through openings not furnished

Unusually Tight Construction
The air that leaks around doors and windows may provide enough fresh
air for combustion and ventilation. However, in buildings of unusually
tight construction, you must provide additional fresh air.
Unusually tight construction is dened as construction where:
a. Walls and ceilings exposed to the outside atmosphere have a con-
tinuous water vapor retarder with a rating of one perm or less with
openings gasketed or sealed, and
b. Weather-stripping has been added on openable windows and doors,
and
c. Caulking or sealants are applied to areas such as joints around

wall-ceiling joints, between wall panels, at penetrations for plumb-
ing, electrical, and gas lines, and at other openings.
If your home meets all of the three criteria above, you must provide
additional fresh air.
Warning: If the area in which the heater may be operated is smaller than

construction, provide adequate combustion and ventilation air by one of
the methods described in the National Fuel Gas Code,ANSI Z223.1/NFPA
54, Air for Combustion and Ventilation, or applicable local codes.
PROVISIONS FOR ADEQUATE COMBUSTION & VENTILATION AIR
CLEARANCES

24974-1-0509Page 10
Mantel Clearances with Hood (Figure 5)
       
opening. Non-combustible material must extend at least 8" above

material behind it.
Heat resistant materials such as slate and marble must be at least
1/2" thick. Sheet metal should not be installed onto combustible
material.
Example: A mantel may project from the wall a maximum of 2" at
a minimum of 13-1/2" above the opening, and a maximum of 6"
at a minimum of 15" above the opening.
Figure 5
If your installation does not meet the above minimum clearances,
you must proceed to one of the following steps:

Installing as a Vented Appliance.


Floor Clearance (Figure 6)
-
bustibles is “0” inches.
Figure 6
Sidewall & Ceiling Clearances (Figure 3)
Figure 3

wall. The ceiling must be at least 41" (for 18", 24" and 30" logs)

Mantel Clearances Without Hood (Figure 4)
       
opening. Non-combustible material must extend at least 12"
  
combustible material behind it.
Heat resistant materials such as slate and marble must be at least
1/2" thick. Sheet metal should not be installed onto combustible
material.
Figure 4
If your installation does not meet the above clearances, you must
proceed to one of the following steps:

Install-
ing as a Vented Appliance.


Non-Combustible
Material Distance
Requirements for Safe Installation
12" or more Non-combustible material
Less than 12" Non-combustible material must be extended
to at least 8" with the installation of the

non-combustible material at least 8", you must

CLEARANCES (continued)
18”, 24”, 30” Log 41”
6”
28”
12”
HEATER IN FIREPLACE
OR FIREBOX
HEAT RESISTANT
MATERIAL
12” WITHOUT
HOOD
10” and less Mantel
13.5”
14.25”
15.0”
16.0”
HOOD
HEATER IN
FIREPLACE
OR FIREBOX
HEAT RESISTANT
MATERIAL
8” WITH HOOD
8” Mantel
6” Mantel
4” Mantel
2” Mantel

24974-1-0509 Page 11
FOR MASONRY BUILT FIREPLACES
FREE OPENING AREA OF CHIMNEY DAMPER FOR
VENTING COMBUSTION PRODUCTS FROM DECORA-
TIVEAPPLIANCES FOR INSTALLATION IN SOLID FUEL
BURNING FIREPLACES
* Height is from hearth to top of chimney and the minimum
height is 6 feet.
** Chart shows minimum opening (sq. in.) for given height and
input rate.
 
 
remove ashes, soot, creosote or other obstructions.
Have this cleaning performed annually after installation.
 


damper.
Install and operate the appliance as directed in this manual.
FOR FACTORY BUILT FIREPLACES
FREE OPENING AREA OF CHIMNEY DAMPER FOR
VENTING COMBUSTION PRODUCTS FROM DECORA-
TIVEAPPLIANCES FOR INSTALLATION IN SOLID FUEL
BURNING FIREPLACES
* Height is from hearth to top of chimney and the minimum
height is 10 feet.
** Chart shows minimum opening (sq. in.) for given height and
input rate.


Figure 7
No greeting card, stockings or ornamentation of any type should be


Figure 8
Appliance Input Rate (BTU/hr)
20 30 40
Chimney
Height* (ft)
Minimum Opening** (sq. in.)
10 11.3 16.6 22.1
15 8.6 12.6 17.3
20 7.5 10.8 14.5
25 6.6 9.6 12.6
30 6.2 9.1 11.3
35 5.7 8.0 10.8
40 5.3 7.5 10.2
Appliance Input Rate (BTU/hr)
20 30 40
Chimney
Height* (ft)
Minimum Opening** (sq. in.)
6 17.6 25.7 33.8
8 16.5 23.7 31.2
10 15.1 21.7 28.7
15 14.1 19.9 26.1
20 12.9 18.5 23.7
30 12.2 16.9 21.6
COMBUSTIBLE MATERIAL
FIREPLACE PREPARATION

24974-1-0509Page 12
Notice (Damper Clamp Installation)
When installing your log set as a vented installation the damper
clamp must be used.
When installing your log set as a vent-free installation the damper
clamp can be used to eliminate the potential for odors when burning

Installing Damper Clamp (Figure 9)

is equipped with an ash dump be sure to seal the door with furnace
cement or high temperature silicone. Be sure to check the damper

Place the clamp over the lip of the damper and tighten the hold
down bolt until the clamp is securely attached to the damper. This
will prevent the damper from accidentally closing.
Manual and millivolt controlled gas logs may be installed as a
vented decorative log set in compliance with ANSI Z21.60 and
National Fuel Gas Code. When the gas logs are operated with the
damper open, non-combustible material and minimum mantel
requirements do not apply.
 
 

cause pilot outage or sooting. Use a heat resistant sealant. Do




You must secure the gas log heater to the replace oor. If
not, the entire unit may move when you adjust the controls.
Movement of unit may cause shifting of the gas logs which
leads to sooting and improper burning. Grate movement
could cause a gas leak.
Special care is required if you are installing the unit into a
sunken replace. You must raise the replace oor to allow
access to gas log controls. This will insure adequate air ow
and guard against sooting. Raise the replace oor using
noncombustible materials.
Assembly Procedure: (Figure 10)



2. An anchor hole is provided in the two bottom side members of
the grate frame. After centering the grate correctly, mark the

diameter holes approximately 1-1/2" deep for masonry screws
or 1/8" hole for sheet metal screws.

provided. Refer to Figure 10.
Proper installation of the grate is essential to prevent any move-
ment of the gas logs and controls during operation.
Figure 10
Figure 9
ANCHOR SCREW
LOCATIONS
INSTALLING AS A VENTED APPLIANCE
BEFORE FULLY INSTALLING THE APPLIANCE

24974-1-0509 Page 13
Check all local codes for requirements, especially for the size and
type of gas supply line required.
Note: 
codes allow copper tubing or galvanized.
Note: Since some municipalities have additional local codes, it is
always best to consult your local authority and installation code.
Installing a New Main Gas Cock
Each appliance should have its own manual gas cock.
A manual main gas cock should be located in the vicinity of the
unit. Where none exists, or where its size or location is not ad-
equate, contact your local authorized installer for installation or
relocation.
Compounds used on threaded joints of gas piping shall be resistant

checked for leaks by the installer. This should be done with a soap
solution watching for bubbles on all exposed connections, and if
unexposed, a pressure test should be made.
Never use an exposed ame to check for leaks. Appliance must
be disconnected from piping at inlet of control valve and pipe
capped or plugged for pressure test. Never pressure test with
appliance connected; control valve will sustain damage!
A gas valve and ground joint union should be installed in the gas
line upstream of the gas control to aid in servicing. It is required
by the National Fuel Gas Code that a drip line be installed near
the gas inlet. This should consist of a vertical length of pipe tee
connected into the gas line that is capped on the bottom in which
condensation and foreign particles may collect.
Figure 11
The use of the following gas connectors is recommended:
— ANSZ21.24ApplianceConnectorsofCorrugatedMetalTubing
and Fittings
— ANS Z21.45 Assembled Flexible Appliance Connectors of
Other Than All-Metal Construction
The above connectors may be used if acceptable by the authority

appliance connector cannot exceed three feet in length.
Pressure Testing of the Gas Supply System
1. To check the inlet pressure to the gas valve, a 1/8" (3.175mm)
N.P.T.pluggedtapping,accessiblefortestgaugeconnection,must
be placed immediately upstream of the gas supply connection
to the appliance.
2. The appliance and its individual shutoff valve must be
disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of 1/2
psig (3.5 kPa).
3. The appliance must be isolated from the gas supply piping
system by closing its individual manual shutoff valve during
any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig (3.5 kPa).
Caution: If the gas pressure exceeds the maximum limits listed on
page 6 of this manual or on the installed gas valve, it will result in
a hazardous condition.
Recommended Gas Pipe Diameter
Pipe Length Schedule 40 Pipe
Inside Diameter
Tubing, Type L
Outside Diameter
Nat. L.P. Nat. L.P.
0-10 feet
0-3 meters
1/2”
12.7mm
3/8”
9.5mm
1/2”
12.7mm
3/8”
9.5mm
10-40 feet
4-12 meters
1/2”
12.7mm
1/2”
12.7mm
5/8”
15.9mm
1/2”
12.7mm
40-100 feet
13-30 meters
1/2”
12.7mm
1/2”
12.7mm
3/4”
19mm
1/2”
12.7mm
100-150 feet
31-46 meters
3/4”
19mm
1/2”
12.7mm
7/8”
22.2mm
3/4”
19mm
GAS SUPPLY

24974-1-0509Page 14
Before you begin: if you are installing logs onto the VFD(R,T,M)18
or VFD(R,T,M)24 models, this burner assembly is supplied with a

bare hands! Always wear gloves to prevent skin irritation from


The positioning of the logs is critical to the safe and clean operation
of this burner assembly. Sooting and other problems may result
  
assembly. Refer to Figure 13 and Figure 14 and corresponding
WARNING: when completing following log placement instruc-
tions.
1. Place Front Left Log (B) on left front side of burner. Align
notch on log with front of burner support bracket.
2. Place Middle Log (C) behind B log on burner. Align notch
on log with back of the burner support bracket.
3. Place Rear Log (D) on rear log support. Align notch on bot-
tom left of log with the rear burner support bracket.
4. Place Front Right Log (A) on right front of burner.
5. Place Right Branch (F) in grooves between Front Left Log
(B), Middle Log (C), and Right Front Log (A).
6. Place Left Branch (E) in grooves on Rear Log (D) and
Middle Log (C).
EMBER MATERIAL PLACEMENT ON BURNER
7. After all logs are positioned properly, apply Rockwool ember
material to the front burner port area. To apply, carefully
separate the ember material into small amounts no larger than
"dime size" pieces. Fluffed up pieces one layer thick on top
of the burner generally works best, and will provide the best
ember glow. Do not place ember material more than one layer
thick. No more than (2) two small packets of ember material
(part no. 15998) evenly placed on the burner, is recommended
on VFDR18 and VFDR24 models. Using additional ember
material will decrease the amount of ember glow effect. Extra
ember material should be saved for future ember applications
as necessary.
Figure 13
WARNING: Failure to position the parts in accordance with

with this appliance may result in property damage or personal
injury.
Attention: Do not use Figure 13 or Figure 14 to order logs. Refer
to Parts Lists and Parts Views to order logs and/or ember material
for your appropriate model.
Figure 14
VFD(R,T,M)(18,24,30) & VFDR18LBW10 LOG PLACEMENT
Description Part #
VFD(R,T,M)18 Embers 15998
VFD(R,T,M)24 Embers 15998
VFD(R,T,M)30 Embers 15999
Platinum Bright Embers PE20-1
Note: A single layer of embers is to be used when applying
Platinum Bright Embers (alone or in combination with standard
embers) to the burner.
A
B
C
D
E
F
EMBER MA
PLACEMENT
(SHADED AREA ONLY)
TERIAL
Figure 12
A
B
C
D
EF

24974-1-0509 Page 15
Flames from the pilot (rear right back side of the pan burner) as

is installed.



NOTE:
up and down.




During manufacturing, fabricating and shipping, various

bonding agents. These chemicals are not harmful, but may produce
annoying smoke and smells as they are burned off during the initial
operation of the appliance, possibly causing headaches or eye or
lung irritation. This is a normal and temporary occurrence.
The initial break-in operation should last 2-3 hours with the burner
at the highest setting. Provide maximum ventilation by opening
windows or doors to allow odors to dissipate. Any odors remaining
after this initial break-in will be slight and will disappear with
continued use.
Millivolt Valve for VFDR Series
Figure 16
VA LV E PRESSURE TEST
PORT ACCESS HOLES
ON/OFF/PILOT
CONTROL KNOB
HI/LO CONTROL
KNOB
ON/OFF/REMOTE
SWITCH
PIEZO
IGNITOR
BURNER TUBE
PILOT ASSEMBLY
OPERATION INSTRUCTIONS/FLAME APPEARANCE
MANUAL VALV E
CONTROL KNOB
PIEZO
IGNITOR
BURNER TUBE
PILOT ASSEMBLY
MANUAL VA LV E
CONTROL KNOB
PIEZO
IGNITOR
BURNER TUBE
PILOT ASSEMBLY
Thermostat Valve for VFDT Series
Figure 17
Manual Valve for VFDM Series
Figure 18
Millivolt Valve for VFDR18LBW10 Series
Figure 15
VA LVE PRESSURE TEST
PORT ACCESS HOLES
ON/OFF/PILOT
CONTROL KNOB
ON/OFF/REMOTE
SWITCH
PIEZO
IGNITOR
BURNER TUBE
PILOT ASSEMBLY

24974-1-0509Page 16
Thermostats are not approved on vented decorative appliances.
Label all wires prior to disconnection when servicing controls.
Wiring errors can cause improper and dangerous operation. Verify
proper operation after servicing.
18", 24" and 30" Gas Logs (Millivolt) thermopile is self powered
gas valve and does not require 110 volts. See Figure 19 to provide
optional wall switch, thermostat, or remote control. Maximum
length of 20 feet of 16 AWG to conductor wires is to be used with
all optional switches.
Check System Operation
Millivolt system and all individual components may be checked
with a millivolt meter 0-1000 MV range.
Remote Receiver
Use the following steps to place the remote receiver adjacent to
the gas valve.
Attention:
1. The remote receiver can not be placed behind the gas valve
and burner assembly.
2. When facing the appliance, the remote receiver must be placed
to the right of the gas valve and burner assembly.
Note: Do not let remote control receiver come in contact with
burner assembly.
       
behind bottom louver.
Refer to remote control installation and operating instructions for
more details on remote control.
750 Millivolt System
When you ignite the pilot, the thermocouple produces millivolts
(electrical current) which energizes the magnet in the gas valve.
After 30 seconds to 1 minute time period you can release the gas

operate an additional one (1) to two (2) minutes before you turn the
gas control knob from the PILOT position to the ON position. This
time period allows the millivolts (electrical current) to buildup to a

Millivolt Control
The valve regulator controls the burner pressure which should be
checked at the pressure test point. Turn captured screw counter
clockwise 2 or 3 turns and then place tubing to pressure gauge over
test point (Use test point “A” closest to control knob). After taking

to re-seal. Do not over torque. Check for gas leaks.
REMOTE/OFF/ON SWITCH
A DISTANCE/FERME/OUVERT
INTERRUPTEUR
IF ANY OF THE ORIGINAL WIRE
AS SUPPLIED WITH THIS UNIT
MUST BE REPLACED, IT MUST BE
REPLACED WITH NUMBER 18, 150°C
WIRE OR ITS EQUIVALENT.
SI UN DES FILS ELECTRIQUES
ORIGINAUX, VENANT DU FABRICANT
AVEC CETTE UNITE, DOIT ETRE
REMPLACE, VOUS DEVEZ LE
REMPLACER AVEC UN FIL
ELECTRIQUE DE NUMERO 18,
150 °CDUL'EQUIVALENT.
THERMOPILE
GAS VALVE
THERMOCOUPLE
(NATURAL)
OFF
ON
REMOTE
(OPTIONAL) REMOTE CONTROL RECEIVER
(FACULTATIVE) CONTROLEEDISTANCE
DU RECEPTEUR
(OPTIONAL) WALL SWITCH
INTERRUPTEUR MURAL
(FACULTATIVE)
(OPTIONAL) THERMOSTAT
(FACULATIVE) THERMOSTAT
WIRING DIAGRAM
GAS VALVE
VALVEDE GAZ
REMOTE/OFF/ON SWITCH
A DISTANCE/OUVERT/
FERME INTERRUPTEUR
REMOTE CONTROL RECEIVER/
THERMOSTAT/ CONTROLE E
DISTANCE DU RECEPTEUR
H N
VEILLEUSE
PILOT
THERMOCOUPLE
(LPG)
WIRING - VFDR MODELS ONLY
Figure 19

24974-1-0509 Page 17
WARNING: If you do not follow these instructions exactly, a re or explosion may result
causing property damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by
hand. When lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING, smell all around the appliance area
for gas. Be sure to smell next to the oor because some
gas is heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance
• Do not touch any electrical switch; Do not use any
phone in your building
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the re
department.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by
hand, don't try to repair it, call a qualied service tech-
nician. Force or attempted repair may result in a re or
explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualied service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water.
1. Open bottom louver assembly (if applicable).
2. Set REMOTE/OFF/ON switch to OFF.
3. Turn off all electric power to the appliance if service is to be
performed (if applicable).
4. Push in gas control knob slightly and turn clockwise
to "OFF". Do not force.
5. Close bottom louver assembly (if applicable).
1. STOP! Read the safety information above on this page.
2. Open bottom louver assembly (if applicable).
3. Set REMOTE/OFF/ON switch to
"OFF".
4. Turn off all electric power to the
appliance (if applicable).
5. Push in gas control knob slightly
and turn clockwise to
"OFF".
NOTE: Knob cannot be turned from "PILOT"
to "OFF" unless knob is pushed in slightly.
Do not force.
6. Wait ten (10) minutes to clear
out any gas. Then smell for gas,
including near the floor. If you
smell gas, STOP! Follow "B" in
the safety information above. If
you do not smell gas, go to the next
step.
7. Find pilot - Follow metal tube from
gas control. The pilot is located next to the burner, near the
right side.
8. Turn gas control knob counterclockwise
to "PILOT".
9. Push in control knob all the way and hold in. Repeatedly push
the Piezo Ignitor Button until the pilot is lit. Continue to hold
the control knob in for about one (1) minute after the pilot is
lit. Release knob, and it will pop back up. Pilot should remain
lit. If it goes out, repeat steps 5 through 9.
  -

supplier.
  
control knob to "OFF" and call your service technician
or gas supplier.
10. Turn gas control knob counterclockwise to "ON".
11. Set REMOTE/OFF/ON switch to desired setting.
12. Turn on all electric power to the appliance (if applicable).
13. Close bottom louver assembly (if applicable).
GAS CONTROL KNOB
SHOWN IN "OFF" POSITION.
THERMOCOUPLE
(NATURAL)
ELECTRODE
PILOT
THERMOPILE
REMOTE
OFF
ON
THERMOCOUPLE
(LPG)
GAS CONTROL KNOB
SHOWN IN "OFF" POSITION.
THERMOCOUPLE
(NATURAL)
ELECTRODE
PILOT
THERMOPILE
REMOTE
OFF
ON
THERMOCOUPLE
(LPG)
GAS CONTROL KNOB
SHOWN IN "OFF" POSITION.
THERMOCOUPLE
(NATURAL)
ELECTRODE
PILOT
THERMOPILE
REMOTE
OFF
ON
THERMOCOUPLE
(LPG)
VFDR(18,24,30)LBW LIGHTING INSTRUCTIONS
FOR YOUR SAFETY READ BEFORE LIGHTING
LIGHTING INSTRUCTIONS
TO TURN OFF GAS TO APPLIANCE

24974-1-0509Page 18
WARNING: If you do not follow these instructions exactly, a re or explosion may result
causing property damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by
hand. When lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING, smell all around the appliance area
for gas. Be sure to smell next to the oor because some
gas is heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance
• Do not touch any electrical switch; Do not use any
phone in your building
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the re
department.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by
hand, don't try to repair it, call a qualied service tech-
nician. Force or attempted repair may result in a re or
explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualied service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water.
1. Open bottom louver assembly (if applicable).
2. Set REMOTE/OFF/ON switch to OFF.
3. Turn off all electric power to the appliance if service is to be
performed (if applicable).
4. Push in gas control knob slightly and turn clockwise
to "OFF". Do not force.
5. Close bottom louver assembly (if applicable).
1. STOP! Read the safety information above on this page.
2. Open bottom louver assembly (if applicable).
3. Set REMOTE/OFF/ON switch to
"OFF".
4. Turn off all electric power to the
appliance (if applicable).
5. Push in gas control knob slightly and turn clockwise
to "OFF".
NOTE: Knob cannot be turned from "PILOT"
to "OFF" unless knob is pushed in slightly.
Do not force.
6. Wait ten (10) minutes to clear
out any gas. Then smell for gas,
including near the floor. If you
smell gas, STOP! Follow "B" in
the safety information above. If
you do not smell gas, go to the next
step.
7. Find pilot - Follow metal tube from
gas control. The pilot is located
next to the burner, near the right side.
8. Turn gas control knob counterclockwise
to "PILOT".
9. Push in control knob all the way and hold in. Repeatedly push
the Piezo Ignitor Button until the pilot is lit. Continue to hold
the control knob in for about one (1) minute after the pilot is
lit. Release knob, and it will pop back up. Pilot should remain
lit. If it goes out, repeat steps 5 through 9.
  -

supplier.
  
control knob to "OFF" and call your service technician
or gas supplier.
10. Turn gas control knob counterclockwise to "ON".
11. Set REMOTE/OFF/ON switch to desired setting.
12. Turn on all electric power to the appliance (if applicable).
13. Close bottom louver assembly (if applicable).
GAS CONTROL KNOB
SHOWN IN "OFF" POSITION.
THERMOCOUPLE
(NATURAL)
ELECTRODE
PILOT
THERMOPILE
REMOTE
OFF
ON
THERMOCOUPLE
(LPG)
GAS CONTROL KNOB
SHOWN IN "OFF" POSITION.
THERMOCOUPLE
(NATURAL)
ELECTRODE
PILOT
THERMOPILE
REMOTE
OFF
ON
THERMOCOUPLE
(LPG)
VFDR18LBW10(N,P) LIGHTING INSTRUCTIONS
FOR YOUR SAFETY READ BEFORE LIGHTING
LIGHTING INSTRUCTIONS
TO TURN OFF GAS TO APPLIANCE

24974-1-0509 Page 19
VFDT(18,24,30)LBW LIGHTING INSTRUCTIONS
WARNING: If you do not follow these instructions exactly, a re or explosion may result
causing property damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by
hand. When lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING, smell all around the appliance area
for gas. Be sure to smell next to the oor because some
gas is heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance
• Do not touch any electrical switch; Do not use any
phone in your building
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the re
department.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by
hand, don't try to repair it, call a qualied service tech-
nician. Force or attempted repair may result in a re or
explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualied service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water.
FOR YOUR SAFETY READ BEFORE LIGHTING
1. STOP! Read the safety information above on this page.
2. Set thermostat (gas control knob) to lowest setting.
3. Turn off all electric power to the appliance (if applicable).
4. Push in gas control knob slightly and turn clockwise
to "OFF." Do not force.
5. Wait ten (10) minutes to clear out any gas. Then smell for

"B" in the safety information above. If you do not smell gas,
go to the next step.
6. Find pilot - the pilot is located in front
of the rear log.
7. Turn manual gas control knob coun-
terclockwise to "PILOT."
8. Push in manual gas control knob all the way and hold in.
Repeatedly push the piezo ignitor button until pilot is lit (or
use a match to light). Continue to hold the control knob in
for about one (1) minute after the pilot is lit. Release knob
and it will pop back up. Pilot should remain lit. If it goes out,
repeat steps 4 though 8.
      -
mediately call your service technician or gas supplier
  
control knob to "OFF" and call your service technician
or gas supplier.
9. Attention! Gas control has an INTERLOCK latching device.
When the pilot is initially lit and the safety magnet is ener-
gized (pilot stays "ON"), the INTERLOCK latching device
becomes operative. If the gas control is turned to the "OFF"
           
cannot be relighted until the safety magnet is de-energized
(approximately 60 seconds). There will be an audible "click"
when the safety magnet in the gas control is de-energized.
Pilot can now be relighted. Repeat steps 4 through 8.
10. Turn gas control knob counterclockwise to
"HIGH."
11. Turn on all electric power to the appliance (if applicable).
12. Set thermostat (gas control knob) to desired setting from
"HIGH" to "LOW."
LIGHTING INSTRUCTIONS
CONTROL KNOB
INDICATOR
GASCONTROL KNOB
SHOWN IN “OFF”
POSITION
THERMOCOUPLE
(LPG) PILOT
THERMOCOUPLE
(NATURAL)
1. Set thermostat (gas control knob) to lowest setting.
2. Turn off all electric power to the appliance if service is to be
performed (if applicable).
3. Push in gas control knob slightly and turn clockwise
to "OFF." Do not force.
TO TURN OFF GAS TO APPLIANCE

24974-1-0509Page 20
VFDM(18,24,30)LBW LIGHTING INSTRUCTIONS
WARNING: If you do not follow these instructions exactly, a re or explosion may result
causing property damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by
hand. When lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING, smell all around the appliance area
for gas. Be sure to smell next to the oor because some
gas is heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance
• Do not touch any electrical switch; Do not use any
phone in your building
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the re
department.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by
hand, don't try to repair it, call a qualied service tech-
nician. Force or attempted repair may result in a re or
explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualied service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water.
FOR YOUR SAFETY READ BEFORE LIGHTING
1. STOP! Read the safety information above on this page.
2. Push in gas control knob slightly and turn clockwise
to "OFF." Do not force.
3. Wait ten (10) minutes to clear out any gas. Then smell for

"B" in the safety information above. If you do not smell gas,
go to the next step.
4. Find pilot - the pilot is located in
front of the rear log.
5. Turn manual gas control knob
counterclockwise to
"PILOT."
6. Push in manual gas control knob all the way and hold in.
Repeatedly push the piezo ignitor button until pilot is lit (or
use a match to light). Continue to hold the control knob in
for about one (1) minute after the pilot is lit. Release knob
and it will pop back up. Pilot should remain lit. If it goes out,
repeat steps 2 through 6.
      -
mediately call your service technician or gas supplier
  
control knob to "OFF" and call your service technician
or gas supplier.
7. Three heat settings can be selected by slightly depressing the
manual gas control knob and turning the manual gas control
knob counterclockwise to 1, 2 or 3.
8. CAUTION! When the manual gas control knob has been
turned to desired heat setting, ensure that the manual gas
control knob is locked into that heat setting and cannot be
turned without being depressed. If the manual gas control
knob is in mid-position, between heat settings, incomplete
combustion will take place, causing odor and may produce
gas leakage or carbon monoxide.
LIGHTING INSTRUCTIONS
CONTROL KNOB INDICATOR
GAS CONTROL KNOB SHOWN IN “OFF” POSITION
THERMOCOUPLE
(LPG)
THERMOCOUPLE
(NAT)
PILOT
1. Push in gas control knob slightly and turn clockwise
to "OFF." Do not force.
TO TURN OFF GAS TO APPLIANCE
