Whittier Wood 1375GACh User manual

P.O. Box 2827
Eugene, OR 97402 USA
Production Code:
VN 10/17
Model #
1375GACh
1375CAFh
McKenzie King
Bookcase Storage
Bed
GAC = Glazed Antique Cherry finish
CAF = Caffè finish
Assembly Instructions
IMPORTANT NOTES:
•For normal household use only. Not recommended for commercial use.
•Unload items before you move this unit.
•Do not overload the concealed storage areas.
•Do not overload the drawers.
•This assembly requires two people.
WARNING
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
CUSTOMER SERVICE
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
Fax: [phone]• Email: [email protected]
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.

1375GACh 1375CAFh McKenzie King Bookcase Storage Bed
Parts List
1375GACh_1375CAFh — Page 2 — 10/17
Please identify the parts and check that quantities received match those on this list.
If you need to replace a part, refer to the following letter and part name.
1377GACh 1377CAFh Headboard Kit (x1)
Part
Description
Quantity
Ah
Headboard Assembly
1
E
#8 x 1-1/4" Black Screw (inserted)
12
R
Assembled Door (attached)
2
Sh
False Bottom
4
XA
Top Assembly (attached)
1
XB
Power Bar and USB (installed)
1
YA
Large Adjustable Glide (installed)
2
YB
#8 x 5/8" Pan Head Screw (inserted)
8
YK
#8 x 1-3/8" Lo-Profile Screw (inserted)
10
YL
#8 x 7/8" Black Lo-Profile Screw (inserted)
4
YR
#8 Washer (inserted)
1
YS
Wood Dowel (inserted)
2
YT
1/4" x 1-1/2" Hex Bolt (inserted)
6
ZA
Hinge (installed)
6
ZB
Magnetic Plate (installed)
4
ZC
Magnetic Catch (installed)
4
ZE
Door Stay (attached)
2
ZF
#6 x 5/8" Undercut Screw ZN (inserted)
8
ZG
Door Stay Support (attached)
2
ZH
#6 x 1-1/4" Black Pan Head Screw (inserted)
6
ZI
#6 x 5/8" Undercut Screw AB (inserted)
44
ZJ
#6 x 5/8" Philtruss Screw (inserted)
19

1375GACh 1375CAFh McKenzie King Bookcase Storage Bed
Parts List
1375GACh_1375CAFh — Page 3 — 10/17

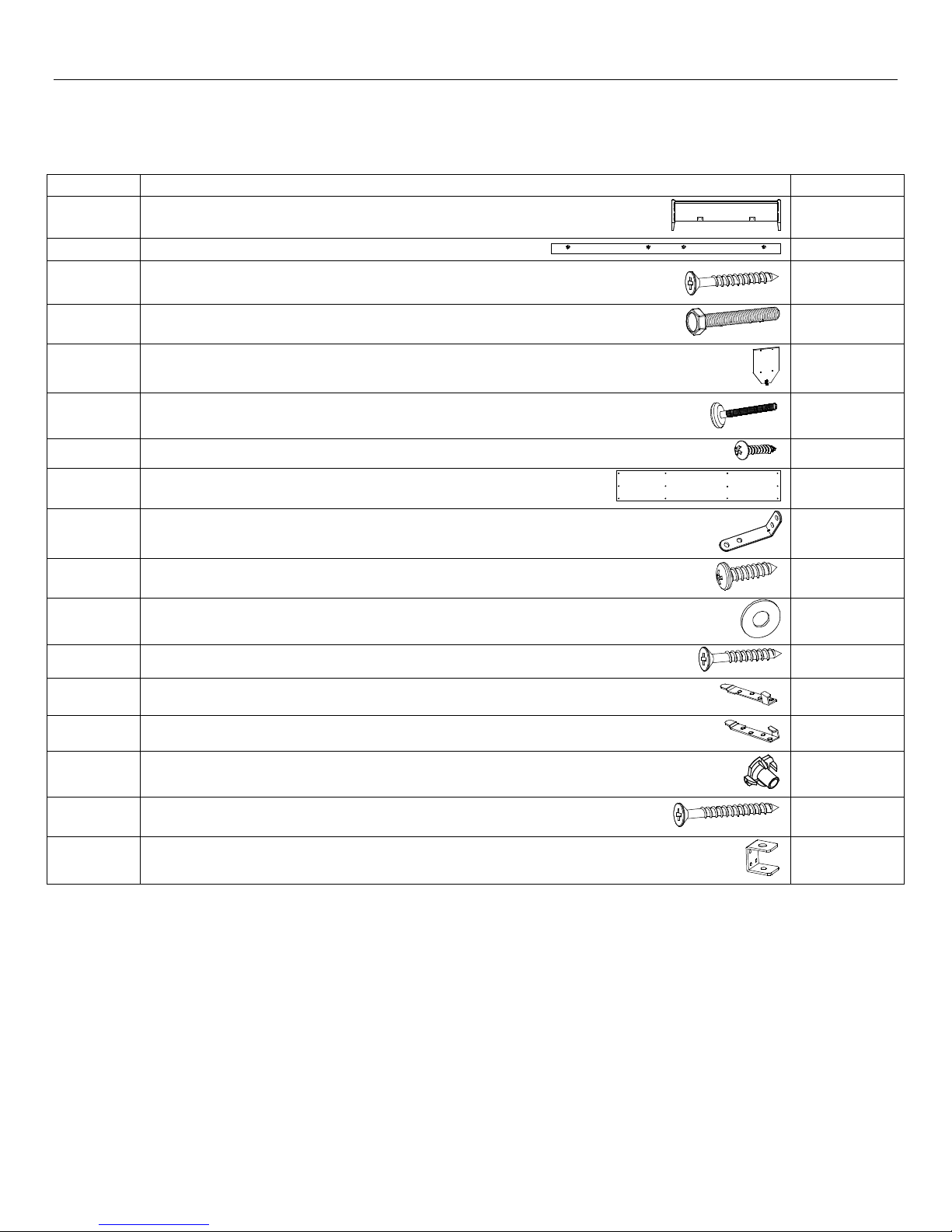

ZK
18mm Washer (inserted)
6
ZN
#8 x 1-1/4" Pan Head Screw (inserted)
8
ZO
#8 x 2-1/4" Black Screw (inserted)
6
ZP
#8 x 1" Black Screw (inserted)
16
ZQ
Left Bracket (attached)
2
ZR
Right Bracket (attached)
2
ZS
Wire Clip Screw (attached)
8
ZT
Tack Glide (attached)
4
ZU
1/4" T-Nut (inserted)
6
ZZ
Corner Brace (attached)
2

1375GACh 1375CAFh McKenzie King Bookcase Storage Bed
Parts List
1375GACh_1375CAFh — Page 4 — 10/17
1378GACh 1378CAFh Footboard Kit (x1)
Part
Description
Quantity
Ba
Footboard Assembly
1
Da
Trestle With T-Nuts
7
E
#8 x 1-1/4" Black Screw
45
(9 inserted)
F
1/4" x 1-3/4" Hex Bolt
26
Ua
Assembled Foot
3
W
Adjustable Glide (installed)
3
YD
#6 x 1/2" Philtruss Screw
8
YG
Center Deckboard
1
YI
90
o
Bracket
2
YM
#10 x 3/4" Pan Head Screw (inserted)
12
ZK
18mm Washer
26
ZP
#8 x 1" Black Screw (inserted)
16
ZQ
Left Bracket (attached)
2
ZR
Right Bracket (attached)
2
ZU
1/4" T-Nut (inserted)
28
ZX
#8 x 1-5/8" Black Screw (inserted)
4
ZY
Foot Bracket (attached)
3

1375GACh 1375CAFh McKenzie King Bookcase Storage Bed
Parts List
1375GACh_1375CAFh — Page 5 — 10/17

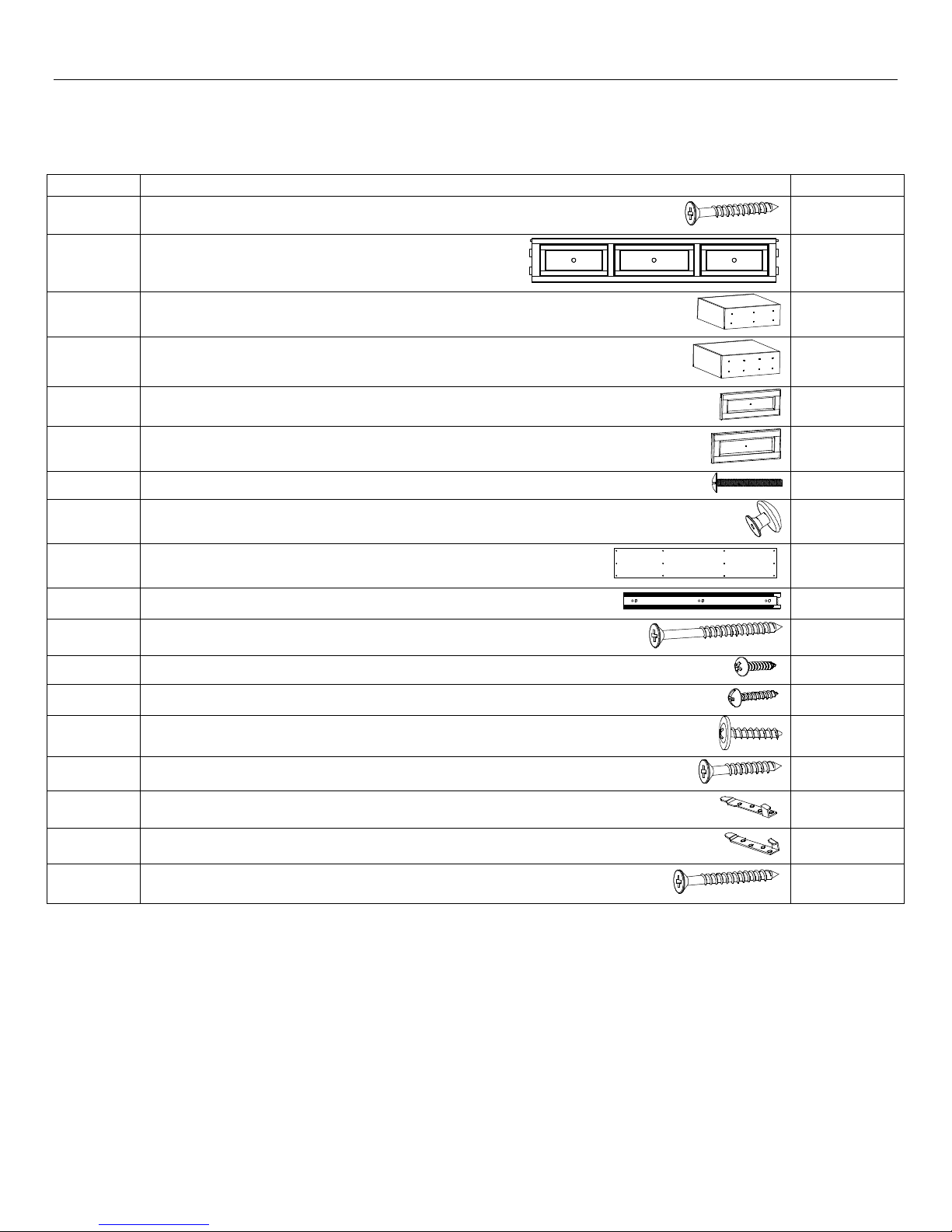

1318GACe 1318CAFe Pedestal Kit (x2)
Part
Description
Quantity
E
#8 x 1-1/4" Black Screw (inserted)
30
Id
Pedestal Kit
1
J
Small Drawer Box (assembled)
2
Kd
Large Drawer Box (assembled)
1
L
Small Drawer Face (attached)
2
Md
Large Drawer Face (attached)
1
Ne
#8 x 1-1/2" Machine Screw Tuscan (installed)
3
O
Knob (attached)
3
Pd
Deckboard
1
Q
20" Drawer Slides (installed)
3 sets
T
#8 x 2" Black Screw (inserted)
12
YD
#6 x 1/2" Philtruss Screw (inserted)
18
YE
#6 x 3/4" Philtruss Screw (inserted)
18
YL
#8 x 7/8" Black Lo-Profile Screw (inserted)
20
ZP
#8 x 1" Black Screw (inserted)
16
ZQ
Left Bracket (attached)
2
ZR
Right Bracket (attached)
2
ZX
#8 x 1-5/8" Black Screw (inserted)
16

1375GACh 1375CAFh McKenzie King Bookcase Storage Bed
Assembly Instructions
This assembly requires two people.
1375GACh_1375CAFh — Page 6 — 10/17
Tools Required: Phillips screwdriver, Slotted screwdriver, 7/16" open end or box end wrench
and Tape measure.

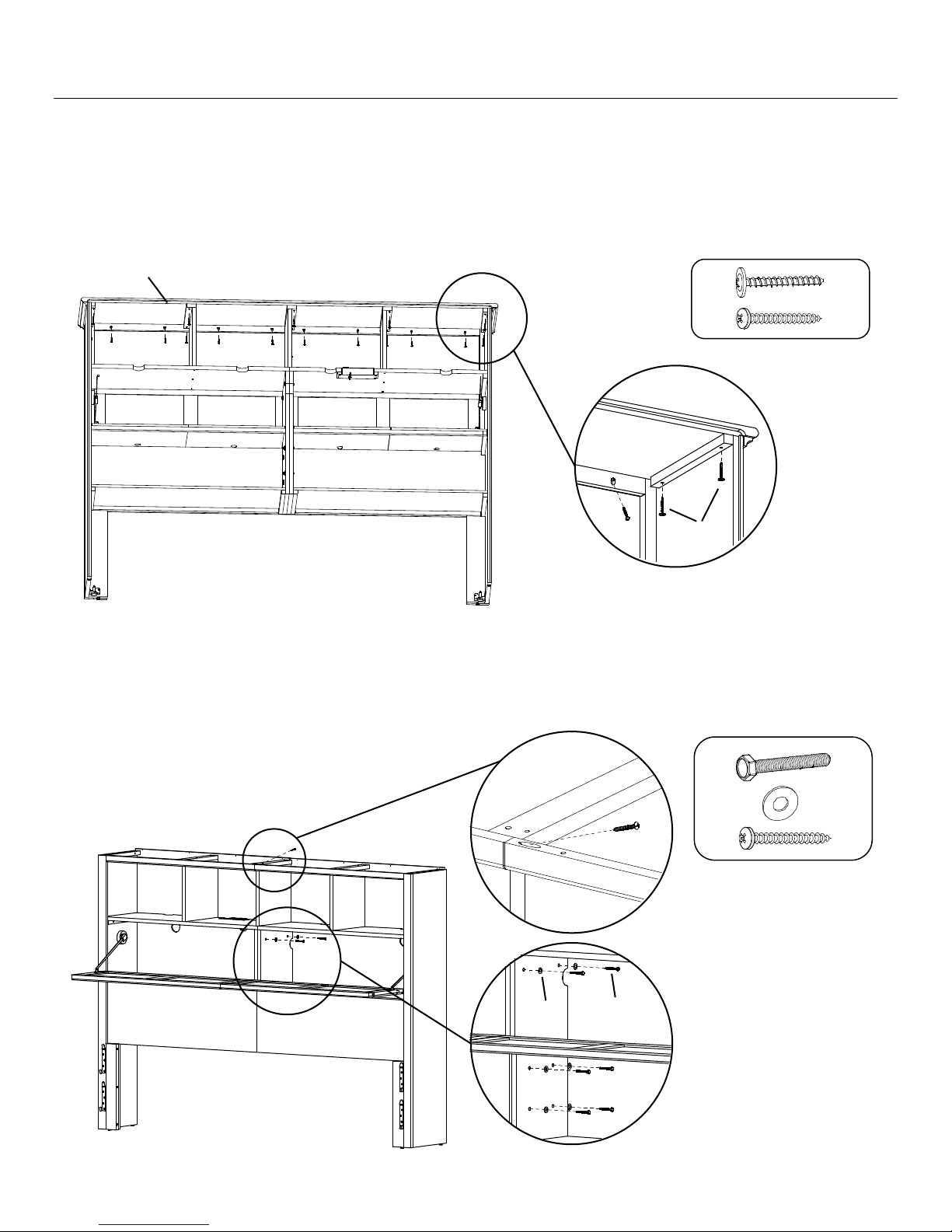

Note: The Headboard Assembly can be separated into three pieces for ease of maneuvering
through narrow halls and stairways; if you need to perform this process see steps 17 through
21.
1. Remove the Trestles (Da) and Assembled Feet (Ua) from the backs of the Footboard (Ba) and
place them off to the side. See Figures 1 and 1a.
2. Place both Pedestals (Id) approximately 79" apart as shown in Figure 2.
Fig. 2
79"
Id
Id
Fig. 1
Ua
Da
Shipping Straps
Ba
Ua
Ua

1375GACh 1375CAFh McKenzie King Bookcase Storage Bed
Assembly Instructions
This assembly requires two people.
1375GACh_1375CAFh — Page 7 — 10/17

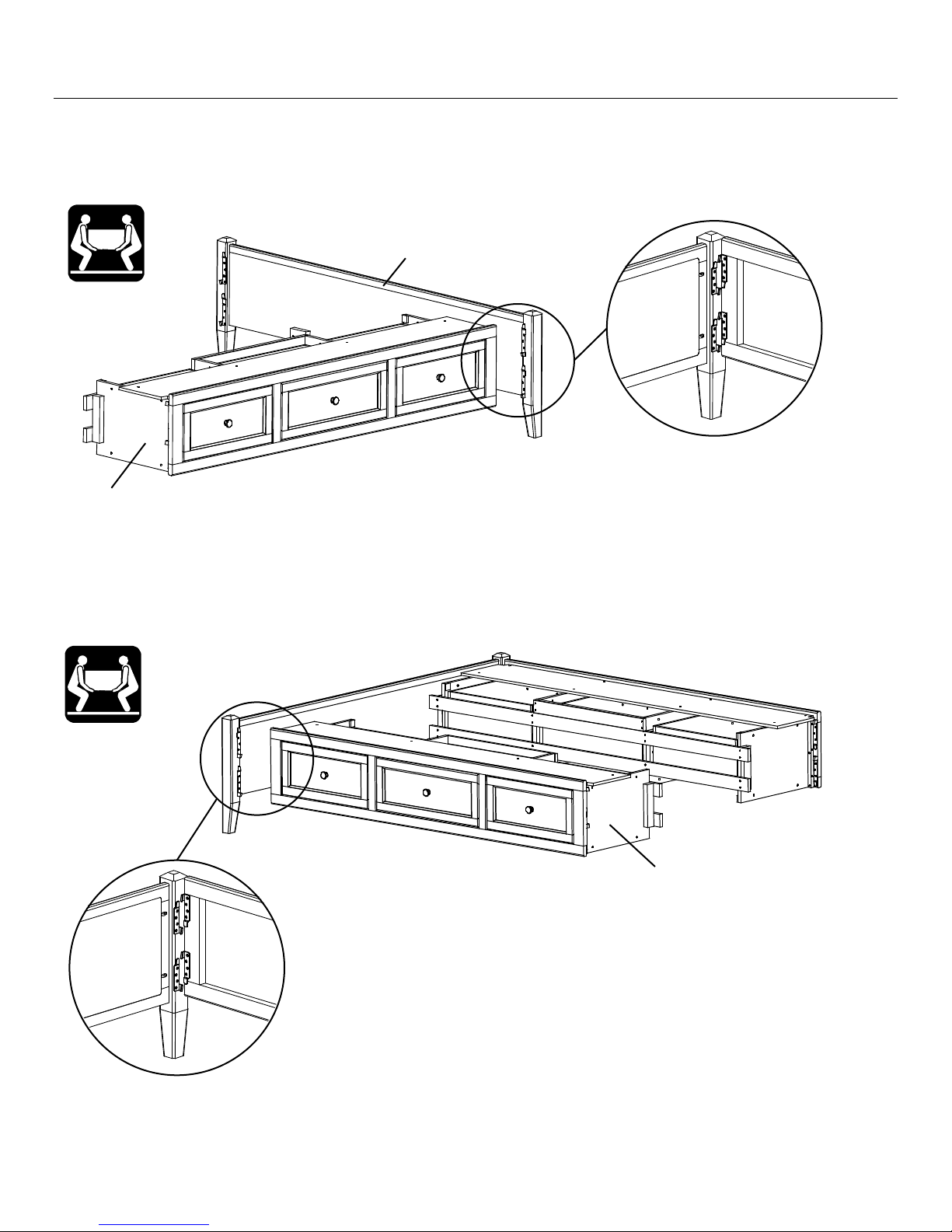

3. To attach the Footboard (Ba) to the Pedestal Assembly (Id), align the Brackets and slide the
Pedestal Assembly down on to the Footboard (Ba). See Figures 3 and 3a.
4. Repeat step three for the left side.
Fig. 4
Id
Fig. 4a
Fig. 3
Id
Ba
Fig. 3a

1375GACh 1375CAFh McKenzie King Bookcase Storage Bed
Assembly Instructions
This assembly requires two people.
1375GACh_1375CAFh — Page 8 — 10/17

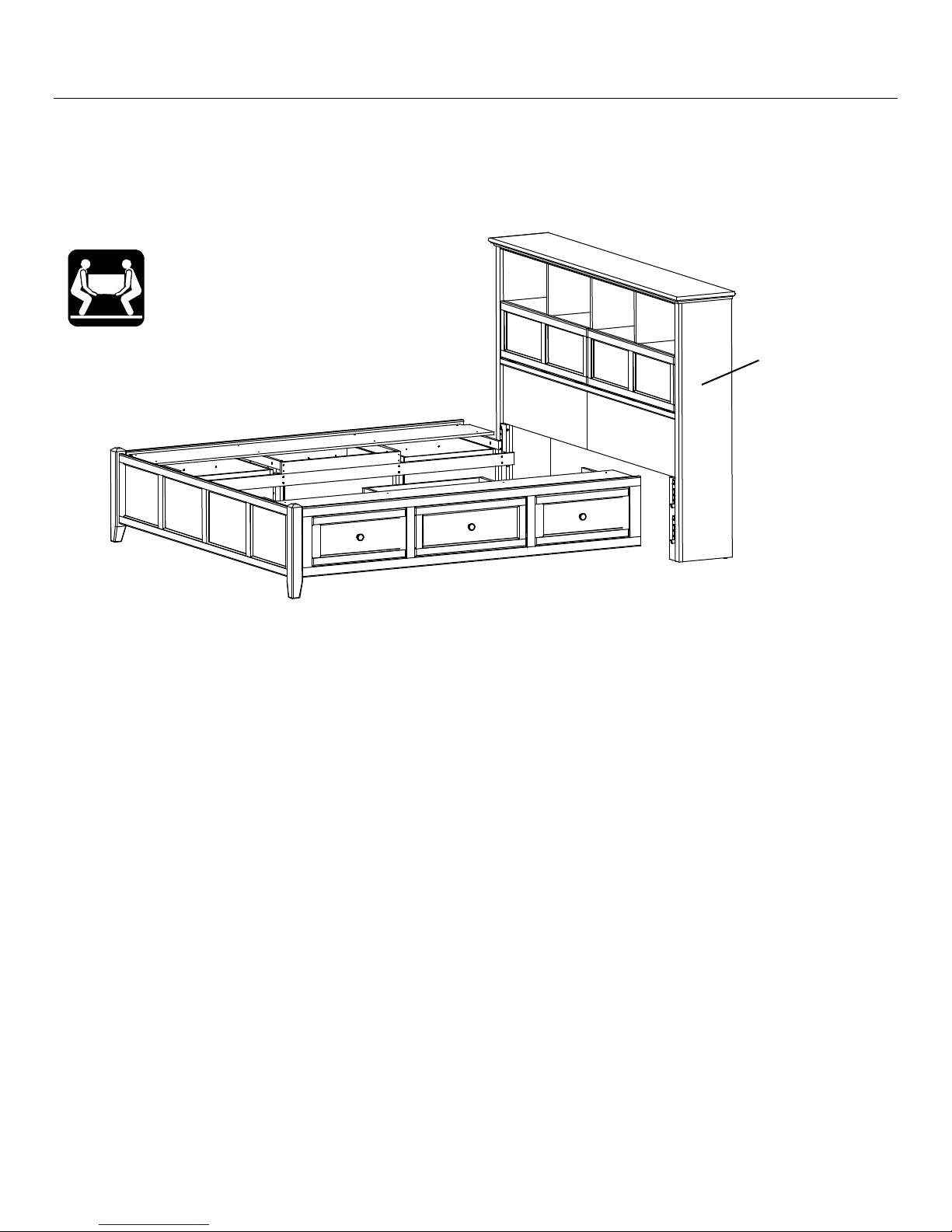

5. Align the Brackets on both sides and slide the Pedestal/Footboard assembly down on to the
Headboard (Ah). See Figure 5.
Fig. 5
Ah

1375GACh 1375CAFh McKenzie King Bookcase Storage Bed
Assembly Instructions
This assembly requires two people.
1375GACh_1375CAFh — Page 9 — 10/17
6. Open the drawers. Face the Footboard and stand in between the first and second braces.
Place a Trestle with T-Nuts (Da) on the outside surfaces of the first upper left and right braces
so that the T-Nuts (ZU) sit near the top. See Figure 6a. Line up the upper edges of the trestle
and braces so they are nearly flush. Insert two 1/4" x 1-3/4" Hex Bolts (F) and Washers (ZK)
and tighten. Repeat for the second upper brace.
Place a Trestle with T-Nuts (Da) on the outside surface of the second lower brace so that
the T-Nuts (ZU) sit near the bottom. Line up the bottom edges of the trestle and braces so they
are nearly flush. Insert two 1/4" x 1-3/4" Hex Bolts (F) and Washers (ZK) and tighten.
See Figures 6 and 6a.
Fig. 6
Da
First brace
Second brace
Da
F
ZK
Footboard
Headboard removed for illustration purposes.
Fig. 6a
ZK
F
Brace
Da
ZK
x 6
F
x 6

1375GACh 1375CAFh McKenzie King Bookcase Storage Bed
Assembly Instructions
This assembly requires two people.
1375GACh_1375CAFh — Page 10 — 10/17
7. Face the Headboard and stand in between the third and fourth braces. Place a Trestle with
T-Nuts (Da) on the outside surfaces of the third upper left and right braces so the T-nuts sit
near the top. See Figures 7 and 7a. Line up the upper edges of the trestle and braces so they
are nearly flush. Insert two 1/4" x 1-3/4" Hex Bolts (F) and Washers (ZK) and tighten.
Place a Trestle with T-Nuts on the outside surface of the third left and right lower braces so that
the T-nuts sit near the bottom. Line up the bottom edges of the trestle and braces so they are
nearly flush. Insert two 1/4" x 1-3/4" Hex Bolts (F) and Washers (ZK) and tighten. See Figures 7
and 7a.
Repeat for the fourth braces.
Fig. 7
Fourth brace
Third brace
Da
Fig. 7a
ZK
F
Brace
ZK
Trestle with T-Nuts (Da)
Da
F
ZK
x 8
F
x 8

1375GACh 1375CAFh McKenzie King Bookcase Storage Bed
Assembly Instructions
This assembly requires two people.
1375GACh_1375CAFh — Page 11 — 10/17
8. NOTE: There are blocks mounted on the back side of the Footboard to support the end of
the pedestal eliminating the need for an Assembled Foot in this position where it would
be easily visible. Do not attach an Assembled Foot in the position near the footboard.
Facing the Headboard, place two Assembled Feet (Ua) on the inside faces of the third and
fourth upper and lower Trestles. Attach with Washers (ZK) and 1/4" x 1-3/4" Hex Bolts (F).
See Figures 8 and 8a.
Fig. 8
F
Fourth set
of Trestles
Third
set
of
Trestle
Fig. 8a
Trestle with T-Nuts (Da)
ZK
Ua
F
Ua
Ua
ZK
ZK
x 8
F
x 8

1375GACh 1375CAFh McKenzie King Bookcase Storage Bed
Assembly Instructions
This assembly requires two people.
1375GACh_1375CAFh — Page 12 — 10/17
9. NOTE: There are blocks mounted on the back side of the Footboard to support the end of
the pedestal eliminating the need for an Assembled Foot in this position where it would
be easily visible. Do not attach an Assembled Foot in the position near the footboard.
Facing the Footboard, place an Assembled Foot (Ua) on the inside of the second set of Trestles
and attach with four Washers (ZK) and four 1/4" x 1-3/4" Hex Bolts (F). See Figures 9 and 9a.
Adjust all three Glides (W) found at the bottoms of the Assembled Feet so that the Glides just
touch the floor.
IMPORTANT: Make sure the Glides touch the floor and carry weight.
Fig. 9
Fig. 9a
Second set
of Trestles
F
ZK
Ua
F
ZK
W
ZK
x 4
F
x 4

1375GACh 1375CAFh McKenzie King Bookcase Storage Bed
Assembly Instructions
This assembly requires two people.
1375GACh_1375CAFh — Page 13 — 10/17
10. Facing the Footboard, attach the Pedestal Assembly to the Footboard with a 90º Bracket (YI)
and four #6 x 1/2" Philtruss Screws (YD). Repeat for the other side. See Figures 10 and 10a.
Fig. 10
Fig. 10a
YI
YD
YI
YD
x 2
x 8

1375GACh 1375CAFh McKenzie King Bookcase Storage Bed
Assembly Instructions
This assembly requires two people.
1375GACh_1375CAFh — Page 14 — 10/17
11. Place your bed in its final position. Adjust all three Glides (W) found at the bottoms of the
Assembled Feet (Ua) so that the Glides just touch the floor. See Figure 11.
To level the headboard, stand in the open area in between the two attached deckboards and
reach through the front of the platform. See Figure 11. Using a slotted screwdriver, rotate the
Large Adjustable Glide (YA) clockwise until it bears weight. Repeat for the opposite side. See
Figures 11a and 11b.
This is important if the bookcase headboard sits upon a carpet tack strip.
Fig. 11
Drawers removed for
illustration purposes.
Ua
W
Fig. 11a
Fig. 11b
The top of the Large
Adjustable Glide (YA)
is slotted.
YA
ZZ

1375GACh 1375CAFh McKenzie King Bookcase Storage Bed
Assembly Instructions
This assembly requires two people.
1375GACh_1375CAFh — Page 15 — 10/17

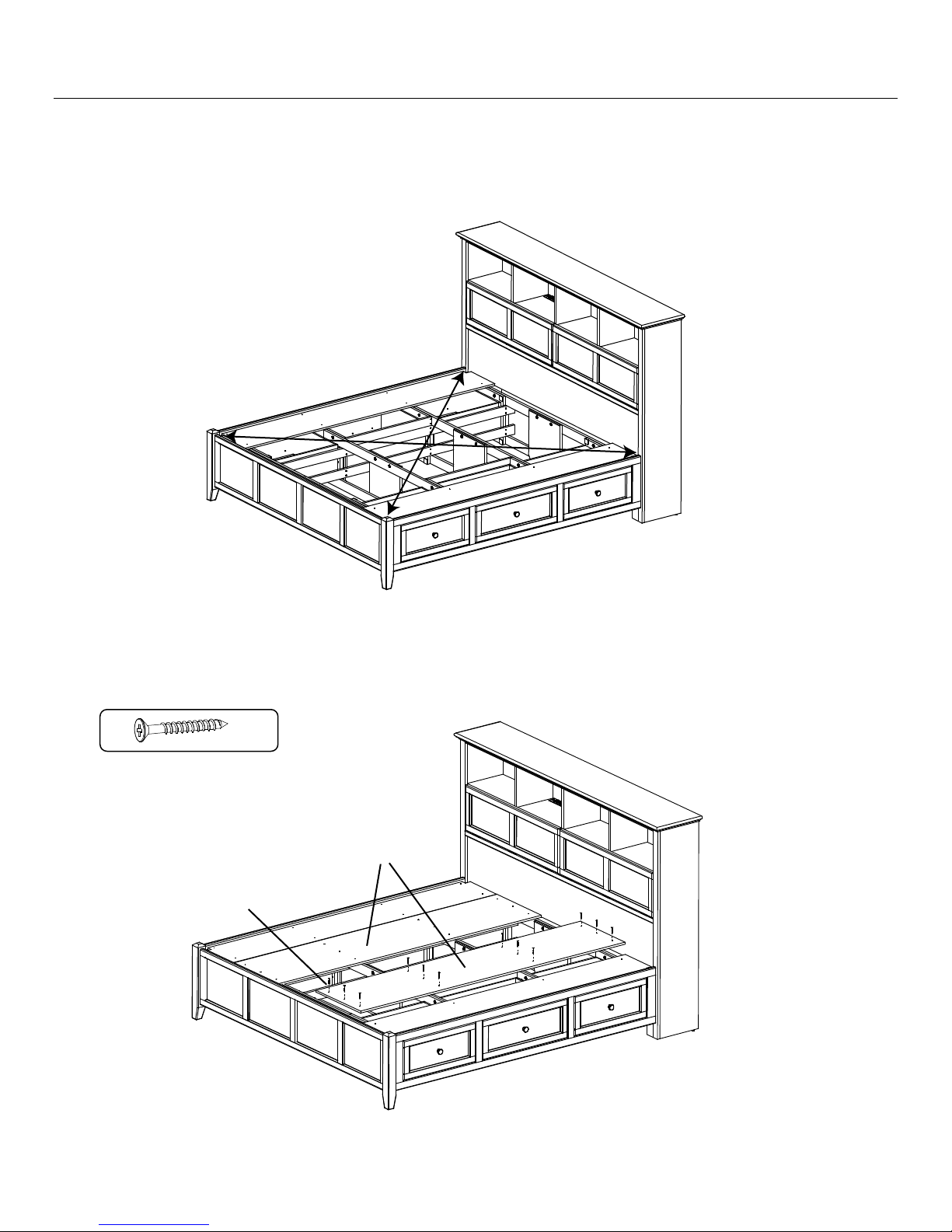

12. To make sure the bed is square, measure the distance between opposing corners. If one of the
measurements is larger, tap on a footboard leg until the measurement is equal. See Figure 12.
13. Place the Deckboards (Pd) as shown in Figure 13 and secure with twenty-four #8x1-1/4" Black
Screws (E). There should be a small gap between each deckboard.
Fig. 13
E
E
x 24
Pd
Fig. 12

1375GACh 1375CAFh McKenzie King Bookcase Storage Bed
Assembly Instructions
This assembly requires two people.
1375GACh_1375CAFh — Page 16 — 10/17
14. Place the Center Deckboard (YG) as shown in Fig.14 and secure it with twelve #8 x 1-1/4" Black
Screws (E). If you need to readjust the center feet in the future, remove the center deckboard
(YG) to improve access, rotate the glides and then attach the center deckboard.
15. Open the Door (R). To adjust the brake tension on the Door Stay (ZE) turn the screw on the
front of the Door Stay clockwise to loosen or counterclockwise to tighten.
See Figures 15 and 15a.
ZE
L
o
o
s
e
n
T
i
g
h
t e
n
Fig. 15a
Fig. 15
ZG
Fig. 14
E
E
x 12
YG

1375GACh 1375CAFh McKenzie King Bookcase Storage Bed
Assembly Instructions
This assembly requires two people.
1375GACh_1375CAFh — Page 17 — 10/17
16. Unwrap the False Bottoms (Sh) and place them on top of the rails in the Headboard Assembly
(Ah). Make sure the finger holes face forward as shown in Figure 16. After you have placed your
electronics inside the cubbies, use the Wire Clips (ZS) on the underside of the cubbies to secure
the wires. Close the door tightly making sure the magnetic catches and plates securely touch.
Optional:
17. To divide the Headboard Assembly into three sub-assemblies, start by removing the Top
Assembly (XA). Remove the #6 x 5/8" Philtruss Screw (ZJ) and #8 Washer (YR) connecting the
Backs to the Vertical Divider, and the #6 x 5/8" Philtruss Screws (ZJ) connecting the backs to
the Top Assembly. Do not remove the Backs. See Figures 17 and 17a.
Fig. 17
YR
Fig. 17a
YR
x 1
ZJ
x 9
ZJ
Fig. 16
Ah
R
Sh
Sh
Sh
Sh

1375GACh 1375CAFh McKenzie King Bookcase Storage Bed
Assembly Instructions
This assembly requires two people.
1375GACh_1375CAFh — Page 18 — 10/17
18. Figure 18 shows the locations of the screws that need to be removed. You can access these
from the front of the unit. Remove the #8 x 1-3/8" Lo-Profile Screws (YK) attaching the Sides
and Vertical Dividers to the Top, and #8 x 1-1/4" Pan Head Screws attaching the Front Apron to
the Top. Carefully remove the Top Assembly (XA) from the Case. See Figures 18 and 18a.
19. Remove the #8 x 1-1/4" Pan Head Screw (ZN) connecting the Top Aprons. Open the Doors and
remove the 1/4" x 1-1/2" Hex Bolts (YT) and 18mm Washers (ZK). See Figures 19, 19a and
19b.
Fig. 19
ZK
YT
Fig. 19a
ZN
Fig. 19b
ZK
x 6
YT
x 6
ZN
x 1
Fig. 18
YK
x 10
ZN
x 8
YK
ZN
Backs removed for illustration purposes only.
Fig. 18a
XA

1375GACh 1375CAFh McKenzie King Bookcase Storage Bed
Assembly Instructions
This assembly requires two people.
1375GACh_1375CAFh — Page 19 — 10/17
20. Carefully separate the two halves of the Case Assembly. See Figures 20 and 20a.
21. After moving the headboard sections into your room reassemble the Headboard by reversing
steps 17-20.
Fig. 20
Fig. 20a
