CONTENTS
GENERAL POWER TOOL SAFETY WARNINGS 3
5
6
6
7
7
9
12
12
13
14
15
COMPONENT LIST
ACCESSORIES
TECHNICAL DATA
SYMBOLS
NOISE INFORMATION
OPERATING INSTRUCTIONS
WORKING HINTS FOR YOUR SANDER
MAINTENANCE
APPLICATION
ENVIRONMENTAL PROTECTION
DECLARATION OF CONFORMITY

3
ORIGINAL INSTRUCTION
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings,
instructions, illustrations and specifications
provided with this power tool. Failure to follow all
instructions listed below may result in electric shock, re
and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR
FUTURE REFERENCE.
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
1. WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause you
to lose control.
2. ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will increase
the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
3. PERSONAL SAFETY
a) Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired
or under the influence of drugs, alcohol or
medication. A moment of inattention while operating
power tools may result in serious personal injury.
b) Use personal protective equipment. Always
wear eye protection. Protective equipment such as
dust mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking up
or carrying the tool. Carrying power tools with your
nger on the switch or energising power tools that have
the switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result
in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control of
the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action can
cause severe injury within a fraction of a second.
4. POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct
power tool for your application. The correct power
tool will do the job better and safer at the rate for which
it was designed.
b) Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and must be
repaired.
c) Disconnect the plug from the power source and/

4
GENERAL POWER TOOL SAFETY WARNINGS
SAFETY INSTRUCTION FOR CUTTING
a) Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting
accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of
the power tool “live” and could give the operator an electric shock.
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are dangerous
in the hands of untrained users.
e) Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tool’s operation. If
damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained
power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions and
the work to be performed. Use of the power tool for
operations different from those intended could result in
a hazardous situation.
h) Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
5. SERVICE
a) Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power tool
is maintained.

5
1
2
COMPONENT LIST

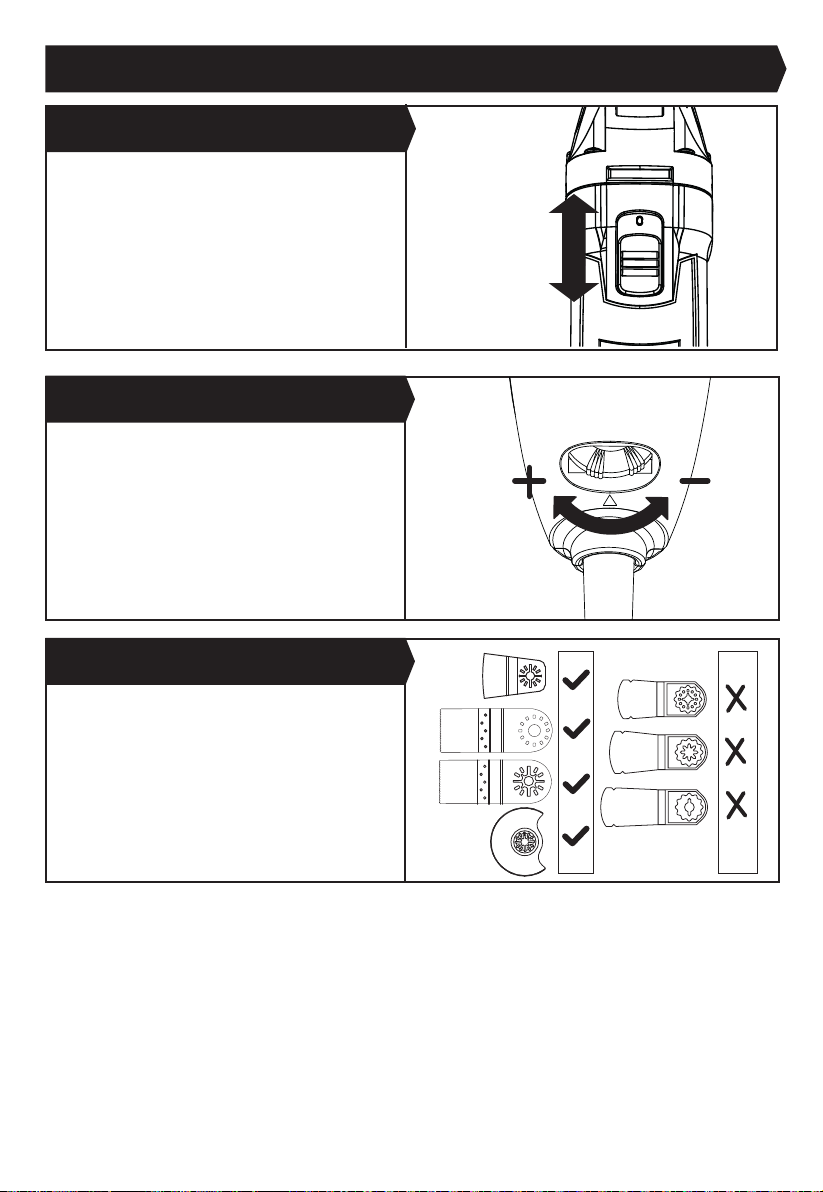

On/Off switch
Variable speed control
Locking bolt
Wood cutting blade
Metal cutting blade
Rigid scraping blade
Sanding paper
Sanding pad
Semicircle saw blade
Flange
Hex key
1
2
3
45
7 8
1
3
2
4
8
9
10
11
5
10
6
6
311
7
9

6
SYMBOLS
Hex key 1
Semicircle saw blade (85mm) 1
Wood cutting blade (35mm) 1
Metal cutting blade (35mm, Bi-metal) 1
Rigid scraping blade 1
Sanding pad 1
Sanding paper (80 grit) 1
Sanding paper (120 grit) 1
Sanding paper (180 grit) 1
We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory
packaging for further details. Store personnel can assist you and offer advice.
ACCESSORIES
To reduce the risk of injury, read all of this
instruction manual
Warning
Wear ear protection
Wear eye protection
Wear dust mask
Double insulated
Waste electrical products must not be
disposed of with household waste. Please
recycle where facilities exist. Check with
your local authorities or retailer for recycling
advice.

7
TECHNICAL DATA
Voltage
Power input
No load speed
Oscillations angle
Machine weight
Protection class
230-240V~50Hz
300W
15000-22000/min
3.2°
1.27kg
/II
NOISE INFORMATION
A weighted sound pressure LpA: 84 dB(A)
A weighted sound power LwA: 95 dB(A)
KpA & KwA 3.0 dB(A)
Wear ear protection.

8
Vibration total values (triax vector sum) determined according to EN 62841:
Vibration emission value ah= 3.55 m/s²
Uncertainty K = 1.5 m/s²
The declared vibration total value and the declared noise emission value have been measured in accordance with a
standard test method and may be used for comparing one tool with another.
The declared vibration total value and the declared noise emission value may also be used in a preliminary assessment
of exposure.
WARNING! The vibration and noise emissions during actual use of the power tool can differ from the declared
value depending on the ways in which the tool is used especially what kind of workpiece is processed dependant
on the following examples and other variations on how the tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained.
The use of the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration and noise accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed.
WARNING! To be accurate, an estimation of exposure level in the actual conditions of use should also take
account of all parts of the operating cycle such as the times when the tool is switched off and when it is running
idle but not actually doing the job. This may signicantly reduce the exposure level over the total working period, helping
to minimize your vibration exposure risk.
Always use sharp chisels, drills and blades.
Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).
If the tool is to be used regularly then invest in anti vibration and noise accessories.
Plan your work schedule to spread any high vibration tool use across a number of days.
VIBRATION INFORMATION

9
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the instruction book carefully.
Intended Use
The power tool is intended for sawing and separating wooden materials, plastic, plaster, non-ferrous metals and
fasteners (e.g. nails and clamps) as well as for working on soft wall tiles and for dry grinding of small surfaces. It is
especially suitable for working close to edges and for ush cutting.
ASSEMBLY
Fig. A2
Fig. A1
WARNING: Before operating your tool make sure that the power cord cannot be damaged. Unplug the
machine before mounting or replacing blades or accessories. This preventative safety measure eliminates
danger from accidentally starting the power tool.
CAUTION: For all work or when changing accessories, always wear protective gloves. Avoid danger
of injury from the sharp edges of the accessories. Accessories can become very hot while working,
presenting danger of burns!
WARNING: To reduce the risk of injury, do not let the sharp side of the accessory face back toward the
user’s hand.

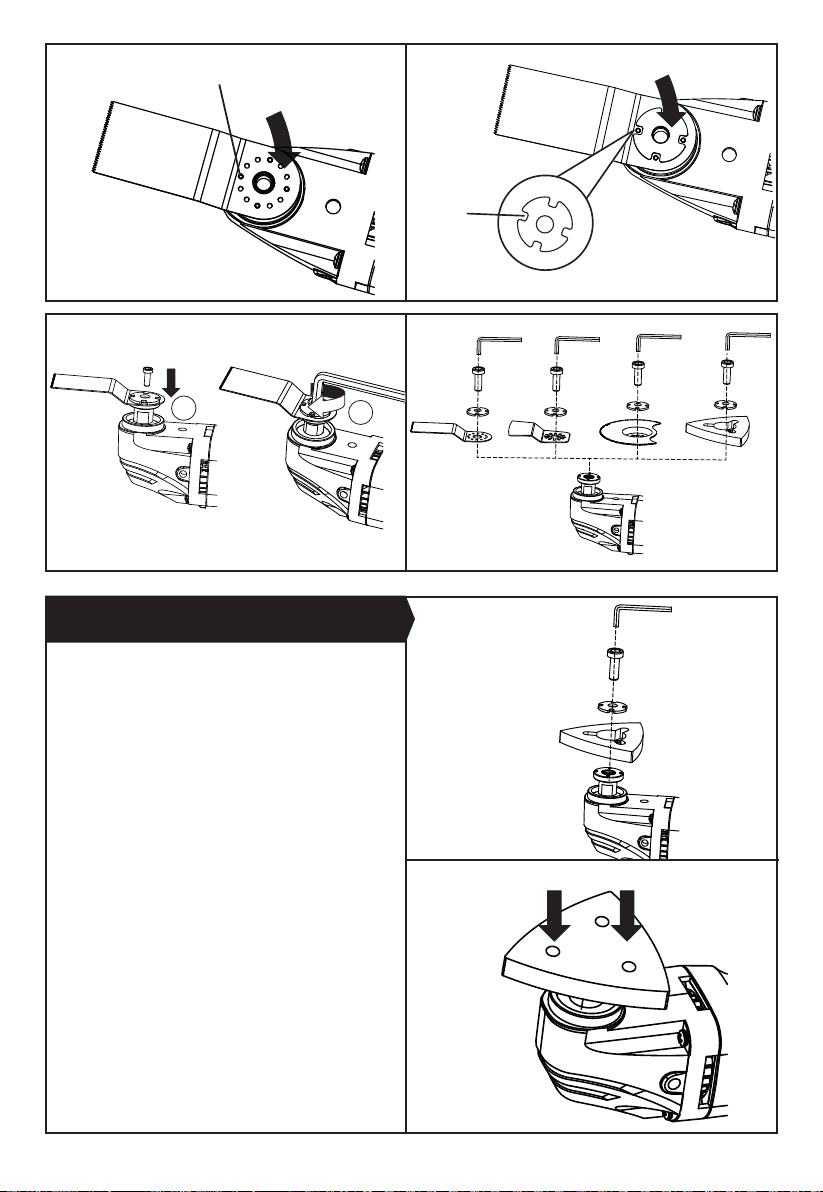

- Mounting the end cut blade
1) Use the supplied hex key to loosen the locking bolt by turning it counter-clockwise. (See Fig. A1)
2) Completely remove the bolt and the ange from the shaft. (See Fig. A2)
2) Place the end cut blade onto the shaft rst, and then place the ange onto the blade. (See Fig. A3, A4)
NOTE: The pins (a) on the tool holder must aligned with the holes (b) on the blade, and also aligned with the hollows (c) on the
ange.
4) Insert the bolt into the shaft. Then use the supplied hex key to tighten the bolt by turning it clockwise. Check to see if the
blade is tted securely. (See Fig. A5)
- Mounting the rigid scraping blade/semicircle saw blade/sanding pad (See Fig. A6)
Follow the steps of mouting the end cut blade as shown in Fig. A1- A5.
1. MOUNTING THE ACCESSORIES (SEE FIG. A1-A6)
2
1a

10
Fig. A6
1) Mount the sanding pad following the steps of
mounting the end cut blade.
2) Align the sanding paper and press it onto the
sanding pad by hand.
3) Firmly press the power tool with the sanding paper
against a at surface and briey switch the power
tool on. This provides for good adhesion and
prevents premature wear.
4) If one point has become worn, pull off the sanding
paper, turn it 120° and place it on again.
2. MOUNTING THE SANDING PAPER (SEE FIG. B1,
B2)
b
c
12
Fig. A3 Fig. A4
Fig. B1
Fig. B2
Fig. A5

11
To switch on the machine, slide the on/off switch
backward to the rear to the “I” mark.
To switch off the machine, slide the on/off switch forward
to the “O” mark.
1. ON/OFF SWITCH (SEE FIG. C)
OPERATION
ON
OFF
Fig. C
Select oscillation frequency (speed) while the motor is
running.
The variable speed control can be used to set the
optimum oscillating frequency according to the
accessories used and the respective application.
High oscillation frequency: Sanding, sawing, rasping and
polishing stone and metal.
Low oscillation frequency: Polishing varnishes.
2. USING THE VARIABLE SPEED CONTROL
(SEE FIG. D)
1
2
Fig. D
Refer to Fig. E for the applicable blade (relate to the tting
hole pattern) for your machine.
NOTE: Please observe the accessories intended for
your machine. Do not attempt to use accessories that
are incompatible
3. SELECTING A BLADE (SEE FIG. E)
Fig. E

12
1. If your power tool becomes too hot, especially when used at low speed, set the speed to maximum and run it with no
load for 2-3 minutes to cool the motor. Avoid prolonged usage at very low speeds. Always keep the blade sharp.
2. Always ensure the work-piece is rmly held or clamped to prevent movement.
3. Any movement of the material may affect the quality of the cutting or sanding nish.
4. Start your tool before working and turn it off only after you stop working.
5. Do not start sanding without having the sandpaper tted.
6. Do not allow the sandpaper to wear away , it will damage the sanding pad. The guarantee does not cover sanding pad
wear and tear.
7. Use coarse grit paper to sand rough surfaces, medium grit for smooth surfaces and ne grit for nishing surfaces. If
necessary, rst make a test run on scrap material.
8. Excessive force will reduce the working efciency and cause motor overload. Replacing the accessory regularly will
maintain optimum working efciency.
WORKING HINTS FOR YOUR TOOL
MAINTENANCE
Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.
Your tool requires no additional lubrication or maintenance.
There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool.
Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all
working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not
damage your power tool.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in
order to avoid a hazard.

13
Warning: The sawing teeth are very sharp. Do not touch during mounting and application. The
workpiece must be clamped tightly before it is cut.
Pic Description Application
Sawing
Universal Metal/Wood End Cut
Blade
Wood, plastic, berglass, nails, non-
ferrous metals, thin sheet metal,
hardened llers
Standard Wood End Cut Blade Wood, plastic, drywall
Precision Wood Cut Blade Wood, soft plastics
HSS Semicircle Saw Blade Thin wood, plastic, berglass, non-
ferrous metals, thin sheet metal,
hardened llers, window glazing
Sanding
Sanding Pad (Perforated) Wood, plastic, hardened llers
Scraping
Rigid Scraper Blade Old paint, hardened adhesives, caulk,
carpet
NOTE: When plunging and sawing use a slight pendulum motion, to allow sufcient chip removal. The saw blade lasts
longer if the wear is distributed evenly. To ensure an even distribution, loosen the saw blade, rotate it and retighten
rmly.
Cut/Sand with a constant movement and light pressure. Heavy pressure does not increase the cut/removal rate - the
accessory merely wears faster. Excessive use and heat build up drastically reduces the life of saw blades.
APPLICATION

14
Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist.
Check with your local authorities or retailer for recycling advice.
ENVIRONMENTAL PROTECTION

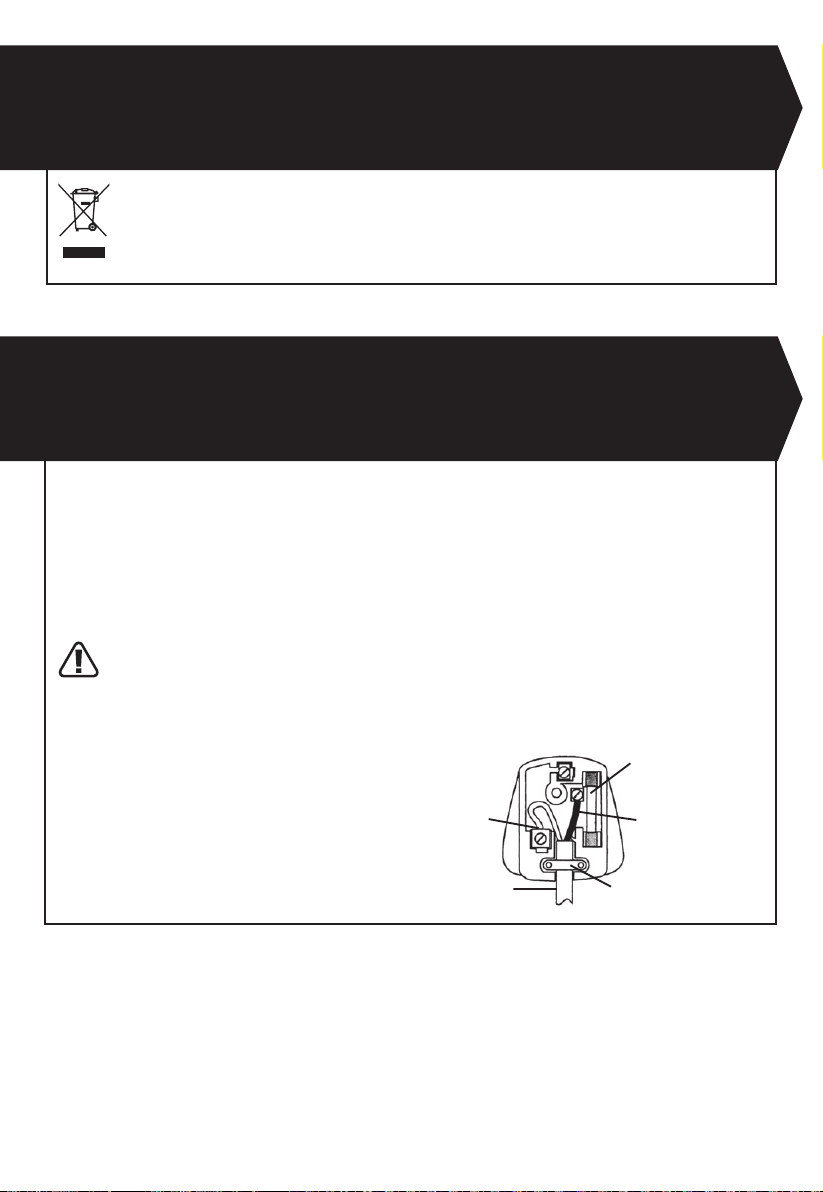

PLUG REPLACEMENT (ONLY FOR REWIRABLE PLUG OF UK &
IRELAND)
If you need to replace the tted plug then follow the instructions below.
IMPORTANT
The wires in the mains lead are colored in accordance with the following code:
Blue = Neutral
Brown = Live
As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings
identifying the terminals in your plug, proceed as follows. The wire which is colored blue must be connected to
the terminal which is marked with N. The wire which is colored brown must be connected to the terminal which is
marked with L.
WARNING:
Never connect live or neutral wires to the earth terminal of the plug. Only t an approved 13A BS1363/A plug
and the correct rated fuse.
Note: If a moulded plug is tted and has to be removed take great care in disposing of the plug and severed cable, it
must be destroyed to prevent engaging into a socket.
13 Amp fuse approved
to BS1362
Connect
Blue to N
(neutral)
Outer sleeve
rmly clamped
Brown L(live)
Cable grip

15
DECLARATION OF CONFORMITY
We,
Wickes Building Supplies Limited
Declare that this product: MULTI TOOL
Description and SKU code: 223734
Complies with the following Directives and Regulations:
2006/42/EC, Machinery Directive
2014/30/EU, Electromagnetic Compatibility Directive
2011/65/EU & (EU)2015/863 (RoHS), Restriction of Hazardous Substances Directive
and conforms to the following standards:
Standards specic to this product:
EN 62841-1
EN 62841-2-4
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3
28th January, 2021
Philip Ansell
Category Technical Manager
Wickes
Vision House
19 Colonial Way
Watford
WD24 4JL”

Customer Helpline 0345 2005409
