Wickes PDH170DS User manual

PDH170DS
223725
BREAKER
1700W

2
CONTENTS
GENERAL POWER TOOL SAFETY WARNINGS 3
5
6
6
6
7
8
11
11
11
11
12
13
ACCESSORIES
COMPONENT LIST
SYMBOLS
NOISE INFORMATION
TECHNICAL DATA
OPERATING INSTRUCTIONS
WORKING HINTS FOR YOUR TOOL
MAINTENANCE
TROUBLESHOOTING
ENVIRONMENTAL PROTECTION

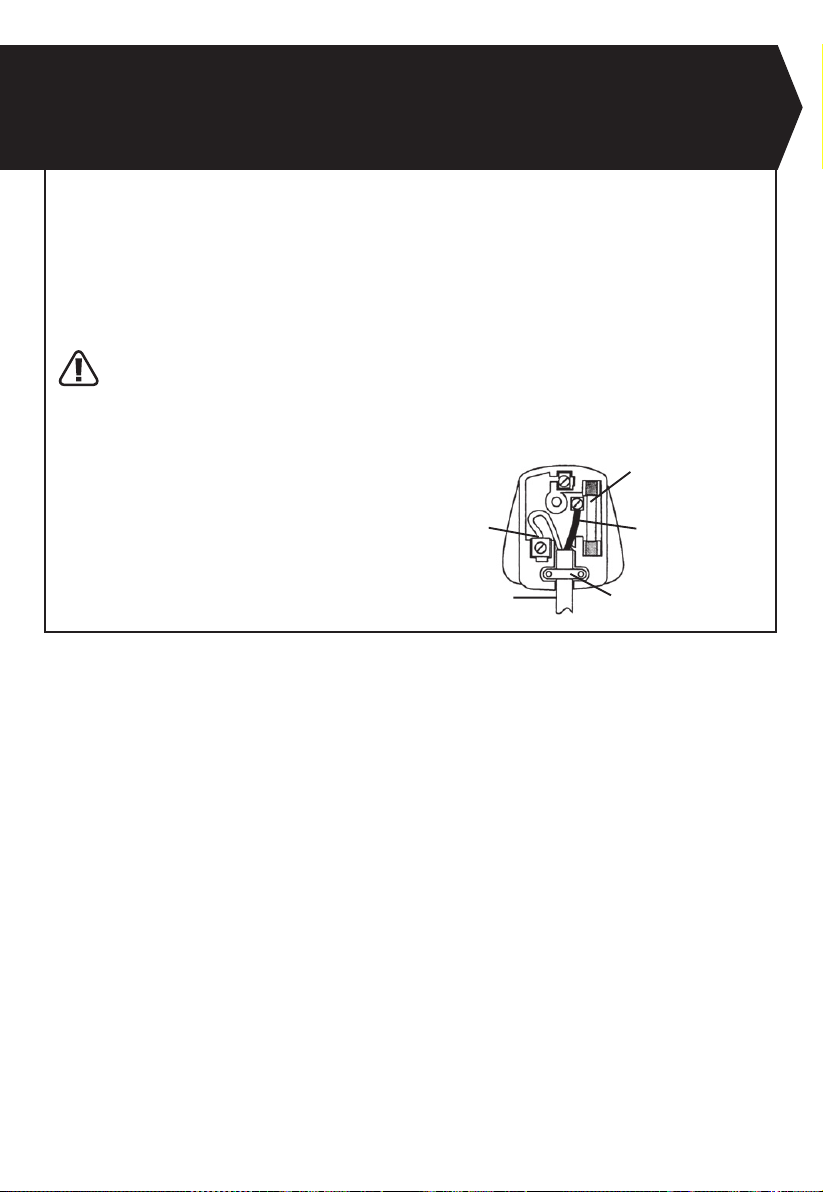

PLUG REPLACEMENT (ONLY FOR REWIRABLE PLUG OF UK & IRELAND)
DECLARATION OF CONFORMITY

3
ORIGINAL INSTRUCTION
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! This machine is capable of generating
signicant forces, strict adherence to safety
guidance in this booklet is essential as is the use of
appropriate personal protective equipment.
WARNING! Read all safety warnings,
instructions, illustrations and specications
provided with this power tool. Failure to follow all
instructions listed below may result in electric shock, re and/
or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE
REFERENCE.
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
1. WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
ammable liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause you to
lose control.
2. ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodied plugs and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock
if your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will increase the
risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase the
risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
3. PERSONAL SAFETY
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may
result in serious personal injury.
b) Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection used
for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your nger on the
switch or energising power tools that have the switch on
invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in
personal injury.
e) Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power tool
in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can
be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of dust
collection can reduce dust-related hazards.
4. POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and must be
repaired.
c) Disconnect the plug from the power source and/

4
GENERAL POWER TOOL SAFETY WARNINGS
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the
power tool accidentally.
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect
the power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents are
caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
5. SERVICE
a) Have your power tool serviced by a qualied repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
HAMMER SAFETY WARNINGS
ADDITIONAL SAFETY RULES FOR HAMMER
1. Wear ear protectors. Exposure to noise can cause hearing loss.
2. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
3. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory
may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of
the power tool “live” and could give the operator an electric shock.
1. Always wear a dust mask.

5
COMPONENT LIST
Lock-on button
On/off switch
Grease box cover
Auxiliary handle
Point chisel and at chisel
Spanner
1
3
4
2
6
5
1
3
2
4
5
6

6
SYMBOLS
To reduce the risk of injury, read all of this
instruction manual
Warning
Wear ear protection
Wear eye protection
Wear protective gloves
TECHNICAL DATA
Rated Voltage
Rated Power
HEX chuck size
Impact rate
Charger Protection class
Impact energy
Lubricant volume
Grease number
Machine weight
230~50Hz
1700W
30mm
1400 /min
/II
50J
70ml
7188
16kg
Wear protective footwear
Wear dust mask
Double insulated
Waste electrical products must not be
disposed of with household waste. Please
recycle where facilities exist. Check with
your local authorities or retailer for recycling
advice.
Auxiliary handle 1
Flat Chisel 1
Point Chisel 1
Wrench 1
We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality
accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake.
Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.
ACCESSORIES

7
Vibration total values (triax vector sum) determined according to EN 60745:
chiseling Vibration emission value ah,B = 18.575 m/s²
Uncertainty K = 1.52 m/s²
The declared vibration total value may be used for comparing one tool with another, and may also be used in a
preliminary assessment of exposure.
WARNING! The vibration emission value during actual use of the power tool can differ from the declared value
depending on the ways in which the tool is used dependant on the following examples and other variations on
how the tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained
The use the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed
WARNING! To be accurate, an estimation of exposure level in the actual conditions of use should also take
account of all parts of the operating cycle such as the times when the tool is switched off and when it is running
idle but not actually doing the job. This may signicantly reduce the exposure level over the total working period, helping
to minimize your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades
Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate)
If the tool is to be used regularly then invest in anti vibration accessories.
Plan your work schedule to spread any high vibration tool use across a number of days.
VIBRATION INFORMATION
NOISE INFORMATION
A weighted sound pressure LpA: 92.87dB(A)
A weighted sound power LwA: 103.87dB(A)
KpA & KwA 3.0dB(A)
Wear ear protection.

8
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the instruction book carefully.
Intended Use
This machine is suitable for gouging on concrete, bricks, stone and asphalt. After appropriate accessories are installed,
it can also be used for squeezing and tamping.
For low temperatures, new power tool or long-time storage, the machine reaches the full impact rate only after a certain
time. This start-up time can be shortened by striking the chisel in the machine against the oor one time.
Point chisel (For gravel)
Total length: 410 mm
Standard size: 30mm (Hexagon)
Flat chisel (For crushing asphalt, grooving and squaring)
Total length: 410 mm
Standard size: 30mm (Hexagon)
WARNING! The lubricant oil is already lled into
the tank before use, check the oil tank regularly.
Rell oil if you cannot see any oil through the sight glass.
CHECKING THE OIL LEVEL
The lubricant ller screw (a) on the bottom of the
machine is tted with a sight glass.
Hold the machine in the upright position so that the
chisel tip points downwards.
Use the sight glass on the lubricant ller screw (a) to
check the oil level.
Rell oil if you cannot see any oil through the sight glass.
FILL LUBRICATING OIL
Open the lubricant ller screw (a) on the bottom of the
machine using the included spanner (6). Make sure not to
damage the gasket.
Top-up with oil. See technical data on page 6.
Close the lubricant ller screw (a) to check the oil level.
If the lubrication oil is in the middle of the sight glass,
you lled enough oil.
1. LUBRICATION MACHINE (See Fig. A)
Fig. A
a
1
2

9
WARNING! Remove the plug from the socket
before carrying out any adjustment, servicing or
maintenance.
FITTING THE CHISEL (SEE FIG. C1)
Clean and lightly oil the bit before inserting.
Pull the stop lever and rotate it to “Unlock” position.
Insert the chisel (5) into the chuck.
Pull the stop lever and rotate it to “Lock” position.
REMOVING THE CHISEL (SEE FIG. C2)
Pull the stop lever and rotate it to “Unlock” position.
Remove the chisel (5).
3. FITTING AND REMOVING THE CHISEL (See Fig.
C1,C2)
Fig. C1
For your personal safety we recommend using the
auxiliary handle (4) at all times.
To adjust the handle (4), loosen the knob on the auxiliary
handle.
Rotate the handle (4) around the handle collar and/or
rotate the handle bar to the desired position.
Tighten the knob fully.
2. FITTING THE AUXILIARY HANDLE (See Fig. B1,B2)
Fig. B1
Fig. B2
1
3
2
1
3
2
Fig. C2

10
WARNING! Remove the mains plug from socket
before changing the carbon brushes.
REPLACE THE CARBON BRUSH AS FOLLOWS:
1) Unscrew the outer brush cover with a Phillips
screwdriver (not provided). (See Fig. E1)
2) Remove the outer brush cover and unscrew the inner
brush cover with a at screwdriver (not provided). (See
Fig. E2)
3) If the carbon on either one or both brushes has worn
down to 6mm or less, it should be replaced. Always
replace both brushes at the same time.
4) Insert the new brush (not provided) and replace the
brush cap.
5. CHANGE THE CARBON BRUSH (See Fig. E1, E2)
Fig. E1
Fig. E2
ON/OFF SWITCH
Depress the on/off switch (2) to start the tool and release
it to stop your tool.
CONTINUOUS USE
Depress on/off switch (2) then lock-on button (1), release
on/off switch (2) rst and lock-on button (1) second. Your
switch is now locked on for continuous use. To switch off
your tool just depress and release the on/off switch (2).
4. OPERATING THE ON/OFF SWITCH (See Fig. D)
Fig. D
a
b

11
Always use sharp good quality chisels. The performance of the chisel is dependent on the quality of the bits used.
1. Reduce pressure on the bit when it is about to break through.
2. Always operate tool using both the handle and the front handle.
3. Make sure that you wear all necessary personal protective equipment.
4. Do not apply excessive pressure to the tool. Expressive force does not speed up the work.
WORKING HINTS FOR YOUR TOOL
WARNING! Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.
There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool.
Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all
working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not
damage your power tool.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in
order to avoid a hazard.
1. If your power tool does not start, check the plug on the power supply rst.
2. If your power tool work efciency is reduced, check the lubricant level.
3. If your power tool work efciency is reduced, check whether the chisel is blunt.
Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist.
Check with your local authorities or retailer for recycling advice.
MAINTENANCE
TROUBLESHOOTING
ENVIRONMENTAL PROTECTION

12
PLUG REPLACEMENT (ONLY FOR REWIRABLE PLUG OF UK &
IRELAND)
If you need to replace the tted plug then follow the instructions below.
IMPORTANT
The wires in the mains lead are colored in accordance with the following code:
Blue = Neutral
Brown = Live
As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings
identifying the terminals in your plug, proceed as follows. The wire which is colored blue must be connected to
the terminal which is marked with N. The wire which is colored brown must be connected to the terminal which is
marked with L.
WARNING:
Never connect live or neutral wires to the earth terminal of the plug. Only t an approved 13A BS1363/A plug
and the correct rated fuse.
Note: If a moulded plug is tted and has to be removed take great care in disposing of the plug and severed cable, it
must be destroyed to prevent engaging into a socket.
13 Amp fuse approved
to BS1362
Connect
Blue to N
(neutral)
Outer sleeve
rmly clamped
Brown L(live)
Cable grip

13
DECLARATION OF CONFORMITY
We,
Wickes Building Supplies Limited
Declare that this product: BREAKER
Description and SKU code: 223725
Complies with the following Directives and Regulations:
2006/42/EC, Machinery Directive
2014/30/EU, Electromagnetic Compatibility Directive
2011/65/EU & (EU)2015/863 (RoHS),Restriction of Hazardous Substances Directive
2000/14/EC amended by 2005/88/EC:
- Conformity Assessment Procedure as per Annex VI
- Measured Sound Power Level 103.87 dB
- Declared Guaranteed Sound Power Level 105 dB
and conforms to the following standards:
Standards specic to this product:
EN 60745-1
EN 60745-2-6
EN ISO 3744
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3
28th January, 2021
Philip Ansell
Category Technical Manager
Wickes
Vision House
19 Colonial Way
Watford
WD24 4JL”



Customer Helpline 0345 2005409
This manual suits for next models
1
Table of contents
Other Wickes Power Tools manuals
Popular Power Tools manuals by other brands

Festool
Festool Trion PS-300Q Original operating manual and Spare parts list

Weston
Weston 05-0101 manual

pellenc
pellenc C35 operating instructions

RIDGID
RIDGID RP 306 manual

Central Pneumatic Professional
Central Pneumatic Professional 42248 Set up and operating instructions

Euro Shatal
Euro Shatal PC2014 Operating instructions/spare parts list
