Wilden P800 Instruction Manual

WIL-11250-E-03
TO REPL ACE WIL-11250 -E-02
P800/PX800
Advance your process
Engineering
Operation &
Maintenance
Advanced™Series PLASTIC Pumps

TABLE OF CONTENTS
SECTION 1 CAUTIONS—READ FIRST! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
SECTION 2 WILDEN PUMP DESIGNATION SYSTEM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
SECTION 3 HOW IT WORKS—PUMP & AIR DISTRIBUTION SYSTEM . . . . . . . . . . . . . . . .3
SECTION 4 DIMENSIONAL DRAWINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
SECTION 5 PERFORMANCE
A. P800 Performance Curves
Rubber-Fitted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
TPE-Fitted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Reduced Stroke PTFE-Fitted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Full Stroke-Fitted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Ultra-Flex™-Fitted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Suction Lift Curve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
B. PX800 Performance Curves
Operating Principal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
How to Use this EMS Curve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Performance Curves
Rubber-Fitted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
TPE-Fitted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Reduced Stroke PTFE-Fitted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Full Stroke-Fitted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Ultra-Flex™-Fitted. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Suction Lift Curve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
SECTION 6 SUGGESTED INSTALLATION, OPERATION & TROUBLESHOOTING. . . . . . .23
SECTION 7 DISASSEMBLY/REASSEMBLY
Pump Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Pro-Flo® Air Valve / Center Section Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Pro-Flo XTM Air Valve / Center Section Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Reassembly Hints &Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
SECTION 8 EXPLODED VIEW & PARTS LISTING
P800 PLASTIC
P800 Full Stroke-Fitted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
P800 Reduced Stroke-Fitted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
P800 PLASTIC
PX800 Full Stroke-Fitted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
PX800 Reduced Stroke-Fitted. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
SECTION 9 ELASTOMER OPTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

WIL-11250-E-03 1 WILDEN PUMP & ENGINEERING, LLC
CAUTION: Do not apply compressed air to the
exhaust port — pump will not function.
CAUTION: Do not over-lubricate air supply —
excess lubricationwillreduce pump performance.
Pump is pre-lubed.
TEMPERATURE LIMITS:
Neoprene –17.7°C to 93.3°C 0°F to 200°F
Buna-N –12.2°C to 82.2°C 10°F to 180°F
EPDM –51.1°C to 137.8°C –60°F to 280°F
Viton®–40°C to 176.7°C –40°F to 350°F
Saniflex™ –28.9°C to 104.4°C –20°F to 220°F
Polytetrafluoroethylene (PTFE)
4.4°C to 104.4°C 40°F to 220°F
Polyurethane –12.2°C to 65.6°C 10°F to 150°F
Tetra-Flex™ PTFE w/Neoprene Backed
4.4°C to 107.2°C 40°F to 225°F
Tetra-Flex™ PTFE w/EPDM Backed
-10°C to 137°C 14°F to 280°F
Wil-Flex™ -40°C to 107.2°C (-40°F to 225°F)
NOTE: Not all materials are available for all
models. Refer to Section 2 for material options
for your pump.
CAUTION: When choosing pump materials, be
sure to check the temperature limits for all wetted
components. Example: Viton®has a maximum
limit of 176.7°C (350°F) but polypropylene has a
maximum limit of only 79°C (175°F).
CAUTION: Maximum temperature limits are
based upon mechanical stress only. Certain
chemicals will significantly reduce maximum
safe operating temperatures. Consult Chemical
Resistance Guide (E4) for chemical compatibility
and temperature limits.
WARNING: Prevention of static sparking — If
static sparking occurs, fire or explosion could
result.
CAUTION: Do not exceed 8.6 bar (125 psig) air
supply pressure.
CAUTION: The process fluid and cleaning fluids
must be chemically compatible with all wetted
pump components. Consult Chemical Resistance
Guide (E4).
CAUTION: Do not exceed 82°C (180°F) air inlet
temperature for Pro-Flo X™ models.
CAUTION: Always wear safety glasses when
operating pump. If diaphragm rupture occurs,
material being pumped may be forced out air
exhaust.
CAUTION: Before any maintenance or repair is
attempted, the compressed air line to the pump
should be disconnected and all air pressure
allowed to bleed from pump. Disconnect all
intake, discharge and air lines. Drain the pump
by turning it upside down and allowing any fluid
to flow into a suitable container.
CAUTION: Blow out air line for 10 to 20 seconds
before attaching to pump to make sure all pipeline
debris is clear. Use an in-line air filter. A 5µ (micron)
air filter is recommended.
CAUTION: If the pipe plug in the inlet or discharge
manifold on the 51 mm (2") Advanced™ plastic
center-ported model is removed, a triple density
(red) PTFE pipe tape is recommended to ensure
adequate sealing.
NOTE: When installing PTFE diaphragms, it is
important to tighten outer pistons simultaneously
(turning in opposite directions) to ensure tight fit.
(See torque specifications in Section 7.)
NOTE: Before starting disassembly, mark a line
from each liquid chamber to its corresponding air
chamber. This line will assist in proper alignment
during reassembly.
CAUTION: Pro-Flo®pumps cannot be used in
submersible applications. Pro-Flo X™ is available
in both submersible and non-submersible
options. Do not use non-submersible Pro-Flo X™
models in submersible applications.
CAUTION: Tighten all hardware prior to installation.
Section 1
CAUTIONS—READ FIRST!

WILDEN PUMP & ENGINEERING, LLC 2WIL-11250-E-03
P800/PX800 PLASTIC
51 mm (2") Pump
Maximum Flow Rate:
693 lpm (183 gpm)
LEGEND
PX800 / XXXXX / XXX / XX / XXX / XXXX
O-RINGS
MODEL VALVE SEAT
VALVE BALLS
DIAPHRAGMS
AIR VALVE
CENTER BLOCK
AIR CHAMBERS
WETTED PARTS & OUTER PISTON
SPECIALTY
CODE
(if applicable)
MATERIAL CODES
MODEL
P800 = PRO-FLO®
PX800 = PRO-FLO X™
WETTED PARTS
KK = PVDF / PVDF
PK = POLYPROPYLENE / PVDF
AIR CHAMBERS
P = POLYPROPYLENE
CENTER BLOCK
P = POLYPROPYLENE
AIR VALVE
P = POLYPROPYLENE
L = ACETAL (P800 only)
DIAPHRAGMS
BNS = BUNA-N (Red Dot)
BNU = BUNA-N, ULTRA-FLEX™
EPS = EPDM (Blue Dot)
EPU = EPDM, ULTRA-FLEX™
FSS = SANIFLEX™
[Hytrel®(Cream)]
NES = NEOPRENE (Green Dot)
NEU = NEOPRENE, ULTRA-FLEX™
PUS = POLYURETHANE (Clear)
TEU = PTFE W/EPDM
BACK-UP (White)
TNU = PTFE W/NEOPRENE
BACK-UP (White)
TSU = PTFE W/SANIFLEX™
BACK-UP (White)
VTS = VITON®(White Dot)
VTU = VITON®, ULTRA-FLEX™
WFS = WIL-FLEX™ [Santoprene®
(Orange Dot)]
TSS = FULL STROKE PTFE
W/SANIFLEX™ BACK-UP
TWS = FULL STROKE PTFE
W/WIL-FLEX™ BACK-UP
VALVE BALL
BN = BUNA-N (Red Dot)
EP = EPDM (Blue Dot)
FS = SANIFLEX™
[Hytrel®(Cream)]
NE = NEOPRENE (Green Dot)
PU = POLYURETHANE (Clear)
TF = PTFE (White)
VT = VITON®(White Dot)
WF = WIL-FLEX™ [Santoprene®
(Orange Dot)]
VALVE SEAT
K = PVDF
P = POLYPROPYLENE
VALVE SEAT & FLANGE O-RING
BN = BUNA-N
TV = PTFE ENCAP. VITON®
WF= WIL-FLEX™ (Santoprene)
Section 2
WILDEN PUMP DESIGNATION SYSTEM
SPECIALTY CODES
0100 Wil-Gard 110V
0102 Wil-Gard sensor wires ONLY
0103 Wil-Gard 220V
0206 PFA coated hardware,
Wil-Gard II™ sensor wires ONLY
0480 Pump Cycle Monitor (sensor & wires)
0483 Pump Cycle Monitor (module, sensor & wires)
0485 Pump Cycle Monitor (module, sensor & wires),
DIN flange
0502 PFA Coated
0504 DIN Flange
0506 DIN Flange, PFA Coated
0513 SS outer pistons
0604 DIN flange Wil-Gard II™
0608 PFA coated hardware, Wil-Gard II™ 220V
0690 Center-Ported ANSI/DIN Combo
0691 Center-ported, ANSI/DIN combo flange, PFA
coated fasteners
0733 Center-ported, Reversed ANSI/DIN combo
flange (inlet facing air inlet/discharge facing
exhaust)
0734 Center-ported, Reversed ANSI/DIN combo
flange (inlet facing air inlet/discharge facing
exhaust), PFA coated fasteners
NOTE: MOST ELASTOMERIC MATERIALS USE COLORED DOTS FOR IDENTIFICATION.
NOTE: Not all models are available with all material options.
Viton®is a registered trademark of DuPont Dow Elastomers.

WIL-11250-E-03 3 WILDEN PUMP & ENGINEERING, LLC
Section 3
HOW IT WORKS—PUMP
The Wilden diaphragm pump is an air-operated, positive displacement, self-priming pump. These drawings show flow pattern
through the pump upon its initial stroke. It is assumed the pump has no fluid in it prior to its initial stroke.

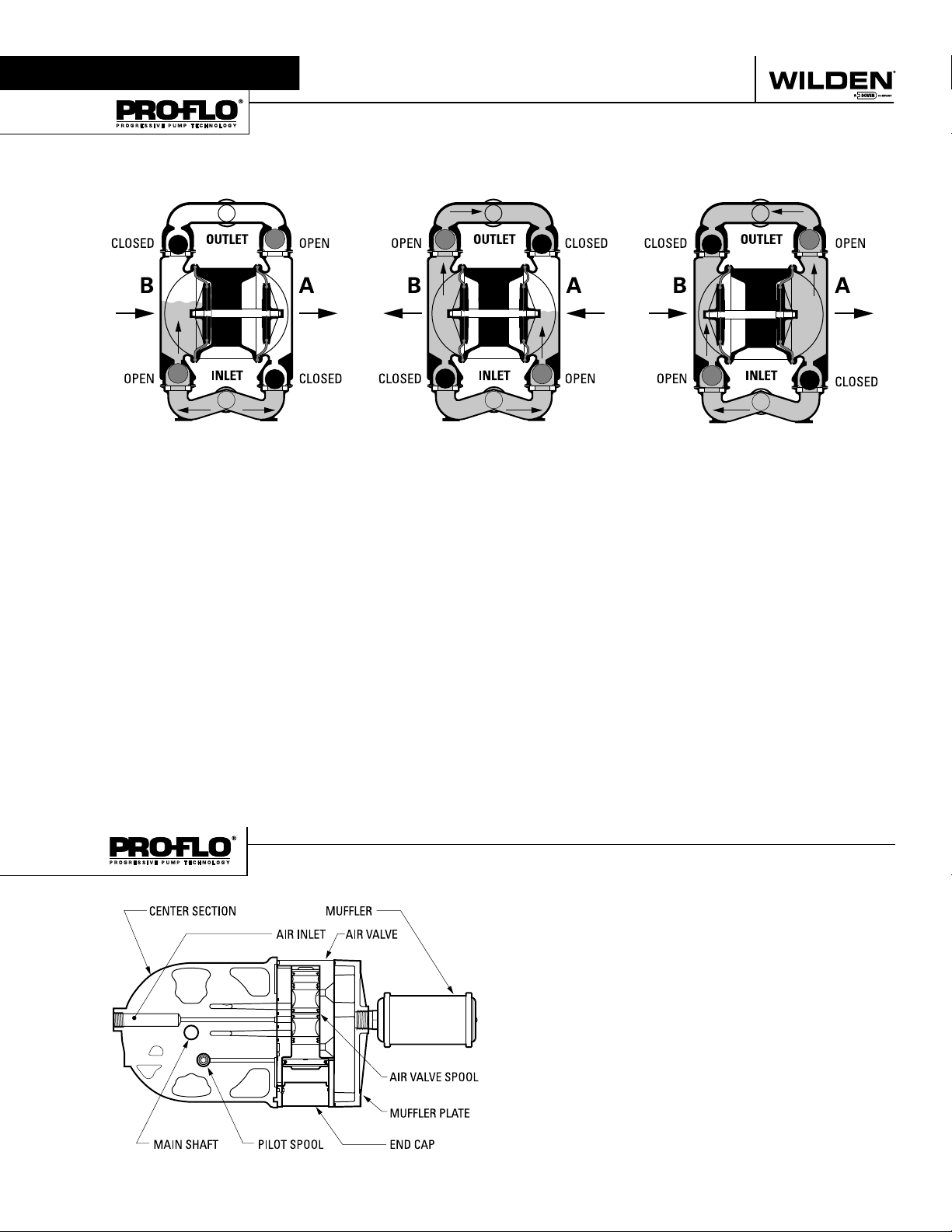

FIGURE 1 The air valve directs pressurized
air to the back side of diaphragm A. The
compressed air is applied directly to the
liquid column separated by elastomeric
diaphragms. The diaphragm acts as
a separation membrane between the
compressed air and liquid, balancing the
load and removing mechanical stress
from the diaphragm. The compressed
air moves the diaphragm away from
the center of the pump. The opposite
diaphragm is pulled in by the shaft
connected to the pressurized diaphragm.
Diaphragm B is on its suction stroke; air
behind the diaphragm has been forced
out to atmosphere through the exhaust
port of the pump. The movement of
diaphragm B toward the center of the
pump creates a vacuum within chamber B.
Atmospheric pressure forces fluid into
the inlet manifold forcing the inlet valve
ball off its seat. Liquid is free to move
past the inlet valve ball and fill the liquid
chamber (see shaded area).
FIGURE 2 When the pressurized diaphragm,
diaphragm A, reaches the limit of its discharge
stroke, the air valve redirects pressurized
air to the back side of diaphragm B. The
pressurized air forces diaphragm B away
from the center while pulling diaphragm A
to the center. Diaphragm B is now on its
discharge stroke. Diaphragm B forces the
inlet valve ball onto its seat due to the
hydraulic forces developed in the liquid
chamber and manifold of the pump. These
same hydraulic forces lift the discharge
valve ball off its seat, while the opposite
discharge valve ball is forced onto its seat,
forcing fluid to flow through the pump
discharge. The movement of diaphragm A
toward the center of the pump creates a
vacuum within liquid chamber A. Atmos-
pheric pressure forces fluid into the inlet
manifold of the pump. The inlet valve ball
is forced off its seat allowing the fluid being
pumped to fill the liquid chamber.
FIGURE 3 At completion of the stroke,
the air valve again redirects air to the
back side of diaphragm A, which starts
diaphragm B on its exhaust stroke. As
the pump reaches its original starting
point, each diaphragm has gone through
one exhaust and one discharge stroke.
This constitutes one complete pumping
cycle. The pump may take several cycles
to completely prime depending on the
conditions of the application.
The Pro-Flo®patented air distribution system incorporates two
moving parts: the air valve spool and the pilot spool. The heart of
the system is the air valve spool and air valve. This valve design
incorporates an unbalanced spool. The smaller end of the spool
is pressurized continuously, while the large end is alternately
pressurized then exhausted to move the spool. The spool directs
pressurized air to one air chamber while exhausting the other.
The air causes the main shaft/diaphragm assembly to shift to
one side — discharging liquid on that side and pulling liquid in
on the other side. When the shaft reaches the end of its stroke,
the inner piston actuates the pilot spool, which pressurizes and
exhausts the large end of the air valve spool. The repositioning
of the air valve spool routes the air to the other air chamber.
HOW IT WORKS—AIR DISTRIBUTION SYSTEM

P800 Plastic Side-Ported
Section 4
DIMENSIONAL DRAWINGS
P800 Plastic Center-Ported
DIMENSIONS
ITEM METRIC (mm) STANDARD (inch)
A 584 23.0
B 76 3.0
C 396 15.6
D 688 27.1
E 765 30.1
F 89 3.5
G 91 3.6
H 175 6.9
J 353 13.9
K 508 20.0
L 399 15.7
M 424 16.7
N 361 14.2
P 307 12.1
R 208 8.2
S 229 9.0
T 254 10.0
U 15 0.6
DIN / ANSI COMBO
V152 DIA. 6.0 DIA.
W122 DIA. 4.8 DIA.
X20 DIA. 0.8 DIA.
DIMENSIONS
ITEM METRIC (mm) STANDARD (inch)
A 605 23.8
B 150 5.9
C 91 3.6
D 729 28.7
E 406 16.0
F 805 31.7
G 353 13.9
H 508 20.0
J 406 16.0
K 84 3.3
L 122 4.8
M 424 16.7
N 361 14.2
P 208 8.2
R 234 9.2
S 15 0.6
DIN FLANGE
T 125 DIA. 4.9 DIA.
U 165 DIA. 6.5 DIA.
V 18 DIA. 0.7 DIA.
ANSI FLANGE
T 122 DIA. 4.8 DIA.
U 152 DIA. 6.0 DIA.
V 20 DIA. 0.8 DIA.
WILDEN PUMP & ENGINEERING, LLC 4WIL-11250-E-03

PX800 Plastic Center-Ported
PX800 Plastic Side-Ported DIMENSIONS
ITEM METRIC (mm) STANDARD (inch)
A 605 23.8
B 150 5.9
C 729 28.7
D 91 3.6
E 406 16.0
F 805 31.7
G 48 1.9
H 178 7.0
J 356 14.0
K 452 17.8
L 414 16.3
M 424 16.7
N 361 14.2
P 208 8.2
R 234 9.2
S 15 0.6
DIN FLANGE
T 125 DIA. 4.9 DIA.
U 165 DIA. 6.5 DIA.
V 18 DIA. .7 DIA.
ANSI FLANGE
T 122 DIA. 4.8 DIA.
U 154 DIA. 6.0 DIA.
V 20 DIA. .8 DIA.
DIMENSIONS
ITEM METRIC (mm) STANDARD (inch)
A 584 23.0
B 76 3.0
C 396 15.6
D 688 27.1
E 765 30.1
F 89 3.5
G 48 1.9
H 178 7.0
J 356 14.0
K 452 17.8
L 404 15.9
M 424 16.7
N 361 14.2
P 307 12.1
R 208 8.2
S 229 9.0
T 254 10.0
U 15 0.6
DIN / ANSI COMBO
V 152 DIA. 6.0 DIA.
W 122 DIA. 4.8 DIA.
X 20 DIA. .8 DIA.
WIL-11250-E-03 5WILDEN PUMP & ENGINEERING, LLC
DIMENSIONAL DRAWING

P800 PLASTIC
RUBBER-FITTED
Flow rates indicated on chart were determined by pumping water.
For optimum life and performance, pumps should be specified so that daily operation
parameters will fall in the center of the pump performance curve.
Height ..................................805 mm (31.7")
Width .................................. 605 mm (23.8")
Depth .................................. 353 mm (13.9")
Est. Ship Weight
Polypropylene 32 kg (70 lbs)
PVDF 45 kg (99 lbs)
Air Inlet ....................................13 mm (1⁄2")
Inlet ............................................ 51 mm (2")
Outlet ......................................... 51 mm (2")
Suction Lift ..................... 6.23 m Dry (20.4')
8.65 m Wet (28.4')
Displacement/Stroke 2.75 l (0.727 gal.)1
Max. Flow Rate ............ 624 lpm (165 gpm)
Max. Size Solids.....................6.4 mm (1⁄4")
1Displacement per stroke was calculated at
4.8 Bar (70 psig) air inlet pressure against
a 2 bar (30 psig) head pressure.
Example: To pump 246 lpm (65 gpm)
against a discharge head pressure of 2.8
Bar (40 psig) requires 4.1 bar (60 psig) and
85 Nm3/h (50 scfm) air consumption. (See
dot on chart.)
Caution: Do not exceed 8.6 bar (125 psig)
air supply pressure.
P800 PLASTIC
TPE-FITTED
Flow rates indicated on chart were determined by pumping water.
For optimum life and performance, pumps should be specified so that daily operation
parameters will fall in the center of the pump performance curve.
Height ..................................805 mm (31.7")
Width .................................. 605 mm (23.8")
Depth .................................. 353 mm (13.9")
Est. Ship Weight
Polypropylene 32 kg (70 lbs)
PVDF 45 kg (99 lbs)
Air Inlet ....................................13 mm (1⁄2")
Inlet ............................................ 51 mm (2")
Outlet ......................................... 51 mm (2")
Suction Lift ................... 5.54 m Dry (18.16')
5.19 m Wet (17.0')
Displacement/Stroke .... 2.78 l (0.735 gal.)1
Max. Flow Rate ............ 615 lpm (162 gpm)
Max. Size Solids.....................6.4 mm (1⁄4")
1Displacement per stroke was calculated at
4.8 bar (70 psig) air inlet pressure against a
2 bar (30 psig) head pressure.
Example: To pump 321.8 lpm (85 gpm)
against a discharge head pressure of
1.2 bar (17 psig) requires 2.8 bar (40 psig)
and 85 Nm3/h (50 scfm) air consumption.
(See dot on chart.)
Caution: Do not exceed 8.6 bar (125 psig)
air supply pressure.
WILDEN PUMP & ENGINEERING, LLC 6WIL-11250-E-03
Section 5A
PERFORMANCE

P800 PLASTIC
REDUCED STROKE PTFE-FITTED
P800 PLASTIC
FULL STROKE PTFE-FITTED
Flow rates indicated on chart were determined by pumping water.
For optimum life and performance, pumps should be specified so that daily operation
parameters will fall in the center of the pump performance curve.
Flow rates indicated on chart were determined by pumping water.
For optimum life and performance, pumps should be specified so that daily operation
parameters will fall in the center of the pump performance curve.
Height ..................................805 mm (31.7")
Width .................................. 605 mm (23.8")
Depth .................................. 353 mm (13.9")
Est. Ship Weight
Polypropylene 32 kg (70 lbs)
PVDF 45 kg (99 lbs)
Air Inlet ....................................13 mm (1⁄2")
Inlet ............................................ 51 mm (2")
Outlet ......................................... 51 mm (2")
Suction Lift ................... 4.15 m Dry (13.62')
8.65 m Wet (28.4')
Displacement/Stroke .... 1.73 l (0.457 gal.)1
Max. Flow Rate ............ 504 lpm (133 gpm)
Max. Size Solids.....................6.4 mm (1⁄4")
1Displacement per stroke was calculated at
4.8 bar (70 psig) air inlet pressure against a
2 bar (30 psig) head pressure.
Example: To pump 219.6 lpm (58 gpm)
against a discharge head pressure of 3.4
Bar (50 psig) requires 5.5 bar (80 psig) and
128 Nm3/h (75 scfm) air consumption. (See
dot on chart.)
Caution: Do not exceed 8.6 bar (125 psig)
air supply pressure.
Height ................................. 804 mm (31.7”)
Width ..................................604 mm (23.8”)
Depth .................................. 353 mm (13.9”)
Ship Weight . Polypropylene 32 kg (70 lbs.)
PVDF 45 kg (99 lbs.)
Air Inlet ...................................13 mm (1/2”)
Inlet ............................................51 mm (2”)
Outlet .........................................51 mm (2”)
Suction Lift ........................ 5.9m Dry (19.5’)
9.0 m Wet (29.5’)
Disp. Per Stroke ................. 2.5 l (0.67 gal.)1
Max. Flow Rate ............ 615 lpm (162 gpm)
Max. Size Solids....................6.4 mm (1/4”)
1Displacement per stroke was calculated at
4.8 bar (70 psig) air inlet pressure against a
2.1 bar (30 psig)head pressure.
Example: To pump 98 GPM against a
discharge head of 40 psigrequires 80 psig
and 92 scfm air consumption.
Caution: Do not exceed 8.6 bar (125 psig)
air supply pressure.
60 [102]
100 [170]
80 [136]
120 [204]
20 40 60 80 100 120 140 160
[76] [151] [227] [303] [379] [454] [530] [606]
40 [68]
20 [34]
WIL-11250-E-03 7WILDEN PUMP & ENGINEERING, LLC
PERFORMANCE

P800 PLASTIC
ULTRA-FLEX™-FITTED
Flow rates indicated on chart were determined by pumping water.
For optimum life and performance, pumps should be specified so that daily operation
parameters will fall in the center of the pump performance curve.
Height ..................................805 mm (31.7")
Width .................................. 605 mm (23.8")
Depth .................................. 353 mm (13.9")
Est. Ship Weight
Polypropylene 32 kg (70 lbs)
PVDF 45 kg (99 lbs)
Air Inlet ....................................13 mm (1⁄2")
Inlet ............................................ 51 mm (2")
Outlet ......................................... 51 mm (2")
Suction Lift ................... 4.84 m Dry (15.89')
8.65 m Wet (28.4')
Displacement/Stroke .... 1.73 l (0.457 gal.)1
Max. Flow Rate ............ 588 lpm (155 gpm)
Max. Size Solids.....................6.4 mm (1⁄4")
1Displacement per stroke was calculated at
4.8 bar (70 psig) air inlet pressure against a
2 bar (30 psig) head pressure.
Example: To pump 265 lpm (70 gpm)
against a discharge head pressure of
1.7 bar (24 psig) requires 2.8 bar (40 psig)
and 85 Nm3/h (50 scfm) air consumption.
(See dot on chart.)
Caution: Do not exceed 8.6 bar (125 psig)
air supply pressure.
WILDEN PUMP & ENGINEERING, LLC 8WIL-11250-E-03
PERFORMANCE

P800 PLASTIC
SUCTION LIFT CAPABILITY
Section 5A
SUCTION LIFT CURVE
WIL-11250-E-03 9 WILDEN PUMP & ENGINEERING, LLC

NOTES

PX800
P L A S T I C
PX800 PERFORMANCE
WIL-11250-E-03 11 WILDEN PUMP & ENGINEERING, LLC

WILDEN PUMP & ENGINEERING, LLC 12 PX800 Performance

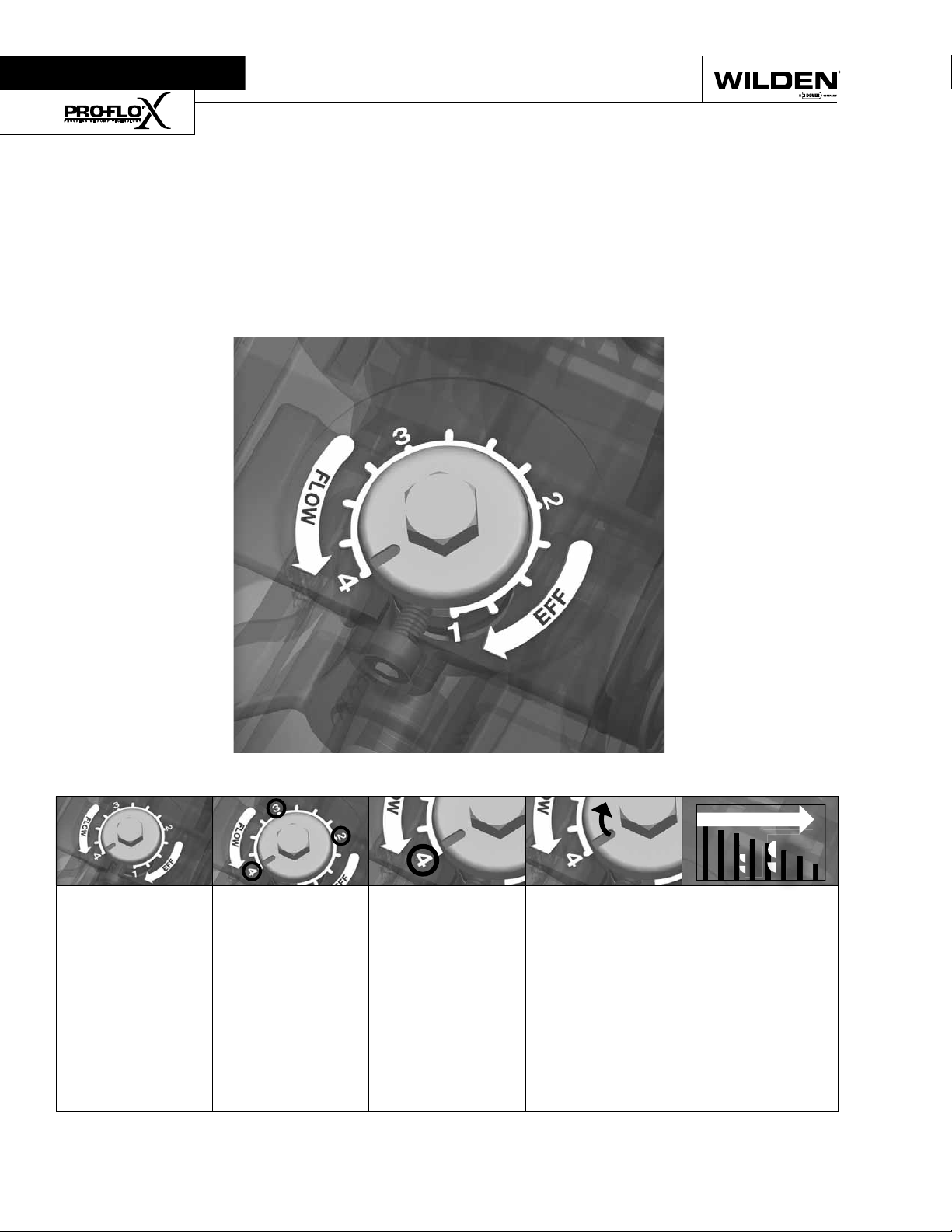

The Pro-Flo X™ air distribution system with the
revolutionary Efficiency Management System (EMS)
offers flexibility never before seen in the world of
AODD pumps. The
patent-pending EMS
is simple and easy
to use. With the
turn of an integrated
control dial, the operator can select the optimal
balance of flow and efficiency that best meets the
application needs. Pro-Flo X™ provides higher
performance, lower
operational costs
and flexibility that
exceeds previous
industry standards.
Pro-Flo XTM Operating Principal
Section 5B
Turning the dial
changes the
relationship
between air inlet
and exhaust
porting.
Each dial setting
represents an
entirely different
flow curve
Pro-Flo X™ pumps
are shipped from
the factory on
setting 4, which
is the highest
flow rate setting
possible
Moving the dial
from setting 4
causes a decrease
in flow and an even
greater decrease in
air consumption.
When the air
consumption
decreases more
than the flow
rate, efficiency
is improved and
operating costs
are reduced.
$
$
$
AIR CONSUMPTION

PX800 Performance 13 WILDEN PUMP & ENGINEERING, LLC
SETTING 4 PERFORMANCE CURVE EMS CURVE
HOW TO USE THIS EMS CURVE
Example 1
8.2 GPM
Example data point = Example data point =
Figure 1 Figure 2
0.58
0.48
flow multiplier
air multiplier
This is an example showing how to determine flow rate and
air consumption for your Pro-Flo X™ pump using the Efficien-
cy Management System (EMS) curve and the performance
curve. For this example we will be using 4.1 bar (60 psig) inlet
air pressure and 2.8 bar (40 psig) discharge pressure and EMS
setting 2.
Step 1: Identifying performance at setting 4. Locate
the curve that represents the flow rate of the
pump with 4.1 bar (60 psig) air inlet pressure.
Mark the point where this curve crosses the
horizontal line representing 2.8 bar (40 psig)
discharge pressure. (Figure 1). After locating
your performance point on the flow curve,
draw a vertical line downward until reaching
the bottom scale on the chart. Identify the flow
rate (in this case, 8.2 gpm). Observe location
of performance point relative to air consump-
tion curves and approximate air consumption
value (in this case, 9.8 scfm).
Step 2: Determining flow and air X Factors. Locate
your discharge pressure (40 psig) on the verti-
cal axis of the EMS curve (Figure 2). Follow
along the 2.8 bar (40 psig) horizontal line until
intersecting both flow and air curves for your
desired EMS setting (in this case, setting 2).
Mark the points where the EMS curves inter-
sect the horizontal discharge pressure line.
After locating your EMS points on the EMS
curve, draw vertical lines downward until
reaching the bottom scale on the chart. This
identifies the flow X Factor (in this case, 0.58)
and air X Factor (in this case, 0.48).
Step 3: Calculating performance for specific EMS
setting. Multiply the flow rate (8.2 gpm)
obtained in Step 1 by the flow X Factor multi-
plier (0.58) in Step 2 to determine the flow rate
at EMS setting 2. Multiply the air consump-
tion (9.8 scfm) obtained in Step 1 by the air
X Factor multiplier (0.48) in Step 2 to deter-
mine the air consumption at EMS setting 2
(Figure 3).
Figure 3
The flow rate and air consumption at Setting
2 are found to be 18.2 lpm (4.8 gpm) and 7.9
Nm3/h (4.7 scfm) respectively.
.58
4.8 gpm
(Flow X Factor setting 2)
(Flow rate for setting 2)
(air consumption for setting 4)
(Air X Factor setting 2)
(air consumption for setting 2)
9.8 scfm
.48
4.7 scfm
8.2 gpm (flow rate for Setting 4)

WILDEN PUMP & ENGINEERING, LLC 14 PX800 Performance
EMS CURVE
SETTING 4 PERFORMANCE CURVE
HOW TO USE THIS EMS CURVE
This is an example showing how to determine the inlet air
pressure and the EMS setting for your Pro-Flo X™ pump to
optimize the pump for a specific application. For this exam-
ple we will be using an application requirement of 18.9 lpm
(5 gpm) flow rate against 2.8 bar (40 psig) discharge pressure.
This example will illustrate how to calculate the air consump-
tion that could be expected at this operational point.
Step 1 : Establish inlet air pressure. Higher air pres-
sures will typically allow the pump to run
more efficiently, however, available plant air
pressure can vary greatly. If an operating
pressure of 6.9 bar (100 psig) is chosen when
plant air frequently dips to 6.2 bar (90 psig)
pump performance will vary. Choose an oper-
ating pressure that is within your compressed
air system's capabilities. For this example we
will choose 4.1 bar (60 psig).
Step 2 : Determine performance point at setting 4. For
this example an inlet air pressure of 4.1 bar
(60 psig) inlet air pressure has been chosen.
Locate the curve that represents the perfor-
mance of the pump with 4.1 bar (60 psig) inlet
air pressure. Mark the point where this curve
crosses the horizontal line representing 2.8
bar (40 psig) discharge pressure. After locat-
ing this point on the flow curve, draw a verti-
cal line downward until reaching the bottom
scale on the chart and identify the flow rate.
In our example it is 38.6 lpm (10.2 gpm). This
is the setting 4 flow rate. Observe the loca-
tion of the performance point relative to air
consumption curves and approximate air
consumption value. In our example setting
4 air consumption is 24 Nm3/h (14 scfm).
See figure 4.
Step 3 : Determine flow X Factor. Divide the required
flow rate 18.9 lpm (5 gpm) by the setting 4 flow
rate 38.6 lpm (10.2 gpm) to determine the flow
X Factor for the application.
Step 4 : Determine EMS setting from the flow
X Factor. Plot the point representing the flow
X Factor (0.49) and the application discharge
pressure 2.8 bar (40 psig) on the EMS curve.
This is done by following the horizontal 2.8
bar (40 psig) psig discharge pressure line until
it crosses the vertical 0.49 X Factor line. Typi-
cally, this point lies between two flow EMS
setting curves (in this case, the point lies be-
tween the flow curves for EMS setting 1 and
2). Observe the location of the point relative
to the two curves it lies between and approxi-
mate the EMS setting (figure 5). For more pre-
cise results you can mathematically interpo-
late between the two curves to determine the
optimal EMS setting.
5 gpm / 10.2 gpm = 0.49 (flow X Factor)
DETERMINE EMS SETTING
For this example the EMS setting is 1.8.
Figure 4
Example data point = 10.2 gpm flow multiplier
Figure 5
EMS Flow
Settings 1 & 2
0.49
Example 2.1

PX800 Performance 15 WILDEN PUMP & ENGINEERING, LLC
EMS CURVE
SETTING 4 PERFORMANCE CURVE
HOW TO USE THIS EMS CURVE
Example 2.2
Determine air consumption at a specific
EMS setting.
Step 1 : Determine air X Factor. In order to determine
the air X Factor, identify the two air EMS set-
ting curves closest to the EMS setting estab-
lished in example 2.1 (in this case, the point lies
between the air curves for EMS setting 1 and
2). The point representing your EMS setting
(1.8) must be approximated and plotted on the
EMS curve along the horizontal line represent-
ing your discharge pressure (in this case, 40
psig). This air point is different than the flow
point plotted in example 2.1. After estimating
(or interpolating) this point on the curve, draw
a vertical line downward until reaching the
bottom scale on the chart and identify the air
X Factor (figure 7).
Step 2 : Determine air consumption. Multiply your
setting 4 air consumption (14 scfm) value by
the air X Factor obtained above (0.40) to deter-
mine your actual air consumption.
In summary, for an application requiring 18.9 lpm
(5 gpm) against 2.8 bar (40 psig) discharge pressure,
the pump inlet air pressure should be set to 4.1 bar
(60 psig) and the EMS dial should be set to 1.8. The
pump would then consume 9.5 Nm3/h (5.6 scfm) of
compressed air.
Figure 6
0.40 air multiplier
Example data point =
Figure 7
10.2 gpm
Example data point =
For this example the air X Factor is 0.40
1 4 scfm x 0.40 = 5.6 SCFM
EMS Air
Settings 1 & 2

WILDEN PUMP & ENGINEERING, LLC 16 PX800 Performance
PERFORMANCE
SETTING 4 PERFORMANCE CURVE EMS CURVE
PX800 PLASTIC RUBBER-FITTED
TECHNICAL DATA Height . . . . . . . . . . . . . . . . . . . . . . . . . .805 mm (31.7”) Width. . . . . . . . . . . . . . . . . . . . . . . . . . .605 mm (23.8”) Depth. . . . . . . . . . . . . . . . . . . . . . . . . . .356 mm (14.0”) Ship Weight . . . . . . . . Polypropylene 33 kg (70 lbs.) . . . . . . . . . . . . . . . . . . . . . . . . . . . PVDF 45 kg (99 lbs.) Air Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . 19 mm (3/4”) Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 mm (2”) Outlet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 mm (2”) Suction Lift . . . . . . . . . . . . . . . . . . . . .6.1 m Dry (19.9’) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.0 m Wet (29.5’) Disp. Per Stroke. . . . . . . . . . . . . . . . . 2.6 l (0.70 gal.)1 Max. Flow Rate . . . . . . . . . . . . . . .693 lpm (183 gpm) Max. Size Solids . . . . . . . . . . . . . . . . . . 6.4 mm (1/4”) 1Displacement per stroke was calculated at 4.8 bar (70 psig)
air inlet pressure against a 2.1 bar (30 psig)head pressure.
The Efficiency Management System (EMS) can be used to optimize the performance of your Wilden pump for specific applications. The pump is delivered with the EMS adjusted to setting 4, which allows maximum flow. The EMS curve allows the pump user to deter- mine flow and air consumption at each EMS setting. For any EMS setting and discharge pressure, the “X factor” is used as a multi- plier with the original values from the setting 4 performance curve to calculate the actual flow and air consumption values for that spe- cific EMS setting. Note: you can interpolate between the setting curves for operation at intermediate EMS settings.
Example: A PX800 polypropylene, rubber-fitted pump operating at EMS set- ting 4, achieved a flow rate of 303 lpm (80 gpm) using 88 Nm3/h (52 scfm) of air when run at 4.1 bar (60 psig) air inlet pressure and 2.1 bar (30 psig) discharge pressure (See dot on performance curve). The end user did not require that much flow and wanted to reduce air consumption at his facility. He determined that EMS setting 1 would meet his needs. At 1.4 bar (20 psig) discharge pressure and EMS setting 1, the flow “X factor” is 0.28 and the air “X factor” is 0.19 (see dots on EMS curve). Multiplying the original setting 4 values by the “X factors” provides the setting 1 flow rate of 85 lpm (22 gpm) and an air consumption of 17 Nm3/h (10 scfm). The flow rate was reduced by 72% while the air consumption was reduced by 81%, thus providing increased efficiency. For a detailed example for how to set your EMS, see beginning of performance curve section. Caution: Do not exceed 8.6 bar (125 psig) air supply pressure.

PX800 Performance 17 WILDEN PUMP & ENGINEERING, LLC
PERFORMANCE
SETTING 4 PERFORMANCE CURVE EMS CURVE
PX800 PLASTIC TPE-FITTED
EXAMPLE A PX800 polypropylene, TPE-fitted pump operating at EMS setting 4, achieved a flow rate of 522 lpm (138 gpm) using 170 Nm3/h (100 scfm)
of air when run at 6.9 bar (100 psig) air inlet pressure and 1.4 bar (20 psig) discharge pressure (See dot on performance curve). The end user did not require that much flow and wanted to reduce air consumption at his facility. He determined that EMS setting 2 would meet his needs. At 1.4 bar (20 psig) discharge pressure and EMS setting 2, the flow “X factor” is 0.68 and the air “X factor” is 0.48 (see dots on EMS curve). Multiplying the original setting 4 values by the “X factors” provides the setting 2 flow rate of 355 lpm (94 gpm) and an air consumption of 82 Nm3/h (48 scfm). The flow rate was reduced by 32% while the
air consumption was reduced by 52%, thus providing increased ef- ficiency. For a detailed example for how to set your EMS, see beginning of performance curve section. Caution: Do not exceed 8.6 bar (125 psig) air supply pressure.
The Efficiency Management System (EMS) can be used to optimize the performance of your Wilden pump for specific applications. The pump is delivered with the EMS adjusted to setting 4, which allows maximum flow. The EMS curve allows the pump user to deter- mine flow and air consumption at each EMS setting. For any EMS setting and discharge pressure, the “X factor” is used as a multi- plier with the original values from the setting 4 performance curve to calculate the actual flow and air consumption values for that spe- cific EMS setting. Note: you can interpolate between the setting curves for operation at intermediate EMS settings.
TECHNICAL DATA Height . . . . . . . . . . . . . . . . . . . . . . . . . .805 mm (31.7”) Width. . . . . . . . . . . . . . . . . . . . . . . . . . .605 mm (23.8”) Depth. . . . . . . . . . . . . . . . . . . . . . . . . . .356 mm (14.0”) Ship Weight . . . . . . . . Polypropylene 33 kg (70 lbs.) . . . . . . . . . . . . . . . . . . . . . . . . . . . PVDF 45 kg (99 lbs.) Air Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . 19 mm (3/4”) Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 mm (2”) Outlet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 mm (2”) Suction Lift . . . . . . . . . . . . . . . . . . . . .5.4 m Dry (17.6’) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.0 m Wet (29.5’) Disp. Per Stroke. . . . . . . . . . . . . . . . . 2.6 l (0.70 gal.)1 Max. Flow Rate . . . . . . . . . . . . . . .689 lpm (182 gpm) Max. Size Solids . . . . . . . . . . . . . . . . . . 6.4 mm (1/4”) 1
Displacement per stroke was calculated at 4.8 bar (70 psig)
air inlet pressure against a 2.1 bar (30 psig)head pressure.

WILDEN PUMP & ENGINEERING, LLC 18 PX800 Performance
SETTING 4 PERFORMANCE CURVE EMS CURVE
PERFORMANCE
PX800 PLASTIC REDUCED STROKE PTFE-FITTED
TECHNICAL DATA Height . . . . . . . . . . . . . . . . . . . . . . . . . .805 mm (31.7”) Width. . . . . . . . . . . . . . . . . . . . . . . . . . .605 mm (23.8”) Depth. . . . . . . . . . . . . . . . . . . . . . . . . . .356 mm (14.0”) Ship Weight . . . . . . . . Polypropylene 33 kg (70 lbs.) . . . . . . . . . . . . . . . . . . . . . . . . . . . PVDF 45 kg (99 lbs.) Air Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . 19 mm (3/4”) Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 mm (2”) Outlet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 mm (2”) Suction Lift . . . . . . . . . . . . . . . . . . . . .4.5 m Dry (14.8’) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.2 m Wet (23.8’) Disp. Per Stroke. . . . . . . . . . . . . . . . . 1.7 l (0.46 gal.)1 Max. Flow Rate . . . . . . . . . . . . . . .579 lpm (153 gpm) Max. Size Solids . . . . . . . . . . . . . . . . . . 6.4 mm (1/4”) 1Displacement per stroke was calculated at 4.8 bar (70 psig)
air inlet pressure against a 2.1 bar (30 psig)head pressure.
The Efficiency Management System (EMS) can be used to optimize the performance of your Wilden pump for specific applications. The pump is delivered with the EMS adjusted to setting 4, which allows maximum flow. The EMS curve allows the pump user to determine flow and air consumption at each EMS setting. For any EMS setting and discharge pressure, the “X factor” is used as a multiplier with the original values from the setting 4 performance curve to calculate the actual flow and air consumption values for that specific EMS setting. Note: you can interpolate between the setting curves for operation at intermediate EMS settings.
EXAMPLE A PX800 polypropylene, reduced stroke PTFE-fitted pump operating at EMS setting 4, achieved a flow rate of 439 lpm (116 gpm) using 146 Nm3/h (86 scfm) of air when run at 5.5 bar (80 psig) air inlet pressure and
0.7 bar (10 psig) discharge pressure (See dot on performance curve)
.
The end user did not require that much flow and wanted to reduce air consumption at his facility. He determined that EMS setting 2 would meet his needs. At 0.7 bar (10 psig) discharge pressure and EMS setting 2, the flow “X factor” is 0.67 and the air “X factor” is 0.46 (see dots on EMS curve). Multiplying the original setting 4 values by the “X factors” provides the setting 2 flow rate of 294 lpm (78 gpm) and an air consumption of 67 Nm3/h (40 scfm). The flow rate was reduced by 33% while the
air consumption was reduced by 54%, thus providing increased efficiency. For a detailed example for how to set your EMS, see beginning of performance curve section. Caution: Do not exceed 8.6 bar (125 psig) air supply pressure.
