Wildfire Viostorm VS-60 User manual

Operation Manual
365nm Ultraviolet LED Lighting Fixtures
VS-60
VS-120
English

Table of Contents
Introduction 3
Safety Information 3
Specifications 4
Setup & Operation 5
Unpacking 5
Optional Accessories 5
Installation 5
Local Control Source Operation 5
Effects (Local) 5
DMX512 Control Source Operation 6
Effects (DMX512) 6
RDM Functions 6
Graphical Menu Tree 7
DMX Chart 10
Maintenance 11
Optic Change/Replacement 11
Software Updates 11
Cleaning 11
Troubleshooting 11
Diagrams 12
Isometric & Line Views VS-60 12

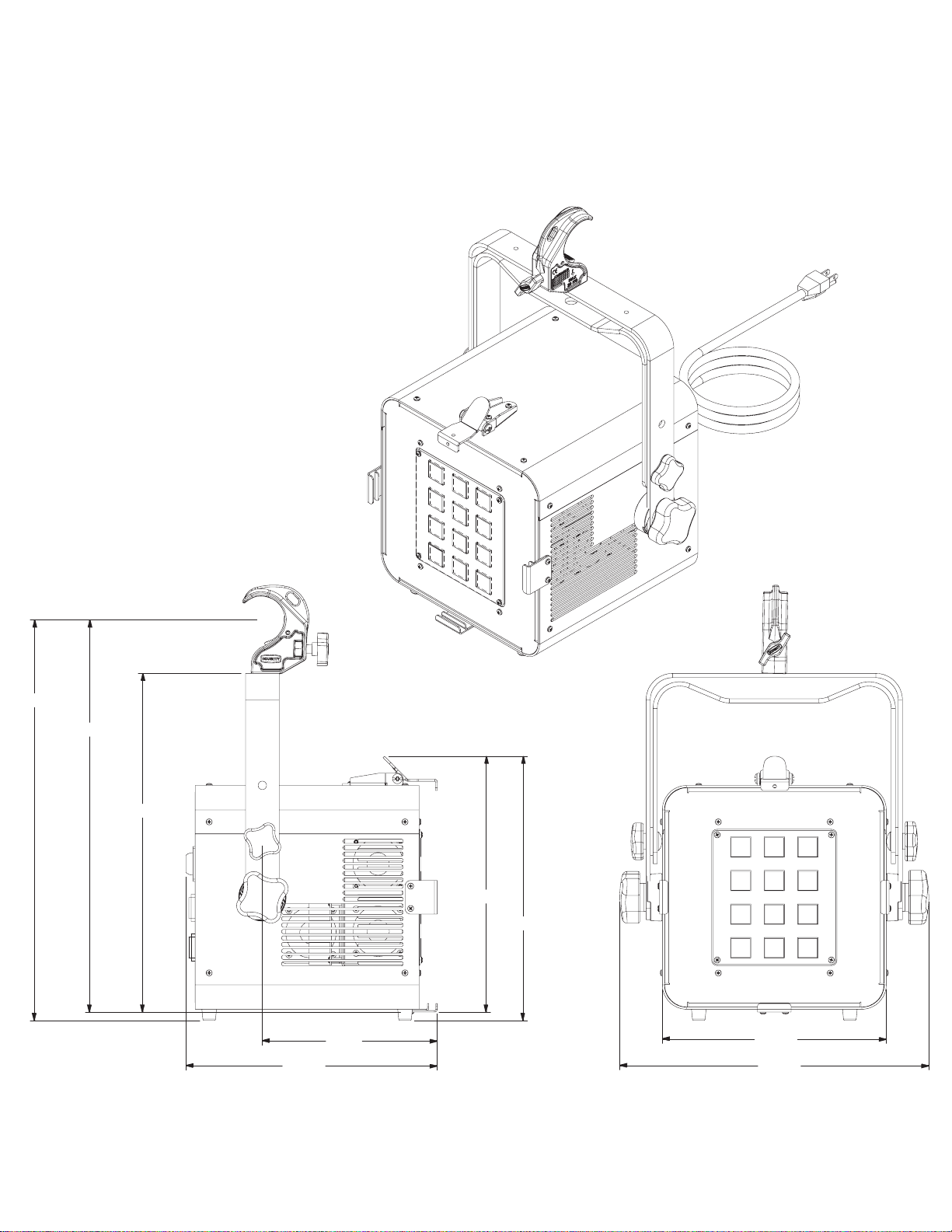

Isometric & Line Views VS-120 13
Exploded View VS-60 14
Part List VS-60 15

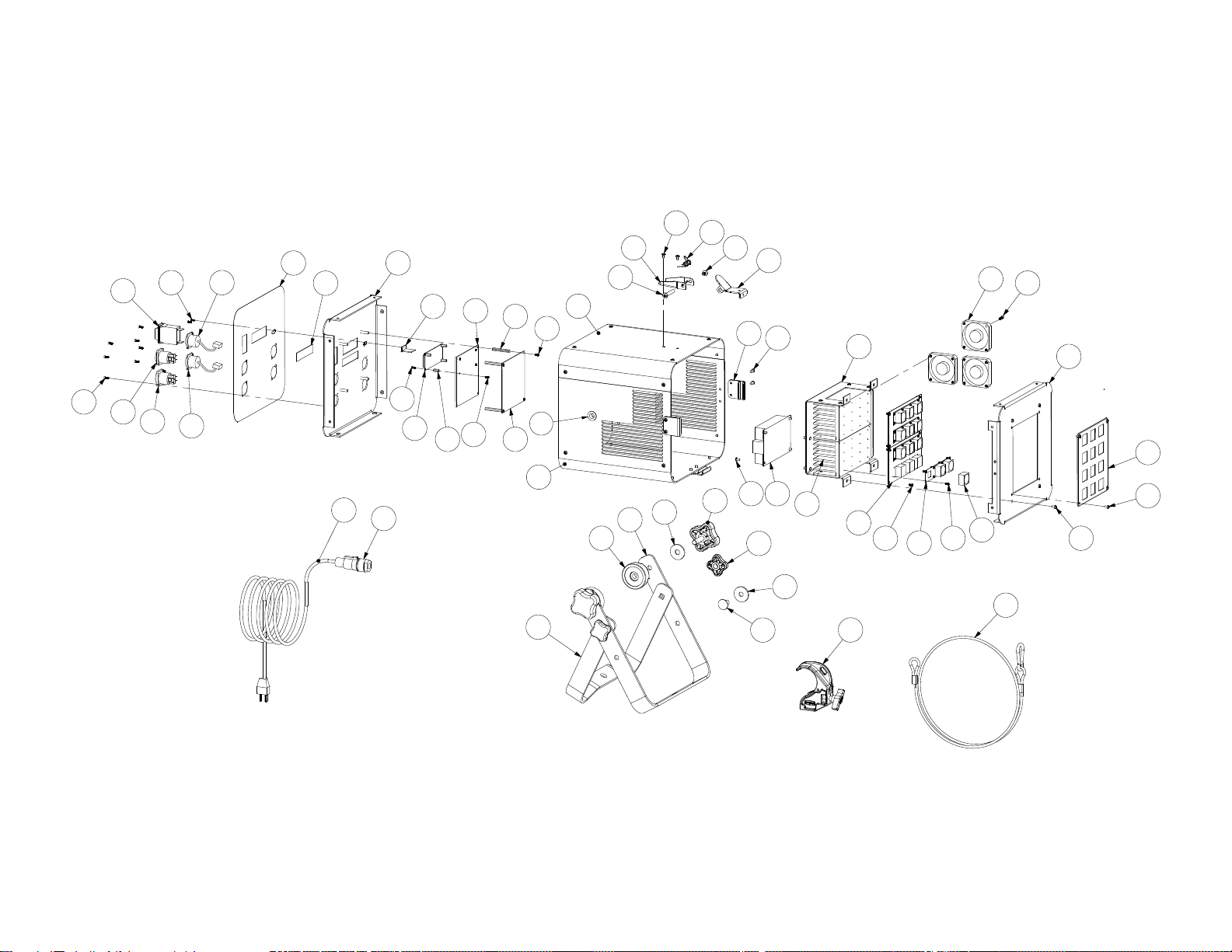

Exploded View VS-120 16
Part List VS-120 17

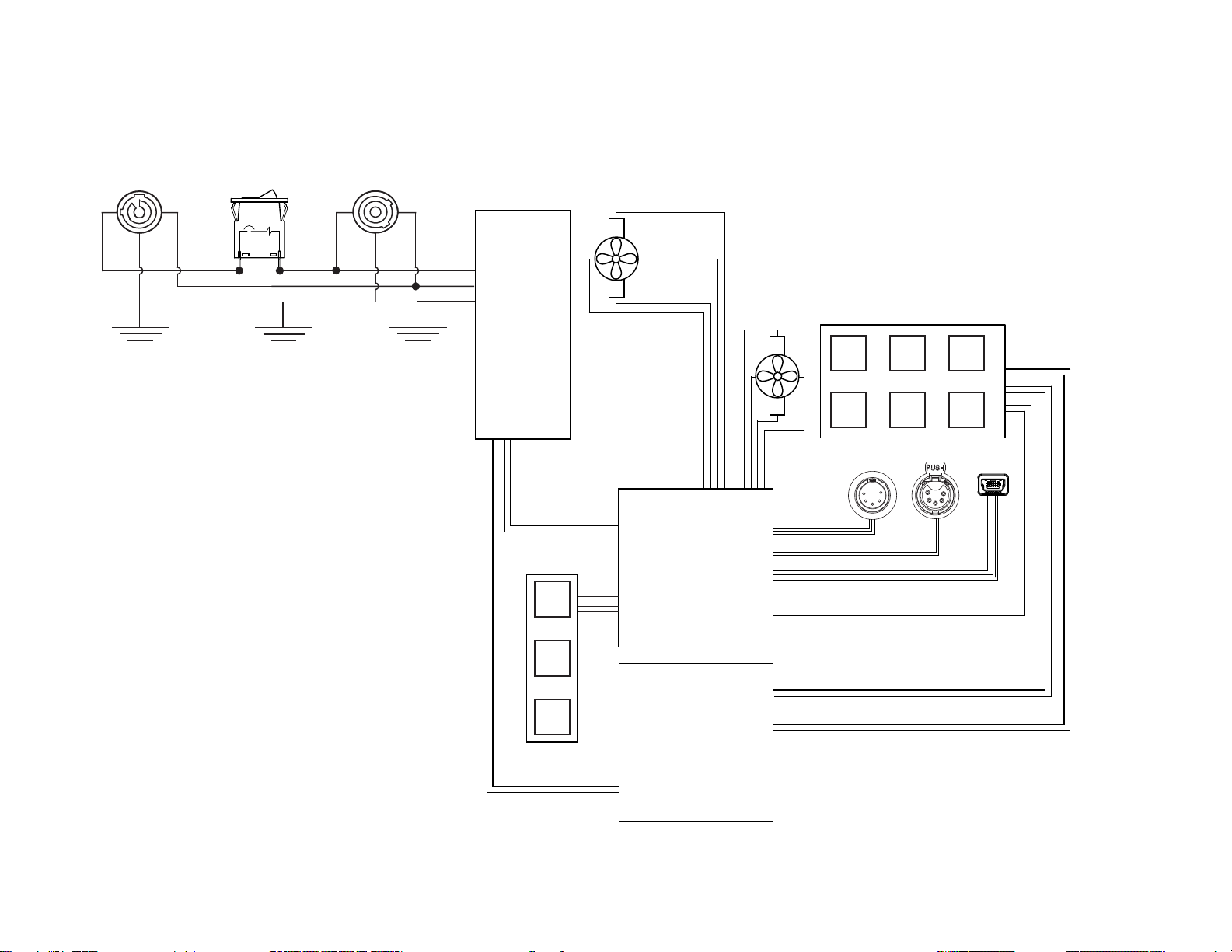

Schematic VS-60 18

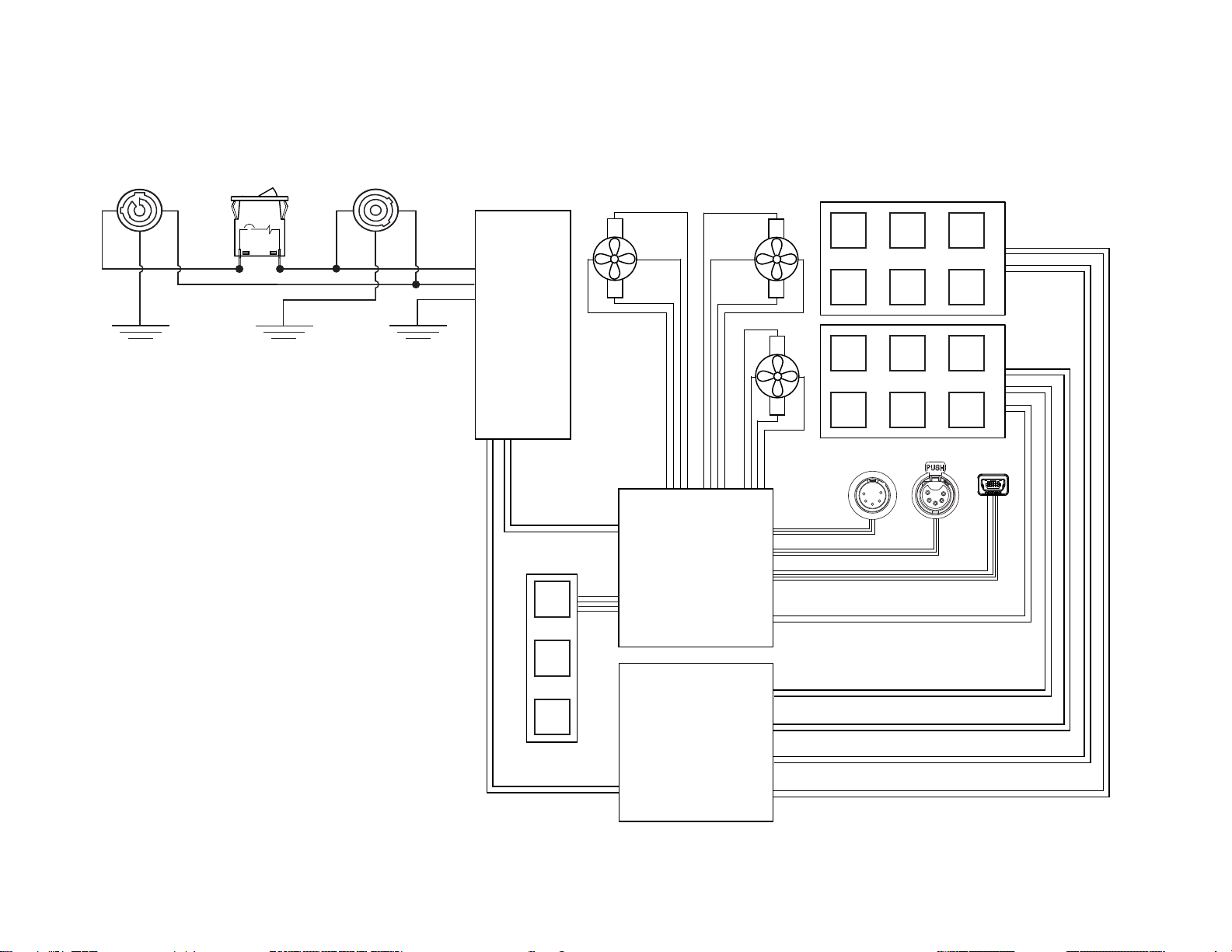

Schematic VS-120 19

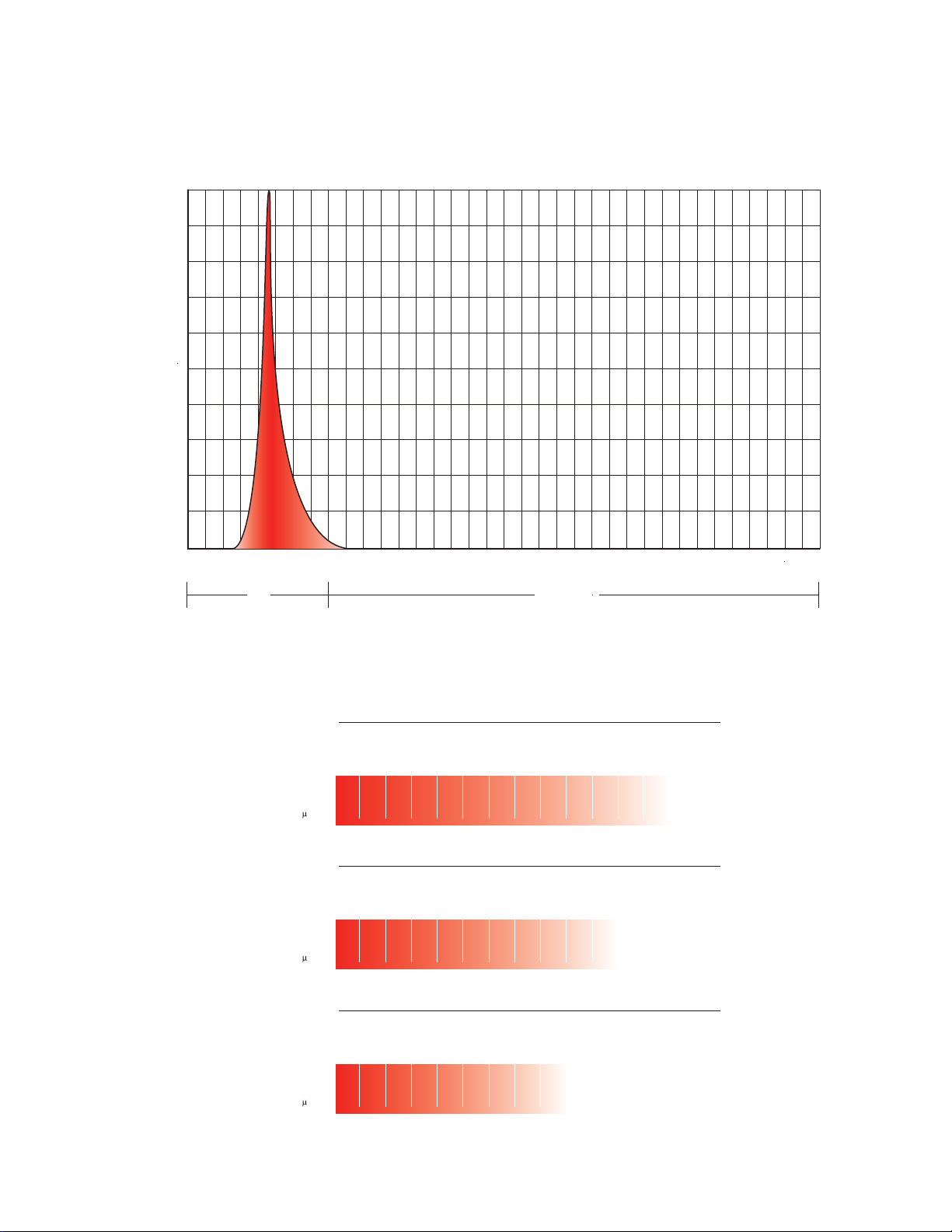

Spectral Output & Photometrics VS-60 20
Spectral Output & Photometrics VS-120 21
Limited Warranty 22
2

Introduction
Congratulations on your purchase of a Wildfire VioStorm Series UV-A Lighting Fixture. VioStorm fixtures
combine true 365nm Long Throw performance, with the control and efficiency of LED's. Featuring Wildfire’s
intuitive new Trias DMX/RDM Control System and versatile interchangeable optics, VioStorm UV lighting is just
the right combination of power performance and control for a perfect black light storm. Please take a moment to
read this manual thoroughly before attempting to operate the fixture. Improper set-up, use or servicing may
cause damage to the fixture and void the unit’s warranty.
Safety Information
RISK GROUP 3 - WARNING - THIS FIXTURE EMITS ULTRAVIOLET RADIATION (UV) AT A PRIMARY
WAVELENGTH OF 365NM, AVOID EYE AND SKIN EXPOSURE AT DISTANCES SHORTER THAN 3.3’ (1m).
DO NOT LOOK INTO THE BEAM DIRECTLY AT DISTANCES SHORTER THAN 11’ (3.3m) OR VIEW THE
BEAM DIRECTLY WITH OPTICAL INSTRUMENTS THAT MAY CONCENTRATE THE LIGHT/RADIATION
OUTPUT.
CAUTION – WHEN USED IN ACCORDANCE WITH THE MANUFACTURERS OPERATING INSTRUCTIONS,
NO HAZARDS EXIST TO MOST PEOPLE AT DISTANCES GREATER THAN 11’ (3.3m) FROM THE FIXTURE.
HOWEVER, INDIVIDUALS SUFFERING FROM A RANGE OF SUNLIGHT EXPOSURE DISORDERS,
APHAKIC AND PSEUDOAPHIKIC, OR THOSE INDIVIDUALS RECEIVING PHOTOSENSITIVE MEDICATION
MAY RECEIVE DISCOMFORT IF EXPOSED TO ULTRAVIOLET LIGHT.
CAUTION – NOT FOR RESIDENTIAL USE. DRY LOCATIONS ONLY.
3

Specifications
Housing:
5052 aluminum with stainless steel hardware
Finish: Flat black powder coat
Mounting:
Fully adjustable yoke with three height positions and integrated removable floor stand
UV Light Source:
VS-60: Six 10W 365nm UV LED emitters
VS-120: Twelve 10W 365nm UV LED emitters
Radiant Power:
VS-60: 12,240 mW
VS-120: 24,480 mW
LED Life:
20,000Hr. at 25° C
Optics: Molded Silicone 10°, 24° or 40°
Operating Temperature:
-10° to 115° F / -20° to 45° C
Humidity:
0-95% non-condensing
Power Connections:
Neutrik PowerCON 1 Input and Output
Power Linking:
VS-60: Eight units at 120VAC
VS-120: Four units at 120VAC
Power Cord:
9’ 14/3 SOW with PowerCON 1 and male Edison
DMX Connections:
Neutrik Gold, 5-pin XLR Male, 5-pin XLR Female
DMX Channels:
Three (2 Dimming, 1 Effects)
Control Modes:
Two (DMX 512 and Local)
Operation Modes:
Three (1 Channel, 2 Channel, 3 Channel)
USB Connection:
Amphenol Rugged Mini-B USB Female
Input Voltage:
100-240 VAC
Input Current
VS-60: 0.88 Amps Max
VS-120: 1.73 Amps Max
Frequency:
50-60Hz.
Power Factor:
0.97
Power Consumption:
VS-60: 86 Watts
VS-120: 170 Watts
Circuit Protection:
7 Amp hydraulic magnetic breaker switch
Accessory Frame:
7.5” / 19.05cm
10” / 25.4cm
Weight: VS-60: 10.35 lbs. / 4.69 kg.
VS-120: 13.35 lbs. / 6.05 kg
Protection Rating:
IP-20
Safety Listing:
ETL #5004307
4

Setup & Operation
Unpacking
Unpack the fixture and carefully inspect for any signs of physical damage. Report any damage to Wildfire or
your local distributor immediately. Included with each unit should be the following items:
1. Twenty clamp, designed to attach the fixture to a 11/2” to 2” pipe truss
2. Safety Cable, provided to secure the fixture when mounted on a pipe truss
3. 9’ Power Cable
5. 3’ USB Cable
6. PowerCON 1 Power-Out Cable Connector
7. Operation Manual and Warranty Registration Card
Optional Accessories
Contact Wildfire or your local distributor for pricing on the following optional accessories:
1. 7.5” and 10” Barn Doors
2. 10° Spot Optic Set
3. 24° Spot Optic Set
4. 40° Spot Optic Set
Installation
The fixture is equipped with a yoke assembly for mounting. The yoke may be fitted with either a pipe clamp
(included) for mounting on a pipe truss or a baby bail block or junior pin for mounting on a light stand.
If the fixture is mounted on a pipe truss, be sure to use the included safety cable, looping it through the yoke
assembly and around the pipe truss. This will prevent the fixture from falling and possibly causing injury in the
event that the pipe clamp was not securely tightened.
To adjust the angle of the fixture, loosen the knobs on either side of the unit slightly, rotate to desired angle and
tighten. Care should be taken to support the front of the fixture while loosening the knobs to prevent the fixture
from rotating forward possibly causing injury.
The fixture comes standard with a 7.5” (VS-60) or 10” (VS-120) bracket assembly for attaching barn doors and
other accessories. When using accessories, be sure to attach the safety cable provided by the accessory
manufacturer to the fixture yoke assembly.
Plug the fixture into the appropriate power source. If you are controlling the fixture with a lighting control board,
you will need to make sure it is plugged into a non-dim circuit. If the fixture is plugged into a dimmable circuit, it
will not operate.
Local Control Source
To operate the fixture in local control, turn the fixture ON by pushing the power/breaker switch to the ON
position. Set the Control Source menu selection to “Local.” Set the Dimmer menu selection to the desired output
level (0 – 100%). Set the Effect menu selection to the effect you want.
Effects (Local)
To utilize one of the fixtures preprogramed effects in local control, set the Effects menu selection to the desired
effect. There are six different adjustable effects to choose from
Setting Function Description
OFF No Effects All LED's static at the brightness set on the Dimmer setting
Strobe 1-60 Strobe Adjustable strobe of all LED's at the brightness set on the Dimmer setting
Flash 1-60 Flash Adjustable flash of all LED's at the brightness set on the Dimmer setting
Pulse 1-60 Pulse Adjustable pulse of all LED's at the brightness set on the Dimmer setting
Random 1-60 Random Adjustable random strobe of all LED's at the brightness set on the Dimmer setting
Slow Fade 1-10 Fade Adjustable fade sequence of all LED's at the brightness set on the Dimmer setting
5

DMX512 Control Source
To operate the fixture with a DMX 512 control source, connect the fixture to a DMX control device such as a
lighting control board or lighting control software. Turn the fixture ON by pushing the power/breaker switch to the
ON position. Set the Control Source menu selection to “DMX512”. If the fixture is receiving valid DMX data, you
will see three dots flashing in lower the right-hand corner of the display. Next from the DMX Mode menu
selection set the total number of channels you want to use. There are three different DMX Modes to choose
from:
1 Channel Mode
Dimming Coarse
2 Channel Mode
Dimming Coarse
Dimming Fine
3 Channel Mode
Effects
Dimming Coarse
Dimming Fine
Next from the DMX Address menu selection set the starting DMX address you want to use. The total number of
addresses available to choose from depends on the DMX Mode you have selected. 1 Channel (001-512), 2
Channel (001-511), 3 Channel (001-510). Subsequent addresses will be in numerical order.
Effects (DMX512)
To utilize one of the fixtures preprogramed effects in DMX512 control, set the effects channel DMX address to
the desired effect setting. There are six different adjustable effects to choose from:
Data Value Function Description
0-9 No Effects All LED's static at the brightness set on the dimmer channels
10-59 Strobe Adjustable Strobe of all LED's at the output set on the dimmer channels
60-109 Flash Adjustable Flash of all LED's at the output set on the dimmer channels
110-159 Pulse Adjustable Pulse of all LED's at the output set on the dimmer channels
160-209 Random Adjustable Random Strobe of all LED's at the output set on the dimmer channels
210-255 Slow Fade Adjustable fade sequence of all LED's at the brightness set on the dimmer channels
RDM
Remote Device Management is a protocol enhancement to DMX512 that allows bidirectional communication
between a system controller and attached RDM-compliant devices over a standard DMX line. This allows for
remote configuration, status monitoring, and management of the connected RDM devices. VioStorm fixtures are
compliant with RDM protocol and support monitoring and setting of the following parameters:
Fixture Model Displays the fixture model followed by the current optic setting
Fixture Label Display and remotely set fixture label
Manufacturer Displays the fixture manufacturers name
Software Version Displays the fixtures current software version
DMX Address Display and remotely set DMX starting address.
Lamp Hours Displays the total hours that the fixture has been on
Lamp State Displays the current LED state, OFF or ON
Temperature Displays the current LED module temperature with over temperature warning at 55C
Fan RPM Displays the current RPM for fans A & B with fan failure warnings at 0 RPM
Device ID Display fixtures unique device ID
In both DMX and Local control if no buttons are pressed for 60 seconds the display will go dark. To reactivate
the display, press any button.
The LED Hours function records the total number of hours the fixture has been on. To reset this, select the LED
Hours menu selection and then press and hold the UP or DOWN button for 6 seconds.
VioStorm fixtures are equipped with automatic high temperature protection circuitry that shuts the LED’s off if
the temperature exceeds 70° C. Once it cools to 65° C the LED’s will turn back on.
6

VioStorm VS-60
Revision 1.2
UP
DOWN
Control Source
Local
SELECT
Home Menu
>Control Source
Local>
DMX Address
509
SELECT
>DMX Address
509 ...>
Graphical Menu Tree
When DMX Signal is present
3 dots flash on display
DMX Address
510 ...>
RDM: Display and set DMX
address
7
UP
DOWN
UP
DOWN
Control Source
DMX512 ...>
DMX Mode
1 Channel
SELECT
>DMX Mode
1 Channel ...>
DMX Mode
2 Channel ...>
RDM: Display DMX Mode
UP
DOWN
DMX Mode
3 Channel ...>
UP
DOWN
UP
DOWN
UP
DOWN
Next Page
UP
DOWN
RDM: Display Fixure Model
and Software Revision

Graphical Menu Tree
8
Dimmer
7%
SELECT
>Dimmer
7%>
UP
DOWN
Effect
Off
SELECT
>Effect
Off>
UP
DOWN
LED Hours
25
SELECT
Pressing UP or DOWN for 6
seconds resets the LED hours
>LED Hours
25>
UP
DOWN
Next Page
Temperature
25C
SELECT
>Temperature
25C>
UP
DOWN
Pressing UP or DOWN has no
function when Control Source
is set to DMX
Dimmer
7%>
Effects Selections are:
Off, Strobe 1-60, Flash 1-60,
Pulse 1-60, Random 1-60 and
Slow Fade 1-10
Effect
Off>
Pressing UP or DOWN has no
function when Control Source
is set to DMX512
When the temperature exceeds
70C the LED’s will will shut off.
Once it cools to 65C the LED’s
will turn back on
RDM: Display temperature
and overtemp warning at 55C
RDM: Displays Lamp Hours
UP
DOWN
Dimmer
8%>
Local Control Source DMX512 Control Source
UP
DOWN
UP
DOWN
Effect
Strobe 1>
UP
DOWN
UP
DOWN
LED Hours
0>
Pressing UP or DOWN has no
function.
UP
DOWN

Fan RPM
A-4000 B-4000
SELECT
>Fan RPM
A-4000 B-4000>
UP
DOWN
Program Update
Confirm
SELECT
Once the Bootloader Mode
is invoked the fixture will
turn the LED’s off and wait
for the update. When the
installation is complete it
will return to the home menu
and resume normal operation
>Program Update
Confirm>
UP
Returns to Home Menu
Graphical Menu Tree
Device ID
0X57466E228870
SELECT
>Devive ID
0X57466E228870>
UP
DOWN
Bootloader Mode
waiting for file
UP
RDM: Display fan RPM and
a warning at 0 RPM.
RDM: Display Device ID
9
To exit Bootloader Mode
without updating the
software turn the fixture
power switch OFF
Optic Type
4
0° Flood
SELECT
>
UP
DOWN
Pressing UP or DOWN for 6
seconds unlocks the Optic Type
Optic Type
1
0° Spot>
UP
DOWN
Optic Type
24
° Wide Spot>
UP
DOWN
Optic Type
4
0° Flood>
RDM: Display Optic Type
Pressing UP or DOWN has no
function.
UP
DOWN
Pressing UP or DOWN has no
function.
UP
DOWN

Wildfire Trias®Lighting Control System Software Rev. 1.3
VioStorm VS-60 and VS-120 DMX Channel Assignment
1 Channel Mode
DMX Channel Channel Label DMX Address Data Value Control Function Description
Channel 1 Dimming Coarse 10-255 Dimming (0-100%) Adjustment of the brightness level of all UV LED's 0 to 100%
2 Channel Mode
DMX Channel Channel Label DMX Address Data Value Control Function Description
Channel 1 Dimming Coarse 10-255 Dimming (0-100%) Coarse adjustment of the brightness level of all UV LED's 0 to 100%
Channel 2 Dimming Fine 20-255 Dimming (0-100%) Fine adjustment of the brightness level of all UV LED's 0 to 100%
3 Channel Mode
DMX Channel Channel Label DMX Address Data Value Control Function Description
Channel 1 Effects 10-9 Effects Off All LED's static at the brightness level set on channels 2 and 3
10-59 Strobe Strobes all LED's at the brightness level set on channels 2 and 3 at a rate adjustable from 2-12FPS
60-109 Flash Flashes all LED's at the brightness level set on channels 2 and 3 at a rate adjustable from 1-12FPS
110-159 Pulse Pulses all LED's at at the brightness level set on channels 2 and 3 at rate adjustable from 5 sec. long pulse to 4 pulse/sec.
160-209 Random Randomly strobes all LED's at the brightness level set on channels 2 and 3 at an adjustable rate
210-255 Slow Fade Slowly fades all LED's ON and OFF at the brightness level set on channels 2 and 3 at a sequence setting from 1min to 10min
Channel 2 Dimming Coarse 20-255 Dimming (0-100%) Coarse adjustment of the brightness level of all UV LED's 0 to 100%
Channel 3 Dimming Fine 30-255 Dimming (0-100%) Fine adjustment of the brightness level of all UV LED's 0 to 100%
Slow Fade Effect Sequence
Setting Total Time ON Time Fade Time OFF Time
1m 2:10 1:00 :10 1:00
2m 4:10 2:00 :10 2:00
3m 6:30 3:00 :30 3:00
4m 8:30 4:00 :30 4:00
5m 10:30 5:00 :30 5:00
6m 12:30 6:00 :30 6:00
7m 14:30 7:00 :30 7:00
8m 16:30 8:00 :30 8:00
9m 18:30 9:00 :30 9:00
10m 20:30 10:00 :30 10:00
10

Maintenance & Troubleshooting
Optic Change/Replacement
To change the optics, unplug the fixture. Remove any accessories from the front. Position the fixture on the
yoke stand so that it is pointed up. Remove the optic bezel from the front of the fixture, exposing the optics.
Remove the 16 (VS-60) or 32 (VS-120) small screws holding the optic plates to the LED module(s). Lift the
optics and plate’s straight up and off of the module. To replace reverse these steps. The following optic sets are
available for the VioStorm series fixtures. Contact Wildfire or your local distributor for pricing
Part # Description VS-60 VS-120
124-030 10° Spot Optic Set 1 Set 2 Sets
124-031 24° Spot Optic Set 1 Set 2 Sets
124-032 40° Spot Optic Set 1 Set 2 Sets
Once the optics have been changed, set the Optic Type menu selection to the new optic configuration by
pressing and holding the UP or DOWN buttons for 6 seconds which unlocks the menu selection and allows you
to change optic configuration displayed. Navigating out of the Optic Type menu selection locks in the new optic
configuration you have selected.
Software Updates
The VioStorm Series control software version is displayed on the home menu screen as seen below in Fig.1.
When updates to this software are available they can be downloaded directly from the Wildfire website at:
www.wildfirefx.com/resources/downloads/. You will need to download the complete bootloader/install program
group and save it to your desktop. Follow the instructions provided with the download to update the software.
Fig. 1
Cleaning
For best performance the fixture fan vents should be kept free of dirt and dust. At no time should any cleaning
chemicals or abrasives be used to clean any part of the fixture. Do not spray or apply any liquid directly to any
part of the fixture. Always unplug the fixture before cleaning. For normal cleaning, a dry soft cloth should be
used to wipe any surface free from dust and light dirt.
Troubleshooting
The fixture will not turn on:– Check to make sure there is power to the fixture. Make sure the power/breaker
switch on the back of the fixture has not been tripped. If you have checked all of the above and the fixture still
won’t turn on, contact Wildfire technical support at [phone] or your local distributor
The fixture turns on but there is no UV light output: Make sure the fixture is set to the correct Control Source
setting for your mode of operation. (DMX512 or LOCAL) If you are running the fixture in local mode make sure
the Dimmer menu selection is not turned all the way down. If you are running the fixture in DMX mode, make
sure the dimmer channels on your lighting control device are not all the way down. If you have checked all of the
above and the fixture still won’t turn on, contact Wildfire technical support at [phone] or your local
distributor.
11

Isometric & Line Views VS-60
12
Diagrams
901-113-03 VS-60 Line
11.31
7.50
14.54
7.56
8.96
16.97
17.34
9.33
10.24

Isometric & Line Views VS-120
13
Diagrams
901-114-01 VS-120 Line
13.81
10.00
17.51
15.12
7.81
11.23
11.43
11.80
17.89

Exploded View VS-60
14
900-113-03 VS-60 Exploded
31
35
46 23
47
22
50
39
40 19
38
41
10 36
33
23
12
813
9
1
11
47 29
30 27
28
45
16
47 4
47
5
244
67
22 34
21 23
3
42
47
24 26 14
15 43
20
25
18
17
37 48 49
32

Part List VS-60
15
# QTY. PART # PART NAME
1 1 104-068-04 Housing, Bottom, VS-60
2 2 112-006 Fan, 24VDC, 60 x 60 x 10 mm
3 1 104-062-04 Cover, Housing, Front, VS-60
4 1 110-035 Power Supply, 48VDC, 160W
5 1 104-100-02 Bracket Heat Sink, VS Series
6 1 104-102-03 Heat Sink, VS Series
7 1 117-001-02 6-UV LED Module MCPCB
8 1 115-009-02 Board, DMX/RDM Controller Rev. 2
9 1 115-011-01 Board Display, 2x16 Red,OLED
10 1 115-010-01 Board, 3 Button Touch Control, Rev. 1
11 1 104-069-03 Housing, Top, VS-60
12 4 121-067 Standoff, 3/16” Hex M-F, 4-40 x 1-1/2 AL
13 1 116-009-02 Board, 4 Channel LED Driver Rev. 2
14 2 103-006-02 Spacer, Yoke Assembly
15 1 104-035-02 Yoke, VS-60
16 3 104-101-02 Bracket, Accessory, VS Series
17 2 121-029 Bolt, Carriage, 3/8-16 x 3/4”
18 2 121-063 Washer, 1.250 OD, .375ID, .125Thk, Neoprene
19 1 106-030 Connector, 5 Pin XLR, Male
20 2 120-001 Knob, Yoke Adjustment
21 2 104-103-02 Plate, Optic, VS Series
22 8 121-001 Screw, M, PHL, PH, 4-40 x 1/4” 18-8 SS
23 26 121-090 Screw, PHL, PH, 2-56 x 1/4”18-8 SS
24 1 107-001 Cord, Power, Black, 14 AWG, 9’
25 2 120-004 Knob, Floor Stand Bracket
26 1 106-050 Connector, PowerCON 1, Power IN
# QTY. PART # PART NAME
27 1 104-077-03 Base, Accessory, Safety Catch
28 1 104-078-02 Latch Accessory, Safety Catch
29 1 104-098-02 Spring, Double Torsion
30 1 121-027 Bolt, Barrel, M, COM, PH, .25 x 1.5” 18-8 SS
31 1 121-026 Screw, M, COM, PH, 10-32, .25” 18-8 SS
32 2 121-032 Rivet Nut, Blind, 3/8”-16
33 1 104-063-04 Cover, Housing, Rear
34 6 124-030 (031)(032) Optic, Silicone ( 10° S), (24° WS), (40° F)
35 4 121-071 Standoff, 3/16” Hex, THD, F-F 2-56 x 7/16”
36 1 106-060 Connector, Mini-B USB, Female
37 1 104-104-01 Bracket, Yoke Stand, VS-60
38 1 106-031 Connector 5 Pin XLR, Female
39 1 106-051 Receptacle, PowerCON 1, Power IN
40 1 106-053 Receptacle, PowerCON 1 Power OUT
41 1 128-017-04 Lable, Control VS-60
42 1 104-106-01 Bezel, Optic, VS-60
43 2 121-060 Washer, Flat, 1.25” OD, 13/32” ID, .13 THK., 18-8 SS
44 8 121-009 Screw, M, PHL, FH, 6-32 x 5/8” 18-8 SS
45 6 121-007 Screw, M, PHL, PH, 6-32 x 3/8” 18-8 SS
46 8 121-002 Screw, M, PHL, FH 4-40 x 3/8” 18-8 SS
47 34 121-005 Screw, M, PHL, PH, 6-32 x 1/4” 18-8SS
48 1 147-021 Clamp, Twenty, Black
49 1 147-002 Cable, Safety, 1/8”
50 1 105-001 Circuit Breaker, Carling, 3A

Exploded View VS-120
16
900-114-02 VS-120 Exploded
7
1
3
9
5
4
47
34
37
39
36
10
35
38
33
32
11
17
18
27
16
12
12
26
25
19
15
12 20
22 23 21
31
28
29
50
49
13
41 42 48 43
46
44
45
211 614
12
10 8
10
24
30
10
40

Part List VS-120
17
# QTY. PART # PART NAME
1 1 104-112-01 Cover Housing, Front, VS-120
2 2 117-001-02 6-UV LED Module MCPCB
3 12 121-009 Screw, M, PHL, FH, 6-32 x 5/8” 18-8 SS
4
1 104-114-01 Bracket Heat Sink, VS Series
5
2 104-102-03 Heat Sink, VS Series
6 4 104-103-02 Plate, Optic, VS Series
7 1 104-116-01 Bezel, Optic, VS-120
8 1 110-035 Power Supply, 48VDC, 160W
9 3 112-006 Fan 24VDC, 60 x 60 x 10mm
10 38 121-005 Screw, M, PHL, PH, 6-32 x 1/4” 18-8 SS
11 12 121-001 Screw, M, PHL, PH, 4-40 x 1/4” 18-8 SS
12 42 121-090 Screw, PHL, PH, 2-56 x 1/4” 18-8 SS
13 1 104-115-02 Bracket, Yoke Stand, VS-120
14 12 124-030, (031)(032) Optic, Silicone ( 10° S), (24° WS), (40° F)
15 1 128-018-02
16 1 115-011-01 Board Display, 2x16 Red, OLED
17 4 121-067 Standoff, 3/16” Hex M-F, 4-40 x 1-1/2” AL
18 1 115-009-02 Board, DMX/RDM Controller Rev. 2
19 1 115-010-01 Board, 3 Button Touch Control Rev. 1
20 1 106-030 Connector, 5 Pin XLR, Male
21 1 106-031 Connector, 5 Pin XLR, Female
22 1 106-051 Receptacle, PowerCON 1, Power-In
23 1 106-053 Receptacle, PowerCON 1, Power-Out
24 1 105-003 Circuit Breaker, Carling, 7A
25 1 104-113-01 Cover Housing, Rear, VS-120
26 1 106-060 Connector, Mini-B, USB, Female
# QTY. PART # PART NAME
27 4 121-071 Standoff, 3/16” Hex, THD, F-F, 2-56 x 7/16”
28 1 106-050 Connector, PowerCON 1, Power-In
29 1 107-001 Cord, Power, 14 AWG, 9’ Black
30 1 116-009-02 Board, 4 Channel LED Driver, Rev. 2
31 8 121-002 Screw, M, PHL, FH, 4-40 x 3/8” 18-8 SS
32 1 104-110-02 Housing, Bottom, VS-120
33 1 104-111-02 Housing, Top, VS-120
34 3 104-101-02 Bracket, Accessory, VS Series
35 1 104-077-03 Base, Accessory, Saftey Catch
36 1 104-098-02 Spring, Double Torsion
37 1 104-078-02 Latch, Accessory, Safety Catch
38 1 121-027 Bolt Barrel, M, COM, PH, .25” x 1.5” 18-8 SS
39 1 121-026 Screw, M, COM, PH, 10-32, .25” 18-8 SS
40 2 121-032 Rivet Nut, Blind, 3/8”-16
41 2 103-006-02 Spacer, Yoke Assembly
42 1 104-036-01 Yoke, VS-120
43 2 120-001 Knob, Yoke Adjustment
44 2 121-063 Washer, Neoprene 1.25” OD, .375” ID, .125 Thk.
45 2 121-029 Bolt Carriage, 3/8”-16 x 3/4”, 18-8 SS
46 2 120-004 Knob, Floor Stand Bracket
47 6 121-007 Screw, M, PHL, PH, 6-32 x 3/8” 18-8 SS
48 2 121-060 Washer, Flat, 1.25” OD, 13/32” ID, .13” Thk., 18-8 SS
49 1 147-021 Clamp, Twenty, Black
50 1 147-002 Cable, Safety, 1/8”
Label, Control, VS-120

Schematic, VS-60 Series
18
DMX IN DMX OUT USB
2
1
34
51
2
5
43
LN
AC INPUT
G
48VDC POWER SUPPLY
DMX CONTROL BOARD
FAN A
+-
P T
FAN B
+-
P T
FAN C
+-
P T
USB DMX DMX
CH 3 CH 2 CH 1
CH 4
LED DRIVER BOARD
THERMISTOR
48VDC INPUT 48VDC INPUT
LED MODULE 1
CAPACITIVE TOUCH CONTROL SWITCH
UP
DOWN
SELECT
TOUCH
12VDC FANS
48V
DC OUTPUTS
48V 48V 12V
POWER SWITCH / CIRCUIT BREAKER AC OUTPUT
AC INPUT

Schematic, VS-120 Series
19
DMX IN DMX OUT USB
2
1
34
51
2
5
43
LN
AC INPUT
G
48VDC POWER SUPPLY
48V
DMX CONTROL BOARD
FAN A
+-
P T
FAN B
+-
P T
FAN C
+-
P T
USB DMX DMX
CH 3 CH 2 CH 1
CH 4
LED DRIVER BOARD
THERMISTOR
48VDC INPUT 48VDC INPUT
LED MODULE 2
LED MODULE 1
CAPACITIVE TOUCH CONTROL SWITCH
UP
DOWN
SELECT
TOUCH
12VDC FANS
DC OUTPUTS
48V 48V 12V
POWER SWITCH / CIRCUIT BREAKER AC OUTPUT
AC INPUT

Spectral Output Graph
20
Photometrics Chart
UV-A VISIBLE LIGHT
0
10%
20%
PERCENTAGE OF TRANSMISSION
WAVELENGTH /NM
30%
40%
100%
90%
80%
70%
60%
50%
320 330 340 350
360
370 380 390
400
410 420 430 440 450 460 470 480 490 500 510 520 530 540 550 560
570
580 590 600
610
620
630
640 650
660
670
680
Model VS-60S 10 Spot
°
Distance in Feet /Meters
0.90
0.27
1,248
1.70
0.52
312
3.50
1.07
78
5.20
1.58
34.6
7.00
2.13
19.5
8.70
2.65
12.4
10.50
3.20
8.6
12.20
3.72
6.3
14.00
4.27
4.8
15.70
4.79
3.8
17.50
5.33
3.1
19.20
5.85
2.5
21.00
5.85
2.1
Model VS-60WS 24 Wide Spot
Distance in Feet /Meters
1.43
0.64
804
4.30
1.31
201
8.50
2.59
50.2
12.80
3.90
22.3
17.00
5.18
12.5
21.30
6.49
12.5
25.50
7.77
8.0
29.80
9.08
5.5
34.00
10.36
4.1
38.30
11.67
3.1
42.50
12.95
2.4
°
Model VS-60F 40 Flood
Distance in Feet /Meters
3.60
1.10
650
7.30
2.22
162.5
14.60
4.45
40.6
21.80
6.64
18.0
29.10
8.87
10.1
36.40
11.09
6.5
43.70
13.32
4.5
51.00
15.54
3.3
58.20
17.74
2.5
°
Beam Diameter Feet
Beam Diameter Meters
Peak UV-A Irradiance W/cm2
Beam Diameter Feet
Beam Diameter Meters
Peak UV-A Irradiance W/cm2
Beam Diameter Feet
Beam Diameter Meters
Peak UV-A Irradiance W/cm2
5 / 1.52
10 / 3.05
20 / 6.10
30 / 9.14
40 / 12.19
50 / 15.24
60 / 18.29
70 / 21.33
80 / 24.38
90 / 27.43
100 / 30.48
110 / 33.53
120 / 36.57
5 / 1.52
10 / 3.05
20 / 6.10
30 / 9.14
40 / 12.19
50 / 15.24
60 / 18.29
70 / 21.33
80 / 24.38
90 / 27.43
100 / 30.48
5 / 1.52
10 / 3.05
20 / 6.10
30 / 9.14
40 / 12.19
50 / 15.24
60 / 18.29
70 / 21.33
80 / 24.38
All peak UV-A irradiance measurements taken at beam center using UVX Digital Radiometer and a calibrated 365nm sensor
