OWNER/ OPERATOR MANUAL
MODELS: 4M04T, 4M010T

2
Figure 1 - Pump and Ram Components
Oil Filler
Screw
Handle
Release Valve
Plunger
Hose
Hose
Coupler
Ram Coupler
Ram
Dust Cover
Gauge
SAFETY and GENERAL INFORMATION
Save these instructions. For your safety, read and understand the information contained within. The owner and
operator shall have an understanding of this product and safe operating procedures before attempting to use this
product. Instructions and Safety information shall be conveyed in the operators native language before use of this
product is authorized. Make certain that the operator thoroughly understands the inherent dangers associated with
the use and misuse of the product. If any doubt exists as to the safe and proper use of this product as outlined in
this factory authorized manual, remove from service.
Inspect before each use. Do not use if broken, bent, cracked or otherwise damaged parts are noted. If any
component of this product has been or suspected to have been subjected to a shock load (a load dropped suddenly,
unexpectedly upon it), discontinue use until checked out by an Williams authorized service center. Owners and
operators of this equipment shall be aware that the use and subsequent repair of this equipment may require special
training and knowledge. It is recommended that an annual inspection be done by qualied personnel and that any
missing or damaged parts, decals, warning/safety labels or signs be replaced with factory authorized replacement
parts only. Any component of this Williams Kit that appears to be damaged in any way, is worn or operates abnormally
shall be removed from service immediately until such time as it can be repaired/replaced. Labels and Operator's
Manuals are available from manufacturer.
PRODUCT DESCRIPTION
Williams Kits are designed to be used for pushing, spreading, and pressing of vehicle body panels as well as various
component parts and assemblies. A variety of attachments are included. 4M04T is rated at 8,000 PSI; 4M10T is
rated at 10,000 PSI. Rams are rated from 4 to 10 tons respectively.
WARNING: To reduce the risk of personal injury and/or property damage, ensure that the rated working
pressure of each pressurized attachment be equal to or greater than the rated working pressure developed
by the hydraulic pump.
Always check connections before using. Alteration of these products is strictly prohibited. Use only those
adapters and attachments provided and approved by the manufacturer.
Note: when extension tubes and/or offset attachments are used, the rated capacity is always reduced by 50% for
each tube or offset attachment connected. See Parts Section for identication of “offset” attachments.
!
!

3
SPECIFICATIONS
Model
Pump
Capacity
(psi)
Ram
Capacity
(ton)
Ram
Number of
Attachments
Weight
(lb)
Closed
Height
(in)
Extended
Height
(in)
Effective
area
(in2)
4M04T 8,000 4 11 15 3/4 0.998 14 46
4M10T 10,000 10 13 5/8 19 3/4 2.411 13 84
Failure to comply with the following warnings may
result in personal injury as well as property
damage.
• Study, understand, and follow all instructions
provided with and on this device before use.
• The user must be a qualied operator familiar
with the correct operation, maintenance, and
use of rams.
Wear protective gear when
operating hydraulic equipment.
This device is NOT suitable for use as support
device! As the load is lifted, use blocking and
cribbing to guard against a falling load.
Stay clear
of a lifted load before it is properly
supported .
Never rely on hydraulic pressure to support
a load.
Crush Hazard. Keep hands and feet
away from ram and workpiece during
operation.
• Do not exceed rated capacity of the ram or any
equipment in the system. The ram is
designed for
a max. pressure of 10,000 psi.
• Do not connect a ram to a pump with higher
pressure rating.
• Do not subject ram to a shock loads, a load
dropped suddenly, causing the system pressure to
exceed rated pressure.
The system operating pressure must not exceed
the pressure rating of the lowest rated component
the system. Install a pressure gauge or other load
measuring instrument to monitor the operating
pressure. Burst hazard exists if hose, connection or any other
component in the system exceed its rated pressure.
Avoid damaging hydraulic hose. Do not allow hose
to kink, twist, curl, crush, cut or bend so tightly that
uid ow within the hose is blocked or reduced.
Periodically inspect the hose for wear.
Do not pull, position or move ram setup by the
hose. Use carrying handle or other means of
safe transport.
Do not handle pressurized hoses. Never attempt
to grasp a leaking pressurized hose. Ensure to
release the system pressure before disconnecting
hydraulic hose or connections.
Hydraulic uid can ignite and burn. Keep
hydraulic
equipment away from ames and heat.
Excessive
heat will soften seals, resulting in uid leaks. Heat
also weakens hose materials.
Ram must be on a stable base which is able
to support the load while pushing or lifting. Use
shims, friction material or constrains to prevent
slippage of the base or load. Ensure ram is
fully engaged into/onto adapters, extension
accessories.
Center load on ram. Distribute load evenly across
the entire saddle surface. Do not off-center loads
on a ram. The load can tip or the ram can “kick out”.
Never try to disassemble a hydraulic ram, refer
repairs to qualied, authorized personal. Contact
Williams tech service for authorized service center.
Do not subject hose to sharp objects or heavy
impact.
Hose material or seals must not come in contact
with corrosive materials such as battery acid,
creosote-impregnated objects and wet paint.
Never paint a coupler or hose.
• No alteration shall be made to the ram.
• Use only factory authorized fasteners, accessories
and hydraulic uid.
WARNING
!

4
BEFORE USE
1. Before using this product, read the owner's manual
completely and familiarize yourself thoroughly with
the product, its components and recognize the
hazards associated with its use.
2. Inspect before each use. Do not use if bent, broken,
leaking or damaged components are noted.
3. Check to ensure that all parts of your kit are included
(see illustration and parts list).
4. Carefully remove the dust caps and plugs from hose
coupler and ram coupler.
5. Connect hose coupler to ram coupler, ensure that
there are no uid leaks.
6. Locate and open release valve. Close release
valve clockwise and pump handle until ram is fully
extended, then open release valve counter-clockwise
until ram has fully retracted.
7. With ram fully retracted and release valve open,
place pump in horizontal position. Open oil ller
screw (on reservoir body, near the back). This will
release air trapped within the reservoir. Re-tighten
the oil ller screw.
8. If using with air actuated units, an air source of at
least 7.8 CFM @ 110 psi is required.
GENERAL SAFETY INFORMATION
1. Ensure that attachments are fully engaged before
applying load.
2. Ensure that load is centrally applied to attachment or
ram saddle. Do not load off center.
3.
Always monitor the force applied to workpiece by
using a load cell and indicator or you may monitor
pressure developed in the ram by using an inline
pressure gauge, then calculate the applied force
using the formula:
F = P x A, where F = lb force, P = pressure in psi,
and A = effective ram area in in2.
Ram Area of Model 4M04T is: 0.998 in2
Ram Area of Model 4M10T is: 2.411 in2
Refer to Load-Pressure correlation chart on page 11.
If bowing or bending of ram or any attachment occurs
during use, "STOP", release pressure immediately
and reconsider application. Application may not
be compatible with product, a ram kit with a higher
capacity may be needed.
Figure 2 - Horizontal and Vertical position
OPERATION
ALWAYS monitor pressure, load or position
using suitable equipment. Pressure may be
monitored by means of an optional manifold and
gauge. Load may be monitored by means of a load
cell and digital indicator.
Note: Any attachment that is not loaded centrally,
as through the centerline of the ram, is considered
to be “offset”.
When extension tubes and/or offset
attachments are used, the rated capacity is always
reduced by 50% for each tube or offset attachment
connected.
1. Pump may be used in horizontal and vertical position
as illustrated on gure 2 below.
2. Locate and close release valve by turning it
clockwise until rmly closed. (Do not over tighten)
3. Operate by pumping handle. This will send uid
from the pump reservoir into the high pressure hose
assembly and into the ram assembly.
4. Continue pumping until ram reaches desired
position.
NEVER operate pump with release valve
closed and disconnected from application. If
operated in this condition, the hose and connections
become pressurized. This increases burst hazard.
Damage may occur to pump and its components.
5. To Release Pressure on work piece: Slowly, carefully
turn the release valve counter-clockwise until ram
retracts to desired position. Never turn release valve
more than 1/2 full turn. The ram return system is
spring loaded and the release valve system is
metered, allowing controlled retraction of the ram.
!
!

5
B. Clamp & Pull
C. Spread
(i) Vertical Spread (ii) Horizontal Spread (iii) Hydraulic Spreader
Ram Toe
Ram
Extension Tube
Flat Base
Ram Toe
Ram Plunger Toe Hydraulic
Spreader
Chain
(i) Clamp with Pull Ram (ii) Pull with Chain
Chain Pull Plate
Saddle
Ram
Lifting Toe
Pull Ram Plunger Base
Basic Setup
The capacity of the body repair kit can be signicantly affected by the number of attachments used and the type of
load applied. The approximate load capacity of each function setup is illustrated below. When two or more extension
tubes are used together, be sure to position the shortest tube further away from the ram.
Note: Not all accessories in the illustrations provided in the Williams Kits.
A. Push & Stretch
25%
Extension Tube Clamp
Ram
Extension Tube
Male Connector
Flat Base Male Connector Ram Combination
Head (900)
Extension Tube
(iii) Horizontal Push with Extension
(iv) Horizontal Stretch with Extension
Serrated Saddle
Ram
Male Connector
Flat Base
(i) Vertical Push (ii) Horizontal Push
Flat Base Male Connector
Ram Rubber Head
100%
100%
12.5%
25%
25% 100%
25%
0.5 Ton

6
MAINTENANCE
1. Inspect hoses and connections daily. Replace
damaged components immediately with Williams
Replacement Parts only.
2. Tighten connections as needed. Use pipe thread
sealing compound when servicing connections.
3. Use only a good grade hydraulic oil. Avoid mixing
different types of uid and Never use brake uid,
turbine oil, transmission uid, motor oil or glycerin.
Improper uid can cause premature failure of the
ram and the potential for sudden and immediate
loss of load. We recommend Hein-Werner 8H1G
or equivalent.
Adding oil
1. With ram fully lowered, set pump unit in its normal,
level position. Locate and remove oil ller screw.
2. Fill until oil is within 3/8" of the oil ller screw hole
opening, re-install oil ller screw.
Changing oil
For best performance and increased system life, replace
the complete uid supply at least once per year.
1. With ram fully lowered, remove the oil ller screw
from the pump reservoir as above.
2. Lay the pump on its side and drain the uid into a
suitable container.
Note: Dispose of hydraulic uid in accordance with
local regulations.
3. Set pump in its level upright position.
4. Fill with good quality jack oil to within 3/8" of the oil
ller screw hole opening. Reinstall oil ller screw.
Lubrication
A coating of light lubricating oil to pivot points and
hinges will help to prevent rust and assure that pump
assemblies move freely.
Cleaning
Periodically check the pump piston and ram for signs
of rust or corrosion. Clean as needed and wipe with
an oily cloth.
Note: Never use sandpaper or abrasive material on
these surfaces!
Storage
When not in use, store with the pump piston and ram
fully retracted.
How to remove faulty coupler:
If ram does not retract,:
1. Secure load by other means.
2. Depressurize pump and hose
3. Remove the ram from application.
4. Disconnect and replace with new coupler.
Important: Do not attempt to grasp ram with pliers or
wrench without rst wrapping the jaws of such tool with
rags or similar padding.
How to bleed air from system:
1. Place pump at a higher elevation than the hose and
ram as shown in gure 3 below.
2. Operate pump to fully extend and retract the ram 2
or 3 times. The objective is to force the air bubbles
up hill and back to the pump reservoir.
3. To bleed the air from pump reservoir, simply open the
oil ller screw. Re-install after bleeding.
Figure 3 - Illustration to bleed air from system

7
TROUBLESHOOTING GUIDE
The following information is intended as an aid in determining if problem exists. Pump and ram should be repaired
only by authorized Williams Service Center. For repair service, contact service center in your area.
Symptom Possible Causes Corrective Action
Erratic action •
Air in system or pump cavitation.
• External leakage in ram.
• Ram sticking or binding.
• Vent the system (refer to gure 3).
• Contact service center.
• Contact service center.
Ramr will not extend, or
respond to pressurized uid
•
Overload condition.
• Loose/Faulty couplers.
• Oil level in pump is low.
• Remedy overload condition.
• Tighten/Replace couplers.
• Fill and bleed the system.
Ram extend only partially • Oil level in pump is low.
•
Overload condition.
• Ram is sticking or binding.
• Pump malfunction.
• Fill and bleed the system.
• Remedy overload condition.
• Contact service center.
• Contact service center.
Ram move slower than normal • Loose connection or coupler.
•
Restricted hydraulic line or tting.
• Pump not working correctly.
• Ram seals leaking.
• Tighten connection or coupler.
• Clean and replace if damaged.
• Check pump’s operating
instructions.
• Contact service center.
Ram responds to pressurized
uid, but system does not maintain
pressure
• Overload condition.
• Pump malfunctioning.
• Ram seals leaking.
• Remedy overload condition.
• Contact service center.
• Contact service center.
Oil leaking from ram • Worn or damaged seals. • Contact service center.
Ram will not retract or retracts
slower than normal
• Malfunctioning coupler, damaged
application.
• Pump reservoir overlled.
• Ram damage internally.
• Secure load by other means.
Depressurize pump and hoses,
remove application and replace
coupler.
• Secure load by other means.
Depressurize pump and hoses,
remove application, then drain
uid to proper level.
• Contact service center.
Poor performance • Oil level in pump is low.
• Air trapped in system.
• Ensure proper oil level.
• Vent the system (refer to gure 3).

8

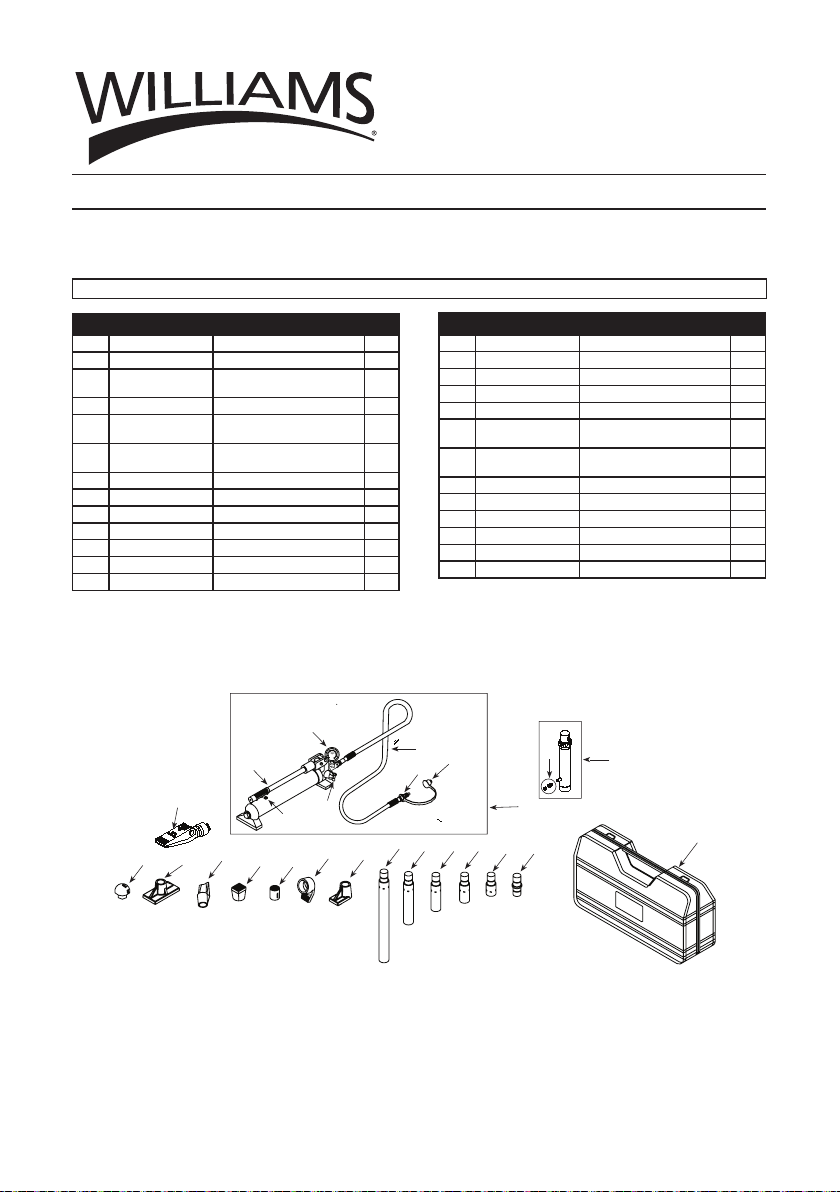

Figure 4 - Replacement Parts Illustration for Model 4M04T
1
20
3
18 17 16 15 14 13
12 11
4
10 9
8
76
5
2
21
19
23
25
22
24
Item Part No. Description Qty
1 J0401 Hand Pump Assembly 1
2 J0402 4 Ton Ram Assembly 1
3 J0403 Oil Hose Assembly (w/
coupler) 1
4 J0404 Blow Mold Case 1
5 J0405 Hydraulic Spreader, (1000
Lbs capacity) 1
6 J0406 Combination Head (90
Deg.) 1
7 J0407 Rubber Head 1
8 J0408 Ram Toe (offset) 1
9 J0409 Plunger Toe (offset) 1
10 J0410 Flat Base 1
11 J0411 Serrated Toe 1
12 J0412 Wedge Head (offset) 1
13 J0413 Male Connector 1
Note: Not all components are replacement items, but are illustrated as a convenient reference of location and position in the
assembly sequence. To ensure safe and reliable performance, replace worn or damaged parts with Williams authorized repair
parts only.
J.H. Williams Tool Group
6969 Jamesson Road,
Midland, GA 31820
1-866-460-7995
Maintenance Kits
MODEL: 4M04T
Item Part No. Description Qty
14 J0414 Extension Tube (3") 1
15 J0415 Extension Tube (6-1/8") 1
16 J0416 Extension Tube (8-1/2") 1
17 J0417 Extension Tube (16-1/2")
18 J0418 Extension Tube (19-1/2") 1
19 CRZ14M Hose Coupler - Male, 1/4"
-18 NPTF 1
20 CRZ14F Hose Coupler - Female,
1/4" -18 NPTF 1
21 F040-20012-000 Dust Cover - Hose 1
22 F040-90009-K03 Pump Handle 1
23 F040-90107-K02 Oil Filler Screw 1
24 F100-80001-000 Pressure Gauge 1
25 F040-21000-000 Release Valve Knob 1
- F0400S-85 Repair Kits 1

9
Figure 5 - Replacement Parts Illustration for Model 4M10T
1
3
17 16 15 14 13
12 11
10
4
9
8
76
5
2
21
19
18
24
22
⒀⑾⑥⑾⒀⒆⑩㈢
23
20
Item Part No. Description Qty
1 J1001 Hand Pump Assembly 1
2 J1002 4 Ton Ram Assembly 1
3 J0403 Oil Hose Assembly (w/
coupler) 1
4 J1004 Blow Mold Case 1
5 J1005 Hydraulic Spreader,
(1000 Lbs Capacity) 1
6 J1006 Combination Head (90
Deg.) 1
7 J1007 Rubber Head 1
8 J1008 Ram Toe (offset) 1
9 J1009 Plunger Toe (offset) 1
10 J1010 Flat Base 1
11 J1011 Serrated Toe 1
12 J1012 Wedge Head (offset) 1
13 J1013 Male Connector 1
Note: Not all components are replacement items, but are illustrated as a convenient reference of location and position in the
assembly sequence. To ensure safe and reliable performance, replace worn or damaged parts with Williams authorized repair
parts only.
J.H. Williams Tool Group
6969 Jamesson Road,
Midland, GA 31820
1-866-460-7995
Maintenance Kits
MODEL: 4M10T
Item Part No. Description Qty
14 J1014 Extension Tube (4") 1
15 J1015 Extension Tube (10") 1
16 J1016 Extension Tube (18") 1
17 J1017 Extension Tube (27")
18 J1018 Oil Filler Screw 1
19 CRZ14M Hose Coupler - Male, 1/4"
-18 NPTF 1
20 CRZ14F Hose Coupler - Female,
1/4" -18 NPTF 1
21 F040-20012-000 Dust Cover - Hose 1
22 F100-90009-K01 Pump Handle 1
23 F100-80001-000 Pressure Gauge 1
24 F040-21000-000 Release Valve Knob 1
- F1000S-85 Repair Kits 1

10
J.H. Williams Tool Group
6969 Jamesson Road,
Midland, GA 31820
LIMITED LIFETIME WARRANTY
J.H. Williams Tool Group warrants this product to be free from defects in material and workmanship for the life of the product as
long as the original purchaser owns the product. The warranty is non-transferable and is subject to the terms, exclusions, and
limitations described below:
• Damaged components, including but not limited to bent rams, dented or crushed cylinder walls, broken welds or couplers as
well as worn out seals, o-rings and springs are the result of misuse and not covered by warranty and Williams will not provide
any warranty credit for such damaged components.
• This warranty does not cover ordinary wear and tear, overloading, alterations (including repairs or attempted repairs not performed
by Williams or one of its authorized personnel), improper uid use, or use of the product in any manner for which the product was
not intended or the use of which is not in accordance with the instructions or warnings provided with the product.
• In the unlikely event that a Williams product fails due to material defect in workmanship, you may contact J.H. Williams Tool
Group for disposition. In such cases, the customer’s sole and exclusive remedy for any breach or alleged breach of warranty
is limited to the repair or replacement of the defective product.
• Under no circumstances is Williams liable for any consequential or incidental damage or loss whatsoever.
• THIS WARRANTY IS LIMITED TO NEW PRODUCTS SOLD THROUGH AUTHORIZED DISTRIBUTORS AND OTHER
CHANNELS DESIGNATED BY WILLIAMS. NO AGENT, EMPLOYEE OR OTHER REPRESENTATIVE OF WILLIAMS IS
AUTHORIZED TO MODIFY THIS WARRANTY.
• THE FOREGOING IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING
BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FOR A FITNESS FOR A PARTICULAR
PURPOSE.
• Components not manufactured by Williams including certain motor systems, gasoline engines, and other are not covered by this
warranty and instead are covered by the manufacturer’s separate manufacturer’s warranty provided in the package.
• Williams’ liability in all cases is limited to, and will not exceed the purchase price paid for the product.

11
Load - Pressure Correlation For Model 4M04T & 4M10T
Always monitor the force applied to workpiece by using a load cell and indicator or you may monitor pressure
developed in the ram by using an inline pressure gauge, then calculate the applied force using the formula:
F = P x A
For model 4M04T, A = 0.998 in² ;
For model B55115, A = 2.411 in²
Example1
Model 4M04T lifting 5,000 lb will require what
presure?
Pressure = 5,000 lb / 0.998 in² = 5,010 psi
where F = Force/ Load (lb);
P = Hydraulic working pressure (psi) and;
A = Ram effective area (in²)
Example2
Model 4M10T operating at 6,000 psi will generate
what force?
Force = 6,000 psi x 2.411 in2= 14,466 lb
Load
(lb)
Pressure of 4 Ton Ram,
where A = 0.998 in2
(psi)
Pressure of 10 Ton Ram,
where A = 2.411 in2
(psi)
1,000 1,002 415
2,000 2,004 830
3,000 3,006 1,244
4,000 4,008 1,659
5,000 5,010 2,074
6,000 6,012 2,489
7,000 7,014 2,903
8,000 8,016 3,318
9,000 3,733
10,000 4,148
11,000 4,562
12,000 4,977
13,000 5,392
14,000 5,807
15,000 6,221
16,000 6,636
17,000 7,051
18,000 7,466
19,000 7,881
20,000 8,295

12
Load - Combination Correlation For Model 4M04T & 4M10T
Always consider the number of attachements that you are using and follow the combonation load suggestions
in the Basic Setup section on page 5. Follow the below table for correlation between percentage, load and
pressure.
4M04T 4M10T
Percentage % Load (lb) Pressure (psi) Load (lb) Pressure (psi)
100% 8,000 8,016 20,000 8,295
50% 4,000 4,008 10,000 4,148
25% 2,000 2,004 5,000 2,074
12.5% 1,000 1,002 2,500 1,037
J.H. Williams Tool Group
6969 Jamesson Road,
Midland, GA 31820
