Wilson Electronics weboost DRIVE REACH FLEET User manual

PROFESSIONAL VEHICLE CELL PHONE
SIGNAL BOOSTER KIT
DRIVE REACH FLEET
A WILSON ELECTRONICS BRAND
®
Use our weBoost App to guide you through the installation.
See inside page for more details.
Installation Guide
NEED HELP? weboost.com 1-866-294-1660

Download the weBoost App
Use our app to guide you through setting up a weBoost cell phone
signal booster in your home, business, or vehicle. Boost every
network, including 5G, right away.
Download the weBoost App
Videos to guide you
through installation
Antenna positioning guide
for optimal performance
Before and after cell
signal readings

______
Index
Package Contents 1
STEP 1: Drill Cable Entry Hole To Your Vehicle 2
STEP 2: Mount NMO Outside Antenna 4
STEP 3: Mount In-Vehicle Antenna 6
STEP 4: Hardwiring To Power 7
STEP 5: Connect Coax Cables To Booster 9
STEP 6: Connect Power Supply To Booster 10
Light Patterns 11
Troubleshooting 12
Safety Guidelines 13
Specifications 15
Warranty 16

1PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE REACH FLEET
________
Package
Contents
Drive Reach
Booster
& Bracket
Outside NMO
Antenna +
Connector
Mounting Cable
In-Vehicle
Antenna
Optional Antenna
Extension Cable
Protective Tape
For Installation
O-Ring Lubricant
Packet
Power Supply,
Hardwire Power
Supply & In-line
Fuse Holder

DRIVE REACH FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT 2
______
Step 1: Drill Cable Entry Hole
To Your Vehicle
Identify a location for the NMO outside antenna on
the top of your vehicle that is:
 Near the center of the roof
 At least 12 inches away from any other antennas
 At least 12 inches away from any windows
(for best performance install on top of vehicle)
Do a ‘soft install’ before drilling the hole for the
cable entry.
Set up the system by routing the cable through
an open door or window, completing the setup
instructions, verifying the system works as desired,
and then drilling the hole.
12 inches away from windows
(including sunroofs)
Good NMO Outside
Antenna Placement

3PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE REACH FLEET
Place the protective tape on the
vehicle in the desired location.
Using a 3/4” hole saw, drill a hole
in the center of the protective
tape.
______
(STEP 1 cont.)
After completing the ‘soft install’ and identifying NMO
outside antenna location:
protective tape
vehicle surface
protective tape
3/4” bit

DRIVE REACH FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT 4
apply silicone grease
apply silicone grease
After hole has been drilled, insert NMO mounting cable
through (connector end first) and remove collar.
Position threads of the cable mount above vehicle surface.
Apply included silicone grease to the o-ring on the collar then
screw the collar to the base mount to seal opening. Ensure the
mount is centered in the hole and tighten with wrench.
screw collar
to base mount
For a professional installation, we recommend routing the cable
under the headliner and down through the side trim panel to
the desired booster location on the floor of the vehicle.
side trim panel
headliner
r
u
n
c
a
b
l
e
f
r
o
m
N
M
O
O
u
t
s
i
d
e
A
n
t
e
n
n
a
t
o
b
o
o
s
t
e
r
______
Step 2: Mount NMO
Outside Antenna
remove
collar
insert through hole

5PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE REACH FLEET
Before attaching the antenna, apply a thin layer of silicone
grease to the antenna o-ring, and to the threads of the NMO
mount. Screw the antenna onto the NMO mount and hand
tighten into place.
hand tighten and make sure
o-ring is touching vehicle
surface
screw on
NMO Antenna
apply silicone grease
apply silicone grease
NOTE: DO NOT apply silicone grease to the antenna pin contact surface.
______
(STEP 2 cont.)

DRIVE REACH FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT 6
The location should be at least 18 inches but no more than 36
inches from where the cellular device will be used. Use the
Velcro® adhesive strip or the 2-sided adhesive strip provided
and attach to the side of the antenna labeled “MOUNTING
SIDE”. Then mount to desired location.
Identify a place to mount the in-vehicle antenna, either on
the side of the seat or on the dash and mount.
______
Step 3: Mount In-Vehicle
Antenna
In-Vehicle Antenna
Dash Mount
Velcro® strip
In-Vehicle Antenna
Seat Mount

7PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE REACH FLEET
______
Step 4: Hardwiring To Power
The Drive Reach Fleet kit includes a CLA and Hardwire
power option. The CLA power can be connected to a vehicle
cigarette lighter port. Hardwire instructions are below. Use
the steps below as a general template for wiring the power.
There are multiple options for wiring and steps will vary
depending on the vehicle type.
■ Locate the vehicle fuse box. The fuse box location will vary by
vehicle, refer to the vehicle's owner’s manual.
■ Route the power cable from the booster to the fuse box. If the fuse
box is located under hood of the vehicle the cable will need to be ran
through the firewall. Most vehicles will have a designated spot to run
cable from the cabin to the engine bay.
■ Determine which fuse to hardwire the power to. Find an open fuse
slot that is ignition-switched, if there are no open fuse slots tied to
the vehicle ignition power can be attached to an existing fuse. Wiring
to an ignition-switched fuse will ensure the booster is not drawing
power when the vehicle is o. Refer to the vehicle owner’s manual for
information about the fuses.
Note: You can use a circuit tester to test if the fuse is constant or
ignition-switched. A constant fuse will stay on when the vehicle is o,
and an ignition-switched fuse will have power when the vehicle is on
but no power when it is o.
■ Connecting the power supply. Once you have determined a fuse slot
to use connect the positive lead on the power cable to the included
in-line fuse then attach to a fuse tap and crimp into place (fuse tap is
not included in the kit and will vary by vehicle type). Connect the fuse
tap to the fuse slot you have chosen.
Note: You will need to determine which type of fuse tap is needed to
complete the power wiring. Variations include ATO, Mini, Low Profile
and Micro2. Consult the vehicle owner’s manual to determine which
fuse is needed for your installation.
■ Grounding the power supply. Most vehicle will have a factory
grounding point. Slip the negative lead “black” on the power supply
under the metal bolt on the grounding point and tighten into place.

DRIVE REACH FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT 8
■ Testing the booster power. With the power supply hardwiring
completed and inside and outside antennas in place attach the
power supply to the booster. Turn the vehicle ignition on and make
sure the booster power lights turn on. Then turn the ignition o to
make sure the booster powers o.
______
(STEP 4 cont.)
NEED HELP? weboost.com 1-866-294-1660

9PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE REACH FLEET
______

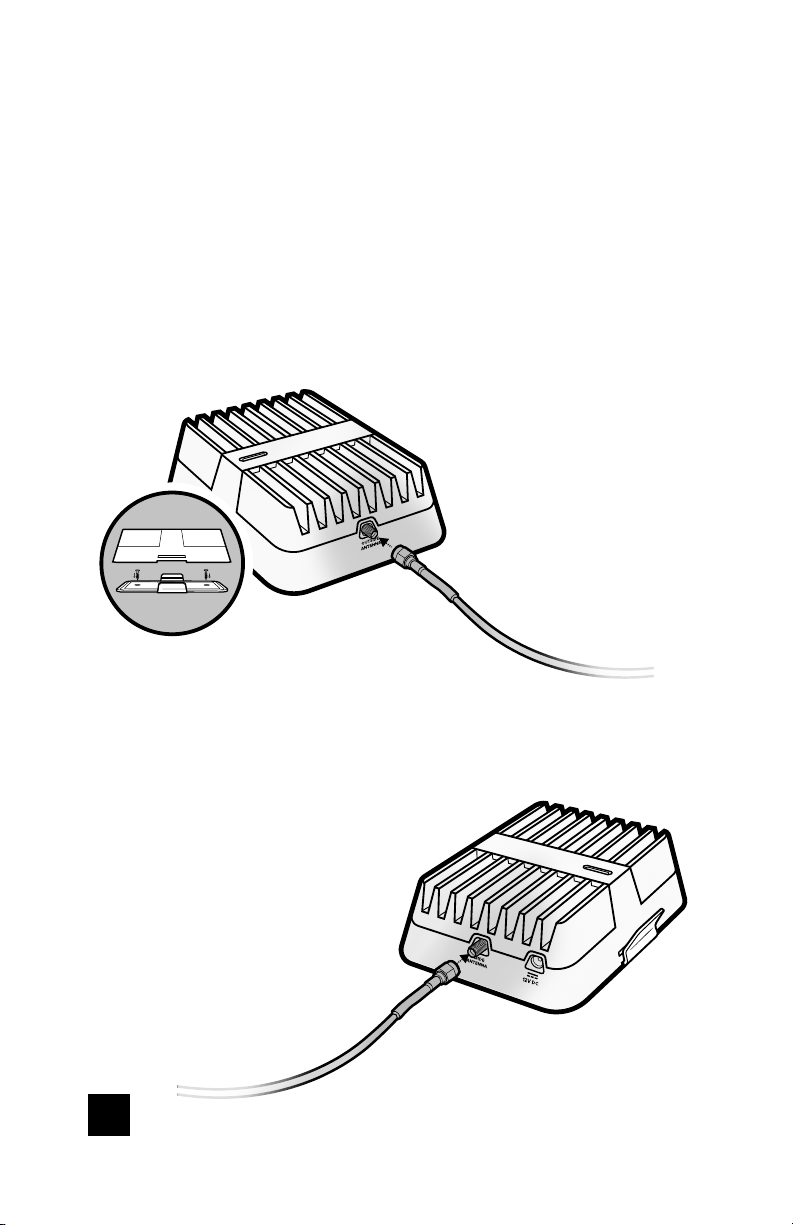

Step 5: Connect Coax
Cables To Booster
Connect the cable from the NMO antenna to the port labeled
“Outside Antenna” on the booster.
Connect the cable from the in-vehicle antenna to the port
labeled “Inside Antenna” on the booster.
from Outside Antenna
from Inside Antenna
NOTE: Bracket can be used to fasten booster in a specific location if desired.
bracket
Drive Reach

DRIVE REACH FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT 10
______
Step 6: Connect Power
Supply To Booster
Connect the power supply cord to the end of the booster,
labeled “12V DC.” Congratulations! Once your booster is
running please allow some time for your phone to adjust to
your new signal.
NOTE: Do NOT connect the power to the signal booster until you have
connected both the inside and outside antennas.
Power Supply
from Outside Antenna
from Inside Antenna

11 PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE REACH FLEET
______
Light Patterns
Solid Green
This indicates that your booster is functioning properly and there are no issues with
installation.
Blinking Red, Then Solid Green
This indicates that one or more of the booster bands has reduced power due
to a feedback loop condition called oscillation. This is a built in safety feature
to prevent harmful interference with a nearby cell tower. If you are already
experiencing the desired signal boost, then no further adjustments are necessary.
If you are not experiencing the desired boost in coverage then refer to the
Troubleshooting section below.
Solid Red
This is due to a feedback loop condition called oscillation. This is a built in safety
feature that causes a band to shut off to prevent harmful interference with a nearby
cell tower. Refer to Troubleshooting section below.
Light O
If the Drive Reach signal booster’s light is off, verify your power supply has power.
NOTE: The signal booster can be reset by disconnecting and reconnecting
the power supply.
After troubleshooting you must initiate a new power cycle by disconnecting and
then reconnecting power to the Booster.
NEED HELP? weboost.com 1-866-294-1660

DRIVE REACH FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT 12
FREQUENTLY ASKED QUESTIONS
How can I contact customer support?
Customer Support can be reached by calling 1-866-294-1660, or through our support
site at weboost.com.
Why do I need to create distance between the booster and the antenna?
Antennas connected to a booster create spheres of signal. When these spheres
overlap, a condition called oscillation occurs. Oscillation can be thought of as noise,
which causes the booster to scale down it’s power or shut down to prevent damage.
The best way to keep these spheres of signal from overlapping is to maximize
separation between the inside and outside antennas.
______
Troubleshooting
FIXING BLINKING OR SOLID RED ISSUES
This section is only applicable if the booster is red or blinking red and you are not
experiencing the desired signal boost.
1
2
3
Unplug the booster’s power supply.
Relocate the inside and outside antenna further from each other. The objective
is to increase the separation distance between them, so that they will not
create this feedback condition discussed before.
Plug power supply back in.
Monitor the indicator light on your booster. If, after a few seconds of ‘power
on’, a solid or blinking red light appears, repeat steps 1 through 3. Increase the
separation distance until the condition is corrected and/or desired coverage
area is achieved. Note: Horizontal separation of the two antennas typically
requires a shorter separation distance than perpendicular separation.
If you are having any diculties while testing or installing your booster, contact
our weBoost Customer Support team for assistance (1-866-294-1660).
4
5

13 PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE REACH FLEET
______
Safety Guidelines
Use only the power supply provided in this package. Use of a non-weBoost product may damage
your equipment.
Connecting the signal booster directly to the cell phone with use of an adapter will damage the
cell phone.
RF Safety Warning: Any antenna used with this device must be located at least 8 inches from
all persons.
FOR MORE INFORMATION ON REGISTERING YOUR SIGNAL BOOSTER WITH YOUR
WIRELESS PROVIDER, PLEASE SEE BELOW:
T-Mobile/Sprint/MetroPCS: https://www.t-mobile.com/support/coverage/register-a-signal-booster
Verizon Wireless: http://www.verizonwireless.com/wcms/consumer/register-signal-booster.html
AT&T: https://securec45.securewebsession.com/attsignalbooster.com/
U.S. Cellular: http://www.uscellular.com/uscellular/support/fcc-booster-registration.jsp
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your
provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers
may not consent to the use of this device on their network. If you are unsure, contact your
provider.
In Canada, BEFORE USE you must meet all requirements set out in ISED CPC-2-1-05.
You MUST operate this device with approved antennas and cables as specified by the
manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from (i.e., MUST NOT be
installed within 20 cm of) any person.
You MUST cease operating this device immediately if requested by the FCC (or ISED in Canada) or
licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls served by
using this device.
FOR MORE INFORMATION ON REQUIREMENTS SET OUT IN ISED CPC-2-1-05,
SEE BELOW:
http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08942.html

DRIVE REACH FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT 14
______
Antenna Kit Options
The following accessories are certified by the FCC to be used with the Drive Reach Booster.
This radio transmitter 4726A-460061 has been approved by innovation, Science and Economic
Development Canada to operate with the antenna types listed below, with the maximum gain
indicated. Antenna types not included in this list that have a gain greater than the maximum gain
indicated for any type listed are strictly prohibited for use with this device.
Ω
50
50
75
50
Antenna Type
Mini-Mag SMB
4G Trucker
4G RV OTR
4G NMO
Coax Type
LMR-100
RG-58
RG-6
RG-58
Kit #
311215
311229
311230
314405
Ln(ft)
10
15
25
14
MOBILE OUTSIDE ANTENNA KIT OPTIONS
Ω
50
50
50
Antenna Type
4G Slim Low Profile SMA
4G Slim Low Profile SMB
Desktop
Coax Type
LMR-100
LMR-100
RG-58
Kit #
314401
314419
311160
Ln(ft)
10
10
13
MOBILE INSIDE ANTENNA KIT OPTIONS
Outside antenna maximum permissible
antenna gain (dBi) 50
Inside antenna maximum permissible
antenna gain (dBi) 50
BAND 12/17 BAND 13 BAND 5 BAND 4 BAND 25/2
0.8 0.41.2 1.2 1.1
3.2 2.1 2.7
2.1 2.6

15 PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE REACH FLEET
______
Specifications
Drive Reach
Model Number 460061
FCC ID PWO460061
IC ID 4726A-460061
Connectors SMA-Jack
Antenna Impedance 50 Ohms
Frequency 698-716 MHz, 728-756 MHz, 777-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755/2110-2155 MHz
Maximum Power
Power output for single cell
phone (Uplink) dBm
700 MHz
Band 12/17
25.4
700 MHz
Band 13
25.6
800 MHz
Band 5
25.6
1700 MHz
Band 4
26.7
1900 MHz
Band 2/25
26.9
Power output for single cell
phone (Downlink) dBm
700 MHz
Band 12/17
4.8
700 MHz
Band 13
4.8
800 MHz
Band 5
4.8
2100 MHz
Band 4
4.6
1900 MHz
Band 2/25
4.5
Noise Figure 5 dB nominal
Isolation > 90 dB
Power Requirements 12 V 1.8 A
Each Signal Booster is individually tested and factory set to ensure FCC compliance. The Signal Booster cannot be adjusted without
factory reprogramming or disabling the hardware. The Signal Booster will amplify, but not alter incoming and outgoing signals in order
to increase coverage of authorized frequency bands only. If the Signal Booster is not in use for five minutes, it will reduce gain until a
signal is detected. If a detected signal is too high in a frequency band, or if the Signal Booster detects an oscillation, the Signal Booster
will automatically turn the power o on that band. For a detected oscillation the Signal Booster will automatically resume normal
operation after a minimum of 1 minute. After 5 (five) such automatic restarts, any problematic bands are permanently shut o until the
Signal Booster has been manually restarted by momentarily removing power from the Signal Booster. Noise power, gain, and linearity
are maintained by the Signal Booster’s microprocessor.
The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met. This device
complies with Part 15 of FCC rules. This device contains licence-exempt transmitter(s)/receiver(s that comply with Innovation, Science
and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may
not cause interference, and (2)) This device must accept any interference, including interference that may cause undesired operation of
the device. Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment.

DRIVE REACH FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT 16
2 YEAR WARRANTY
weBoost Signal Boosters are warranted for two (2) years against defects in
workmanship and/or materials. Warranty cases may be resolved by returning the
product directly to the reseller with a dated proof of purchase.
Signal Boosters may also be returned directly to the manufacturer at the
consumer’s expense, with a dated proof of purchase and a Returned Material
Authorization (RMA) number supplied by weoost. weBoost shall, at its option,
either repair or replace the product.
This warranty does not apply to any Signal Boosters determined by weBoost
to have been subjected to misuse, abuse, neglect, or mishandling that alters or
damages physical or electronic properties.
Replacement products may include refurbished weBoost products that have been
recertified to conform with product specifications.
RMA numbers may be obtained by contacting Customer Support
DISCLAIMER: The information provided by weBoost is believed to be complete
and accurate. However, no responsibility is assumed by weBoost for any business
or personal losses arising from its use, or for any infringements of patents or other
rights of third parties that may result from its use.

GDE000474_REV01_02.02.22
3301 East Deseret Drive, St. George, UT
1.866.294.1660 www.weboost.com [e-mail]
Copyright © 2020 weBoost. All rights reserved.
weBoost products covered by U.S. patent(s) and pending application(s)
For patents go to: weboost.com/us/patents
NOT AFFILIATED WITH WILSON ANTENNA
