Wilson Electronics Mobile 4G SmarTech III 460108 User manual

Need help? www.WilsonElectronics.com Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
Mobile 4G™
Cellular Signal Booster
460108

2Need help? www.WilsonElectronics.com Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
! !
THE ALUMINUM CASING OF YOUR SIGNAL BOOSTER
WILL ADJUST TO THE TEMPERATURE OF ITS
ENVIRONMENT, BUT IS DESIGNED TO PROTECT THE
SIGNAL BOOSTER TECHNOLOGY. FOR EXAMPLE, IN THE SUMMER,
THE SIGNAL BOOSTER CASE MAY BE AS HOT AS 150 DEGREES
INSIDE YOUR VEHICLE. THESE HIGH TEMPERATURES WILL NOT
DAMAGE THE SIGNAL BOOSTER, NOR DO THEY POSE A FIRE
RISK TO THE VEHICLE. AGAIN, BE SURE TO PLACE YOUR SIGNAL
BOOSTER IN A LOCATION WITH ADEQUATE VENTILATION AND AWAY
FROM DIRECT SUNLIGHT OR MOISTURE.
THE MOBILE 4G SIGNAL BOOSTER
MAY REMAIN ON, IN VEHICLES
WHOSE 12V DC POWER SOURCES
DO NOT AUTOMATICALLY SHUTDOWN WHEN THE
VEHICLE IS TURNED OFF. THIS COULD RESULT IN
DISCHARGING THE VEHICLES BATTERY IN ONE
TO TWO DAYS.
Installation Instructions for the Following Wilson Electronics Signal Boosters:
Mobile 4G SmarTech ™Signal Booster
Model # 460008 FCC ID: PWO460008
Contents
Package Contents ......................................................3
Before Getting Started ..................................................3
Installation ............................................................3
Troubleshooting & Understanding Lights...................................5
Additional FAQ.........................................................5
Outside Antenna Options ................................................6
Signal Booster Specifications ............................................7
Safety Guidelines ......................................................7
Guarantee and Warranty ........................................ Back Cover

3
Need help? www.WilsonElectronics.com Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
Before Getting Started
Before you install your Mobile 4G™
Booster and start enjoying improved
cellular reception please do the following:
1. Read through all the installation
steps. This will help you know what to
expect from start to nish.
2. Watch the YouTube video
demonstrating the Mobile 4G Signal
Boost installation at:
wilsonelectronics.com/Mobile4Gvideo
3. Familiarize yourself with all materials
in your product package. This will
allow you to know which pieces are
referenced in the instructions.
Installation
You can install your Mobile 4G Signal
Booster in your vehicle using the following
steps. NOTE: Before completing your
installation, create a “soft” installation by
putting the components of your Mobile 4G
Signal Booster in place and testing the
operation before mounting equipment.
1. Install the outside antenna. Select a
location on top of the car that is:
• Near the center of the vehicle’s roof.
• At least 12 inches from any other
antennas.
• Free of obstructions.
• At least 6 inches from any windows
(including sunroofs).
• At least 8 inches from any people.
The outside antenna must be installed
vertically on a metallic surface.
2. Run the outside antenna cable into
the car. The cable is strong enough
that it may be shut in most vehicle
doors without damaging the cable.
For a cleaner look, carefully pull down
the door seal, run the cable under
the seal, and push the seal back into
place. This method reduces wear
on the cable as the door opens and
closes.

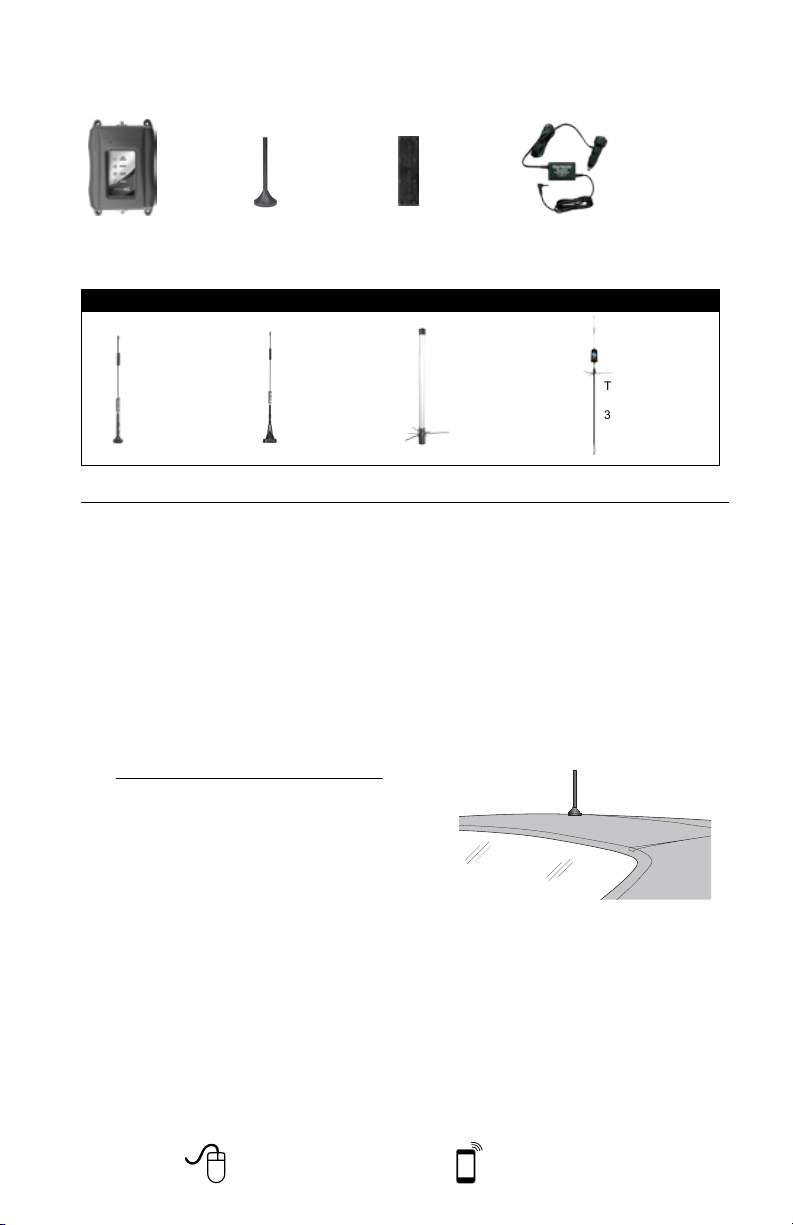

Package Contents
Mobile 4G™
Signal Booster
Mini-Mag
Outside Antenna
301126
Slim Low Profile
Inside Antenna
311127
DC Power Supply
5V / 2.5A
859948
Optional Antennas
12” Mag Mount
Outside Antenna
311103
NMO
Outside Antenna
311104-5810
Marine
Outside Antenna
311130-5810 Trucker
Outside Antenna
311101
Appearance of device and accessories may vary.

4Need help? www.WilsonElectronics.com Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
3. Install the Low-Prole inside antenna.
• Identify a place on the right side of
the driver’s seat to mount the inside
antenna. The location should be
at least 18 inches from where the
cellular device will be used.
• Install the inside antenna at the same
angle as the cell phone when held in
use or near the laptop’s cellular data
card to maximize signal strength.
For a more professional look, you can
install the inside antenna underneath
a car seat cover or upholstery.
• When you have tested the
functionality of your Mobile 4G
Signal Booster, mount the inside
antenna by peeling off the backing
of the Velcro®and attach it to your
selected location on the seat and
secure the inside antenna.
4. Place and connect the Mobile 4G
Signal Booster.
• Select a location for the Signal
Booster that is free from excessive
heat, direct sunlight and moisture
and that has proper ventilation. Good
locations include underneath a seat
or under the dashboard.
• Connect the wire from the outside
antenna to the port labeled “outside
antenna” on the Signal Booster.
• Connect the wire from the inside
antenna to the port labeled “inside
antenna” on the Signal Booster.
• Plug the power adapter into
vehicle’s 12V DC power supply
and attach the cord to the side of
Power Booster labeled “Power.”
NOTE: Do NOT connect the power
to the Signal Booster until you have
connected both the inside and
outside antennas.
• Power up your Signal Booster by
ipping the switch on the back of the
DC power adapter on. A red light
should appear on the power adapter.
Note: The Mobile 4G Signal Booster
may remain on, in vehicles whose
12V DC power sources do not
automatically shutdown when the
vehicle is turned off. This could result
in discharging the vehicles battery in
one to two days.
Note: Some 12V DC power sources are
shut down when the vehicle ignition
is turned to off. Refer to your vehicle
owners manual for specics related
to your vehicle.
NOTE: The aluminum casing of your Signal
Booster will adjust to the temperature of its
environment, but is designed to protect the
Signal Booster technology. For example,
in the summer, the Signal Booster case
may be as hot as 150 degrees inside your
vehicle. These high temperatures will NOT
damage the Signal Booster, nor do they
pose a re risk to the vehicle. Again, be sure
to place your Signal Booster in a location
with adequate ventilation and away from
direct sunlight or moisture.

5
Need help? www.WilsonElectronics.com Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
We recommend visiting www.wirelessadvisor.com for information regarding the frequency band used by
your cell service provider in a specic geographical location.
United States Carrier Frequency Use
Flashing red light: If one or more of the
lights on the Signal Booster are blinking
red, this means that the Signal Booster
has shutoff due to close proximity to the
handset or mobile device. Increase the
distance between the handset and the
Inside Antenna until the light is no longer
ashing red. Contact Wilson Electronics
Technical Support Team for assistance.
Green light: A green light indicates the
Mobile 4G Signal Booster is working
properly.
If you have additional questions about
the operation of your Mobile 4G Signal
Booster, please contact the Wilson
Electronics technical support team at
866-294-1660 or email
[email protected].
Additional FAQ:
What hours can I contact tech support?
Technical Support can be reached
from 7:00am to 6:00pm MST, by calling
(866-294-1660), or by email, at tech@
wilsonelectronics.com
How does weather affect the
performance of my outside antenna?
Water vapor (e.g. rain, fog, snow or
other precipitation) creates an effective
lter to cellular signal. In times of
heavy precipitation, you may see less
performance.
What’s the difference between the 800
MHz and the 1900 MHz bands? How do
I know which MHz band my cell phone
uses?
The Mobile 4G works with all major North
American cellular providers on the 800
& 1900 MHz frequencies. Traditionally,
800/1900MHz are associated with
voice and 3G data; while 700MHz
and 1700/2100MHz are associated
with 4G data. For more detail, refer to
wirelessadvisor.com.
Troubleshooting &
Understanding Lights
The lights on the front of the Mobile 4G
Signal Booster indicate whether the
system is working or if there are problems.
Each light indicates the operation of its
labeled frequency. Take the following steps
based on the indicator light color when
using the Mobile 4G Signal Booster.
Lights off: If the lights are not on:
• Check connections on the power supply
to see that it is rmly plugged into both
the Mobile 4G Signal Booster and the
power source.
• If using a DC power supply in your
vehicle, ensure the power supply is
properly inserted. Then check the 12
volt power from the car socket and the
fuse. Replace the fuse if necessary.
Red light: A red light indicates oscillation
is occurring. Oscillation is similar to
feedback between a microphone and
speaker. When oscillation occurs, the
Signal Booster will power down to protect
the cell tower. To eliminate oscillation, the
outside antenna needs to be moved farther
from the inside antenna. Move the outside
antenna on the roof to the rear of the car,
but at least 8 to 12 inches from the rear or
side windows. Disconnect the power from
the Signal Booster, then reconnect the
power to reset the Signal Booster.

6Need help? www.WilsonElectronics.com Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
Outside Antenna Options
Mini-Mag
301126 w/ 12.5 RG174 cable- SMA
301113 w/ 12.5 RG174 cable- FME
12” Mag Mount
311103 w/ 12.5’ RG174
311125 w/ 12.5’ RG174
311128 w/ 12.5’ RG174
314202 w/ 12.5’ RG174
311703 w/ 12.5’ RG174
Trucker Antenna
311101 w/10.5’ RG58
311701 w/10.5’ RG58
311119 w/13.5’ RG58
311133 w/13.5’ RG58
Marine Antenna
311130-5810 w/10.5’ RG58
NMO Antenna
Kit 31110 4 - 5810
• 800/1900 NMO Antenna
• 10’ RG58 Cable
Kit 311112-5810
• 800/1900 NMO Antenna
• 10’ RG58 Cable
Kit 314203-5810
• 800/900/1900 NMO Antenna
• 10’ RG58 Cable
Kit 311112 - 40 015
• 800/1900 NMO Antenna
• 15’ LMR400 cable
Kit 314203-40015
• 800/900/1900 NMO antenna
• 15’ LMR400 cable
Kit 31110 4- 40015
• 800/1900 NMO Antenna
• 15’ LMR400 Cable
Kit 31110 4 -17410
• 800/1900 NMO antenna
• 10’ RG174 cable
Kit 311112-17410
• 800/1900 NMO antenna
• 10’ RG174 cable
Kit 314203-17410
• 800/900/1900 NMO antenna
• 10’ RG174 cable
Glass Mount
311102 w/14’ RG58
311114 w/14’ RG58
Wilson Electronics manufactures a wide variety of antennas to help you customize your Signal Booster for your specific application. See your
dealer or visit www.WilsonElectronics.com.
301113

7
Need help? www.WilsonElectronics.com Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
Safety Guidelines
WARNING: The Inside Antennas must have 18 inches of separation distance from all active users.
WARNING: Connecting the Signal Booster directly to the cell phone with use of an adapter will damage the cell phone.
WARNING: Use only the power supply provided in this package. Use of a non-Wilson Electronics product may
damage your equipment.
WARNING: The Signal Booster unit is designed for use in an indoor, temperature-controlled environment (less
than 150 degrees Fahrenheit). It is not intended for use in attics, vehicles or similar locations subject to
temperatures in excess of that range.
WARNING: The Outside Antenna must be installed no higher than 10 meters (32’9”) above ground.
RF SAFETY WARNING: Any antenna used with this device must be located at least 8 inches from all persons.
Signal Booster Specifications
Model Number 460008
Connectors SMA
Antenna Impedance 50 Ohms
Frequency 704-746 MHz, 746-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755/2110-2155 MHz
3Power output for single cell phone (dBm) 700 MHz Band 17 700 MHz Band 13 800 MHz 1900 MHz 1700 MHz
Uplink 25.7 24.4 25.1 25.2 23.8
3Power output for single cell phone (dBm) 700 MHz Band 17 700 MHz Band 13 800 MHz 1900 MHz 2100 MHz
Downlink -4.3 -4.1 -1.2 4.0 5.6
Noise Figure (typical downlink/uplink) 3 dB nominal
Isolation > 90 dB
Power Requirements 5 V 2.5 A
Each Signal Booster is individually tested and factory set to ensure FCC compliance. The Signal Booster cannot be adjusted without factory
reprogramming or disabling the hardware. The Signal Booster will amplify, but not alter incoming and outgoing signals in order to increase coverage
of authorized frequency bands only. If the Signal Booster is not in use for five minutes, it will reduce gain until a signal is detected. If a detected
signal is too high in a frequency band, or if the Signal Booster detects an oscillation, the Signal Booster will automatically turn the power off on
that band. For a detected oscillation the Signal Booster will automatically resume normal operation after a minimum of 1 minute. After 5 (five) such
automatic restarts, any problematic bands are permanently shut off until the Signal Booster has been manually restarted by momentarily removing
power from the Signal Booster. Noise power, gain, and linearity are maintained by the Signal Booster’s microprocessor.
This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by Wilson Electronics could void the authority to operate this equipment.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider
and have your provider’s consent. Most wireless providers consent to the use of
signal boosters. Some providers may not consent to the use of this device on their
network. If you are unsure, contact your provider.
You MUST operate this device with approved antennas and cables as specified by
the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any
person.
You MUST cease operating this device immediately if requested by the FCC or a
licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate
for calls served by using this device.
This is a CONSUMER device.

8Need help? www.WilsonElectronics.com Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
3301 East Deseret Drive, St. George, UT 84790
web: www.WilsonElectronics.com email: [email protected]
phone: [phone] local: 435-673-5021 fax: [phone]
30-Day Money-Back Guarantee
All Wilson Electronics products are protected by Wilson Electronics 30-day money-back guarantee. If for any
reason the performance of any product is not acceptable, simply return the product directly to the reseller with a
dated proof of purchase.
2-Year Warranty
Wilson Electronics Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials.
Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase.
Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of
purchase and a Returned Material Authorization (RMA) number supplied by Wilson Electronics. Wilson Electronics
shall, at its option, either repair or replace the product. Wilson Electronics will pay for delivery of the repaired or
replaced product back to the original consumer if located within the continental U.S.
This warranty does not apply to any Signal Boosters determined by Wilson Electronics to have been subjected to
misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties.
Failure to use a surge protected AC Power Strip with at least a 1000 Joule rating will void your warranty.
RMA numbers may be obtained by contacting Technical Support at 866-294-1660.
Disclaimer:The information provided by Wilson Electronics, LLC is believed to be complete and accurate. However, no
responsibility is assumed by Wilson Electronics, LLC for any business or personal losses arising from its use, or
for any infringements of patents or other rights of third parties that may result from its use.
111322_Mobile4G_RevP_01.28.14
Copyright © 2014 Wilson Electronics, LLC All rights reserved.
U.S. Patent Nos. – 7,221,967; 7,729,669; 7,486,929; 7,409,186; 7,783,318; 8,583,034; 8,583,033
