Operation Manual
500 kg/900 kg Pickup Crane
62021, 62023
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.

© by WilTec Wildanger Technik GmbH Item 62021, 62023 Page 2
http://www.WilTec.de
http://www.aoyue.eu 12 2021-1
http://www.teichtip.de
The information contained in this document may alter at any time without previous notice. It is prohibited
to copy or spread any parts of this document in any way without prior written allowance. All rights re-
served.
The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this
operating manual, nor in the diagrams and figures shown.
Even though, the WilTec Wildanger Technik GmbH has undergone biggest possible efforts to ensure
that the operating manual is complete, faultless, and up to date, mistakes cannot be entirely avoided.
If you should find a mistake or wish to make a suggestion for improvement, we look forward to hearing
from you.
Send an e-mail to:
[email protected]
or use our contact form:
https://www.wiltec.de/contacts/
The most recent version of this manual in various languages can be found in our online shop via:
https://www.wiltec.de/docsearch
Our postal address is:
WilTec Wildanger Technik GmbH
Königsbenden 12
52249 Eschweiler
Germany
Do you wish to pick goods up? Our pick-up address is:
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
Germany
To shorten the waiting time and allow for a rapid on-site transaction, we ask you to call us previously or
placing your order via the webshop.
E-mail: [e-mail]
Tel: [phone]
Fax: [phone]
To return orders for exchange, repair, or other purposes, please use the following address. Attention!
To allow for a smooth execution of your complaint or return, it is important to contact our customer
service team before returning the goods.
Returns Department
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
E-mail: [e-mail]
Tel: [phone]
Fax: [phone]

© by WilTec Wildanger Technik GmbH Item 62021, 62023 Page 3
http://www.WilTec.de
http://www.aoyue.eu 12 2021-1
http://www.teichtip.de
Introduction
Thank you for purchasing this quality product. To minimize the risk of injury we urge that our clients
take some basic safety precautions when using this device. Please read the operation instruc-
tions carefully and make sure you have understood its content.
Keep these operation instructions safe.
This engine crane is intended to be used to remove, install and transport automotive and light truck
engines as well as engine assemblies in the lowered position within rated capacity. It must be used with
an appropriately rated engine leveller, sling, and/or chains which are NOT INCLUDED. After removing,
immediately transfer the lead to an appropriately rated work station such as an engine stand.
Technical data
Item number
62021
62023
Max. capacity (㎏)
500
900
Height (㎜)
retracted
1380
extended with max. capacity
1690
extended with quarter load
1810
1800
Length (㎜)
loading arm with max. capacity
890
930
loading arm with quarter load
1220
1300
chain and hook
260
Material thickness of crane plate (㎜)
6
7
Dimensions of plate (㎜)
270×270
270×270
Drill holes of plate
Number
8
8
Diameter
16
16
Weight (㎏)
39.4
48
Safety instructions
•Keep work area clean. Untidy work areas invite injuries.
•Observe work area conditions. Do not use machines in storage areas or wet locations. Do
not expose to rain. Keep work area well lit.
•Keep children away. Children must never be allowed in the work area.
•Store idle equipment. When not in use, tools must be stored in a dry location to prevent rust
from forming. Always lock up tools and keep them out of reach of children.
•Use the right tool for the job to do. This tool has been designed for certain applications. It will
work better and more safely at the rate for which it was intended. Do not modify this tool and do
not use it for a purpose other than that for which it is intended.
•Dress properly. Do not wear loose clothing or jewellery, as they can get caught in moving parts.
Protective, electrically nonconductive clothes, and non-skid footwear are recommended when
working. Wear long hair under an appropriate cover. Wear heavy work gloves when working.
Always wear approved impact safety goggles.
•Do not lean too far forward. Always keep proper footing and balance.
•Maintain tools with care. Keep tools clean for a better and safer working. Follow instructions
for lubricating and changing of accessories.
•Stay alert. Do not operate any tool when you are tired or under the influence of alcohol, drugs,
and medicine.

© by WilTec Wildanger Technik GmbH Item 62021, 62023 Page 4
http://www.WilTec.de
http://www.aoyue.eu 12 2021-1
http://www.teichtip.de
•Check for damaged parts. Before using any tool, any part that appears damaged should be
carefully checked to determine if it will operate properly and perform its intended function.
•Spare parts and accessories. When maintaining the device, only use identical and original
spare parts. Only use accessories intended for use with this tool.
•Never exceed the maximum lifting capacity. Beware of dynamic loading! Swinging or jerk-
ing of the load suspended on the chain of the crane may create, for a brief instant, an excess
load, which may result in damage to the product, damage to the load, SERIOUS PERSONAL
INJURY, and/or DEATH.
•Maintenance. For your safety, maintenance and repair must be performed regularly by a qual-
ified technician. In case of any questions contact the manufacturer or an authorized service
partner.
•Not to be used for aircraft purposes!
•Do not attempt to move the crane when under load. The castors are not designed to be
rolled when the crane is lifting a weight.
Maintenance
•Check all the mounting hardware before each use and make sure that the crane is safe to use.
•Make sure that the hook and chain are clean of dirt, grease, or debris.
•If the jack is not performing to satisfaction, there may be air in the hydraulic system. To purge
the system of the air, proceed as follows:
◦Make sure that the ram is completely lowered.
◦Remove the oil fill plug and top up with hydraulic oil.
◦Raise the ram to maximum height.
◦Loosen the release valve and push the ram all the way down.
◦Top up with hydraulic oil, then re-place the plug. Repeat if necessary.
•To clean we recommend use of a damp cloth and mild detergent. Do not use solvents or flam-
mable agents.
•If lifting performance of the foldable shop crane begins to diminish, check the hydraulic oil level
in the oil tank. If necessary, top up with hydraulic oil.
Operation
1. To raise the extension boom, close the release valve on the hydraulic ram. Pump the handle
until the extension boom reaches the desired height.
2. To extend the length of the extension boom, remove bolt and nut. Pull out on the extension
boom until the extension hole in the boom matching the desired length aligns with the hole in
the extension boom. Then re-insert the bolt through the holes in the boom and extension boom
and lock the bolt in place with the nut.
3. WARNING! Do not exceed the maximum lifting capacities of this tool. Exceeding the max-
imum lifting capacities could cause damage and/or injuries. The longer the extension boom
is extended, the lower is the lifting capacity of this foldable crane.
4. Position the foldable crane so that the hook is directly above the object you wish to lift.
5. WARNING! Keep a safe distance to the foldable crane. Never go under an object lifted by the
crane. It is possible for the hook to slip, causing an object to fall. This might result in serious
damage and/or injury. Always monitor the object lifted lest it rock back and forth.
6. Open the release valve slightly to lower the hook. Attach the hook to the object to be lifted,
making sure that the safety latch on the hook is fully closed. Then close the release valve and
pump the handle to raise the object. Carefully move the crane to the location where you wish to
lower the object, i.e., an engine stand, proper support, floor surface, etc. Then lower the object
by opening the release valve slightly.
7. Once the object is fully lowered, disconnect the hook from the object. If the crane is not needed
anymore, store it (in unfolded or folded condition) in a clean, dry, safe location and out of reach
of children and other unauthorised people.

© by WilTec Wildanger Technik GmbH Item 62021, 62023 Page 5
http://www.WilTec.de
http://www.aoyue.eu 12 2021-1
http://www.teichtip.de

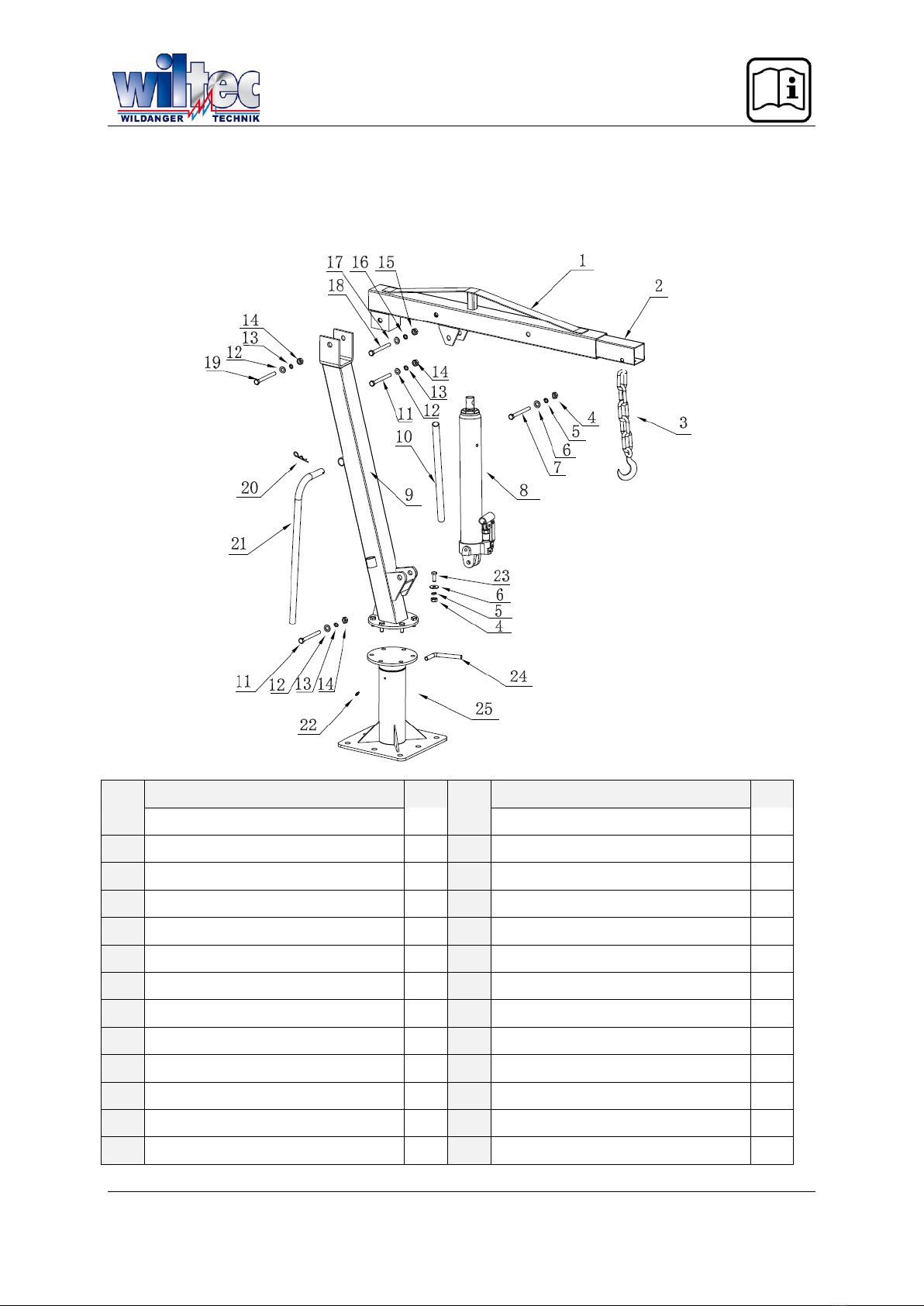

Explosion drawing and parts list
62021
№
Name
Qty.
№
Name
Qty.
1
Boom
1
14
Nut
3
2
Extension boom
1
15
Nut
3
3
Chain
1
16
Washer
1
4
Nut
1
17
Lock washer
1
5
Washer
1
18
Bolt
1
6
Lock washer
1
19
Bolt
1
7
Bolt
7
20
R pin
6
8
Cylinder
7
21
Handle
1
9
Support post
1
22
Grease fitting
1
10
Handle
2
23
Bolt
1
11
Bolt
24
Base
12
Lock washer
25
Lock bolt
13
Washer

© by WilTec Wildanger Technik GmbH Item 62021, 62023 Page 6
http://www.WilTec.de
http://www.aoyue.eu 12 2021-1
http://www.teichtip.de

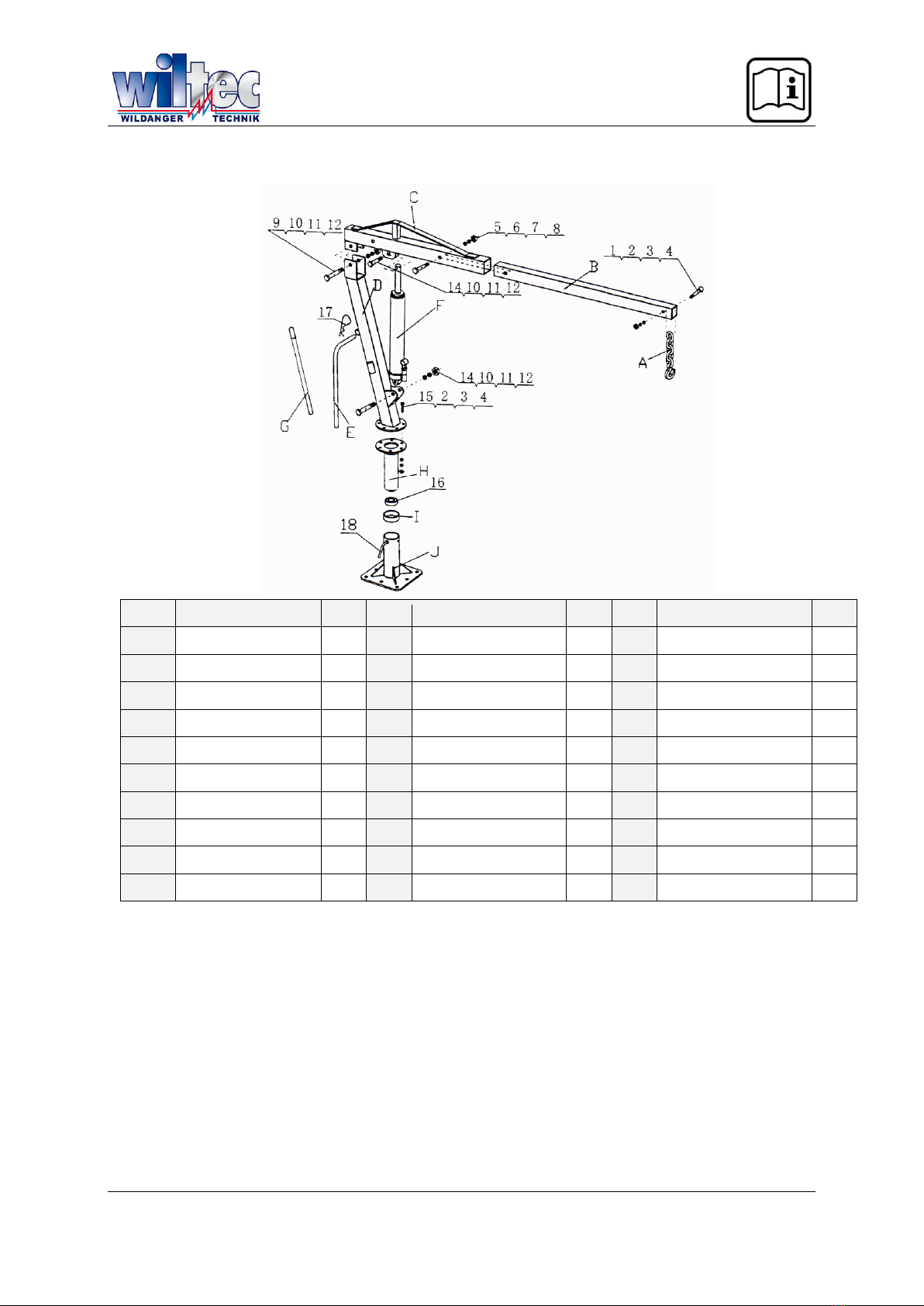

62023
Letter
Name
Qty.
№
Name
Qty.
№
Name
Qty.
A
Chain with hook
1
1
Bolt M12×75
1
11
Lock washer 16 mm
3
B
Extension boom
1
2
Washer 12 mm
7
12
Nut M16
3
C
Boom
1
3
Lock washer 12 mm
7
13
Bolt M16×80
1
D
Support post
1
4
Nut M12
7
14
Bolt M16×95
1
E
Handle
1
5
Bolt M14×90
1
15
Bolt M12×40
6
F
Cylinder
1
6
Washer 14 mm
1
16
Bearing
1
G
Lever
1
7
Lock washer 14 mm
1
17
“R” pin
1
H
Connection tube
1
8
Nut M14
1
18
Lock pin
1
I
Swivel-joint
1
9
Bolt M16×110
1
J
Base
1
10
Washer 16 mm
3
