WilTec 51975 User manual

Operation Manual
ARTICLE 51975
Tile Cutter
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ
insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities please contact us.
© by WilTec Wildanger Tec nik GmbH Seite 10
ttp://www.WilTec.de
ttp://www.aoyue.eu
ttp://www.teic tip.de

The information contained in this document is subject to change without prior notice. o part of this
document can be copied or duplicated in another form without the prior written consent of WilTec
Wildanger Technik GmbH. The WilTec Wildanger Technik GmbH assumes no liability for any errors in
this user manual or the connection diagram.
Although WilTec Wildanger Technik GmbH has made every effort to make sure that this user manual
is complete, accurate and updated, errors cannot always be avoided. In the event of problems with
this user manual please complete and send this form back to us.
FAX-notification (+++49 2403 55592-15),
from: ________________________________________
Name: ________________
Firm:_____________________
Tel/Fax:__________________
I would like to report t e following mistakes:
_______________________________ ____________________________________
Customer Service WilTec Wildanger Technik GmbH
e-mail: [email protected]
Tel:++ +49 2403 55592-0
Introduction
Thank you for purchasing this quality product. To minimize t e risk of injury by means of fire or
electric s ock we urge t at our clients take some basic safety precautions w en using t is
device. Please read t e operation instructions carefully and make sure you ave understood its
content.
Always use a grounded power connection with the appropriate mains voltage. You can
nd the corresponding mains voltage on the type plate. If you have any doubts about the
connection being grounded, have it checked by a qualied professional. Never use a
faulty electric cable.
o not inspect the electrical part of the pressure pond lter in a wet or damp
environment or when you are wet yourself and protect it from direct sunlight. Install this
device in a safe location so that nobody can step on the cable, fall over or damage it.
isconnect the power plug before cleaning it and use only a damp cloth for cleaning.
Avoid using cleaning agents and make sure that no liquid enters the electrical part of the pump.
The electric part of the device contains no parts that can be inspected or serviced by the user. Leave
the maintenance, adjustment and repair to qualified technical personnel. In case of unauthorised
intervention the 2-year warranty is no longer valid! Keep these operation instructions safe.
© by WilTec Wildanger Tec nik GmbH Seite 11
ttp://www.WilTec.de
ttp://www.aoyue.eu
ttp://www.teic tip.de

Figure 1
Figure 2
© by WilTec Wildanger Tec nik GmbH Seite 12
ttp://www.WilTec.de
ttp://www.aoyue.eu
ttp://www.teic tip.de

TECHNICAL SPECIFICATIONS
Voltage 230 V~
Frequency 50 Hz
Power consumption 600 W
o load speed 2950 U/min
Max. depth of cut 90° 34 mm
Max. depth of cut 45° 18 mm
Cutting angle 0-45°
Cutting Blade 180 x 22,2 mm
Table dimensions 330 x 360 mm
Weight 8,2 kg
USE
This tool is suitable for cutting various wall and floor tiles with a maximum tile size of 500 x 500 x 25
mm. The diamond wheel can be replaced by the customer. It is not permitted to use the tool for any
other materials.
SAFETY INSTRUCTIONS
These instructions use the following images:
Means a risk of physical injury, danger of life or the risk of damaging the machine if these in -
structions are ignored.
Please read these instructions carefully before using this tool. Ensure you are familiar with the tool and
its operation. Maintain this tool in accordance with the instructions to ensure it functions properly.
Please keep these instructions for use and the safety instructions with the tool.
SAFETY MEASURES
Check your power tool for damage before starting your work, particularly the diamond blade. All
parts must be fitted properly and must meet all requirements in order to guarantee the tool’s
smooth operation. Any safety guards or any lightly damaged parts must be checked to see if they
still function properly before continuing the use of the tool. Moving parts, and the diamond blade
guard in particular, must be fitted properly and must not jam. Do not use tools that cannot be
switched on or off with the switch.
The diamond blade guard must not be jammed or removed.
A jamming guard must be repaired immediately.
The riving knife must not be removed.
© by WilTec Wildanger Tec nik GmbH Seite 13
ttp://www.WilTec.de
ttp://www.aoyue.eu
ttp://www.teic tip.de

INSTALLING THE TILE CUTTER
The tile cutter may only be used as a fixed tool and should be screwed down to a level and hori-
zontal surface. Please use the screw holes in the base of the machine.
The electrical supply must be connected to a 230 V earthed wall socket. The mains voltage must
comply with the information on the type plate and must be protected by a circuit breaker.
Do not use the power cable to pull the plug from the socket. Protect the cable against heat, oil and
sharp objects.
Only use accessories and auxiliary equipment mentioned in the instructions for use or recom-
mended/Mentioned by the manufacturer. Using other accessories or auxiliary equipment may
carry a risk of injury for you and others.
OPERATION (Figure 1)
• Before starting the job, please ensure there is sufficient water in the water tray (4) i.e. the diamond
blade runs through the water. During the job, the water tray must be topped up.
• Do not start working before the maximum speed has been reached.
• Diamond blades must EVER be exposed to sideways pressure; they can break and flying pieces
become projectiles!
• Do not attempt to cut extremely small pieces from the tiles. Always make sure that the full surface
of the tile is on the work table. The supplied mitre guide can be used to push the tiles through the
cutter. In the early stages of cutting in particular, the tile must remain absolutely level to avoid the
tile moving up.
• Do not overload your tool. It is better and safer to work within the indicated power range. Do not
cut materials other than tiles.
• Maintain your tools carefully. Keep the tools sharp and clean in order to work properly and safely.
Follow the maintenance instructions and the instructions for replacing the diamond blade.
• Stand safely and maintain your balance. Avoid any unnatural body angles. Remain alert and pay
attention to your work. Use common sense. Do not use the machine when you cannot concentrate
or when you are tired.
FULL LENGTH ADJUSTABLE FENCE (Figure 1)
The fence (3) enables you to cut parallel to the cutting blade. Set up: Loosen the knobs (7) and set the
required distance. Tighten the knobs on both sides of the work table. The markers determine the mea-
surements (8).
© by WilTec Wildanger Tec nik GmbH Seite 14
ttp://www.WilTec.de
ttp://www.aoyue.eu
ttp://www.teic tip.de

MITRE GUIDE (Figure 1)
The mitre guide has a variable setting between 0° and 45°. Loosen the knobs (5), set the mitre by tilt-
ing the table (1) up until you have reached the required tilt. Tighten the knobs (5) again on both sides
of the worktable.
CLEANING, MAINTENANCE AND REPAIR
Disconnect the mains plug after use, before cleaning, changing the cutting disc or the water tank.
Please clean the tool immediately after use:
1) Disconnect the plug from the socket.
2) Remove the water tray from the machine and drain the dirty water.
3) Unscrew the splash guard and clean it.
4) Loosen the star-shaped knob, fold up the table and polish the entire machine.
The machine complies with all current safety regulations. Repairs may only be carried out by an
approved company, because repair attempts by unqualified people may cause injuries to the user
and bystanders. Regularly check the plug and the cable and if they are damaged they must be re -
placed by an approved company. Also check any extension cables. Damaged safety guards and
switches must be replaced before the machine is used again.
CHECKING AND REPLACING THE DIAMOND BLADE
Cracked or distorted diamond blades must be replaced.
Type of disk: a diamond blade with a diameter of 180mm.
Do not use diamond blades that do not meet the specifications in these instructions.
The mains plug must be disconnected before changing the window pane or before carrying out
any adjustment or cleaning work.
Ensure that the diamond blade is secured properly and rotates in the correct direction.
To replace a worn disk, please take the following steps (fig. 2):
1) Disconnect the plug from the socket.
2) Remove the water tray (4, fig. 1) from the machine.
3) Loosen the splash guard’s fixing bolts and remove the splash guard.
4) Loosen the blade fixing nut (4, fig. 2).
5) Remove the counter flange (3, fig. 2) and blade (2, fig. 2) and push the new blade on the
flange (1, fig. 2). Consider the rotation direction indicated on the blade. Attach the counter
flange (3, fig. 2).
6) Tighten the fixing nut (4, fig. 2) and the splash guard.
7) Ensure you do not leave any tools lying on the splash guard.
© by WilTec Wildanger Tec nik GmbH Seite 15
ttp://www.WilTec.de
ttp://www.aoyue.eu
ttp://www.teic tip.de

OLD ELECTRICAL TOOLS AND THE ENVIRONMENT
If your electrical tools have been used so intensively that they need to be replaced or if you no longer
use them, please consider the environment when you dispose of them. Electrical equipment should
not be discarded with household waste, but should be recycled. For more information, please contact
your local service center.
© by WilTec Wildanger Tec nik GmbH Seite 16
ttp://www.WilTec.de
ttp://www.aoyue.eu
ttp://www.teic tip.de

Disposal regulations
EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2012/19/EU) were
implemented in the law related to electrical and electronic equipment and appliances.

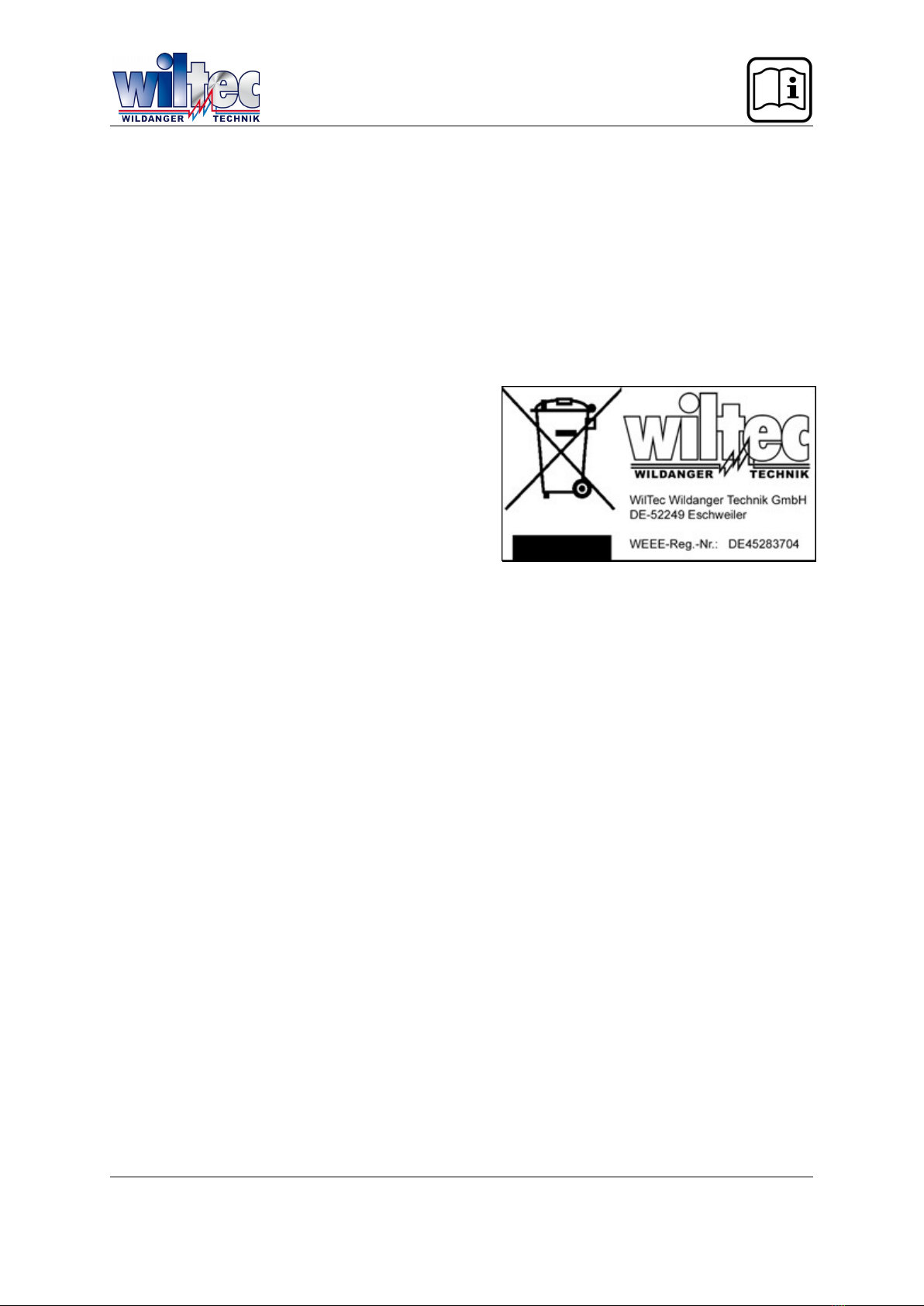

All WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out
wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with the
domestic waste.
The company WilTec Technik GmbH has been registrated in the German registry EAR under the
WEEE-registration number DE45283704.
Disposal of used electrical and electronic appliances
(intended for use in the countries of the European
Union and other European countries with a separate
collection system for these appliances).
The logo on the article or on its packaging points out
that this article must not be treated as normal
household waste but must be disposed to a recycling
collection point for electronic and electrical waste
equipment. By contributing to the correct disposal of
this article you protect the environment and the health
of your fellow men. Environment and health are
threatened by inappropriate disposal.
Materials’ recycling helps reduce the consumption of raw materials.
Additional information on recycling this article can be provided by your local community, municipal
waste disposal facilities or the store where you purchased the article.
Address:
WilTec Wildanger Technik GmbH
Königsbenden 12 / 28
D-52249 Eschweiler
Important notice:
The reprint or reproduction, even of excerpts, and any commercial use, even in part of this instructions
manual require the written permission of WilTec Wildanger Technik GmbH.
© by WilTec Wildanger Tec nik GmbH Seite 17
ttp://www.WilTec.de
ttp://www.aoyue.eu
ttp://www.teic tip.de
