WIN Enterprises MB-63020 User manual

User’s Manual
WIN Enterprises, Inc. September, 2012
1
www.win-ent.com
User’s Manual MB-63020, v1.0
Embedded Gaming Board w/ AMD G-Series processors, VGA, DVI-D, GbE,
4 COM, NVRAM, TPM

User’s Manual
WIN Enterprises, Inc. September, 2012
2
© Copyright 2010. All Rights Reserved
Manual Edition 1.0, September, 2012
This document contains proprietary information protected by copyright. All rights are reserved; no
part of this manual may be reproduced, copied, translated or transmitted in any form or by any means
without prior written permission of the manufacturer.
The content of this document is intended to be accurate and reliable; the original manufacturer assumes
no responsibility for any inaccuracies that may be contained in this manual. The original
manufacturer reserves the right to make improvements to the products described in this manual at any
time without prior notice.
Trademarks
IBM, EGA, VGA, XT/AT, OS/2 and PS/2 are registered trademarks of International business Machine
Corporation
Award is a trademark of Award Software International, Inc
Intel is a trademark of Intel
RTL is a trademark of Realtek
VIA is a trademark of VIA Technologies, Inc
Microsoft, Windows, Windows NT and MS-DOS are either trademarks or registered trademarks of
Microsoft Corporation
All other product names mentioned herein are used for identification purpose only and may be
trademarks and/or registered trademarks of their respective companies
Limitation of Liability
While reasonable efforts have been made to ensure the accuracy of this document, the manufacturer
and distributor assume no liability resulting from errors or omissions in this document, or from the use
of the information contained herein.
For more information on MB-63020 or other WIN products, please visit our website
http://www.win-ent.com.
For technical support please send inquiries to [e-mail].

User’s Manual
WIN Enterprises, Inc. September, 2012
3
Table of Contents
Chapter 1. General Information ........................................................................... 4
1.1 Introduction ................................................................................................... 4
1.2 Specifications ................................................................................................ 4
1.3 Ordering Information..................................................................................... 7
1.4 Packaging ...................................................................................................... 7
1.5 Precautions .................................................................................................... 8
1.6 Board Placement............................................................................................ 9
1.7 Board Dimensions ........................................................................................11
Chapter 2. Connector/Jumper Configuration ...................................................... 12
2.1 Connector/Jumper Location and Definition.................................................. 12
2.2 Connector and Jumper Setting ..................................................................... 13
2.3 CompactFlash
TM
Card Socket Pin Define..................................................... 23
Chapter 3. BIOS Setup ...................................................................................... 23
3.1 Quick Setup ................................................................................................. 23
3.2 Entering the CMOS Setup Program ............................................................. 24
3.3 Menu Options .............................................................................................. 25
3.4 Advanced Menu........................................................................................... 26
3.5 Boot Menu................................................................................................... 33
3.6 Security Menu ............................................................................................. 36
3.7 Chipset Menu .............................................................................................. 37
3.8 Exit Menu .................................................................................................. 38
Appendix A: System Resources ......................................................................... 39
Appendix B: Development Kit........................................................................... 42

User’s Manual
WIN Enterprises, Inc. September, 2012
4
Chapter 1. General Information
1.1 Introduction
MB-63020, is an All-In-One Gaming Board that features the powerful AMD Fusion
computing/ graphics capabilities, VGA + DVI-D display interfaces, complete COMs,
NVRAM, Gaming I/Os, diversify security options, on-board audio power
amplifier, … and more, which results in the best cost/performance you can ever find
in the gaming SBC market. This fanless system with selected AMD T16R or T40R
low-power APUs provides high system reliability. Also featured, the unplugable
72-pin golden finger connector is well suited for most gaming kits and the machine
refurbish market.
1.2 Specifications
■
■ System
CPU AMD® T52R Single Core 1.5GHz
AMD® T16R Single Core 615MHz
BIOS AMI® BIOS
Chipset AMD® A50M chipset
System Memory 1 x DDR3-1066/1333* SODIMM socket support up to 4GB
* T52R SKU support DDR3-1333 memory
Watchdog Timer 255 levels timer interval, (1sec. to 255min.), setup by software.
■
■ Display
Video Chipset AMD® T52R w/ ATI® Radeon™ HD6310
AMD® T16R w/ ATI® Radeon™ HD6250
- Microsoft® DirectX® 11
- OpenGL 4.0
- OpenCL 1.0
- UVD (Universal Video Decoder) 3.0; Full bitstream decoding of
H.264/MPEG-4 AVC, VC-1, DivX, Xvid, MPEG2, as well as Blu-ray 3D
Video Interface T52R SKU: 2560 x 1600 resolution is supported on dual monitors
T16R SKU: 1920 x 1200 resolution is supported on dual monitors
■
■ Audio
Audio Chipset HDA
Power amp. 6W Stereo power amp.

User’s Manual
WIN Enterprises, Inc. September, 2012
5
Audio Interface 2x amplified speaker out through golden finger
■
■ Ethernet
Ethernet Interface One Gigabit Ethernet
■
■ Storage
SSD 1 x CF socket
Or 2GB NANDrive (PATA interface) (optional)
HDD Two SATA connectors
■
■ Security
Physical Security Onboard Storage (optional)
Software Security TPM 1.2 (optional)
FPGA A3P060-FG144
■
■ Gaming
NVRAM On-board battery backuped SRAM 32KB or optional 512KB SRAM
Timers Programmable timer with timeout interrupt
Digital I/O 31 x ESD Protected Input
24 x current sink output
■
■ Expansion
Expansion slot PCI-E x4 (PCI-E x16 slot)
■
■ System I/O
COM 4 x COM
․ COM1 support Full RS-232 (external DB9)
․ COM2 support simple RS-232/ RS-485 (external DB9)
․ COM3 support simple RS-232 (internal pin header)
or cctalk (jumper select)
․ COM4 support simple RS-232 (internal pin header)
USB 6 x USB2.0
- 2 x USB 2.0 port at rear I/O
- 4 x USB 2.0 (pin header)
■
■ Power Supply
Voltage DC 5V & DC12V input from 20-pin Golden finger
■
■ Software
O/S Microsoft® Windows® 7/XP/
WES / WEC and Linux ubuntu
■
■ Mechanical and Environment
Environmental Operating Temperature: 0 – 60 ºC (32 ºF – 140 ºF)
Storage Temperature: -20 – 85 ºC (-4 ºF – 185 ºF)
Relative Humidity: 10-85 % RH, non-condensing
Compliant FCC/CE Class A
Dimension 170mm (L) x 200mm (W)

User’s Manual
WIN Enterprises, Inc. September, 2012
6
(8.7” L x 11.6” W)
■
■ Applications
Main Application Video slot machines
Fruit machines
Video lottery terminals
Amusement game machines
Betting terminal of multiplayer table game or roulette

User’s Manual
WIN Enterprises, Inc. September, 2012
7
1.3 Ordering Information
MB-63020A AMD T52R Single Core 1.5GHz based Gaming Board with VGA, DVI-D, 1x
GbE, 4x COM, USB, SATA, CF, 32KB NVRAM, PCIe slot
MB-63020B AMD T16R Single Core 615MHz based Gaming Board with VGA, 2x COM,
CF, 32KB NVRAM
Optional
DK-MB-63020 Development Kit
- R217AA Gaming I/O testing board
- CB-G00027-00 72 pin golden finger cable of MB-63020 (for CN13)
- CB-JAM002-00 20 pin golden finger power cable of MB-63020 (for
CN20)
- CB-IUSB01-00 Dual port USB cable (for CN7, CN8)
- CB-SATA07-00 SATA cable (for CN15, CN16)
- CB-IPOW65-00 4 pin SATA Power cable (for CN17)
* Note: All specifications are subject to change without prior notice
1.4 Packaging
Please make sure that the following items have been included in the package
before installation.
1. MB-63020 board
2. Quick Installation Guide (Optional)
3. Cables (Optional)
4. CD-ROM that contains the following folders:
(1) Manual
(2) Driver
If any of the above items is missing or damaged, please contact your dealer or
retailer from whom you purchased the MB-63020. Keep the box and carton for
shipping and storing MB-63020. After you unpack the goods, inspect and make
sure the packaging is intact. Do not plug the power adapter into the appliance
of the MB-63020 if you find it appears damaged.
Note: Keep the MB-63020 in the original packaging until you start installation.

User’s Manual
WIN Enterprises, Inc. September, 2012
8
1.5 Precautions
Please make sure you properly ground yourself before handling the MB-63020
board or other system components. Electrostatic discharge can be easily
damage the MB-63020 board.
Do not remove the anti-static packing until you are ready to install the
MB-63020 board.
Ground yourself before removing any system component from its protective
anti-static packaging. To ground yourself, grasp the expansion slot covers or
other unpainted parts of the computer chassis.
Handle the MB-63020 board by its edges and avoid touching the components.

User’s Manual
WIN Enterprises, Inc. September, 2012
9

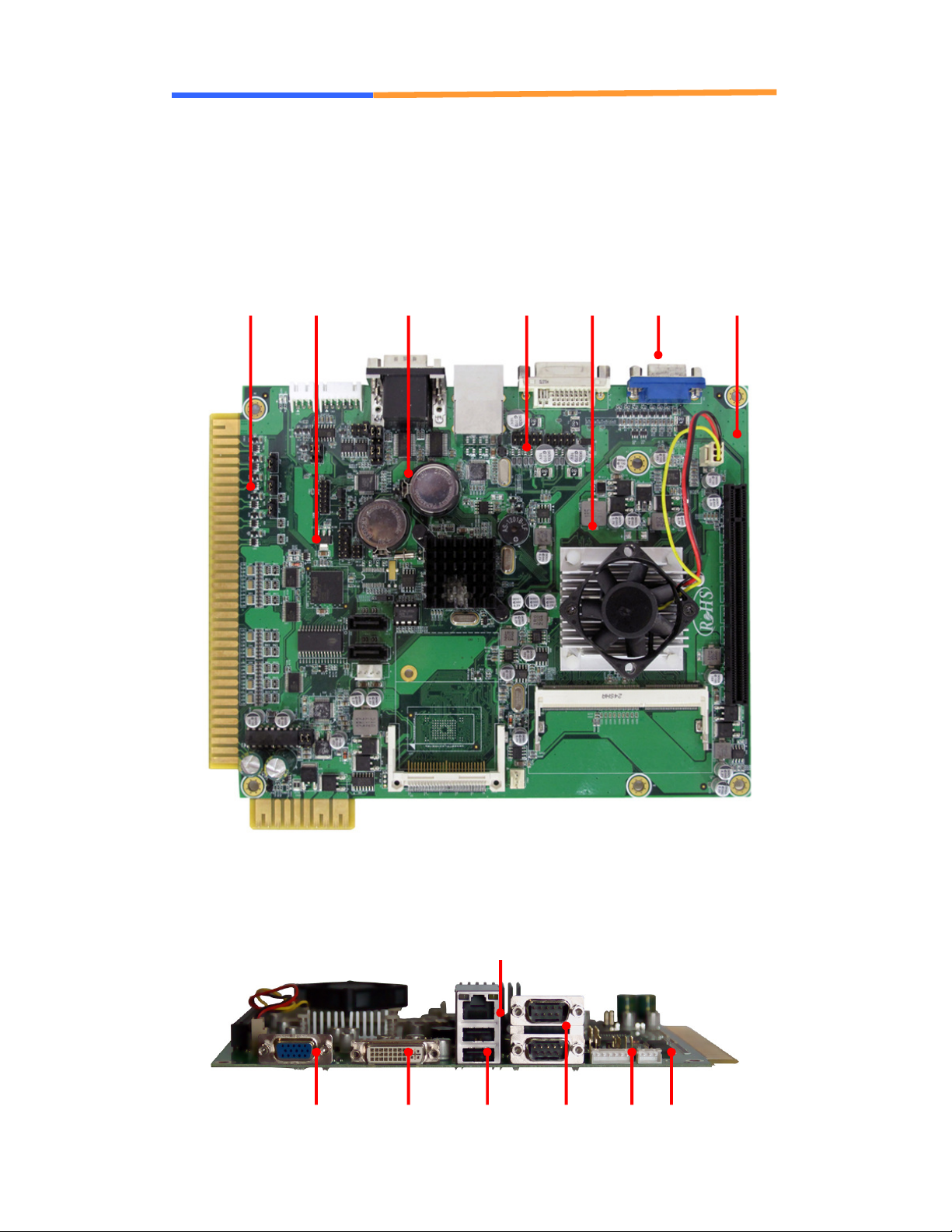

1.6 Board Placement
COM1 & 2 COM3 & 4
DDR3
SO-DIMM
VGA
CPU
DVI
PCI-e x16
slot
CF or 2GB
NANDrive
(optional) SATA
+5V & +12V
DC in
72 Pins
Golden finger
GbE
USB

User’s Manual
WIN Enterprises, Inc. September, 2012
10

User’s Manual
WIN Enterprises, Inc. September, 2012
11

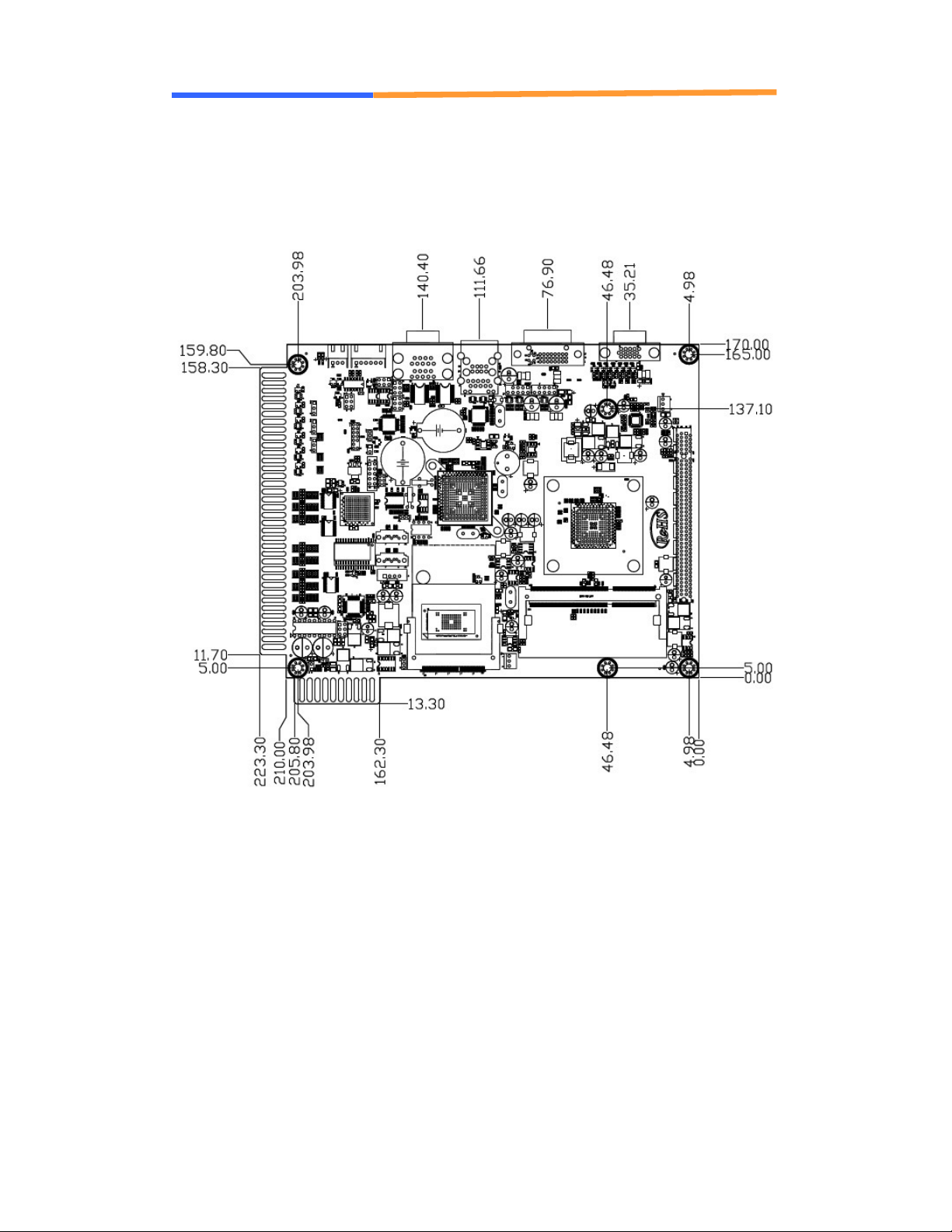

1.7 Board Dimensions

User’s Manual
WIN Enterprises, Inc. September, 2012
12
Chapter 2. Connector/Jumper Configuration
2.1 Connector/Jumper Location and Definitions
Connector:
Connector Define Connector Define
CN1 VGA Connector CN11 FPGA DOWNLOAD PIN
CN2 DVI Connector CN12 FPGA RESERVED
CN3 COM 3 (SIM232&CCTALK) CN13 GOLDEN-FINGER1
CN4 COM 4 (SIM232) CN14 PCI_EXPRESS_X4 (x16 slot)
CN5 COM 1 & 2 Connector CN15 SATA 1 CONNECTOR
CN6 RJ45&USB 0/1 CN16 SATA 2 CONNECTOR
CN7 USB 4/5 PIN HEADER CN17 SATA POWER CONNECTOR
CN8 USB 2/3 PIN HEADER CN18 CF Socket
CN9 SYSTEM FAN CONNECTOR CN19 CPU FAN CONNECTOR
CN10 LPC PIN HEADER CN20 GOLDEN-FINGER2

User’s Manual
WIN Enterprises, Inc. September, 2012
13

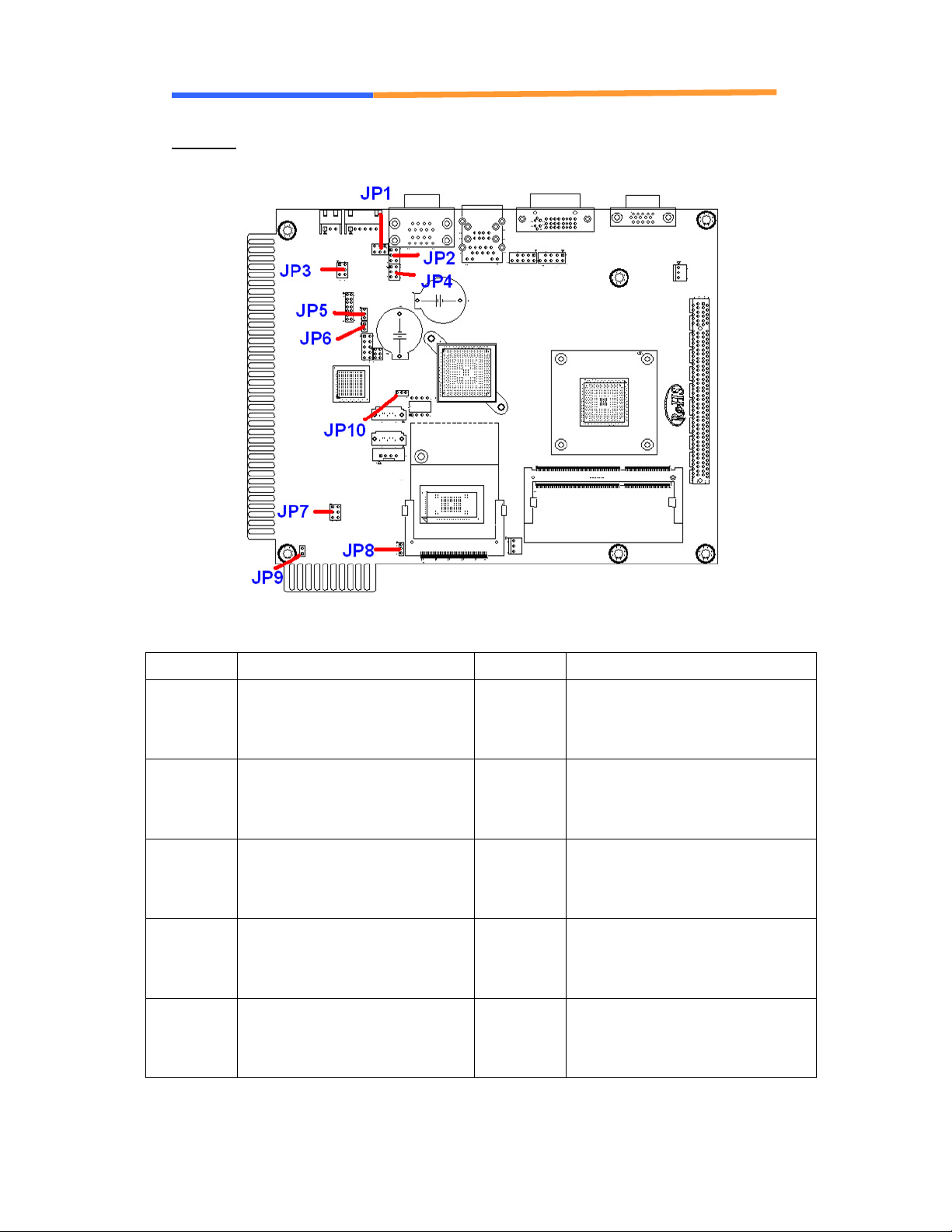

Jumper:
Connector Define Connector Define
JP1 COM2 MODE SELECT
(1-2: RS232 ; 3-4: RS485 4-Wire ;
5-6: RS485 2-Wire)
JP6 FPGA RESERVED
JP2 COM2 MODE SELECT
(1-3short 2-4short: RS232 ; 3-5
short4-6 short: RS485)
JP7 AUDIO ON/OFF
(1-3short 2-4short: Audio ON;
3-5short 4-6short: Audio OFF)
JP3 COM3 MODE SELECT
(1-3short 2-4short: SIM232;
3-5short 4-6short: CCTALK)
JP8 NANDrive_WP_N(1-2:ON 2-3:OFF)
JP4 COM2 MODE SELECT
(1-3short 2-4short : RS232 ;
3-5short 4-6short : RS485)
JP9 RESET
JP5 Clear CMOS
(1-2: Hold CMOS; 2-3: Clear
CMOS)
JP10 EEPROM_WP_N (1-2:ON 2-3OFF)

User’s Manual
WIN Enterprises, Inc. September, 2012
14
2.2 Connector and Jumper Setting
CN1: VGA pin header
Pin Define Pin Define
1
RED
2
GREEN
3
BLUE
4
NC
5
Ground
6
Ground
7
Ground
8
Ground
9
+5V
10
Ground
11
NC
12
SDA
13
HSYNC
14
VSYNC
15
SCL
CN2: DVI Connector (DVI-D)
CN3A
DUAL DVI-I
TMDS Data2-
CK1
TMDS Data2+
CK2
TMDS Data2/4 Shield
CK3
TMDS Data4-
CK4
TMDS Data4+
CK5
DDC Clock
CK6
DDC Data
CK7
A VSY NC
CK8
TMDS Data1-
CK9
TMDS Data1+
CK10
TMDS Data1/3 Shield
CK11
TMDS Data3-
CK12
TMDS Data3+
CK13
+5V Power
CK14
GND(f or +5V)
CK15
Hot Plug Detct
CK16
TMDS Data0-
CK17
TMDS Data0+
CK18
TMDS Data0/5 Shield
CK19
TMDS Data5-
CK20
TMDS Data5+
CK21
TMDS Clock Shield
CK22
TMDS Clock+
CK23
TMDS Clock-
CK24
RED
C1
GREEN
C2
BLUE
C3
A HSYNC
C4
AGND
C5
CASE1
M1
CASE2
M2

User’s Manual
WIN Enterprises, Inc. September, 2012
15
Pin Define Pin Define
M1
CASE GND
M2
CASE GND
CK1
DP0_TX0_N
CK2
DP0_TX0_P
CK3
GND
CK4
-
CK5
-
CK6
DP0_AUX_P
CK7
DP0_AUX_N
CK8
-
CK9
DP0_TX1_N
CK10
DP0_TX1_P
CK11
GND
CK12
-
CK13
-
CK14
+5V
CK15
GND
CK16
DVID_HPD
CK17
DP0_TX2_N
CK18
DP0_TX2_P
CK19
GND
CK20
-
CK21
-
CK22
GND
CK23
DP0_TX3_N
CK24
DP0_TX3_P
CN3 : COM3
Pin Define
1 +12V
2 CCTALK
3 GND
4 SOUT
5 SIN
6 GND
CN4 : COM4
Pin Define
1 SOUT
2 SIN
3 GND

User’s Manual
WIN Enterprises, Inc. September, 2012
16
CN5:COM1 and COM2 Jack
Pin Signal Pin Signal
A1 DCD B1 DCD
A2 RXD B2 RXD
A3 TXD B3 TXD
A4 DTR B4 DTR
A5 Ground B5 Ground
A6 DSR B6 DSR
A7 RTS B7 RTS
A8 CTS B8 CTS
A9 R1 B9 R1
CN6:USB and 100/10 LAN RJ45 Jack
Pin Sig nal Pin Signa l
1 5VUSB0 1 TX+
2 USBDT0- 2 TX-
3 USBDT0+ 3 N/C
4 Ground 4 Ground
5 5VUSB0 5 Ground
6 USBDT1- 6 N/C
7 USBDT1+ 7 RX+
8 Ground 8 RX-

User’s Manual
WIN Enterprises, Inc. September, 2012
17
CN7 & CN8: USB pin header
Pin Define Pin Define
1 +5V 2 +5V
3 P0DATA- 4 P1DATA-
5 P0DATA+ 6 P1DATA+
7 GND 8 GND
9 Reserved 10 GND
CN9: SYSTEM FAN Connector
Pin Define
1 Ground
2 +12V
3 NC

User’s Manual
WIN Enterprises, Inc. September, 2012
18
CN10: LPC Connector
Pin Define Pin Define
1 +3.3V 2 AD 0
3 AD 1 4 AD 2
5 AD 3 6 Frame#
7 PCIERST# 8 +5V
9 CLOCK 10 PME#
11 GND 12
13 SERIRQ 14 LDRQ
CN11: FPGA Update Pin Header
CN17
Pin Header 2*5(2.54mm)
1 2
3
5 6
7 8
9 10
Pin Define Pin Define
1 TCK 2 GND
3 TDO 4 NC
5 TMS 6 VJTAG
7 VPUMP 8 TRST
9 TDI 10 GND

User’s Manual
WIN Enterprises, Inc. September, 2012
19
CN12 : FPGA Reserved
CN13: 72-pin Golden Finger Pin Definition (PCB & Edge Connector)
Solder (Bottom) Side Component (Top) Side
Golden Finger
Golden Finger Golden Finger
Golden Finger
Pin#
Pin#Pin#
Pin#
Edge Conn.
Edge Conn.Edge Conn.
Edge Conn.
Pin #
Pin #Pin #
Pin #
Signal Name
Golden Finger
Golden Finger Golden Finger
Golden Finger
Pin#
Pin#Pin#
Pin#
Edge Conn.
Edge Conn.Edge Conn.
Edge Conn.
Pin #
Pin #Pin #
Pin #
Signal Name
B36/A A GND A36/1 1 GND
B35/B B SPEAKER - A35/2 2 SPEAKER + (R)
B34/C C SPEAKER - A34/3 3 SPEAKER + (L)
B33/D D IN19 A33/4 4 IN0
B32/E E IN20 A32/5 5 IN1
B31/F F IN21 A31/6 6 IN2
B30/H H IN22 A30/7 7 IN3
B29/J J IN23 A29/8 8 IN4
B28/K K IN24 A28/9 9 IN5
B27/L L IN25 A27/10 10 IN6
B26/M M Nc A26/11 11 IN7
B25/N N Nc A25/12 12 IN8
B24/P P Nc A24/13 13 IN9
B23/R R Nc A23/14 14 IN10
B22/S S Nc A22/15 15 IN11
B21/T T Nc A21/16 16 IN12
B20/U U IN26 A20/17 17 IN13
B19/V V IN27 A19/18 18 IN14
B18/W W IN28 A18/19 19 IN15
B17/X X IN29 A17/20 20 IN16
B16/Y Y IN30 A16/21 21 IN17
B15/Z Z IN31 A15/22 22 IN18
B14/a a OUT12 A14/23 23 OUT0
B13/b b OUT13 A13/24 24 OUT1
B12/c c OUT14 A12/25 25 OUT2
B11/d d OUT15 A11/26 26 OUT3

User’s Manual
WIN Enterprises, Inc. September, 2012
20
B10/e e OUT16 A10/27 27 OUT4
B9/f f OUT17 A9/28 28 OUT5
B8/h h OUT18 A8/29 29 OUT6
B7/j j OUT19 A7/30 30 OUT7
B6/k k OUT20 A6/31 31 OUT8
B5/l l OUT21 A5/32 32 OUT9
B4/m m OUT22 A4/33 33 OUT10
B3/n n OUT23 A3/34 34
OUT11
(ULN2803)
B2/p p GND A2/35 35 GND
B1/r r GND A1/36 36 GND
CN14 : PCI_Expressx16
CN15 & CN16 SATA Connector
Pin Define
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
