WIN Enterprises MB-73320 User manual

WIN Enterprises, Inc. MB-73320 User Manual
1
User Manual
Ver. Release Date Update
1.0V 2013.11.19 Release
1.1V 2014.01.09
1.2V 2014.04.23 1. Packing Change: CPU cooling Fan change to copper type
2. Update GPIO Pin define
MB-73320
Mini-ITX with on oard Intel® 4th generation Core™ i7/i5/i3/Celeron Mo ile
processor, Intel® QM87 chipset, DDR3 up to 16GB, 2 x Intel® Giga LAN,
HDMI, DVI, VGA & LVDS, 4 x SATA, 10 x USB, 6 x COM, GPIO, HD Audio,
PCI-Express X16 & X1 slots, 2 x Mini-PCIe, DC 8V ~ 32V input

WIN Enterprises, Inc. MB-73320 User Manual
2
Copyright
Trademark
Limitation of liability
The content of this document and software with this product are copyrighted by WIN
Enterprises, Inc.
This document contains proprietary information protected by copyright. All rights are
reserved; no part of this manual may be reproduced, copied, translated or transmitted
in any form or by any means without prior written permission of the manufacturer.
The content of this document is intended to be accurate and reliable; the original
manufacturer assumes no responsibility for any inaccuracies that may be contained in
this manual. The original manufacturer reserves the right to make improvements to the
products described in this manual at any time without prior notice
All other product names mentioned herein are used for identification purpose only and
may be trademarks and/or registered trademarks of their respective companies.
While reasonable efforts have been made to ensure the accuracy of this document, the
manufacturer and distributor assume no liability resulting from errors or omissions in
this document or from the use of the information contained herein.
For more information or other WIN Enterprises products, please visit our website
http://www.win-ent.com.
For technical support send inquiries to [email protected].

WIN Enterprises, Inc. MB-73320 User Manual
3
acking list
Before using this product make sure that the following materials have been shipped.
1 x MB-73320 board
1 x SATA cable, L/ 200mm
1 x 12V/5V SATA power cable , L/ 150mm
1 x CPU cooling Fan
1 x CD Driver Utility
( p/n: CB-SATA11-00 )
( p/n: CB-IPOW41-00 )
( p/n: CB-F00075-00 )
* If any items are missing or damaged contact sales representative or distributor
p/n: CB-SATA11-00 p/n: CB-IPOW41-00 p/n: CB-F00075-00
Model Name Description
MB-7332A Mini-ITX w/ i7-4700EQ, 2 GLAN,HDMI/DVI/VGA/LVDS, COM, USB,
Mini-PCIe socket, 4 SATA, 8V ~ 32V DC input, PCIe X16 slot
MB-7332B Mini-ITX w/ i5-4400E , 2 GLAN,HDMI/DVI/VGA/LVDS, COM, USB,
Mini-PCIe socket, 4 SATA, 8V ~ 32V DC input, PCIe X16 slot
MB-7332C Mini-ITX w/ i3-4100E , 2 GLAN,HDMI/DVI/VGA/LVDS, COM, USB,
Mini-PCIe socket, 4 SATA, 8V ~ 32V DC input, PCIe X16 slot
MB-7332D Mini-ITX w/ Celeron 2000E , 2 GLAN,HDMI/DVI/VGA/LVDS, COM
Mini-PCIe socket, 4 SATA, 8V ~ 32V DC input, PCIe X16 slot
MB-7332E Same as MB-7332A, but comes with PCIe X16 & PCIe X1 slots
MB-7332F Same as MB-7332B, but comes with PCIe X16 & PCIe X1 slots
MB-7332G Same as MB-7332C, but comes with PCIe X16 & PCIe X1 slots
MB-7332H Same as MB-7332D, but comes with PCIe X16 & PCIe X1 slots

WIN Enterprises, Inc. MB-73320 User Manual
4
Optional Accessory
Photo Model Name
P/N:
IP-S01
PCIe riser card support 1 x PCIe X16 & 1 x PCI slots
Note: Works with MB-7332E through H Series only
P/N:
IP-S02
PCIe riser card support 2 x PCI slots
Note: Works with MB-7332E though H Series only
P/N:
IP-S03
PCIe riser card support 1 x PCIe X16 & 1 x PCIe X1 slots
Note: Works with with MB-7332E though H Series only
P/N:
CB-ICOM38-00
Dual D-Sub 9-pin COM port card, L/ 250mm, with bracket
P/N:
CB-IUSB07-AA
Dual USB cable, L/ 250mm, with bracket
P/N:
CB-IPOW102-00
P4 4-pin to DC Jack lockable power cable, L/ 200mm

WIN Enterprises, Inc. MB-73320 User Manual
5
Safety Information
Operational Safety
To prevent electrical shock hazard disconnect the power cable from the electrical
outlet before relocating the system.
When adding or removing devices to or from the system ensure the power cables for
the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.
Before connecting or removing signal cables from the motherboard, ensure that all
power cables are unplugged.
Seek professional assistance before using an adapter or extension cord. These
devices could interrupt the grounding circuit.
Make sure that your power supply is set to the correct voltage for your area.
If you are not sure about the voltage of the electrical outlet you are using contact your
local power company.
If the power supply is broken do not try to fix it by yourself. Contact a qualified service
technician or your retailer.
Before installing the motherboard and adding devices to it carefully read all the
manuals that came with the package.
Before using the product make sure all cables are correctly connected and the power
cables are not damaged. If you detect any damage, contact your dealer immediately.
To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
Avoid dust, humidity, and temperature extremes. Do not place the product in areas
where it may become wet.
Place the product on a stable surface.
If you encounter technical problems with the product contact a qualified service
technician or your retailer.

WIN Enterprises, Inc. MB-73320 User Manual
6
Contents
Chapter 1
General Information ……………………………………….5
1.1 Introduction …………………………………………..……………………...8
1.2 Specifications …………………………………………………..………..…...9
1.3 Block Diagram …………………………………………….…….….............11
1.4 Board Layout Dimensions ……………………………………….……………..12
1.5 IO / Connector ………………………………………………………………….14
Hardware installation …………………………………….16
2.1 Location of onboard connectors ..………………..………………….16
2.2 Location of onboard jumpers ………………………………………...18
2.3 Function list of onboard jumper settings ……………………………19
2.3.1 JP1 for Clean CMOS jumper ……………………………………….…...19
2.3.2 JP3 for Power AT/ATX mode selection …………………………..……20
2.3.3 JP4 for LVDS voltage select ………………………………………..……21
2.3.4 JP4 for LVDS brightness control mode..…………………………..……22
2.4 Pin definitions of onboard pin header ………………………….……......23
2.4.1 CN1 for Low Pin Count pin-header …………………………..…...........23
2.4.2 CN4 for 8-bit GPIO pin header ………..…….…………………..….......24
2.4.3 CN5 & CN6 for DC out for HDD power …………………………........25
2.4.4 CN7 & CN8 for USB2.0 pin-header ………………........……………..26
2.4.5 CN9 & CN10 for SATA 3.0/2.0 connector ………………………………27
2.4.6 CN11 for SPI programmer pin-header ……………................................. 28
2.4.7 CN12 for PCI-Express X1 slot...............................................................29
2.4.8 CN14 for COM4, RS232 pin-header ......................................................30
2.4.9 CN16 for front panel pin-header .......................................... 31
2.4.10 CN19 for COM3, RS232 pin-header .......................................................32
2.4.11 CN21 for COM2, RS232/422/485 …………......................................... 33
2.4.12 CN22 for Half-size Mini-PCIe WLAN LED indictor ..................................35
2.4.13 CN23 for Full-size Mini-PCIe WLAN LED indictor................................... 36
2.4.14 CN25 for Full-size Mini-PCIe socket ......................................................37
Chapter 2

WIN Enterprises, Inc. MB-73320 User Manual
7
Chapter 3
rogramming WDT & G IO ………………………..47
3.1 GPIO DOS sample code ............……………………..……………...…..…47
3.2 WatchDog timer DOS sample code .…………………… ..……….…..…...54
2.4.15 CN26 for Half-size Mini-PCIe sockets ......................................................38
2.4.16 CN27 for SIM holder ………......................................................................39
2.4.17 CN28 for Internal P4 4-pin power input connector ....................................40
2.4.18 CN29 for 4-channel Audio inputs …………….. .........................................41
2.4.19 CN30 for 4-channel Video inputs...............................................................42
2.4.20 CN39 for 24-bit dual channel LVDS connector …………...........................43
2.4.21 CN40 for LVDS backlight pin-header ........................................................45
2.4.22 CPU fan connector & System Fan connector ...........................................46

WIN Enterprises, Inc. MB-73320 User Manual
8
1.1 Introduction
MB-73320 is a Mini-ITX board with onboard Intel® Haswell Mobile CPU with integrated Intel® QM87
Express chipset. Onboard display features include HDMI, DVI-D, VGA and 24-bit dual channel LVDS
and two DDR3 SO-DIMM supports a maximum of 16GB DDR3 1600 of system memory.
MB-73320 delivers flexible expansion slots allowing customers to install one PCIe X16 card and two
Mini-PCIe cards. It is built with a SIM card holder capable of installing a SIM card with a Full-size
Mini-PCIe 3G module for wireless connection. For half-size Mini-PCIe socket it also supports mSATA
SSD as storage device (Optional). Furthermore, it comes with a PCIe X1 slot that can be paired with
WIN’s riser card for an additional 1 ~ 3 PCI slots for various applications.
On the I/O ports, the MB-73320 provides plenty of connectivity. 1x Intel® i211AT GbE LAN and 1x Intel®
i217LM controller, 1x RS232/422/485 & 5x RS232, 4x USB3.0 + 6x USB2.0, HD Audio, PS/2
Keyboard/Mouse, 4x SATA with RAID 0/1/5/10 and a LPC pin-header supporting WIN’s TPM module for
the added information protection. The MB-73320 accepts a wide range 8V ~ 32V DC input suitable for a
variety of applications in digital signage, industrial systems, Military, POS, kiosks, and factory
automation.
About WIN Enterprises
WIN offers reliable and solid products which are produced under Management System Standards:
ISO9001-2000 Certificate. The certificate keeps us focused on our quality objectives of management and
environmental production. Its willingness to customize standard products for meet unique customer needs
makes WIN different. All ODM projects are welcome. Years of experiences enables WIN to fulfill the
customer’s vision, by delivering products to exact specifications. The WIN R&D team is proud of its strong
engineering background. R&D professionals account for 25% of the WIN workforce. We focus on
developing new products for both emerging and established markets
For more information about OEM/ODM projects contact us :
Email: [e-mail] TEL: [phone]

WIN Enterprises, Inc. MB-73320 User Manual
9
1.2 Specifications
System
Form Factor
Mini-ITX motherboard
CPU
Intel® Core™ i7-4700EQ, 2.4 GHz, Qual-Core / 6M L2, TDP 47W (MB-7332A
)
Intel® Core™ i5-4400E, 2.7 GHz, Dual-Core / 3M L2, TDP 37W (MB-7332A
)
Intel® Core™ i3-4100E , 2.4 GHz, Dual-Core / 3M L2, TDP 35W (MB-7332A
)
Chipset
Intel QM87 Express chipset
Memory
2 x 204-pin DDR3 1333/1600 MHz / SODIMM up to 16GB, w/o ECC support
BIOS
AMI SPI BIOS
SSD
Half-size Mini-PCIe socket support mSATA SSD
Watchdog timer
255 levels, 1 ~ 255 sec
Expansion
1 x PCIe X16 slot
1 x PCIe X1 ( work with riser card for PCIe X1 or PCI 32-bit/33 MHz expansion slots
)
1 x Full-size Mini-PCIe socket w/ USB, PCIe signal
1 x Half-size Mini-PCIe socket w/ USB, PCIe or SATA signal
Board Size
170mm x 170mm
Operating Temp.
0°C~60°C (32°F~140°F)
Storage Temp.
.-20°C~80°C (-4°F~176°F)
Operating Hum.
10%~90% (non-condensing)
Display Features
Chipset
Intel® Haswell processor, integrated
Display interface
1x external HDMI 1.4a
1x external VGA
1x external DVI-D
1x internal 24-bit Dual Channel LVDS
I/O
Series Port
Internal : 1x RS232/422/485 ( COM2 ), 4x RS232
External : 1x RS232
SATA
4x SATA 6Gb/s, w/ RAID 0/1/5/10
USB
External : 4x USB3.0 + 2 x USB2.0
Internal : 4x USB2.0
Ethernet
1x Intel® i211AT
PCIe controller
1x Intel® i217LM PHY support Intel® AMT 9.0
Audio
External : Line-in/out , Mic-in
Internal : Line-out , Mic-in
Digital I/O
8-bit GPIO interface

WIN Enterprises, Inc. MB-73320 User Manual
10
LPC
1x LPC 2 x 10-pin header for Optional TPM module
Other
2
x cooling Fan header ( Smart fan support ) , 1 x PS/2 keyboard/Mouse
1x Front Panel header for power on/off, reset, HDD/power LED indicator
1x LVDS Backlight/inverter pin-header
Power
Power in
Wide range DC 8V ~ 32V input ( AT/ATX mode select by jumper )
Connector
1x internal P4 4-pin power connector
Note: Specifications and photos su ject to change without notice

WIN Enterprises, Inc. MB-73320 User Manual
11

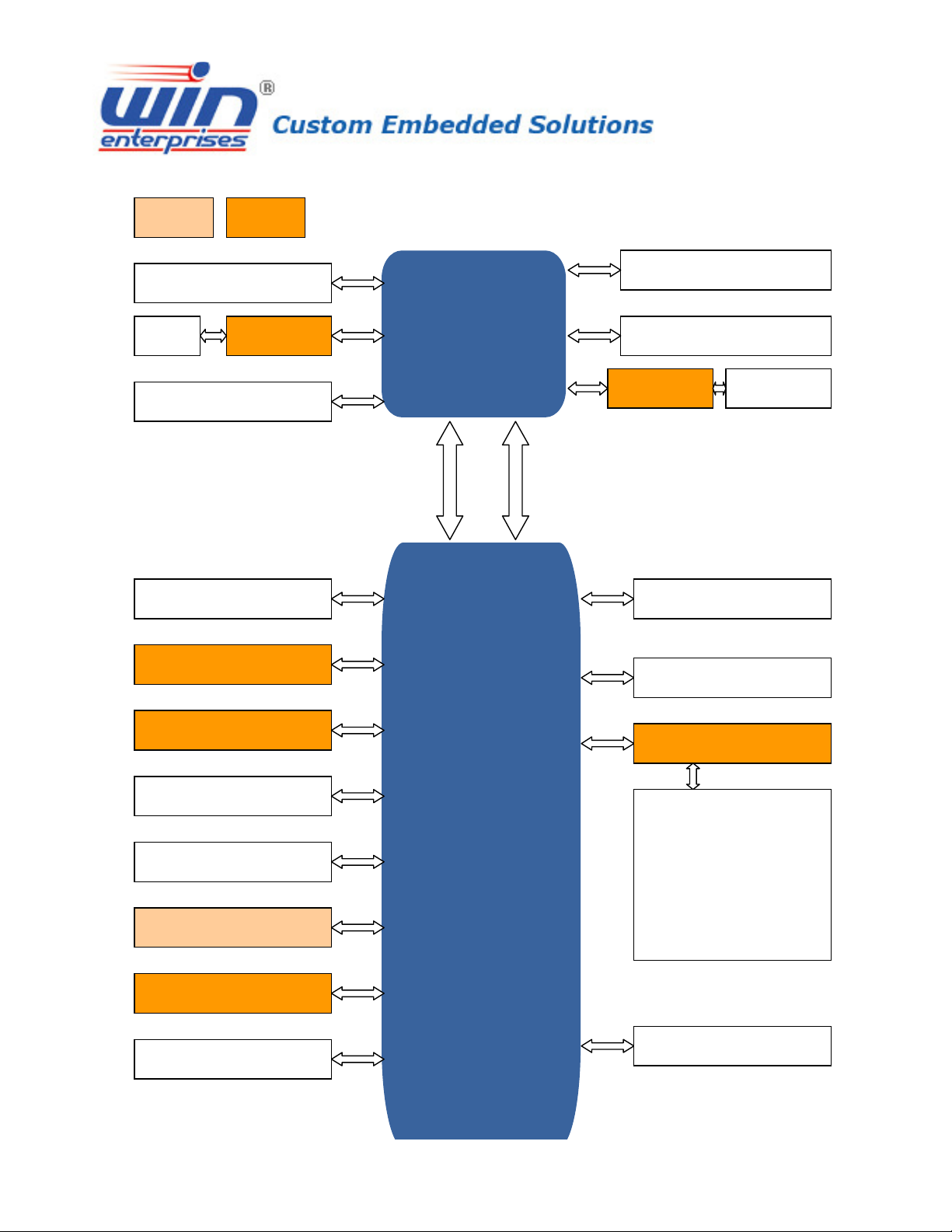

1.3 Block Diagram
4
th
Intel® Haswell Mobile
Core™ i7/i5/i3
PCI-Express X16 slot 1 x DDR3 204-pin SO-DIMM
PCIe
DDR
1 x DDR3 204-pin SO-DIMM
DDR
X4 FDIX4 DMI
Intel® QM87
Express Chipset
Level Shifter
DDI
HDMI
DDI
DVI-D
VGA
VGA
24-bit LVDS
eDP
Intel® I217LM GLAN
PCIe
Intel® I211AT GLAN
PCIe
PCI-Express X1 slot
PCIe
4 x USB3.0 + 6 x USB2.0
USB
PCIe
& USB
Full-size Mini-PCIe
SATA / PCIe
& USB
Half-size Mini-PCIe
LPC
F81866A Super I/O
Watch Dog Timer
H/W Monitor
PS2 Keyboard / Mouse
8-bit GPIO 1
x RS232/422/485
5 x RS232
HDA
ALC886-GR
4 x SATA3
SATA
SPI
SMbus
BIOS
1 x SMbus pin header
Optional Chip / IC
DP to LVDS

WIN Enterprises, Inc. MB-73320 User Manual
12
1.4 Board Layout Dimensions

WIN Enterprises, Inc. MB-73320 User Manual
13

WIN Enterprises, Inc. MB-73320 User Manual
14
1.5 IO ports
Intel® Core i7/i5/i3
Processor
Intel® QM87
SATA3LPC
DDR3 SO-DIMMSATA3
Audio
GLAN + USB3.0
GLAN + USB3.0
VGA + DVI-D
COM + HDMI
PS2 Key/Mouse + USB2.0
DC 8V ~ 32V In
CPU Fan connector
Half-size Mini-PCIe
SIM card holder
PCI-Express X16
Full-size Mini-PCIe
RS232/422/485
24-bit Dual-CH LVDS
RS232
RS232
Dual USB2.0
GPIO
RS232
SPI Flash
Front audio
Front Panel

WIN Enterprises, Inc. MB-73320 User Manual
15

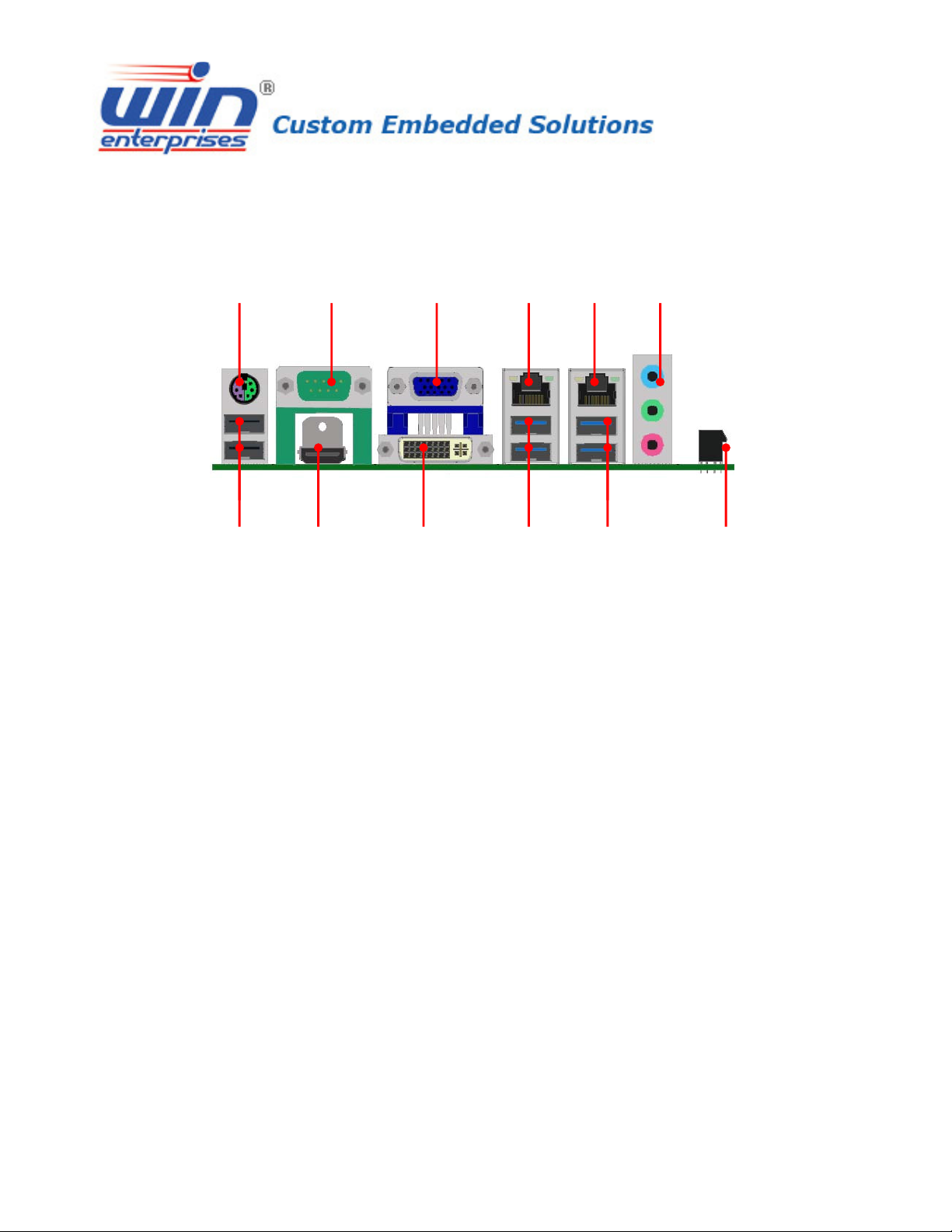

PS2 Key/Mouse RS232 VGA GLAN GLAN Audio
Dual USB2.0 HDMI DVI-D Dual USB3.0 Dual USB3.0 PCIe X16 slot

WIN Enterprises, Inc. MB-73320 User Manual
16

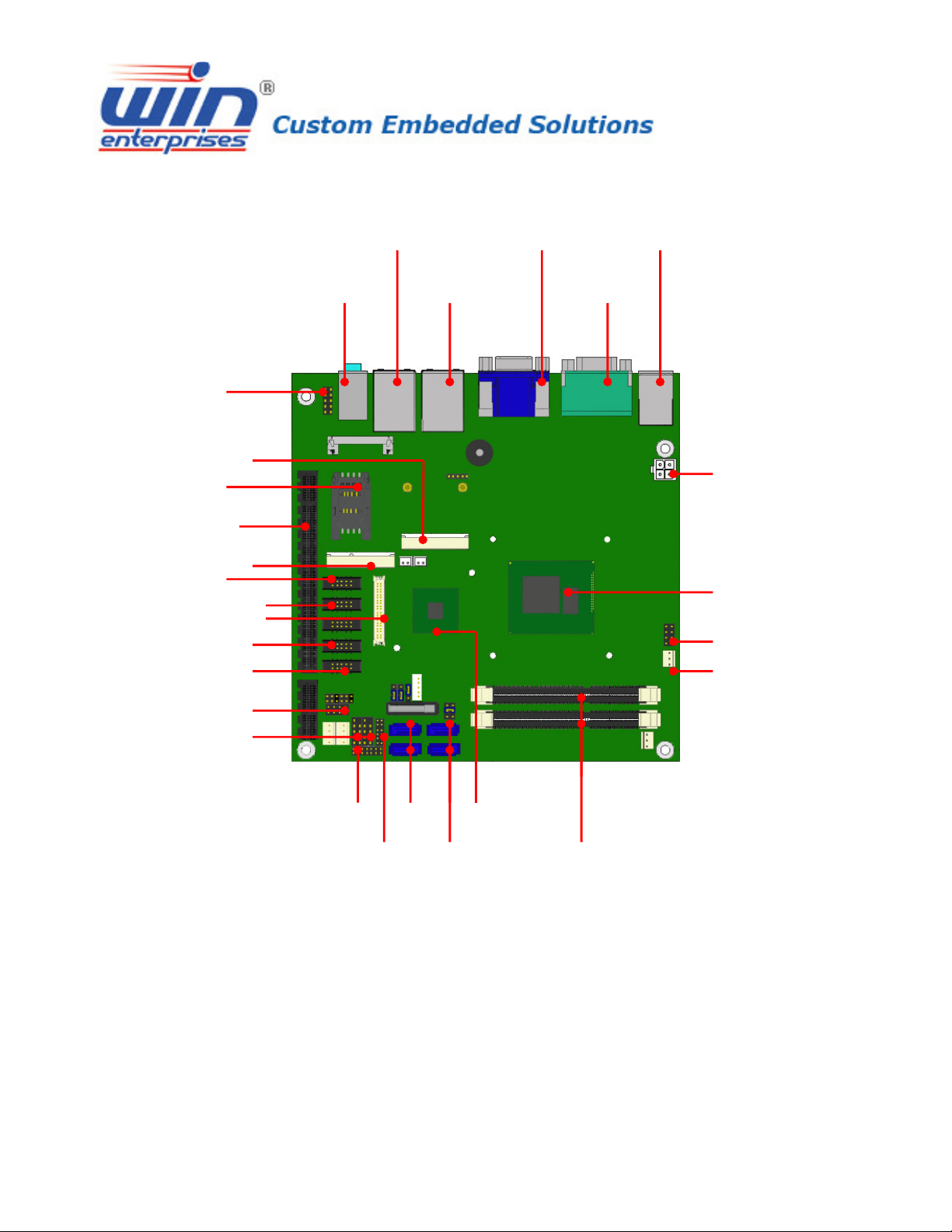

2.1 The location of on oard connectors
CN37 CN33 CN34 CN35 CN31
CN4
CN5
CN32 CN30 CN29
CN27
Sys Fan
C U Fan
CN26
CN25
CN22
CN20
CN16
CN18
CN15
CN13
CN19
CN17
CN14
CN8
CN1
CN7
CN6
CN10
CN3
CN9
CN11
CN12
CN23
CN24
CN28
CN2
CN38

WIN Enterprises, Inc. MB-73320 User Manual
17
Label Function
CN1 Low Pin Count
CN2 SATA3
CN3 SATA3
CN4 SATA power
CN5 SATA power
CN6 GPIO
CN7 USB 2.0 Pin header
CN8 USB 2.0 Pin header
CN9 SATA3
CN10 SATA3
CN11 SPI Programmer
CN12 PCI-Express X1 slot
CN13 Power on/off, Reset, HDD/Power LED
CN14 LVDS backlight inverter
CN15 COM4
CN16 COM3
CN17 COM5
CN18 24-bit LVDS
CN19 COM6
CN20 COM2
CN21 PCI-Express X16 slot
Label Function
CN22 Half-size Mini-PCIe LED
CN23 Full-size Mini-PCIe LED
CN24 Full-size Mini-PCIe socket
CN25 Half-size Mini-PCIe socket
CN26 SIM card holder
CN27 SMBUS pin header
CN28 P4 4-pin power input connector
CN29 RJ45 LAN + Dual USB 3.0
CN30 RJ45 LAN + Dual USB 3.0
CN31 PS2 keyboard/mouse + Dual USB 2.0
CN32 Audio jack
CN33 VGA connector
CN34 COM1
CN35 HDMI connector
CN36 N/C
CN37 DVI-D connector
CN38 Front Audio header
CN39 N/C
CN40 N/C
CN41 N/C
CN42 N/C

WIN Enterprises, Inc. MB-73320 User Manual
18
2.2 The location of on oard jumpers
Label Function
JP1 Panel Voltage ( VCC ) select
JP2 COM3 Pin-9 select mode ( RI/5V/12V )
JP3 COM4 Pin-9 select mode ( RI/5V/12V )
JP4 LVDS backlight control mode select
JP5 CMOS Clear jumper
JP6 AT/ATX power mode jumper select
J 6
J 1 J 4 J 2
J 5
J 3

WIN Enterprises, Inc. MB-73320 User Manual
19
2.3 The function list of on oard jumpers setting
-2.3.1 : JP1 for Panel Voltage select
J 1
1 2
JP1
Closed Pin Result
1-2 * +3.3V
3-4 +5V
5-6 +12V
* Default setting
5 6

WIN Enterprises, Inc. MB-73320 User Manual
20
-2.3.2: JP2 for COM3 ox header Pin-8 function select
J 2
1
2
JP2
Closed Pin Result
1-2 * RI
3-4 +5V
5-6 +12V
* Default setting
5
6
