Windsor ADMIRAL ADM8IA - 10080010 User manual

Read these instructions before operating the machine
Lire ce manuel avant d’utiliser la machine
Bitte lesen Sie diese Anleitungen, bevor Sie die Maschine in Gebrauch nehmen
MODEL: COUNTRY
ADM8IA - 10080010 AUSTRALIA
ADM8IB - 10080020 BRITIAN
ADM8IE - 10080030 EUROPE
ADM8IS - 10080040 SWITZERLAND
Operating Instructions (GB/USA)
Manuel d’utilisation (FRE)
Bedienungsanleitung (GER)
86038270 10/12/07
PRV NO. 98655
AJ
CARPET EXTRACTOR
IPX4

TABLE OF CONTENTS
ADMIRAL 86038270 05/22/07
1
Data Log/Table of Contents..............1
Safety Instructions............................2
Controls ............................................3-5
Operations........................................6-11
Troubleshooting................................12
Blank Page .......................................13
Wiring Diagram.................................14
Maintenance..................................... 15-17
Technical Specifications................... 18
Parts Lists......................................... 19-34
Spare Parts/Notes............................ 35
EC Declaration of Conformity........... 36
INSPECTION
Carefully unpack and inspect your machine for shipping damage. Each unit is operated and thoroughly inspected
before shipping, and any damage is the responsibility of the carrier, who should be notified immediately.
MODEL
DATE OF PURCHASE
SERIAL NUMBER
SALES REPRESENTATIVE #
DEALER NAME

SAFETY INSTRUCTIONS
ADMIRAL 86038270 05/22/07 2
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
This machine is for commercial use.
To reduce the risk of fire, electric shock, or injury:
Connect to a properly grounded outlet.
Do not leave the machine unattended. Unplug machine from outlet when not in use and before
maintenance or service.
Use only indoors. Do not use outdoors or expose to rain.
Do not allow machine to be used as a toy. Close attention is necessary when used by or near
children.
Use only as described in this manual. Use only manufacturer’s recommended components and
attachments.
Do not use damaged electrical cord or plug. Follow all instructions in this manual concerning grounding
the machine. If the machine is not working properly, has been dropped, damaged, left outdoors, or
dropped into water, return it to an authorized service center.
Do not pull or carry machine by electrical cord, use as a handle, close a door on cord, or pull cord
around sharp edges or corners.
Do not run machine over cord. Keep cord away from heated surfaces.
Do not unplug machine by pulling on cord. To unplug, grasp the electrical plug, not the electrical cord.
Do not handle the electrical plug or machine with wet hands.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce
airflow.
This machine is intended for cleaning carpet only.
Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
This machine is not suitable for picking up health endangering dust.
Turn off all controls before unplugging.
Machine can cause a fire when operating near flammable vapors or materials. Do not operate this
machine near flammable fluids, dust or vapors.
This machine is suitable for commercial use, for example in hotels, schools, hospitals,
factories, shops and offices for more than normal housekeeping purposes.
Maintenance and repairs must be done by qualified personnel.
If foam or liquid comes out of machine, switch off immediately.
SAVE THESE INSTRUCTIONS
!
WARNING:

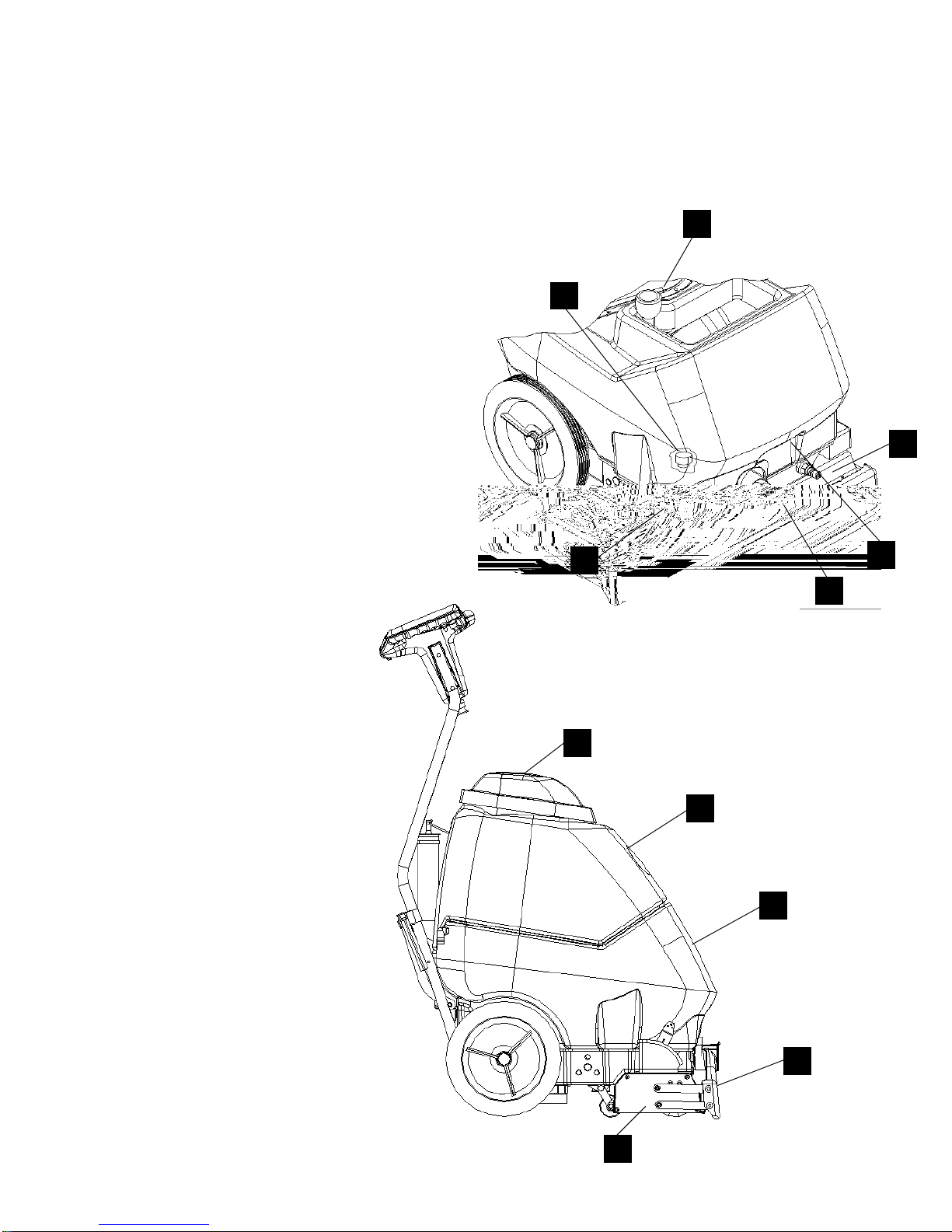

CONTROLS/COMPONENT LOCATIONS
ADMIRAL 86038270 05/22/07
3
1. Main Handle. Used to pull and maneuver
machine.
2. Handle Adjustment. Used to adjust height of
handle.
3. Electrical Cord.
4. Solution Switch. Turns on pump. Continuous
position (bottom) activates electro-valve to
dispense solution to floor through jets.
Intermittent position (up) requires operator to
depress 1 of 3 trigger switches to dispense
solution. Center position is off.
5. Brush Motor Switch. Turns on brush motor.
6. Vacuum Motor Switch. Turns on vacuum
motor.
7. Trigger Switches. Activates electro-valve to
dispense solution to floor through jets when
solution switch is in the intermittent position.
8. Brush Motor Circuit Breaker. 4 amp.
Breaker protecting brush motor.
9. Vacuum Motor Circuit Breaker. 7 amp.
Breaker protecting vacuum motor.
10. Recovery Dump Hose. Facilitates draining
dirty cleaning solution.
11. Solution Dump Hose. Facilitates draining
excess cleaning solution from solution tank.
3
1
10
11
2
5
8 9 4 6
7

CONTROLS/COMPONENT LOCATIONS
ADMIRAL 86038270 05/22/07
4
1. Solution Accessory Tool Hookup. Used
for various auxiliary cleaning tools.
2. Vacuum Hose Door. Used to connect
various auxiliary 1 ½ inch cleaning tool
vacuum hoses.
3. Brush Height Adjustment. Used to
regulate brush height from storage position
to various carpet heights.
4. Recovery Tank. Used to collect dirty
cleaning solution.
5. Solution Tank. Used to hold cleaning
solution.
6. Recovery Tank Dome.
7. Vacuum Shoe.
8. Brush Housing.
9. Front Lifting Handle.
10. Cleaning Solution Filter.
11. Solution Tank Fill Hose.
4
5
6
7
8
3
2
1
10
9
11

CONTROLS/COMPONENT LOCATIONS
ADMIRAL 86038270 05/22/07
5
1. Solution Intake Cover.
2. Vacuum Intake Cover.
3. Float Shut-Off.
4. Clean-Out Opening.
5. Pour Spout.
6. Lift Handle.
2 1
3
4
5
6
6

FILLING OPERATIONS
ADMIRAL 86038270 05/22/07 6
FILLING THE ADMIRAL
NOTE: Use clean bucket of water to fill solution tank
Do not put defoamer, solvents, spotter or
prespray chemicals in the solution tank.
Do not allow water to spill into vacuum motor inlet. Dry
spillage from top of solution tank before replacing
recovery tank.
CHEMICALS
Suitable Chemicals Non-Compatible Chemicals
Alkalis Aldehydes
Detergents Aromatic Hydrocarbons
Hydroxides SP Butyls
Soaps Carbon Tetrachloride
Vinegar Clorox*
Chlorinated Bleaches
Chlorinated Hydrocarbons
Lysol*
Methyl Ethel Ketone (MEK)
Perchorethylene (perc)
Phenolics
Trichlorethylene
D-Limonene
* Product Trademark Names
STEP
1
STEP
2
STEP
3
STEP
4
RECOVERY TANK
SOLUTION
TANK
Remove recovery
tank
FILL LINE
Replace recovery
tank
A
dd cleaning
chemical
8 – 16oz.
(237ml – 473ml)
A
dd water
8 gal.
(30.3 ltr.)
140°F
(
60°C
)
or

OPERATIONS
ADMIRAL 86038270 05/22/07
7
Remove electrical cord and literature
from recovery tank. Fill solution tank
(see filling instructions page 6).
Adjust brush to proper setting. Note:
For good operation the brush must
skim the carpet. If circuit breaker
trips raise brush to prevent damage
to motor or carpet.
Plug cord into grounded outlet. Note:
Be sure dome is seated on recovery
tank, and float shut-off is installed
correctly.
Turn on brush and vacuum motor
switches (“ON”=“I”). Turn on solution
switch for continuous spray or set
switch to intermittent to allow use of
trigger switches.
STEP
1
STEP
2
STEP
3
STEP
4
CORRECT
INCORRECT
1/8in
(3mm)
SOLUTION VACUUM
CONT
INT BRUSH ONON

OPERATIONS
ADMIRAL 86038270 05/22/07 8

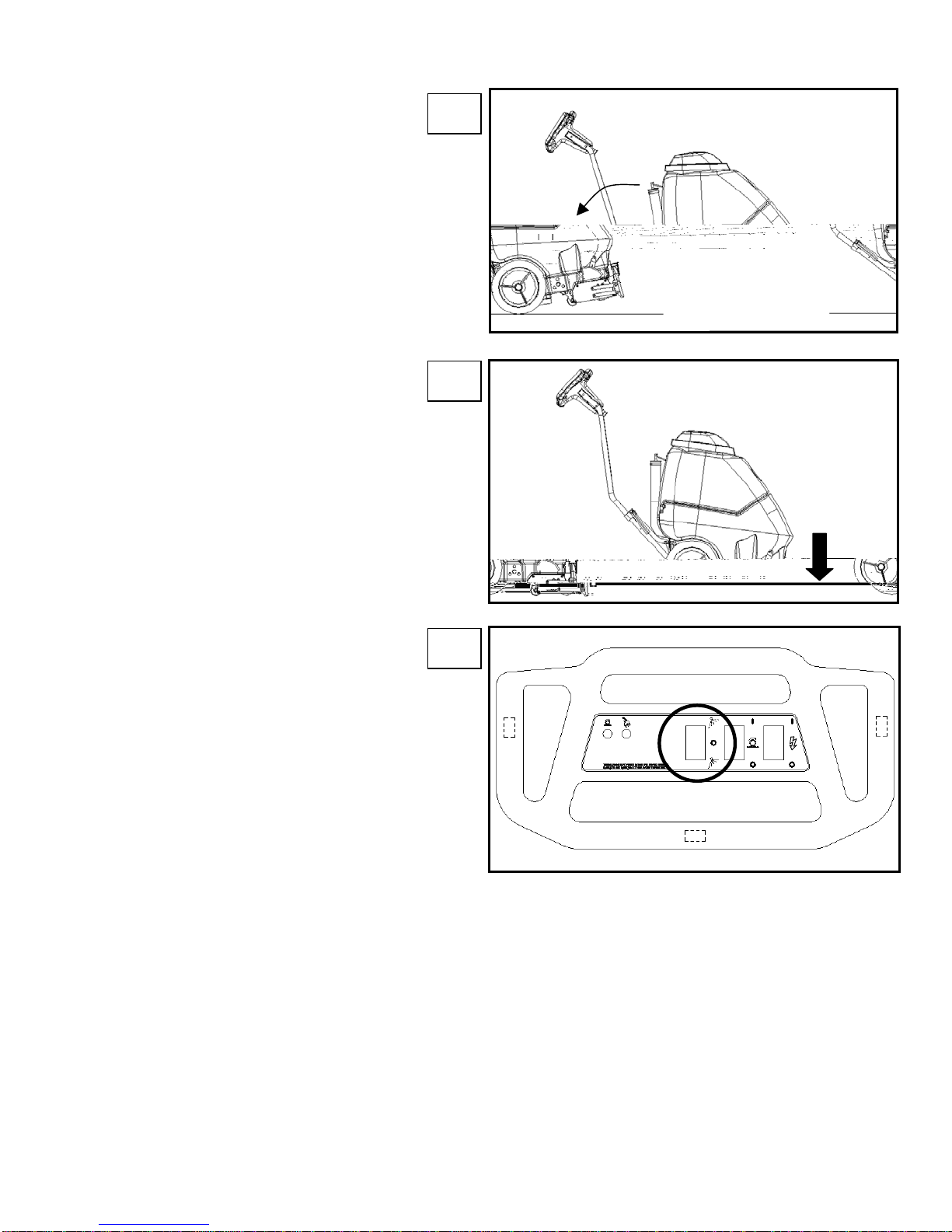

Select continuous setting to start
solution spray or select intermittent
setting to enable use of trigger
switches to start solution spray.
The intermittent setting requires the
operator to hold any one of the
three trigger switches in the “on”
position with the fingers, and is
typically used in small areas where
short cleaning passes are made.
The continuous setting allows the
operator to set the switch in the “on”
position with one touch, and is
typically used in large areas where
long cleaning passes are made.
Lower machine to floor.
Adjust handle to comfortable
operating position. Tip machine
back by main handle to move to
starting point.
STEP
5
STEP
6
STEP
7
INT
CONT

CLEANING PROCEDURE
ADMIRAL 86038270 05/22/07
9
Release intermittent trigger
switches or turn off continuous
setting on solution switch
approximately 1 foot before ending
cleaning pass.
Push down on handle to raise
vacuum shoe and brush before
moving to the next cleaning pass.
Overlap brush contact area a
minimum of 1inch on the right
(close cleaning) side of machine.
During operation, observe the following:
The Admiral is equipped with clear
internal covers to facilitate operator
viewing of dirty solution and vacuum air
flow.
During operation, observe the vacuum
intake cover. Large amounts of water or
foam entering the vacuum system can
damage the vacuum motor. If you
notice either condition, shut down the
machine immediately. Empty recovery
tank and/or add defoamer to recovery
tank.
STEP
2
STEP
3
STEP
4
Start at wall closest to power outlet.
Pull straight back without pushing
down on handle.
STEP
1
SOLUTION
INTAKE COVER
VACUUM
INTAKE COVER
1in.
(25mm)
OFF
1ft.
(30cm)

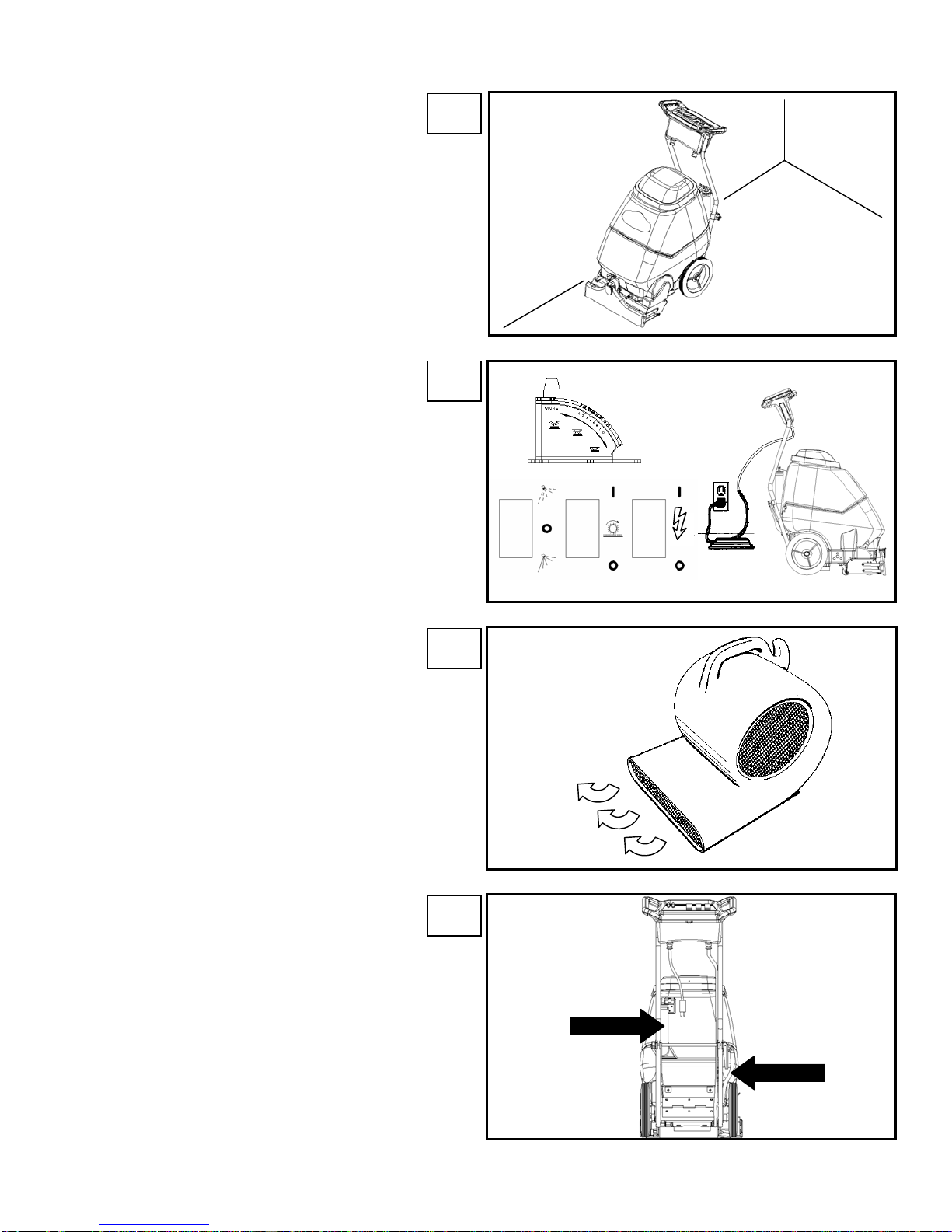

CLEANING PROCEDURE
ADMIRAL 86038270 05/22/07 1
0
To speed drying, use a
Windblower™fan.
Empty recovery tank by releasing
dump hose. Use a hose with cold
water to clean out the recovery tank.
Also drain solution tank after each
use.
STEP
7
STEP
8
After cleaning, turn off all controls,
return brush to storage position and
carefully unplug machine.
STEP
6
STEP
5
Use right side of machine for
cleaning against walls.
RECOVERY
DRAIN
SOLUTION
DR
A
IN
OFF OFF OFF

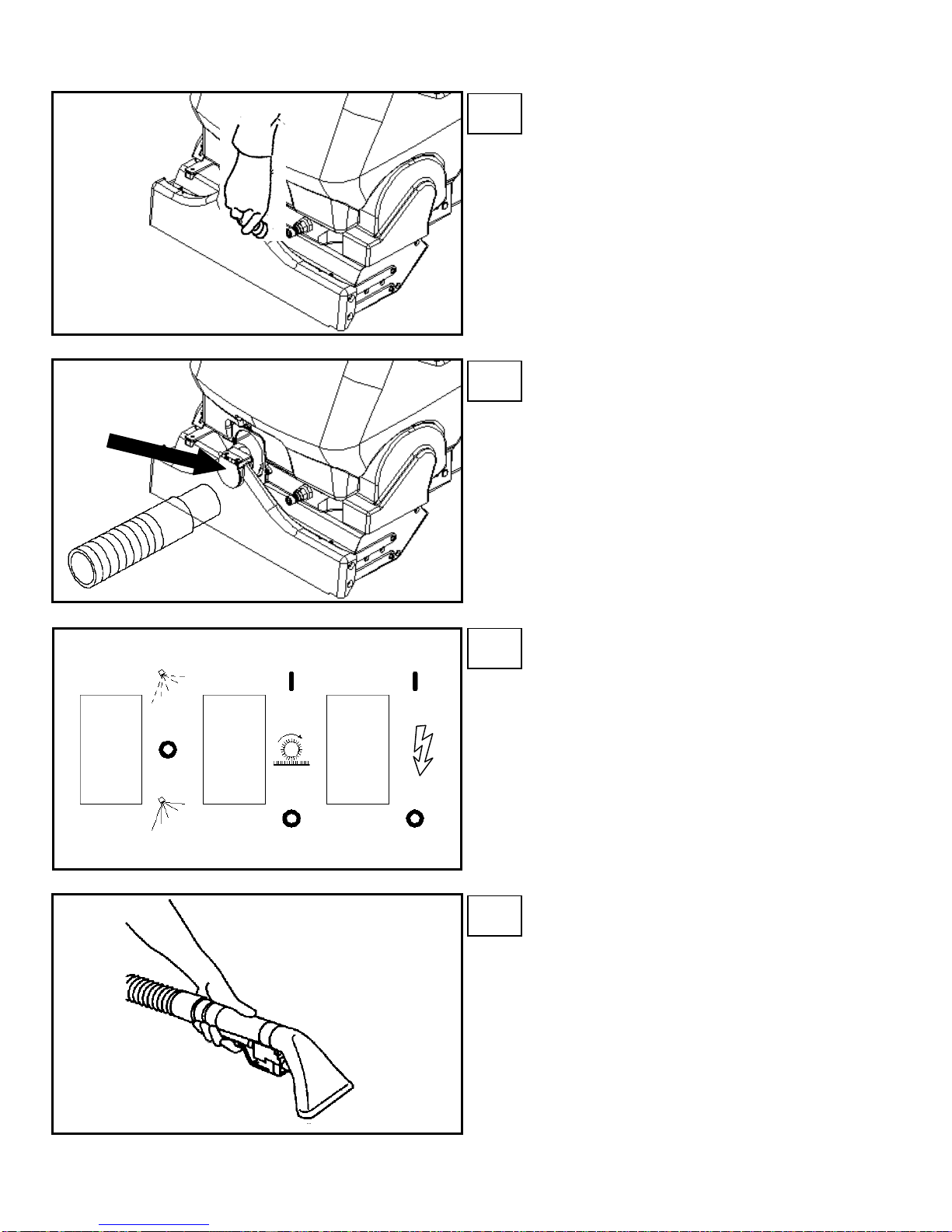

ACCESSORY TOOL USAGE
ADMIRAL 86038270 05/22/07
11
Turn on vacuum motor switch and set
solution switch to intermittent position.
Note: Be sure brush switch is in off
p
osition and brush is in storage position.
Squeeze handle on accessory tool to
begin cleaning.
STEP
3
STEP
4
STEP
1
STEP
2
Use only one of the following
acceptable accessory tools.
86000020 – PRV NO. HT
86000000 – PRV NO. DDH
86041150 – PRV NO. DH
86031540 – PRV NO. 39504
86000610 – PRV NO. 89227
86000600 – PRV NO. 89226
Pull back collar and insert over machine
mounted fitting, then release collar to
lock into place.
Lift door on front of vacuum shoe and
insert 1 ½ inch hose cuff into hole.
SOLUTION VACUUM
ON
OFF
INT BRUSH

TROUBLESHOOTING CHART
ADMIRAL 86038270 05/22/07 1
2
PROBLEM CAUSE SOLUTION
No Power, Nothing Runs 1. Is the cord plugged in.
2. Circuit breaker tripped in building.
3. Faulty switch.
4. Faulty power cord or pigtail.
1. Plug in cord.
2. Reset breaker
3. Call for service.
4. Call for service.
Vacuum Motor Will Not
Run 1.Vacuum circuit breaker tripped. 2.Faulty main vacuum switch.
3.Loose wiring.
4.Faulty vac motor.
1.Reset breaker
2.Call for service.
3.Call for service.
4.Call for service.
Vacuum Motor Runs But
Suction Is Poor 1.Debris lodged in vac shoe. 2.Dome gasket defective or missing.
3.Vacuum hose cracked or hose cuff loose.
4.Recovery tank full / float ball stuck in the up
position.
1.Remove debris from vac shoe.
2.Replace as necessary.
3.Replace or repair as necessary.
4.Turn off vac motor. Drain and rinse
recovery tank.
Poor Or No Water Flow
(Carpet Is Streaky) 1.Main pump switch off. 2.Jets clogged or missing.
3.Solution filter clogged.
4.Faulty solenoid.
1. Turn on.
2.Clean using a vinegar /water solution or
replace.
3.Drain solution tank and clean solution
filter.
4.Call for service.
Brush Does Not Spin 1.Brush switch off.
2.Brush circuit breaker tripped
3.Brush belt broken.
4.Faulty brush motor.
1.Turn on brush switch.
2.Reset circuit breaker.
3.Replace as necessary.
4.Call for service.

ADMIRAL 86038270 05/22/07
1
3
THIS PAGE LEFT INTENTIONALLY BLANK

WIRING DIAGRAM
ADMIRAL 86038270 05/22/07 1
4
86268290
PRV NO. 88229
86268460
PRV NO. 88333 86268430
PRV NO. 88323
86268370
PRV NO. 88276
FILTER
86003650
PRV NO. 34362
86268430
PRV NO. 88323
86268430 - PRV NO. 88323
86238840
PRV NO. 41356 86238830
PRV NO. 41355
86268900 PRV NO. 88655
86266720 PRV NO. 880043
86268420
PRV NO. 88317
86001240
PRV NO. 14020 86268750 PRV NO. 88567
86238820 PRV NO. 41351

MAINTENANCE
ADMIRAL 86038270 05/22/07
15
PERIODIC MAINTENANCE
Twice a month, flush a white vinegar solution (One
quart vinegar to two gallons of water) or anti-browning
solution (mixed as directed) through the extractor. This
will prevent build-up of alkaline residue in the system. If
spray jets become clogged, remove the spray tips,
wash them thoroughly, and blow-dry.
NOTE: Do not use pins, wire, etc. to clean nozzles as
this could destroy spray pattern.
Periodically inspect all hoses, electrical cables and
connections on your machine. Frayed or cracked
hoses should be repaired or replaced to eliminate
vacuum or solution pressure loss. If the cable
insulation is broken or frayed, repair or replace it
immediately. Don’t take chances with electrical fire or
shock.
DAILY / REGULAR MAINTENANCE
Before making any adjustments or repairs to the
machine, disconnect the power cord from electrical
source.
1. Empty unused cleaning solution from the solution
tank.
2. Inspect and clean filter screen in solution tank.
3. Flush pumping system with 4 or 7 liters of clean,
hot water.
4. After each use, rinse tank with fresh water.
Periodically inspect the recovery tank and
decontaminate if necessary, using a Hospital Grade
Virucide or a 1-10 bleach to water solution. Waste
water should be disposed of properly.
5. Check for and remove any lint or debris around vac
shoe.
6. Check spray jets for full spray pattern.
7. Remove lint and dirt build-up from brush and
housing.
NOTE: Brush removal.
A. To remove brush, grab and pull brush out from
end opposite drive belt (operator’s right).
Remove other end from brush driver.
B. To install brush, line up slots in brush core with
pin in driver on drive belt side (operator’s left)
and push brush onto driver. Then snap bearing
end (opposite end) of brush into retaining clip.
8. Check cooling air screen (located on frame behind
left wheel) for lint or debris.
9. Check float and shut-off screen and clean as
necessary.
NOTE: Always store machine with brush
in “Store” position.

MAINTENANCE
ADMIRAL 86038270 05/22/07 16
!
WARNING: ONLY QUALIFIED MAINTENANCE PERSONNEL ARE TO PERFORM
THE FOLLOWING REPAIRS.
VACUUM MOTOR REPLACEMENT
1. Turn off all switches and unplug machine.
2. Remove recovery tank.
3. Remove the (2) screws that fasten the
solution tank to the frame, and tilt tank back
to expose the inside of the frame.
4. Locate the vacuum motor wires and
disconnect at the connector. Close the
solution tank.
5. Remove the (6) screws holding the vacuum
motor cover (p/n 86003080 – PRV NO.
27809) to the solution tank.
6. Remove the vacuum motor.
7. Reverse process to install vacuum motor.
WARNING: The green
ground wire must be
attached for safe
operation.
See wiring diagram.
Note: When replacing carbon vac motor brushes
loosen wire terminal BEFORE removing screws on
bracket.
Important:
These brushes wear quicker
as the length shortens due to
increased heat.
Spring inside brush
housing will damage motor
if brushes are
allowed to wear away
completely.
If armature commutator is not concentric, extremely
pitted, or grooved the motor will need to be replaced
or sent to a qualified service center to restore vac
performance.
Periodically check the length of the carbon brushes.
Replace both carbon brushes when either is less
than 3/8" long.
Note:
Place
stop in
groove.
End Cap
Carbon Brushes
Vac Motor Carbon Brushes Replacement (Ametek)
Wire Terminal Wire
Terminal
Vacuum Motor Carbon Brushes Replacement (Windsor)
WARNING: The green
ground wire must be
attached for safe
operation. See wiring
diagram.
End Cap
Carbon
Brushes
If armature commutator is grooved, extremely pitted or not
concentric, the motor will need to be replaced or sent to a
qualified service center.
Important:
These brushes wear quicker as the length shortens due
to increased heat. Spring inside brush housing will
damage motor if brushes are allowed to wear away
completely.
Periodically check the length of the carbon brushes.
Replace both carbon brushes when either is less than 3/8"
(9.5mm) long.
3
8[9.5mm]

MAINTENANCE
ADMIRAL 86038270 05/22/07
17
!
WARNING:
SOLUTION PUMP REPLACEMENT
1. Turn off all switches and unplug the machine.
2. Remove recovery tank.
3. Remove the (2) screws that fasten the solution tank to the frame, and tilt tank back to expose the inside of the
frame.
4. Remove solution hoses from fittings in pump.
5. Remove the (2) screws that fasten the pump to the frame.
6. Reverse process to install pump.
ONLY QUALIFIED MAINTENANCE PERSONNEL ARE TO PERFORM THE FOLLOWING REPAIRS.

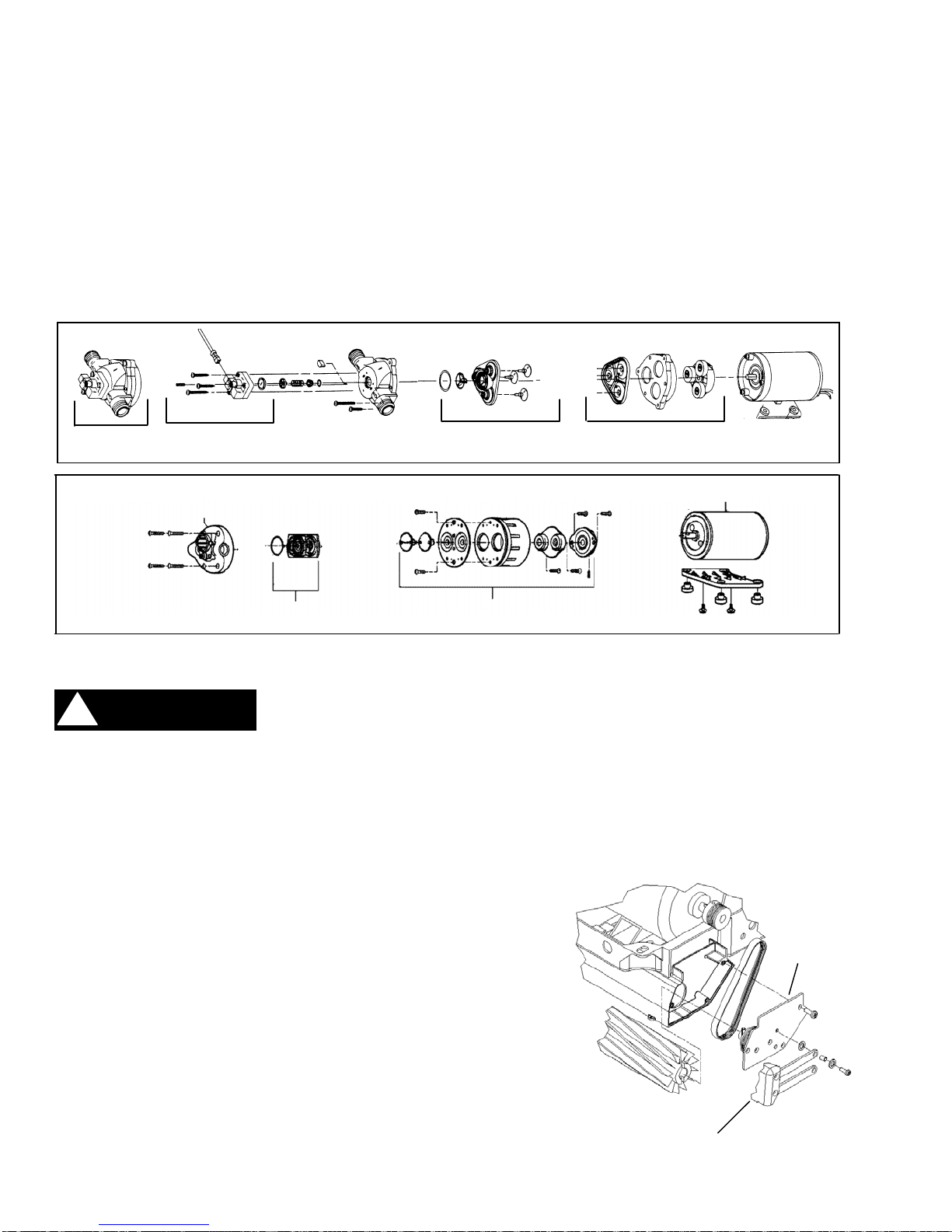

BELT REPLACEMENT
1. Turn off all switches and unplug machine.
2. Remove recovery tank and brush.
3. Remove the (2) screws that fasten the solution tank
to the frame, and tilt tank back to expose the inside
of the frame.
4. Loosen the (4) screws that hold the brush motor in
place and slide motor forward to release tension in
belt.
5. Remove the (2) screws that fasten the vacuum shoe
links (p/n 86227350 – PRV NO. 05016) to the brush
housing.
6. Remove the (3) screws that fasten
the side plate (p/n 86249420 – PRV
NO. 62759) to the brush housing to
remove belt.
NOTE: All components associated with
driving the brush will come out with the
side plate.
7. Reverse process to install belt.
86249420
PRV NO. 62759
86227350
PRV NO. 05016
Pressure Switch
86161980
PRV NO. 42-809332
Valve Asm
86258830
PRV NO. 84161
Diaphragm
86003400
PRV NO. 29206
Pump Replacement Parts for Shurflo 100 psi (86026400 – PRV NO. 65254)
PumpHead
86251040
PRV NO. 65187
Motor
86247370 - PRV NO. 53246
Diaphragm
86235120
PRV NO. 29219
Pump Head
86251090
PRV NO. 65204
Valve Asm
86258860
PRV NO. 84166
Pump Replacement Parts for Flojet 100 PSI 230V (86004770 – PRV NO. 47477)

TECHNICAL SPECIFICATIONS
ADMIRAL 86038270 05/22/07 18
POWER TYPE
ELECTRICAL: 230-240 V, 7 A, 50 HZ
ELECTRIC VACUUM MOTOR: (1) –3 stage, 1
hp, 99 cfm (2.80 cubic meters/min.) Waterlift –
117” (297cm)
BRUSH: (1) 15” (38.1 cm.)
SOLUTION PUMP: 100 PSI, diaphragm style,
internal bypass
SOLUTION CAPACITY: 8 gallons (30.3 ltr)
RECOVERY CAPACITY: 8 gallons (30.3 ltr)
BRUSH SPEED: 1000 rpm

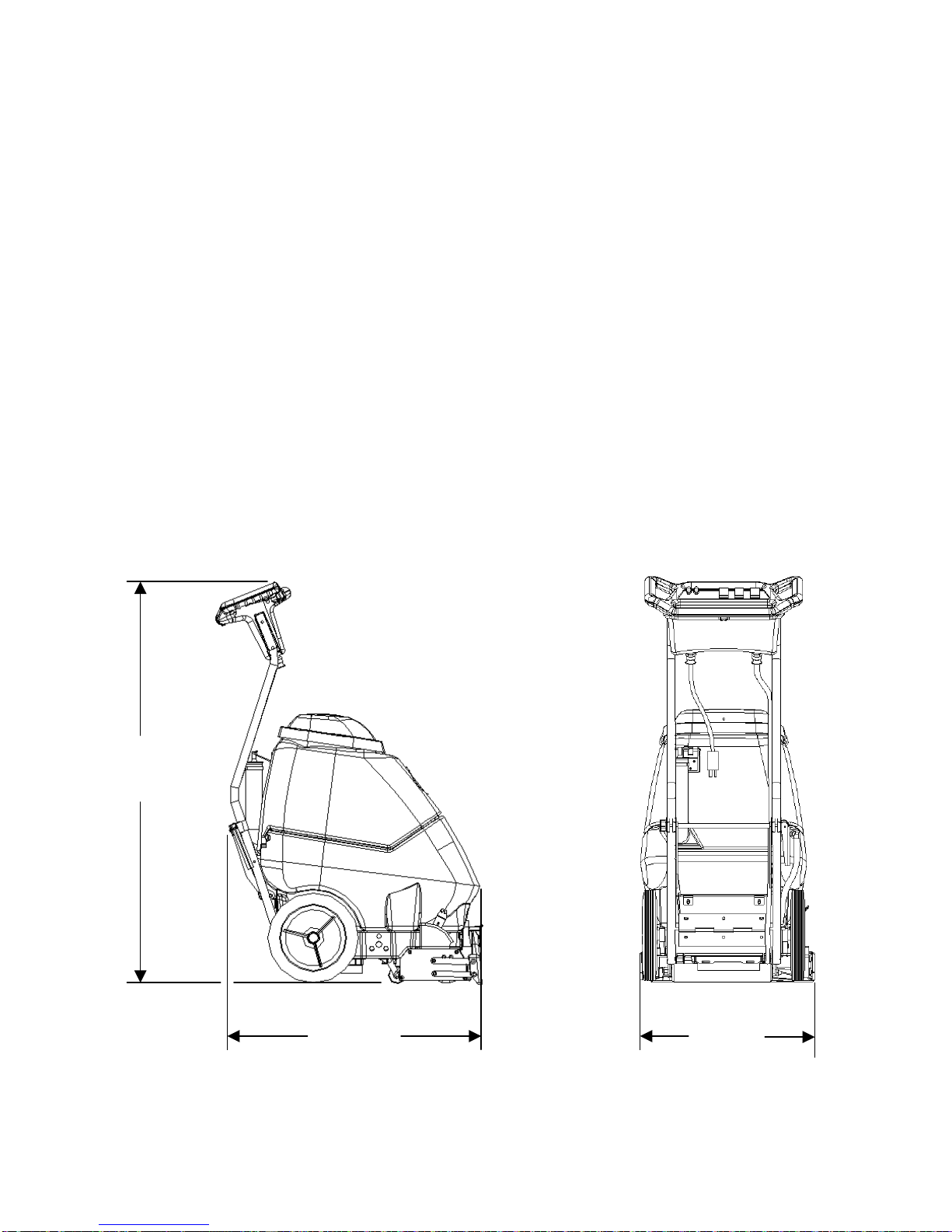

GENERAL DIMENSIONS/WEIGHT
Vacuum shoe: 17” (43.18 cm) cast aluminum
with spring loaded down pressure
WHEELS: (2) 10” dia. (25 cm) wheels by 2”
WEIGHT: 92 lbs. (42 kg)
LENGTH: 35” (89 cm)
HEIGHT: 42” (107 cm)
WIDTH: 18.5” (47 cm)
SOLUTION SPRAY: 2 quick change jets.
POWER CABLE: 50’ (12.7 m) (1 mm)
18.5”
(47cm)
35”
(89cm)
42”
(107cm)
