Windsor FILTRONIC F22 User manual

L22AF (OBS)
Page 1 of 20
CONTENTS:
2
3
4
5
6
8
9
10
11
12
13
14
15
16
17
18
19
22
Safety Instructions
Battery Information
Control Panel Layout
Drive Controls I Operation
Maintenance
Hood Assembly
Shroud Assembly
Service
I Adjustments
Lvi Linkage
Deck
Lift Mechanism
Chassis
Drive Assembly
Drive Control Assembly
Electrical Controls
WiringDiagram
(F22)
WiringDiagram (F22T)
Trouble Shooting
Warranty
-
MODELS: F22, F22T
~
981 77
Rev. 716194 FILTRON~C'

-
IMPORTANTSAFETY INSTRUCTIONS
When using battery powered machines,basic precautionsshould always be followed, including the following:
READALL INSTRUCTIONS BEFORE USING MACHINE
Operatefrom the rear of the machineonly.
Usecautionwhen operatingthe machineon a rampor incline.
Do not turn the machine,or leave it unattended, on a rampor incline.
~~ ~ ~~ ~~
Machinecancause an explosionwhen operated near flammablevapors
or materials.
Store machine inside. Keepthe electrical components of the machinedry.
Leadacid batteries havea number of inherentdangers, carefully readthe
instructionsand warnings which accompanythe batteries and batterycharger.
REMEMBER: The batteriesgenerategasseswhich can ignite. Always
charge inawell ventilatedarea. Keepsparks andflames away fromthe
batteries.
Do not smoke aroundthe batteries. Avoid skincontact with the acid
contained inthe batteries. Always wear eye protectionand protectiveclothing
when working on or near batteries. Never allow metalobjects to lay across
batterytops.
~ ~~ ~~
All maintenanceand repairs must bedone byqualifiedpersonnelonly.
Maintainadjustmentson machineas specified inservice manual.
Makesure allwarning andcaution labelsare legibleand properly
attached to the machine.
SAVE THESE INSTRUCTIONS
Recordthe modeland serial number on the bluedata label locatedatthe rear of the machine .
These numbersare usedwhen callinguponthe Windsor dealer for partsand service.
MODEL SERIAL NO. PURCHASE DATE
nv damaaes which
2 Rev.7 7/6/94 FILTRONIC

L22AF (OBS)
Page 3 of 20
Battery Maintenance:
When cleaningbatteriesuseasolution of baking
sodaandwater.
(Do not allow cleaningfluidto
enter insidebatterycells.)
Keepa proper electrolytelevelinbattery cells.
Wipe downthe batterytopsat least once aweek.
If a cell shouldaccidentlyoverflow, clean
immediately.
Test batteryconditionwith a hydrometerat least
once aweek.
Ensurethat allconnections are tight andthat
all
corrosion is removed.
Every
4 to 6 monthsremovebatteriesfrom the
machineandcleanthebatterycompartment.
Spare Partsand Accessories:
021 00 Hydrometer
02101 Battery Post Cleaner
02143 Battery, 12V DC, 20 Amp, 185 Amp Hour
02104 Charger, 36V DC 20 Amp, Auto Shut - Off
(115v)
02141 Charger, 36V DC 20 Amp, Auto Shut - Off
(1 OOV 50/60 Hz)
02142 Charger, 36V DC 20 Amp, Auto Shut - Off
(230V 60 Ht)
02155 Charger, 36V DC 20 Amp, Auto Shut - Off
(250V 50 Hz)
021 63 Charger, 36V DC 20 Amp, Auto Shut - Off
(230V 50 Hz)
231 25 Cable, 12 " Red
78231 BatteryTray
FILTRON~ Rev.1 7W
Battery Charging Procedure:
Chargethe batteriesoncethe amber charge level light
comeson. The amber light indicatesthat there is
about 20% charge left inthe batteries. Do not letthe
batterlescompletely drainbeforecharglng.
Avoid
chargingthe batteriesbeforethe amber light comes
on.
The machinewill runfor hours on fully charged,
well maintainedbatteries.
DO NOT SMOKE, HAVEOPEN FLAMES, OR
SPARKS NEAR BATTERIES AT ANY TIME.
WARNING:
WEAR EYE PROTECTIONAND PROTECTIVE
CLOTHING WHEN WORKING
WITH BATTERIES.
CHARGEBAlTERlESIN
A WELL VENTILATED
AREA WITH DECK DOWNAND COVER OPEN.
1 .) Use a 36 volt, 20 amp maximumoutput, D.C.
chargerwhichturns itself
off, whenthe batteries are
fully charged. The charger must havea connector
that matchesthe machinesbatteryconnection.
2.) Readthe instructionsandwarnings providedby
the batterycharger manufacturer.
3.) Set the charger in a well ventilatedareaon a lev -
el surface. Makesurecordswill easily reach outlets
on bothmachine andwall.
4.) Connect chargerto D.C. outlet on machine
first.
5.) ConnecttheA.C. powercordtoproperly
groundedwallsocket.
NEVER MAKETHE A.C.
CONNECTIONFIRST, HAZARDOUSSPARKS MAY
RESULT.
6.) After the batteriesare completelychargeddiscon -
nectthe chargerfrom the A.C. wall socket.
7.) Oncethe charger isdisconnectedfromtheA.C.
wall socket it is safeto disconnectthechargerfrom
the machine.
8.) Whenthe batteries
arefullycharged,checkthe
electrolyte levelby removing
the caps ontop of the
batteries.
If necessary fill the
cellswith distilledwater as
showninthe diagramtothe
- -
right. Be carefulnotto overfill
cells.
Nbe
3

L22AF (OBS)
CONTROL PANEL
I
I n
IV I
I i
L.
70 Amp 3AmD r8AmD
Main power switch. Turns power on
and
off to machine.
Deck liftswitch. Tactile membrane
switch raisesor lowersdeck when
pressed.
Deck raised,amber indicatorlight.
Deck lowered, green indicator light.
Polisher running, green indicator
light. Lightcomes on when machine
is runningandthe padis making
proper contactwith floor.
[
1
J
I
Rev.$ 71#’94
6.) Batterychargedrained, redlight.
Operator has lessthan ten minutesto
returnmachineto charger. Once
batteries are completely drainedthe
red lightflashes, polisher motorquits
running,and the deck automatically
raises.
7.) Batterycharge level low, amber
indicator light. Operator should return
machine
to charger.
8.) Batterycharge level, green indicator
lights. Each light represents
1/4
charge, lights go out as the batteries
drain.
9.) Danger, no pad, redflashing light.
If someonetriestooperatethemachine
without the padin place the deck will
automaticallyraiseandthemachinewill
turn
off. Turnmainswitch off andinstall
pad. Machinecan beturned back on
once
pad is properly installed.
10.) Brushwear, redindicator light.
Worn carbonmotor brushesneedto be
replacedbeforedamage to motor
occurs.(See page 16 Item 20)
11 .) Paddriver bar, starts paddriver when
squeezedto mainhandle, stops pad
driver when released.
12.) Mainhandle.
13.) Hour meter.
14.) 70 amp magnetic circuit breaker,
protectspaddriver motor.
To resetturn
to
“ON” position.
15.) 3 amp thermalcircuit breaker,
protectsliftmechanism. Pressto reset.
8 amp F22T
Ty
FILTRONIC

L22AF (OBS)
F22T DRIVE CONTROLS
Page 5 of 20
1 .)
The speedthe machinewill travel is
regulatedby the knob locatedon the
controlswhich are found on the main
handle.
Turn the knob to the right to
increasethe speed
of the machine.
2.) Squeezing one or both of the control
leverswill propelthe machineforward
at the selected speed.
Releasing
both control levers will stop
the machine.
3.)
4.)
Pressingforward on the leversmoves
the machine backwardsat the selected
speed.
Beforestartingthe work period:
1 .)
2.) Closethe cover. isfully raised
4.)
Lower or raise deck by pressing deck
liftswitch. Onthe
F22 modelsagreen
lightindicatespositionto begin
polishing. Amber light indicates deck
Disconnectthe battery charger.
(See battery charging procedure)
3.)
Raisethe deck. (Turn on the main
power switch and press the deck
lift switch.)
4.)
Turn or installa new buffingpadas
needed.
Ensure Pad is Cen -
tered on Pad Drlv-
er.Loosen Pad
Lock and pull Pad
toedgeof Pad
Driver in several
directions.
-i
5.)
Check wheels and other pivot points
for proper lubrication.
Operating the machine:
1 .)
If usinga machinewhichwas already
set up, check to makesure the padis
properly installed..
Adjust the operatingcontrol handleto
a comfortablepositionusing the
handle lock lever.
2.)
3.)
FILTRONI?
Turn on the mainpower switch.
5.)
All the machines,exceptfor the F22T,
are controlledbysqueezingthe
thin paddriver bar and mainhandle
together.
The
F22T drive controls are shown
above.
Caution: To preventpossible
damageto the floor surface,always
keepthe machine movingwhile the
padis spinning.
The
F22 pad pressurewill adjust automatically
to compensatefor irregularitiesinthe floor. pad
thickness, aggressiveness, and load. The
mo -
tor amp draw is monitoredcausingthe front
deck to be raised and lowered.
6.)
Whenthe drivehandleisreleasedthe
deck will automaticallyraiseand the
motor will turn
off.
7.)
The operator can continue polishing
untilallfourgreenbatterychargelevel
indicator lights
go out.
Returnthe machineto the battery
chargerwhen the amber charge level
lightcomes on.
5
8.)
Rev.1 7M4

L22AF (OBS) Page
6 of 20
F22 MODELS
FILTER CARTRIDGE
Thefilter (partno.34212)
is accessedusing
the latch at the front of the filter cover.
Periodicallywash the filter out. BE SURE
THE FILTER
HAS COMPLETELY DRIED
BEFORE USING.
FELT DUSTCONTROL SKIRT
Replace skirt (part no. 73520) when exces -
sively soiled, worn, torn, or damaged in any
way that allowsdustto escape.
Located inside the shroud the dust control
skirtiseasily replaced. Eachslot
on the skirt
slips onto a tee nut insidethe shroud.
ph b150
ACTUATOR SPRING
To ensurepadpressureconsistency,thedis
-
tance between the bottom of the cap spring
(p/n 27430) and the flange on the actuator
pivot (p/n 66150) should be 2.125 (see
above).
70424
\
pn 140032
LIFT LINKAGE
To ensurethatthe pad
is attheproperheight
when in the “ready” position, the distance
betweentheedgeof thesafetyswitchbrack
-
et (p/n 140032)and the end of the plunger
assembly
(see above) must be 1.65”.
Weeklv Maintenaace:
1.) Usea hvdrometerto check the
conditioi of each batterycell.
Check batterycable clamps. Ensure
clamps are tight on batteryterminals.
Cleantops of batterieswith a wet
clothand a solutionof water and
bakingsoda. Wipe batterytops dry
after cleaning.
Check padlockfor looseness
or
damage.
Check filter andfilter seals. Air flow
should be
unobstructedthroughfilter.
Ensurethat the chain, on the F22T
model, andthe pivot points and
casters, on all models, are properly
lubricated.
Tightenany loose screws or nuts.
At the end of each work period:
1 .) Wipe down the exterior of the
machine.
2.) Vacuum out the filter cartridge.
3.) Lower the deck.
4.) Open the cover.
5.) Chargethe batteries.
(See batterycharging procedure
on page
3).
4to6Month inten-
1 .)
Remove batteries - cleanbatterytray
-.
and batterycompartment.
Clean batterycable clampsand
battery terminals.
Checkthe drive chain tension on the
F22T. Tighten, cleanand lubricate
if necessary.
Checkthe carbon motor brushes in
the paddriver motor.
(#17on page 12)
Use a vacuum to remove lintor dust
build
- upfrom motorwindings.
6
Rev.1 7/6/94
FILTRONI;

L22AF (OBS)
Lubrication;
The following symbols foundthroughout
the manual indicateitems requiring
lubrication:
Apply grease
Usespray lubricant.
Use anti - seize when repairing.
4 Permanent(Red) Thread Lock
reaker 3 Amp 471 Z
Wlrcuit70 Am0 1491 7
4" PolvurethaneSwivel 18427
rx15 23izfi
23122
ntrol 34212
FlLTqpNlCFilter 35117
Flter. CartridaeDust
Co
I Filter 35131
Holder. Centerlock 411a
Circuit Board. Contro I 27035
PadDriver 66182
671
66
Switch. Main Rotary 72051
125VDC SP NC roller 72053
72088
72-
7-
8-
Cable As- 27" 231 26
le Asm.. 4Ga blk x 37 "
125VDC SPST N.O.
FILTRON~
NOTES:
Rev.1 7/8/94
7

L22AF (OBS)
HOOD ASSEMBLY F22,F22T
Page 8 of 20
12
*c 11
PARTS LIST:
8
N
FILTRONIC

L22AF (OBS)
Page 9 of 20
2
4
See page 12
inside of the shroud assembly
i
i
i
i
i
SHROUD
1
ASSEMBLY
1
.21
\
Hem 17
*NOTE: Item 17 should extend 3/8'
below item 12.
N
FILTRONIC Rev.1 7/8/94 9

L22AF(OBS)
Page 10 of 20
ACTUATOR REMOVAL
1.) Switch on main switch and lower buffing
head to floor. Switch off main switch.
2.) Removemain cover and batteries.
3.) Lay machine on left side.
4.) Remove actuator connecting lift link ##42 on
page 11.
5.) Disconnect motor leads. ,
6.) Remove (4) bolts holding actuatorbracket
to frameand
lift out actuator.
TestingActuator Barrel ’Iz.avel:
1.) Donot allow the barrel to rotateorthe
1/2”-9/16” (1,25 to 1,4 cm) adjustmentwill be
lost).
2.) Connectwhite wire to the (+) positivepost and
the black
wire to the ( - ) negative post of the
36VDC power supply to retract the barrel to the
lower limit.
3.) Black wire to the (+) positive post and the
whitewire
to the ( - ) negative post of the 36VDC
power supply to extend the barrel to the upper lim-
it.
4.) Reverse the wires to retract the barrel electrical -
ly. the actuator is now ready for assembly and
installation.
LIMIT SWITCH SETTINGS
Lower Adjustment
1.) Connect the white wire to the ( - )negative
post
of a 36VDC power supply and the black
wire to the (+) positive post. This will retract or
close the actuatorbarrel. Maintainthe connection
until the limit switchshuts the power off.
2.) Disconnect both wires from the power supply.
Set
“A” (barrel to frame gap) at between 1/2 and
9/16
of an inch (1,25 to 1,4 cm) rotating by hand.
10
Rw.1 7m
Upper Adjustment
1.) Hold Barrel With Hand
power supply,white wire to the (+) positive post
and the black wire
to the ( - ) negative post. This
will extend or open the actuatorbarrel.
Reverse the wire connections
to the 36VDC
Do not allowbarrel to rotate.
2.) Extend actuatorbarrel electrically until it
stops. Ensure
“A” is between 3 3/4 and 3 7/8 in -
ches (95to 9,9 cm) on all models.
3.) If the dimensionisincorrect, disconnectfrom
thepower supply and setthe switch cam adjust
-
ment.
Switch Cam Adjustment
1.) Remove the two cam switchcover screws
(TOM T15) and remove cam switch cover.
2.) Loosen the two cam lock screws (TORX “20)
on the cams.
CAUTION:
Do not allow retract cam to rotate.
3.) If the “A” dimension is incorrect,turning the
cam clockwisewill INCREASE
“A, counter-
clockwise
will DECRBASE “A”.
4.) Tighten the two cam lock screwsand cyclethe
actuator.
Do Not Allow TheBarrel To Row.
Check the extended “A” dimension. If itiscor -
rect, replace the coverwith screws. If not repeat 3
above.
ru
FILTRONIC

L22AF (OBS)
Page 11 of 20
LIFT LINKAGE
10 s/-
NOTE:
When the actuator continues Wg beyond the set limits use
page 10 to adjust or replace switches.
KEY PART NO. DESCRIPTION
1 70015 Screw, 114-20 x 314 HHMS
2 70242 Screw, 4
- 40 x 114 PHMS
3 27457 CordAssembly, Cover Pin
4 66092 Pin, Hair Spring Cotter
5 66149 Pivot, Cover
6 14725 Bushing, Cover Pivot
7 87025 Washer, 114 Star
8 70020 Screw, 114-20 x 112 HHMS
9 14704 Bracket, Deck Linkage
(Left)
10 87013 Washer, 114 ID x 518 OD Flat
11 66201 PivotAsm, F22T
12 14x8 Bushina.Flame 112 x 314 OD
13 14593 Bushina,Deck Linkaae
14 51147 Linkatre,Deck Lift
15 51151 Linkaae, Deck
Guide Adi lR
16 14705 Bracket, Deck Linkaae(Mid)
17 14706 Bracket, Scrub Deck Linkaae (R)
18 57105 Nut, 1/4 - 20 HexwlStarwasher
19 571
63 Nut. 4 - 40 HexwlStar washer
20 73456 Spacer, PlunaerSwitch
21 70245 Screw. 4
- 40 x 314 PHMS
22 72053 Switch. 125VDCSPST NC
23 140032 Bracket,
Ext. MicroswitchMntg. (Both:
24 67286 SnaD Rina,5/16
11
FILTRONIC Rev.1 7W

L22AF (OBS)

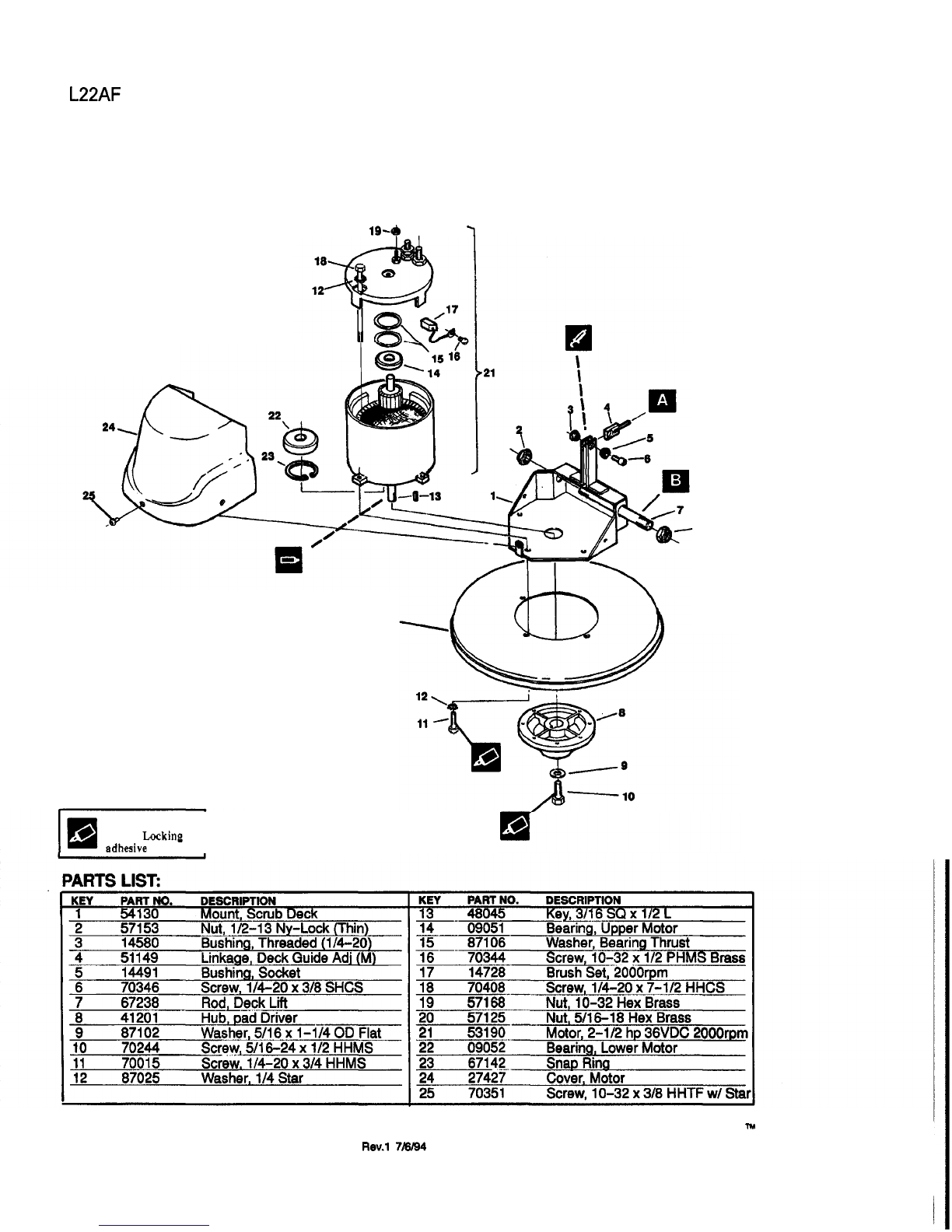

DECK LIFT MECHANISM
19-6 69 - 20 -l
I
Permanent (Red)
Thread Loeking
adhive
2
For the Assemblies
see pg. 9
Page 12 of 20
12
Rev.1 718/94
TM
FILTRONIC

L22AF (OBS)
F22T See Page # 15
Page 13 of 20
CHASSIS
sea page 14 of thls gulde.
'ARTS LIST: './'
FILTRONI?
Rev.1 716194 13

L22AF (OBS)
DRIVE ASSEMBLY
PARTS LIST:
Page 14 of 20
Plate,Motor Spacer
Screw, 1/4
- 20 x 314 HHCS
Washer, 1/4 Lock Ext Star SS
Washer 1/4 ID x 7/8 OD SS
1”:” Plate ,,D Pro el Motor
I
70015
87025
870
13
14
Rev.1 7l6tW
lM
FILTRONIC

L22AF (OBS)
Page 15 of 20
F22T DRIVE CONTROL ASSEMBLY
Adjustment of potentiometers for drivecontrol
1.
2.
Turnthe speed potentiometer (U) fully clockwise. (Max. speed)
Loosen the set screw (el) and adjust the direction
potentiometer
(T) to center of travel.
Turnthe
main power switch on.
if the machine moves, adjust the direction potentiometer
until
movement stops.
Tighten the set screw (#21)
3.
4.
5.
TM
15
FILTRONIC Rev.1 7/6/04

L22AF (OBS)
Page 16 of 20
ELECTRICAL CONTROLS
NOTE: This Contrdler
needs to be seperated
horn the frame
NOTE When wlrlng, keep
wlnr clear of shunt.
17
NOTE: Apply blue lo*ite
to internal threads of item
62 on bolh end&
. _ . .. - - .. . . . . __
5 24
'ARTS LISF
.6 Rw.2
711 2/94 FILTRONI~

WIRING DIAGRAM (F22)
CONTROL PANEL
0 000000
mp
88866
CHARGER I - - - --
CONNECTION 88861
ASM
BLK
88665
n
’AD MOTOR
CIRCUIT
BREAKER
8868(
!ED
__
88670
BATTERIES
GROUND
POST
BLK 23127
CI
4
BLK 88678
1
4CTUATOR
BREAKER INDICATOR
BRUSH WEAR
n
BLK 88963
DEAD - MAN
SWITCH
ELK 88598
88594
ASM
MOLEX
I BLK
FAsM
I 88958 88668
ELK
88957 ACTUATOR
I MICRO
SWITCH
I
BL K
88677 ELK 88859 88669
I-
h)
h)
R
n
0
m
cn
W

L22AF
(OBS)
Page
18
of
20
I
FILTRONIC
Rev.
1
7/6rs4

L22AF (OBS)
Page 19 of 20
Troubleshooting Chart
Condition Corrective Action
No Power To Mshb
PoorCableConnection
Faulty microswitch
Faulty mainpower switch
Faulty controlboard
Blown fuse
Circuit breakerhastripped
Faultydrivehandle switch
Faulty relay
-
Carbonmotorbrushes
needtobe replaced
-
lmhaslw
Circuitbreakerhastripped
Loose actuatorconneotions
Faultyactuator
circuit breaker
or actuator
Faultycontrolpanel
Faultycontrolboard
Deckstaysonfloor after motorafter motor
stops
Deckheightfluctuatesexcessively
FILTRONIC
Clean batterycable clamps of any corrosionandtightentest
voltage
at pointsA to B should be from 34 to 38 VDC.
Test voltage at points C to B should be from 34 to 38 VDC. If
there isnovoltage checkswitchfor continuity. Adjust or replace
as needed
With the mainpower switchturnedon, test voltage atpoints B to
D shouldbe from 34 to 38 VDC. If there is novoltage remove
leadsand checkswitchfor Continuity. Replace
if necessary
Test voltage at L6 to K7 shouldbefrom 34 to 38 VDC. If the
voltage is
good at L6 to K7 butthe machinestillwon't respond,
allthetests above havebeendone, replace the controlboard.
Replace
fuse
Reset circuitbreaker. (N)
Unplugconnectorcomingfrommainhandleassembly. Squeeze
handleandtest for continuityat handleend of connector
E.
Adjust or replaceswitch as needed . See page 13 & 15 for exploded
view of switchcover
(F22) anddrivecontrolassemblies F22T.
With main power on, pad in operatingposition and drive handle
squeezed:
Test voltage at points F to Q and F to B should be
from 34 to 38 VDC. When the relay Is working it shouldmakea
clickingnoise
as thedrivehandle is squeezed. Replacerelay if
the test voltagesmeasureproperlyand the pad motorstilldoes
not run.
If thetest voltages are not 34 to 38V DC, checkwiring
and connectionsatpoints F,
Q, Dand B.
When thebrushwear indicatorlight comes on it is necessary to
put a new set of carbon motorbrushes in.
Caution: Continuing to runthe machine
untilthebrusheswear away completely
will cause motor damage.
Reset circuit breaker (M)
Checkconnections J1L J2 and K3 & K4 oncontrolboard along
withallother connectionstoactuator.
With
the mainpowerswitchturnedon and the pad upldown
switchdepressed, test voltage at K4 to K3 should befrom
34 to 38 VDC. If thevoltageis good at K4 to W buttheactuator still
isnot operatingitwill needtobe repairedor replaced.
Unplug
the connectorat J onthe controlboard. Test J (coming
from controlpanel) for continuitywhen padswitchispressed.
Replacecontrolpanel
if necessary.
Test voltage at L6 to K7 should befrom 34 to 38 VDC. If the
voltage
is good at L6 to K7 but the liftmechanism still won't
respond,
all the tests abovehavebeendone, replacethe control
board.
Checkfor worn out pad.
Checkfor worn
out pad.
Rev.1 7m4
19

L22AF (OBS)
Page 20 of 20
Troubleshooting Chart (cont.)
Condition CorrectiveActlon
-
-
Controlboardstuckinthe
self checkmode Whenthe mainpower isturned onwithin
3 seconds of thetime
thatthe batterycharger plugisremovedthecontrolboardinitiates
aself diagnosticprogram. To canceltheself diagnosticprogram
check, simply
turn off the mainpower switch for 3 secondsand
turnitbackon.
If theproblempersists,turn Ow themain switch and
removethe 3 ampfusefor 5 seconds. Replacethefuseandturn
onthe mainswitch.
-
Circuit Breakertripped
Looseconnections
Faultymicroswitch
Faultypotentiometer
Faultydrivecontrolboard
Faultymotor
20
Reset circuitbreaker (W).
Check all connections inpropelmotordrcuit especially at P,Q,R,
V and X.
Withthe batteriesdisconnected,disconnectthewireleadstothe
microswitch, at V, andtestfor continuity. Whenthe
control levers
are squeezedthe microswitch
is engaged. There should bea
slight clickingsoundwhen theswitchisengaged.
Adjust or
replace
as necessary.
With thedrivemotor disconnectedat
Q or X test the output voltage
tothedrive motor. THe outputvoltage at Q or X shouldvary
from
0 to 24 volts as the potentiometer U onthecontrols is
adjustedandthecontrolleversaresqueezed. Resistance of the
potentiometen can be testedat the green and black leads found
at the molexconnector at R. The resistanceshouldvary from 0-
to 2.2 kiloohms as thepotentiometer U onthe controls is adjusted
withthe controlleverssqueezed. Ifthesefail, the potentiometers
willboth
need to be replaced.
Test voltageat P shouldbefrom 34 to 38 VDC. If thevoltageat
P is good but thepropelmotorwon't respond, andallthetests
above haveboendone, replacethedrivecontrol
board.
Squeezethecontrol Ievem, adjust thepotentiometer U, andtest
thevoltageat
X or Q. When theoutputvoltage at X or Q varies
from
0 to 24 voltsbut the motor does not respond,andallthetests
above havebeendone, replacethemotor.
Rev.1 7/8/94
