Windsor LB2000I User manual

MODELS:
LB2000I LB2000IA UB2000F LB2000
10090200 10090210 10090620 10090190
HIGH SPEED BURNISHER
86309600-K
05/30/12
Operating Instructions (ENG)

MACHINE DATA LOG/OVERVIEW
86309600 (2000) BURNISHER 08/15/11
2
OVERVIEW
The High Speed Burnisher is a mains powered, portable floor burnisher intended for commercial
use. The appliance can be fitted with a variety of pads to perform various floor care functions. The
appliance employs active dust control, and automatically adjusted pad pressure.
Model:
Date of Purchase:
Serial Number:
Sales Representative:
Address:
Phone Number:
Warranty Registration
Thank you for choosing our product. Warranty registration is quick and easy.
Your registration will allow us to serve you better over the lifetime of the product.
To register your product go to:
http://warranty.karcherna.com/warrantyregistration.aspx

TABLE OF CONTENTS
86309600 (2000) BURNISHER 10/08/08
3
Machine Data Log/Overview................................2
Table of Contents.................................................3
HOW TO USE THIS MANUAL
How to use this Manual........................................1-1
SAFETY
Important Safety Instructions ...............................2-1
Hazard Intensity Level..........................................2-3

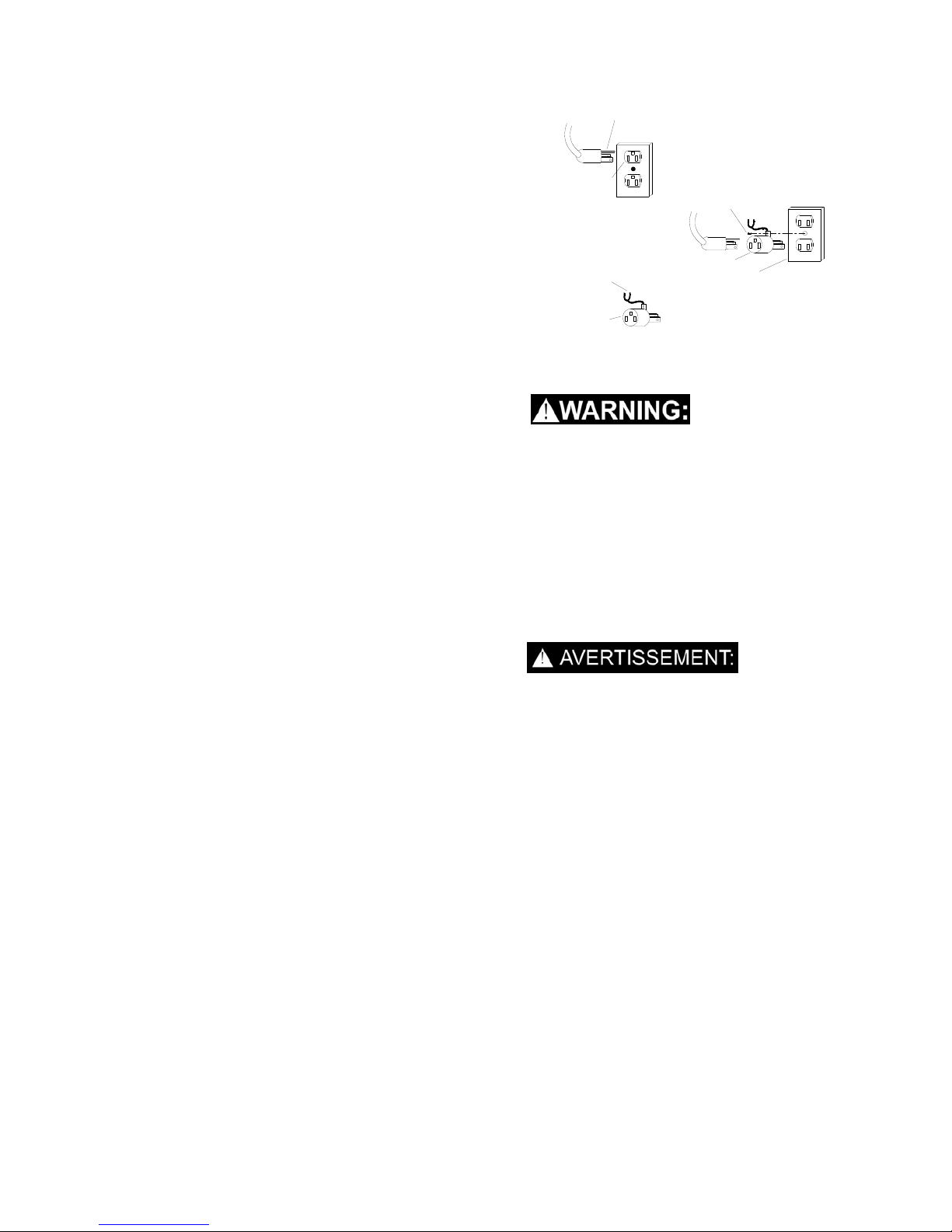

Grounding Instructions.........................................2-5
OPERATION
Technical Specifications.......................................3-1
Handle Installation................................................3-2
Operation..............................................................3-3
Pad Driver Installation..........................................3-3
MAINTENANCE
Machine Troubleshooting.....................................4-1
Wiring Diagram/Service Schedule.......................4-2
GROUP PARTS LIST
Deck Group..........................................................5-1
Electrical...............................................................5-3
Handle-Lower.......................................................5-5
Handle-Upper.......................................................5-7
Motor....................................................................5-9
Pad/driver...........................................................5-11
Wiring-120V .......................................................5-13
Wiring-230V .......................................................5-14
Suggested Spare Parts...................................... 5-15

HOW TO USE THIS MANUAL
86309600 (2000) BURNISHER 10/08/08
1-1
This manual contains the following sections:
-HOW TO USE THIS MANUAL
-SAFETY
-OPERATIONS
-MAINTENANCE
-PARTS LIST
The HOW TO USE THIS MANUAL section will tell
you how to find important information for ordering
correct repair parts.
Parts may be ordered from authorized dealers.
When placing an order for parts, the machine
model and machine serial number are important.
Refer to the MACHINE DATA box which is filled
out during the installation of your machine. The
MACHINE DATA box is located on the inside of
the front cover of this manual.
The SAFETY section contains important
information regarding hazard or unsafe practices
of the machine. Levels of hazards are identified
that could result in product or personal injury, or
severe injury resulting in death.
The OPERATIONS section is to familiarize the
operator with the operation and function of the
machine.
The MAINTENANCE section contains preventive
maintenance to keep the machine and its
components in good working condition. They are
listed in this general order:
The PARTS LIST section contains assembled
parts illustrations and corresponding parts list. The
parts lists include a number of columns of
information:
-REF – column refers to the reference
number on the parts illustration.
-PART NO. – column lists the part
number for the part.
-PRV NO. - Reference No.
-QTY – column lists the quantity of the
part used in that area of the machine.
-DESCRIPTION – column is a brief
description of the part.
-SERIAL NO. FROM – If this column
has an (*) and a Reference number,
see the SERIAL NUMBERS page in
the back of your manual. If column
has two asterisk (**), call manufacturer
for serial number. The serial number
indicates the first machine the part
number is applicable to. The main
illustration shows the most current
design of the machine. When a boxed
illustration is shown, it displays the
older design.
-NOTES – column for information not
noted by the other columns.
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement
parts numbers needed for ordering future parts.
NOTE: The number on the lower left corner of the
front cover is the part number for this manual.

SAFETY
86309600 (2000) BURNISHER 10/08/08 2-1
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
To reduce the risk of fire, electric shock, or injury:
Use only indoors. Do not use outdoors or expose to rain.
Use only as described in this manual. Use only manufacturer’s recommended components and attachments.
If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into water,
return it to an authorized service center.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce
airflow.
Machine can cause a fire when operating near flammable vapors or materials. Do not operate this machine
near flammable fluids, dust or vapors.
This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories,
shops and offices for more than normal housekeeping purposes.
Maintenance and repairs must be done by qualified personnel.
During operation, attention shall be paid to other persons, especially children.
The machine shall only be operated by instructed and authorized persons.
When leaving unattended, unplug the machine.
Do not handle the plug or machine with wet hands.
Do not unplug machine by pulling on cord. To unplug, grasp the plug, not the cord.
Do not use with damaged cord or plug. Follow all instructions in this manual concerning grounding the
machine.
Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or
corners.
Do not pull/run machine over cord. Keep cord away from heated surfaces.
Connect to a properly grounded outlet. See Grounding Instructions.
If the supply cord is damaged it must be replaced by a special cord from an authorized service agent.
Unplug before cleaning or servicing.
Operational hazard may occur when running the machine over the supply cord.
This appliance has been designed for use with pads specified by the manufacturer. The fitting of other pads
may affect its safety.
This machine is for dry use only and shall not be used or stored outdoors in wet conditions.
SAVE THESE INSTRUCTIONS

86309600 (2000) BURNISHER 01/26/11
2-2
IMPORTANTES MESURES DE SÉCURITÉ
L’utilisation d’un appareil électrique demande certaines précautions:
LIRE TOUTES LES INSTRUCTIONS AVANT DE FAIRE FONCTIONNER (CET
APPAREIL).
Pour réduire les risques d’incendie, de chocs électriques, ou de
blessures :
N’utiliser cette machine qu’en intérieur. Ne jamais l’utiliser à l’extérieur ou dans la pluie.
N’utiliser cette machine que comme décrit dans le présent manuel. N’utiliser que les composants et les accessoires
conseillés par le fabricant.
Lorsque la machine ne fonctionnant pas correctement, a fait l’objet d’une chute ou d’une détérioration, a été laissée
à l’extérieur, est tombée dans l’eau, la retourner au centre de service agréé.
Ne pas opérer la machine lorsque les conduits de ventilation sont bloquées. Débarrasser les débris des conduits, car
ils peuvent réduire l’écoulement d’air.
Cette machine peut provoquer un incendie lorsqu’elle est utilisée près de vapeurs ou de matériaux inflammables.
Ne pas l’utiliser près de liquides, de poussières ou de vapeurs inflammables.
Cette machine est destinée à un usage commercial. Elle est recommandée davantage pour les domaines
hôtelier, scolaire, hospitalier, industriel ou pour les bureaux, les chaînes de magasin, que pour un usage
domestique normal.
L’entretien et les réparations de la machine doivent être effectuées par un personnel qualifié.
Durant la manoeuvre de la machine, prendre garde aux personnes environnantes et notamment aux enfants.
Cette machine ne doit être manoeuvrée que par un personnel expérimenté et qualifié.
Lorsque vous laissez la machine sans surveillance, débranchez-la.
Ne pas toucher la fiche ou l’appareil lorsque vos mains sont humides.
Ne pas débrancher en tirant sur le cordon. Tirer plutôt la fiche.
Ne pas utiliser si le cordon ou la fiche est endommagé
Ne pas tirer soulever ou traîner l’appareil par le cordon. Ne pas utiliser le cordon comme une poignée, le
coincer dans l’embrasure d’unée porte ou l’appuyer contre des arêtes vives ou des coins.
Ne pas faire rouler l’appareil sur le cordon. Garder le cordon à l’écart des surfaces chaudes.
Cet appareil ne doit être connecter qu a des prises ayant une sortie de terre. Se reporter aux instructions de
mise à la terre.
Si le cordon d'alimentation est endommagé, il doit être remplacé par un cordon spécial d'un agent d'entretien
autorisé.
Débranchez la machine avant de la nettoyer ou la réparer.
Un risque opérationnel est probable lors du fonctionnement de la machine avec une surcharge du cordon
d'alimentation.
Cet appareil a été conçu pour être utilisé avec des coussins protecteurs spécifiés par le fabricant. L'utilisation
d'autres coussins protecteurs peut affecter sa securité.
Cette machine est faite pour un usage à sec seulement et ne doit pas être utilisée ou rangée à l'extérieur
dans des conditions humides.
CONSERVER CES INSTRUCTIONS
!AVERTISSEMEN
T

SAFETY
86309600 (2000) BURNISHER 01/26/11 2-3
The following symbols are used throughout this guide as indicated in their descriptions:
HAZARD INTENSITY LEVEL
There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR
SAFETY. The level of hazard intensity is determined by the following definitions:
WARNING - Hazards or unsafe practices, which COULD result in severe personal injury or death.
CAUTION - Hazards or unsafe practices, which could result in minor personal injury or product or
property damage.
FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.
Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper
operating condition. Following is information that signals some potentially dangerous conditions to the
operator or the equipment. Read this information carefully. Know when these conditions can exist.
Locate all safety devices on the machine. Please take the necessary steps to train the machine
operating personnel.
FOR SAFETY:
DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects.
WHEN SERVICING MACHINE:
Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the
machine. Use approved replacement parts.

DEGRÉS DE RISQUES EN CAS DE DANGER
86309600 (2000) BURNISHER 01/26/11
2-4
Les symboles ci-dessous sont utilisés à travers ce manuel comme illustré dans leurs descriptions :
DEGRÉS DE RISQUES EN CAS DE DANGER
Il existe trois degrés de risques identifiés par les termes signalétiques –AVERTISSEMENT et
ATTENTION et POUR VOTRE SÉCURITÉ. Le degré de risque est défini de la manière suivante :
AVERTISSEMENT - Dangers ou méthodes dangereuses qui POURRAIENT provoquer de graves blessures ou
entraîner la mort.
ATTENTION - Dangers ou méthodes dangereuses qui pourraient provoquer des blessures légères ou une
détérioration du produit ou des biens immobiliers.
POUR VOTRE SÉCURITÉ : ce signe permet d’identifier les mesures de précaution à prendre pour
assurer un bon fonctionnement du matériel.
Rendre compte immédiatement d’une défaillance ou d’une détérioration de la machine. Ne pas utiliser la
machine si celle-ci ne fonctionne pas correctement. Lire soigneusement les informations ci-dessous signalant
certains dangers potentiels pour l’opérateur de la machine. L’opérateur doit être absolument au courant de ces
dangers potentiels. Localiser tous les dispositifs de sécurité sur la machine. Il est conseillé de prendre les
mesures nécessaires pour former le personnel opérateur.
POUR VOTRE SÉCURITÉ :
NE PAS MANOEUVRER LA MACHINE :
Lorsqu’on n’est pas expérimenté ou qualifié.
Lorsque le guide d’utilisation n’est pas été lu ou compris.
Dans des zones inflammables ou explosives.
Dans des zones où des objets peuvent tomber.
LORS DE L’ENTRETIEN DE LA MACHINE :
Éviter les parties amovibles. Ne pas porter de vêtements amples, tels que des vestes, des chemises ou
des vêtements avec manches lors de l’utilisation de la machine. Utiliser les pièces détachées
homologuées.
! ATTENTION
! AVERTISSEMENT

SAFETY
86309600 (2000) BURNISHER 01/26/11 2-5
GROUNDING INSTRUCTIONS 120V
THIS PRODUCT IS FOR COMMERCIAL
USE ONLY.
ELECTRICAL:
In the USA this machine operates on a 15 amp
nominal 120V, 60 hz, A.C. power circuit. The
amp, hertz, and voltage are listed on the data
label found on each machine. Using voltages
above or below those indicated on the data label
will cause serious damage to the motors.
GROUNDING INSTRUCTIONS:
This appliance must be grounded. If it should
malfunction or break down, grounding provides
a path of least resistance for electric current to
reduce the risk of electric shock. This appliance
is equipped with a cord having an equipment-
grounding conductor and grounding plug. The
plug must be inserted into an appropriate outlet
that is properly installed and grounded in
accordance with all local codes and ordinances.
This appliance is for use on a nominal 120-volt
circuit, and has a grounded plug that looks like
the plug in “Fig. A”. A temporary adaptor that
looks like the adaptor in “Fig . C” may be used
to connect this plug to a 2-pole receptacle as
shown in “Fig. B”, if a properly grounded outlet
is not available. The temporary adaptor should
be used only until a properly grounded outlet
(Fig. A) can be installed by a qualified
electrician. The green colored rigid ear, lug, or
the like extending from the adaptor must be
connected to a permanent ground such as a
properly grounded outlet box cover. Whenever
the adaptor is used, it must be held in place by a
metal screw.
USING AN ADAPTOR
GROUNDING CONNECTION
Note: Adaptors are not allowed in Canada.
Outlet
Tab for Grounding Outlet Box
FIGURE C
Grounded
FIGURE A
Adaptor
Screw FIGURE B
Adaptor
Metal Screw
Grounded
Grounding Pin
Improper connection of the equipment-
grounding conductor can result in a risk of
electric shock. Check with a qualified
electrician or service person if you are in
doubt as to whether the outlet is properly
grounded. Do not modify the plug provided
with the appliance - if it will not fit the outlet,
have a proper outlet installed by a qualified
electrician.
Le raccordement incorrect du conducteur de
terre d'équipement peut entraîner des risques
d'électrocution. Vérifiez auprès d'un électricien
qualifié ou d'un responsable de l'entretien si
vous avez quelque doute que ce soit quant au
raccordement à la terre de votre prise murale.
Ne modifiez pas la fiche fournie avec
l'appareil: si elle ne correspond pas à la prise
murale, faites installer une prise adéquate par
un électricien qualifié.

SAFETY
86309600 (2000) BURNISHER 01/26/11
2-6
GROUNDING INSTRUCTIONS-230V
THIS PRODUCT IS FOR COMMERCIAL USE
ONLY.
ELECTRICAL:
The amp, hertz, and voltage are listed on the data
label found on each machine. Using voltages
above or below those indicated on the data label
will cause serious damage to the motors.
EXTENSION CORDS:
If an extension cord is used, the wire size must be
at least one size larger than the power cord on the
machine, and must be limited to 50 feet (15.5m) in
length.
GROUNDING INSTRUCTIONS:
This appliance must be grounded. If it should
malfunction or break down, grounding provides a
path of least resistance for electric current to
reduce the risk of electric shock. This appliance is
equipped with a cord having an equipment-
grounding conductor and grounding plug. The
plug must be inserted into an appropriate outlet
that is properly installed and grounded in
accordance with all local codes and ordinances.
Improper connection of the equipment-
grounding conductor can result in a risk of
electric shock. Check with a qualified
electrician or service person if you are in doubt
as to whether the outlet is properly grounded.
Do not modify the plug provided with the
appliance - if it will not fit the outlet, have a
proper outlet installed by a qualified
electrician.
Le raccordement incorrect du conducteur de
terre d'équipement peut entraîner des risques
d'électrocution. Vérifiez auprès d'un électricien
qualifié ou d'un responsable de l'entretien si
vous avez quelque doute que ce soit quant au
raccordement à la terre de votre prise murale.
Ne modifiez pas la fiche fournie avec
l'appareil : si elle ne correspond pas à la prise
murale, faites installer une prise adéquate par
un électricien qualifié.

SAFETY
86309600 (2000) BURNISHER 01/26/11
2
-
7
SAFETY LABEL LOCATION
NOTE: These drawings indicate the location of safety labels on the Machine. If, at
any time, the labels become illegible contact your authorized representative for
prompt replacement.
EMPLACEMENT DE L'ÉTIQUETTE DE SÉCURITÉ
REMARQUE : Ces dessins indiquent l'emplacement des étiquettes de sécurité sur la
machine. Si, à tout moment, les étiquettes deviennent illisibles, contactez votre
représentant autorisé pour un remplacement rapide.
WARNING LABEL
P/N 86219740
PRV NO. 500194

TECHNICAL SPECIFICATIONS
86309600 (2000) BURNISHER 10/08/08
3-1
ITEM DIMENSION/CAPACITY
Construction Heavy-duty die cast aluminum deck with heavy-duty rubber
bumper, tubular steel self adjusting handle with die cast aluminum
handle housing.
Motor 1.5 hp
Transmission Direct drive from motor shaft.
Pad speed 2000 rpm
Electrical system:
LB2000I, LB2000IA 230 volts, 50Hz
LB2000, UB2000F 115 volts, 60Hz
Cable 75’ [22.9 m]
Switches Dual levers with safety lock.
Pad Holder ∅20” [50.8 cm] flexible disc
Wheels Four ∅5” [∅12.7 cm], 1.25” [3.2 cm] wide, non-marking tread.
Handle ∅1.5” [∅3.8 cm] tubular steel, self adjusting handle consistently
maintains full contact with the floor, and easy to use thumb
activated safety lock.
Dimensions (L x W x H) 32” [81.3 cm] X 23.9” [60.2 cm] X 48.4” [122.9 cm]
Pad size (See note) 20” diameter x 1” thick
NOTE: Always use a pad, which has been designed for electric ultra high speed burnishing of at
least 2000 rpm.
The sound pressure level at the operator’s ear was measured to be 70 dBA. This was a nearfield,
broad-band measurement taken in a typical industrial environment on a tile floor. This appliance
contains no possible source of impact noise. The instantaneous sound pressure level is below 63 Pa.

OPERATION
86309600 (2000) BURNISHER 10/08/08 3-
2
4. Slide Bolt (item 3) through, washers (item 2),
Handle Mount Brackets and Handle Assembly as
shown. Tighten bolt (item 3) and nut (item 1) until
the handle cannot twist in the mount bracket (45-
50 foot pounds).
5. Check handle for movement up and down.
6. Plug cord into handle cord receptacle.
ASSEMBLY
3
DECK
MOUNT BRACKET
HANDLE
ASSEMBLY
HANDLE
2
1
HANDLE INSTALLATION
The machine is shipped with handle unassembled.
Follow these steps for installation:
1. Remove handle and deck assembly from
carton.
2. Remove bolt (item 3), washers (item 2), and
nut (item 1) from deck assembly.
3. Install Handle Assembly as shown.

OPERATION
86309600 (2000) BURNISHER 01/26/11
3-3
CONTROLS
1. Safety Lock – Prevents unintended operation
of the machine.
2. Switch Levers – Turns machine on/off.
OPERATION
For indoor use only.
Pour utilisation à l'intérieur seulement.
When using the pad, always keep the machine
moving when in contact with the floor.
Lorsque vous utilisez le coussin protecteur,
gardez toujours la machine en mouvement
lorsqu'elle est en contact avec le sol.
High starting torque. Hold machine firmly with
both hands.
Couple de démarrage élevé. Tenez la machine
fermement à deux mains.
1. Ensure that the pad driver is in good shape.
Install or change pad if necessary.
2. Plug the machine into a wall outlet as
described in the grounding instructions.
3. Release latch, lower the handle and move into
position.
4. Push the safety lock forward, unlocking the
switch levers.
5. With the safety lock forward, squeeze one or
both of the switch levers, turning the machine
on. (These levers can be operated
independently of each other). The safety lock
will not re-engage until both levers are
released.
6. To stop the machine, release the switch
levers.
7. Do not let machine rest on pad. When
finished with the machine, return handle to the
storage position.
NOTE: The machine is equipped with a circuit
breaker to protect the motor in the event an
overload condition occurs. The circuit breaker is
located on the handle. Push the reset button to
restart the machine. If the breaker trips again,
correct the cause of overloading before
proceeding.
DAILY MAINTENANCE
1. Inspect power cord for wear. To prevent
electrical shock replace cords with frayed or
cracked insulation immediately.
2. Place machine in the storage position.
3. Check pad condition. Change if soiled or torn.
PAD INSTALLATION
1. Lay machine back, exposing the under
side.
2. Remove center lock by turning counter-
clockwise.
3. Ensure pad is centered on pad driver. Pull
pad to edge of pad driver in several
directions to check for proper
engagement.
4. Replace center lock by turning clockwise
firmly compressing the center of the pad.
22
1
HANDLE
RELEASE LATCH

MAINTENANCE
86309600 (2000) BURNISHER 10/08/08 4-1
MACHINE TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
Tripped circuit breaker Reset
Circuit breaker tripped in
building. Check and reset
Fuse in motor is blown Replace
CAUTION: To reduce the risk of
electrical shock, unplug the
machine before opening fuse
holder.
Fuse will only open under extreme
conditions.
Investigate cause before replacing.
Power switch failure Test switch for continuity and
replace if necessary.
Machine will not run
Faulty power cord Replace
Equipment not grounded Follow grounding instructions
exactly.
Receptacle not grounded Have an electrician inspect
building’s wiring.
Electrical shock
Internal wiring problem Ensure that the machine wiring
matches the appropriate wiring
diagram. Replace any wires or
components, which are short-
circuiting.
Mechanical problem Higher amp draws indicate a
mechanical problem; find the
problem before using the machine.
Repeated circuit breaker tripping Faulty circuit breaker Test circuit for continuity. Replace
circuit breaker if necessary.
Pad not centered Re-center pad.
Damaged or unevenly
worn pad. Replace pad. Do not rest machine on pad when not in use.
Excessive vibration
Damaged pad driver. Replace.

MAINTENANCE
86309600 (2000) BURNISHER 10/08/08
4-2
SERVICE SCHEDULE
MAINTENANCE DAILY MONTHLY
Check
p
ad wear to
p
revent buildu
p
of chemicals *
Check
p
ad driver s
y
stem for dama
g
e *
Check handles, switches, and knobs for dama
g
e*
Store with
p
ad off the floor *
Check all bearin
g
s for noise *
Check skirt/bum
p
ers for dama
g
e and re
p
lace as necessar
y
*
Check overall
p
erformance of machine *

NOTES:
86309600 (2000) BURNISHER 10/08/08 4-3

DECK
86309600 (2000) BURNISHER 10/08/08
5-1
16
2
3
12
13
14
15
9
8
7
6A-B 4
5
10
11
1

DECK
86309600 (2000) BURNISHER 10/08/08
5-2
REF PART NO. PRV NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 86216280 140449 4 BUMPER, RUBBER
2 86217520 27918 1 COVER, FILTER BAG
3 86001390 140441 1 BAG, DUST (PACKAGE OF 10 BAGS)
4 86223430 67463 1 RETAINER, CORD
5 86276810 70738 2 SCR, M5 X .8MM X 10 MM PPHMS BLK
6A 86217640 29244BLU 1 DECK, 20 IN BURNISHER, BLUE LB2000,
LB2000I,
LB2000IA
6B 86289010 29244GRY 1 DECK, 20 IN BURNISHER, GRY UB2000UF
7 86216270 140423 1 BUMPER, EXTRUSION
8 86137340 87211 2 WASHER, M6 FLAT BLK
9 86276570 70691 2 SCR, M6 X 25 HHMS
10 86271550 57220 2 NUT, M6 X 1 HEX NYLOCK PLTD
11 86216600 27871 2 CAP EXTRUSION
12 86215020 05156 2 AXLE, FRONT
13 86225720 87203 4 WASHER, 14MM ID X 36 MM OD
14 86137280 87054 2 WASHER, M8 FLAT DIN125A PLT
15 86136640 70262 2 SCR, M8-1.25 X 20 HHMS PLTD
16 86288740 70709 2 SCR, SET M8 X 1.25 X 8MM CUP
POINT

ELECTRICAL
86309600 (2000) BURNISHER 03/31/11
5-3
1234
567
8
9
10
11
12
13 A-C
14 A-B
15
16
6
517
18
