Windsor Mini Pro User manual

86401460-A - 08/12/15
Mini Carpet Extractor (4 Gallon)
Extractor
Operating instructions (ENG)
MODELS:
MPRO
10080390

2
Warranty Registration
Thank you for purchasing a Kärcher North America product. Warranty registration is quick
and easy. Your registration will allow us to serve you better over the lifetime of the product.
To register your product go to :
http://warranty.karcherna.com/
For customer assistance:
1-800-444-7654
86401460 Operator’s Manual - Mini Carpet Extractor
Machine Data Label
Overview
The carpet extractor is a mains powered, portable extractor intended for commercial use. The appliance sprays
a cleaning solution onto the carpet, agitates the wet carpet, and then extracts the soiled solution back into the
unit’s recovery tank. The appliance can be fitted with an accessory tool for cleaning upholstery and stairs.

3
Table of Contents
Machine Data Label. . . . . . . . . . . . . . . . . . . . . . . . 2
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . 3
How To Use This Manual . . . . . . . . . . . . . . . . . . . 4
Safety
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . 5
CONSIGNES DE SÉCURITÉ IMPORTANTES . . 6
HAZARD INTENSITY LEVEL. . . . . . . . . . . . . . . . 7
NIVEAU D'INTENSITÉ DU DANGER. . . . . . . . . . 8
Grounding Instructions . . . . . . . . . . . . . . . . . . . . . 9
Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Technical Specifications . . . . . . . . . . . . . . . . . . . 11
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Chemicals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Controls & Components . . . . . . . . . . . . . . . . . . . 13

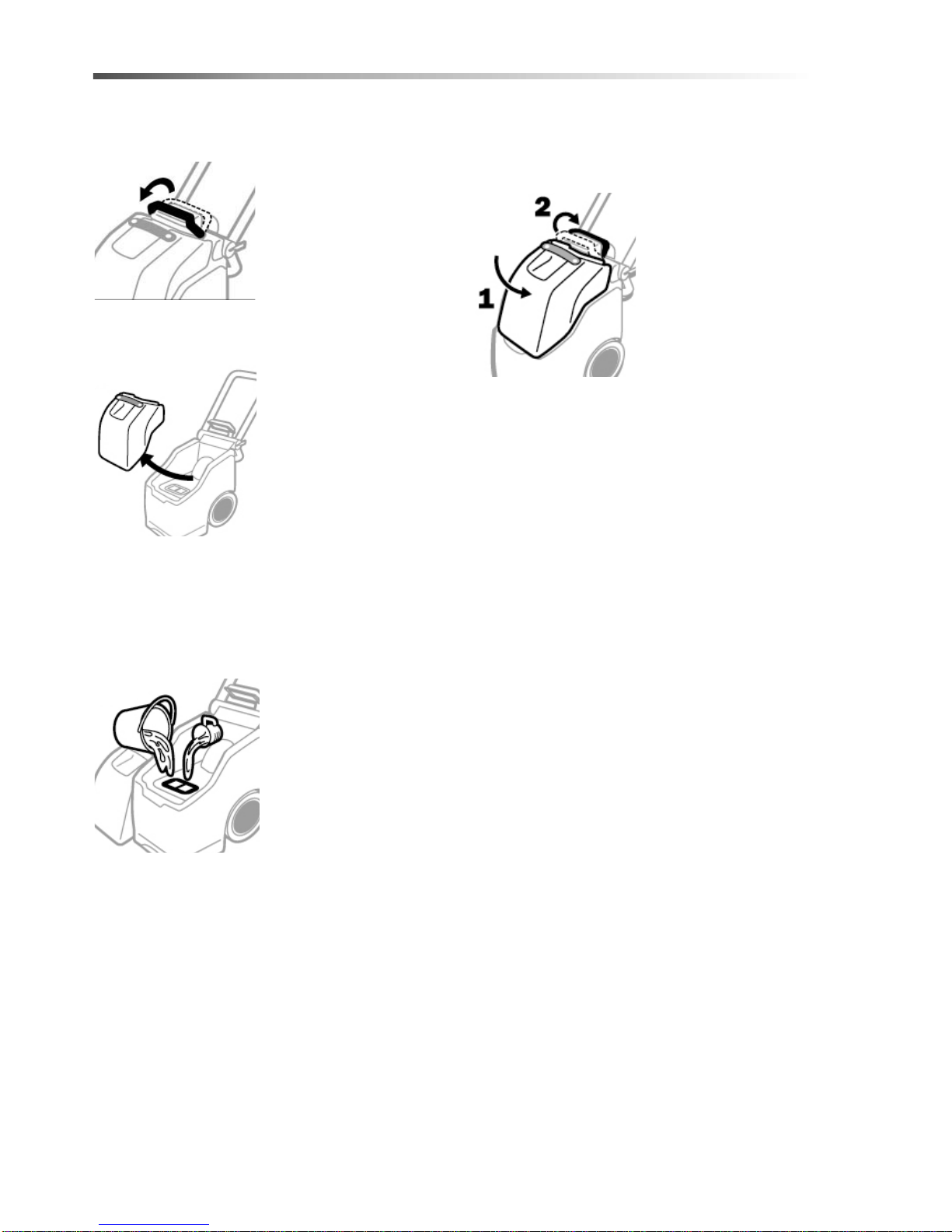

Filling The Solution Tank . . . . . . . . . . . . . . . . . . 14

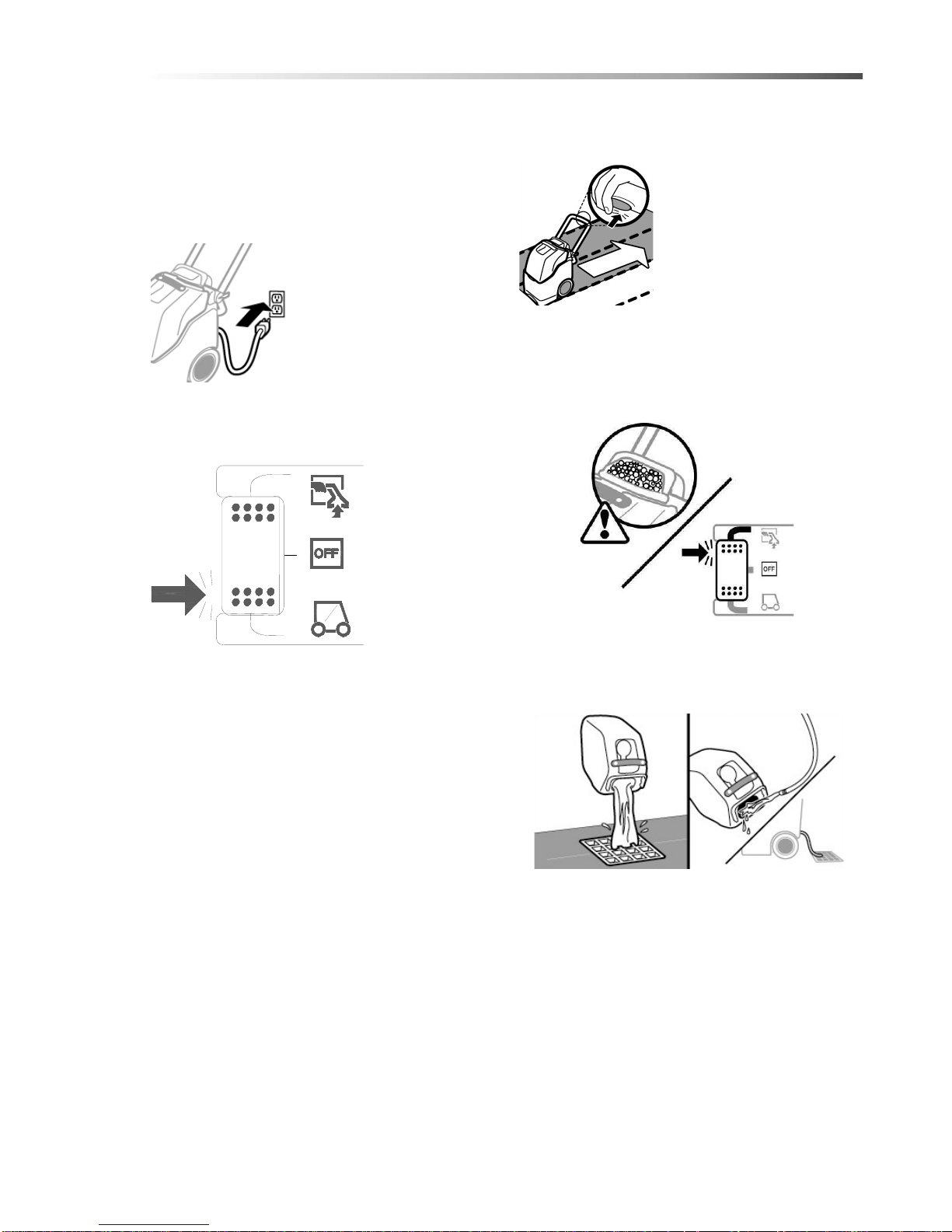

Operating the Machine . . . . . . . . . . . . . . . . . . . . 15
Operating Machine With Accessory Tools . . . . . 16
Maintenance
Protect From Freezing . . . . . . . . . . . . . . . . . . . . 17
Daily Regular Maintenance. . . . . . . . . . . . . . . . . 17
Periodic Maintenance . . . . . . . . . . . . . . . . . . . . . 17
Brush Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 18
Spray Jet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Brush Motor Removal. . . . . . . . . . . . . . . . . . . . . 19
Pump Removal . . . . . . . . . . . . . . . . . . . . . . . . . . 19

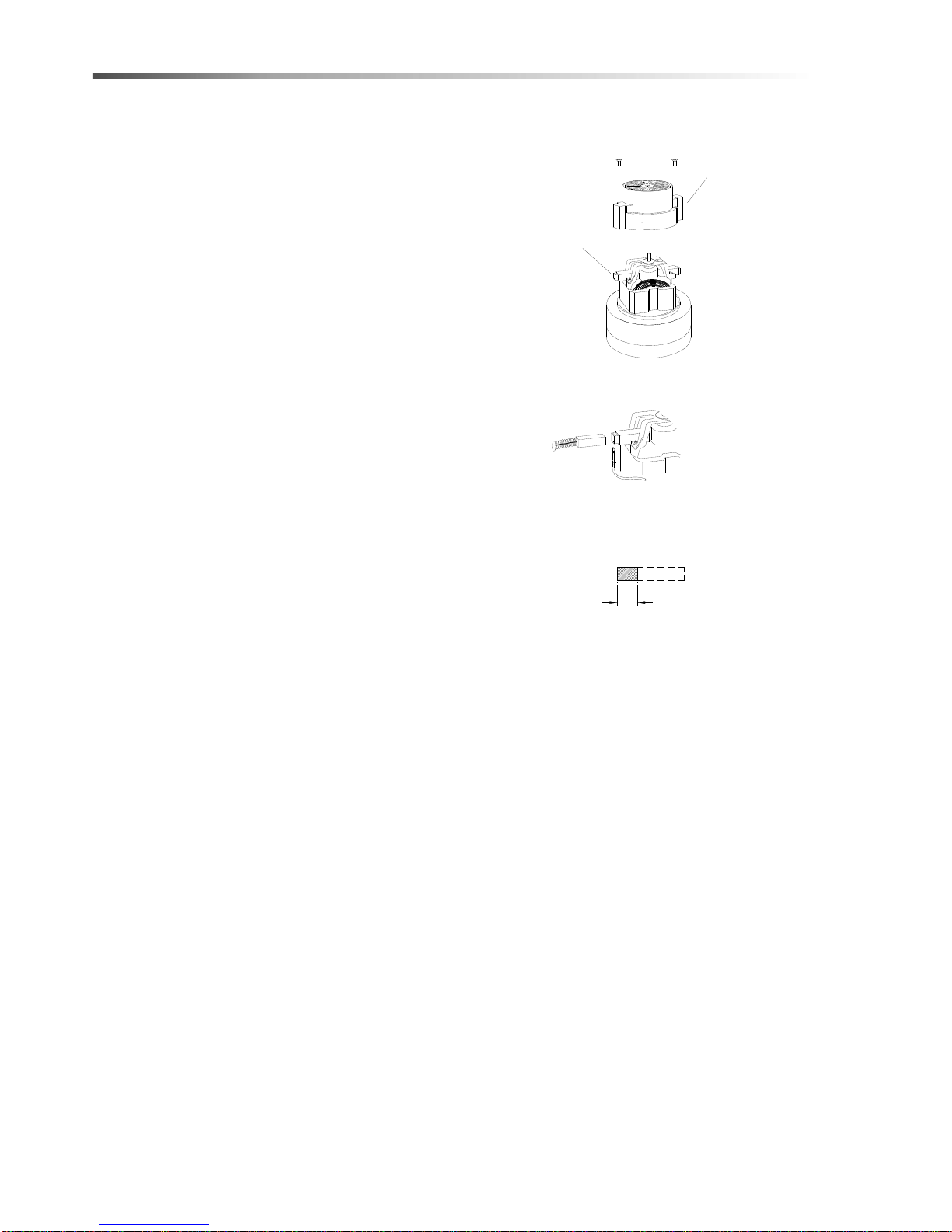

Vacuum Motor Removal . . . . . . . . . . . . . . . . . . . 20
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 21
Suggested Spare Parts. . . . . . . . . . . . . . . . . . . . 23
86401460 Operator’s Manual - Mini Carpet Extractor

4
How To Use This Manual
This manual contains the following sections:
• How To Use This Manual
•Safety
• Operations
• Maintenance
• Suggested Spare Parts
The HOW TO USE THIS MANUAL section will tell
you how to find important information for ordering
correct repair parts.
Parts may be ordered from authorized dealers. When
placing an order for parts, the machine model and
machine serial number are important. Refer to the
MACHINE DATA box which is filled out during the
installation of your machine. The MACHINE DATA
box is located on the inside of the front cover of this
manual.

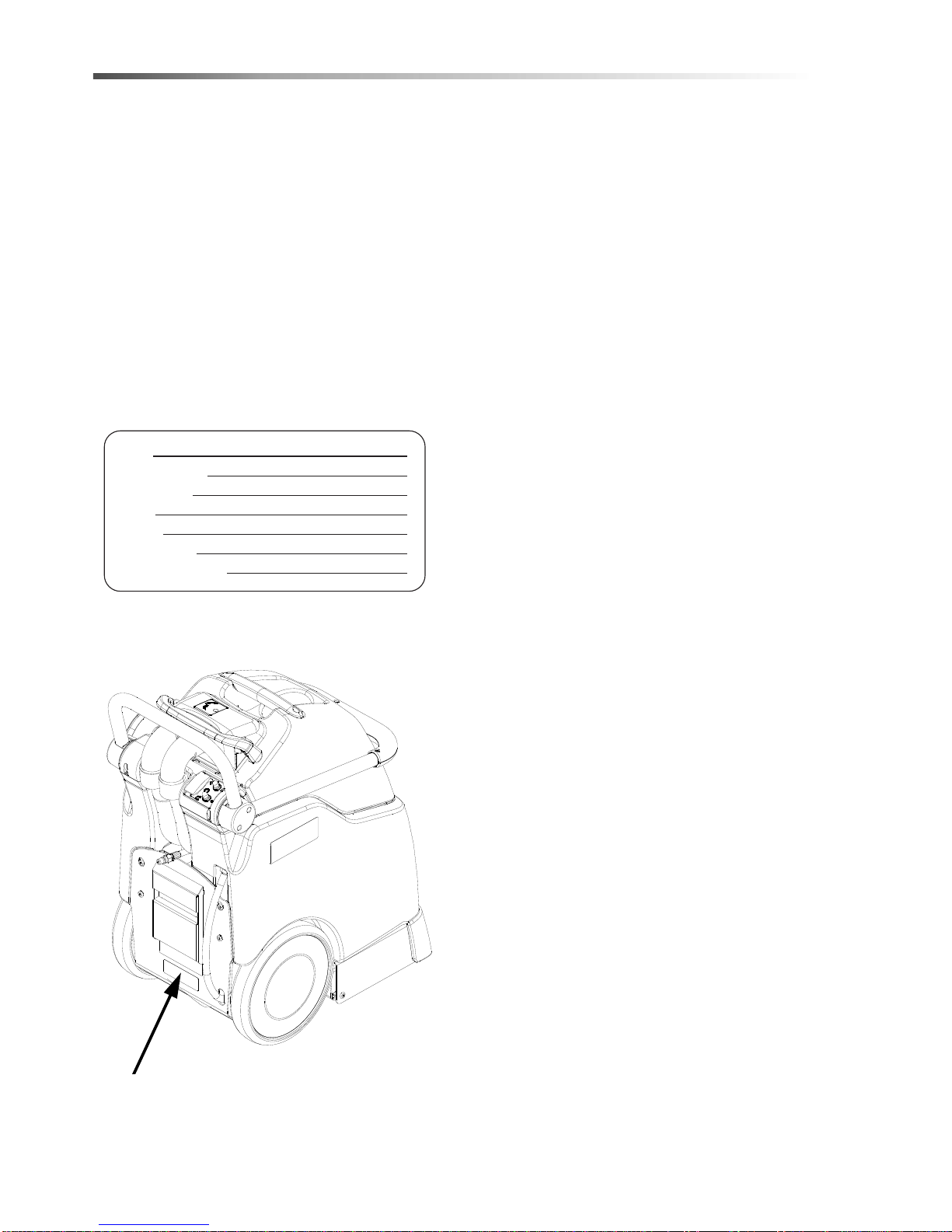

The model and serial number of your machine is
located on the back of the machine.
The SAFETY section contains important information
regarding hazardous or unsafe practices of the
machine. Levels of hazards are identified that could
result in product damage, personal injury, or severe
injury resulting in death.
The OPERATIONS section is to familiarize the
operator with the operation and function of the
machine.
The MAINTENANCE section contains preventive
maintenance to keep the machine and its compo-
nents in good working condition. They are listed in
this general order:
• Storage
• Maintenance
• Troubleshooting
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement
parts numbers needed for ordering future parts.
NOTE: The manual part number is located on the
lower right corner of the front cover.
Model:
Date of Purchase:
Serial Number:
Dealer:
Address:
Phone Number:
Sales Representative:
86401460 Operator’s Manual - Mini Carpet Extractor

5
Safety
IMPORTANT SAFETY INSTRUCTIONS
When using this machine, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
To reduce the risk of fire, electric shock, or injury:
Connect to a properly grounded outlet. See Grounding Instructions.
Do not leave the machine unattended. Unplug machine from outlet when not in use and before maintenance or
service.
Use only indoors. Do not use outdoors or expose to rain.
Do not allow machine to be used as a toy. Close attention is necessary when used by or near children.
Use only as described in this manual. Use only manufacturer's recommended components and attachments.
Do not use damaged electrical cord or plug. Follow all instructions in this manual concerning grounding the
machine. If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into
water, return it to an authorized service center.
Do not pull or carry machine by electrical cord, use as a handle, close a door on cord, or pull cord around sharp
edges or corners.
Do not run machine over cord. Keep cord away from heated surfaces.
Do not unplug machine by pulling on cord. To unplug, grasp the electrical plug, not the electrical cord.
Do not handle the electrical plug or machine with wet hands.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.
This machine is intended for cleaning carpet only.
Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
This machine is not suitable for picking up health endangering dust.
Turn off all controls before unplugging.
Machine can cause a fire when operatingnear flammable vapors or materials. Do not operate this machine near
flammable fluids, dust or vapors.
This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and
offices for more than normal housekeeping purposes.
Maintenance and repairs must be done by qualified personnel.
If foam or liquid comes out of machine, switch off immediately.
READ AND SAVE THESE INSTRUCTIONS
86401460 Operator’s Manual - Mini Carpet Extractor

6
Safety
CONSIGNES DE SÉCURITÉ IMPORTANTES
Lors de l'utilisation de cette machine, des précautions de base
doivent toujours être prises, y compris les précautions suivantes :
LIRE TOUTES LES INSTRUCTIONS AVANT D'UTILISER CETTE MACHINE.
Pour réduire le risque d'incendie, d'électrocution ou de blessure :
Raccordez l'appareil à une prise adéquatement reliée à la terre. Voir les Consignes de mise à la terre.
Ne laissez pas l'appareil sans surveillance lorsqu'il est branché. Débranchez l'appareil lorsqu'il n'est pas utilisé
et avant tout entretien.
Utilisez-le exclusivement dans des endroits fermés. Ne l'utilisez pas en plein air et ne le laissez pas sous la
pluie.
Ne pas permettre aux enfants dejouer avec l'appareil. Durant la manoeuvre de la machine, prendre garde aux
personnes environnantes et notamment aux enfants.
Utilisez-le exclusivement de la manière décrite dans ce manuel. Utilisez exclusivement les composants et les
fixations recommandés par le fabricant.
N'utilisez pas l'appareil si le cordon ou la fiche est endommagé(e). Observez toutes les consignes figurant dans
ce manuel au sujet de la mise à la terre de l'appareil. Si l'appareil ne fonctionne pas correctement, s'il est tombé
par terre, s'il est endommagé, s'il a été laissé dehors ou s'il a été plongé dans l'eau, veuillez le renvoyer à un
centre d'entretien agréé.
Ne tirez pas sur le cordon, ne portez pas l'appareil par le cordon, n'utilisez pas le cordon comme poignée, ne
fermez pas une porte sur le cordon, ne tirez pas sur le cordon dans des angles ou des coins pointus.
Ne faites pas passer l'appareil par-dessus le cordon. Maintenez le cordon à l'écart de surfaces chauffées..
Ne débranchez pas l'appareil en tirant sur le cordon. Pour le débrancher, empoignez la fiche, non pas le cordon.
Ne manipulez pas la fiche ou l'appareil les mains mouillées.
Ne faites pas fonctionner l'appareil si des ouvertures sont bouchées. Dégagez des ouvertures tous débris
susceptibles d'entraver le passage de l'air.
Cette machine est destinée pour nettoyer le tapis seulement.
Ne pas ramasser quelque chose qui brûle ou fume, comme des cigarettes, des allumettes ou des cendres
chaudes.
Cet appareil n'est pas conçu pour aspirer des poussières dangereuses.
Arrêtez toutes les commandes avant le débranchement.
L'appareil peut déclencher un incendie s'il se trouve à proximité de vapeurs ou de matériaux inflammables. Ne
faites pas fonctionner cet appareil à proximité de fluides, de poussières ou de vapeurs inflammables.
Cet appareil est adapté à un usage commercial : par exemple dans les hôtels, les établissements scolaires, les
hôpitaux, les usines, les magasins et les bureaux, à des fins plus étendues qu'un simple entretien de la maison.
Les travaux de maintenance et de réparation doivent absolument être effectués par du personnel qualifié.
Si de la mousse ou du liquide s'échappe de la machine, éteignez-la immédiatement.
LIRE ET CONSERVER CES INSTRUCTIONS
86401460 Operator’s Manual - Mini Carpet Extractor

7
Safety
The following symbols are used throughout this guide as indicated in their descriptions:
HAZARD INTENSITY LEVEL
There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR
SAFETY. The level of hazard intensity is determined by the following definitions:
WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property
damage.
FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.
Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper operating
condition. Following is information that signals some potentially dangerous conditions to the operator or the
equipment. Read this information carefully. Know when these conditions can exist. Locate all safety devices on
the machine. Please take the necessary steps to train the machine operating personnel.
FOR SAFETY:
DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects
WHEN SERVICING MACHINE:
Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use
manufacturer approved replacement parts.
86401460 Operator’s Manual - Mini Carpet Extractor

8
Safety
Les symboles suivants sont utilisés dans tout ce manuel, tels que décrits ici :
NIVEAU D'INTENSITÉ DU DANGER
Il existe trois niveaux d'intensité du danger, identifiés par des termes d'avertissement - AVERTISSEMENT,
ATTENTION et POUR VOTRE SÉCURITÉ. Le niveau d'intensité du danger est déterminé par les définitions
suivantes :
AVERTISSEMENT - Les dangers ou des pratiques contraires à la sécurité qui POURRAIENT entraîner des
blessures personnelles ou la mort.
ATTENTION - Les dangers ou des pratiques contraires à la sécurité qui pourraient entraîner des blessures
personnelles légères ou des dégâts sur le produit ou d'autres biens.
POUR DES RAISONS DE SÉCURITÉ : Pour identifier les actions qui doivent être exécutées pour un
fonctionnement sûr de l'équipement.
Signaler immédiatement tout dommage subi par la machine ou fonctionnement défectueux. Ne pas utiliser la
machine si elle ne fonctionne pas correctement. Ci-dessous se trouvent les informations indiquant les condi-
tions potentiellement dangereuses pour l'opérateur ou l'équipement. Lire attentivement ces informations. Être
conscient que ces conditions peuvent survenir. Repérer tous les dispositifs de sécurité sur la machine. Suivre
les étapes nécessaires de formation du personnel qui utilise la machine.
POUR DES RAISONS DE SÉCURITÉ :
NE PAS FAIRE FONCTIONNER LA MACHINE :
Sauf si le personnel est formé et autorisé.
Sauf si le manuel d'utilisation est lu et compris.
Dans des zones inflammables ou explosives.
Dans des zones contenant des objets susceptibles de tomber
LORS DE L'ENTRETIEN DE LA MACHINE :
Éviter les pièces mobiles. Ne pas porter de vêtements, vestes, chemises ou manches vagues lors de l'entretien
de la machine. Utiliser les pièces de rechange approuvées par le fabricant.
86401460 Operator’s Manual - Mini Carpet Extractor

9
Safety
THIS PRODUCT IS FOR COMMERCIAL
USE ONLY.
Electrical
In the USA this machine operates on a standard 15
amp 120V, 60 hz, A.C. power circuit. The amp, hertz,
and voltageare listed on the data label found on each
machine. Using voltages above or below those
indicated on the data label will cause serious damage
to the motors.
Extension Cords
If an extension cord is used, the wire size must be at
least one size larger than the power cord on the
machine, and must be limited to 50 feet (15.5m) in
length.
Grounding Instructions
This appliance must be grounded. If it should
malfunction or break down, grounding providesa path
of least resistance for electric current to reduce the
risk of electric shock. This appliance is equipped with
a cord having an equipment-grounding conductor and
grounding plug. The plug must be inserted into an
appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordi-
nances.
120 Volt Models
This appliance is for use on a nominal 120-volt circuit,
and has a grounded plug that looks like the plug in
"Fig. A". A temporary adaptor that looks like the
adaptor in "Fig. C" may be used to connect this plug
to a 2-pole receptacle as shown in "Fig. B", if a
properly grounded outlet is not available. The
temporary adaptor should be used only until a
properly grounded outlet (Fig. A) can be installed by a
qualified electrician. The green colored rigid ear, lug,
or wire extending from the adaptor must be
connected to a permanent ground such as a properly
grounded outlet box cover. Whenever the adaptor is
used, it must be held in place by a metal screw.
Improper connection of the equipment-grounding
conductor can result in a risk of electric shock. Check
with a qualified electrician or service person if you are
indoubtas to whether the outletis properlygrounded.
Do not modify the plug provided with the appliance - if
it will not fit the outlet, have a proper outlet installed by
a qualified electrician.
Le raccordement incorrect du conducteur de terre
d'équipement peut entraîner des risques d'électrocu-
tion. Vérifiez auprès d'un électricien qualifié ou d'un
responsable del'entretiensi vous avez quelque doute
que ce soit quant au raccordement à la terre de votre
prise murale. Ne modifiez pas la fiche fournie avec
l'appareil : si elle ne correspond pas à la prise murale,
faites installer une prise adéquate par un électricien
qualifié.
86401460 Operator’s Manual - Mini Carpet Extractor
GROUNDING
PIN
GROUNDED
OUTLET ADAPTER
METAL SCREW TAB FOR
GROUNDING SCREW
GROUNDED
OUTLET BOX
(A) (B) (C)

10
Safety
Safety Label Locations
The following WARNING LABEL(S) are found on your cleaning unit. These labels point out important Warnings
and Cautions which should be followed at all times. Failure to follow warnings and cautions could result in
fatality, personal injury to yourself and/or others, or property damage. Follow these instructions carefully!
DO NOT remove these labels.
NOTE: If at any time the labels become illegible, promptly replace them.
Les ÉTIQUETTES D'AVERTISSEMENT suivantes se trouvent sur votre unité de nettoyage. Ces étiquettes
signalent les avertissements et mises en garde importantes qui doivent être suivis en tout temps. Le non respect
des avertissements et mises en garde pourrait entraîner des dommages matériels, des blessures graves ou
même la mort. Suivez attentivement ces instructions ! NE PAS retirer ces étiquettes.
REMARQUE: Si, à tout moment, les étiquettes deviennent illisibles, remplacez-les rapidement.
WARNING LABEL
86220140
86401460 Operator’s Manual - Mini Carpet Extractor

11
Operations
Technical Specifications
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
Cet appareil n'est pas prévu à l'usage des personnes (enfants y compris) avec des possibilités physiques,
sensorielles ou mentales réduites, ou le manque d'expérience et de connaissance, à moins qu'ils aient été
donnés la surveillance ou l'instruction au sujet de l'utilisation de l'appareil par une personne chargée de leur
sûreté. Des enfants devraient être dirigés pour s'assurer qu'ils ne jouent pas avec l'appareil.
ITEM MEASURE
Vacuum Motor (1) 3 stage, 1.5hp 100 cfm (2.8cubic meters/min.)
Waterlift - 120” (305cm)
Floating Brush 10” (25.4cm)
Main Jet Solution Pump Solenoid Style
Accessory Solution Pump Solenoid Style
Solution Capacity 4.6 Gal (17.3L)
Recovery Capacity 3.9 Gal (14.7L)
Brush Speed 1160 rpm
Wheels (2) 10” dia. (25cm) by 2” (5cm)
Vacuum Shoe 12” (30.48cm) cast aluminum
Solution Spray 1 quick change jet
Power cord 25’ (7.6m) (14 gauge)
Height 39 inches (100cm) (Handle adjusted to highest position)
Length 27 inches (69cm) (Handle adjusted to highest position)
Width 14 inches (36cm)
Weight 75 lbs. (34kg)
Electrical 115V, 15A, 60Hz
86401460 Operator’s Manual - Mini Carpet Extractor
Width Length
Height

12
Operations
To avoid electric shock use indoors only. To reduce
risk of fire, do not use volatile substances. Use only
cleaners intended for carpet application.
Pour éviter une électrocution, utilisez la machine à
l'intérieur seulement. Pour réduire les risques
d'incendie, n'utilisez pas de substances volatiles.
Utilisez seulement des nettoyants destinés à être
appliqués sur les tapis.
Inspection
Carefully unpack and inspect your extractor for
shipping damage. Each unit is operated and thor-
oughly inspected before shipping, and any damage is
the responsibility of the carrier, who should be
notified immediately.
To avoid possible distortion of polyethylene solution/
recovery tanks, DO NOT USE WATER TEMPERA-
TURE THAT EXCEEDS 140°F (60° C).
Pour éviter toute distorsion possible aux réservoirs
de récupération /de la solution de polyéthylène,
N’UTILISEZ PAS D'EAU DONT LA TEMPÉRATURE
DÉPASSE 60° C (140° F).
Chemicals
Use only the suitable chemicals listed below. Using
incompatible chemicals will damage the machine.
Damages of this type are not covered under
warranty. Carefully read ingredients on manufac-
turer's label before using any product in this machine.
Suitable Chemicals Incompatible Chemicals
Alkalis Aldehydes; Butyls
Defoaming Agents Carbon Tetrachloride
Detergents Chlorinated Bleaches
Soaps Chlorinated Hydrocarbons
Vinegar Trichlorethylene
Hydroxides Phenols; Methyls (MEK)
Perchlorethylene (perc)
Aromatic Hydrocarbons
D-Limonene
86401460 Operator’s Manual - Mini Carpet Extractor

13
Operations
Controls & Components
1. Power and Operation Mode Switch
Turns accessory tool on or machine on.
2. Main Handle
3. Solution Button
Sprays solution on floor when pressed.
4. Brush Motor Circuit Breaker
Protects brush motor from overheating.
5. Vac Motor Circuit Breaker
Protects the vac motor from overheating
6. Handle Adjustment Lever
Adjusts handle position.
7. Solution Tank Drain Hose
8. Accessory Tool Connection
Solution connection for accessory tools.
9. Accessory Hose Connection
Hose connection for accessory tool.
10. Dome Clamp
11. Dome
12. Recovery Tank
13. Solution Tank
2
1
9
3
8
67
10
11
12
13
5
4
86401460 Operator’s Manual - Mini Carpet Extractor

14
Operations
Filling The Solution Tank
1. Release dome clamp.
2. Lift upper recovery tank from machine and set
aside.
3. Use a clean bucket, recovery tank or hose to fill
solution tank with hot water. The solution tank
holds 4 gallons (15.2 liters) of cleaning solution.
Add a non-foaming concentrate for use in hot
water extractors at the proportions noted on the
container.
NOTE: Periodically operate the extractor with only
hot water to remove chemical residue in carpet.
To avoid possible distortion of the polyethylene
solution/recovery tanks, DO NOT USE WATER WITH
A TEMPERATURE THAT EXCEEDS 140°F(60°C).
4. Place recovery tank back on machine.
Place dome on recovery tank. Make sure dome is
seated correctly to ensure proper vacuum seal.
Clamp dome securely to recovery tank.
Use only the suitable chemicals listed in the
Chemical Section. Using incompatible chemicals will
damage the machine. Carefully read ingredients on
manufacturer's label before using any product in this
machine.
Special Notes:
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowl-
edge, unless they have been given supervision or
instruction concerning use of the appliance by a
person responsible for their safety. Children should
be supervised to ensure that they do not play with the
appliance.
The sound pressure level at the operator's ear was
measured to be 73.7 dBA. This was a nearfield,
broad-band measurement taken in atypical industrial
environment on a tile floor. This appliance contains
no possible source of impact noise. The instanta-
neous sound pressure level is below 63 Pa.
The weighted root mean square acceleration at the
operator's arms was measured to be below 2.5m/s2.
This was a tri-axial, third-octave-band measurement
made during normal operation on a composite tile
floor. The measurement and related calculations
were made in accordance with ISO 5349-1.
86401460 Operator’s Manual - Mini Carpet Extractor

15
Operations
Operating the Machine
1. Vacuum the carpet and make sure it is cleared of
surface debris before cleaning.
2. Plug power cord into a grounded wall outlet.
NOTE: Defeating the grounding pin on the power
cord can result in a severe electrical shock.
3. Turn on the machine by pressing the switch in the
normal operation mode.
NOTE: The vacuum and the brush are protected by
circuit breakers located on the control panel, to the
right of the switch.
NOTE: If either motor does not respond to being
switched on, reset the circuit breakers by pressing
them in, and attempt to switch the machine on
again.
NOTE: If solution does not dispense in an even
pattern across the width of the machine, the spray
jet may be clogged. Tilt the machine back, check for
debris and clean surface of jet.
NOTE: Do not use pins, wire, etc. to clean spray jet
nozzle as this will deform the jet and destroy the
spray pattern.
4. To operate the machine, pull straight back without
pushing down on handle. Press the solution
spray button to apply cleaning solution.
5. While operating machine, check for excessive
foam buildup in the recovery tank. If excessive
foam is present, add a defoamer solution to
recovery tank, or empty tank.
6. Empty recovery tank when approximately 3/4 full.
If the recovery tank is overfilled, the water will
drain back onto the carpet when the vacuum is
switched off.
7. Ventilate area after carpet has been cleaned.
Keep children and pets away and do not walk on
carpet until it is dry.
An Airmover fan can be used to reduce drying time.
86401460 Operator’s Manual - Mini Carpet Extractor

16
Operations
Operating Machine With Accessory
Tools
This extractor is easily adapted for use with Windsor
accessory tools: Contact Customer Service for
details.
1. Disconnect vacuum hose at dome, insert hose
cuff into the dome, ensuring that there is a tight
fit. Dome must be clamped to recovery tank.
2. Attach the solution hose from accessory tool to
the brass solution fitting on the back of machine.
3. Turn on the switch in the accessory position. The
application of cleaning solution is now controlled
by the lever on the accessory tool.
NOTE: The solution pump is not intended to run
dry. When using the extractor for vacuum pick-up
only. Do not press the solution spray button.
This appliance is not suitable for picking up
hazardous dust.
Cet appareil n'est pas conçu pour aspirer des
poussières dangereuses.
86401460 Operator’s Manual - Mini Carpet Extractor

17
Maintenance
Protect From Freezing
If it becomes necessary to store in temperatures that
could drop below 40°F, the pumping system, hoses
and valves must be protected from freezing with a
methyl hydrate window washer antifreeze solution.
NOTE: Do not use ethylene glycol or cooling
system antifreezes.
1. Add one gallon of window washer antifreeze to
the supply tank.
2. Turn on pump switch and spray until the anti-
freeze solution fills the solution lines.
3. Drain the leftover antifreeze from the supply tank.
Always allow the unit to reach room temperature
before filling with hot water or operating.
4. Before operation be sure to flush system
completely. Failure to do so after winterizing
machine will damage carpet.
Daily Regular Maintenance
Before making any adjustments or repairs to the
machine, disconnect the power cord from the
electrical source.
1. Empty unused cleaning solution from the solution
tank.
2. Inspect and clean filter at solution tank fill port
and at the vacuum intake port in the dome.
3. Flush pumping system with 1 to 2 gallons of
clean, hot water.
4. Check spray jet for full spray pattern.
5. Empty the recovery tank and rinse with clean
water.
6. Check for and remove any lint or debris around
brush and vac shoe.
7. Clean float screen and check float valve to make
sure it moves freely.
Periodic Maintenance
1. After every 25 hours of operation, flush a white
vinegar solution (ONE quart vinegar to two
gallons of water) or anti-browning solution (mixed
as directed) through the extractor. This will
prevent build-up of alkaline residue in the system.
2. If the spray jet becomes clogged, check for debris
and clean surface of jet.
NOTE: Do not use pins, wire, etc. to clean spray jet
nozzle as this will deform the jet and destroy the
spray pattern.
3. Periodically inspect all hoses, electrical cables,
filters, gaskets and connections on your machine.
Frayed or cracked hoses should be repaired or
replaced to eliminate vacuum or solution
pressure loss.
4. The electrical cable must be well insulated, if the
cable insulation is broken or frayed, repair or
replace it immediately. Don't take chances with
electrical fire or shock.
5. The filter in the bottom of the solution tank and at
the fill port must be clean to allow free flow of
cleaning solution. The screen filter on the
vacuum intake in the dome must be free of lint
buildup to ensure full vacuum strength.
The dome gasket must be properly seated and free of
damage to create the air seal needed to extract water.
86401460 Operator’s Manual - Mini Carpet Extractor

18
Maintenance
Maintenance Instructions
Remove machine power cord from electrical
source before making any adjustments or repairs
to the machine.
Retirez le cordon d'alimentation de la machine de
la source électrique avant de procéder à des
réparations ou des ajustements de la machine.
Only qualified maintenance personnel are to
perform repairs.
Seul le personnel d'entretien qualifié peut
effectuer des réparations.
Brush Assembly
1. Turn off switch and unplug machine.
2. Position the machine to have access to the
bottom. Remove screws (2) at the sides of the
machine holding the brush deck pivot axle.
3. Remove screw mounting belt cover and remove
belt cover.
4. Loosen the nuts (2) at brush motor and slide
motor forward to reduce belt tension. Remove
belt.
5. Loosen set screw on brush pulley. Remove
pulley.
6. Remove screws (4) mounting brush bearings to
frame. Slide bearing off brush axle.
7. Remove brush by lifting drive end out of frame
and sliding other end out of bearings mounted to
frame.
8. Inspect/replace brush and bearings as required.
The brush is equipped with yellow wear indicator
bristles. Replace the brush when it wears down
to the height of the yellow bristles.
9. Reverse the process to reinstall the brush and
bearings. Check belt for proper belt tension.
Only use the brushes provided with the appliance
or those specified in the instruction manual. The
use of other brushes may impair safety.
N'utilisez que les brosses fournies avec l'appareil
ou celles qui sont spécifiées dans le manuel
d'instructions. L'utilisation d'autres brosses peut
nuire à la sécurité.
Spray Jet
NOTE: To prevent a clogged jet due to alkali build-
up, the spray system should be flushed with 1 to 2
gallons of clean hot water at the end of each day.
1. Turn off switch and unplug machine.
2. Position the machine to have access to the
bottom. Remove screws (2) at the sides of the
machine holding the brush deck pivot axle.
3. Position the machine to have access to the
bottom.
4. Pull off the clip mounting the jet to the frame.
Push the jet and hose out of the mounting hole in
the frame.
5. Loosen the hose clamp and pull the jet out of the
hose.
6. Reverse the process to reinstall the jet. Be sure
to have jet rotated correctly before installing clip.
Clip tab must face back of machine.
NOTE: Do not use pins or wire to remove
obstruction if clogged, this may damage jet and
alter spray pattern.
86401460 Operator’s Manual - Mini Carpet Extractor

19
Maintenance
Brush Motor Removal
1. Turn off switch and unplug machine.
2. Set the machine in its upright position. Remove
the screws (2) in the back metal cover. Rotate the
cover down and slide back releasing the tab
under the machine from the main frame.
3. Remove the pump box cover. Remove screws (4)
at each leg of the cover.
4. To remove brush motor, position the machine to
have access to the bottom. Remove screws (2) at
the sides of the machine holding the brush deck
pivot axle.
5. Remove screw mounting belt cover and remove
belt cover.
6. Remove the nuts and washers (2) at brush motor
and slide motor forward to reduce belt tension.
Remove belt.
7. Remove pulley by loosening set screw and pull
off shaft.
8. Unplug the brush motor wires from the rectifier
located in the pump mount housing. Also, remove
the ground lug from the stud on the main frame
by removing the nut on the stud.
9. Reverse the process to reinstall the motor. Align
motor pulley with brush pulley. Check belt for
proper belt tension.
Pump Removal
1. Turn off switch and unplug machine.
2. Set the machine in its upright position. Remove
the screws (2) in the back metal cover. Rotate the
cover down and slide back releasing the tab
under the machine from the main frame.
3. Remove the pump box cover. Remove screws (4)
at each leg of the cover.
4. To remove either pump, loosen the hose clamp
and remove the hose from both ends of the
pump.
5. Remove screws and washers (4) that mount
pump housing.
6. Unscrew the hose fittings from each end of the
pump.
7. Flex the pump mounting housing to remove the
pump.
8. Remove the screw attaching the ground wire to
the pump. Remove the other two wire connectors
attached to the pump.
9. Reverse the process to reinstall
86401460 Operator’s Manual - Mini Carpet Extractor

20
Maintenance
Vacuum Motor Removal
1. Turn off switch and unplug machine.
2. Set the machine in its upright position. Remove
the screws (2) in the back metal cover. Rotate
the cover down and slide back releasing the tab
under the machine from the main frame.
3. Remove the pump box cover. Remove screws
(4) at each leg of the cover.
4. Remove vacuum hose, loosen hose clamp and
pull hose from bottom of vacuum motor.
5. Unplug wires (2) from main harness located in
pump mount housing. Remove ground from stud
on main frame.
6. To remove the vacuum motor, remove the
screws (2) in the back of the machine that mount
the plastic cover to the solution tank.
7. Remove the screws (3) that mount the vacuum
motor to the plastic cover. Pull the cover off the
vacuum motor.
8. Unscrew the ground wire from the vacuum
motor.
9. Reverse the process to reinstall the vacuum
motor.
NOTE: Make sure the excess wire lengths do not
get pinched between the vacuum motor and plastic
cover.
NOTE: The vac motor is protected by a circuit
breaker located in the switch panel. The breaker
will only trip under conditions of abuse.
86401460 Operator’s Manual - Mini Carpet Extractor
3
8[9.5mm]
Vacuum Motor Carbon Brushes
Carbon
Brushes
End Cap
If armature commutator is grooved, extremely pitted or not
concentric, the motor will need to be replaced or sent to a
qualified service center.
Important:
These brushes wear quicker as the length shortens due to
increased heat. Spring inside brush housing will damage
motor if brushes are allowed to wear away completely.
Periodically check the length of the carbon brushes. Replace
both carbon brushes when either is less tan 3/8" (9.5mm)
long.
