Wine Corner SP40DUPRO Operation manual

INSTALLATION & USER GUIDE
DEFYING
CONVENTION
Wine Cellar Conditioning Unit
SP40DUPRO for Wine Cellars

GUIDE D'INSTALLATION ET D’UTILISATION WINESP40DUPRO
Page 3
User manual
Table of contents
1.TECHNICAL DATAS ....................................................................................6
2.EQUIPMENT...............................................................................................8
2.1.Outside unit ............................................................................................ 8
2.2.Inside unit .............................................................................................. 8
2.3.Thermostat ............................................................................................. 8
2.4.Connection box ....................................................................................... 8
2.5.Connection drawing................................................................................ 8
2.6.Cellar insulation...................................................................................... 9
2.6.1.Insulation of walls, ceiling and floor.......................................................................10
2.6.2.The door...................................................................................................................10
2.6.3.Insulation of other elements ...................................................................................11
3.INSTALLATION OF THE AIR CONDITIONER WINEMASTER®.....................12
3.1.List of required material..........................................................................12
3.2.1.Wall drilling..............................................................................................................12
3.2.2.Brackets installation ................................................................................................12
3.2.3.Fixing the outside unit .............................................................................................12
3.2.4.Air flow ....................................................................................................................12
3.3.Installation of the inside unit ..................................................................13
3.4Ducting connection..................................................................................14
3.5Electric connection ..................................................................................14
3.5.1Connection of outside unit .......................................................................................14
3.5.2Connection of inside unit .........................................................................................14
3.5.3Plugging ...................................................................................................................14
3.5.4Wiring drawing ........................................................................................................15
3.6Installation of the water drain system ....................................................16
4.PLUGGING THE AIR CONDITIONER WINEMASTER®.................................16
4.1.Connecting the air conditioner ................................................................16
4.2.Start up ...................................................................................................17
4.2.1.Temperature setting ................................................................................................17
4.2.2.Standby mode ..........................................................................................................17
4.2.3.Automatic defrost ....................................................................................................17
5.MAINTENANCE OF THE AIR CONDITIONER WINEMASTER®.....................18
5.1.Filter and outside unit cleaning ...............................................................18
5.2.Condensates drain...................................................................................18
6.EXAMPLE OF INSIDE UNIT INSTALLATION ..............................................19
6.1Installation above the air conditioned room............................................19
6.2Installation beside the air conditioned room ...........................................19
7.Warranty .................................................................................................20
7.1 Legal warranty ..........................................................................................20
7. 2 years contractual warranty.......................................................................20
7.3Warranty conditions ................................................................................20
7.4Exclusions and limitations of warranty....................................................20
GB

GUIDE D'INSTALLATION ET D’UTILISATION WINESP40DUPRO
Page 5
Introduction
You purchased an air conditioner WINEMASTER®and we thank you for your confidence.
From conception to marketing, everything
has been implemented to offer an
exclusive and high quality product. Brainchild of a team who find in this a motivation to
ever satisfy you, we hope that your wine conditioning unit WINEMASTER®will bring you
great storage conditions and best wines aging for an incomparable pleasure.
Because the customer is at the heart of all our thoughts, we want to support you in your
first steps and lead you towards the best use of your air conditioner every day. Thus,
you will find in this manual technical information and practical advice to help you to deal
with the essential steps to installation and use.
In order that your wine tasting remains moments to share, FONDIS guarantees you a
sincere engagement, dedicated expertise and ongoing follow-up at your service!
FONDIS.

GUIDE D'INSTALLATION ET D’UTILISATION WINESP40DUPRO
Page 6
1. TECHNICAL DATAS
WINESP40DUPRO
Outside unit Inside unit
Weight of units 35 kg 26 kg
Dimensions H x L x D 408 x 633 x 415 317 x 638 x 546
Temperature setting Preset at 12°C, adjustable between 4 & 15°C *
Maximum outside temperature. 40°C **
Cooling power 900 W at 15°C **
Electricity supply 230/240V-50 Hz
Cooling power 600 W
Heating power 500 W
Gas R404A
The circuit breaker must be at least 16 Amps.
*The insulation has to be in accordance with the volume of the cellar and the set temperature.
** The cooling performance is dependant from the outside temperature. Therefore, the set temperature
of 12°C for the cellar cannot be maintained if the outside temperature reaches the 40°C.
If the thermal safety functions to often, there is a risk for the compressor to be damaged. In all cases, it
must be avoid that the outside temperature remains at 40°C, this high temperature should be limited
to the summer period.
VENTILATED COLD OR « NO FROST »
The advantages of « ventilated cold »:
-No frost other than on the evaporator.
-Automatic defrosting and maximized refrigeration efficiency.
-Cold distribution improved by a permanent air circulation (without air stratification).
The circulation of air allows maintaining the pre-selected temperature throughout the cellar
-.

GUIDE D'INSTALLATION ET D’UTILISATION WINESP40DUPRO
Page 7
Technical drawing
Outside unit
Inside unit
Thermostat
Wiring brox

G
UIDE D ' INSTALLATION ET D ’ UTILISATION WINESP40DUPRO
Page 8
2. EQUIPMENT
The air conditioner is composed of 2 separate units, of a thermostat and a wiring box. They must be
connected by frigorific ducting pipes and electric connections.
The ducting pipes length between both unit should not exceed 20m.
2.1. Outside unit
The unit must be installed outside or in a room.
If the unit is installed outside:
-Place the unit in order the air suction and air rejection are not disturbed
-Encourage the installation in open areas and sheltered from the sun
-Be cautious to the noise to the neighborhood
-Raise the unit to prevent from accumulation of water and snow
If the unit is installed in a room :
-Place the unit in order the air suction and air rejection are not disturbed
-Ensure there is a good ventilation
-Maximum temperature and non permanent≤40°C
-Ideal temperature ≈20°C.
2.2. Inside unit
The inside unit is designed to be installed with a duct system. It has to be placed inside the house
2.3. Thermostat
The thermostat can be installed either inside or outside the air conditioned room.
The probe must always be placed in the air conditioned room. The supplied sensor has a length of 1,5m.
It can be extended using insulated flexible cable with 2 conductors of 0.5mm² minimum section.
.
2.4. Connection box
The connection box can be installed too either inside or outside the wine cabinet. If installed outside, take
into consideration the cable length ( 2 m)
2.5. Connection drawing
TAKE INTO CONSIDERATION THE CABLE LENGTHS BETWEEN THE
CONNECTION BOX AND THE UNITS
INSIDE UNIT
CABLE LENGTH 2M
OUTSIDE UNIT
NO CABLE SUPPLIED
THERMOSTAT
CABLE LENGTH 2M
MAIN CONNECTION
NO CABLE SUPPLIED

GUIDE D'INSTALLATION ET D’UTILISATION WINESP40DUPRO
Page 9
2.6. Cellar insulation
Insulation is essential for an efficient functioning of the WINEMASTER®. An appropriate insulation
enables to maintain a stable temperature and humidity level. The chart on the next page will allow
you to determine the type and thickness of insulation needed in relation to the exterior volume of the
cellar and the model of the WINEMASTER®, for an inside temperature of 12°C.
Insulation complement
The insulating elements should be preferably installed:
-By “tongue and groove “ panels or
-By fused together panels
IMPORTANT : Avoid heat and humidity intrusion which can alter their regulation
View
1. WALL
2. INSULATION MATERIAL
3. GROUND LEVEL
4. FLOOR
5. CEILING
6. INSULATED DOOR
IMPORTANT
The WINEMASTER®warranty is only valid if the insulation is in compliance with the board « Insulation
selection » requirements for the whole cellar (walls, floor, door and ceiling) with perfect continuity of
insulation.
Insulation selection
Volume of
the cellar
(m³)
Polystyrene
expanded = 0,044
W/m°C
(mm)
Polystyrene
extruded
= 0,030 W/m°C
(mm)
Polyurethane foam
= 0,025 W/m°C
(mm)
4 20 10 10
8 30 20 20
12 50 30 30
16 60 40 40
20 80 50 50
24 90 60 50
28 100 70 60
32 120 80 70
36 140 90 80
40 150 100 90
If implementation of glass walls, the Ug value of the glazing should be a maximum of 1.0 W / m²K. In
addition, the glass surface cannot be greater than 50% of the total wall area of the air-conditioned room.
2
GUIDE D'INSTALLATION ET D’UTILISATION WINESP40DUPRO
Page 9
2.6. Cellar insulation
Insulation is essential for an efficient functioning of the WINEMASTER®. An appropriate insulation
enables to maintain a stable temperature and humidity level. The chart on the next page will allow
you to determine the type and thickness of insulation needed in relation to the exterior volume of the
cellar and the model of the WINEMASTER®, for an inside temperature of 12°C.
Insulation complement
The insulating elements should be preferably installed:
-By “tongue and groove “ panels or
-By fused together panels
IMPORTANT : Avoid heat and humidity intrusion which can alter their regulation
View
1. WALL
2. INSULATION MATERIAL
3. GROUND LEVEL
4. FLOOR
5. CEILING
6. INSULATED DOOR
IMPORTANT
The WINEMASTER®warranty is only valid if the insulation is in compliance with the board « Insulation
selection » requirements for the whole cellar (walls, floor, door and ceiling) with perfect continuity of
insulation.
Insulation selection
Volume of
the cellar
(m³)
Polystyrene
expanded = 0,044
W/m°C
(mm)
Polystyrene
extruded
= 0,030 W/m°C
(mm)
Polyurethane foam
= 0,025 W/m°C
(mm)
4 20 10 10
8 30 20 20
12 50 30 30
16 60 40 40
20 80 50 50
24 90 60 50
28 100 70 60
32 120 80 70
36 140 90 80
40 150 100 90
If implementation of glass walls, the Ug value of the glazing should be a maximum of 1.0 W / m²K. In
addition, the glass surface cannot be greater than 50% of the total wall area of the air-conditioned room.
2

GUIDE D'INSTALLATION ET D’UTILISATION WINESP40DUPRO
Page 10
2.6.1. Insulation of walls, ceiling and floor
Type of insulation panels
You can select among the following type of panels:
-Usual panels,
-« Complex panels »: insulation is covered with a with a cover material (plaster, mineral …..)
-« Sandwich panels »: insulation is covered on each side with a wooden panel or plaster board.
Important: The covering of the panels protects the insulation against damage and guarantees its
longevity. Avoid using mineral fibres insulation (glasswool, rockwool, etc…) as they may
accumulate moisture and lose their insulation power and avoid also thin film insulation that are not
effective for cold.
DO YOU KNOW THAT ?
Some insulating materials are damaged by rodents. If necessary, cover the insulation with a protective
lining on the inside of the cellar to avoid presence of mouse or rats.
Polyurethane is an insulator that, due to its chemical composition, is not attacked by the
rodents.
Floor insulation
The floor of the cellar must be able to support the shelves and the stored wine. Thus, it’s necessary to
choose insulation with adequate compression strength.
Improve the load capacity of the insulation (particularly under the shelve legs) by using :
-« Complex » insulation panels covered by panels of higher load capacity.
-Cover the insulation panel with a wooden panel (at least 15 mm thickness), or every other
appropriated material.
2.6.2. The door
Door improves the insulation. Two solutions are possible:
-Insulate an existing door with the same insulation materials used for the walls of the
cellar. Provide a tight seal between the door frame and all sides of the door with a strip of foam
rubber for example.
Use a specially design FONDIS isothermal door with polyurethane and a sealing foam
View 1. INSULATED DOOR
2. INSULATION
3. SEALING TAPE
GUIDE D'INSTALLATION ET D’UTILISATION WINESP40DUPRO
Page 11
2.6.3. Insulation of other elements
Avoid placing a wine cabinet or freezer who generates heat into the cellar. The central heating pipes
should be re-insulated during their passage through the cellar.

G
UIDE D ' INSTALLATION ET D ’ UTILISATION WINESP40DUPRO
Page 12
3. INSTALLATION OF THE AIR CONDITIONER WINEMASTER
®
3.1. List of required material
-A cord 4G1.5mm² for outside unit connection
-A cord 3G1.5mm² for the connection of wiring box
-Copper pipes 1/4" & 3/8" for the cooling connection
3.2. Screws and tools for fixing the outside unit Installation of the outside unit
3.2.1. Wall drilling
-Trace and drill the holes locations as
indicated
3.2.2. Brackets installation
-Unfold the brackets and fix them with
the supplied parts
3.2.3. Fixing the outside unit
-Screw the 4 anti-vibration pins on the unit
-Place the air conditioner on the brackets
-Screw the 4 screw-washer M6 using a
key of 10
- Visser les 4 plots anti-vibrations (fournis)

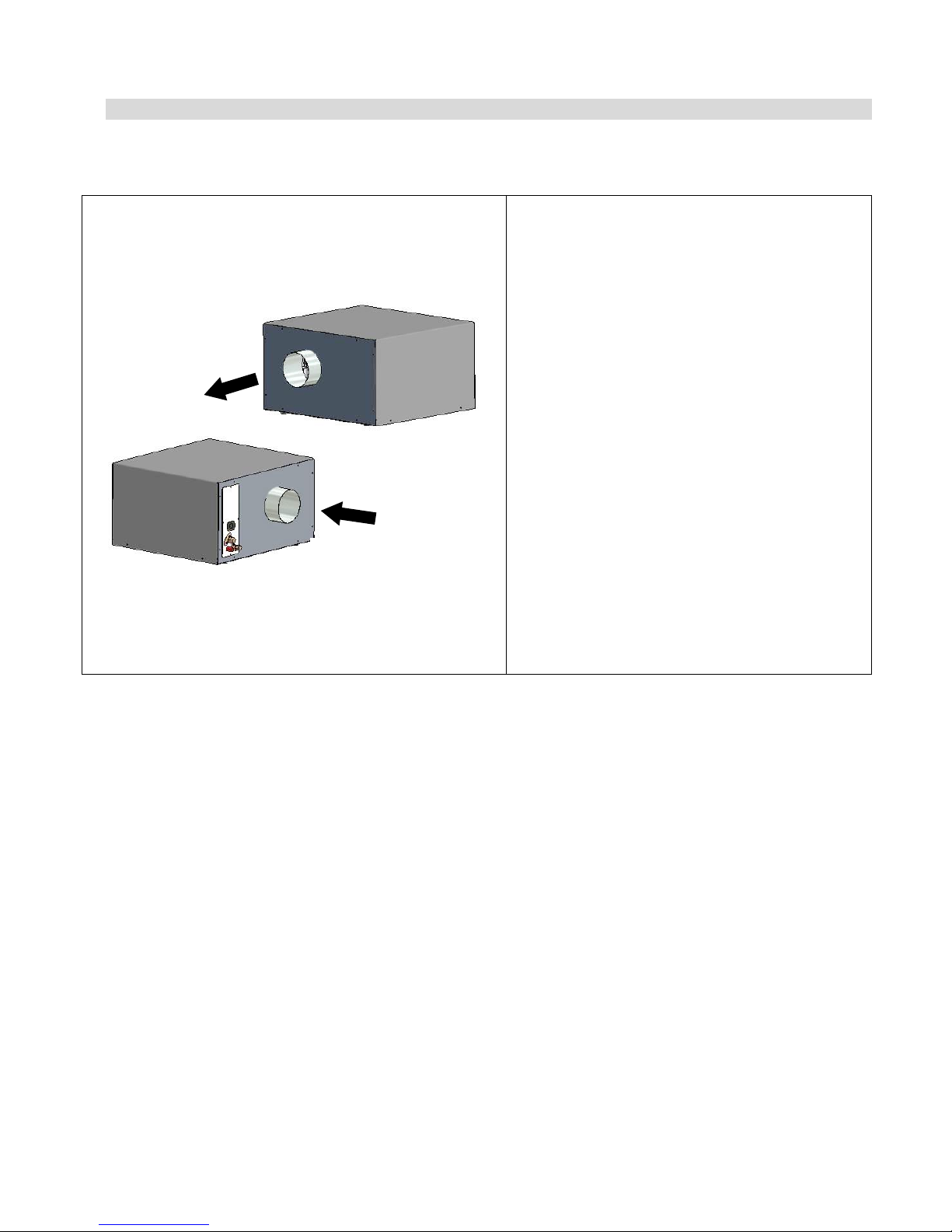

3.2.4. Air flow
SUCTION
BLOWING

GUIDE D'INSTALLATION ET D’UTILISATION WINESP40DUPRO
Page 13
-

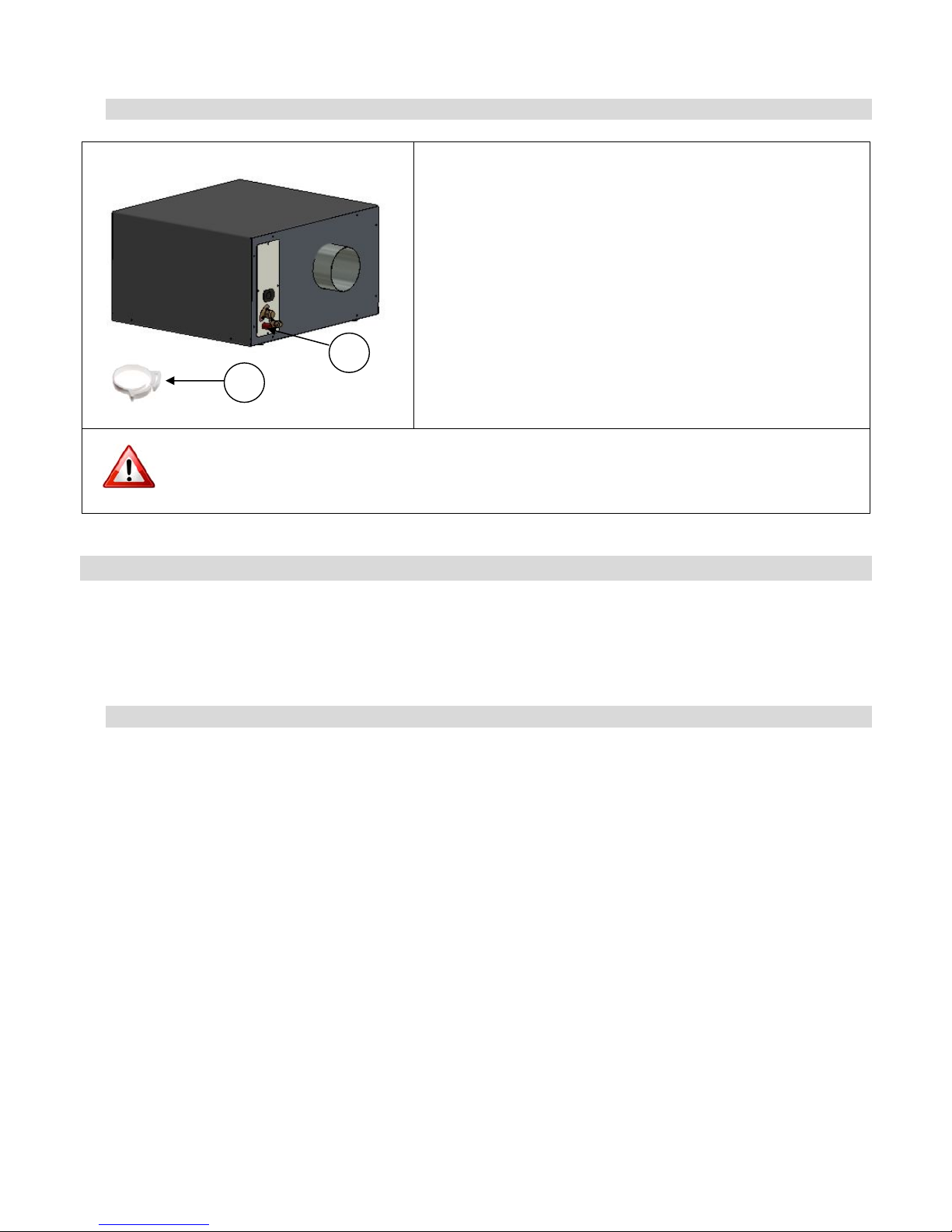

3.3. Installation of the inside unit
Due to the diversity of wine cabinets and the type of locations, each installer must adapt to the
constraints of its installation.
-
Use insulated ducting Ø125mm
-Make sure to choose the perfect place to
have a length of the shortest ducting
possible (14m max / reduce 1 m by
number of elbow)
-Radius elbow ≥175 mm
-Do not reduce the duct section
-The suction and blowing should in no way be
even partially obstructed
-The blowing and suction should be
separated to avoid a resumption of the air
supply, even partially (for checking, the
suction temperature should be the same
as the room temperature when the unit
produces cold)
-Provide openings on the bottom for
suction and blowing
-Provide space for refrigeration and
electrical connections and the passage of
the condensate drain
Two decoration grids are supplied with the unit. These grids are adapted to the air flow .
SUCTION
BLOWING
