TRAV’LER®Multi-Satellite HDTV Antennas
I. Pre installation
a. Introduction
b. Tools required
c. Safety
d. Unpacking Unit
e. Parts list
II. Installation
a. Roof location requirements
b. TRAV’LER mount installation
c. Cable entry plate installation
d. Cable installation
e. TRAV’LER interface box
III. TRAV’LER notes
IV. TRAV’LER Multi-switch Wiring Diagrams
V. TRAV’LER quiz

62

Level
Tape measure
Drill with 5/16″bit
1/2″and 1-1/4″hole saw
7/16″open end wrench
#2 Phillips screwdriver
Caulk gun
Sealant (consult RV manufacturer
for proper sealant)
The tools required for Winegard TRAV’LER satellite mobile antenna installation are:
TRAV’LER®Multi-Satellite HDTV Antennas
Pre installation
Introduction
Tools Required
Congratulations!
You have selected the Winegard
TRAV’LER Automatic Multi-Satellite
TV Antenna. The TRAV’LER will
deliver the ability to view up to five
satellites at the same time with
unmatched signal strength, the lowest
travel height on the market, maximum
HD capabilities and easy to use
functionality– just like you get at
home.
This course provides important
information on the installation and
operation of your Satellite Interface
Box. After completing this course, you
will be able to understand the steps
involved in installing and operating
TRAV’LER antennas.

63
Safety
Unpacking Unit
Install only in dry conditions. DO NOT
attempt to install this system in the rain
or under any wet conditions. Moisture
may affect electronics and void your
warranty!
For best performance and to reduce
signal acquisition time, park the vehicle
on a level surface, free of obstructions
such as trees or large buildings.
Before beginning the installation of the satellite dish system, note these important recommendations.
Let’s get started with the installation.
Using a knife or sharp object, cut open the cardboard
box. Use caution when opening the box, taking care
not to cut the unit.
Remove the unit and all packing material from the
cardboard box. Use two people when removing the
unit.
Do not attempt to paint the TRAV’LER. Painting
the TRAV’LER ma
y
result in
y
our warrant
y
bein
g
voided.

64

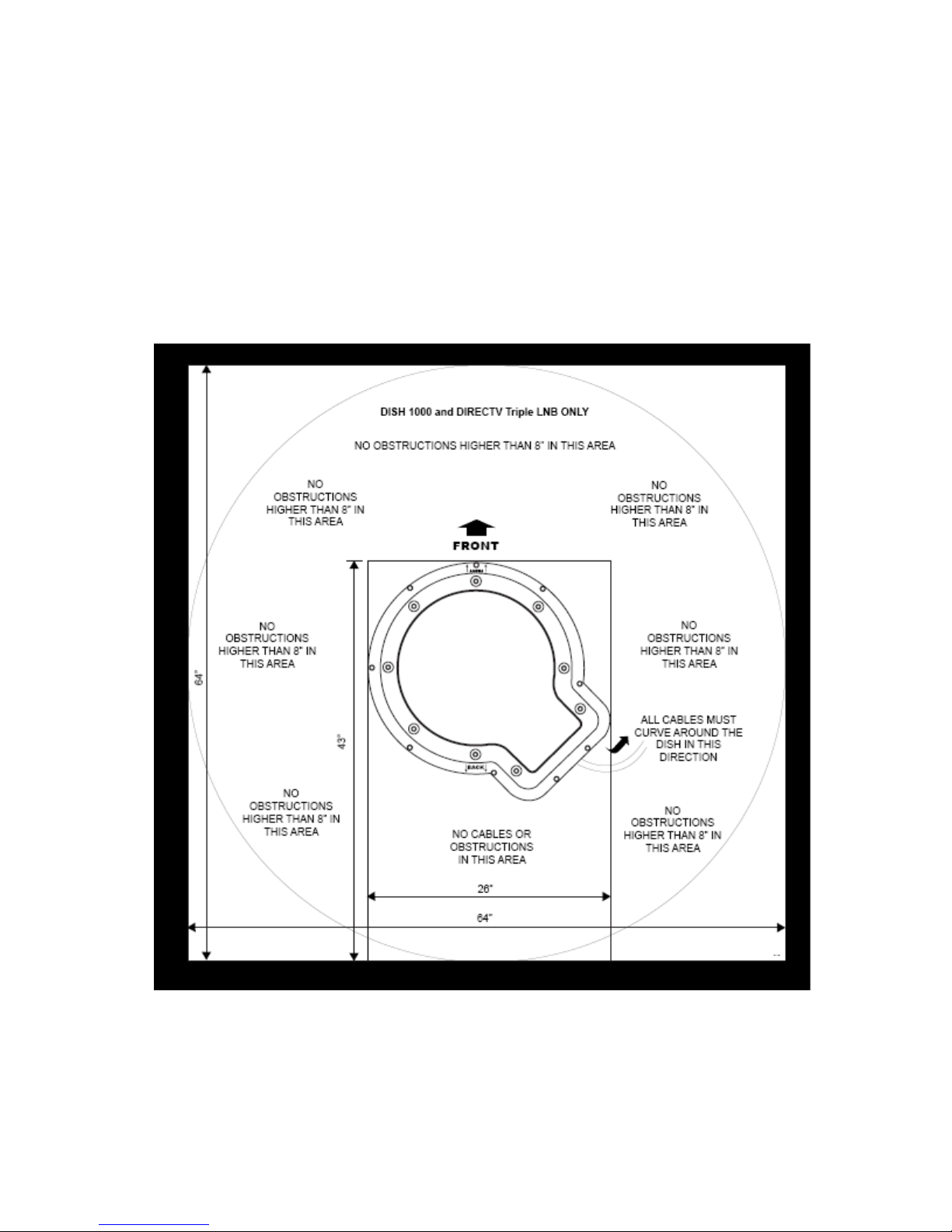

The minimum roof space required for the TRAV’LER is 43″L x 24″W. The operational space
requires that no obstructions taller than 8 inches be mounted within 3 feet of the base.
The unit must be level for best
operation.
Make sure that the location
offers enough support to attach
the TRAV’LER securely.
Mount
Parallel to
Center line
of Coach
Using the level, locate a level spot on the RV roof for installation.
Check with your RV dealer or manufacturer, your RV may be pre-wired or have a reinforced
area for this system, DO NOT install this unit on an arch that will create a gap larger than
3/16″between the RV roof and the base (as shown in the graphic.)
The base is marked “FRONT” and “BACK”. Be sure “FRONT” faces the FRONT of the RV.
Level the base of the satellite unit front to back and side to side. The more level the base is, the
faster it will be to locate the correct satellite. An unleveled base may also prevent the unit from
acquiring a satellite signal.
Parts list
Included with your Winegard TRAV’LER Automatic Multi-Satellite TV Antenna:
Installation/Operation Manual
Mount Base
TRAV’LER Interface Box
Reflector
24″AC Power Cord
48V 2.5 A 120 W Power Supply
Gray Coaxial Cable 30′
Black Coaxial Cable 30′
Mounting Hardware Bag
Cable Entry Hardware Bag
30′Cable – Power/Control Cable
Installation
Roof Location Requirements

65
It is important to find a location on the roof that provides enough space for the TRAV’LER
antenna to operate. The TRAV’LER antenna has a front and a back and must be mounted
correctly to avoid damage to the antenna or to the coach. The base for the TRAV’LER unit is
marked FRONT and BACK.
Be sure there are no obstructions in close range to where the satellite unit will be installed. Use
the provided graphic and measure to ensure adequate space between the obstruction and the
satellite unit. The TRAV’LER antenna must be mounted parallel to the center line of the coach.

66
TRAV’LER Mount Installation
Verify the “FRONT” of the transition plate is facing the front of the vehicle then place the
mount on the roof where you plan to install it. Mark through the screw holes on the base so you
can see them on the roof. Then move the mount out of the installation area.
Use a solid bead of sealant to connect
these marks in the shape of the base.
Carefully place the TRAV’LER back
onto the markings/sealant and screw it
to the roof. Check with your vehicle
manufacturer for any special screw
requirements before using the supplied
screws.
Run a solid bead of sealant around the
OUTSIDE of the transition plate,
making sure to cover each screw head.
Be careful not to
g
et an
y
sealant above
this lip.
The mount comes pre-attached to the transition plate. It is important not to seal the mount to the
transition plate so the unit can be removed from the plate without breaking the sealant.
Decide where the wires will enter the vehicle. One coaxial cable per receiver and a control cable
will need to be run into the vehicle.
Warning: Do not run the wires through the gray area shown on this graphic: anything in
the gray area will interfere with the operation of the TRAV’LER antenna and may cause
damage to the object or the antenna.

67
Cable Entry Plate Installation
Decide the best location for the cables to enter the vehicle.
You will need to run:
A coaxial directly to each receiver location.
A control cable to the Internal Display unit.
Drill a hole in the roof and push the required
wires through. (Installations for multiple receivers
may require a larger hole or multiple holes as each
receiver requires a dedicated coax cable.) See the
receiver manual for wiring details.
Make all the necessary connections to the receiver. For best operation, use the coax ports on the unit
in order. (Port “A” for the main receiver, Port “B” for a secondary, etc.)
Connect the coax cable from the dish to the “SATELLITE IN” on the rear of the receiver.
If connecting a second receiver, feed the opposite end of the coax cable through the hole
in the roof and connect it to the “SATELLITE IN” on the rear of the secondary receiver
in the vehicle.
Cable Installation
Attach the TRAV’LER control cable to the
TRAV’LER interface box as shown in the
graphic.
Attach the output cable from the power
supply to the TRAV’LER interface box.
Then, plug the power supply into a 110 AC
outlet.
Finally connect a separate coaxial cable to
each of the receivers being used with the
TRAV’LER Automatic Satellite Dish.

68
After completing the wiring, return to the roof.
Follow the steps listed below.
Apply approved sealant around the outer
edge of the hole.
Use the cable-entry plate and position it over
the hole and cables.
Use the appropriate number of screws to
secure the plate to the roof.
Apply sealant around the perimeter of the
plate and over the screws.

69
Once the wires are run and the sealant has started to cure:
Press the POWER button and hold for one second to turn the TRAV’LER interface box on.
Then press ENTER and hold for two seconds or until the unit enters the menu mode.
Press SELECT until the asterisk is on “Yes”
and press ENTER to go into the user menu.
TRAV’LER®Interface Box
Press the SELECT button to move the asterisk to “installation” and press ENTER.
When asked to provide a code, press ENTER four times, to enter 0000 for the code.
Press SELECT to move the asterisk to “Raise Antenna” and press ENTER. The TRAV’LER will
raise about half way up and make it possible to attach the reflector.
If the LED displays an “EL MOTOR STALL” this is normal and the reflector is ready to be
installed. This message is used to verify that the antenna has raised completely to the upper limit.

70
WARNING: Pay attention to these pinch points as the antenna raises.
Attach the reflector to the mounting
bracket, using the nuts and bolts
provided.
Pinch Points
Press POWER to stow the antenna to the travel position.
Once the antenna is stowed, the power will shut off.

71
Congratulations!
You have now completed installation of the
Winegard TRAV’LER Satellite Antenna.
Press and hold the power button for one second, and the dish will raise and begin its search
routine. Once locked on the signal, the receiver may need a one time set up run. Refer to
receiver manual for instructions.
When using the TRAV’LER, pressing the power button at any time will stow the antenna for
travel and turn off the Interface box. DO NOT MOVE THE COACH WITH THE
TRAV’LER IN THE RAISED POSTION.

72
TRAV’LER Multi-Satellite HDTV Antenna Notes
1. If a third receiver is used, connect coax C. Coax port C on the unit is disabled during the
search mode. It may be easiest for most customers if they do not have the third receiver
powered on until the search is completed. The coax for a third receiver is not supplied;
you will need to add this coax if a third receiver is required.
2. If the customer levels the vehicle after the unit has completed a search, the dish may no
longer be on signal and a new search would be required.
3. If the unit cannot find the primary satellite (119ofor DISH, 101ofor DIRECTV, or 91.5o
for ExpressVu) due to an obstruction, the search will fail. The RV would have to be
moved to a location where this satellite can be found.
4. If a secondary or the third satellite were to be blocked, the unit will provide the viewer
with the satellites available.
5. If installing the system in a building or under a roof, make sure that you have a minimum
of 40 inches from the roof of the RV to any thing above the system. If not, damage or
injury may occur.
6. From the installation menu you can raise the dish to install the reflector. If you do not get
into the installation menu within the first 10 seconds after turning the unit on, it will enter
the search routine. Once it is in the search routine, it is still easy to enter the menu but the
TRAV’LER will continue to move. If the antenna raises past half way before you select
“RAISE ANTENNA”, the TRAV’LER will raise until it hits its upper hard stop and
motor stall.
7. This is normal. The ‘Motor Stall’ message is the unit’s way of telling you that you are
already all the way up and it cannot raise anymore. The reflector can now be installed.
After installation is completed, press [Power] to clear the error and stow the antenna.
8. You can also lower the dish from the installation menu. It is important to remember that
“Lowering” the antenna is not “Stowing” the antenna, even though the system may
appear “stowed”. The “Lower” function was implemented to help a user who might hit
an obstruction while deploying and who needs a way to lower the unit to prevent
damage. (Caution: When lowering the antenna in this manner, the dish comes down no
matter where it is, potentially onto anything that is under it.)
9. Bell TV users require an SK-1000 dish and a Bell ExpressVu receiver.
10. If you plan to shorten the length of the supplied coax cables, caution is recommended as
the black coax and the black control cable are somewhat similar. The control cable
MAY NOT be cut.

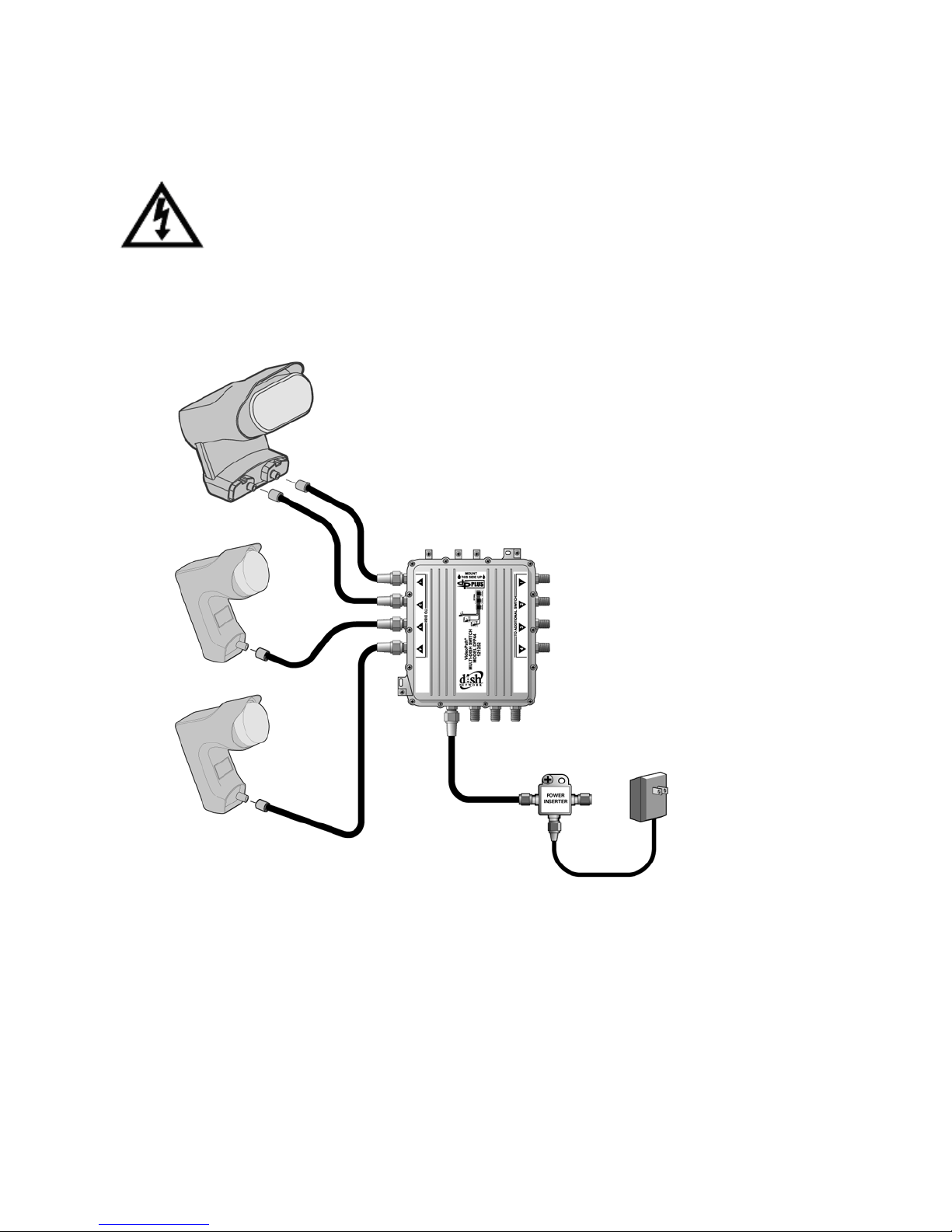

11. Should more than 3 or 4 receivers be installed, depending on the model, this would be
accomplished the same as in a residential installation. Install the multi-switch per multi-
switch instructions, covered in subsequent pages.

73
12. If the TRAV’LER antenna is up and will not come down, using the Controller, select
Calibrate EL, YES, ENTER. The antenna is not broken. It has “gotten lost.” Calibrating
EL will usually correct this problem. If it doesn’t, call Winegard Technical Services 1-
800-788-4417.

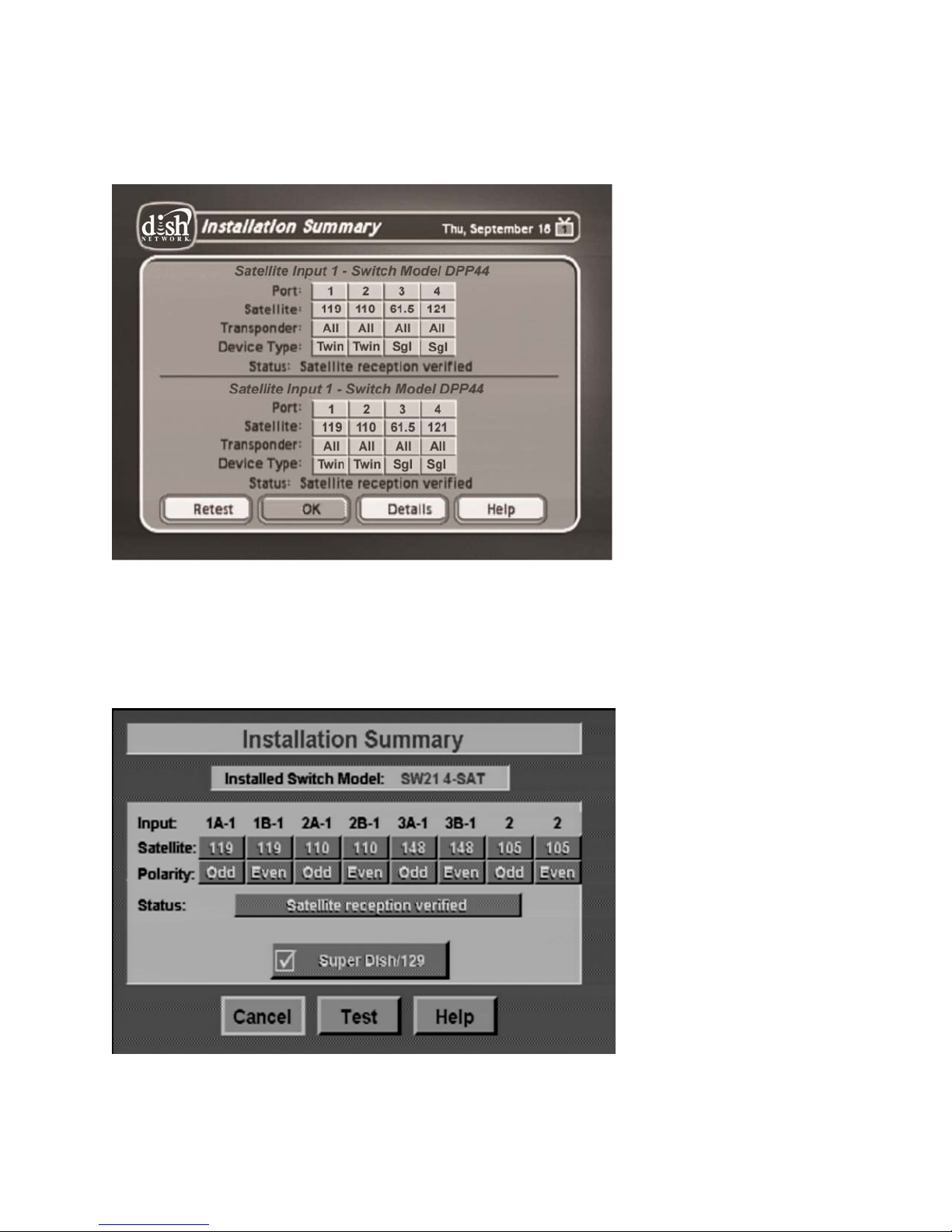

13. Receiver set-up: The steps for setting up the receivers are the same steps used for domed
systems. Refer to pages 25 through 27. EXCEPTION: the “Installed device” for DISH
Network TRAV’LER SK-1000 is Switch DPP1K.2. For DIRECTV TRAV’LER
SK-3003, select 3 LNBF 18X20. For SK-3005, select 5 LNBF Multi-Sat or Slimline – 5.
DO NOT select any “SWM” options. For some of the newer DIRECTV receivers, with
SWM printed on the chassis near satellite inputs 1 or 2, proper set-up is Select Slimline-5
(with nothing after it). Then toggle down once and select (Multi-Switch), NOT SWM.
Next select “continue”. This saves the changes you made.
14. If using a DIRECTV HD receiver, remember you must install the B-band converter that
came with the receiver in order to receive all satellites.
NOTE: The DIRECTV receiver HR-23 has the B-band internal NOT an external
device.
15. TRAV’LER antennas may be installed on roofs with a + or – 5 degree slope without the
use of a roof wedge. .
Additional Features
CL-SK34 Auto Stow Feature (cable installation)
Route the Auto-stow cable from the controller to the signal source, in many cases this could be a
brake light or an automotive fuse panel. If going to a fuse panel, you would look for one that is
hot when the ignition is on and no power when the ignition is off.
Black wire must be connected to a good chassis ground.
Red wire is connected to a source that has no VDC. When it gets 12 VDC it will stow the dish.
Caution: While the 12 VDC remains, the dish will not deploy.
The brown wire should have 12 VDC, when the voltage goes to 0 VDC the dish will stow. If the
12 VDC does not return, the unit will not deploy again. Also, it is not required to use the brown
wire, meaning if it has 0 VDC all the time, it is inactive.
Orange wire is not used at this time; please do not connect the orange wire to any circuit.
Emergency Manual Stow
This can be done if the unit has no power and it is stuck in the raised position. Only when the
dish has no power, can you manually rotate the base to a stow position. To lower the reflector
assembly, remove the black plug and insert a ¼ drive extension and ratchet the dish down.
Rotating should be done holding the base NOT the reflector.
Emergency Stop
This can be accessed by FIRST holding the power button and SECOND pressing the select
button. This will power off the unit immediately and stop all movement. (Caution: the auto stow
feature is disabled at this time. DO NOT move the RV until the system is restored and stowed.)

74
CL-SK26 Control Cable Extension
25’ extension power/communication cable for TRAV’LER antennas. Connects directly to the
existing TRAV’LER power/communication cable to allow for runs up to 50’.
SKA-004 Roller Plate
Roller plate for protecting rubber RV roof.
SKA-008 Thin Roof Plate
Thin roof support plate for reinforcement at TRAV’LER mounting location.
SK-7003/SKA-733 SHAW DIRECT TRAV’LER HD Antenna
The solution for Canadian RVers! Fully automatic, one button on/off antenna receives signals
simultaneously from Shaw Direct KU-band satellites 107.3º (English language programs) and
111.1º (French language programs and HD programming). Includes reflector and triple LNB
(unlike the competition where dish and LNB are sold separate). Unit wt: 54 lbs. Travel ht:
11.75”, Dim: 48”L x 38”W. Note: This unit is shipped in TWO boxes.

75

76

77
Note: All receivers using this switch
must be DISH Pro Plus.
Example: DP 311 is not compatible.
DISH Pro Plus 44 Multi-Dish Switch
Run Check Switch
After you have connected your switch to the LNBFs and receivers in the system, you will need to
run Check Switch on each receiver in your system, one at a time. Follow these instructions for
each receiver:
1. Open the Point Dish/Signal Strength screen. See your DISH Network satellite
receiver user’s guide for instructions. A Point Dish/Signal screen similar to the one
shown as Figure 2 will open.
Note: Models 2800, 3900, 4900, and 6000 must select SuperDISH/129 to see the fourth port.
Figure 2 Point Dish Screen
2. Select Check Switch or Test, depending on your receiver model. The Check Switch
screen will open. Select Check or Test, depending on your receiver model.
3. The Check Switch procedure will run. When it finishes, you will see an Installation
Summary screen.

78
• For DISH Pro and DISH Pro Plus receivers, this screen should identify the installed switch as a
DISH Pro Plus 44. You should see all of the satellites received by your system on the Satellite
line, and the word All under the Dish Input numbers. You should also see the message
Satellite reception verified.
Figure 3. DISH PRO PLUS Installation Summary
• For non-DISH Pro receiver models 2800, 3900, 4900, and 6000, this screen should identify the
installed switch as an SW21 4Sat. You should see all of the satellites received by your system
on the Satellite line, and the words Even and Odd under the Dish Input numbers. You
should also see the message Satellite reception verified.
Figure 4. Non-DISH Pro Installation Summary

79
• For non-DISH Pro receiver models 1000, 2000, 3000, 4000, 5000, JVC D-VHS, 7100, and
7200, this screen should identify the installed switch as an SW21 4Sat. You should see all of
the satellites received by your system from switch ports 1through 3 (except FSS satellites) on
the Satellite line, and the words Even and Odd under the Dish Input numbers. You should
also see the message Satellite reception verified.
Figure 5. Non-DISH Pro Installation Summary
4. If you do not see the information as described in step 3 of this procedure, you will need to
check all cables and switches, and then run Check Switch again. Select Details for
information that may be helpful in troubleshooting the problem or in reporting it to the DISH
Network Customer Service Center.
Adding More Switches
You can install two additional DISH Pro or DISH Pro Plus switches to the system, to support up
to 12 satellite receivers total. Add the switches by repeating the previous installation
instructions except connect the ports marked TO DISH on each added switch to the ports
marked TO ADDITIONAL SWITCHES on an installed switch. See Figure 6.
Note: You must use the same group of trunk ports on each switch throughout the system.
However, cables can be connected to any port in the group. For example: If TO DISH
port numbers 1 through 3 are connected on the first switch, you must connect all switches
together using ports 1through 3.
Very important!
The TRAV’LER antenna, for DISH Network will see the 119 the 110 and the 129 satellites only.
These will be the three you will see on the installed switch screen.

80
Wiring Diagrams
The wiring diagram in this Guide omit cable drip loops and grounding for clarity.
Make sure to use drip loops, and to ground the system per the National Electric Code (NEC)
and all local electrical codes..
NOTE: This device requires AC voltage to operate.
Figure 6. DISH Pro Plus 44 Connections
