Winncare Luna Twin User manual

Luna Twin is a combi lift, consisting of two 2 single
Luna units (each with 275 lifting capacity) and when
combining the two units, you get the Luna Twin with a
lifting capacity of 400 kg.
With Luna Twin, you only have to keep one type of lift in
stock, no matter if there is need for a standard (275 kg)
og bariatric (400 kg) lift.
Easy installation - no tools needed:
1. Attach the distance rod between the top of the units.
Then mount the Luna units on the track and make sure
that both straps are equal in length and connect the twin
cable to the units.
2. Then attach the distance bar to the straps between
the two Luna units
3. Attach the specially designed 2-point spreader bar
with patented hooks to the distance bar.
The LunaTwin is controlled by a hand control (connected
to one of the units). Adjust the straps by using the hand
control (also during transfer, if needed).
The 2-point spreader bar can easily be replaced with the
exible 4-point spreader bar with a friction lock function,
which makes sure that the spreader bar does not rotate
unintentionally during the transfer.
The 4-point spreader bar is available in three sizes:
36 cm, 48 cm og 58 cm.
It is also possible to attach a spreader bar with weigh
scale to the Luna Twin.
Key standard functions
• Weight capacity of 275 and 400 kg
• Spreader bar with patented hooks
• Soft start and stop function
• Emergency lowering (both powered and manual)
• Luna units and hand control IPx4 classied
Luna Twin
From 275 to 400 kgFrom 275 to 400 kg
2 x Luna
Twin
275 kg
Luna
Twin
400 kg
- simple and easy conversion

TECHNICAL SPECIFICATION
Single Twin
Max.lifting capacity 275 kg 400 kg
Strap length 2200 mm 2200 mm
Weight 6,7 kg without spreader bar 2 x 6,7 kg without spreader bar
Length/height 320 x 130 mm 720 x 130 mm
Batteries 36 V, lead/acid 36 V, lead/acid
Charging 100- 240 V, 0,5 A 100- 240 V, 0,5 A
Chassis High impact, moulded ABS High impact, moulded ABS
Noise (LWA) During lifting/lowering without load: 48dB(A) During lifting/lowering without load: 48dB(A)
Noise (LWA) max load During lifting/lowering:52dB(A) During lifting/lowering: 52dB(A)
Full charging time 4,5 hours 4,5 hours
Lifting speed 39 mm/sec. with 90 kg weight 39 mm/sec. with 90 kg weight
Lifts per charge: 80 lifts 80 lifts
Protection class IPx4 IPx4
• Soft start / stop
• Battery status indicated by light and sound
• Beskyttelse mod overbelastning
• Emergency stop via hand control All protection class tests
performed by TÜV.
Model Item number
Luna Twin 275 kg (1 unit) 015-03040
Luna Twin 400 kg (2 units) incl. distance rod and distance bar 015-03042
Accessories * Item number
Hand control IPx4 015-03120
Spreader bar for Luna Twin 015-02202
Spreader bar 36 cm, 4-point 015-02036
Spreader bar 48 cm, 4-point 015-02037
Spreader bar 58 cm, 4-point 015-02038
Distance rod for Luna Twin 016-02202
Distance bar for Luna Twin 015-02200
MDD93/42/EEC
Class I
* See separate brochure for hand control, spreader bars, weigh scale and slings.

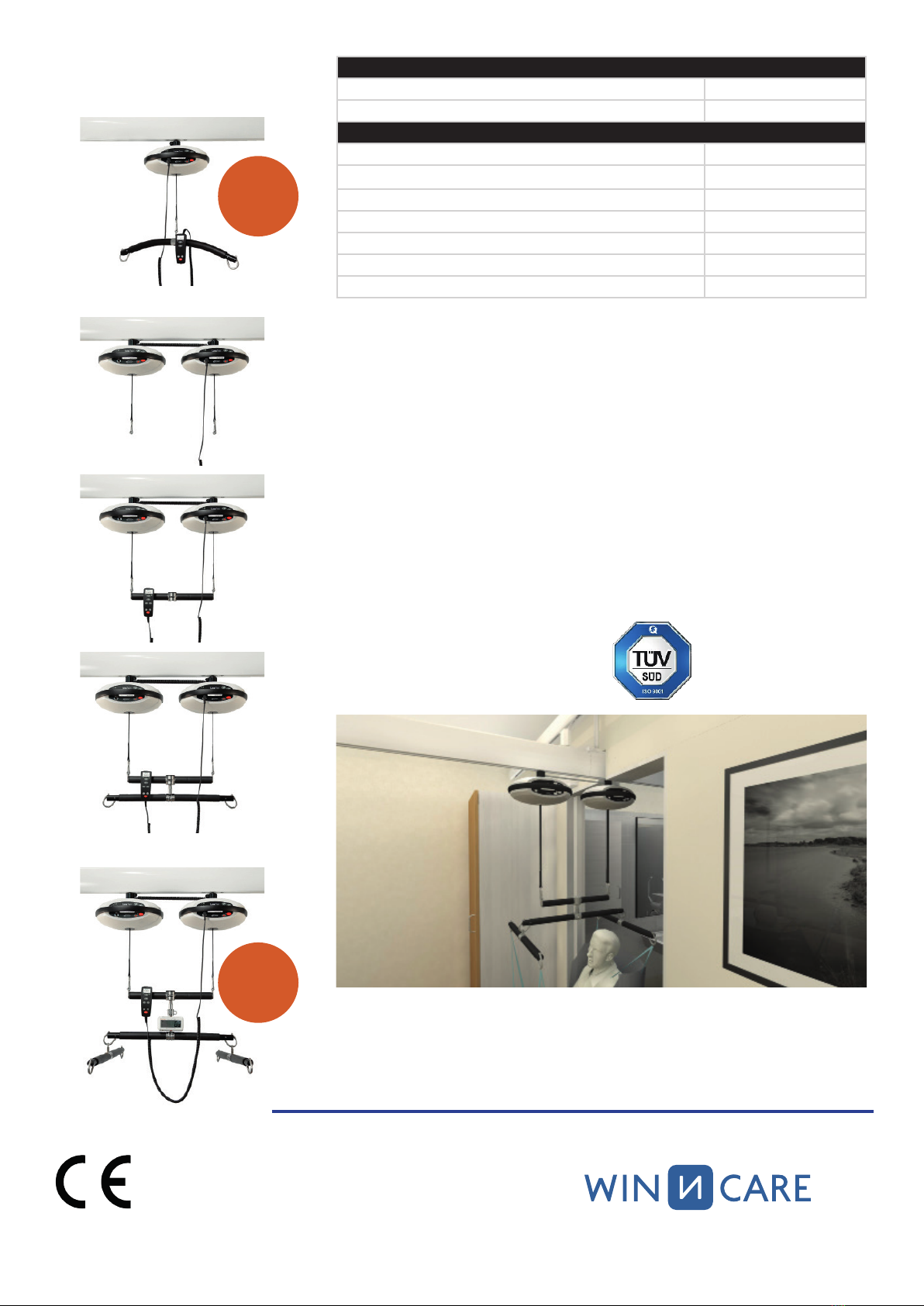

From Single to Twin
From 275 to 400 kg.
5 minute installation. No tools.
date 18.01.2022 - ver.1
1
One Luna
Twin
2
3
Accessory
- simple and easy conversion
With Luna Twin room to room transfer is also possible. Just slide the Luna Twin lift through the unique
door connector from Ergolet .
Winncare
Taarnborgvej 12C
4220 Korsoer
Denmark
tel. [phone]
e-mail: [email protected]
www.winncare.com
Consult the Technical manual for further specications. All gures and measurements are for guidance only and may differ in actual
situations. Winncare reserves the right to changes without notice.
Product photos may include accessories. If you have any questions, please consult your dealer.
