Wireless Pacific X10DR ELITE Owner's manual

Secure Wireless Microphone
Programming Parameter Guide
WIRELESS PACIFIC
...WHEN IT MATTERS
TM
Rev1.1

WIRELESS PACIFIC
...WHEN IT MATTERS
TM
How to install Programmer:
Runs On PC or Mac running Windows 7/10
NOTE: Requires USB 2.1 Port. The programmer will not work with USB 3 - if your PC only has USB3 ports suggest you attach X10DR device via a usb
patch block most are 2.1)
Included with the Programmer download file application are instructions on how to set-up the programmer on your Windows 7/10 PC. Please follow
those instructions to install the programmer correctly onto your computer.
www.x10dr.com

How to use Programmer:
Runs On PC running Windows 7/10
Requires USB 2.1 Port.
To put Handset into programming mode :
Turn off handset, attach programming cable between device hirose port
and PC then press red handset on/off button while holding PTT. LED will
light red.
To put Gateway into programming mode:
Turn off gateway,attach programming cable to device micro-USB port
and PC USB port. Then press gateway ON/OFF button LED will light red.
Note: The gateway’s RJ45 socket should not be connected to the host
radio.
Always READ device first before proceeding further.
We suggest you SAVE file onto your PC for re-loading if required.
A GREYED out feature means your device does support that capability.
Read Device
Press to load current programming parameters from device to screen.
Program Device
Press to load current screen programming parameters to a device.
Restart (important)
Press to restart programmed device before removing programming cable.
Lock - Unlock File
Press to lock your desired parameter configuration before undertaking
batch fleet programming. This will prevent you errantly changing a
parameter unknowingly during reprogramming.
Load File
Press to load a previously saved programming parameters to device from
its saved PC location.
Save File
Press to save a programming parameters from screen to desired PC
location saved location.
Defaults
Press to reset with default device parameters
Exit
Press to exit program.
WIRELESS PACIFIC
...WHEN IT MATTERS
TM
Note: The Programmer
automatically identifies
the device type

Handset Parameters
WIRELESS PACIFIC
...WHEN IT MATTERS
TM
PTT
Microphone Status
light
Right 1
Top 1 Top 2
Left 1
Left 2

Programming Feature:
Basic functions - Handset
Radio PTT key beep
Sounds talk permit tone sequence whenever PTT is pressed and handset is in range of its gateway.
Default - OFF
Emergency key beep
Sounds single tone whenever Emergency button is pressed and handset is in range of its gateway.
Default - ON
Talkaround PTT key beep
Sounds talkaround tone sequence whenever Talkaround button is pressed and handset is in range
of its gateway. Default - ON
Stealth mode always active
Disables all alert tones and LED status light. User can manually enable stealth mode if programmed off.
Default - OFF
Mute speaker on PTT
Disables all speaker audio whenever PTT is pressed. Default - OFF
Mute speaker on charge
Disables speaker when handset is in gateway or a charger. Default - ON
LED charge indicate
Disables “momentary blink” charge indicate when handset is placed into gateway or a charger
and device is charging. Default - ON
Auto turn on when charging
Causes handset to automatically turn on whenever it is placed in gateway or a charger. Default - On
Minimum volume is off
Allows user to turn the speaker audio off instead of level 1. Default - OFF
Mandown Biometeric Monitor (when fitted)
Enables/disables function via programmer for Plus handsets fitted with XMD option. Default - OFF
Internal Mic Only Operation
Maintains operation via internal microphone when accessory attached to Hirose port.required for
earpiece (WPEH-X10/WPTEP-X10) use via Hirose headset port. Default - OFF
Out of range turn off time
Sets time in hours that a handset that is not actively connected to a gateway will remain powered on before
turning itself off. Default - 8 hours
Low battery beep voltage
Sets the remaining battery voltage that will cause the low battery alert tones to be generated. (for longer
shift life you may set voltage lower but you may get less warning before device automatically shuts off.
Default - 3.5V
WIRELESS PACIFIC
...WHEN IT MATTERS
TM
Low battery beep interval timer
Sets the interval that the low battery alert tones are sounded in the handset.
Default - 5 minutes
ELITE PLUS ONLY OPTIONS
Handsfree Function (shows “disabled” if feature not enabled)
Enables user selectable handsfree function in Elite Plus handsets
Default - ON
Toggle PTT/TA Button Assignment
Configures handset so that pressing the top grey Control button toggles the
side PTT button assignment between host radio PTT and Talkaround or 2nd
Radio device PTT /PA Mode when used with XSJB or similar.
Default - OFF
Command Relay Mode / Automatic Relay Mode
Selects the Relay Mode type in Elite Plus handsets.
Default - Command Relay

Programming Feature:
Audio Levels - Handset
WIRELESS PACIFIC
...WHEN IT MATTERS
TM
Note: Use the Gateway Audio Level Adjustment - XGALA software tool
can be downloaded at www.x10dr.com for setting audio in and out of
gateway to host mobile radio.
The following handset adjustments are designed to cater for different
audio accessories and/or user applications requiring alternate audio
sensitivities to suit different operating conditions.
Internal Mic Gain
Sets the internal microphone’s transmit audio level sensitivity.
Default - 0
Internal Mic High Gain Boost
Sets the internal microphone’s sensitivity when “Live Mic” is active.
Default - 6
External Mic Gain
Sets the external microphone’s transmit audio level sensitivity.
Default - 9
External Mic High Gain Boost
Sets the external microphone’s sensitivity when the X10DR’s “Live
Mic” is active or when user manually selects high gain by powering up
microphone with blue volume up button pressed.
Default - 6
Remote PTT Gain Boost
Increases sensitivity of internal microphone when remote/handlebar PTT
is pressed.
Default - 9
Fixed Alert Tone Volume
Limits all user monitored alert tones to level set below rather than being
controlled by handset volume controls .
Default - OFF
Alert Tone Volume
Sets the value of the “Fixed Alert Tone”when enabled that a user will hear from their
handset.
Default - 5

Programming Feature:
Emergency - Handset
WIRELESS PACIFIC
...WHEN IT MATTERS
TM
- Applicable when handset is configured for press & hold emergency
Audio link active time
Sets the duration the transmit audio is active after Emergency button is
released. Feature is intended for those mobiles that activate their own
internal “Live Mic” function whenever emergency is triggered. This
allows the handset’s Tx audio to be broadcast over the radio’s transmit
channel, (assuming mobile sources “Live Mic” from its external mic
input). Default - 0
- Applicable when handset is configured for short/long press emergency
Transmit Time
Sets the time duration that X10DR “Live Mic” handset Tx audio is active
when Advanced Emergency activated.
Default - 0
Receive Time
Sets the time duration that X10DR “Live Mic” handset Rx audio is active
when Advanced Emergency activated.
Default - 0
Emergency repeat cycles
Sets the number of “Live Mic”, Tx and Rx cycles when Advanced
Emergency is triggered.
Default - 1
Transmit audible emergency tone
Causes an audible emergency warble tone to be transmitted over the
host mobile radio channel when emergency is activated.
Default - Off

WIRELESS PACIFIC
...WHEN IT MATTERS
TM
Programming Feature:
Hardware - Handset

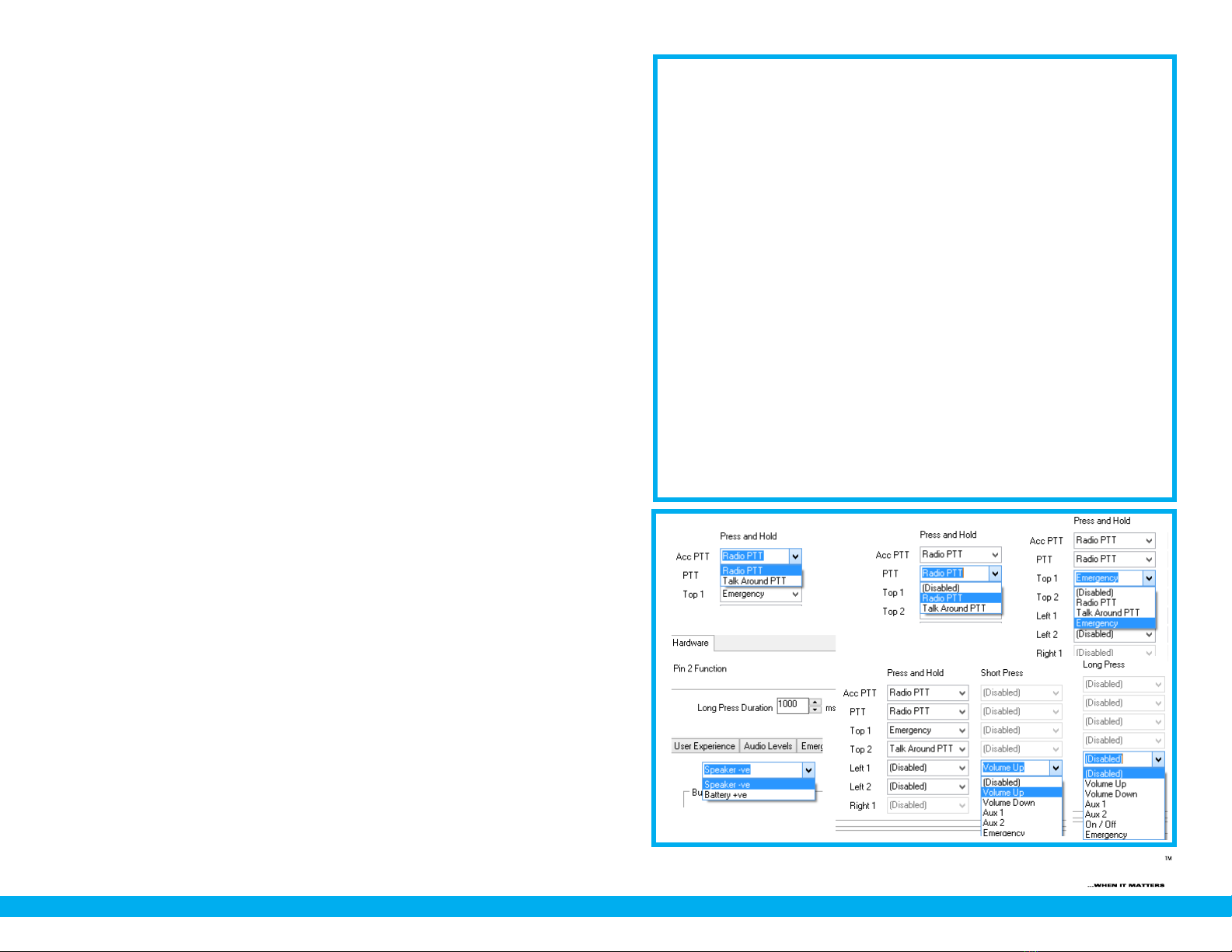

Hirose Pin 2 function
Sets Hirose pin 2 to be either BAT+ (~3.8VDC) to power external accessories or bridged
output speaker audio when pin 2 is set for speaker negative. Default - Speaker -VE
Acc PTT
Sets whether Hirose PTT input generates Talkaround or Radio PTT. Default - Radio PTT
PTT
Sets function of main large PTT button. Choose from drop down box. Default - Radio PTT
Top 1
Sets function of top left button. Choose from drop down box. Default - Emergency
Top 2
Sets function of top right button. Choose from drop down box.Default - Talkaround PTT
Left 1
Sets function of top left button.
Default - short press Volume up / Elite Plus only - long press Relay mode off/on
Left 2
Sets function of bottom left button.
Default- short press Volume down
Right 1
Sets the function of right side button. Re-assigning requires hardware modifications.
Default - short press Search / long press Power off/on
Long Press Duration
Sets time button must be pressed to detect a Long Press.
Default - 2000mSec

WIRELESS PACIFIC
...WHEN IT MATTERS
TM
Gateway Parameters
PRO Series ELITE Series Elite Series- X10W XRTG Elite Plus
Status
light
Function Button
- Manual Off/On
- Touchless Pairing
- Master Reset
- Find Me XIVG Gateway

WIRELESS PACIFIC
...WHEN IT MATTERS
TM
Programming Feature:
Audio Levels - Gateway
Receiver Input Gain From Radio
Sets the receive input sensitivity. Default - 3
Transmit Output Gain To Radio
Sets the audio output level to radio when local/remote /handlebar PTT is
pressed or when “Live Mic” is active. Default - 0
Talk Around Output Gain to other X10DRs
Sets the “intercom” microphone audio level. Default - 9
For ease of setting the above you can also use the Gateway Audio Level Adjustment - XGALA software
tool that was included in the downloaded programming software package.
Monitor Emergency Input Alert Tone
Causes Emergency warble alert tone to sound in all cross connected X10DR
handsets whenever emergency input is triggered. (Maybe triggered from
another gateway or externally supplied ground input).
Default - OFF
Find Me™ Function
Enables Find Me function in gateway. User double presses gateway Function
button to trigger Find Me alert tones or triggers Remote FindMe.
Default - OFF
Public Address Mode
Sets the gateway so only handset Talkaround audio is sentto the gateway
3.5mm jack. When unchecked both Radio PTT and Talkaround audio is
available for in-car monitor use. Default - OFF
Radio Receive VOX/COR
Enables VOX derived COR. Default - ON
VOX Trigger Level
Sets the gateway’s audio detect sensitivity for VOX derived COR. Default - 70
ELITE Series Only Options
Multi Operational Mics
Allows two or three Elite Series Mics to be simultaneously operational through the
one Elite gateway unit.
Default - ON
Remote Find Me™
Enables Find Me function in gateway via grounding the white wire connected to pin
8 (Replaces of Remote PTT function.

WIRELESS PACIFIC
...WHEN IT MATTERS
TM
Programming Feature:
Hardware - Gateway
I/O
Defines whether the specific gateway interface pin is assigned as an
input or an output.
Active
Sets whether the interface pin needs to be held low or pulled up high to
activate assigned functionality.
Function
Assigns desired functionality to Interface pin.
Choose the desired input or output from the dropdown boxes.
Pulse
Defines the length of time an input must be activated before the function
is triggered or alternatively how long an output is activated when the
assigned function has been triggered. A value of zero means an input
triggers instantly.

Pro Plus Default settings:
Handset - Gateway
