Introduction
1
This Manual details the product specifications, instructions for use,
precautions, and troubleshooting. Read the Manual carefully before using
the product. If you have any questions or difficulties in using this product,
contact the company or the seller in time.
This product supports HD-SDI&3G-SDI input and output as well as HDMI full-HD
input and output, with the highest resolution of 1080P/60Hz. With the use of H.264
coding-decoding technology with high compression ratio and high definition,
the images have high definition, and the latency is as low as 70ms.
4 transmitters and 1 receiver share one wireless channel
Beam-Forming
Combined with 4×4 MIMO and Beam-Forming technology, this product has
advantages over other WiFi products in the market in terms of transmission
distance and image bitrate. Beam-Forming technology makes wireless signals
more concentrated and stronger in the direction from which they are transmitted
to the receiver, allowing them to transmit farther and be less susceptible to
interference from other signals, thus making them more stable.
This product supports 4 channel videos simultaneous input, with resolution
up to 1080P60 per channel. 4 channel videos shares one wireless channel,
which greatly saves spectrum resources and provides great convenience for
users to perform multi-camera shooting.
High-quality and ultra low latency
Standard mode and streaming mode
This product supports switching between two operating modes, namely standard
mode and RTSP streaming mode. In standard mode, this product supports
4TX-to-1RX and 4TX-to-2RX, and the video outputs interface are HDMI and 3G-SDI.
In RTSP streaming mode, this product supports 4TX-to-1RX and 4TX-to-2RX,
and the video streaming interface is LAN port(RJ45) .
About the User Manual
Brief Introduction

© 2018 Wireless Prime INC. All Rights Reserved.
Introduction
2
Support RS232/422
This product supports signal transmission via RS232/422 interface,
which is
c
onvenient for users to control the transmitting terminal through the
device at the receiving terminal, such as the PTZ.
controlling
Support monitoring on mobile devices
This product supports monitoring on portable devices, like mobile phone,
tablet and PC. User can install live streaming tool supporting RTSP like VLC
on mobile device, and connect portable devices with receiver via WiFi to watch
the live video with different transmitter IP address.

© 2018 Wireless Prime INC. All Rights Reserved.
Structure & Interface
3

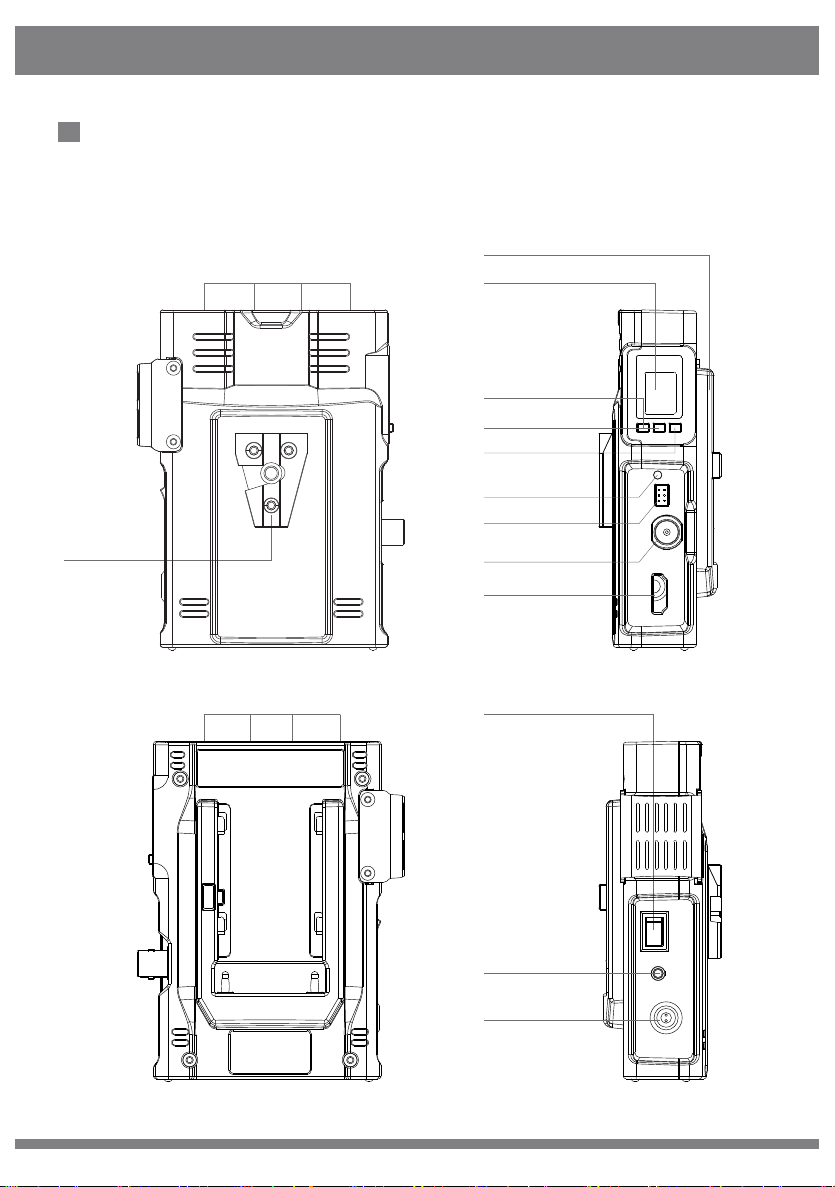

TX:
V-Mount
Antenna Interface
Antenna Interface Power Switch
Tally out
DC-IN
LNA ON/OFF
WPS/RTSP
Reset
OLED Display
Network status
warning light
SDI In
HDMI In
RS232/422
SONY NPF Battery dock
Structure & Interface

© 2018 Wireless Prime INC. All Rights Reserved.
Structure & Interface
4
Transmitter Key Operation
Function Operation Description
High-gain and
low-gain mode
switching
Press the
“LNA ON/OFF”
button for
about 3s
“L” (low-gain) mode:
Applicable for close-range(<200m/656ft
& LOS) and environments,
with strong anti-interference ability.
After switching to L mode, the “L” character
will be displayed on the OLED display.
strong interference
“H” (high-gain) mode: Applicable for
long distances, (NLOS or>200m/656ft)
and the anti-interference ability is weaker
than that in “L” mode. After switching to
H mode, the characters on the OLED
display will disappear.
Code matching
Press the
“WPS/RTSP”
button for
about 3s
In the code matching process of the
transmitter and receiver, the word
“WPS” will always be displayed on
the OLED display, and the string will
disappear after the code matching.
The transmitter and receiver need to
be in code matching status at the same
time to achieve code matching.
Standard and
streaming mode
switching
Press the
“WPS ”
button for
about 6s
/RTSP
When switching to streaming mode,
the word “RTSP” will be displayed on the
OLED display, and the product will enter
streaming mode.
Restart the
encoding
board
Press the
“RESET”
button for
about 3s
During the restart of the encoding board,
the “RESET” string will always be
displayed on the OLED display of the
transmitter, and the string will disappear
after the restart.
Tips:in RTSP mode,the decoding
function is disabled

© 2018 Wireless Prime INC. All Rights Reserved.
Structure & Interface
5
V-Mount

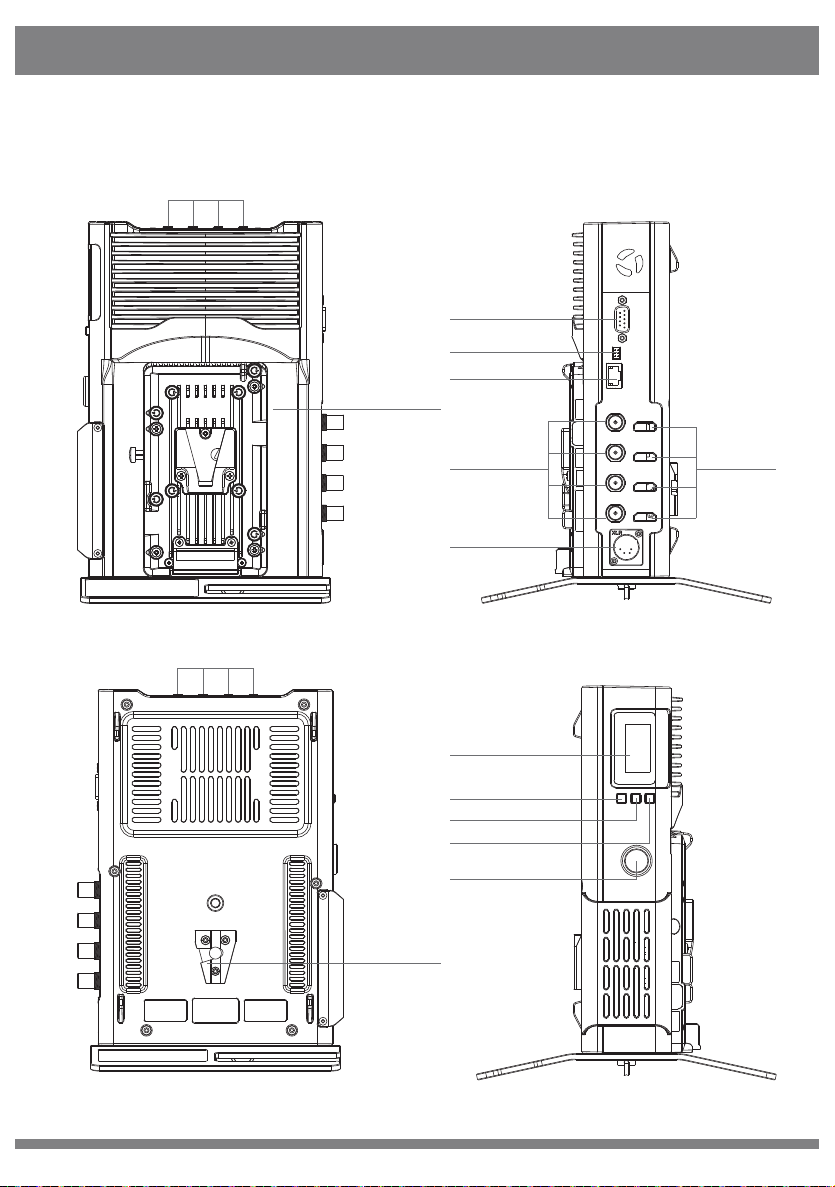

RX:
Antenna Interface
Tally(DB9)
RJ-45
RS232/422
SDI Out
DC-IN
HDMI Out
Antenna Interface
OLED Display
LNA ON/OFF
CH/WPS
Reset
Power Button
V-mount Plate

© 2018 Wireless Prime INC. All Rights Reserved.
Structure & Interface
6
Receiver Key Operation
Function Operation Description
Frequency
channel
switching
Short press
the “CH/WPS”
button about 1S
After the receiver switches the frequency
, the OLED display of the
receiver and transmitter will display the new
frequency number after
switching.
channel about 1S
channel about 1S
High-gain and
low-gain mode
switching
Press the “LNA
ON/OFF” button
for about 3s
“L” (low-gain) mode:
Applicable for close-range
and strong interference
environments, with strong anti-interference
ability. After switching to L mode,
the “L” character will be displayed on the
OLED display.
(LOS &TX-to-RX
<200m/656ft )
“
(NLOS or
TX-to-RX>200m/656ft)
H” (high-gain) mode:
Applicable for long distances,
and the anti-
interference ability is weaker than that in “L”
mode. After switching to H mode, the
characters on the OLED display will disappear.
Code matching
Press the “CH/
WPS” button for
about 3s
In the code matching process of the
transmitter and receiver, the word “WPS”
will always be displayed on the OLED
display, and the string will disappear after
the code matched. The transmitter and
receiver need to be in code matching
status at the same time to achieve
code matching.
OLED display
switching
between
landscape
mode and
portrait mode
Short press the
“LNA ON/OFF”
button for
about 1s
Short press the “LNA ON/OFF” button,
and the display will switch between
landscape mode and portrait mode.
Restart a
certain
channel video
of the receiver
First, short press
the [RESET] button
for cyclical selection
among 1, 2, 3 and 4 to
restart the decoding
board in the channel.
Then press and hold
the [RESET] button
for 3s to confirm
the restart.
After long pressing the button to confirm,
the “RESET” string will be displayed on
the OLED display for 3s, and the string
will disappear after the decoding board
begins to restart.

© 2018 Wireless Prime INC. All Rights Reserved.
Structure & Interface
7
RX: Rack Mount
AN T
RESET
CH/WPSLNA ON/OFF
OLED Display Power Switch
HDMI Out Tally In(DB9) Antenna Interface
DC-IN 3G-SDI Out RS232/422/485
LAN
Tally IN

© 2018 Wireless Prime INC. All Rights Reserved.
Structure & Interface
8
Receiver Key Operation
Function Operation Description
Frequency
channel
switching
Short press
the “CH/WPS”
button about 1S
After the receiver switches the frequency
, the OLED display of the
receiver and transmitter will display the new
frequency number after
switching.
channel about 1S
channel about 1S
High-gain and
low-gain mode
switching
Press the “LNA
ON/OFF” button
for about 3s
“L” (low-gain) mode:
Applicable for close-range
and strong interference
environments, with strong anti-interference
ability. After switching to L mode,
the “L” character will be displayed on the
OLED display.
(LOS &TX-to-RX
<200m/656ft )
“
(NLOS or
TX-to-RX>200m/656ft)
H” (high-gain) mode:
Applicable for long distances,
and the anti-
interference ability is weaker than that in “L”
mode. After switching to H mode, the
characters on the OLED display will disappear.
Code matching
Press the “CH/
WPS” button for
about 3s
In the code matching process of the
transmitter and receiver, the word “WPS”
will always be displayed on the OLED
display, and the string will disappear after
the code matched. The transmitter and
receiver need to be in code matching
status at the same time to achieve
code matching.
OLED display
switching
between
landscape
mode and
portrait mode
Short press the
“LNA ON/OFF”
button for
about 1s
Short press the “LNA ON/OFF” button,
and the display will switch between
landscape mode and portrait mode.
Restart a
certain
channel video
of the receiver
First, short press
the [RESET] button
for cyclical selection
among 1, 2, 3 and 4 to
restart the decoding
board in the channel.
Then press and hold
the [RESET] button
for 3s to confirm
the restart.
After long pressing the button to confirm,
the “RESET” string will be displayed on
the OLED display for 3s, and the string
will disappear after the decoding board
begins to restart.

© 2018 Wireless Prime INC. All Rights Reserved.
Product Installation
9
For transmitter
2. Please fix the transmitter via the screw at the bottom or the V-mount at the back,
and place it at a height of around 1.5 to 2 meters above floor. Please make sure
that the distance between each transmitter is more than 1 meter.
1. Please install all the antennas on the transmitter and make them in a fan shape
as shown in the picture.
Product Installation

© 2018 Wireless Prime INC. All Rights Reserved.
Installation
Product Installation
10
H D M I
SDI H D M I
HDMI Input
3G-SDI Input
Distance>1m
Transmitter at a height of
around 1.5 to 2 meters
above floor.
Distance>1m Distance>1m
3. Please connect the transmitter and camera with SDI or HDMI cable.

© 2018 Wireless Prime INC. All Rights Reserved.
Product Installation
11
Receiver Installation
1. Please install all the antennas on the receiver, and make them in a fan shape
as shown in the picture.
2. Please place the receiver at a height of around 1.5 to 2 meters above floor.
Receiver can be placed in vertical or horizontal positions, and can be fixed via
the screw at the bottom or V-mount at the back. Please install the affiliated
metal stand before placing the receiver in vertical position.

© 2018 Wireless Prime INC. All Rights Reserved.
Product Installation
12

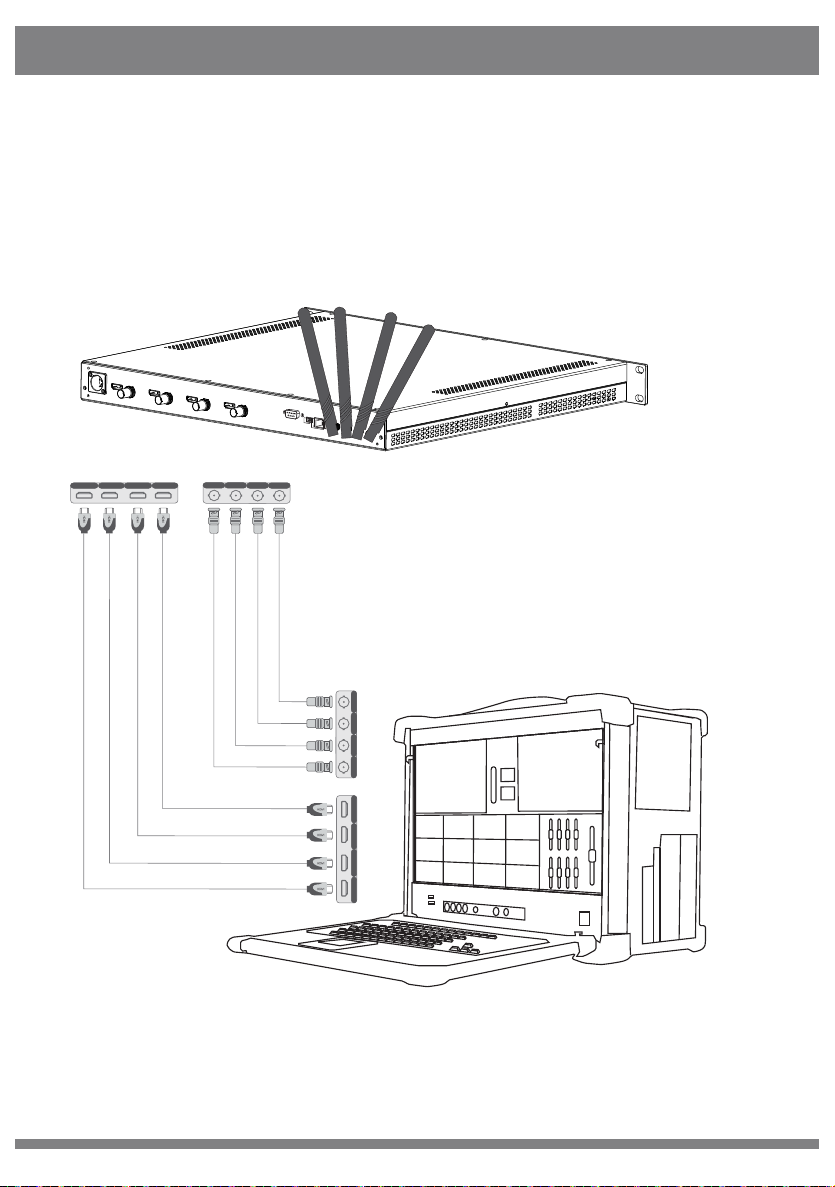

3. Please connect the receiver and video switch console or monitor
with SDI or/and HDMI cable.
install the
affiliated
metal stand
A: Horizontal placement
B: Vertical placement
Place the receiver at a
height of around 1.5 to
2 meters above floor.
00:00:00
HDMIHDMIHDMIHDMI
HDMI Out
S D I S D I
HDMIHDMIHDMIHDMI SDI
S D I S D I
HDMI Out
HDMI Out
HDMI Out
SDI Out
SDI Out
SDI Out
SDI Out

© 2018 Wireless Prime INC. All Rights Reserved.
Product Installation
13
4. The receiver can be powered by both the V-mount battery and DC-IN port via
the affiliated power adapter. If the mentioned two types of power supply are
connected at the same time, the lithium battery is prioritized in power supplying,
and the battery will switch to the power adapter for power supplying automatically
after the battery power is exhausted.
This system supports tally function. When the receiver is activated by low-level
current, the transmitter will ou
tput high-level current signal.
Power
Li-battery

© 2018 Wireless Prime INC. All Rights Reserved.
Product Installation
14
Receiver InstallationRack Mount
1. Please install all the antennas on the receiver, and make them in a fan shape
as shown in the picture.
2. Please place the receiver at a height of around 1.5 to 2 meters above floor.
Place the receiver at a
height of around 1.5 to
2 meters above floor.

© 2018 Wireless Prime INC. All Rights Reserved.
Product Installation
15
3. Please connect the receiver and video switch console or monitor
with SDI or/and HDMI cable.
00:00:00
HDMIHDMI
HDMIHDMI
SDI SDI
S D I
SDI SDI
HDMIHDMIHDMIHDMI S D I S D I
SDI
SDI S D I
HDMI Out
HDMI Out
HDMI Out
HDMI Out
SDI Out
SDI Out
SDI Out
SDI Out

© 2018 Wireless Prime INC. All Rights Reserved.
Product Application
16
Camera-1 TX-1
Camera-2 TX-2
Camera-3 TX-3
Camera-4 TX-4
Standard mode
In standard mode, the four channel video sources are transmitted to the four
transmitters via HDMI or SDI respectively. The receiver will receive the four
channel signals and transport them to switch console or/and monitor via
HDMI SDI.or/and
HDMI/SDI
Monitor
2000m/1640ft
Four channel
Full-HD in One
RF Channel
*4-channel
HDMI/SDI
*Tally
*RS232/422
Switch Console
RX-1
Live Streaming network
Transmission
Netwok
Product Application

© 2018 Wireless Prime INC. All Rights Reserved.
Product Application
17
Streaming mode
Camera-1 TX-1
Camera-2 TX-2
Camera-3 TX-3
Camera-4 TX-4
2000m/1640ft
Four channel
Full-HD in One
RF Channel
RX-1
Switch Console
In streaming mode, the four channel video sources are to the four
transmitters via HDMI or SDI respectively. The receiver will receive the
four RTSP from the four transmitters and send them to the
switch console through the LAN port.
and watch the live video on the mobile phone, tablet .
transmitted
streamings
You can also connect the receiver
with mobile devices such as your mobile phone, tablet and PC via WiFi,
and PC
RJ45
PC
Monitoring on Mobile Devices
