Wireless Prime TWO IN ONE 2000M-H Product guide

TWO IN ONE 2000M-H FULL-HD
WIRELESS VIDEO TRANSMISSION
MANUAL BOOK
© 2018 Wireless Prime INC. All Rights Reserved.
01 02
About the User Manual
This Manual details the product specifications, instructions for use,
precautions, and troubleshooting. Read the Manual carefully before using
the product. If you have any questions or difficulties in using this product,
contact the company or the seller in time.
Product Features
BeamLink Quad is a set of 4TX-to-1RX full-HD audio and video wireless
transmission system. The 4 video channel transmission shares one wireless
channel and supports the highest video resolution up to 1080P/60Hz.
This system is based on 5G wireless network technology for transmission,
along with advanced 4×4 MIMO and Beam-Forming technology. Image
processing is performed using H.264 coding-decoding technology,
and the video quality is sharp and the latency is lower.
Brief Introduction
This product supports HD-SDI&3G-SDI input and output as well as HDMI full-HD
input and output, with the highest resolution of 1080P/60Hz. With the use of H.264
coding-decoding technology with high compression ratio and high definition,
the images have high definition, and the latency is as low as 70ms.
4 transmitters and 1 receiver share one wireless channel
Beam-Forming
Combined with 4×4 MIMO and Beam-Forming technology, this product has
advantages over other WiFi products in the market in terms of transmission
distance and image bitrate. Beam-Forming technology makes wireless signals
more concentrated and stronger in the direction from which they are transmitted
to the receiver, allowing them to transmit farther and be less susceptible to
interference from other signals, thus making them more stable.
Packing List
The following items are included in the product package
Notice: The transmitter comes with the Sony NP-F type battery dock and has
preassembled V-mount connector. The receiver has preassembled V-mount battery
plate and V-mount connector.
This product supports 4 channel videos simultaneous input, with resolution
up to 1080P60 per channel. 4 channel videos shares one wireless channel,
which greatly saves spectrum resources and provides great convenience for
users to perform multi-camera shooting.
High-quality and ultra low latency
This product supports switching between two operating modes, namely standard
mode and RTSP streaming mode. In standard mode, this product supports
4TX-to-1RX and 4TX-to-2RX, and the video outputs interface are HDMI and 3G-SDI.
In RTSP streaming mode, this product supports 4TX-to-1RX and 4TX-to-2RX,
and the video streaming interface is LAN port(RJ45) ..
Support RS232/422
This product supports signal transmission via RS232/422 interface,
which is convenient for users to control the transmitting terminal through the
device at the receiving terminal, such as the PTZ.
controlling
Support monitoring on mobile devices
This product supports monitoring on portable devices, like mobile phone,
tablet and PC. User can install live streaming tool supporting RTSP like VLC
on mobile device, and connect portable devices with receiver via WiFi to watch
the live video with different transmitter IP address.
Standard mode and streaming mode
Power supply cable
*4 pieces
Transmitter *4 pieces Antenna
* 16 pieces
Receiver *1 piece Antenna *4 pieces Power adapter *1 piece Metal Stand *1 piece
Double screw the
connector*4 pieces Rs232 cable *4 pieces
RS232 cable
*1 pieces

Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability,
WIRELESSPRIME. reserves the right to make changes to the products described
in this document without notice.
WIRELESSPRIME does not assume any liability that may occur due to the use
or application of the product(s) or circuit layout(s) described herein.
FCC Compliance Notice: Radio Frequency Notice
The device has met the FCC 15.247 requirement. In order to comply with the FCC RF
exposure requirement, the user must keep 20cm away from the antenna.
This device has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
device generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this device does cause harmful interference to radio or televi-
sion reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following mea-
sures:
• Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
•
•
•
Information to the user
The user’s manual or instruction manual for an intentional or unintentional radiator
shall caution the user that changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equip-
ment. In cases where the manual is provided only in a form other than paper, such as
on a computer disk or over the Internet, the information required by this section may
be included in the manual in that alternative form, provided the user can reasonably be
expected to have the capability to access information in that form.
© 2018 Wireless Prime INC. All Rights Reserved.

© 2018 Wireless Prime INC. All Rights Reserved.
Contents
About the User Manual 1
1
3
7
11Product Application
Product Installation
Structure & Interface
Brief introduction

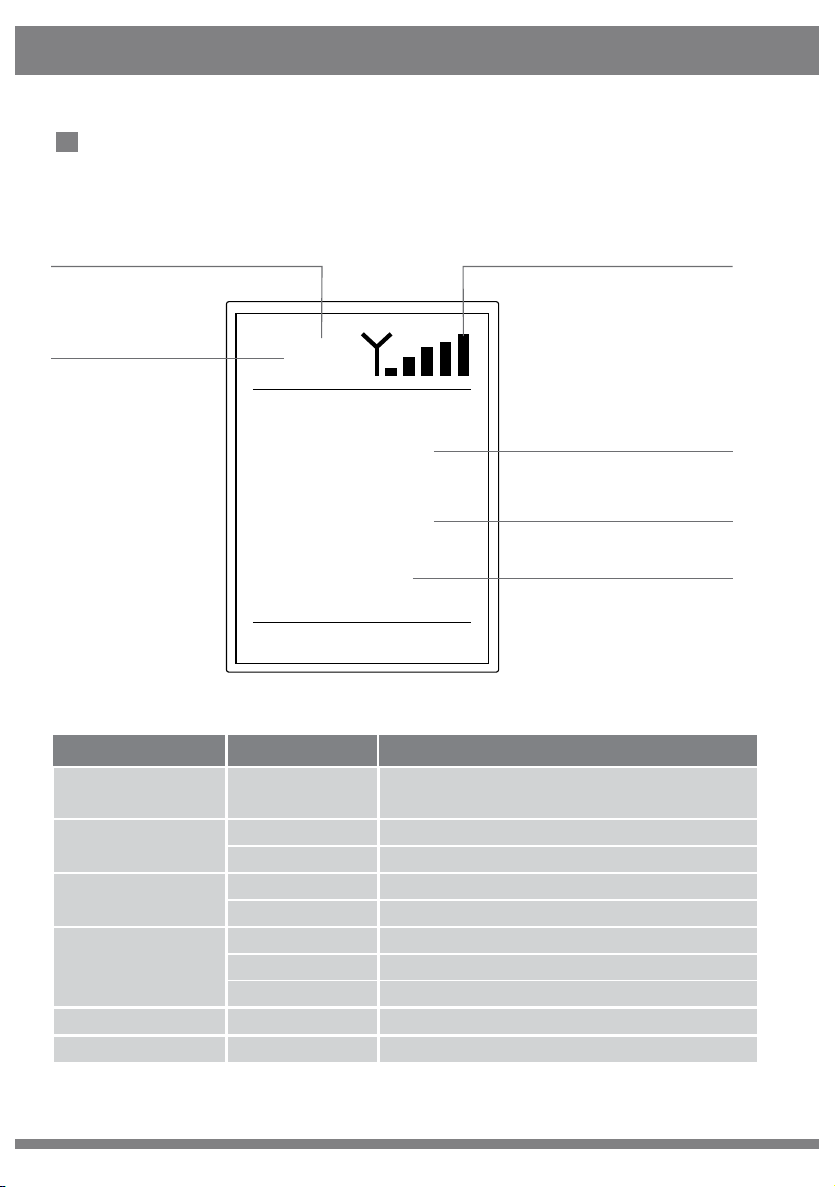

OLED Display Description
LED Digits Display description 12
Product Specifications 20
Precautions
21
22
24
14
Disclaimers
Trouble shooting
26About Wireless Prime
01 02
About the User Manual
This Manual details the product specifications, instructions for use,
precautions, and troubleshooting. Read the Manual carefully before using
the product. If you have any questions or difficulties in using this product,
contact the company or the seller in time.
Product Features
BeamLink Quad is a set of 4TX-to-1RX full-HD audio and video wireless
transmission system. The 4 video channel transmission shares one wireless
channel and supports the highest video resolution up to 1080P/60Hz.
This system is based on 5G wireless network technology for transmission,
along with advanced 4×4 MIMO and Beam-Forming technology. Image
processing is performed using H.264 coding-decoding technology,
and the video quality is sharp and the latency is lower.
Brief Introduction
This product supports HD-SDI&3G-SDI input and output as well as HDMI full-HD
input and output, with the highest resolution of 1080P/60Hz. With the use of H.264
coding-decoding technology with high compression ratio and high definition,
the images have high definition, and the latency is as low as 70ms.
4 transmitters and 1 receiver share one wireless channel
Beam-Forming
Combined with 4×4 MIMO and Beam-Forming technology, this product has
advantages over other WiFi products in the market in terms of transmission
distance and image bitrate. Beam-Forming technology makes wireless signals
more concentrated and stronger in the direction from which they are transmitted
to the receiver, allowing them to transmit farther and be less susceptible to
interference from other signals, thus making them more stable.
Packing List
The following items are included in the product package
Notice: The transmitter comes with the Sony NP-F type battery dock and has
preassembled V-mount connector. The receiver has preassembled V-mount battery
plate and V-mount connector.
This product supports 4 channel videos simultaneous input, with resolution
up to 1080P60 per channel. 4 channel videos shares one wireless channel,
which greatly saves spectrum resources and provides great convenience for
users to perform multi-camera shooting.
High-quality and ultra low latency
This product supports switching between two operating modes, namely standard
mode and RTSP streaming mode. In standard mode, this product supports
4TX-to-1RX and 4TX-to-2RX, and the video outputs interface are HDMI and 3G-SDI.
In RTSP streaming mode, this product supports 4TX-to-1RX and 4TX-to-2RX,
and the video streaming interface is LAN port(RJ45) ..
Support RS232/422
This product supports signal transmission via RS232/422 interface,
which is convenient for users to control the transmitting terminal through the
device at the receiving terminal, such as the PTZ.
controlling
Support monitoring on mobile devices
This product supports monitoring on portable devices, like mobile phone,
tablet and PC. User can install live streaming tool supporting RTSP like VLC
on mobile device, and connect portable devices with receiver via WiFi to watch
the live video with different transmitter IP address.
Standard mode and streaming mode
Power supply cable
*4 pieces
Transmitter *4 pieces Antenna
* 16 pieces
Receiver *1 piece Antenna *4 pieces Power adapter *1 piece Metal Stand *1 piece
Double screw the
connector*4 pieces Rs232 cable *4 pieces
RS232 cable
*1 pieces
01 02
About the User Manual
This Manual details the product specifications, instructions for use,
precautions, and troubleshooting. Read the Manual carefully before using
the product. If you have any questions or difficulties in using this product,
contact the company or the seller in time.
Product Features
BeamLink Duo is a set of 2TX-to-1RX full-HD audio and video wireless
transmission system. The 2 video channel transmission shares one wireless
channel and supports the highest video resolution up to 1080P/60Hz.
This system is based on 5G wireless network technology for transmission,
along with advanced 4×4 MIMO and Beam-Forming technology. Image
processing is performed using H.264 coding-decoding technology,
and the video quality is sharp and the latency is lower.
Brief Introduction
This product supports HD-SDI&3G-SDI input and output as well as HDMI full-HD
input and output, with the highest resolution of 1080P/60Hz. With the use of H.264
coding-decoding technology with high compression ratio and high definition,
the images have high definition, and the latency is as low as 70ms.
2 transmitters and 1 receiver share one wireless channel
Beam-Forming
Combined with 4×4 MIMO and Beam-Forming technology, this product has
advantages over other WiFi products in the market in terms of transmission
distance and image bitrate. Beam-Forming technology makes wireless signals
more concentrated and stronger in the direction from which they are transmitted
to the receiver, allowing them to transmit farther and be less susceptible to
interference from other signals, thus making them more stable.
Packing List
The following items are included in the product package
Power supply cable
*2 pieces
Transmitter *2 pieces Antenna
* 8 pieces
Receiver *1 piece Antenna *4 pieces Power adapter *1 piece Metal Stand *1 piece
Notice: The transmitter comes with the Sony NP-F type battery dock and has
preassembled V-mount connector. The receiver has preassembled V-mount battery
plate and V-mount connector.
This product supports 2 channel videos simultaneous input, with resolution
up to 1080P60 per channel. 2 channel videos shares one wireless channel,
which greatly saves spectrum resources and provides great convenience for
users to perform multi-camera shooting.
High-quality and ultra low latency
This product supports switching between two operating modes, namely standard
mode and RTSP streaming mode. In standard mode, this product supports
2TX-to-1RX and 2TX-to-2RX, and the video outputs interface are HDMI and 3G-SDI.
In RTSP streaming mode, this product supports 2TX-to-1RX and 2TX-to-2RX,
and the video streaming interface is LAN port(RJ45) ..
Support RS232/422
This product supports signal transmission via RS232/422 interface,
which is convenient for users to control the transmitting terminal through the
device at the receiving terminal, such as the PTZ.
controlling
Support monitoring on mobile devices
This product supports monitoring on portable devices, like mobile phone,
tablet and PC. User can install live streaming tool supporting RTSP like VLC
on mobile device, and connect portable devices with receiver via WiFi to watch
the live video with different transmitter IP address.
Standard mode and streaming mode
Double screw the
connector*2 pieces RS232 cable *2 pieces
RS232 cable
*1 pieces

© 2018 Wireless Prime INC. All Rights Reserved.
Introduction
01 02
About the User Manual
This Manual details the product specifications, instructions for use,
precautions, and troubleshooting. Read the Manual carefully before using
the product. If you have any questions or difficulties in using this product,
contact the company or the seller in time.
Product Features
BeamLink Quad is a set of 4TX-to-1RX full-HD audio and video wireless
transmission system. The 4 video channel transmission shares one wireless
channel and supports the highest video resolution up to 1080P/60Hz.
This system is based on 5G wireless network technology for transmission,
along with advanced 4×4 MIMO and Beam-Forming technology. Image
processing is performed using H.264 coding-decoding technology,
and the video quality is sharp and the latency is lower.
Brief Introduction
This product supports HD-SDI&3G-SDI input and output as well as HDMI full-HD
input and output, with the highest resolution of 1080P/60Hz. With the use of H.264
coding-decoding technology with high compression ratio and high definition,
the images have high definition, and the latency is as low as 70ms.
4 transmitters and 1 receiver share one wireless channel
Beam-Forming
Combined with 4×4 MIMO and Beam-Forming technology, this product has
advantages over other WiFi products in the market in terms of transmission
distance and image bitrate. Beam-Forming technology makes wireless signals
more concentrated and stronger in the direction from which they are transmitted
to the receiver, allowing them to transmit farther and be less susceptible to
interference from other signals, thus making them more stable.
Packing List
The following items are included in the product package
Notice: The transmitter comes with the Sony NP-F type battery dock and has
preassembled V-mount connector. The receiver has preassembled V-mount battery
plate and V-mount connector.
This product supports 4 channel videos simultaneous input, with resolution
up to 1080P60 per channel. 4 channel videos shares one wireless channel,
which greatly saves spectrum resources and provides great convenience for
users to perform multi-camera shooting.
High-quality and ultra low latency
This product supports switching between two operating modes, namely standard
mode and RTSP streaming mode. In standard mode, this product supports
4TX-to-1RX and 4TX-to-2RX, and the video outputs interface are HDMI and 3G-SDI.
In RTSP streaming mode, this product supports 4TX-to-1RX and 4TX-to-2RX,
and the video streaming interface is LAN port(RJ45) ..
Support RS232/422
This product supports signal transmission via RS232/422 interface,
which is convenient for users to control the transmitting terminal through the
device at the receiving terminal, such as the PTZ.
controlling
Support monitoring on mobile devices
This product supports monitoring on portable devices, like mobile phone,
tablet and PC. User can install live streaming tool supporting RTSP like VLC
on mobile device, and connect portable devices with receiver via WiFi to watch
the live video with different transmitter IP address.
Standard mode and streaming mode
Power supply cable
*4 pieces
Transmitter *4 pieces Antenna
* 16 pieces
Receiver *1 piece Antenna *4 pieces Power adapter *1 piece Metal Stand *1 piece
Double screw the
connector*4 pieces Rs232 cable *4 pieces
RS232 cable
*1 pieces
01 02
About the User Manual
This Manual details the product specifications, instructions for use,
precautions, and troubleshooting. Read the Manual carefully before using
the product. If you have any questions or difficulties in using this product,
contact the company or the seller in time.
Product Features
BeamLink Quad is a set of 4TX-to-1RX full-HD audio and video wireless
transmission system. The 4 video channel transmission shares one wireless
channel and supports the highest video resolution up to 1080P/60Hz.
This system is based on 5G wireless network technology for transmission,
along with advanced 4×4 MIMO and Beam-Forming technology. Image
processing is performed using H.264 coding-decoding technology,
and the video quality is sharp and the latency is lower.
Brief Introduction
This product supports HD-SDI&3G-SDI input and output as well as HDMI full-HD
input and output, with the highest resolution of 1080P/60Hz. With the use of H.264
coding-decoding technology with high compression ratio and high definition,
the images have high definition, and the latency is as low as 70ms.
4 transmitters and 1 receiver share one wireless channel
Beam-Forming
Combined with 4×4 MIMO and Beam-Forming technology, this product has
advantages over other WiFi products in the market in terms of transmission
distance and image bitrate. Beam-Forming technology makes wireless signals
more concentrated and stronger in the direction from which they are transmitted
to the receiver, allowing them to transmit farther and be less susceptible to
interference from other signals, thus making them more stable.
Packing List
The following items are included in the product package
Notice: The transmitter comes with the Sony NP-F type battery dock and has
preassembled V-mount connector. The receiver has preassembled V-mount battery
plate and V-mount connector.
This product supports 4 channel videos simultaneous input, with resolution
up to 1080P60 per channel. 4 channel videos shares one wireless channel,
which greatly saves spectrum resources and provides great convenience for
users to perform multi-camera shooting.
High-quality and ultra low latency
This product supports switching between two operating modes, namely standard
mode and RTSP streaming mode. In standard mode, this product supports
4TX-to-1RX and 4TX-to-2RX, and the video outputs interface are HDMI and 3G-SDI.
In RTSP streaming mode, this product supports 4TX-to-1RX and 4TX-to-2RX,
and the video streaming interface is LAN port(RJ45) ..
Support RS232/422
This product supports signal transmission via RS232/422 interface,
which is convenient for users to control the transmitting terminal through the
device at the receiving terminal, such as the PTZ.
controlling
Support monitoring on mobile devices
This product supports monitoring on portable devices, like mobile phone,
tablet and PC. User can install live streaming tool supporting RTSP like VLC
on mobile device, and connect portable devices with receiver via WiFi to watch
the live video with different transmitter IP address.
Standard mode and streaming mode
Power supply cable
*4 pieces
Transmitter *4 pieces Antenna
* 16 pieces
Receiver *1 piece Antenna *4 pieces Power adapter *1 piece Metal Stand *1 piece
Double screw the
connector*4 pieces Rs232 cable *4 pieces
RS232 cable
*1 pieces
01 02
About the User Manual
This Manual details the product specifications, instructions for use,
precautions, and troubleshooting. Read the Manual carefully before using
the product. If you have any questions or difficulties in using this product,
contact the company or the seller in time.
Product Features
BeamLink Quad is a set of 4TX-to-1RX full-HD audio and video wireless
transmission system. The 4 video channel transmission shares one wireless
channel and supports the highest video resolution up to 1080P/60Hz.
This system is based on 5G wireless network technology for transmission,
along with advanced 4×4 MIMO and Beam-Forming technology. Image
processing is performed using H.264 coding-decoding technology,
and the video quality is sharp and the latency is lower.
Brief Introduction
This product supports HD-SDI&3G-SDI input and output as well as HDMI full-HD
input and output, with the highest resolution of 1080P/60Hz. With the use of H.264
coding-decoding technology with high compression ratio and high definition,
the images have high definition, and the latency is as low as 70ms.
4 transmitters and 1 receiver share one wireless channel
Beam-Forming
Combined with 4×4 MIMO and Beam-Forming technology, this product has
advantages over other WiFi products in the market in terms of transmission
distance and image bitrate. Beam-Forming technology makes wireless signals
more concentrated and stronger in the direction from which they are transmitted
to the receiver, allowing them to transmit farther and be less susceptible to
interference from other signals, thus making them more stable.
Packing List
The following items are included in the product package
Notice: The transmitter comes with the Sony NP-F type battery dock and has
preassembled V-mount connector. The receiver has preassembled V-mount battery
plate and V-mount connector.
This product supports 4 channel videos simultaneous input, with resolution
up to 1080P60 per channel. 4 channel videos shares one wireless channel,
which greatly saves spectrum resources and provides great convenience for
users to perform multi-camera shooting.
High-quality and ultra low latency
This product supports switching between two operating modes, namely standard
mode and RTSP streaming mode. In standard mode, this product supports
4TX-to-1RX and 4TX-to-2RX, and the video outputs interface are HDMI and 3G-SDI.
In RTSP streaming mode, this product supports 4TX-to-1RX and 4TX-to-2RX,
and the video streaming interface is LAN port(RJ45) ..
Support RS232/422
This product supports signal transmission via RS232/422 interface,
which is convenient for users to control the transmitting terminal through the
device at the receiving terminal, such as the PTZ.
controlling
Support monitoring on mobile devices
This product supports monitoring on portable devices, like mobile phone,
tablet and PC. User can install live streaming tool supporting RTSP like VLC
on mobile device, and connect portable devices with receiver via WiFi to watch
the live video with different transmitter IP address.
Standard mode and streaming mode
Power supply cable
*4 pieces
Transmitter *4 pieces Antenna
* 16 pieces
Receiver *1 piece Antenna *4 pieces Power adapter *1 piece Metal Stand *1 piece
Double screw the
connector*4 pieces Rs232 cable *4 pieces
RS232 cable
*1 pieces
1
About the User Manual
Brief Introduction
01 02
About the User Manual
This Manual details the product specifications, instructions for use,
precautions, and troubleshooting. Read the Manual carefully before using
the product. If you have any questions or difficulties in using this product,
contact the company or the seller in time.
Product Features
BeamLink Duo is a set of 2TX-to-1RX full-HD audio and video wireless
transmission system. The 2 video channel transmission shares one wireless
channel and supports the highest video resolution up to 1080P/60Hz.
This system is based on 5G wireless network technology for transmission,
along with advanced 4×4 MIMO and Beam-Forming technology. Image
processing is performed using H.264 coding-decoding technology,
and the video quality is sharp and the latency is lower.
Brief Introduction
This product supports HD-SDI&3G-SDI input and output as well as HDMI full-HD
input and output, with the highest resolution of 1080P/60Hz. With the use of H.264
coding-decoding technology with high compression ratio and high definition,
the images have high definition, and the latency is as low as 70ms.
2 transmitters and 1 receiver share one wireless channel
Beam-Forming
Combined with 4×4 MIMO and Beam-Forming technology, this product has
advantages over other WiFi products in the market in terms of transmission
distance and image bitrate. Beam-Forming technology makes wireless signals
more concentrated and stronger in the direction from which they are transmitted
to the receiver, allowing them to transmit farther and be less susceptible to
interference from other signals, thus making them more stable.
Packing List
The following items are included in the product package
Power supply cable
*2 pieces
Transmitter *2 pieces Antenna
* 8 pieces
Receiver *1 piece Antenna *4 pieces Power adapter *1 piece Metal Stand *1 piece
Notice: The transmitter comes with the Sony NP-F type battery dock and has
preassembled V-mount connector. The receiver has preassembled V-mount battery
plate and V-mount connector.
This product supports 2 channel videos simultaneous input, with resolution
up to 1080P60 per channel. 2 channel videos shares one wireless channel,
which greatly saves spectrum resources and provides great convenience for
users to perform multi-camera shooting.
High-quality and ultra low latency
This product supports switching between two operating modes, namely standard
mode and RTSP streaming mode. In standard mode, this product supports
2TX-to-1RX and 2TX-to-2RX, and the video outputs interface are HDMI and 3G-SDI.
In RTSP streaming mode, this product supports 2TX-to-1RX and 2TX-to-2RX,
and the video streaming interface is LAN port(RJ45) ..
Support RS232/422
This product supports signal transmission via RS232/422 interface,
which is convenient for users to control the transmitting terminal through the
device at the receiving terminal, such as the PTZ.
controlling
Support monitoring on mobile devices
This product supports monitoring on portable devices, like mobile phone,
tablet and PC. User can install live streaming tool supporting RTSP like VLC
on mobile device, and connect portable devices with receiver via WiFi to watch
the live video with different transmitter IP address.
Standard mode and streaming mode
Double screw the
connector*2 pieces RS232 cable *2 pieces
RS232 cable
*1 pieces
01 02
About the User Manual
This Manual details the product specifications, instructions for use,
precautions, and troubleshooting. Read the Manual carefully before using
the product. If you have any questions or difficulties in using this product,
contact the company or the seller in time.
Product Features
BeamLink Duo is a set of 2TX-to-1RX full-HD audio and video wireless
transmission system. The 2 video channel transmission shares one wireless
channel and supports the highest video resolution up to 1080P/60Hz.
This system is based on 5G wireless network technology for transmission,
along with advanced 4×4 MIMO and Beam-Forming technology. Image
processing is performed using H.264 coding-decoding technology,
and the video quality is sharp and the latency is lower.
Brief Introduction
This product supports HD-SDI&3G-SDI input and output as well as HDMI full-HD
input and output, with the highest resolution of 1080P/60Hz. With the use of H.264
coding-decoding technology with high compression ratio and high definition,
the images have high definition, and the latency is as low as 70ms.
2 transmitters and 1 receiver share one wireless channel
Beam-Forming
Combined with 4×4 MIMO and Beam-Forming technology, this product has
advantages over other WiFi products in the market in terms of transmission
distance and image bitrate. Beam-Forming technology makes wireless signals
more concentrated and stronger in the direction from which they are transmitted
to the receiver, allowing them to transmit farther and be less susceptible to
interference from other signals, thus making them more stable.
Packing List
The following items are included in the product package
Power supply cable
*2 pieces
Transmitter *2 pieces Antenna
* 8 pieces
Receiver *1 piece Antenna *4 pieces Power adapter *1 piece Metal Stand *1 piece
Notice: The transmitter comes with the Sony NP-F type battery dock and has
preassembled V-mount connector. The receiver has preassembled V-mount battery
plate and V-mount connector.
This product supports 2 channel videos simultaneous input, with resolution
up to 1080P60 per channel. 2 channel videos shares one wireless channel,
which greatly saves spectrum resources and provides great convenience for
users to perform multi-camera shooting.
High-quality and ultra low latency
This product supports switching between two operating modes, namely standard
mode and RTSP streaming mode. In standard mode, this product supports
2TX-to-1RX and 2TX-to-2RX, and the video outputs interface are HDMI and 3G-SDI.
In RTSP streaming mode, this product supports 2TX-to-1RX and 2TX-to-2RX,
and the video streaming interface is LAN port(RJ45) ..
Support RS232/422
This product supports signal transmission via RS232/422 interface,
which is convenient for users to control the transmitting terminal through the
device at the receiving terminal, such as the PTZ.
controlling
Support monitoring on mobile devices
This product supports monitoring on portable devices, like mobile phone,
tablet and PC. User can install live streaming tool supporting RTSP like VLC
on mobile device, and connect portable devices with receiver via WiFi to watch
the live video with different transmitter IP address.
Standard mode and streaming mode
Double screw the
connector*2 pieces RS232 cable *2 pieces
RS232 cable
*1 pieces

© 2018 Wireless Prime INC. All Rights Reserved.
Introduction
01 02
About the User Manual
This Manual details the product specifications, instructions for use,
precautions, and troubleshooting. Read the Manual carefully before using
the product. If you have any questions or difficulties in using this product,
contact the company or the seller in time.
Product Features
BeamLink Quad is a set of 4TX-to-1RX full-HD audio and video wireless
transmission system. The 4 video channel transmission shares one wireless
channel and supports the highest video resolution up to 1080P/60Hz.
This system is based on 5G wireless network technology for transmission,
along with advanced 4×4 MIMO and Beam-Forming technology. Image
processing is performed using H.264 coding-decoding technology,
and the video quality is sharp and the latency is lower.
Brief Introduction
This product supports HD-SDI&3G-SDI input and output as well as HDMI full-HD
input and output, with the highest resolution of 1080P/60Hz. With the use of H.264
coding-decoding technology with high compression ratio and high definition,
the images have high definition, and the latency is as low as 70ms.
4 transmitters and 1 receiver share one wireless channel
Beam-Forming
Combined with 4×4 MIMO and Beam-Forming technology, this product has
advantages over other WiFi products in the market in terms of transmission
distance and image bitrate. Beam-Forming technology makes wireless signals
more concentrated and stronger in the direction from which they are transmitted
to the receiver, allowing them to transmit farther and be less susceptible to
interference from other signals, thus making them more stable.
Packing List
The following items are included in the product package
Notice: The transmitter comes with the Sony NP-F type battery dock and has
preassembled V-mount connector. The receiver has preassembled V-mount battery
plate and V-mount connector.
This product supports 4 channel videos simultaneous input, with resolution
up to 1080P60 per channel. 4 channel videos shares one wireless channel,
which greatly saves spectrum resources and provides great convenience for
users to perform multi-camera shooting.
High-quality and ultra low latency
This product supports switching between two operating modes, namely standard
mode and RTSP streaming mode. In standard mode, this product supports
4TX-to-1RX and 4TX-to-2RX, and the video outputs interface are HDMI and 3G-SDI.
In RTSP streaming mode, this product supports 4TX-to-1RX and 4TX-to-2RX,
and the video streaming interface is LAN port(RJ45) ..
Support RS232/422
This product supports signal transmission via RS232/422 interface,
which is convenient for users to control the transmitting terminal through the
device at the receiving terminal, such as the PTZ.
controlling
Support monitoring on mobile devices
This product supports monitoring on portable devices, like mobile phone,
tablet and PC. User can install live streaming tool supporting RTSP like VLC
on mobile device, and connect portable devices with receiver via WiFi to watch
the live video with different transmitter IP address.
Standard mode and streaming mode
Power supply cable
*4 pieces
Transmitter *4 pieces Antenna
* 16 pieces
Receiver *1 piece Antenna *4 pieces Power adapter *1 piece Metal Stand *1 piece
Double screw the
connector*4 pieces Rs232 cable *4 pieces
RS232 cable
*1 pieces
2

© 2018 Wireless Prime INC. All Rights Reserved.
Structure & Interface
TX: 7060
V-Mount
03 04
Structure & Interface
Antenna Interface
Antenna Interface Power Switch
Tally out
DC-IN
Transmitter Key Operation
Function Operation Description
High-gain and
low-gain mode
switching
Press the
“LNA ON/OFF”
button for
about 3s
“L” (low-gain) mode:
Applicable for close-range(<200m/656ft
& LOS) and environments,
with strong anti-interference ability.
After switching to L mode, the “L” character
will be displayed on the OLED display.
strong interference
“H” (high-gain) mode: Applicable for
long distances, (NLOS or>200m/656ft)
and the anti-interference ability is weaker
than that in “L” mode. After switching to
H mode, the characters on the OLED
display will disappear.
Code matching
Press the
“WPS/RTSP”
button for
about 3s
In the code matching process of the
transmitter and receiver, the word
“WPS” will always be displayed on
the OLED display, and the string will
disappear after the code matching.
The transmitter and receiver need to
be in code matching status at the same
time to achieve code matching.
Standard and
streaming mode
switching
Press the
“WPS ”
button for
about 6s
/RTSP
When switching to streaming mode,
the word “RTSP” will be displayed on the
OLED display, and the product will enter
streaming mode.
Restart the
encoding
board
Press the
“RESET”
button for
about 3s
During the restart of the encoding board,
the “RESET” string will always be
displayed on the OLED display of the
transmitter, and the string will disappear
after the restart.
LNA ON/OFF
WPS/RTSP
Reset
OLED Display
Network status
warning light
SDI In
HDMI In
RS232/422
SONY NPF Battery dock
Tips:in RTSP mode,the decoding
function is disabled
TX: 7060
V-Mount
03 04
Structure & Interface
Antenna Interface
Antenna Interface Power Switch
Tally out
DC-IN
Transmitter Key Operation
Function Operation Description
High-gain and
low-gain mode
switching
Press the
“LNA ON/OFF”
button for
about 3s
“L” (low-gain) mode:
Applicable for close-range(<200m/656ft
& LOS) and environments,
with strong anti-interference ability.
After switching to L mode, the “L” character
will be displayed on the OLED display.
strong interference
“H” (high-gain) mode: Applicable for
long distances, (NLOS or>200m/656ft)
and the anti-interference ability is weaker
than that in “L” mode. After switching to
H mode, the characters on the OLED
display will disappear.
Code matching
Press the
“WPS/RTSP”
button for
about 3s
In the code matching process of the
transmitter and receiver, the word
“WPS” will always be displayed on
the OLED display, and the string will
disappear after the code matching.
The transmitter and receiver need to
be in code matching status at the same
time to achieve code matching.
Standard and
streaming mode
switching
Press the
“WPS ”
button for
about 6s
/RTSP
When switching to streaming mode,
the word “RTSP” will be displayed on the
OLED display, and the product will enter
streaming mode.
Restart the
encoding
board
Press the
“RESET”
button for
about 3s
During the restart of the encoding board,
the “RESET” string will always be
displayed on the OLED display of the
transmitter, and the string will disappear
after the restart.
LNA ON/OFF
WPS/RTSP
Reset
OLED Display
Network status
warning light
SDI In
HDMI In
RS232/422
SONY NPF Battery dock
Tips:in RTSP mode,the decoding
function is disabled
3
Structure & Interface

© 2018 Wireless Prime INC. All Rights Reserved.
Structure & Interface
TX: 7060
V-Mount
03 04
Structure & Interface
Antenna Interface
Antenna Interface Power Switch
Tally out
DC-IN
Transmitter Key Operation
Function Operation Description
High-gain and
low-gain mode
switching
Press the
“LNA ON/OFF”
button for
about 3s
“L” (low-gain) mode:
Applicable for close-range(<200m/656ft
& LOS) and environments,
with strong anti-interference ability.
After switching to L mode, the “L” character
will be displayed on the OLED display.
strong interference
“H” (high-gain) mode: Applicable for
long distances, (NLOS or>200m/656ft)
and the anti-interference ability is weaker
than that in “L” mode. After switching to
H mode, the characters on the OLED
display will disappear.
Code matching
Press the
“WPS/RTSP”
button for
about 3s
In the code matching process of the
transmitter and receiver, the word
“WPS” will always be displayed on
the OLED display, and the string will
disappear after the code matching.
The transmitter and receiver need to
be in code matching status at the same
time to achieve code matching.
Standard and
streaming mode
switching
Press the
“WPS ”
button for
about 6s
/RTSP
When switching to streaming mode,
the word “RTSP” will be displayed on the
OLED display, and the product will enter
streaming mode.
Restart the
encoding
board
Press the
“RESET”
button for
about 3s
During the restart of the encoding board,
the “RESET” string will always be
displayed on the OLED display of the
transmitter, and the string will disappear
after the restart.
LNA ON/OFF
WPS/RTSP
Reset
OLED Display
Network status
warning light
SDI In
HDMI In
RS232/422
SONY NPF Battery dock
Tips:in RTSP mode,the decoding
function is disabled
TX: 7060
V-Mount
03 04
Structure & Interface
Antenna Interface
Antenna Interface Power Switch
Tally out
DC-IN
Transmitter Key Operation
Function Operation Description
High-gain and
low-gain mode
switching
Press the
“LNA ON/OFF”
button for
about 3s
“L” (low-gain) mode:
Applicable for close-range(<200m/656ft
& LOS) and environments,
with strong anti-interference ability.
After switching to L mode, the “L” character
will be displayed on the OLED display.
strong interference
“H” (high-gain) mode: Applicable for
long distances, (NLOS or>200m/656ft)
and the anti-interference ability is weaker
than that in “L” mode. After switching to
H mode, the characters on the OLED
display will disappear.
Code matching
Press the
“WPS/RTSP”
button for
about 3s
In the code matching process of the
transmitter and receiver, the word
“WPS” will always be displayed on
the OLED display, and the string will
disappear after the code matching.
The transmitter and receiver need to
be in code matching status at the same
time to achieve code matching.
Standard and
streaming mode
switching
Press the
“WPS ”
button for
about 6s
/RTSP
When switching to streaming mode,
the word “RTSP” will be displayed on the
OLED display, and the product will enter
streaming mode.
Restart the
encoding
board
Press the
“RESET”
button for
about 3s
During the restart of the encoding board,
the “RESET” string will always be
displayed on the OLED display of the
transmitter, and the string will disappear
after the restart.
LNA ON/OFF
WPS/RTSP
Reset
OLED Display
Network status
warning light
SDI In
HDMI In
RS232/422
SONY NPF Battery dock
Tips:in RTSP mode,the decoding
function is disabled
4

© 2018 Wireless Prime INC. All Rights Reserved.
Structure & Interface
V-Mount
RX: 3060
05 06
Antenna Interface
Tally(DB9)
RJ-45
RS232/422
SDI Out
DC-IN
HDMI Out
Antenna Interface
OLED Display
LNA ON/OFF
CH/WPS
Reset
Power Button
Receiver Key Operation
Function Operation Description
Frequency
channel
switching
Short press
the “CH/WPS”
button about 1S
After the receiver switches the frequency
, the OLED display of the
receiver and transmitter will display the new
frequency number after
switching.
channel about 1S
channel about 1S
High-gain and
low-gain mode
switching
Press the “LNA
ON/OFF” button
for about 3s
“L” (low-gain) mode:
Applicable for close-range
and strong interference
environments, with strong anti-interference
ability. After switching to L mode,
the “L” character will be displayed on the
OLED display.
(LOS &TX-to-RX
<200m/656ft )
“
(NLOS or
TX-to-RX>200m/656ft)
H” (high-gain) mode:
Applicable for long distances,
and the anti-
interference ability is weaker than that in “L”
mode. After switching to H mode, the
characters on the OLED display will disappear.
Code matching
Press the “CH/
WPS” button for
about 3s
In the code matching process of the
transmitter and receiver, the word “WPS”
will always be displayed on the OLED
display, and the string will disappear after
the code matched. The transmitter and
receiver need to be in code matching
status at the same time to achieve
code matching.
OLED display
switching
between
landscape
mode and
portrait mode
Short press the
“LNA ON/OFF”
button for
about 1s
Short press the “LNA ON/OFF” button,
and the display will switch between
landscape mode and portrait mode.
Restart a
certain
channel video
of the receiver
First, short press
the [RESET] button
for cyclical selection
among 1, 2, 3 and 4 to
restart the decoding
board in the channel.
Then press and hold
the [RESET] button
for 3s to confirm
the restart.
After long pressing the button to confirm,
the “RESET” string will be displayed on
the OLED display for 3s, and the string
will disappear after the decoding board
begins to restart.

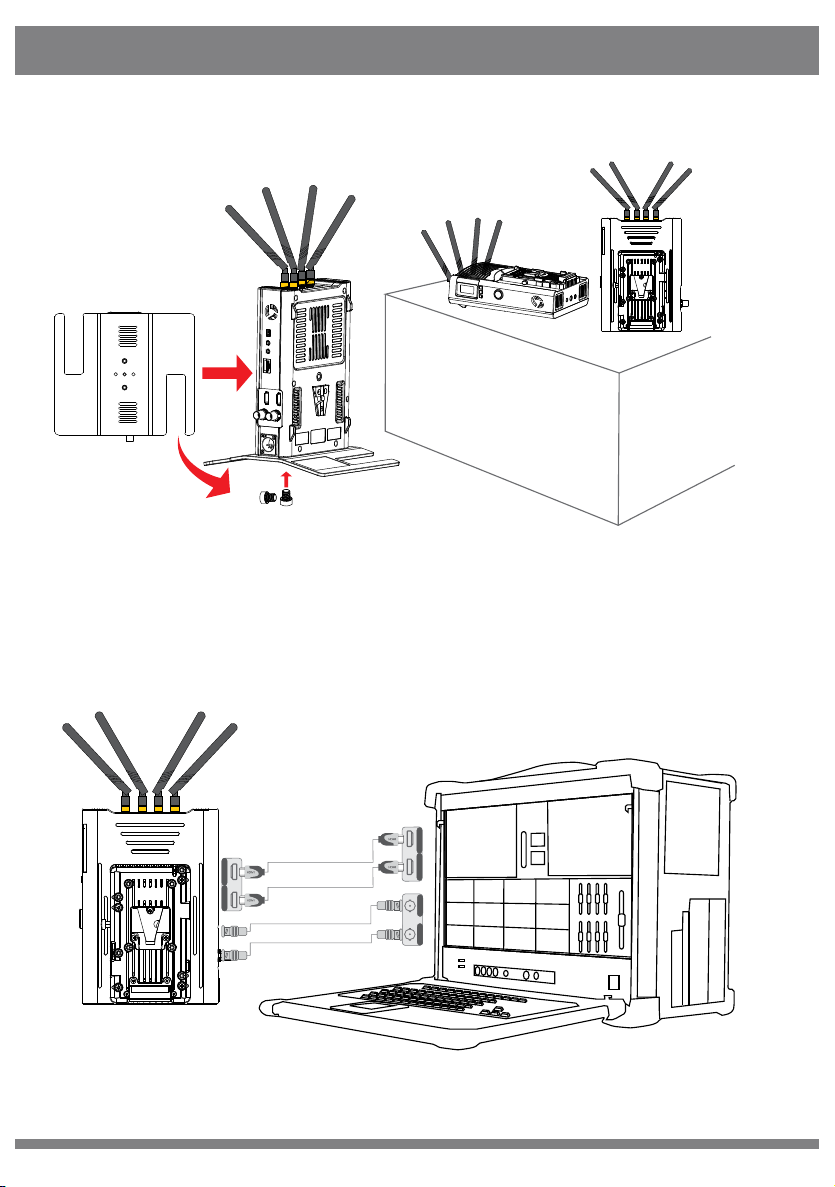

V-mount Plate
V-Mount
RX: 3060
05 06
Antenna Interface
Tally(DB9)
RJ-45
RS232/422
SDI Out
DC-IN
HDMI Out
Antenna Interface
OLED Display
LNA ON/OFF
CH/WPS
Reset
Power Button
Receiver Key Operation
Function Operation Description
Frequency
channel
switching
Short press
the “CH/WPS”
button about 1S
After the receiver switches the frequency
, the OLED display of the
receiver and transmitter will display the new
frequency number after
switching.
channel about 1S
channel about 1S
High-gain and
low-gain mode
switching
Press the “LNA
ON/OFF” button
for about 3s
“L” (low-gain) mode:
Applicable for close-range
and strong interference
environments, with strong anti-interference
ability. After switching to L mode,
the “L” character will be displayed on the
OLED display.
(LOS &TX-to-RX
<200m/656ft )
“
(NLOS or
TX-to-RX>200m/656ft)
H” (high-gain) mode:
Applicable for long distances,
and the anti-
interference ability is weaker than that in “L”
mode. After switching to H mode, the
characters on the OLED display will disappear.
Code matching
Press the “CH/
WPS” button for
about 3s
In the code matching process of the
transmitter and receiver, the word “WPS”
will always be displayed on the OLED
display, and the string will disappear after
the code matched. The transmitter and
receiver need to be in code matching
status at the same time to achieve
code matching.
OLED display
switching
between
landscape
mode and
portrait mode
Short press the
“LNA ON/OFF”
button for
about 1s
Short press the “LNA ON/OFF” button,
and the display will switch between
landscape mode and portrait mode.
Restart a
certain
channel video
of the receiver
First, short press
the [RESET] button
for cyclical selection
among 1, 2, 3 and 4 to
restart the decoding
board in the channel.
Then press and hold
the [RESET] button
for 3s to confirm
the restart.
After long pressing the button to confirm,
the “RESET” string will be displayed on
the OLED display for 3s, and the string
will disappear after the decoding board
begins to restart.
V-mount Plate
01 02
About the User Manual
This Manual details the product specifications, instructions for use,
precautions, and troubleshooting. Read the Manual carefully before using
the product. If you have any questions or difficulties in using this product,
contact the company or the seller in time.
Product Features
BeamLink Quad is a set of 4TX-to-1RX full-HD audio and video wireless
transmission system. The 4 video channel transmission shares one wireless
channel and supports the highest video resolution up to 1080P/60Hz.
This system is based on 5G wireless network technology for transmission,
along with advanced 4×4 MIMO and Beam-Forming technology. Image
processing is performed using H.264 coding-decoding technology,
and the video quality is sharp and the latency is lower.
Brief Introduction
This product supports HD-SDI&3G-SDI input and output as well as HDMI full-HD
input and output, with the highest resolution of 1080P/60Hz. With the use of H.264
coding-decoding technology with high compression ratio and high definition,
the images have high definition, and the latency is as low as 70ms.
4 transmitters and 1 receiver share one wireless channel
Beam-Forming
Combined with 4×4 MIMO and Beam-Forming technology, this product has
advantages over other WiFi products in the market in terms of transmission
distance and image bitrate. Beam-Forming technology makes wireless signals
more concentrated and stronger in the direction from which they are transmitted
to the receiver, allowing them to transmit farther and be less susceptible to
interference from other signals, thus making them more stable.
Packing List
The following items are included in the product package
Notice: The transmitter comes with the Sony NP-F type battery dock and has
preassembled V-mount connector. The receiver has preassembled V-mount battery
plate and V-mount connector.
This product supports 4 channel videos simultaneous input, with resolution
up to 1080P60 per channel. 4 channel videos shares one wireless channel,
which greatly saves spectrum resources and provides great convenience for
users to perform multi-camera shooting.
High-quality and ultra low latency
This product supports switching between two operating modes, namely standard
mode and RTSP streaming mode. In standard mode, this product supports
4TX-to-1RX and 4TX-to-2RX, and the video outputs interface are HDMI and 3G-SDI.
In RTSP streaming mode, this product supports 4TX-to-1RX and 4TX-to-2RX,
and the video streaming interface is LAN port(RJ45) ..
Support RS232/422
This product supports signal transmission via RS232/422 interface,
which is convenient for users to control the transmitting terminal through the
device at the receiving terminal, such as the PTZ.
controlling
Support monitoring on mobile devices
This product supports monitoring on portable devices, like mobile phone,
tablet and PC. User can install live streaming tool supporting RTSP like VLC
on mobile device, and connect portable devices with receiver via WiFi to watch
the live video with different transmitter IP address.
Standard mode and streaming mode
Power supply cable
*4 pieces
Transmitter *4 pieces Antenna
* 16 pieces
Receiver *1 piece Antenna *4 pieces Power adapter *1 piece Metal Stand *1 piece
Double screw the
connector*4 pieces Rs232 cable *4 pieces
RS232 cable
*1 pieces
5
01 02
About the User Manual
This Manual details the product specifications, instructions for use,
precautions, and troubleshooting. Read the Manual carefully before using
the product. If you have any questions or difficulties in using this product,
contact the company or the seller in time.
Product Features
BeamLink Duo is a set of 2TX-to-1RX full-HD audio and video wireless
transmission system. The 2 video channel transmission shares one wireless
channel and supports the highest video resolution up to 1080P/60Hz.
This system is based on 5G wireless network technology for transmission,
along with advanced 4×4 MIMO and Beam-Forming technology. Image
processing is performed using H.264 coding-decoding technology,
and the video quality is sharp and the latency is lower.
Brief Introduction
This product supports HD-SDI&3G-SDI input and output as well as HDMI full-HD
input and output, with the highest resolution of 1080P/60Hz. With the use of H.264
coding-decoding technology with high compression ratio and high definition,
the images have high definition, and the latency is as low as 70ms.
2 transmitters and 1 receiver share one wireless channel
Beam-Forming
Combined with 4×4 MIMO and Beam-Forming technology, this product has
advantages over other WiFi products in the market in terms of transmission
distance and image bitrate. Beam-Forming technology makes wireless signals
more concentrated and stronger in the direction from which they are transmitted
to the receiver, allowing them to transmit farther and be less susceptible to
interference from other signals, thus making them more stable.
Packing List
The following items are included in the product package
Power supply cable
*2 pieces
Transmitter *2 pieces Antenna
* 8 pieces
Receiver *1 piece Antenna *4 pieces Power adapter *1 piece Metal Stand *1 piece
Notice: The transmitter comes with the Sony NP-F type battery dock and has
preassembled V-mount connector. The receiver has preassembled V-mount battery
plate and V-mount connector.
This product supports 2 channel videos simultaneous input, with resolution
up to 1080P60 per channel. 2 channel videos shares one wireless channel,
which greatly saves spectrum resources and provides great convenience for
users to perform multi-camera shooting.
High-quality and ultra low latency
This product supports switching between two operating modes, namely standard
mode and RTSP streaming mode. In standard mode, this product supports
2TX-to-1RX and 2TX-to-2RX, and the video outputs interface are HDMI and 3G-SDI.
In RTSP streaming mode, this product supports 2TX-to-1RX and 2TX-to-2RX,
and the video streaming interface is LAN port(RJ45) ..
Support RS232/422
This product supports signal transmission via RS232/422 interface,
which is convenient for users to control the transmitting terminal through the
device at the receiving terminal, such as the PTZ.
controlling
Support monitoring on mobile devices
This product supports monitoring on portable devices, like mobile phone,
tablet and PC. User can install live streaming tool supporting RTSP like VLC
on mobile device, and connect portable devices with receiver via WiFi to watch
the live video with different transmitter IP address.
Standard mode and streaming mode
Double screw the
connector*2 pieces RS232 cable *2 pieces
RS232 cable
*1 pieces
05 06
Receiver Key Operation
Function Operation Description
Frequency
channel
switching
Short press
the “CH/WPS”
button about 1S
After the receiver switches the frequency
, the OLED display of the
receiver and transmitter will display the new
frequency number after
switching.
channel about 1S
channel about 1S
High-gain and
low-gain mode
switching
Press the “LNA
ON/OFF” button
for about 3s
“L” (low-gain) mode:
Applicable for close-range
and strong interference
environments, with strong anti-interference
ability. After switching to L mode,
the “L” character will be displayed on the
OLED display.
(LOS &TX-to-RX
<200m/656ft )
“
(NLOS or
TX-to-RX>200m/656ft)
H” (high-gain) mode:
Applicable for long distances,
and the anti-
interference ability is weaker than that in “L”
mode. After switching to H mode, the
characters on the OLED display will disappear.
Code matching
Press the “CH/
WPS” button for
about 3s
In the code matching process of the
transmitter and receiver, the word “WPS”
will always be displayed on the OLED
display, and the string will disappear after
the code matched. The transmitter and
receiver need to be in code matching
status at the same time to achieve
code matching.
OLED display
switching
between
landscape
mode and
portrait mode
Short press the
“LNA ON/OFF”
button for
about 1s
Short press the “LNA ON/OFF” button,
and the display will switch between
landscape mode and portrait mode.
Restart a
certain
channel video
of the receiver
First, short press
the [RESET] button
for cyclical selection
among 1, 2, 3 and 4 to
restart the decoding
board in the channel.
Then press and hold
the [RESET] button
for 3s to confirm
the restart.
After long pressing the button to confirm,
the “RESET” string will be displayed on
the OLED display for 3s, and the string
will disappear after the decoding board
begins to restart.
V-Mount
RX: 3062
Antenna Interface
RJ-45
SDI Out
DC-IN
HDMI Out
OLED Display
LNA ON/OFF
CH/WPS
Reset
Power Switch
RS232/422
Tally in
Antenna Interface
V-mount Plate

© 2018 Wireless Prime INC. All Rights Reserved.
Structure & Interface
V-Mount
RX: 3060
05 06
Antenna Interface
Tally(DB9)
RJ-45
RS232/422
SDI Out
DC-IN
HDMI Out
Antenna Interface
OLED Display
LNA ON/OFF
CH/WPS
Reset
Power Button
Receiver Key Operation
Function Operation Description
Frequency
channel
switching
Short press
the “CH/WPS”
button about 1S
After the receiver switches the frequency
, the OLED display of the
receiver and transmitter will display the new
frequency number after
switching.
channel about 1S
channel about 1S
High-gain and
low-gain mode
switching
Press the “LNA
ON/OFF” button
for about 3s
“L” (low-gain) mode:
Applicable for close-range
and strong interference
environments, with strong anti-interference
ability. After switching to L mode,
the “L” character will be displayed on the
OLED display.
(LOS &TX-to-RX
<200m/656ft )
“
(NLOS or
TX-to-RX>200m/656ft)
H” (high-gain) mode:
Applicable for long distances,
and the anti-
interference ability is weaker than that in “L”
mode. After switching to H mode, the
characters on the OLED display will disappear.
Code matching
Press the “CH/
WPS” button for
about 3s
In the code matching process of the
transmitter and receiver, the word “WPS”
will always be displayed on the OLED
display, and the string will disappear after
the code matched. The transmitter and
receiver need to be in code matching
status at the same time to achieve
code matching.
OLED display
switching
between
landscape
mode and
portrait mode
Short press the
“LNA ON/OFF”
button for
about 1s
Short press the “LNA ON/OFF” button,
and the display will switch between
landscape mode and portrait mode.
Restart a
certain
channel video
of the receiver
First, short press
the [RESET] button
for cyclical selection
among 1, 2, 3 and 4 to
restart the decoding
board in the channel.
Then press and hold
the [RESET] button
for 3s to confirm
the restart.
After long pressing the button to confirm,
the “RESET” string will be displayed on
the OLED display for 3s, and the string
will disappear after the decoding board
begins to restart.
V-mount Plate
V-Mount
RX: 3060
05 06
Antenna Interface
Tally(DB9)
RJ-45
RS232/422
SDI Out
DC-IN
HDMI Out
Antenna Interface
OLED Display
LNA ON/OFF
CH/WPS
Reset
Power Button
Receiver Key Operation
Function Operation Description
Frequency
channel
switching
Short press
the “CH/WPS”
button about 1S
After the receiver switches the frequency
, the OLED display of the
receiver and transmitter will display the new
frequency number after
switching.
channel about 1S
channel about 1S
High-gain and
low-gain mode
switching
Press the “LNA
ON/OFF” button
for about 3s
“L” (low-gain) mode:
Applicable for close-range
and strong interference
environments, with strong anti-interference
ability. After switching to L mode,
the “L” character will be displayed on the
OLED display.
(LOS &TX-to-RX
<200m/656ft )
“
(NLOS or
TX-to-RX>200m/656ft)
H” (high-gain) mode:
Applicable for long distances,
and the anti-
interference ability is weaker than that in “L”
mode. After switching to H mode, the
characters on the OLED display will disappear.
Code matching
Press the “CH/
WPS” button for
about 3s
In the code matching process of the
transmitter and receiver, the word “WPS”
will always be displayed on the OLED
display, and the string will disappear after
the code matched. The transmitter and
receiver need to be in code matching
status at the same time to achieve
code matching.
OLED display
switching
between
landscape
mode and
portrait mode
Short press the
“LNA ON/OFF”
button for
about 1s
Short press the “LNA ON/OFF” button,
and the display will switch between
landscape mode and portrait mode.
Restart a
certain
channel video
of the receiver
First, short press
the [RESET] button
for cyclical selection
among 1, 2, 3 and 4 to
restart the decoding
board in the channel.
Then press and hold
the [RESET] button
for 3s to confirm
the restart.
After long pressing the button to confirm,
the “RESET” string will be displayed on
the OLED display for 3s, and the string
will disappear after the decoding board
begins to restart.
V-mount Plate
01 02
About the User Manual
This Manual details the product specifications, instructions for use,
precautions, and troubleshooting. Read the Manual carefully before using
the product. If you have any questions or difficulties in using this product,
contact the company or the seller in time.
Product Features
BeamLink Quad is a set of 4TX-to-1RX full-HD audio and video wireless
transmission system. The 4 video channel transmission shares one wireless
channel and supports the highest video resolution up to 1080P/60Hz.
This system is based on 5G wireless network technology for transmission,
along with advanced 4×4 MIMO and Beam-Forming technology. Image
processing is performed using H.264 coding-decoding technology,
and the video quality is sharp and the latency is lower.
Brief Introduction
This product supports HD-SDI&3G-SDI input and output as well as HDMI full-HD
input and output, with the highest resolution of 1080P/60Hz. With the use of H.264
coding-decoding technology with high compression ratio and high definition,
the images have high definition, and the latency is as low as 70ms.
4 transmitters and 1 receiver share one wireless channel
Beam-Forming
Combined with 4×4 MIMO and Beam-Forming technology, this product has
advantages over other WiFi products in the market in terms of transmission
distance and image bitrate. Beam-Forming technology makes wireless signals
more concentrated and stronger in the direction from which they are transmitted
to the receiver, allowing them to transmit farther and be less susceptible to
interference from other signals, thus making them more stable.
Packing List
The following items are included in the product package
Notice: The transmitter comes with the Sony NP-F type battery dock and has
preassembled V-mount connector. The receiver has preassembled V-mount battery
plate and V-mount connector.
This product supports 4 channel videos simultaneous input, with resolution
up to 1080P60 per channel. 4 channel videos shares one wireless channel,
which greatly saves spectrum resources and provides great convenience for
users to perform multi-camera shooting.
High-quality and ultra low latency
This product supports switching between two operating modes, namely standard
mode and RTSP streaming mode. In standard mode, this product supports
4TX-to-1RX and 4TX-to-2RX, and the video outputs interface are HDMI and 3G-SDI.
In RTSP streaming mode, this product supports 4TX-to-1RX and 4TX-to-2RX,
and the video streaming interface is LAN port(RJ45) ..
Support RS232/422
This product supports signal transmission via RS232/422 interface,
which is convenient for users to control the transmitting terminal through the
device at the receiving terminal, such as the PTZ.
controlling
Support monitoring on mobile devices
This product supports monitoring on portable devices, like mobile phone,
tablet and PC. User can install live streaming tool supporting RTSP like VLC
on mobile device, and connect portable devices with receiver via WiFi to watch
the live video with different transmitter IP address.
Standard mode and streaming mode
Power supply cable
*4 pieces
Transmitter *4 pieces Antenna
* 16 pieces
Receiver *1 piece Antenna *4 pieces Power adapter *1 piece Metal Stand *1 piece
Double screw the
connector*4 pieces Rs232 cable *4 pieces
RS232 cable
*1 pieces
6
01 02
About the User Manual
This Manual details the product specifications, instructions for use,
precautions, and troubleshooting. Read the Manual carefully before using
the product. If you have any questions or difficulties in using this product,
contact the company or the seller in time.
Product Features
BeamLink Duo is a set of 2TX-to-1RX full-HD audio and video wireless
transmission system. The 2 video channel transmission shares one wireless
channel and supports the highest video resolution up to 1080P/60Hz.
This system is based on 5G wireless network technology for transmission,
along with advanced 4×4 MIMO and Beam-Forming technology. Image
processing is performed using H.264 coding-decoding technology,
and the video quality is sharp and the latency is lower.
Brief Introduction
This product supports HD-SDI&3G-SDI input and output as well as HDMI full-HD
input and output, with the highest resolution of 1080P/60Hz. With the use of H.264
coding-decoding technology with high compression ratio and high definition,
the images have high definition, and the latency is as low as 70ms.
2 transmitters and 1 receiver share one wireless channel
Beam-Forming
Combined with 4×4 MIMO and Beam-Forming technology, this product has
advantages over other WiFi products in the market in terms of transmission
distance and image bitrate. Beam-Forming technology makes wireless signals
more concentrated and stronger in the direction from which they are transmitted
to the receiver, allowing them to transmit farther and be less susceptible to
interference from other signals, thus making them more stable.
Packing List
The following items are included in the product package
Power supply cable
*2 pieces
Transmitter *2 pieces Antenna
* 8 pieces
Receiver *1 piece Antenna *4 pieces Power adapter *1 piece Metal Stand *1 piece
Notice: The transmitter comes with the Sony NP-F type battery dock and has
preassembled V-mount connector. The receiver has preassembled V-mount battery
plate and V-mount connector.
This product supports 2 channel videos simultaneous input, with resolution
up to 1080P60 per channel. 2 channel videos shares one wireless channel,
which greatly saves spectrum resources and provides great convenience for
users to perform multi-camera shooting.
High-quality and ultra low latency
This product supports switching between two operating modes, namely standard
mode and RTSP streaming mode. In standard mode, this product supports
2TX-to-1RX and 2TX-to-2RX, and the video outputs interface are HDMI and 3G-SDI.
In RTSP streaming mode, this product supports 2TX-to-1RX and 2TX-to-2RX,
and the video streaming interface is LAN port(RJ45) ..
Support RS232/422
This product supports signal transmission via RS232/422 interface,
which is convenient for users to control the transmitting terminal through the
device at the receiving terminal, such as the PTZ.
controlling
Support monitoring on mobile devices
This product supports monitoring on portable devices, like mobile phone,
tablet and PC. User can install live streaming tool supporting RTSP like VLC
on mobile device, and connect portable devices with receiver via WiFi to watch
the live video with different transmitter IP address.
Standard mode and streaming mode
Double screw the
connector*2 pieces RS232 cable *2 pieces
RS232 cable
*1 pieces
05 06
Receiver Key Operation
Function Operation Description
Frequency
channel
switching
Short press
the “CH/WPS”
button about 1S
After the receiver switches the frequency
, the OLED display of the
receiver and transmitter will display the new
frequency number after
switching.
channel about 1S
channel about 1S
High-gain and
low-gain mode
switching
Press the “LNA
ON/OFF” button
for about 3s
“L” (low-gain) mode:
Applicable for close-range
and strong interference
environments, with strong anti-interference
ability. After switching to L mode,
the “L” character will be displayed on the
OLED display.
(LOS &TX-to-RX
<200m/656ft )
“
(NLOS or
TX-to-RX>200m/656ft)
H” (high-gain) mode:
Applicable for long distances,
and the anti-
interference ability is weaker than that in “L”
mode. After switching to H mode, the
characters on the OLED display will disappear.
Code matching
Press the “CH/
WPS” button for
about 3s
In the code matching process of the
transmitter and receiver, the word “WPS”
will always be displayed on the OLED
display, and the string will disappear after
the code matched. The transmitter and
receiver need to be in code matching
status at the same time to achieve
code matching.
OLED display
switching
between
landscape
mode and
portrait mode
Short press the
“LNA ON/OFF”
button for
about 1s
Short press the “LNA ON/OFF” button,
and the display will switch between
landscape mode and portrait mode.
Restart a
certain
channel video
of the receiver
First, short press
the [RESET] button
for cyclical selection
among 1, 2, 3 and 4 to
restart the decoding
board in the channel.
Then press and hold
the [RESET] button
for 3s to confirm
the restart.
After long pressing the button to confirm,
the “RESET” string will be displayed on
the OLED display for 3s, and the string
will disappear after the decoding board
begins to restart.
V-Mount
RX: 3062
Antenna Interface
RJ-45
SDI Out
DC-IN
HDMI Out
OLED Display
LNA ON/OFF
CH/WPS
Reset
Power Switch
RS232/422
Tally in
Antenna Interface
V-mount Plate

© 2018 Wireless Prime INC. All Rights Reserved.
Product Installation
For transmitter
07 08
H D M I
SDI H D M I
HDMI Input
3G-SDI Input

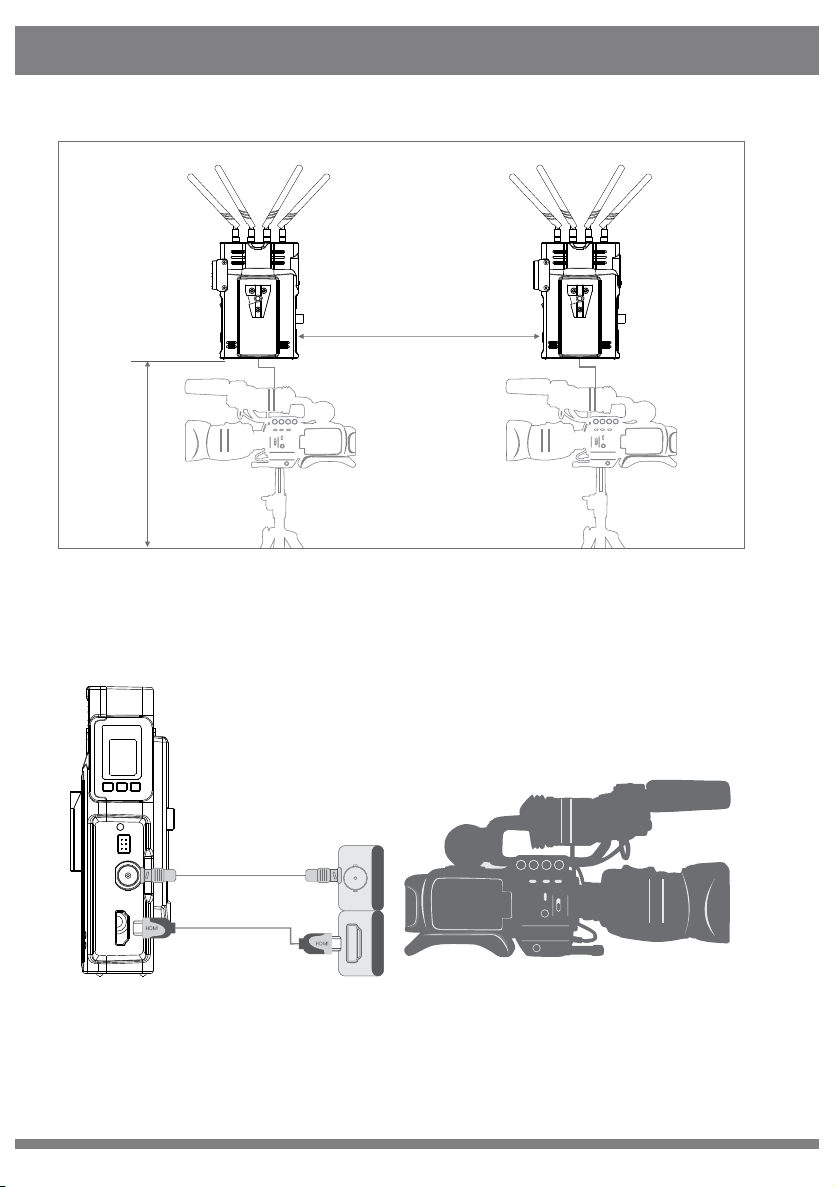

Product Installation
2. Please fix the transmitter via the screw at the bottom or the V-mount at the back,
and place it at a height of around 1.5 to 2 meters above floor. Please make sure
that the distance between each transmitter is more than 1 meter.
1. Please install all the antennas on the transmitter and make them in a fan shape
as shown in the picture.
Distance>1m
Transmitter at a height of
around 1.5 to 2 meters
above floor.
Distance>1m Distance>1m
3. Please connect the transmitter and camera with SDI or HDMI cable.
For transmitter
07 08
H D M I
SDI H D M I
HDMI Input
3G-SDI Input
Product Installation
2. Please fix the transmitter via the screw at the bottom or the V-mount at the back,
and place it at a height of around 1.5 to 2 meters above floor. Please make sure
that the distance between each transmitter is more than 1 meter.
1. Please install all the antennas on the transmitter and make them in a fan shape
as shown in the picture.
Distance>1m
Transmitter at a height of
around 1.5 to 2 meters
above floor.
Distance>1m Distance>1m
3. Please connect the transmitter and camera with SDI or HDMI cable.
7
Product Installation
For transmitter
07 08
H D M I
SDI H D M I
HDMI Input
3G-SDI Input
Product Installation
2. Please fix the transmitter via the screw at the bottom or the V-mount at the back,
and place it at a height of around 1.5 to 2 meters above floor. Please make sure
that the distance between each transmitter is more than 1 meter.
1. Please install all the antennas on the transmitter and make them in a fan shape
as shown in the picture.
3. Please connect the transmitter and camera with SDI or HDMI cable.
Distance>1m
Transmitter at a height of
around 1.5 to 2 meters
above floor.
For transmitter
07 08
H D M I
SDI H D M I
HDMI Input
3G-SDI Input
Product Installation
2. Please fix the transmitter via the screw at the bottom or the V-mount at the back,
and place it at a height of around 1.5 to 2 meters above floor. Please make sure
that the distance between each transmitter is more than 1 meter.
1. Please install all the antennas on the transmitter and make them in a fan shape
as shown in the picture.
3. Please connect the transmitter and camera with SDI or HDMI cable.
Distance>1m
Transmitter at a height of
around 1.5 to 2 meters
above floor.

© 2018 Wireless Prime INC. All Rights Reserved.
Installation
Product Installation
For transmitter
07 08
H D M I
SDI H D M I
HDMI Input
3G-SDI Input
Product Installation
2. Please fix the transmitter via the screw at the bottom or the V-mount at the back,
and place it at a height of around 1.5 to 2 meters above floor. Please make sure
that the distance between each transmitter is more than 1 meter.
1. Please install all the antennas on the transmitter and make them in a fan shape
as shown in the picture.
Distance>1m
Transmitter at a height of
around 1.5 to 2 meters
above floor.
Distance>1m Distance>1m
3. Please connect the transmitter and camera with SDI or HDMI cable.
For transmitter
07 08
H D M I
SDI H D M I
HDMI Input
3G-SDI Input
Product Installation
2. Please fix the transmitter via the screw at the bottom or the V-mount at the back,
and place it at a height of around 1.5 to 2 meters above floor. Please make sure
that the distance between each transmitter is more than 1 meter.
1. Please install all the antennas on the transmitter and make them in a fan shape
as shown in the picture.
Distance>1m
Transmitter at a height of
around 1.5 to 2 meters
above floor.
Distance>1m Distance>1m
3. Please connect the transmitter and camera with SDI or HDMI cable.
8
For transmitter
07 08
H D M I
SDI H D M I
HDMI Input
3G-SDI Input
Product Installation
2. Please fix the transmitter via the screw at the bottom or the V-mount at the back,
and place it at a height of around 1.5 to 2 meters above floor. Please make sure
that the distance between each transmitter is more than 1 meter.
1. Please install all the antennas on the transmitter and make them in a fan shape
as shown in the picture.
3. Please connect the transmitter and camera with SDI or HDMI cable.
Distance>1m
Transmitter at a height of
around 1.5 to 2 meters
above floor.
For transmitter
07 08
H D M I
SDI H D M I
HDMI Input
3G-SDI Input
Product Installation
2. Please fix the transmitter via the screw at the bottom or the V-mount at the back,
and place it at a height of around 1.5 to 2 meters above floor. Please make sure
that the distance between each transmitter is more than 1 meter.
1. Please install all the antennas on the transmitter and make them in a fan shape
as shown in the picture.
3. Please connect the transmitter and camera with SDI or HDMI cable.
Distance>1m
Transmitter at a height of
around 1.5 to 2 meters
above floor.

© 2018 Wireless Prime INC. All Rights Reserved.
Product Installation
09 10
Receiver Installation
1. Please install all the antennas on the receiver, and make them in a fan shape
as shown in the picture.
2. Please place the receiver at a height of around 1.5 to 2 meters above floor.
Receiver can be placed in vertical or horizontal positions, and can be fixed via
the screw at the bottom or V-mount at the back. Please install the affiliated
metal stand before placing the receiver in vertical position.
3. Please connect the receiver and video switch console or monitor
with SDI or/and HDMI cable.
install the
affiliated
metal stand
A: Horizontal placement
B: Vertical placement
Place the receiver at a
height of around 1.5 to
2 meters above floor.
00:00:00
HDMIHDMIHDMIHDMI
HDMI Out
SDI SDI
HDMIHDMIHDMIHDMI SDI
SDI SDI
HDMI Out
HDMI Out
HDMI Out
SDI Out
SDI Out
SDI Out
SDI Out
9
09 10
Receiver Installation
1. Please install all the antennas on the receiver, and make them in a fan shape
as shown in the picture.
2. Please place the receiver at a height of around 1.5 to 2 meters above floor.
Receiver can be placed in vertical or horizontal positions, and can be fixed via
the screw at the bottom or V-mount at the back. Please install the affiliated
metal stand before placing the receiver in vertical position.
3. Please connect the receiver and video switch cons
ole or monitor
with SDI or HDMI cable.
install the
affiliated
metal stand
A: Horizontal placement
B: Vertical placement
Place the receiver at a
height of around 1.5 to
2 meters above floor.
00:00:00
H D M IH D M I
S D I
H D M IH D M I S D I S D I
HDMI Out
HDMI Out
SDI Out
SDI Out

© 2018 Wireless Prime INC. All Rights Reserved.
Product Installation
09 10
Receiver Installation
1. Please install all the antennas on the receiver, and make them in a fan shape
as shown in the picture.
2. Please place the receiver at a height of around 1.5 to 2 meters above floor.
Receiver can be placed in vertical or horizontal positions, and can be fixed via
the screw at the bottom or V-mount at the back. Please install the affiliated
metal stand before placing the receiver in vertical position.
3. Please connect the receiver and video switch console or monitor
with SDI or/and HDMI cable.
install the
affiliated
metal stand
A: Horizontal placement
B: Vertical placement
Place the receiver at a
height of around 1.5 to
2 meters above floor.
00:00:00
HDMIHDMIHDMIHDMI
HDMI Out
SDI SDI
HDMIHDMIHDMIHDMI SDI
SDI SDI
HDMI Out
HDMI Out
HDMI Out
SDI Out
SDI Out
SDI Out
SDI Out
10
09 10
Receiver Installation
1. Please install all the antennas on the receiver, and make them in a fan shape
as shown in the picture.
2. Please place the receiver at a height of around 1.5 to 2 meters above floor.
Receiver can be placed in vertical or horizontal positions, and can be fixed via
the screw at the bottom or V-mount at the back. Please install the affiliated
metal stand before placing the receiver in vertical position.
3. Please connect the receiver and video switch console or monitor
with SDI or HDMI cable.
install the
affiliated
metal stand
A: Horizontal placement
B: Vertical placement
Place the receiver at a
height of around 1.5 to
2 meters above floor.
00:00:00
H D M IH D M I
S D I
H D M IH D M I S D I S D I
HDMI Out
HDMI Out
SDI Out
SDI Out

© 2018 Wireless Prime INC. All Rights Reserved.
Product Installation
11 12
4. The receiver can be powered by both the V-mount battery and DC-IN port via
the affiliated power adapter. If the mentioned two types of power supply are
connected at the same time, the lithium battery is prioritized in power supplying,
and the battery will switch to the power adapter for power supplying automatically
after the battery power is exhausted.
This system supports tally function. When the receiver is activated by low-level
current, the transmitter will ou
tput high-level current signal.
Power
Li-battery
Product Application
Camera-1 TX-1
Camera-2 TX-2
Camera-3 TX-3
Camera-4 TX-4
Standard mode
In standard mode, the four channel video sources are transmitted to the four
transmitters via HDMI or SDI respectively. The receiver will receive the four
channel signals and transport them to switch console or/and monitor via
HDMI SDI.or/and
HDMI/SDI
Monitor
500m/1640ft
Four channel
Full-HD in One
RF Channel
*4-channel
HDMI/SDI
*Tally
*RS232/422
Switch Console
RX-1
Live Streaming network
Transmission
Netwok
11 12
4. The receiver can be powered by both the V-mount battery and DC-IN port via
the affiliated power adapter. If the mentioned two types of power supply are
connected at the same time, the lithium battery is prioritized in power supplying,
and the battery will switch to the power adapter for power supplying automatically
after the battery power is exhausted.
This system supports tally function. When the receiver is activated by low-level
current, the transmitter will ou
tput high-level current signal.
Power
Li-battery
Product Application
Camera-1 TX-1
Camera-2 TX-2
Camera-3 TX-3
Camera-4 TX-4
Standard mode
In standard mode, the four channel video sources are transmitted to the four
transmitters via HDMI or SDI respectively. The receiver will receive the four
channel signals and transport them to switch console or/and monitor via
HDMI SDI.or/and
HDMI/SDI
Monitor
500m/1640ft
Four channel
Full-HD in One
RF Channel
*4-channel
HDMI/SDI
*Tally
*RS232/422
Switch Console
RX-1
Live Streaming network
Transmission
Netwok
11
11 12
4. The receiver can be powered by both the V-mount battery and DC-IN port via
the affiliated power adapter. If the mentioned two types of power supply are
connected at the same time, the lithium battery is prioritized in power supplying,
and the battery will switch to the power adapter for power supplying automatically
after the battery power is exhausted.
This system supports tally function. When the receiver is activated by low-level
current, the transmitter wi
ll output high-level current signal.
Product Application
Point-to-Point mode
锂电池
Li-battery
Power
Live Streaming network
Switch Console
Camera-1
TX-1
Camera-2
TX-2
700m/2295ft
Dual-channel
Full-HD in One
RF Channel RX-1
*2-channel
HDMI/SDI
*Tally
*RS232/422
In point-to-point mode, the 2 channel video sources are sent to the 2 channel
transmitters via HDMI or SDI. The receiver will receive the 2 channel signals
and display them to the display device via HDMI and SDI.
11 12
4. The receiver can be powered by both the V-mount battery and DC-IN port via
the affiliated power adapter. If the mentioned two types of power supply are
connected at the same time, the lithium battery is prioritized in power supplying,
and the battery will switch to the power adapter for power supplying automatically
after the battery power is exhausted.
This system supports tally function. When the receiver is activated by low-level
current, the transmitter wi
ll output high-level current signal.
Product Application
Point-to-Point mode
锂电池
Li-battery
Power
Live Streaming network
Switch Console
Camera-1
TX-1
Camera-2
TX-2
700m/2295ft
Dual-channel
Full-HD in One
RF Channel RX-1
*2-channel
HDMI/SDI
*Tally
*RS232/422
In point-to-point mode, the 2 channel video sources are sent to the 2 channel
transmitters via HDMI or SDI. The receiver will receive the 2 channel signals
and display them to the display device via HDMI and SDI.

© 2018 Wireless Prime INC. All Rights Reserved.
Product Application
11 12
4. The receiver can be powered by both the V-mount battery and DC-IN port via
the affiliated power adapter. If the mentioned two types of power supply are
connected at the same time, the lithium battery is prioritized in power supplying,
and the battery will switch to the power adapter for power supplying automatically
after the battery power is exhausted.
This system supports tally function. When the receiver is activated by low-level
current, the transmitter will ou
tput high-level current signal.
Power
Li-battery
Product Application
Camera-1 TX-1
Camera-2 TX-2
Camera-3 TX-3
Camera-4 TX-4
Standard mode
In standard mode, the four channel video sources are transmitted to the four
transmitters via HDMI or SDI respectively. The receiver will receive the four
channel signals and transport them to switch console or/and monitor via
HDMI SDI.or/and
HDMI/SDI
Monitor
500m/1640ft
Four channel
Full-HD in One
RF Channel
*4-channel
HDMI/SDI
*Tally
*RS232/422
Switch Console
RX-1
Live Streaming network
Transmission
Netwok
11 12
4. The receiver can be powered by both the V-mount battery and DC-IN port via
the affiliated power adapter. If the mentioned two types of power supply are
connected at the same time, the lithium battery is prioritized in power supplying,
and the battery will switch to the power adapter for power supplying automatically
after the battery power is exhausted.
This system supports tally function. When the receiver is activated by low-level
current, the transmitter will ou
tput high-level current signal.
Power
Li-battery
Product Application
Camera-1 TX-1
Camera-2 TX-2
Camera-3 TX-3
Camera-4 TX-4
Standard mode
In standard mode, the four channel video sources are transmitted to the four
transmitters via HDMI or SDI respectively. The receiver will receive the four
channel signals and transport them to switch console or/and monitor via
HDMI SDI.or/and
HDMI/SDI
Monitor
500m/1640ft
Four channel
Full-HD in One
RF Channel
*4-channel
HDMI/SDI
*Tally
*RS232/422
Switch Console
RX-1
Live Streaming network
Transmission
Netwok
12
Product Application
11 12
4. The receiver can be powered by both the V-mount battery and DC-IN port via
the affiliated power adapter. If the mentioned two types of power supply are
connected at the same time, the lithium battery is prioritized in power supplying,
and the battery will switch to the power adapter for power supplying automatically
after the battery power is exhausted.
This system supports tally function. When the receiver is activated by low-level
current, the transmitter wi
ll output high-level current signal.
Product Application
Point-to-Point mode
锂电池
Li-battery
Power
Live Streaming network
Switch Console
Camera-1
TX-1
Camera-2
TX-2
700m/2295ft
Dual-channel
Full-HD in One
RF Channel RX-1
*2-channel
HDMI/SDI
*Tally
*RS232/422
In point-to-point mode, the 2 channel video sources are sent to the 2 channel
transmitters via HDMI or SDI. The receiver will receive the 2 channel signals
and display them to the display device via HDMI and SDI.
11 12
4. The receiver can be powered by both the V-mount battery and DC-IN port via
the affiliated power adapter. If the mentioned two types of power supply are
connected at the same time, the lithium battery is prioritized in power supplying,
and the battery will switch to the power adapter for power supplying automatically
after the battery power is exhausted.
This system supports tally function. When the receiver is activated by low-level
current, the transmitter wi
ll output high-level current signal.
Product Application
Point-to-Point mode
锂电池
Li-battery
Power
Live Streaming network
Switch Console
Camera-1
TX-1
Camera-2
TX-2
700m/2295ft
Dual-channel
Full-HD in One
RF Channel RX-1
*2-channel
HDMI/SDI
*Tally
*RS232/422
In point-to-point mode, the 2 channel video sources are sent to the 2 channel
transmitters via HDMI or SDI. The receiver will receive the 2 channel signals
and display them to the display device via HDMI and SDI.

© 2018 Wireless Prime INC. All Rights Reserved.
Product Application
13 14
RESET
CH 2
L1
VIDEO
TX:7060
Transmitter ID Four transmitters are numbered 1, 2, 3
and 4, respectively
Gain Mode LLow-gain mode
Blank
Signal Icon X
Signal bar Successful network connection
Video
No video signal input
VIDEO
WPS In code matching status
Video signal input connected
Reset The device is resetting and rebooting
CH*
Streaming mode
Camera-1 TX-1
Camera-2 TX-2
Camera-3 TX-3
Camera-4 TX-4
500m/1640ft
Four channel
Full-HD in One
RF Channel
RX-1
Switch Console
OLED Display Description
Transmitter ID
Gain mode Signal icon
Reset & Reboot
Video
Icon Content Status
Reset & Reboot
Frequency Channel
Frequency Channel
Numbers 1~4
Blank
High-gain mode
Connecting
Display current frequency channel (1~11)
In streaming mode, the four channel video sources are to the four
transmitters via HDMI or SDI respectively. The receiver will receive the
four RTSP from the four transmitters and send them to the
switch console through the LAN port.
and watch the live video on the mobile phone, tablet .
transmitted
streamings
You can also connect the receiver
with mobile devices such as your mobile phone, tablet and PC via WiFi,
and PC
RJ45
PC
Monitoring on Mobile Devices
13 14
RESET
CH 2
L1
VIDEO
TX:7060
Transmitter ID Four transmitters are numbered 1, 2, 3
and 4, respectively
Gain Mode LLow-gain mode
Blank
Signal Icon X
Signal bar Successful network connection
Video
No video signal input
VIDEO
WPS In code matching status
Video signal input connected
Reset The device is resetting and rebooting
CH*
Streaming mode
Camera-1 TX-1
Camera-2 TX-2
Camera-3 TX-3
Camera-4 TX-4
500m/1640ft
Four channel
Full-HD in One
RF Channel
RX-1
Switch Console
OLED Display Description
Transmitter ID
Gain mode Signal icon
Reset & Reboot
Video
Icon Content Status
Reset & Reboot
Frequency Channel
Frequency Channel
Numbers 1~4
Blank
High-gain mode
Connecting
Display current frequency channel (1~11)
In streaming mode, the four channel video sources are to the four
transmitters via HDMI or SDI respectively. The receiver will receive the
four RTSP from the four transmitters and send them to the
switch console through the LAN port.
and watch the live video on the mobile phone, tablet .
transmitted
streamings
You can also connect the receiver
with mobile devices such as your mobile phone, tablet and PC via WiFi,
and PC
RJ45
PC
Monitoring on Mobile Devices
13
13 14
RESET
CH 2
L1
VIDEO
TX:7060
Transmitter ID Four transmitters are numbered 1, 2,
respectively
Gain Mode LLow-gain mode
Blank
Signal Icon X
Signal bar Successful network connection
Video
No video signal input
VIDEO
WPS In code matching status
Video signal input connected
Reset The device is resetting and rebooting
CH*
OLED Display Description
Transmitter ID
Gain Mode Signal Icon
Reset & Reboot
Video
Icon Content Status
Reset & Reboot
Frequency Channel
Frequency Channel
Numbers 1~2
Blank
High-gain mode
Connecting
Display current frequency channel (1~11)
Streaming mode
Camera-1 TX-1
Camera-2 TX-2
700m/2295ft
Dual-channel
Full-HD in One
RF Channel RX-1
In streaming mode, the 2 channel video sources are sent to the 2 channel
transmitters via HDMI or SDI. The receiver will receive the RTSP protocol
network signals from the 2 channel transmitters and send them to the
embedded switch console for display through the network port.
You can connect to the WiFi at the receiver via your mobile phone or tablet,
and watch it through the player on the mobile phone or tablet.
Switch Console
RJ45
PC
Monitoring on Mobile Devices
13 14
RESET
CH 2
L1
VIDEO
TX:7060
Transmitter ID Four transmitters are numbered 1, 2,
respectively
Gain Mode LLow-gain mode
Blank
Signal Icon X
Signal bar Successful network connection
Video
No video signal input
VIDEO
WPS In code matching status
Video signal input connected
Reset The device is resetting and rebooting
CH*
OLED Display Description
Transmitter ID
Gain Mode Signal Icon
Reset & Reboot
Video
Icon Content Status
Reset & Reboot
Frequency Channel
Frequency Channel
Numbers 1~2
Blank
High-gain mode
Connecting
Display current frequency channel (1~11)
Streaming mode
Camera-1 TX-1
Camera-2 TX-2
700m/2295ft
Dual-channel
Full-HD in One
RF Channel RX-1
In streaming mode, the 2 channel video sources are sent to the 2 channel
transmitters via HDMI or SDI. The receiver will receive the RTSP protocol
network signals from the 2 channel transmitters and send them to the
embedded switch console for display through the network port.
You can connect to the WiFi at the receiver via your mobile phone or tablet,
and watch it through the player on the mobile phone or tablet.
Switch Console
RJ45
PC
Monitoring on Mobile Devices

© 2018 Wireless Prime INC. All Rights Reserved.
OLED Display Description
13 14
RESET
CH 2
L1
VIDEO
TX:7060
Transmitter ID Four transmitters are numbered 1, 2, 3
and 4, respectively
Gain Mode LLow-gain mode
Blank
Signal Icon X
Signal bar Successful network connection
Video
No video signal input
VIDEO
WPS In code matching status
Video signal input connected
Reset The device is resetting and rebooting
CH*
Streaming mode
Camera-1 TX-1
Camera-2 TX-2
Camera-3 TX-3
Camera-4 TX-4
500m/1640ft
Four channel
Full-HD in One
RF Channel
RX-1
Switch Console
OLED Display Description
Transmitter ID
Gain mode Signal icon
Reset & Reboot
Video
Icon Content Status
Reset & Reboot
Frequency Channel
Frequency Channel
Numbers 1~4
Blank
High-gain mode
Connecting
Display current frequency channel (1~11)
In streaming mode, the four channel video sources are to the four
transmitters via HDMI or SDI respectively. The receiver will receive the
four RTSP from the four transmitters and send them to the
switch console through the LAN port.
and watch the live video on the mobile phone, tablet .
transmitted
streamings
You can also connect the receiver
with mobile devices such as your mobile phone, tablet and PC via WiFi,
and PC
RJ45
PC
Monitoring on Mobile Devices
13 14
RESET
CH 2
L1
VIDEO
TX:7060
Transmitter ID Four transmitters are numbered 1, 2, 3
and 4, respectively
Gain Mode LLow-gain mode
Blank
Signal Icon X
Signal bar Successful network connection
Video
No video signal input
VIDEO
WPS In code matching status
Video signal input connected
Reset The device is resetting and rebooting
CH*
Streaming mode
Camera-1 TX-1
Camera-2 TX-2
Camera-3 TX-3
Camera-4 TX-4
500m/1640ft
Four channel
Full-HD in One
RF Channel
RX-1
Switch Console
OLED Display Description
Transmitter ID
Gain mode Signal icon
Reset & Reboot
Video
Icon Content Status
Reset & Reboot
Frequency Channel
Frequency Channel
Numbers 1~4
Blank
High-gain mode
Connecting
Display current frequency channel (1~11)
In streaming mode, the four channel video sources are to the four
transmitters via HDMI or SDI respectively. The receiver will receive the
four RTSP from the four transmitters and send them to the
switch console through the LAN port.
and watch the live video on the mobile phone, tablet .
transmitted
streamings
You can also connect the receiver
with mobile devices such as your mobile phone, tablet and PC via WiFi,
and PC
RJ45
PC
Monitoring on Mobile Devices
14
OLED Display Description
13 14
RESET
CH 2
L1
VIDEO
TX:7060
Transmitter ID Four transmitters are numbered 1, 2,
respectively
Gain Mode LLow-gain mode
Blank
Signal Icon X
Signal bar Successful network connection
Video
No video signal input
VIDEO
WPS In code matching status
Video signal input connected
Reset The device is resetting and rebooting
CH*
OLED Display Description
Transmitter ID
Gain Mode Signal Icon
Reset & Reboot
Video
Icon Content Status
Reset & Reboot
Frequency Channel
Frequency Channel
Numbers 1~2
Blank
High-gain mode
Connecting
Display current frequency channel (1~11)
Streaming mode
Camera-1 TX-1
Camera-2 TX-2
700m/2295ft
Dual-channel
Full-HD in One
RF Channel RX-1
In streaming mode, the 2 channel video sources are sent to the 2 channel
transmitters via HDMI or SDI. The receiver will receive the RTSP protocol
network signals from the 2 channel transmitters and send them to the
embedded switch console for display through the network port.
You can connect to the WiFi at the receiver via your mobile phone or tablet,
and watch it through the player on the mobile phone or tablet.
Switch Console
RJ45
PC
Monitoring on Mobile Devices
13 14
RESET
CH 2
L1
VIDEO
TX:7060
Transmitter ID Four transmitters are numbered 1, 2,
respectively
Gain Mode LLow-gain mode
Blank
Signal Icon X
Signal bar Successful network connection
Video
No video signal input
VIDEO
WPS In code matching status
Video signal input connected
Reset The device is resetting and rebooting
CH*
OLED Display Description
Transmitter ID
Gain Mode Signal Icon
Reset & Reboot
Video
Icon Content Status
Reset & Reboot
Frequency Channel
Frequency Channel
Numbers 1~2
Blank
High-gain mode
Connecting
Display current frequency channel (1~11)
Streaming mode
Camera-1 TX-1
Camera-2 TX-2
700m/2295ft
Dual-channel
Full-HD in One
RF Channel RX-1
In streaming mode, the 2 channel video sources are sent to the 2 channel
transmitters via HDMI or SDI. The receiver will receive the RTSP protocol
network signals from the 2 channel transmitters and send them to the
embedded switch console for display through the network port.
You can connect to the WiFi at the receiver via your mobile phone or tablet,
and watch it through the player on the mobile phone or tablet.
Switch Console
RJ45
PC
Monitoring on Mobile Devices

© 2018 Wireless Prime INC. All Rights Reserved.
OLED Display Description
VIDEO
4
VIDEO
3
VIDEO
2
VIDEO
1
CH2
RX:3060
15 16
1
2
3
4
5
6
J16
PHONEJACK STEREO SW
RCLamp0521PA
D13
D12
RCLamp0521PA
Tally_Red
Tally_Green
Transmitter ID
Frequency Channel
Video
Signal Icon
Transmitter ID Four transmitters are numbered 1, 2, 3
and 4, respectively
Video No video signal received from TX
VIDEO Video signal received from TX
CH*
Icon Content Status
Frequency Channel
Numbers 1~4
Blank
Display current frequency channel (1~11)
Signal Icon X
Signal bar Successful network connection
Connecting
Functional Instructions
Tally function
Insert the Tally light into the transmitter’s Tally output interface first,
then connect the to the receiver’s Tally input interface,
and then control the Tally light of the four transmitters through the switch
console. When the receiver is triggered by a low-level current,
the transmitter’s Tally light is on.
switch console
Tally interface of the transmitter and receiver: The transmitter’s Tally
interface is a standard φ3.5 headphone interface. The receiver’s Tally
interface is a DB9 female.
Tally light output interface:
The DB9 header of the Tally input interface is
defined as follows:
WPS L
Gain State Low gain mode
L
High gain mode
WPS WPS WPS Pairing
Blank
Blank Standard work mode
VIDEO
4
VIDEO
3
VIDEO
2
VIDEO
1
CH2
RX:3060
15 16
1
2
3
4
5
6
J16
PHONEJACK STEREO SW
RCLamp0521PA
D13
D12
RCLamp0521PA
Tally_Red
Tally_Green
Transmitter ID
Frequency Channel
Video
Signal Icon
Transmitter ID Four transmitters are numbered 1, 2, 3
and 4, respectively
Video No video signal received from TX
VIDEO Video signal received from TX
CH*
Icon Content Status
Frequency Channel
Numbers 1~4
Blank
Display current frequency channel (1~11)
Signal Icon X
Signal bar Successful network connection
Connecting
Functional Instructions
Tally function
Insert the Tally light into the transmitter’s Tally output interface first,
then connect the to the receiver’s Tally input interface,
and then control the Tally light of the four transmitters through the switch
console. When the receiver is triggered by a low-level current,
the transmitter’s Tally light is on.
switch console
Tally interface of the transmitter and receiver: The transmitter’s Tally
interface is a standard φ3.5 headphone interface. The receiver’s Tally
interface is a DB9 female.
Tally light output interface:
The DB9 header of the Tally input interface is
defined as follows:
WPS L
Gain State Low gain mode
L
High gain mode
WPS WPS WPS Pairing
Blank
Blank Standard work mode
15
15 16
1
2
3
4
5
6
J16
PHONEJACK STEREO SW
RCLamp0521PA
D13
D12
RCLamp0521PA
Tally_Red
Tally_Green
Transmitter ID Four transmitters are numbered 1, 2,
respectively
Video No video signal received from TX
VIDEO Video signal received from TX
CH*
Icon Content Status
Frequency Channel
Numbers 1~2
Blank
Display current frequency channel (1~11)
Signal Icon X
Signal bar Successful network connection
Connecting
Functional Instructions
Tally function
Insert the Tally light into the transmitter’s Tally output interface first,
then connect the to the receiver’s Tally input interface,
and then control the Tally light of the four transmitters through the switch
console. When the receiver is triggered by a low-level current,
the transmitter’s Tally light is on.
switch console
Tally interface of the transmitter and receiver: The transmitter’s Tally
interface is a standard φ3.5 headphone interface. The receiver’s Tally
interface is a DB9 female.
Tally light output interface:
Gain State Low gain mode
L
High gain mode
WPS WPS WPS Pairing
Blank
Blank Standard work mode
RX:3062
VIDEO
2
VIDEO
1
CH2 WPS L
Frequency point
Signal Icon
Video
Transmitter ID

© 2018 Wireless Prime INC. All Rights Reserved.
Functional Instructions
VIDEO
4
VIDEO
3
VIDEO
2
VIDEO
1
CH2
RX:3060
15 16
1
2
3
4
5
6
J16
PHONEJACK STEREO SW
RCLamp0521PA
D13
D12
RCLamp0521PA
Tally_Red
Tally_Green
Transmitter ID
Frequency Channel
Video
Signal Icon
Transmitter ID Four transmitters are numbered 1, 2, 3
and 4, respectively
Video No video signal received from TX
VIDEO Video signal received from TX
CH*
Icon Content Status
Frequency Channel
Numbers 1~4
Blank
Display current frequency channel (1~11)
Signal Icon X
Signal bar Successful network connection
Connecting
Functional Instructions
Tally function
Insert the Tally light into the transmitter’s Tally output interface first,
then connect the to the receiver’s Tally input interface,
and then control the Tally light of the four transmitters through the switch
console. When the receiver is triggered by a low-level current,
the transmitter’s Tally light is on.
switch console
Tally interface of the transmitter and receiver: The transmitter’s Tally
interface is a standard φ3.5 headphone interface. The receiver’s Tally
interface is a DB9 female.
Tally light output interface:
The DB9 header of the Tally input interface is
defined as follows:
WPS L
Gain State Low gain mode
L
High gain mode
WPS WPS WPS Pairing
Blank
Blank Standard work mode
VIDEO
4
VIDEO
3
VIDEO
2
VIDEO
1
CH2
RX:3060
15 16
1
2
3
4
5
6
J16
PHONEJACK STEREO SW
RCLamp0521PA
D13
D12
RCLamp0521PA
Tally_Red
Tally_Green
Transmitter ID
Frequency Channel
Video
Signal Icon
Transmitter ID Four transmitters are numbered 1, 2, 3
and 4, respectively
Video No video signal received from TX
VIDEO Video signal received from TX
CH*
Icon Content Status
Frequency Channel
Numbers 1~4
Blank
Display current frequency channel (1~11)
Signal Icon X
Signal bar Successful network connection
Connecting
Functional Instructions
Tally function
Insert the Tally light into the transmitter’s Tally output interface first,
then connect the to the receiver’s Tally input interface,
and then control the Tally light of the four transmitters through the switch
console. When the receiver is triggered by a low-level current,
the transmitter’s Tally light is on.
switch console
Tally interface of the transmitter and receiver: The transmitter’s Tally
interface is a standard φ3.5 headphone interface. The receiver’s Tally
interface is a DB9 female.
Tally light output interface:
The DB9 header of the Tally input interface is
defined as follows:
WPS L
Gain State Low gain mode
L
High gain mode
WPS WPS WPS Pairing
Blank
Blank Standard work mode
16
Functional Instructions
15 16
1
2
3
4
5
6
J16
PHONEJACK STEREO SW
RCLamp0521PA
D13
D12
RCLamp0521PA
Tally_Red
Tally_Green
Transmitter ID Four transmitters are numbered 1, 2,
respectively
Video No video signal received from TX
VIDEO Video signal received from TX
CH*
Icon Content Status
Frequency Channel
Numbers 1~2
Blank
Display current frequency channel (1~11)
Signal Icon X
Signal bar Successful network connection
Connecting
Functional Instructions
Tally function
Insert the Tally light into the transmitter’s Tally output interface first,
then connect the to the receiver’s Tally input interface,
and then control the Tally light of the four transmitters through the switch
console. When the receiver is triggered by a low-level current,
the transmitter’s Tally light is on.
switch console
Tally interface of the transmitter and receiver: The transmitter’s Tally
interface is a standard φ3.5 headphone interface. The receiver’s Tally
interface is a DB9 female.
Tally light output interface:
Gain State Low gain mode
L
High gain mode
WPS WPS WPS Pairing
Blank
Blank Standard work mode
RX:3062
VIDEO
2
VIDEO
1
CH2 WPS L
Frequency point
Signal Icon
Video
Transmitter ID

© 2018 Wireless Prime INC. All Rights Reserved.
Functional Instructions
Name Description
NC NC
P12V
1
2
NC NC
TXD
3
4
GND
RXD
5
6
1 3
2
456
RXD-
P12V
TXD-
TXD+
GND
RXD+
RS232 RS422
DB9_FEMALE
J15
GP8
GP7
GP6
GP5
GP4
GP3
GP2
GP1
5
9
4
8
3
7
2
6
1
SH1
SH2
17 18
RS232/RS422 transparent transmission
This interface defaults to RS232 function. For RS422 function, contact the
sales staff in advance for customized information!
Pin No Name Description
No voltage output by default
(Reserve 12V voltage output)
Transmit data TX
Ground
Receive data RX
Receive data RX-
No voltage output by default
(Reserve 12V voltage output)
Transmit data TX-
Transmit data TX+
Ground
Receive data RX+
Log in to the backplane parameter settings page to change the baud rate settings:
(For specific operating steps, refer to “Video Parameter Settings”)
Attached: Baud rate settings
Streaming Function
When using the functions in streaming mode, the transmitter needs to
switch to streaming mode. At this time, the word “RTSP” is displayed
on the transmitter’s OLED display, the SDI and HDMI at the receiver have
no video output, and the image is transmitted to the streaming media
software through the LAN port of the receiver for decoding display.
The streaming mode depends on software decoding. Comply with lots
of streaming media software. The following is an example of common VLC
streaming media software:After the transmitter and receiver establish a
network connection, the transmitter network indicator is always on,
the receiver network connection is normal; the transmitter is connected to
the HDMI or SDI video source, and the receiver’s network port is connected
to the streaming device.
Take the VLC of the PC as an example. After running VLC, select to turn on
the network stream.Fill in the address “rtsp://corresponding transmitter
encoding board IP address/media/live/0”. Click “Play” to start streaming.
Note that the transmitter must be connected to the video source, and the
IP address of the terminal streaming device (such as a computer) must be
the same network segment as the IP address of the encoding board.
Otherwise, the streaming will fail.
Description:
Name Description
NC NC
P12V
1
2
NC NC
TXD
3
4
GND
RXD
5
6
1 3
2
456
RXD-
P12V
TXD-
TXD+
GND
RXD+
RS232 RS422
DB9_FEMALE
J15
GP8
GP7
GP6
GP5
GP4
GP3
GP2
GP1
5
9
4
8
3
7
2
6
1
SH1
SH2
17 18
RS232/RS422 transparent transmission
This interface defaults to RS232 function. For RS422 function, contact the
sales staff in advance for customized information!
Pin No Name Description
No voltage output by default
(Reserve 12V voltage output)
Transmit data TX
Ground
Receive data RX
Receive data RX-
No voltage output by default
(Reserve 12V voltage output)
Transmit data TX-
Transmit data TX+
Ground
Receive data RX+
Log in to the backplane parameter settings page to change the baud rate settings:
(For specific operating steps, refer to “Video Parameter Settings”)
Attached: Baud rate settings
Streaming Function
When using the functions in streaming mode, the transmitter needs to
switch to streaming mode. At this time, the word “RTSP” is displayed
on the transmitter’s OLED display, the SDI and HDMI at the receiver have
no video output, and the image is transmitted to the streaming media
software through the LAN port of the receiver for decoding display.
The streaming mode depends on software decoding. Comply with lots
of streaming media software. The following is an example of common VLC
streaming media software:After the transmitter and receiver establish a
network connection, the transmitter network indicator is always on,
the receiver network connection is normal; the transmitter is connected to
the HDMI or SDI video source, and the receiver’s network port is connected
to the streaming device.
Take the VLC of the PC as an example. After running VLC, select to turn on
the network stream.Fill in the address “rtsp://corresponding transmitter
encoding board IP address/media/live/0”. Click “Play” to start streaming.
Note that the transmitter must be connected to the video source, and the
IP address of the terminal streaming device (such as a computer) must be
the same network segment as the IP address of the encoding board.
Otherwise, the streaming will fail.
Description:
17
1K
R595 Tally1
Tally2
R587
1K
D18 D19
ONEJACK STEREO SW
RClamp0521PA RClamp0521PA
J16
Name Description
NC NC
P12V
1
2
NC NC
TXD
3
4
GND
RXD
5
6
1 3
2
456
RXD-
P12V
TXD-
TXD+
GND
RXD+
RS232 RS422
17 18
RS232/RS422 transparent transmission
This interface defaults to RS232 function. For RS422 function, contact the
sales staff in advance for customized information!
Pin No Name Description
No voltage output by default
(Reserve 12V voltage output)
Transmit data TX
Ground
Receive data RX
Receive data RX-
No voltage output by default
(Reserve 12V voltage output)
Transmit data TX-
Transmit data TX+
Ground
Receive data RX+
Log in to the backplane parameter settings page to change the baud rate settings:
(For specific operating steps, refer to “Video Parameter Settings”)
Attached: Baud rate settings
Streaming Function
When using the functions in streaming mode, the transmitter needs to
switch to streaming mode. At this time, the word “RTSP” is displayed
on the transmitter’s OLED display, the SDI and HDMI at the receiver have
no video output, and the image is transmitted to the streaming media
software through the LAN port of the receiver for decoding display.
The streaming mode depends on software decoding. Comply with lots
of streaming media software. The following is an example of common VLC
streaming media software:After the transmitter and receiver establish a
network connection, the transmitter network indicator is always on,
the receiver network connection is normal; the transmitter is connected to
the HDMI or SDI video source, and the receiver’s network port is connected
to the streaming device.
Take the VLC of the PC as an example. After running VLC, select to turn on
the network stream.Fill in the address “rtsp://corresponding transmitter
encoding board IP address/media/live/0”. Click “Play” to start streaming.
Note that the transmitter must be connected to the video source, and the
IP address of the terminal streaming device (such as a computer) must be
the same network segment as the IP address of the encoding board.
Otherwise, the streaming will fail.
Description:
Tally light input interface:
