wiREVO S300 User manual

wiREVO S300 User Manual Preliminary version 0.2
1. Introduction
wiREVO Stereo Headset series will lead you to the mobility and allows you freedom and
there isn’t any limitation and any disturbance. The main functions of wiREVO S300 are as
follows;
zWireless Stereo Headset
zWireless Remote Controller
zWireless Hands-free
Read this user manual carefully before using the stereo headset. Do not use this user manual
in place of the other Bluetooth audio devices’ user guide, which provides important safety and
maintenance information.
Bluetooth Wireless Technology
wiREVO S300 is specially designed for any compatible Bluetooth devices that support the
following profiles. (Profile is a set of Bluetooth commands that the devices use to control the
stereo headset)
zAdvanced Audio Distribution profile
zAudio Video Remote Control profile
zHands-free profile
zHeadset profile
The Bluetooth technology makes it possible to connect compatible communication devices
without using cables. The Bluetooth connection does not require that your Bluetooth audio
device and the stereo headset are in line of sight, but both devices should be 10 meters of
each other, although the connection can be subject to interference from obstructions such as
walls or other electronic devices.
wiREVO S300 is compliant with and adopts the Bluetooth Specification 2.0. For more
information on the compatibility between wiREVO S300 with other Bluetooth-enabled
products, please check with your dealer.
wiREVO S300 has a perfect compatibility with wiREVO stereo dongle, D1000 that will turn
your old-fashioned audio players to Bluetooth enabled ones.
Limited Liability
Neither the Manufacturer, importers nor dealers is responsible for any accidental damage
including bodily injury or any damage resulting from misuse or unsuitable operation by you.
The information on this manual is prepared with the current stereo headset specifications.
Hassnet is adding new features to the product and may persistently apply new technologies
hereafter. All standards may be changed at any time without notice.
Date: Jul. 13, 2006 Page 1 of 16
Hassnet Confidential Hassnet, Inc.

wiREVO S300 User Manual Preliminary version 0.2
2. Guidelines for your safety
Before use, read the warnings and other information in this manual.
Please check for any information on RF exposure in usage of a Bluetooth stereo headset.
When your stereo headset is turned on, it transmits and receives radio frequency
electromagnetic fields in the frequency range 2.402 ~ 2.480 GHz.
Your stereo headset is designed to operate in compliance with the RF exposure guidelines
and limits that are set by national authorities and international health agencies when used
with any compatible devices.
[!] Drive safely
Using a mobile phone while driving creates a distraction to the driver which may increase the
likelihood of an accident. When using the phone while driving, keep conversations short and
do not make notes or read documents.
Before answering calls consider your circumstances. Pull off the road and park before making
or answering calls when driving conditions require (e.g. bad weather, high traffic density,
presence of children in the car, difficult junctions or maneuvers.)
Remember, driving comes first, not the call! Abide by local laws.
[!] Don’t use the stereo headset during charging.
[Stereo Headset]
Do not touch your stereo headset and power plug with damp hands.
Do not kink or crease the power cable or place heavy objects on the power cable.
Firmly plug the adapter into the wall socket.
Unplug the adapter during electrical storms.
Do not overload a single power circuit.
Use only the supplied adapter.
Unplug adapter when it’s not in use.
Immediately power off the stereo headset and unplug the adapter if water or other liquids
are present.
Immediately power off the stereo headset and unplug the AC adapter if smoke or odors
emits from the stereo headset or adapter.
Keep the stereo headset dry. Humidity and all types of liquids or moisture can cause
harmful interface with electronic circuits.
Do not place heavy object on the device.
Do not use harsh chemicals, cleaning solvents, water or strong detergents to clean the
stereo headset. To clean external surfaces, use a clean dampened cloth.
Do not use excessive force on the buttons or attempt to disassemble the device.
Do not drop or subject the device to impact.
Do not paint the stereo headset. Paint can clog the moving parts and prevent proper
operation.
Keep the stereo headset away from strong magnets.
Do not disassemble or modify.
Do not dry the stereo headset with heater or microwave.
Keep all accessories out of the reach of small children.
Reduce volume while walking, especially at pedestrian crosswalk.
Do not use earphones at high volume.
Reduce volume or stop using the stereo headset if you experience a ringing in your ears.
Do not use at high volume for continuous listening.
Keep earphone cords/necklace under control to avoid getting caught on various objects.
Date: Jul. 13, 2006 Page 2 of 16
Hassnet Confidential Hassnet, Inc.

wiREVO S300 User Manual Preliminary version 0.2
[Battery]
Your stereo headset is equipped with a high-performance Lithium Polymer battery. Observe
the maintenance guidelines and your battery should give you a long service life.
Use batteries and adapters only provided and approved by Hassnet.
The batteries are consumables and will eventually wear out.
Avoid charging in strong heat or extreme cold. Ambient room temperature is preferable.
The battery has its optimum performance at an ambient temperature (+5 ºC to +50 ºC).
Date: Jul. 13, 2006 Page 3 of 16
Hassnet Confidential Hassnet, Inc.

wiREVO S300 User Manual Preliminary version 0.2
Before Using
1. What’s in the box?
Accessories are subject to change without notice and may vary from image shown.
2. Features at a glance
Actual stereo headset may vary slightly from images shown.
Date: Jul. 13, 2006 Page 4 of 16
Hassnet Confidential Hassnet, Inc.

wiREVO S300 User Manual Preliminary version 0.2

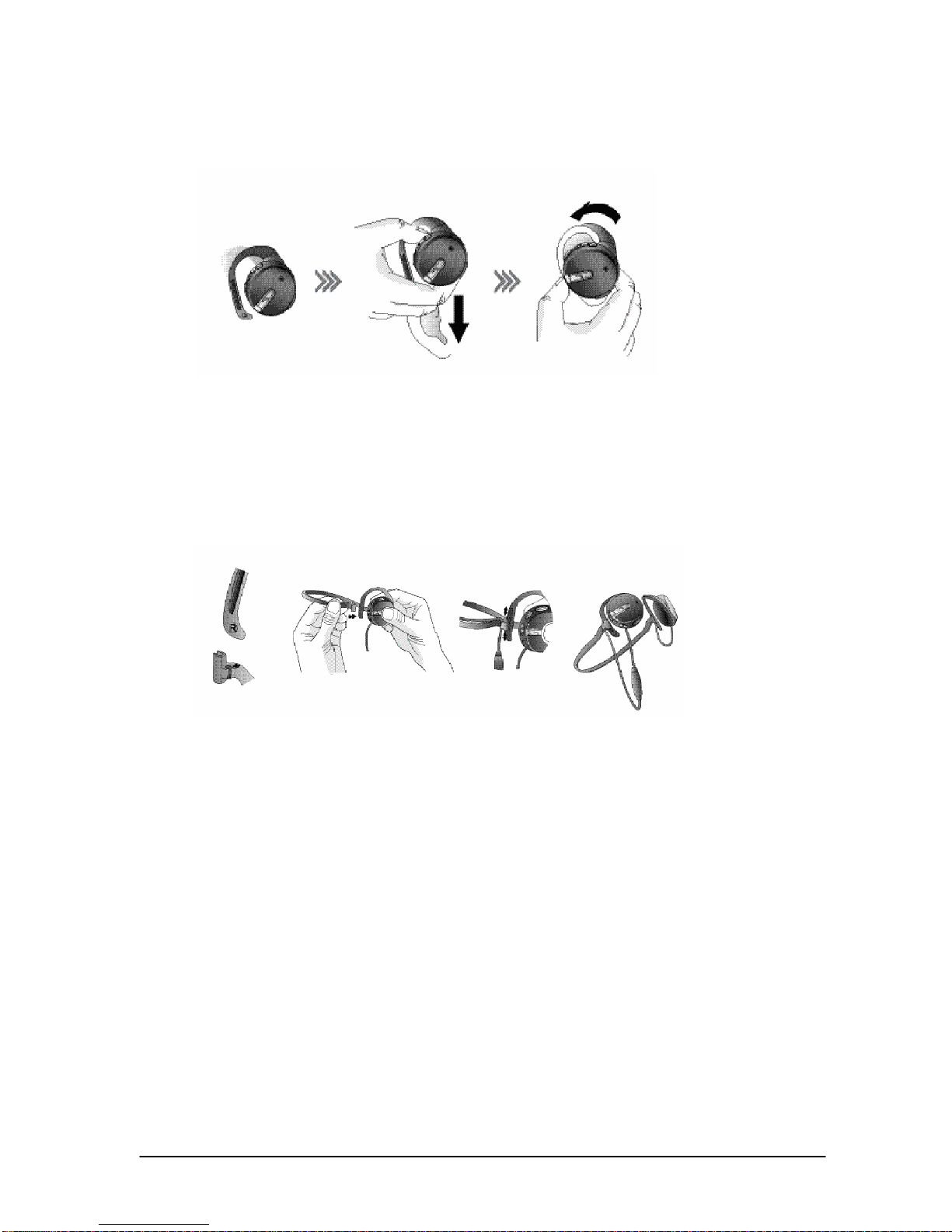

3. Putting on the stereo headset
Check the RIGHT/LEFT sign at the bottom of the ear-hook to put on the stereo headset properly.
Slide the stereo headset onto your ear while opening wide the ear-hook to be easy
wear on.
zto
Move the ear-hook to place the stereo headset to the most comfortable
Grip the stereo headset body and jostle it to back of the ear for it to be fixed well.
RIGHT/LEFT sign at the holder of the neckband to put on the ear-hook of the stereo
headset.
position.
z
4. Fixing a neckband
Check the
zHold the neckband and push it into the direction of arrow.
Rotate it to the direction of arrow.z
Date: Jul. 13, 2006 Page 5 of 16
Hassnet Confidential Hassnet, Inc.

wiREVO S300 User Manual Preliminary version 0.2

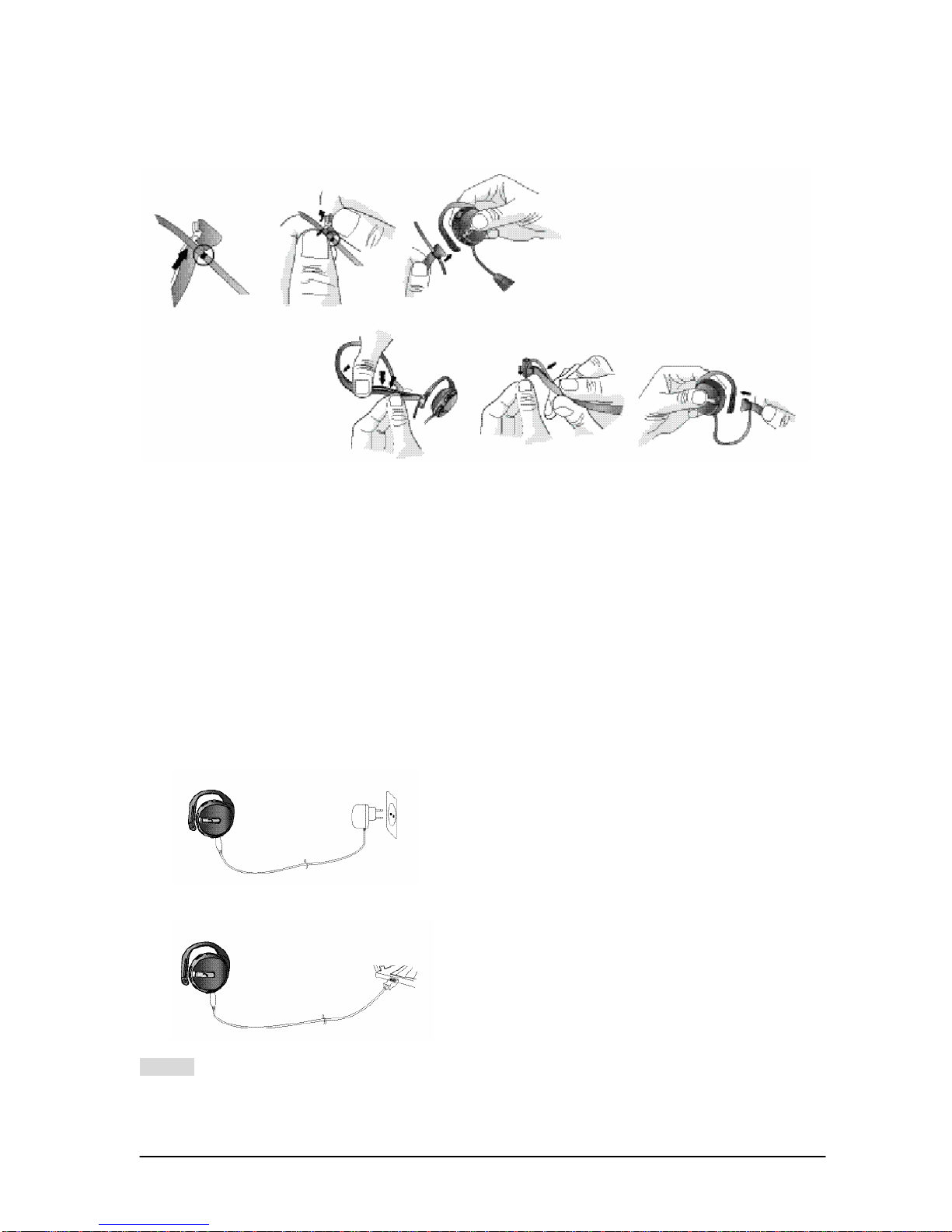

5. Putting on the stereo headset
Check the RIGHT/LEFT sign at the bottom of the ear-hook to put on the stereo headset properly.
zlack mark on the cord below the microphone to insert the cord into the
as direction of arrow.
and to the Left-side ear-hook as direction of arrow.
. Charging
will be purple. The
the battery is fully charged.
The indicator light will be blue when the battery is fully charged.
neckband.
Check the b
zPlace the black mark at the below of Right-side hook as picture.
zPush the cord into the hook and push out the hook as direction of arrow.
zFix the neckband to the Right-side ear-hook
zInsert the cord into the neckband as picture
zInsert the cord into the Left-side hook.
zFix the neckb
6
Before using the stereo headset for the first time, make sure the stereo headset is fully charged.
Connect the adapter or USB cable to the stereo headset and the indicator light
indicator light will be blue when
[Charging with Adapter]
[Charging with USB Cable]
The indicator light will be blue when the battery is fully charged.
[!] Note
Don’t use the stereo headset during
charging.
Date: Jul. 13, 2006 Page 6 of 16
Hassnet Confidential Hassnet, Inc.

wiREVO S300 User Manual Preliminary version 0.2
[Lo battery indication]
When the battery needs to be recha
w
rged, high warning tones beep and the red indicator light
he stereo headset.
Charge the battery until the indicator light becomes blue.
ording to the remaining battery amount.
The more it flashes, the more battery is remained.
rning d
flashes 3 times every 10 seconds.
As soon as you detect the low battery you should charge t

[Check battery level]
Press and hold Volume Up ( ) button and Volume Down ( ) button together.
The red indicator light flashes from 1 to 4 times acc

Low battery wa Approx. under 5% charge
Flashes once Approx. 5~20% charged
Flashes twice Approx. 20~50% charged
Flashes three times Approx. 50~80% charged
Flashes four times Approx. 80~100% charged
[Charging & operation time]
With Adapter With USB cable
Charging Time 2.5 hrs 3hrs
Standby Time T Play Time
alk Time
Operation Time 180 hrs 11 hrs 8 hrs
Date: Jul. 13, 2006 Page 7 of 16
Hassnet Confidential Hassnet, Inc.

wiREVO S300 User Manual Preliminary version 0.2
1.
zTo turn on the stereo headset, push the Power switch ( ) to the direction for ‘ON’.
Turning the stereo headset ON/OFF
Before using the stereo headset
zTo turn off the stereo headset, push the Power switch ( ) to the direction for ‘OFF’.
2. Paring with a Bluetooth audio device
You need to pair the stereo headset with the Bluetooth audio device that youintend to use it
vice, you don’t need
to pair it again if you don’t delete all registered data from your device.
h
It’s better to try to pair your stereo headset with the Bluetooth audio device close-by.
1.
in turn with one another if the
er manual on pairing.
r manual.
5. completed, the blue indicator light will flash per 3 seconds.
[Connectable mode]
with. This process is to set-up a unique wireless link between two devices.
Once you have paired your stereo headset with the Bluetooth audio de
[W en you use the stereo headset for the first time]

If the stereo headset is turned on for the first time, it will automatically be ready for
pairing. In this case, blue and red indicator lights flash
stereo headset is ready to be paired. [Pairable mode]
2. Prepare your Bluetooth audio device according to the device’s us
3. Continue following the instructions in the device’s use
4. The default passkey of the stereo headset is [0000].
When pairing has been
! Note W atically
g. [Connected mode] In this case, the indicator light will flash per 6
seconds.
ith some Bluetooth audio devices, the stereo headset can be connected autom
after pairin
! Note In
ou need to turn the stereo headset off and
on again to try pairing from the first step.
h
t isn’t the device
that you paired your stereo headset with, you need to pair it again.
1. ash in turn
with one another if the stereo headset is ready to be paired. [Pairable mode]
pairable mode, if the stereo headset has not been paired for 3 minutes, the indicator
light will flash per 3 second. In that case, y
[W en you want to use it with another Bluetooth audio device]
When you want to use your stereo headset with another device tha
Switch ON ( ) with pressing Talk ( ) button. The blue and red indicator lights fl
Date: Jul. 13, 2006 Page 8 of 16
Hassnet Confidential Hassnet, Inc.

wiREVO S300 User Manual Preliminary version 0.2
2. The following steps are the same with [When you use the stereo headset for the first
time].
3. Deleting the paired devices’ information
You can delete the paired devices’ information.
zSwitch ON ( ) with pressing Talk ( ) button and Play/Pause/Stop ( ) button together.
4. Connecting with a Bluetooth audio device
To connect the stereo headset with your Bluetooth audio device, you need to pair the two
devices first.
With some Bluetooth audio devices, the stereo headset can be connected automatically after
pairing without following additional process.
1. Turn on by switching ON ( ) and setup it as connectable status.
The blue indicator light will flash per 3 second [Connectable mode].
2. Connect the stereo headset with the device by any method below.
[Connect by a Bluetooth audio device]
zConnect following the instructions in the Bluetooth audio device’s user manual.
[Connect by the stereo headset]
zTo use Music Play service, press Play/Pause/Stop ( ) button.
In this case, only Music Play service is connected.
zTo use Hands-free service, press Talk ( ) button.
In this case, only Hands-free service is connected.
zTo use Music Play service and Hands-free service at the same time, press
and hold Play/Pause/Stop ( ) button for 2 seconds.
3. When the connection is completed, the blue indicator light flashes per 6 seconds
[Connected mode] and the blue indicator light will not flash during the stereo headset is
doing an actual work such as calling, playing, etc. [Active mode]
[!] Note Some Bluetooth audio devices may not accept the connection from the stereo
headset. Please check the user manual of your Bluetooth audio device.
[!] Note This stereo headset supports A2DP, AVRCP, HSP and HFP. From a Bluetooth
audio device you can search the services of this stereo headset and select the
service to be connected. The searching, selecting and connecting process are
dependent on your Bluetooth audio devices.
- A2DP: Advanced Audio Distribution Profile
- AVRCP: Audio Video Remote Control Profile
- HSP: Headset Profile
- HFP: Hands-free Profile
(Profile is a set of Bluetooth commands that the devices use to control the stereo
headset)
5. Cutting the connection
zTurn off the stereo headset by switching OFF ( ) or disconnect by the Bluetooth audio
device. In this case, the blue indicator light will flash per 3 seconds. [Connectable mode]
Date: Jul. 13, 2006 Page 9 of 16
Hassnet Confidential Hassnet, Inc.

wiREVO S300 User Manual Preliminary version 0.2
[!] Note
Indicator light status
On pairable state [Pairable mode] The blue and red indicator lights flash in turn
with one another
When waiting for connection from the peer
Bluetooth device [Connectable mode] The blue indicator light flashes per 3 seconds
On connected state [Connected mode] The blue indicator light flashes per 6 seconds
During calling or playing [active mode] Not flash
6. Pairing and connecting with a Bluetooth mobile phone & a Bluetooth
audio device simultaneously
1. Pair and connect the stereo headset with a Bluetooth mobile phone for the Hands-free
function followed by the article 2. Pairing with a Bluetooth audio device and 4.
Connecting with a Bluetooth audio device.
2. Turn off the stereo headset.
3. Turn on the stereo headset with pressing Talk ( ) button. The stereo headset is
Pairable mode.
4. Pair with a Bluetooth audio device followed by the user manual of the device.
5. Enjoy the music from your audio device wirelessly.
6. When the call is receiving, you can press Talk ( ) button to answer it.
7. After ending the call, the music is resumed.
Date: Jul. 13, 2006 Page 10 of 16
Hassnet Confidential Hassnet, Inc.

wiREVO S300 User Manual Preliminary version 0.2
1. Playing music
Using the stereo headset
PLAY
zPress Play/Pause/Stop ( ) button while being connected to your Bluetooth audio device.
zPress Play/Pause/Stop ( ) button while music is stopped.
zThe music automatically comes back after you ended a call if you answered a call
while listening to music.
PAUSE
zPress Play/Pause/Stop ( ) button while listening to music.
zPress Play/Pause/Stop ( ) button again to listen to the song from the paused part.
STOP
zPress and hold Play/Pause/Stop ( ) button for 2 seconds while listening to music.
zPress Play/Pause/Stop ( ) button again to listen to the song from the very first part.
! Note This is dependent on the Bluetooth audio device’s function and works only when
the Bluetooth audio device supports this function.
Play the previous/next song
zPress FF ( ) button while music is on to play the next song.
zPress REW ( ) button while music is on to play the previous song.
Rewinding/ Fast forwarding
zPress and hold FF ( ) button while music is on for fast forwarding.
zPress and hold REW ( ) button while music is on for rewinding.
! Note This is dependent on the Bluetooth audio device’s function and works only when
the Bluetooth audio device supports this function.
Adjusting Volume
zPress Volume Up ( ) button or Volume Down ( ) button to adjust the speaker volume
while listening to music.
! Note Play/Pause/Stop, Forward/Backward and Fast Forward/Rewind operations are based
on AVRCP Bluetooth profile. If these functions do not work correctly, check whether
your Bluetooth device supports AVRCP as well as A2DP or not.
Changing the Equalizer mode
zPress and hold Volume Up ( ) button and Volume Down ( ) button together to change
the Equalizer mode while listening to music.
(Normal ÆJazz ÆPop ÆClassic ÆRock)
zWhenever you change the Equalizer mode, you will hear a short beep but for Normal
mode there will be double short beeps.
Date: Jul. 13, 2006 Page 11 of 16
Hassnet Confidential Hassnet, Inc.

wiREVO S300 User Manual Preliminary version 0.2
2. Phone call control while listening to music
During the music playing, when a call is received, the music will be paused automatically and
you will hear the ringing from the speaker.
Answering calls while listening to music
zTo accept the call, press Talk ( ) button.
Rejecting calls while listening to music
zTo reject the call, press and hold Talk ( ) button for 2 seconds.
! Note Available only when your stereo headset and the mobile phone are connected as
Hands-free Bluetooth profile and the mobile phone supports the incoming call
rejecting function.
Making calls while listening to music
zPress and Hold Play/Pause/Stop ( ) button for 2 seconds to stop the music.
zMake a call using the methods described in 4. Making calls.
! Note This is dependent on the Bluetooth audio device’s function and works only when
the Bluetooth audio device supports this function.
3. Answering calls
When a call is received you will hear the ringing through the stereo headset.
Answering calls
zPress the Talk ( ) button to accept the call.
zTo end the call, press Talk ( ) button.
Rejecting calls
zPress and hold Talk ( ) button for 2 seconds.
! Note Available only when your stereo headset and the mobile phone are connected as
Hands-free Bluetooth profile and the mobile phone supports the incoming call
rejecting function.
Answering the 2nd Call
zWhile on the line, if there’s the 2nd call, you can hear a beep.
zPress and hold the Talk ( ) button for 2 seconds to answer the call.
zYou can answer the 1st call – held call – by pressing and holding Talk ( ) button for 2
seconds again.
! Note It is dependent on the mobile phone’s function and is possible when the mobile
phone supports Hands-free profile.
Date: Jul. 13, 2006 Page 12 of 16
Hassnet Confidential Hassnet, Inc.

wiREVO S300 User Manual Preliminary version 0.2
4. Making calls
Make sure that your stereo headset is connected with your mobile phone.
 Using a mobile phone
zUsing the phone’s keypad, dial the required number.
zSend the call from the phone (Phone initiates the call).
zThe call will automatically transfer to the stereo headset. But for some mobile phones,
you must press Talk ( ) button to make the call transfer to the stereo headset. Please
refer to your phone’s user guide.
 Using redialing the last call
zWith your stereo headset, you can re-dial the last call dialed or received.
zPress Talk ( ) button and you can see the latest call numbers on the mobile phone.
zPress Talk ( ) button again.
zAfter you hear the short beep, you will hear the dialing tones from speaker.
! Note Some mobile phone may re-dial the last call by pressing Talk ( ) button once.
 Using voice dialing
zTo make calls using voice dialing with your stereo headset, your mobile phone needs
to support voice dialing and the feature must be activated.
zPress and hold Talk ( ) button for 2 seconds and you can hear a short beep. Voice dial
as you normally would.
! Note It is dependent on the mobile phone’s function and is possible when the mobile
phone supports Hands-free profile.
5. Transferring calls
zTo the Stereo headset
Press Talk ( ) button during a phone call on the mobile phone.
zTo a Mobile Phone
Depends on the mobile phone‘s function. Refer to the user manual of a mobile
phone.
6. Adjusting the volume
zPress Volume Up ( ) button or Volume Down ( ) button to adjust the speaker volume
during a phone call.
Date: Jul. 13, 2006 Page 13 of 16
Hassnet Confidential Hassnet, Inc.

wiREVO S300 User Manual Preliminary version 0.2
Specification & Certifications
1. Brief Specification
Bluetooth Compliance Bluetooth 2.0 with A2DP, AVRCP, HFP and HSP
Frequency Range 2.402 ~ 2.480 GHz
Transmission output power 0.25 ~ 2.5mW
Maximum Cordless Distance 30 feet (10 meters)
Dimension 37.8pie X 21.8mm
Weight 38.38g
Operating Temperature -10 ~ 50 °C
Relative Humidity 0 ~ 95%
Standby Time 180 hours
Talk Time 11 hours
Play Time 8 hours
Battery Type Rechargeable Lithium Polymer
Adapter Rated input AC 100 ~ 240V, 50/60Hz
Adapter Rated output DC 5.0 ~ 5.3V, 700mA
- Standby time, Talk time and Play time are dependent on the connected devices.
Date: Jul. 13, 2006 Page 14 of 16
Hassnet Confidential Hassnet, Inc.

wiREVO S300 User Manual Preliminary version 0.2
2. Certifications
This Product is CE marked according to the provisions of the R&TTE
Directive 1995/05/EC. Hereby, Hassnet, declares that this product is in
compliance with the essential requirements and other relevant
provisions of Directive 1995/05/EC. For more information please
consult http://www.hassnet.com and http://www.wirevo.com.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
zReorient or relocate the receiving antenna
zIncrease the separation between the equipment and receiver
zConnect the equipment into an outlet on a circuit different from that to
which the receiver is connected
zConsult the dealer or an experienced radio/TV technician for help
The device and its antenna must not be co-located or operating in conjunction
with any other antenna or transmitter.
Users are not permitted to make changes or modify the device in any way.
Changes or modifications not expressly approved by Hassnet will void the user’s
authority to operate the equipment.
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and
any use of such marks by Hassnet is under license. Other trademarks and trade
names are those of their respective owners.
This Product is WEEE marked according to the provisions of the Directive
2002/96/EC. Dispose of the product according to local standards and regulations.
Date: Jul. 13, 2006 Page 15 of 16
Hassnet Confidential Hassnet, Inc.

wiREVO S300 User Manual Preliminary version 0.2
Thank You.
To receive sales literature and technical assistance, please contact Hassnet, Inc.
Contact: [e-mail]
[email protected]
HASSNET, INC.
6fl. Techno Complex Bldg., Korea Univ. 126-16, Anam-dong 5-Ka, Seongbuk-Ku,
Seoul, Korea 136-701
Visit our Web sites at www.hassnet.com, www.wirevo.com
Printed in Korea
Date: Jul. 13, 2006 Page 16 of 16
Hassnet Confidential Hassnet, Inc.
