MTK982 User Manual
Dual Transmitter
Mono - Stereo - Intercom
Modulation
rev.03 (ref. FW 1.0.0)
Date: 03 August 2023

MTK982 User Manual
rev.03
1
SAFETY INSTRUCTION
•Read this safety instruction and the manual first
•Follow all instructions and information.
•Do not lose this manual.
•Do not use this apparatus under the rain or near the water.
•Do not install the apparatus near heaters or in hot environments, do not use outside the
operating temperature range.
•Mount the apparatus as indicated in the instruction, do not block side grids for air ventilation
•ATTENTION: supply the apparatus with a correct mains voltage and with the ground
connection. Check the power cord integrity.
•The power cord must be protected from damage
•Do not install the apparatus near heaters or in hot environments, do not use outside the
operating temperature range.
•Do not open the apparatus, only qualified service technician are enabled to operate on it. The
apparatus needs servicing when it is not properly working or is damaged by liquids, moisture
or other objects are fallen in the apparatus.
•Use only accessories or replacement parts authorized or specified by the manufacturer.
•Clean the apparatus only with dry cloths, do not use liquids.
•The ON/OFF is a double pole circuit breaker, but to ensure the complete disconnection of the
apparatus, disconnect the power cord.
•Report the serial number and the purchasing date in front of the manual. It is needed to have
proper replacement parts or accessories from the manufacturer.
•When replacement parts are needed, use only replacement parts authorized from the
manufacturer. Substitution with not authorized parts could result in electric shock, hazards or
fire.
•Keep attention on all the labels with warnings or hazards on the apparatus.
WARNING! The apparatus is intended for professional use; anyway the manufacturer alerts the
user that the headphone output power of the apparatus could exceed the level of 85 dB(A) of
sound pressure level and this could be dangerous for the hearings. Do not use the headphone with
high power level or for long time. Reduce the power or suspend the hearing in case of any kind of
hearing problem.

MTK982 User Manual
rev.03
2
QUICK START INSTRUCTION
1. Connect to the power outlet using the supplied power cable (see rear panel: connector 2)
2. Attach the antennas to the antenna out BNC connections (see rear panel: connectors 8 and 13)
3. Connect the audio sources to the relative audio input connectors (see rear rear panel: connectors 7
for digital audio sources, connectors 9÷12 for analog audio sources)
NOTE: the cascade configuration allows to use the same analog audio input for more transmitter
4. Power on the MTK982
5. Switch off the RF output:
6. Enter in the AUDIO menu and
a. configure the input parameter between digital and analog (according to the audio
source connected at point 3)
b. configure the AF level meter parameter as modulation
c. if digital audio source:
•leave audio gain left and right parameters to 0dB and adjust the audio level
with the mixer
•if need change the audio gain left and right parameters
d. if analog audio source:
•leave audio gain left and right parameters to 0dB and adjust Max audio level
parameter. NOTE: this parameters is unique for both the channels (right and
left)
•if need change the audio gain left and right parameters
NOTE: adjust the audio level (thru the mixer and/or Max audio level and/or the audio gain left
and right parameters) so that, for the maximum input signal level,
the AF level bars show the MAXIMUM
NUMBERS OF GREEN LED INDICATORS AND NO
YELLOW/RED CLIP LED INDICATORS
the MOD. (modulation) bar shows the
MAXIMUM NUMBERS OF GREEN LED
INDICATORS AND NO YELLOW/RED PEAK
LED INDICATOR
NO
YES
NO
YES
7. Enter in the Ch-Gr menu and set the group/channel/ frequency
8. Enter in the PRESET menu and set the appropriate Preset (see Compatibility table for more detail)
9. Enter in the TX Power menu and set the TX power (10÷200mW)
10. Exit from the menu and switch on the RF power output pushing the ON/OFF button

MTK982 User Manual
rev.03
3
FRONT PANEL CONTROL AND FUNCTIONS
MTK982 allows an easy and quick configuration using buttons, push knobs and displays.
The front panel is functionally divided in the following section:
A –LOCK and IrDA
Lock button allows to lock editing of one of both the transmitters.
Put the receiver in front to the IrDA interface to synchronize the devices.
B and C - TRANSMITTER1 and TRANSMITTER2
Transmitter 1 and 2 configuration and monitor of
radio/audio levels.
❶Audio and Modulation indicators
•two LED bars for the AF levels (L=left &
R=right levels): they can show AF input levels or modulation levels (after the pre-
emphasis and compander phases, before the modulation phase) according to the AF
level meter parameter on Audio source menu
•FM modulation of the transmitter channel (modulation in dB referred to the nominal
deviation)
❷LCD display.(64 x 254 white-lighted display)
❸2 push buttons (membrane). The function of each button (ENTER, EXIT) will be readable from
the context menu on the display.
❹4 push buttons for quick setup (SYNC, AUDIO, CH/GR, ON/OFF)
❺Push rotary knob. Rotate and push to select.
❻Warning (YELLOW) and Alarm (RED) light indicator
D - MONITOR
Monitor 1 and 2: it actives monitor audio on headphone jack output (6.3mm - ¼”) for transmitter 1
and 2, respectively (a green LED is lighted when audio is enable). Audio level can be adjusted with
the rotary knob. The red led (CLIP) indicates a clipping in the audio monitor output.
E - POWER
POWER: ON/OFF button turns on/off the device. When in OFF position both phases are
disconnected from power.
A
B
C
D
E
❶
❷
❸
❹
❺
❺
❻
❻

MTK982 User Manual
rev.03
4
REAR PANEL
❶❷❸ ❹❺❻❼❾❿⓫⓬❽⓭
⓮⓯
❶Ground point To connect the rack to ground
❷AC Power Plug AC mains power input, IEC Connector 90-264 Vac
❸Product label with Serial Number, Options and Bandwidth
❹DC Power Plug (optional) DC power input, 10-28Vdc, Max 6A
❺DC pinout
❻Ethernet socket (RJ45) for connection to a network or computer
❼AES/EBU (XLR 3 pin connector) for digital audio input TX1 and TX2
❽Antenna output TX2(RF output) BNC socket
❾Audio input left TX2 (balanced AF input) ¼” (6,3mm) jack/XLR-3 combo socket and ¼” jack
❿Audio input right TX2 (balanced AF input) ¼” (6,3mm) jack/XLR-3 combo socket and ¼” jack
⓫Audio input left TX1 (balanced AF input) ¼” (6,3mm) jack/XLR-3 combo socket and ¼” jack
⓬Audio input right TX1 (balanced AF input) ¼” (6,3mm) jack/XLR-3 combo socket and ¼” jack
⓭Antenna output TX1 (RF output) BNC socket
⓮Auxiliary RF output TX2 for isofrequency transmission (0dBm) SMA socket
⓯Auxiliary RF output TX1 for isofrequency transmission (0dBm) SMA socket

MTK982 User Manual
rev.03
5
LCD DISPLAY:TRANSMITTER MENU
MTK982 info screen
Switch on the MTK982 and by pushing one of rotatory knobs (at the right of the display) all the
basic information are displayed:
Display of TRANSMITTER 1
Display of TRANSMITTER 2
❶product and bandwidth
❷serial number
❸class and hardware version
❹Firmware version: it includes application
firmware version and DSP firmware version
On the display of TX2, it is possible to check the max
level of power transmitted of the MK952, the
installed options and the companders.
Option:
- W05 / 0W2 /2W0 are the commercial codes to
identificate the max power transmitted
(50/2000/2000mW)
- DC indicate that the DC option (for DC power
supply) is installed
- MSB indicate that the Master-Slave board is
installed (MS option)
Status screen
After switch on, the transmitters display the Status screen
The main view has the following info:
❶transmitter name
❷current channel number and current tuning frequency
❸current group number and group name
❹current mode
❺TV channel used for the current frequency
❻current TX power setting
❼current SWR (Stationary Wave Ratio)
❽power supply type ( for AC power for DC power)
❾menu
Thru the main menu on the LCD display and the LED bars for the AF level and modulation the user
has the complete monitoring in real time of the wireless channel in use.

MTK982 User Manual
rev.03
6
MENU TREE
MAIN
Preset
Save User 0-3
Load User 0-3
Factory Preset
ENR-Wisy Stereo / EVO Stereo / ENC-Wisy Stereo / SR
Stereo / ENR-Wisy / ENC-Wisy / IFB-Wisy/ EVO / SEN /
SEN -d0 / COM-Wisy 25K / COM-Wisy 20K / COM-Wisy
12K5 / USER 1..7 / *1
Unlock All
TX power
10/20/30/50/70/100/150/200/250/300/500/750/1000/1250/1500/2
000mW
Ext Att enabled/disabled
Audio / Modulation
L Gain from 0 (18dBu pK) to
30dB (-12dBu)
R Gain from 0 (18dBu pK) to
30dB (-12dBu)
Modulation gain from -26 to +26 dB
Input Analog/Digital/Auto
Modulation source L&R(In stereo), L+R, L,
R
L&R Linked Yes/No
TX Name
Display
Display Brightness 0÷15 sec
Display Timeout 5÷120 sec
Advanced

MTK982 User Manual
rev.03
7
Advanced
Mode Edit
Mono / Stereo
Compander
FM Peak deviation 2÷100 kHz
Pre-Emphasis bypass/10-70us
LP Filter 15000/12000/7000/4000/3000 Hz
HP FilterFlat/20/40/60/80/120/170/250/300 Hz
TSQ Frequency 30÷260 Hz /28÷34 kHz
TSQ Deviation OFF/100 Hz ÷ 5 kHz
Equalizer EQ Off
Edit
Bass G: -12 ÷ 12 dB
Fr: 40 / 80 / 160 Hz
Mid
G: -12 ÷ 12 dB
Fr: 1.5 / 2.2 / 2.8 KHz
Q: 0.7 / 1.0 / 2.0
Treble G: -12 ÷ 12 dB
Fr: 5.0 / 7.0 / 10.0 KHz
TX on at startup
Delay for TX Off enabled/disabled
Sync RX
parameter
Outmode
Equalizer Low
Equalizer High
Volume boost
Power limit
Squech
Quick menu
Activation code
Info
IP
Serial
Option
Range
Power profile
Temperatures
FW
Supply
diagnostic
Alarms

MTK982 User Manual
rev.03
8
To access the configuration menu of the transmitter is necessary to press the rotary knob (at the
right of the display①).
To activate one of the items in the menu, press ENTER button ②.
②
①
MAIN MENU
Ch-Gr
The CHANNEL-GROUP item enables the user to edit channel, channel group and frequency of the
selected item. Change, rotating the knob, the channel or the group of channels and confirm or exit
with the buttons. To edit the frequency of selected channel, press the middle button and change it
with the knob. Press the knob to move between MHz and KHz. Confirm or exit with the buttons.
As shown in the above picture, the display area has 3 rows with:
1) Channel number (0 to 60) and Channel frequency (in 5kHz step)
2) Number (1 to 40) and Group name (8 char.)
3) Group description (30 char.)
The MTK982 has 40 groups of 60 channels each. Normally this is too much for wireless
microphones applications.
Connecting with computer with WISYCOM Rack MANAGER software, it is possible to hide single
channels or even complete groups of channels: once hidden those items are not shown anymore
on the channels or groups selection. To show channels or groups hidden use again the WISYCOM
Rack MANAGER software.
Using this software it is also possible to lock channels or groups. When a channel is locked, it is not
possible to change the frequency from the front panel of the transmitter. Locking a group means
that all channels are locked. When a channel or a group are locked, at the left of the group name in
the Chan-Group menu will appear a lock icon . When the lock picture is shown, the central
button is not displayed, thus changing frequency is not possible.

MTK982 User Manual
rev.03
9
Group name
The second item on the Main menu is GROUP NAME; with this function is possible to assign or
change a name to a group of channel. This short name (8 character) is displayed at the right of the
group number in the main display view. First chose the group and then press the knob. You will be
able to edit any character of the group name rotating the knob. Push the knob to edit the next
character. Confirm or exit with the buttons.
NOTE: when the Group name is SYNC (see synchronization) it is not possible to change it.
Mode
The MODE menu allows to assign a Mode setting at the transmitter. Rotating the knob it is possible
to change current mode among the modes available.
TX on air at startup
This menu allows to decide if turn ON or turn OFF the RF power of the transmitter while the
MTK982 is powering on.
If set to No: while the MTK982 is powering on, the RF output remains mute. The Status Screen on
the display shows “TX OFF “ and the set Group, Channel and frequency.
NOTE: When the RF power of the transmitter is OFF, all the led and the bars remain turned off.
Pushing the rotatory knob (at the right of the display) it is possible to activate the led and bars
(keeping the RF power OFF) and enter on the menu.
In order to activate the RF output press the 3rd button
at the bottom (see indication “ON” on the display).
If set to Yes: during the MTK982 power on, the
progress bar appears for 10 seconds.
During this interval (10 sec.) it is possible to switch off
the RF output. If no button is pushed, at the end of the
timer the RF output is enabled automatically.
TX power
This menu allows to set the power of the transmitter. Rotating the knob it is possible to change
current TX power setting from 10 to 2000 mW.. In the same screen is showed the reflected power
and the SWR (Stationary Wave Ratio) sensing on
antenna outputs.
The set TX power and the measured SWR are always
showed at the bottom of the display.
Audio source
This menu allows to set several parameters of audio input
Parameters
Range setting
Function
Input
digital/analog
To set the audio input
Max audio level
-6/0/6/12/18 dBu
To change (increase or decrease) the analogue audio input for

MTK982 User Manual
rev.03
10
(only for analog input)
both R(right) and L(left) channels input
Audio gain left
-20÷24dB
To change (increase or decrease) the input level of the left
channel on DSP
Audio gain right
-20÷24dB
To change (increase or decrease) the input level of the right
channel on DSP
AF level meter
input/modulation
To set which AF level is shown in the two LED bars for the AF
levels (L=left & R=right levels): they can show AF input levels or
modulation levels (after the pre-emphasys and compander
phases)
Mono config
(only for mono Mode)
Mono/mono-R/
mono-L
To set the type of mono input
Auto switch DIG->AN
enabled /
disabled
If enabled and the digital signal is lost (parameter Input set to
digital), the transmitter takes the signal from the analog input.
Equalizer
This menu allows to of adjusting the gain between frequency components (bass, mid and treble)
within the audio signal. There are 4 windows in cascade:
bass windows: allows to change gain and frequency of low frequencies
mid windows: allows to change gain and frequency of middle frequencies
treble windows: allows to change gain and frequency of high frequencies
eq windows: allows to save the equalization parameter or exit without save
Each window shows the following information:
❶windows name
❷parameter to set (gain or frequency)
❸graphic equalizer: frequency on
horizontal axis, gain on the vertical axis
❼
HP filter
set in the
mode
menu
❻
LP filter
set in
the
mode
menu
❺
set
frequency
❹
set gain
For each window it is showed the graphic equalizer which help to see the set parameters. Push the
rotatory knob to change the parameter between gain and frequency (the respective letter Gor Fr
is highlighted during the setting phase) and

MTK982 User Manual
rev.03
11
rotate it to change the value of the parameter. The set value is showed on the bottom of the
windows (see points ❹ and ❺ on the above image).
Push the lower membrane button to go on the next windows.
The following table recaps the settable values on the 3 windows:
Fr (frequency)
G (gain)
Q (Q factor)
bass
40/80/160 Hz
-12÷12dB (1dB step)
-
mid
1.5/2.2/2.8kHz
0.7/1.0/2.0
treble
5/7/10kHz
-
NOTE: High Q factor means narrow bandwidth. Low Q factor means wide bandwidth.
Synchronization
The SYNC function is useful to tune a transmitter on the same frequency of the receiver via the IR
interface.
➢Enable the IRDA on the receiver and place the IR windows of the receiver in front of the
IR interface of the transmitter as indicate in the below image.
➢Press the SYNC button on the transmitter: the following message is showed on
both the displays
➢Using the membrane buttons of the desired transmitter (TX1 or TX2) select:
•TX->RX to set the receiver at the same frequency of the transmitter:
RX->TX
TX->RX

MTK982 User Manual
rev.03
12
the transmitter will send to the receiver some parameters (frequency, channel,
group and transmitter’s name) and after synchronization, the receiver shows the
name of the transmitter
•RX->TX to set the transmitter at the same frequency of the receiver:
the receiver will send to the transmitter some parameters (frequency, channel,
group and receiver’s name) and after synchronization, the transmitter shows the
name of the receiver (ex. SINGER_1)
If the operation is not possible, (i.e. the frequency range of the transmitter is not compatible with
the frequency of the receiver or vice versa), the display shows an error message.
If the synchronization is successful, the display of the devices shows number of channel and group
or SYNC channel according to the frequency plan memorized on the Wisycom product:
CASE A: if frequency, channel and group are the same in the two devices, channel and group are
also displayed (ex: CH00: 566.000, GR39: Unlock)
CASE B: If frequency, channel & group of the transmitter are different from those of the receiver,
the transmitter shows only the frequency after the word SYNC. (ex: SYNC: 620.000)
Ex: RX->TX
Message displayed after the synchronization
Status screen
Case A
Case B

MTK982 User Manual
rev.03
13

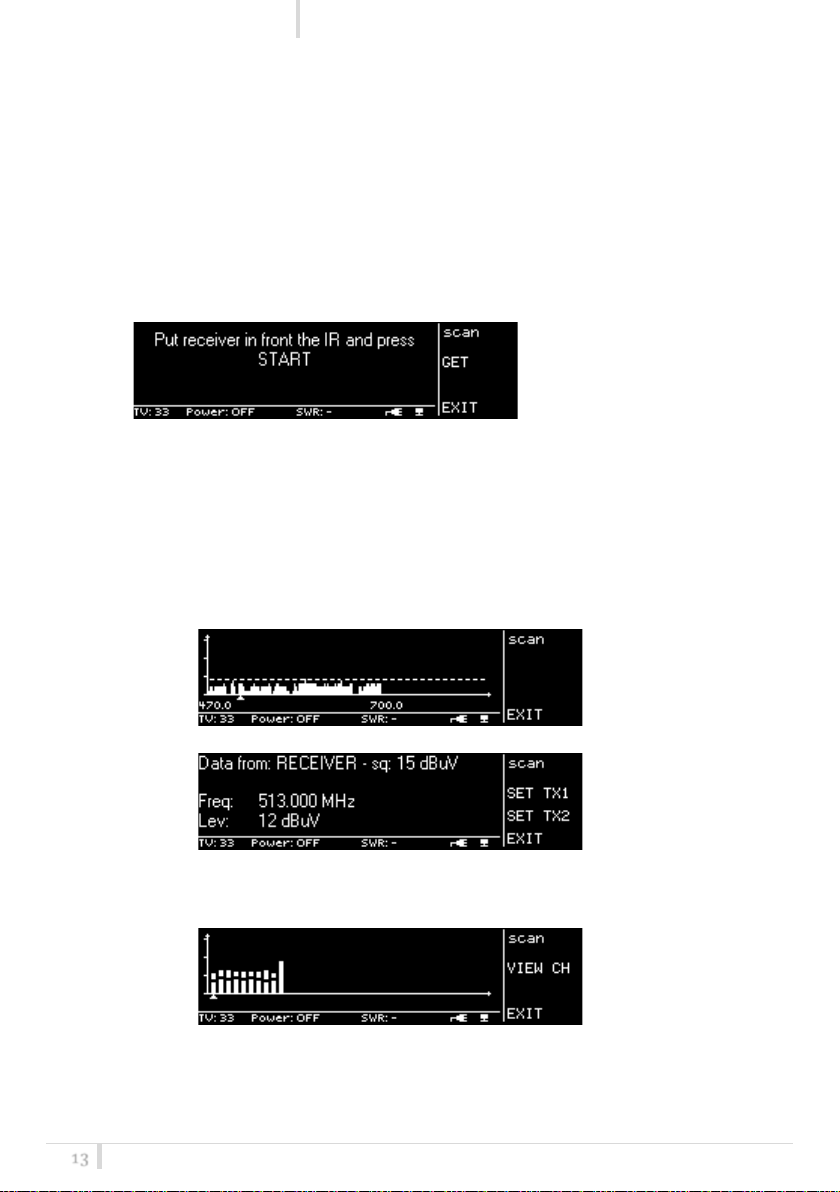

Scan
The SCAN function allows to display a results of a scan previously done from a MPR50-IEM or
MPR52-ENG.
➢Do a scan with an MPR50-IEM
➢Enable the IRDA on the receiver or select the function Deploy on the SCAN menu (only
for MPR50-IEM) and place the IR windows of the receiver in front of the IR interface of
the transmitter
➢Press the SCAN button on the transmitter: the following message is showed on both the
displays.
:
➢Using the membrane buttons of the desired transmitter (TX1 or TX2) select GET
➢Wait some seconds (the receiver sends all the data of the scan to the transmitter)
➢The display of transmitter1 show the scan result in graphic way, while the display of
transmitter2 gives more detailed information of the result (according to the position of
the cursor in display1)
Ex. FREQUENCY SCAN
Display of Transmitter1
Display of Transmitter2
Ex: GROUP SCAN
Display of Transmitter1
Display of Transmitter2

MTK982 User Manual
rev.03
14
➢Use the membrane buttons on display2 to set the frequency to TX1 –TX2
NOTE: The results of the scan are saved on the volatile memory of the transmitter:
-After the switch off of the transmitter the data are lost.
-It is possible to re-load the data of a previous scan. Pushing the SCAN button and
selecting VIEW

MTK982 User Manual
rev.03
15
Alarm List
When an alarm occurs, the MTK982 can do one or more of the following acts:
A. Show a message on the display
B. Turn on the yellow or red alarm led
C. Insert the alarm on the alarm list in the MAIN>Options>Info>Alarms menu
The alarm can be related to a specific transmitter (TX1 or TX2) or general.
Shown below the complete alarms list:
Alarms
Code
Type
Message on display (A)
Led
(B)
Alarm list (C)
TX Power Mismatch
-
TX
ATTENTION: antenna mismatch!
High SWR on Tx out
yellow
no
TX Power reduced
0x05
TX
ATTENTION: antenna mismatch!
High SWR on Tx out. Rf pwr
reduced
yellow
Tx power
reduced
Timeout 5 sec on PLL
0x84
TX
ATTENTION: RF PLL lock lost
red
Rf PLL lock lost
Errore bus I2C
general
EEPROM access error
(only on TX1)
red
Error on I2C
bus
Timeout 5 sec on PLL
OL969
0x84
general
ATTENTION: OL PLL lock lost
(only on TX1)
red
OL PLL lock lost
High internal
temperature
0x04
general
ATTENTION: internal temperature
high
(only on TX1)
yellow
High internal
temperature
Fan #1 doesn't work
0x02
general
ATTENTION: fan #1 does't work
properly
(only on TX1)
yellow
Fan #1 doesn't
work
Fan #2 doesn't work
0x03
general
ATTENTION: fan #2 does't work
properly
(only on TX1)
yellow
Fan #2 doesn't
work
Recovered
configuration and
calibration data from
copy1 on the
memory
0x80
general
no
no
Mem. copy1
recovered
Recovered
configuration and
calibration data from
copy2 on the
memory
0x81
general
no
no
Mem. copy2
recovered
Load default
configuration and
calibration data
0x8D
general
no
no
Mem. init.
Service req.

MTK982 User Manual
rev.03
16
Troubleshooting
Alarms
Alarm description
Troubleshooting
TX Power Mismatch
The SWR on Tx out is too high
- check if the antenna is correctly connected
- check if the antenna cable is correctly
connected
- check if the antenna frequency is according
to the one set on the transmitter
reduced TX Power
The SWR on Tx out is too high,
the RF power is reduced
- check if the antenna is correctly connected
- check if the antenna cable is correctly
connected
- check if the antenna frequency is according
to the one set on the transmitter
Timeout 5 sec on PLL
Error during frequency tuning
- send to repair at Wisycom Repair Centre
bus I2C Error
Error on I2C bus
- send to repair at Wisycom Repair Centre
Timeout 5 sec on PLL
OL 969
Error during frequency tuning
- send to repair at Wisycom Repair Centre
High internal
temperature
One of the 4 temperature
sensors measures a temperature
> 60°C
- check if the two fans work properly (check
alarms code 0x02 or 0x03 on the alarm list)
- switch off the MTK982 for cooling and check
the location temperature
- clean the ventilation grids
Fan #1 doesn't work
The fan on the left (#1) doesn’t
turn
- switch off and switch on the MTK982
Fan #2 doesn't work
The fan on the right (#2) doesn’t
turn
- switch off and switch on the MTK982
Recovered
configuration and
calibration data from
copy1 on the memory
During the MTK982 initialization
phase, the CRC-16 check of data
(copy1) detects error.
- none (the MTK982 automatically replaces
the corrupt copy1 with copy2)
Recovered
configuration and
calibration data from
copy2 on the memory
During the MTK982 initialization
phase, the CRC-16 check of data
(copy2) detects error.
- none (the MTK982 automatically replaces
the corrupt copy2 with copy1)
Load default
configuration and
calibration data
During the MTK982 initialization
phase, the CRC-16 check of data
(copy1 and copy2) detects error.
- check in the MAIN>Options>info menu the
Serial take on the ‘UNCAL’ vale. In this case
send the MTK982 to the Wisycom Repair
Centre for recalibration.
If a problem not listed in the above table occurs or if the problem cannot solved with the proposed
troubleshooting, please contact support service at s[email protected] or [email protected].

MTK982 User Manual
rev.03
17
Mode setting & Wisycom receiver compatibility
WISYCOM RECEIVER
MPR50-IEM
MPR50-IFB
MPR50- IEM/IFB
MCR42 MPR5x-ENG MRK980
MPR50- IEM/IFB
MRP50-IFB
CPR30 CSR50 RPU300 (Rx)
*adjustable parameter
MODE SETTING
Send Tone Squelch
NO
NO
NO
YES
YES
yes
YES
YES
YES
YES
Max peak deviation
48 kHz
48 kHz
48KHz
56 kHz
56 kHz
56KHz
40 kHz
4,5 kHz*
4 kHz*
2,3 kHz*
Compander type
ENR
ENC
ENS
ENR
ENC
ENS
ENR
NR
NR
NR
Mono/Stereo
Stereo
Stereo
Stereo
Mono
Mono
Mono
Mono
Mono
Mono
Mono
Name
ENR-Wisy Stereo
ENC-Wisy Stereo
ENS-Wisy Stereo
ENR-Wisy
ENC-Wisy
ENS-Wisy
IFB-Wisy
COM-Wisy 25K
COM-Wisy 20K
COM-Wisy 12k5
NOTE: receiver and transmitter have to be configured with the same compander type

MTK982 User Manual
rev.03
18
TECHNICAL SPECIFICATION
Frequency ranges
From 430 to 1260 MHz, depends on the country (see Configurations)
Switchable channels
2400 managed in 40 groups ofr 60 frequencies completely user customizable
Switching-window
330 MHz tuneable
Frequencies
5 kHz steps
RF Power
switchable typ. 10,20,30,50,75,100,150,200,250,400,500,750,1000,1200,1500,2000 mW (ERP)
Max RF output power
2 Watt, RF power can be limited on frequency base accordingly to specific country restrictions
Antenna connector
2 x BNC type female
Auxiliary RF connector
2 x SMA type female
RF impedance
50 Ω
Modulation
FM, MPX Stereo or mono, selectable with dedicated menu
Peak deviation
±56 kHz for mono wideband, ±35 kHz for mono narrowband, ±48 kHz for stereo
(preset mode)
MPX Pilot tone
19kHz
Tone squelch
32.789Hz (for Wisycom wireless microphone, i.e. ENR/ENC)
131,8 (for Wisycom intercom, i.e. NR)
NOTE: custom setting can change the Tone squelch (30-260Hz and 18-38KHz)
Spurious emissions
< 2 nW
Noise Reduction system
ENS , ENC, ENR, NONE-d50, no compander, pre-emphasis 50 μs
NR, to work with Wisycom Intercom system
Other compander on request
AF bandwidth
20÷20kHz (mono)
30÷15kHz (stereo)
NOTE: custom setting can change audio bandwidth (3/4/12/15/20kHz)
Audio input connector
XLR-3 / 1/4“ (6,3mm) jack combo socket, electronically balanced
Audio input level
+18dBu
Pin Assignments
XLR: 1=ground 2=hot 3 =cold
6.35mm (1/4”) TRS: Tip=hot Ring=cold Sleeve=ground
Digital output
AES3 on XLR-3M (32kHz ÷108 kHz)
Monitor output
6.35mm (1/4”) jack socket, balanced
Monitor output level
120+120mW@24Ω , 80+80mW@150Ω
Monitor out impedance
25Ω for auricle
Managing interface
10/100 Base TX Ethernet port on RJ45 connector
Display
64 x 256 OLED (white)
Power supply
90 - 264 V AC, 47/63 Hz
DC options
10-28 Vdc, 6A max
Temperature range
-10 ÷ +55 °C
Dimensions
19”/1U 43,8 x 483 x 349 mm (HxWxD) with brackets
Weight
4 kg approx.

MTK982 User Manual
rev.03
19
Configurations
MTK982 - <Country> - <PowerSupply>
Power Supply:
DC redundant Vdc power supply
Country Power Profile:
EU Europe (max power 50mW)
EUX Europe (max power 200mW for 0W2, 2Watt for 2W0)
US USA
CA Canada
