WisyCom MTP60 User manual

–––
MTP60 User Manual
Wideband Wireless
Professional Pocket
Transmitter
SN: ________________
Rev.01 (ref. FW 0.3)
Date: 22 October 2021

MTP60 User Manual
2
PRODUCT OVERVIEW
❶
OLED white display (128 x 64 pixels)
❽
IrDa interface
❷
4 setup buttons
❾
LED3 of recording
❸
battery compartment latch
❿
LED4 of recharging
❹
MIC connector (LEMO 1pin)
⓫
battery compartment
❺
Antenna connector (LEMO 3pin)
⓬
SD card slot
❻
LED1 for audio and recording
indication
⓭
USB-C connector
(for power and control)
❼
LED2 for RF and battery indication
❶
❷
❸
❹
❺
❿
❻
❼
❽
❾
⓫
⓬
⓭

MTP60 User Manual
3
LED INDICATIONS
LED 1 - audio and recording indication
Fixed green unit is modulating regularly
Blinking red Flash when audio is clipping
OFF (grey) if it doesn’t modulate
LED 2 - RF and battery indication
Fixed red with RF OFF
Fixed Green with RF ON
Blinking red when battery is discharging
LED 3 - recording
OFF (grey) when recording is OFF
Fixed red when recording is ON
LED 4 - recharging status
OFF (grey) when no recharging
Blinking orange when is under recharging
Fixed Green when recharge is completed
SETUP CONTROL
Use the 4 front buttons to navigate on the menu and enable quick setup:
SEL/ON:
oto switch ON the transmitter
oto enter on a sub-menu
oto save the parameter
EXIT/OFF:
oto switch OFF the transmitter
oto exit from a sub-menu
oto switch ON the transmitter without audio modulation
(only tone squelch)
UP/GAIN:
oto circle on the same level
oto enter on the GAIN settings (from STATUS menu)
DOWN/CH:
oto circle on the same level
oto enter on the CHANNEL settings (from STATUS menu)
SEL+GAIN: to enter on the menu
SEL+EXIT: to mute audio
EXIT+CH: to lock transmitter
GAIN+CH: to start recording

MTP60 User Manual
4

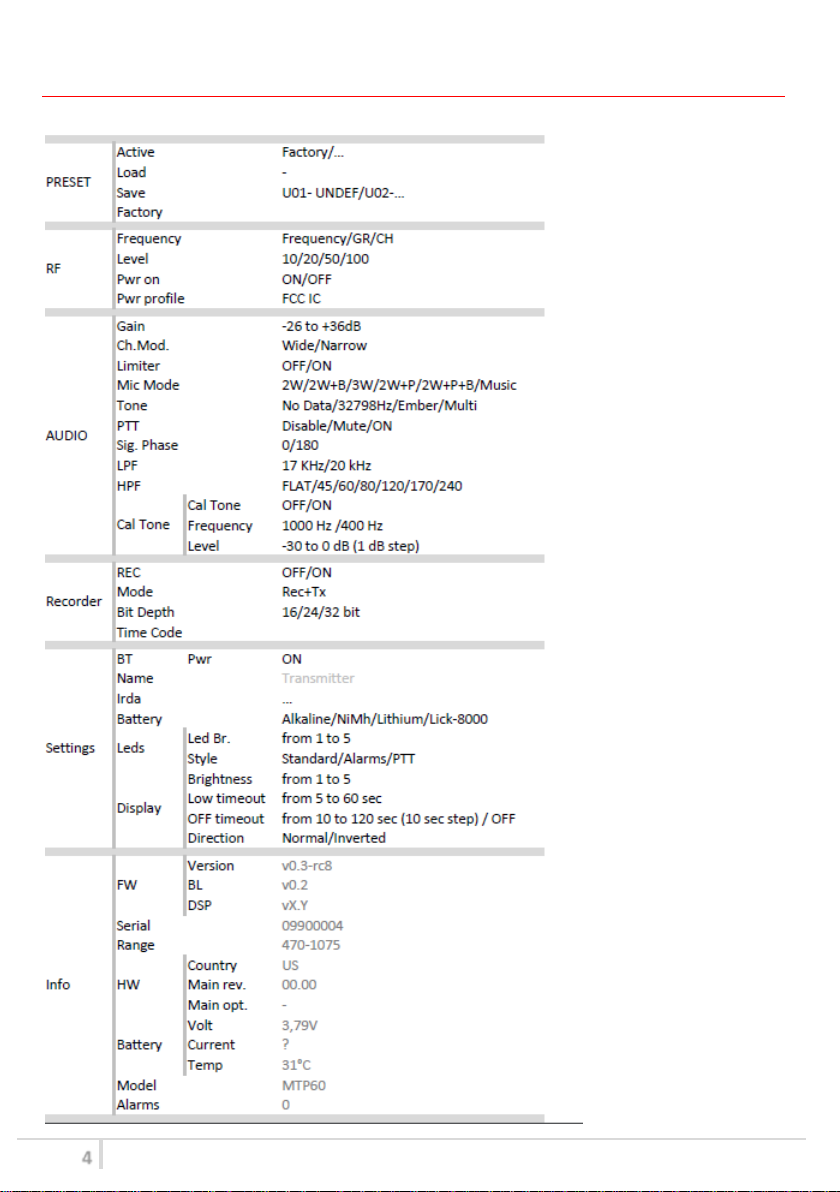

DISPLAY MENU
Setup menu are accessed in sequence:

MTP60 User Manual
5
PRESET menu
MTP60 can recall configuration presets.
o“Factory” recalls the Wisycom factory configuration.
o“USER” (U01, U02…) recalls the configuration saved by menu
o“PRESET” recalls preset saved with the Wisycom Manager or pre-configured by Wisycom
TUNING > Frequency menu
In this menu current channel/group and frequencies can be setup.
The name of the group is shown on the top right of the display.
Sync group is a quick self-settable channel synchronized by receiver (with SYNC group, on the top
right of the display is shown the name of the synchronized receiver).
Use arrows to change value and <ENTER> to confirm.
Using quick channel setup buttons (<CH>), it is possible to enter quickly in the tuning menu.
TUNING > Level menu
RF power can be setup to 20mW, 20mW Linear, 50mW or 100mW (depending on the Power profile,
see TUNING>Pwr Profile menu).
TUNING > Pwr on
Set to ON to activate the transmission. LED2 becomes fixed green when the transmitter is tuned and
RF power is ON.
AUDIO menu
With this menu it is possible to set all the audio parameters: gain, modulation (Narrowband or
Wideband), type of microphone, audio filters and the Tone.
SETTINGS menu
Use this menu to
oactivate the Bluetooth interface
oactivate the Irda interface
oset type of battery used
oconfigure LEDs behaviour
oconfigure brightness and time of display
INFO menu
Use this menu to check information about the transmitter (serial number, frequency range,
firmware and hardware version) and its status (voltage, temperature and alarms).

MTP60 User Manual
6
BATTERIES
MTP60 works with 2 x AA battery, Lithium, NiMh or KLIC8000 lithium (5.6 Wh) (select correct type
on setup controls). Battery status can be checked on internal OLED display or looking the LED2
status on front ❼.
BATTERY SUBSTITUTION
Open transmitter cover and insert batteries following polarity indicated.
Attention: always replace both the batteries

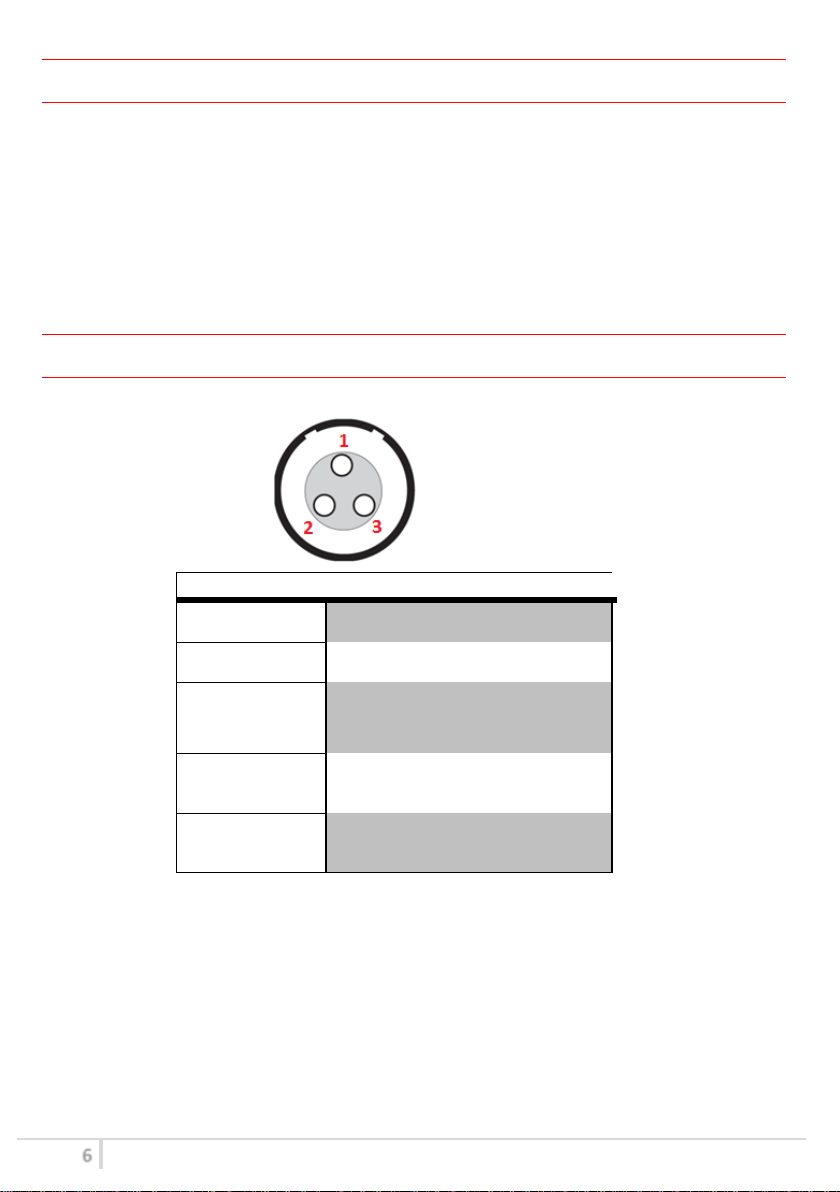

AUDIO CONNECTOR
3 PIN LEMO CONNECTOR
(use FVB.00.003.NLN on Mic)
MIC Mode:
Pin out
’2 wires’:
1=GND
3=AF
‘2 wires + bias’:
1=GND
3=AF+5.5V
‘3 wires’:
1=GND
2=5.5V
3=AF
‘2 wires &
phantom’:
1=GND
2=3.1V (power for PHA48 and PHA60)
3=AF
‘2 wires + bias &
phantom’:
1=GND
2=3. 1V (power for PHA48 and PHA60)
3=AF+5,5V

MTP60 User Manual
7
ACCESSORIES AND PARTS
AWF30-B1-507
For MTP60-US
Band 470 -547 MHz
Antenna label 507
AWF30-B1-590
For MTP60-US
Band 547 -663 MHz
Antenna label 590
AWF30-B8-950
For MTP60-US
Band 940 -960 MHz
Antenna label 950
CAL48
Cable to connect an MTP30 (with option /PHA) or
MTP40/40S to a PHA48 to use microphone with
XL3/48V connection
CAL120
AF cable (120cm), LEMO 3pole / XLR-3F connectors
PHA48
Plug-on for XLR3 Mic with 48V Phantom power.
To be used with CAL48 (connected to an MTP30/40/40S)
NEW REV2 with 4mA Phantom current!
Antenna label

MTP60 User Manual
8
TECHNICAL SPECIFICATIONS
Frequency ranges
from 470 to 1075 Mhz, depends on the country (see Configurations)
Switchable channels
2400 managed in 40 groups ofr 60 frequencies completely user customizable
Switching-window
Up to 362 MHz, depending on band (see Configurations)
Frequencies
Quartz PLL frequency synthesizer circuit (25 kHz step)
Frequency error
±2.5 ppm, in the rated temperature range
RF Power
switchable typ. 20 mW/ L20 mW / 50 mW /100 mW
note: in some countries high power can be disabled, for local norm!
Antenna connector
LEMO-F 1 pin
Modulation
wideband/narrowband FM, with digital audio conditioning (FPGA)
Nominal deviation
±40 kHz Wideband / ±25 kHz Narrowband
Peak deviation
±56 kHz Wideband / ±35 kHz Narrowband
Spurious emissions
< 2 nW
Telemetry feature
TX transmits also a digitally modulated sub-carrier, suitable for:
• tone-squelch operating
• remote battery monitoring
• optional PTT (push to talk) operation
Noise Reduction system
ENS - Wisycom Extended-Sound Optimized
AF bandwidth in NarrowBand
mode (NB)
Audio frequency response (dBa):
•45 Hz -17 KHz (3dB)
AF bandwidth in WideBand
mode (WB)
Audio frequency response (dBa):
•45 Hz -20 KHz (3dB)
Distortion
< 0.3 % (0.15 % typ.)
SND/D ratio (Analogue)
typ. 115 dB (A)rms with 40 kHz deviation; typ. 121 dB (A)rms with 56 kHz deviation Wideband
typ. 115 dB (A)rms with 25 kHz deviation; typ. 121 dB (A)rms with 35 kHz deviation
Narrowband
Audio input connector
LEMO 3pin
Audio input level
from -36 dBu (12mV RMS) to 26 dBu (15.5 V RMS) adjustable in 1 dB steps
Max input level
+26 dBu (15.5 V) at clipping, +20 dBu (7.75 V) at nominal level
Managing interface
Bluetooth 5 long range, USB-C, IrDA
LED
2 RGB LEDs indication with (red, green and blue)
LED 1
• Green unit is modulating regularly
• Red Flash when clipping
• OFF (grey) if it doesn’t modulate
• Fixed RED when recordin in ON
LED 2:
• Fixed Red with RF OFF
• Fixed Green with RF ON
• Blinking RED when battery is dicharging
Battery lifetime indication
10 steps
PTT function
Pin 3 of the AF connector can be setup to an external push button
Display
High contrast OLED white display (128 x 64 pixels)
Power supply
2 x AA battery, KLIC8000 lithium (5.6 Wh) or NiMh
Power consumption
250mA@ 2.6V average (display off, 100mW power)
Temperature range
-10 -+55 °C
Dimensions
75,7mm x 61,4mm x 19mm (HxWxD) without clip
Weight
Approx. 91 g. without batteries (133 g. with batt.)

MTP60 User Manual
9
Compliance
Model
In Compliance with
Max Power
Country
MTP60-EU
EN 301 489-1/-9
EN 600065
EN 300 422-1/-2
50mW
Europe
MTP60-EUX
EN 301 489-1/-9
EN 600065
EN 300 422-1/-2
EN 300 454-1/-2
100mW*1
Europe
MTP60-US
PART 74 & PART 15
FCC-ID: POUMTP60
100mW
USA
MTP60-CA
RSS-123, RSS-102
IC: 11967A-MTP60
100mW
Canada
*1MTP60-EUX is not an SRD device, thus it requires specific authorization by your local frequency authority!
Before putting the device into operation, please
observe the respective country-specific regulations!

MTP60 User Manual
10
MANUFACTURER DECLARATIONS
In compliance with the following requirements
RoHS Directive (2002/95/EC)
WEEE Directive (2002/96/EC)
Please dispose of the diversity transmitter at the end of its operational lifetime
by taking it to your local collection point or recycling center for such
equipment
Battery Directive (2006/66/EC)
The supplier batteries or rechargeable batteries can be recycled. Please
dispose of them as special waste or return them to your specialist dealer. In
order to protect the environment, only dispose of exhausted batteries.
ITALY ONLY
Obblighi di informazione agli utilizzatori
ai sensi dell’art. 13 del Decreto Legislativo 25 luglio 2005, n. 151 “Attuazione delle Direttive 2002/95/CE,
2002/96/CE e 2003/108/CE, relative alla riduzione dell’uso di sostanze pericolose nelle apparecchiature
elettriche ed elettroniche, nonché allo smaltimento dei rifiuti”
Smaltimento di apparecchiature elettriche ed elettroniche di tipo professionale
Il simbolo del cassonetto barrato riportato sull’apparecchiatura o sulla sua confezione
indica che il prodotto alla fine della propria vita utile deve essere raccolto separatamente
dagli altri rifiuti.
La raccolta differenziata della presente apparecchiatura giunta a fine vita è organizzata e
gestita dal produttore. L’utente che vorrà disfarsi della presente apparecchiatura dovrà
quindi contattare il produttore e seguire il sistema che questo ha adottato per consentire
la raccolta separata dell’apparecchiatura giunta a fine vita.
L’adeguata raccolta differenziata per l’avvio successivo dell’apparecchiatura dismessa al riciclaggio, al
trattamento e allo smaltimento ambientale compatibile contribuisce ad evitare possibili effetti negativi
sull’ambiente e sulla salute e favorisce il reimpiego e/o riciclo dei materiali di cui è composta
l’apparecchiatura.
Lo smaltimento abusivo del prodotto da parte del detentore comporta l’applicazione delle sanzioni am-
ministrative previste dalla normativa vigente.
Smaltimento batterie usate
Questo prodotto può contenere batterie. Questo simbolo apposto sulle batterie significa
che non possono essere smaltite insieme a normali rifiuti domestici, bensì devono essere
depositate negli appositi punti di raccolta delle batterie.
Iscrizione al Registro A.E.E. n. IT09100000006319

MTP60 User Manual
11
Statements regarding FCC and Industry Canada
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY
CAUSE UNDESIRED OPERATION.
WARNING: Wisycom srl. is not responsible for any changes or modifications not expressly approved
by the party responsible for compliance. such modifications could void the user’s authority to
operate the equipment.
The FCC and IC identifier is visible in the display when the device is switched on and it is also
available by accessing the Options> Info> Regulatory submenus.
EN
This device complies with Industry Canada license-exempt RSS-123 and RSS-210 standard. Operation
is subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation of
the device.
This radio transmitter IC: 11967A-MTP60 has been approved by Industry Canada to operate with the
antenna types listed below with the maximum permissible gain and required antenna impedance for
each antenna type indicated. Antenna types not included in this list, having a gain greater than the
maximum gain indicated for that type, are strictly prohibited for use with this device.
FR
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence RSS-123 et RSS-210. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Le présent émetteur radio IC: 11967A-MTP60 a été approuvé par Industrie Canada pour fonctionner
avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance
requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain
est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
Antenna types (50 Ohm impedance, max gain 2.1dBi)
AWF30-B1-507: band 470 - 547 MHz
AWF30-B1-590: band 547 - 663 MHz
AWF30-B8-950: band 940 - 960 MHz
This equipment complies has been evaluated for and shown compliant with the FCC and ISED RF
Exposure limits. The unit of measurement for RF exposure is Specific Absorption Rate (SAR). The FCC
SAR limits for is 1.6W/Kg per 1g of tissue

MTP60 User Manual
12
The maximum SAR levels tested has been shown to be 1.2 W/kg at head with 0mm of separation
distance from the body.
This device operates on a no-interference, no-protection basis. Should the user seek to obtain
protection from other radio services operating in the same TV bands, a radio license is required. For
further details, consult Innovation, Science and Economic development Canada's Client Procedures
Circular CPC-2-1-28, Voluntary Licensing of License-Exempt Wireless Microphones in TV Bands.
SAFETY INSTRUCTION
Read this safety instruction and the manual first
Follow all instructions and information.
Do not lose this manual.
Do not use this apparatus under the rain or near the water.
Do not install the apparatus near heaters or in hot environments, do not use outside the
operating temperature range.
Do not open the apparatus, only qualified service technician are enabled to operate on it. The
apparatus needs servicing when it is not properly working or is damaged by liquids, moisture
or other objects are fallen in the apparatus.
Use only accessories or replacement parts authorized or specified by the manufacturer.
Clean the apparatus only with dry cloths, do not use liquids.
Report the serial number and the purchasing date in front of the manual. It is needed to have
proper replacement parts or accessories from the manufacturer.
When replacement parts are needed, use only replacement parts authorized from the
manufacturer. Substitution with not authorized parts could result in electric shock, hazards or
fire.
Keep attention on all the labels with warnings or hazards on the apparatus.

MTP60 User Manual
13

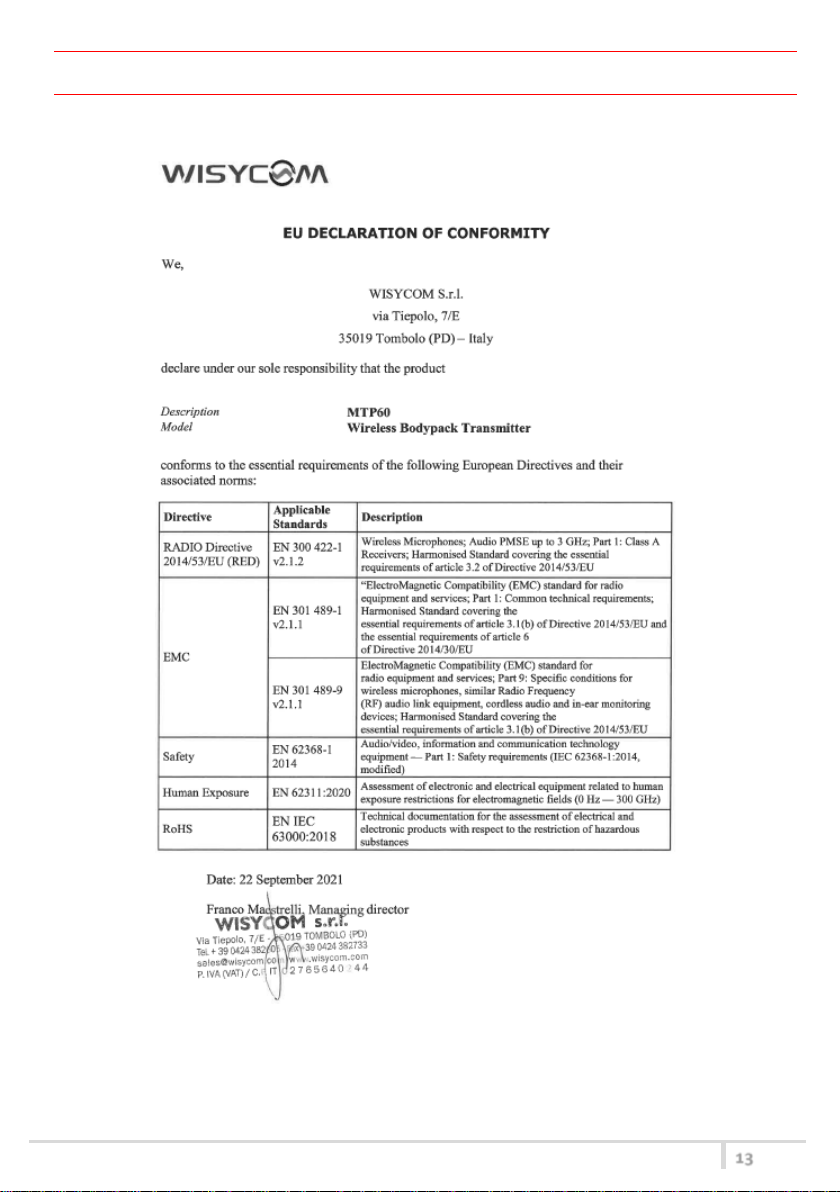

DECLARATION OF CONFORMITY

MTP60 User Manual
14
Via Tiepolo, 7/E - 35019 Tombolo (PD) Italy
Tel. [phone] Fax +39 - 0424 - 382733
www.wisycom.com e-mail: [email protected]
