Withings Move ECG User manual

Reviewer's guide
Move ECG

32
Move ECG
Activity Watch
with ECG Monitor
· Medical-grade electrocardiogram on your wrist in 3O
seconds
· Instant atrial fibrillation detection in the app
· No charging (CR2430 button cell included), up to 12
months battery life
· Automatically tracks walk, run, swim, biking
· Sleep Score, light & deep sleep stages, plus silent alarm
& Smart Wake-Up
· Save and share data with your healthcare provider
· Altimeter: count stair climbing for better health
· Automatic Bluetooth LE synchronization
· All trends & data available in the free Health Mate app
(iOS & AndroidTM)
· Unlimited data storage
CLINICALLY APPROVED

54
Table of contents
1. Overview
2. Get started
3. An electrocardiogram anytime, anywhere
a. When should you take a measurement?
b. How to take an ECG
c. Results in the Health Mate app
d. Share it with your doctor or healthcare provider
4. Activity tracking
a. Workout Mode
b. Connected GPS
c. Altimeter
5. Sleep Score & Smart Wake-up
6. Customizing the bands
7. Cheat sheet

76

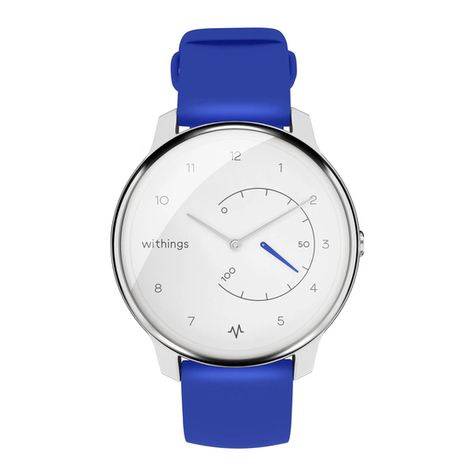

1. Overview

98
Electrode 2
Electrode 3
12
1O
8
75
4
3
2
1
O
5O
1OO
11
Electrode 1
Activity dial
Band
By placing the opposite hand on the watch, the user
creates a closed electrical circuit with the arms and chest,
allowing the measurement of a one-lead ECG.
Electrical
signals

1110
2. Get started

1312
go.withings.com
Withings Move ECG is the world’s first analog watch to
record a medical-grade electrocardiogram on demand
to detect atrial fibrillation (AFib).
1 in 4 people in the EU or US will develop AFib during
their lifetime.
AFib can occur anytime & can present irregularly, leading
to underdiagnosis.
Now, Move ECG provides a key medical measurement
anytime, anywhere.
In addition, you can act on improving your overall
cardiovascular health with seamless activity & sleep
tracking.
Installation
Move ECG connects to the Health Mate application,
available for iOS and Android.
The application allows you to manage key aspects of
your health through detailed information, including your
electrocardiogram, number of steps, sleep, stair climbing,
a timeline of all activities, and personalized advice.
Visit go.withings.com from your smartphone or tablet,
and follow the instructions to install the Health Mate app.
Set up your Move ECG by following the instructions in
the app: Device > Move ECG > Install
The Bluetooth on your phone needs to be enabled so it
can detect the device.
Once it’s connected to Bluetooth, Move ECG will be able
to automatically synchronize your data.
WITHINGS INVENTED THE FIRST
ANALOG WATCH TO RECORD AN ECG
#1
WORLDWIDE

1514
3. An electrocardiogram
anytime, anywhere

1716
a. When should you take a measurement?
Either take measurements systematically (you can use a
callback function in the Health Mate app) or if you feel
you’re having symptoms (for example, a rapid or skipped
heartbeat).
That's why it's worth having the ability to record an ECG
on your wrist—all day, every day—in 30 seconds with a
single press of a button. Thanks to the one-year battery
life of Move ECG, there is a better chance of not missing
an episode.
b. How to take an ECG
Simply press the side button once and gently place your
fingers on the bezel (top ring) for 30 seconds. Stay still,
don’t move or talk, and relax—it’s best to be seated or to
place your arm on your leg, and try not to contract your
arm and hand muscles. The watch will vibrate to notify
the user that reading is complete. There are two ways to record an ECG with Withings Move
ECG:
1. If you have your phone with you: open the Health
Mate app (homescreen) and press the side button of
the watch once. It will automatically trigger the ECG
module Live View within the app. You will then be
able to enjoy the plot of your live signal on your
phone's screen.
2. If you don’t have your phone with you: you can still
record an ECG on the go without your phone via a
simple gesture on the watch. The Health Mate ECG
module will show your results the next time you open
the app.
✓
✓
✗
✗
✗
✗

1918
c. Results in the Health Mate app
Normal sinus rhythm
A sinus rhythm means your heart is beating in a uniform
pattern.
Atrial fibrillation
Atrial fibrillation occurs when the two upper chambers
of the heart move chaotically instead of pumping
regularly.
The P wave on the ECG disappears and is replaced by a
jumpy baseline. The QRS complex occurs at "irregularly
irregular" intervals.
Inconclusive
An inconclusive result means the recording can’t be
classified. This can happen for many reasons, such as not
resting your arms on a table during a recording,
contracting arm or hand muscles during measurement,
or if your ECG device is too loose around the wrist and/
or fingers are not in proper contact with the ring around
the watch face.
Certain conditions, such as a pacemaker or anatomical
variations, may prevent a small percentage of users from
creating enough signal to produce a good recording.
Normal Sinus
Rhythm
Atrial
fibrillation
Inconclusive
d. Share it with your doctor or healthcare provider
Once your results appear in the Health Mate app, you can
share it with your doctor or healthcare provider by simply
tapping “Share PDF” and a medical-grade document in a
PDF format will be available to be read by your specialist
to help them with a diagnosis.

2120
4. Activity tracking

2322 23
Move ECG is a complete activity tracker that can
automatically recognize activities including walking,
running, and swimming.
Move ECG can also detect more than 30 additional
activities, including tennis, basketball, and dance. If you
participate in any sport that isn’t walking, running or
swimming, the app will ask you to confirm your sport so
you can assign it manually. Move ECG then learns to
automatically detect these activities based on your
movements.
To discover more options, simply connect to the Health
Mate app, where you can easily view your history and
progress at any time.
23
a. Workout Mode
Whether you’re into yoga, playing volleyball, boxing,
skiing, or playing ice hockey, Move ECG tracks up to 30
activities. Press and hold the side button to start your
workout. Afterwards, find the summary of your workout
in the Health Mate app to assign or confirm the activity
you have done. Your workout overview will show you the
duration, calories burned, and elevation.
b. Connected GPS
Connected GPS means that when participating in any
distance-based activity with your smartphone, you will
be able to track the route you have covered on a map in
Health Mate. Also, you will see additional workout metrics,
including pace and distance, while walking, running, or
cycling. These metrics will be displayed in real time
during the workout on your phone.
To use connected GPS, Move ECG needs to be connected
via Bluetooth. You must also enable the location settings
on your smartphone.
c. Altimeter
Move ECG has an embedded altimeter to track stairs
climbed, and motivate you to achieve better health.
In the Health Mate app, you’ll find the number of stairs
you have climbed.

2524
5. Sleep Score
& Smart Wake-up

2726
Retrieving my sleep data and setting Smart Wake-Up
You can retrieve and analyze sleep-related data from
your Move ECG within the Health Mate app to better
understand how to improve your nights.
Smart Wake-Up is an added feature that can wake you
up at the best time in your sleep cycle. Simply set a
window before your usual wake-up time, and Move ECG
will wake you up with a silent vibration during that
interval, when your sleep is lightest.
To set the alarm and Smart Wake-Up, tap Devices and
select Alarm.
Scroll up or down to set the alarm time
and then enlarge or reduce the Smart
Wake-Up bubble to set the window in
which you’d prefer to wake.
Sleep quality is a key factor in maintaining a healthy
lifestyle. We believe that if you understand your sleep,
you can be empowered to improve it. Move ECG provides
insights into your sleep patterns.
Move ECG automatically analyzes your sleep, as well as
the dierent parameters that can aect the quality and
quantity of your sleep. These parameters include:
• Breakdown of your night: time spent awake, duration
of light sleep cycle, duration of deep sleep cycle
• Time spent asleep
• Sleep Score
• Number of wake-ups
• Regularity
Every morning, when you wake to your Sleep Score in
the Health Mate app, you can learn about parameters
that impact your sleep, so you can know how to improve
your nights and your overall well-being.
The Sleep Score is a very simple and intuitive way to
understand how well you slept. Every night's sleep is
rated, with the best possible score being 100 points.

2928
6. Customizing
the bands

3130
• You can easily customize the wristband of your Move
ECG thanks to the quick-release spring bars with
which it is attached.
• The Move ECG comes with a silicone band, but you
can also accessorize with a wide selection of colorful
silicone and premium leather bands that are available
on our webstore.
• Move ECG requires wristbands that are 18mm wide.

3332
7. Cheat sheet

3534
• Atrial fibrillation (AFib) is one of the most prevalent
heart diseases.
• AFib can occur anytime & can present irregularly,
leading to underdiagnosis.
• AFib can be detected by an electrocardiogram, which
records the electric signals of your heartbeats.
• Withings Move ECG is the world’s first analog watch
to record a medical-grade electrocardiogram on
demand to detect AFib.
• In 30 seconds, check the Health Mate app to see
whether you show signs of AFib.
• Move ECG also tracks activity, elevation & sleep.
