Wolf DD45I User manual

Planning Information
Models DD45I and DD45R Downdraft Systems
Dimensions in parentheses are in
millimeters unless otherwise specified.
9/06
1
Model DD45I
Internal Blower
Model DD45R
In-Line or
Remote Blower
The cooktop downdraft unit rises from the countertop
to whisk away odors and smoke into the easy-to-clean,
five-layer mesh filter. The control module and top cover
come in classic stainless steel only and are included
with the downdraft.
Wolf downdraft ventilation systems are recommended
for use with Wolf electric and gas cooktops and
integrated modules, excluding the unframed electric
cooktops and electric grill, steamer and fryer modules.
Wolf downdraft systems cannot be used with Wolf dual
fuel ranges, gas ranges, sealed burner rangetops and
gas rangetops.
Model DD45I 45" (1143) downdraft
ventilation system includes a 500 CFM
internal blower. In-line and remote blower
options are available for Model DD45R.
Control module and top cover come in
classic stainless steel only and are
included with the downdraft.
9" (229) chimney
elevation
Top cover
Remote-mounted
control module
Location of rating
plate
Three-speed blower
control
Aluminum mesh
filters
Stainless steel filter
covers

Planning Information
Models DD45I and DD45R Downdraft Systems
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/ 8 " (3).
2
OVERALL DIMENSIONS
451/2"
(1156)
411/4"
(1048)
23/8"
(60)
91/16"
(230)
11/2" (38)
DEPTH OF
DOWNDRAFT CHIMNEY
FEATURES
Control module and top cover are available in
the classic stainless steel finish only
Remote-mounted control module
Internal, in-line and remote blower options
Three-speed blower control
Filter clean timer lets you know when the
filter needs cleaning
Delay-off feature automatically turns unit off,
chimney remains up
Stainless steel filter cover with dishwasher
safe aluminum mesh filter
LED indicators
9" (229) chimney elevation
Control module, top cover, mounting
brackets, DIN connector and necessary
hardware included with the downdraft
UL listed to US and Canadian safety
standards
Two and five year residential warranty –
exclusions apply; warranty information can
be found on our website, wolfappliance.com

Planning Information
Models DD45I and DD45R Downdraft Systems
Dimensions in parentheses are in
millimeters unless otherwise specified.
3

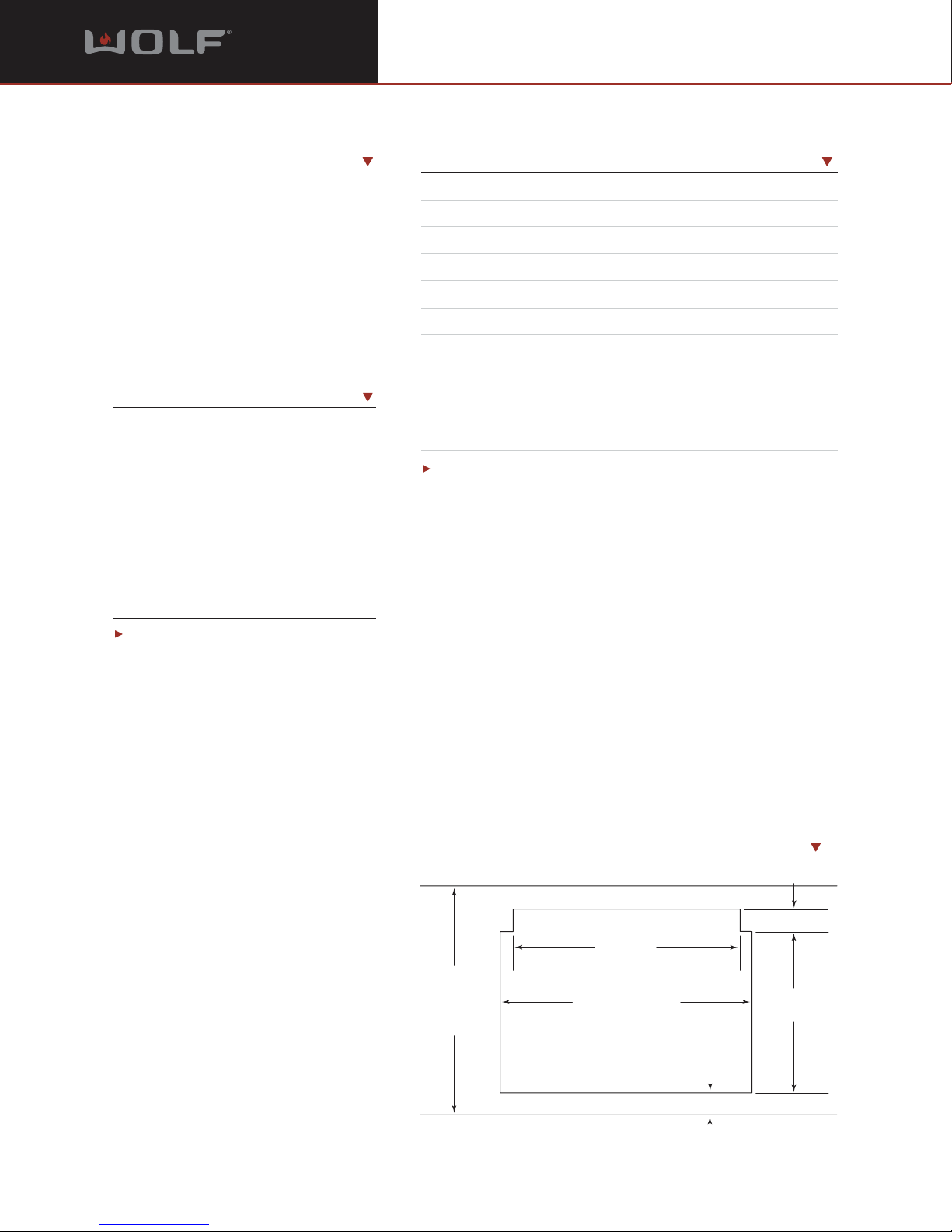

MODEL OPTIONS
Downdraft with 500 CFM
Internal Blower Included DD45I
Downdraft Only — In-Line or
Remote Blower Required DD45R
Control module, top cover, mounting
brackets, DIN connector and mounting
hardware included with the downdraft.
For Model DD45R see in-line and remote
blower options below.
BLOWER OPTIONS
1100 CFM In-Line Blower 808332
900 CFM Remote Blower 801641
1200 CFM Remote Blower 801642
1500 CFM Remote Blower 804701
Refer to the Wolf Cooktop Ventilation
Recommendations chart at the end of this
section.
ACCESSORIES
Transitions in various sizes
Accessories are available through your
Wolf dealer. To obtain local dealer
information, visit the Locator section of
our website, wolfappliance.com.
SPECIFICATIONS
Overall Width 451/2" (1156)
Overall Height (above countertop) 91/16" (230)
Overall Depth 2 3/8" (60)
Duct Size (Model DD45I) 31/4" (83) x 10" (254)
Duct Size (Model DD45R) 31/4" (83) x 14" (356)
Discharge Adjustable
Electrical Supply Requirements 110 /120 V AC, 60 Hz
15 amp dedicated circuit
Power Cord 21/2' (.8 m) power cord with
3-prong grounded plug
Shipping Weight 85 lbs (39 kg)
Specifications are subject to change without notice.
COUNTERTOP CUT-OUT
42" (1067)
21/2" MIN
(64)
23/4" (70)
COOKTOP CUT-OUT
WIDTH
251/8" MIN
(638)
FLAT
COUNTERTOP
SPACE
191/4"
(489)

Planning Information
Models DD45I and DD45R Downdraft Systems
Dimensions in parentheses are in
millimeters unless otherwise specified.
4
21/8" (54)
191/4" (489)
COOKTOP CUT-OUT
DEPTH
36"
(914)
23/8" (60)
251/8" MIN (638)
OF FLAT COUNTERTOP*
.344"
295/16"
(745)
COUNTERTOP
TO BOTTOM OF
AIR BOX
18"
(457)
35/8"
(92)
31/4"
(83)
5"
(127)
711/16"
(197)
5/8"
(16) 21/2" MIN
(64)
WITH NO
RAISED LIP*
*AREAS OF POTENTIAL INTERFERENCE
24" MIN (610)
CABINET DEPTH
13/4" MIN (45)
BACK EDGE
OF COOKTOP
TO INSIDE OF
CABINET BACK*
71/8"
(181)
451/2"min (1156)

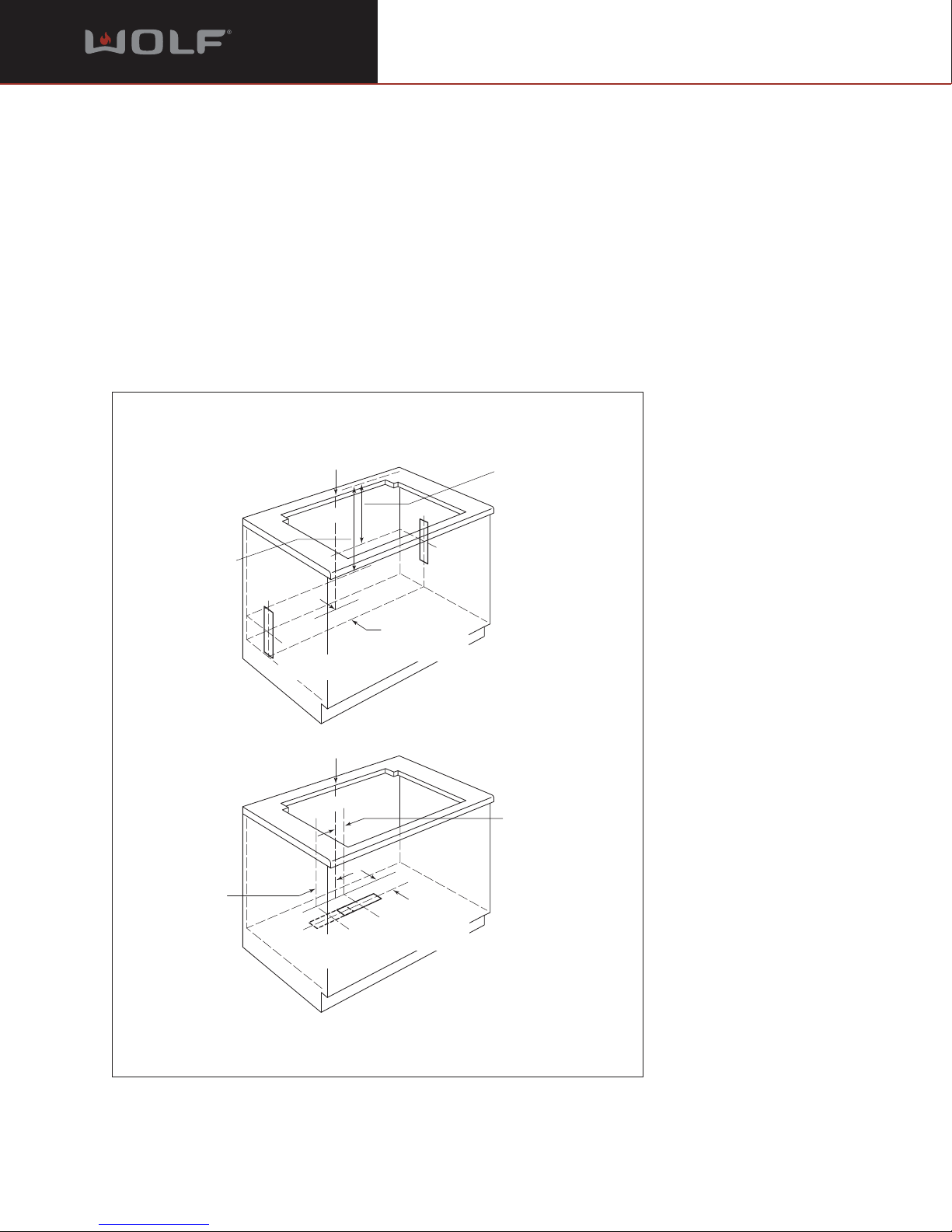

ELECTRICAL LOCATION
IN CABINET BACK
E
31/2" (89)
4"min (102)
10" (254)
24"min (610)
CABINET DEPTH
OPTIONAL
ELECTRICAL
LOCATION IN
ADJACENT RIGHT
SIDE CABINET
E
LOCATION OF ELECTRICAL
DIMENSIONS
Downdraft Cut-Out Width 42" (1067)
Minimum Cabinet Width 451/2" (1156)
Downdraft Cut-Out Depth 2 3/4" (70)
Location of Electrical Within shaded area
See Installation Instructions shipped with unit for detailed specifications.

Planning Information
Models DD45I and DD45R Downdraft Systems
Dimensions in parentheses are in
millimeters unless otherwise specified.
5
INSTALLATION NOTES
Refer to the illustrations and specifications
for overall dimensions and installation specifics.
Wolf downdraft ventilation systems are
recommended for use with Wolf electric and
gas cooktops and integrated modules, excluding
the grill, steamer and fryer modules. The down-
draft should be at least as wide as the cooking
surface.
IMPORTANT NOTE: Wolf downdraft ventilation
systems cannot be used with Wolf dual fuel
ranges, gas ranges, sealed burner rangetops
and gas rangetops. A Wolf Pro ventilation hood
should be used.
The 45" (1143) downdraft will fit most 45"
(1143) wide cabinets. Cabinet backs may need
to be removed. It is recommended that over-
sized cabinets be used for easier installation.
To incorporate a downdraft system and a
Wolf cooktop, you must allow for a minimum
251/8" (638) flat counter space from front to
back. A countertop with a raised lip and/or
backsplash may not allow enough space for
proper installation. 2 3/8" (60) of flat countertop
is required behind the cooktop and 13/4" (44) is
necessary between the back edge of the
cooktop and inside of cabinet back. Follow
dimensions given in the Countertop Cut-out
illustration on page 3.
Model DD45I has a 500 CFM internal blower.
Model DD45R is shipped without the blower
assembly. In-line and remote blower assemblies
are available. Blower options vary with the
volume of air that needs to be moved and the
length of the duct run. Refer to the charts at the
end of this section for cooktop ventilation
recommendations and blower options.
IMPORTANT NOTE: Install this downdraft only
with a Wolf blower.
Wolf downdraft ventilation systems require a
separate, grounded 120 V AC, 60 Hz power
supply. The service should have its own 15
amp circuit breaker and a grounded 3-prong
receptacle should be located within the reach of
the 2' (.6 m) power cord. The specific location
of the outlet is not critical, as long as it is
within reach of the power cord that is located
mid-way, top and bottom on the right side of
the downdraft.
If the 45" (1143) downdraft is being installed
in a 45" (1143) wide cabinet, the outlet cannot
be located on the back wall of the cabinet. It is
recommended that the outlet be placed in an
adjacent cabinet within reach of the power
cord. Refer to the Location of Electrical illustra-
tion on page 4.
IMPORTANT NOTE: A ground fault circuit
interrupter (GFCI) is not recommended and may
cause interruption of operation.
You must follow all National Electrical Code
regulations. In addition, be aware of local codes
and ordinances when installing your service.
This appliance must be used with a Wolf
approved remote mounted control module and
top cover, which is included with the down-
draft.
Installation of the control module must be
within 10' (3 m) of the downdraft assembly and
a minimum of 4" (102) from the outer edge of
cooktop element or burner. You will be required
to drill three holes and connect the two units
by the provided wire.
Refer to the installation instructions
shipped with each Wolf product for detailed
specifications.

Planning Information
Models DD45I and DD45R Downdraft Systems
6
Dimensions in parentheses are in
millimeters unless otherwise specified.
DUCTING CONSIDERATIONS
Except for Models DD30I, DD36I and DD45I,
which include a 500 CFM internal blower, Wolf
downdrafts are shipped without the blower
assembly. In-line and remote blower assemblies
are available through your Wolf dealer. To obtain
local dealer information, visit the Locator section
of our website, wolfappliance.com.
IMPORTANT NOTE: Install this downdraft
ventilation system only with a Wolf blower.
Wolf downdraft systems have an adjustable
discharge that will allow you to negotiate
ducting around floor joists and other obstacles.
Three different discharge locations are available
with side to side adjustment for accurate align-
ment of ductwork. Refer to the illustration below
for discharge location options.
DISCHARGE CUTOUT
DIMENSIONS:
101/4" (260) x 31/2" (89)
INTERNAL BLOWER
141/4" (362) x 31/2" (89)
REMOTE BLOWER
CENTERLINE OF COUNTERTOP CUTOUT 163/8" (416)
INTERNAL BLOWER
211/2" (546)
REMOTE BLOWER
51/2" (140)
INTERNAL BLOWER
41/4" (108)
REMOTE BLOWER
CL
221/8" (562)
INTERNAL BLOWER
19" (483)
REMOTE BLOWER
RIGHT
DISCHARGE
LOCATION
LEFT
DISCHARGE
LOCATION
CENTERLINE OF COUNTERTOP CUTOUT
51/2" (140)
INTERNAL BLOWER
41/4" (108)
REMOTE BLOWER
CL
NOTE: Measurements are to centerline of duct cutouts
ADJUSTMENT:
5" MAX (127)
REMOTE BLOWER
ADJUSTMENT:
1" (25) - 7" (178)
INTERNAL BLOWER
21/2" MAX (165)
REMOTE BLOWER
BOTTOM
DISCHARGE
LOCATION
Discharge location
options for internal and
remote blower models.

Planning Information
Models DD45I and DD45R Downdraft Systems
7
Dimensions in parentheses are in
millimeters unless otherwise specified.
DUCTING CONSIDERATIONS
For best performance, 10" (254) round ductwork
is recommended. The downdraft will operate
most efficiently when ductwork does not exceed
40' (12 m) in length. Consult a qualified HVAC
engineer for specific ducting applications.
IMPORTANT NOTE: All Wolf downdrafts must
be vented to the outside. Use only metal
ductwork.
12" MIN
TO
GROUND
WALL CAP
INTERNAL BLOWER
INSTALLATION THROUGH WALL
REMOTE BLOWER
ROOF MOUNT INSTALLATION
12" MIN
TO
GROUND
INTERNAL BLOWER
INSTALLATION THROUGH WALL
12" MIN
TO
GROUND
10"
ROUND
REMOTE BLOWER
INSTALLATION THROUGH WALL
REMOTE
BLOWER
REMOTE
BLOWER
10"
ROUND
Ducting options for
downdraft Models DD45I
and DD45R.
Choose the ducting option that allows the
shortest length of ductwork and a minimum
number of elbows and transitions. Refer to the
illustration below for ducting options.
Refer to the cooktop ventilation charts at the end
of this section for recommendations and blower
options.

Planning Information
Wolf Ventilation Recommendations
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/ 8 " (3).
8
241/2"
(622)
151/2"
(394)
281/4"
(718)
203/4"
(527)
243/4"
(629)
14"
(356)
43/4"
(121)
10" (254)
Diameter
143/4"
(375)
291/2"
(749)
291/2"
(749)
18" (457)
22"
(559)
101/8"
(257)
71/4"
(184)
10"
(254)
10" (254)
Diameter
Remote BLOWER-60REM and
BLOWER-90REM
143/4"
(375)
291/2"
(749)
291/2"
(749)
21" (533)
25"
(635)
103/8"
(264)
71/4"
(184)
10"
(254)
10" (254)
Diameter
WOLF BLOWER ASSEMBLIES
A ventilation system must include a blower
assembly. With a few exceptions where internal
blowers are included, Wolf ventilation hoods and
downdrafts are shipped without the blower
assembly. An internal, in-line or remote blower
assembly must be selected to accommodate the
cooking appliance, CFM requirements and home-
owner preferences. Internal, in-line and remote
blower assemblies are available as sales acces-
sories through your Wolf dealer.
Wolf internal, in-line and remote blowers are for
use with Wolf cooktop hoods, downdraft
systems and Pro ventilation hoods and hood
liners.
IMPORTANT NOTE: Use only a Wolf blower
with all Wolf ventilation products.
Internal blowers are mounted inside the hood
canopy or downdraft blower box. In-line blowers
are mounted in between the hood and the
exterior of the home. Remote blowers can be
mounted on the roof or in some cases, on an

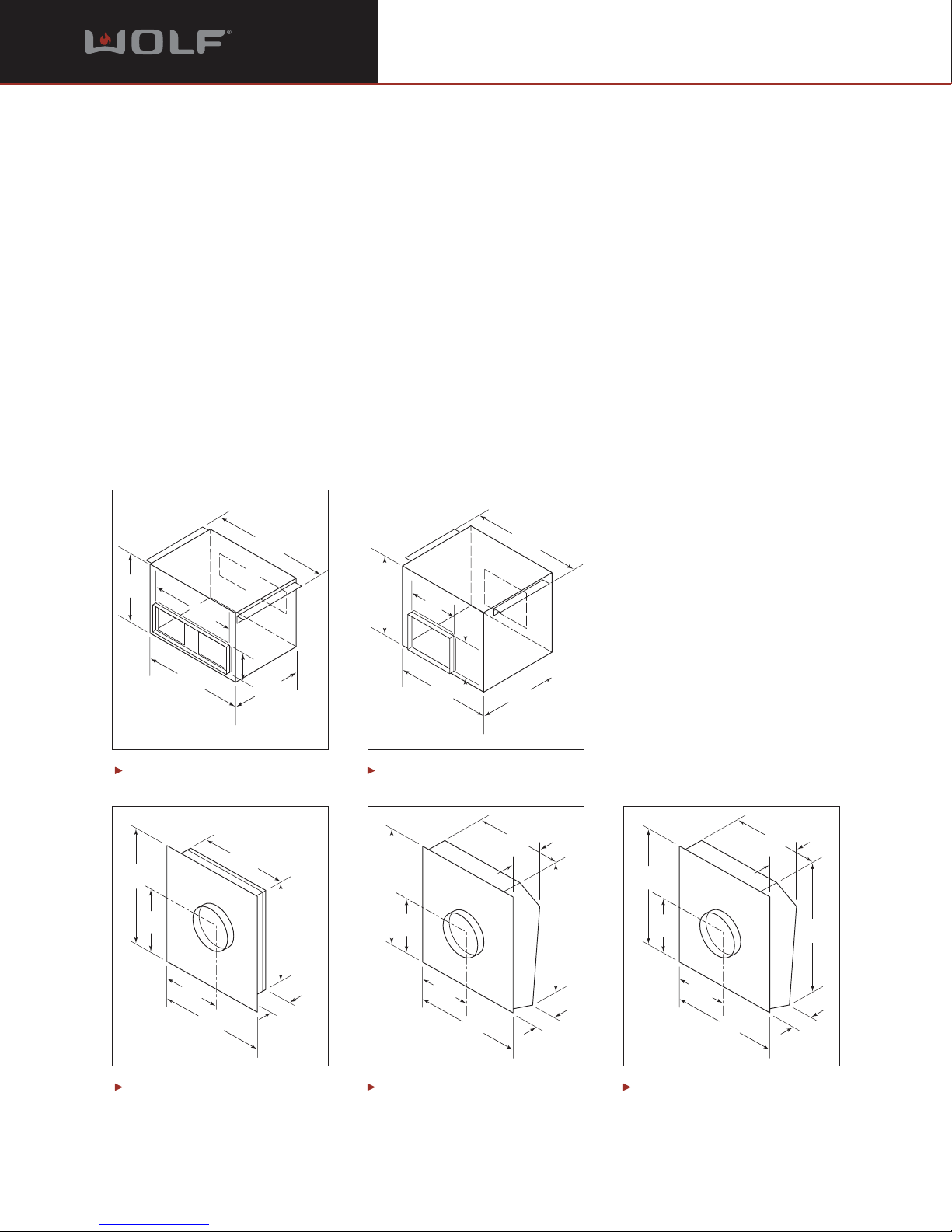

exterior wall. Refer to the illustrations below for
dimensions of Wolf in-line and remote blowers.
Ventilation recommendation charts on the
following pages provide minimum CFM recom-
mendations according to the cooking appliance
and ventilation system used and blower options
for each specific ventilation hood or downdraft.
Remote BLOWER-120REM Remote BLOWER-150REM
113/4"
(298)
211/2"
(546)
243/8"
(619)
181/2"
(470)
121/4"
(311)
41/2"
(114)
18"
(457)
22"
(559)
247/8"
(632)
12"
(305)
18"
(457)
8"
(203)
In-line BLOWER-60IL In-line BLOWER-110IL

Planning Information
Wolf Cooktop Ventilation Recommendations
9
Dimensions in parentheses are in
millimeters unless otherwise specified.
COOKTOP VENTILATION CFM RECOMMENDATIONS
Cooktop Hoods, Downdrafts and Pro Hoods
CTWH30 CTWH36 IH4227 DD30 DD36 DD45 Pro Hoods
Electric Cooktops
Model CT15E 215* 215* 215* 215* 150* 215*
Model CT30E 450 600 600 500 350 600
Model CT30EU 450 600 600 600
Model CT36E 600 600 500 600
Model CT36EU 600 600 600
CTWH30 CTWH36 IH4227 DD30 DD36 DD45 Pro Hoods
Gas Cooktops
Model CT15G 215* 215* 215* 215* 150* 215*
Model CT30G 450 600 600 500 350 600
Model CT36G 600 600 500 600
CTWH30 CTWH36 IH4227 DD30 DD36 DD45 Pro Hoods
Modules
Model CT15I 215* 215* 215* 215* 150* 215*
Model IG15 215* 215* 215* 215*
Model IS15 215* 215* 215* 215*
Model IF15 215* 215* 215* 215*
Model IM15 215* 215* 215* 215* 150* 215*
*Use these requirements to determine total CFM when installing multiple cooktops or modules.
CFM recommendations are based on total Btu/hr output. Wolf recommends 1 CFM per 100 Btu/hr (.03 kW).
Additional CFM may be required for long duct runs.
COOKTOP VENTILATION BLOWER OPTIONS
Downdraft Systems
Blower Description Blower Number Downdraft Models
500 CFM Internal Included with (I) Models DD30I / DD36I / DD45I
1100 CFM In-Line BLOWER-110IL (808332) DD30R / DD36R / DD45R
900 CFM Remote BLOWER-90REM (801641) DD30R / DD36R / DD45R
1200 CFM Remote BLOWER-120REM (801642) DD30R / DD36R / DD45R
1500 CFM Remote BLOWER-150REM (804701) DD30R / DD36R / DD45R
Adjustable discharge. 3
1
/ 4 " (83) x 10" (254) duct for internal blower, no transition required. 3
1
/ 4 " (83) x 14" (254) duct for in-line and
remote blowers. TRANS-14-10 required for remote blowers.
Blower configurations are for reference only. Refer to minimum CFM recommendations for your specific cooking product.
Always consult a qualified HVAC Engineer for specific applications.
