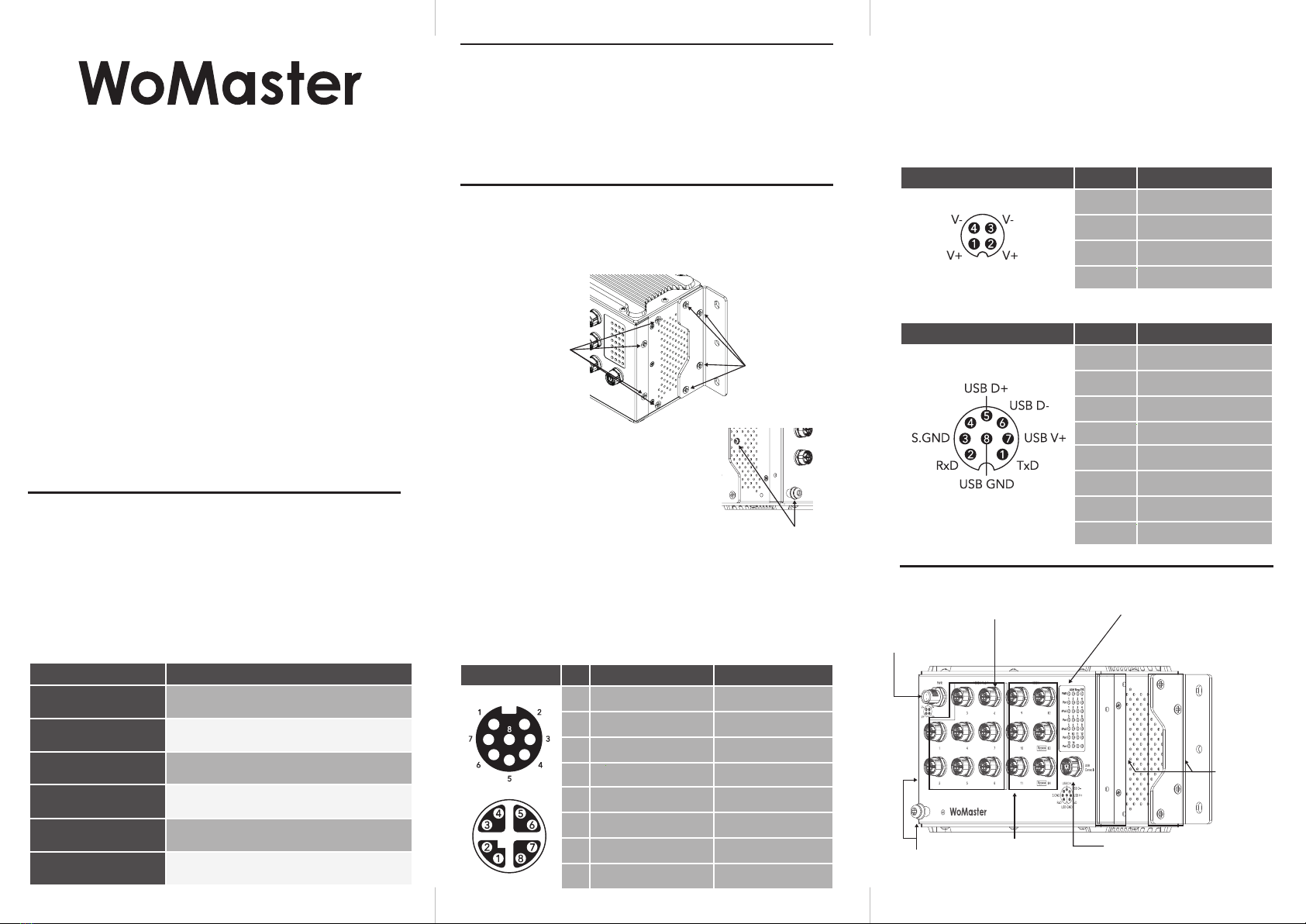

WoMaster MP614 Series User manual

Industrial 14G L3 Managed M12
PoE Switch
MP614 Series
・  Overview
・  Installation
・  Appearance
MP614-HV-A
Model Name
MP614-HV-X
MP614-MV-A
MP614-MV-X
Description
Industrial 14G L3 Managed M12 A-code
PoE Switch, 110V
Industrial 14G L3 Managed M12 X-code
PoE Switch, 110V
Industrial 14G L3 Managed M12 A-code
PoE Switch, 54V
Industrial 14G L3 Managed M12 X-code
PoE Switch, 54V
MP614-WV-A
MP614-WV-X
Industrial 14G L3 Managed M12 A-code
PoE Switch, 24-110V
Industrial 14G L3 Managed M12 X-code
PoE Switch, 24-110V
・  Package Checklist
www.womaster.eu
Quick Installation Guide
100/1000Base-T MP614-HV/MV/WV-A MP614-HV/MV/WV-XPin
1 D3- D1+/PoE V+
2 D4+ D1-/PoE V+
D4- D2+/PoE V-
D1-/PoE V+ D2-/PoE V-
D2+/PoE V- D4+
D1+/PoE V+ D4-
D3+ D3-
D2-/PoE V- D3+
3
4
5
6
7
8
The new exclusive MP614 Series is the first full Gigabit routing PoE switch
designed for Layer 3 network on rail public transport. Equipped with 14
rugged Gigabit M12 ports, 8 of which supply intelligent PoE/PoE+ and 2
of which with embedded link bypass function guarantees sustainable
connectivity in critical applications, even in case of device/power fault.
The advanced Layer 3 routing protocols such as IP/VLAN routing, RIP,
OSPF, VRRP are fully compatible with your backbone network. Full 14
Gigabit ports bring forward an ultra speed connectivity without any
bottleneck. The comprehensive Cyber Security design safeguards the
network from outside intrusion.
Wall mounting
Follow the steps to install the wall-mounting plate:
1. Install the wall-mounting plate onto the side panel of the switch.
2. Tightened all of the screws well.
3. Use the hook holes at the corners of the wall mounting plate to hang the
switch on the wall.
100/1000Base-T, M12 8 pin A/X-Code Female
Grounding
There are two grounding screws on the device.
One is located on the front side of the switch
and the other one is located on the left side. For
avoiding system damage by noise or electric
shock, establish a direct connection between
the device and earth ground. Please refer to
Appearance Section.
MP614 Series Connector
MP614 Series Switch uses several types of M12 connector for the
power input, Gigabit ports and console port for management and
system backup. The connector is different from the common connector
in other switches. Below are some descriptions about the connector.
Wiring the Power Inputs
For DC power inputs (MP614-HV: 110VDC (77~137.5VDC) / MP614-MV:
54VDC (46~57VDC) / MP614-WV: 24/48/110VDC (16.8~137.5VDC))
1. Insert positive and negative wires into V+ and V- contacts respectively
of the M12 connector (Plug-side).
2. Tighten the nuts to prevent the loosening of the M12 connectors.
3. Power input supports power redundancy and polarity-reverse protec-
tion functions.
*The Power Supply is not included, please prepare one yourself.
www.womaster.eu
．1 x Product Unit
．1 x Wall Mount Kit (2 x Wall mount plate)
．1 x Quick Installation Guide
Optional Accessory for detailed information please refer to the Datasheet
．M12 A-code 4Gb USB disk for device configuration, firmware update
．Console Cable DB9 Male to M12-A-code Male, 1Meter
．Field assembled M12 connector, 4-pin, A-code
Wall Mounting Screw
on front side Wall Mounting Screw
on back side
Grounding Screw
Power Connector
・1 x M12 4 pin A-Code
Ground Screw
IEEE 802.3 af/at PoE
・8-port 100/1000MBase-T M12
8-pin A-Code or X-Code
Gigabit Ethernet
・6-port 100/1000MBase-T M12
8-pin A-Code or X-Code
・2-port with Bypass Function
(Port 13/14)
Easy System Management
・1 x M12 8 pin A-Code
・USB for Configuration/Firmware update
・RS232 console
Wall Mount
Screw Holes
for Front
/ Back
Panel
System LED
・1 x Power
・1 x System Status
・1 x Ring Status
・1 x ALM
・14 x Ethernet Port
・8 x PoE
Power Connector DescriptionPin
1 V+
2 V+
V-
V-
3
4
Console/ USB Port – M12 8 pin A-Code Female
Power Connector DescriptionPin
1 TX
2 RX
Signal Ground
N/A
3
4
5 USB Data+
6 USB Data-
USB Power 5V
USB GND
7
8

・  Management
・  Safety Precautions
．Turn off DC power input source before connecting the DC Power supply
module to the terminal block connectors. Do not turn-on the source of
DC power module and make sure all connections were well established,
then power on the DC source to powering the Switch device.
．Do make sure that models connect to the corresponding supply voltage.
The device is to be supplied by Limited Power Supply.
．The switch must be installed at Restricted Access Locations. The switch
is designed for Railway/Train on-board application.
．Do not touch the surface of the switch while it is performing PoE
function!
This device supports both in-band and out-of-band network management.
The user can either configure the device through the user friendly
Web/HTTPS management or remotely manage the device through the
network by console management or Telnet/SSH.
1. Preparation for Web management: First of all, verify that device is
properly installed in the network and that every PC of this network can
access the switch through the web browser (Google Chrome, Internet
Explorer or Mozilla Firefox).
・ Type http://IP_address in your browser (the default IP address is
http://192.168.10.1/)
・Key in the user name and password in login screen. The default user
name and password is admin.
・After you click OK, the Welcome page of the web-based management
interface will appear.
・On the left side you can see the list of software features, on the right
side – available settings.
。To link with the device, please make sure that the IP Address of the PC
is located in the same subnet (192.168.10.x).
2. Preparation for Telnet/SSH management: You can connect to the
device by Telnet and the command lines are the same as what you see by
console management. Below are the steps to open Telnet connection to the
switch.
・Start -> Open Command prompt ->Enter
・Type the Telnet 192.168.10.1 (or the IP address of the switch). And then
press Enter.
SSH (Secure Shell)
The device also supports SSH console. You can remotely connect to the
switch to access command line interface. The SSH connection can secure
all the configuration commands you sent to the switch.
SSH is a client/server architecture while the Switch is the SSH server.
When you want to make SSH connection with the switch, you should
download the SSH client tool first.
・  Warranty
・  Disclaimer
・  Support
At WoMaster, you can use the online service forms to request the
support. The submitted forms are stored in server for WoMaster team
member to assign tasks and monitor the status of your service. Please
feel free to write to [e-mail] if you encounter any problems.
5-year Global warranties are available for WoMaster products assuring
our customers that the products shall remain free from defects in
workmanship or materials and conform in all material respects to WoMas-
ter specifications, or Purchaser’s supplied and accepted specifications.
The warranty is limited to the repair and/or replacement, at WoMaster sole
discretion, of the defective product during its warranty period. The custom-
er must obtain a Return Merchandise Authorization (RMA) approval
code prior to returning the defective Product to WoMaster for service. The
customer agrees to prepay shipping charges, to use the original shipping
container or equivalent, and to insure the Product or assume the risk of
loss or damage in transit. Repaired or replaced products are warranted for
ninety (90) days from the date of repair or replacement, or for the remain-
der of the original product's warranty period, whichever is longer.
SSH Client
There are many free, sharewares, trials or charged SSH clients you can
find on the internet.
。For further feature configurations, please refer to User Manual.
WoMaster reserves the right to make changes to this QIG or to the
product hardware at any time without notice. It is the user’s responsibility
to determine whether there have been any such updates or amendments
herein.
Defects, malfunctions, or failures of the warranted Product(s) caused by
damage resulting from unforeseeable incidents (such as lightings, floods,
fire, etc.), environmental and atmospheric disturbances, other external
forces such as power line disturbances and surge, host computer
malfunction and virus, incorrect power input, or incorrect cabling, incorrect
grounding and damages caused by misuse, abuse and unauthorized
alteration or repair are not warranted.
www.womaster.eu© WoMaster Inc. All rights reserved.
・  LED Indication
LED
PWR
System LED
Ring LED
Status
Green On
Off
Off
Off
DC-IN Power is On
No Power in DC-IN
Alarm
Amber On
Off
PoE is delivered
PoE is Disabled
PoE LED
(Port 1-8)
Green On
Green Blinking
Links established
Packets transmitting/receiving
Green On
Green Blinking
Amber Blinking
Amber On
Ring Normal (Not RPL Owner)
Ring Normal (RPL Owner)
Ring Abnormal
Ring Port Fail
Ring Disabled
Green On
Green Blinking
Ready
Firmware Updating
Not Ready
Ethernet
LNK/ACT
(Port1-14)
Off Link is inactive
Off
Red On
Any failures in port link, ping,
ring, DO and power by
SW control
No failure occurs
Description
V1.0 Apr 30, 2018 3160-0MP6140-00
