Woodpecker Endo Smart+ User manual

Contents
1 Product introduction.............................................................................. 1
2 Installation ............................................................................................ 5
3 Function and operation of product .................................................... 11
4 Operation instruction ......................................................................... 13
5 Troubleshooting .................................................................................. 25
6 Cleaning, Disinfection and Sterilization............................................. 26
7 Storage, maintenance and transportation ........................................... 35
8 Environmental protection ................................................................... 36
9 After service ....................................................................................... 36
10 Symbol instruction ........................................................................... 36
11 Statement .......................................................................................... 37
12 EMC-Declaration of conformity....................................................... 37

1
Note: the description on reciprocating mode is only applicable
for the device that has reciprocating mode.
1 Product introduction
1.1 Preface
Guilin Woodpecker Medical Instrument Co., Ltd is a professional
manufacturer researching, developing, and producing dental products.
Woodpecker owns a sound quality control system. Guilin Woodpecker
Medical Instrument Co., Ltd has two brands, Woodpecker and DTE.
Its main products include Ultrasonic Scaler, Curing light, Apex locator,
Ultrasurgery, Endo Motor, etc.
1.2 Product description
Endo Smart + is mainly used in Endodontic treatment. It is a cordless
endo motor which can be connected to the matched Apex locator to add
an apex locator function. It can be used as a endo motor for preparation
and enlargement of root canals. By connecting the endo motor to the
matched Apex locator, the position of the le tip inside the canal can be
monitored during the procedure and many automatic functions such as
Apical Slow Down can be activated.
Features:
a) Use efficient brushless motor, bringing lower noise and longer
service life.
b) Cordless portable endo motor which can be connected to the
matched Apex locator.
c) The contra angle can be rotated for 360°.
1.3 Model and specication
Endo Smart +
Please refer to packing list for device congurations.

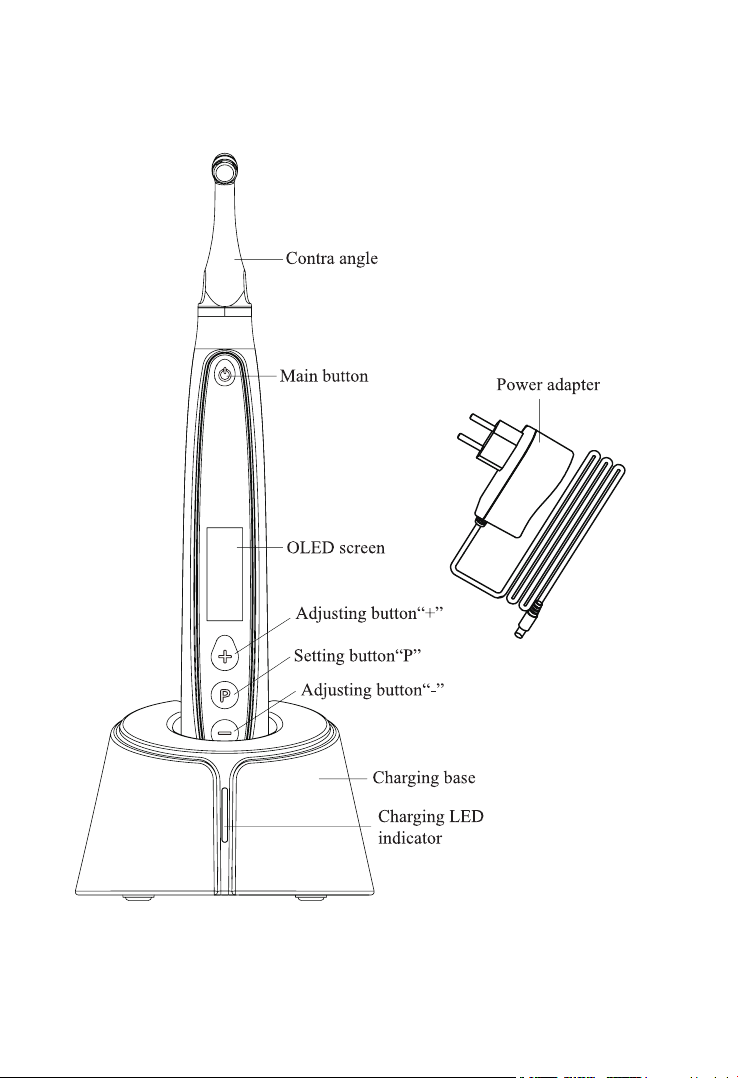

1.4 Performance and composition
The device is composed of charging base, motor handpiece, contra
angle, USB wire, power adapter, protective silicon cover, etc.

2

3
1.5 Scope of application
1.5.1 The device can be used for preparation and enlargement of root
canals, or connect to the matched Apex locator to add a canal measur-
ement function.
1.5.2 The device must be operated in hospital and clinic by the qualied
dentists.
1.6 Contraindication
a) The doctor with a pacemaker is disabled.
b) patients with cardiac pacemakers (or other electrical equipment)
are warned not to use small appliances (such as Electric razors, hair
dryers, etc.) patients are disabled.
c) Hemophilia patients are banned.
d) Use with caution in patients with heart disease, pregnant women
and young children.
1.7 Warnings
1.7.1 Please carefully read this Instruction Manual before first
operation.
1.7.2 This device should be operated by professional and qualified
dentist in qualied hospital or clinic.
1.7.3 Do not directly or indirectly place this device near heat source.
Operate and store this device in reliable environment.
1.7.4 This device requires special precautions regarding
electromagnetic compatibility (EMC) and must be in strict accordance
with the EMC information for installation and use. Do not use this
equipment especially in the vicinity of fluorescent lamps, radio
transmitting devices, remote control devices, handheld and mobile high-
frequency communication devices.
1.7.5 Long time use of Reciprocating Mode may result in motor
handpiece overheat, thus it should be left to cool for use. If the motor
handpiece is overheated frequently, please contact local distributor.
1.7.6 Please use the original contra angle. Otherwise it will not be
used or cause adverse consequences.
1.7.7 Please do not make any changes to the device. Any changes
may violate safety regulations, causing harm to the patient. There will be
no promises of any modication.
1.7.8 Please use original power adapter. Other power adapter will
result in damage to lithium battery and control circuit.
1.7.9 The motor handpiece cannot be autoclaved. Use disinfectant of

4
neutral pH value or ethyl alcohol to wipe its surface.
1.7.10 Before the contra angle stopping rotating, do not press the
push cover of contra angle. Otherwise the contra angle will be broken.
1.7.11 Before the motor handpiece stopping rotating, do not remove
the contra angle. Otherwise the contra angle and the gear inside motor
handpiece will be broken.
1.7.12 Please confirm whether the file is well installed and locked
before starting the motor handpiece.
1.7.13 Please set torque and speed as per the recommended
specications of le manufacturer.
1.7.14 Error in replacing lithium batteries can lead to unacceptable
risks, so please contact local distributors to replace the battery if
necessary.
1.7.15 Don't place the device in a position dicult to disconnect from
the network power.
1.7.16 Don't maintain the machine while in use.
1.7.17 Wireless charging will generate heat, and the surface
temperature of charging base and motor handpiece will rise. It is
recommended that the time of contacting motor handpiece and charging
base during wireless charging should not exceed 10 seconds.
1.8 Device safety classication
1.8.1 Type of operation mode: Continuous operating device
1.8.2 Type of protection against electric shock: Class II equipment
with internal power supply
1.8.3 Degree of protection against electric shock: B type applied part
1.8.4 Degree of protection against harmful ingress of water: Ordinary
equipment (IPX0)
1.8.5 Degree of safety application in the presence of a flammable
anesthetic mixture with air, oxygen, or nitrous oxide: Equipment cannot
be used in the presence of a flammable anesthetic mixture with air,
oxygen, or nitrous oxide.
1.8.6 Applied part: the le(sold separately).
1.8.7 The contact duration of applied part: 1 to 10 minutes.
1.8.8 The temperature of the surface of applied part may reach
46.6℃.

5
1.9 Primary technical specications
1.9.1 Battery
Lithium battery in motor handpiece: 3.7V /2000mAh
1.9.2 Power adapter (Model: ADS-6AM-06N 05050/UE08WCP-
050100SPA)
Input: ~100V-240V 50Hz/60Hz 0.4A Max
Output: DC5V/1A
1.9.3 Torque rang: 0.4Ncm-5.0Ncm（4mNm ~ 50mNm）
1.9.4 Speed rang: 100rpm~1200rpm
1.9.5 Wireless charging
Frequency range: 112-205KHz
Maximum RF output power of the product: 9.46dBuA/m@3m
1.10 Working environment parameters
1.10.1 Environment temperature: +5℃ ~ +40℃
1.10.2 Relative humidity: 30% ~ 75%
1.10.3 Atmospheric pressure: 70kPa ~ 106kPa
2 Installation

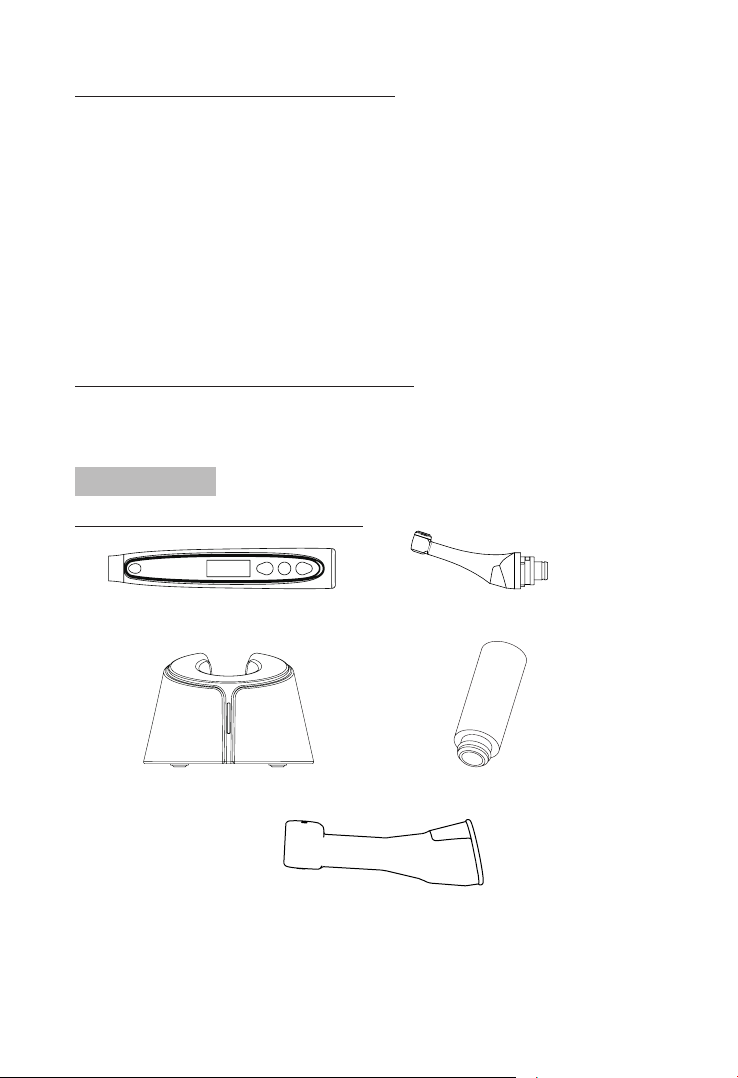

2.1 Basic accessories of product
Motor handpiece Contra angle
Charging base Nozzle
Protective silicon cover

6

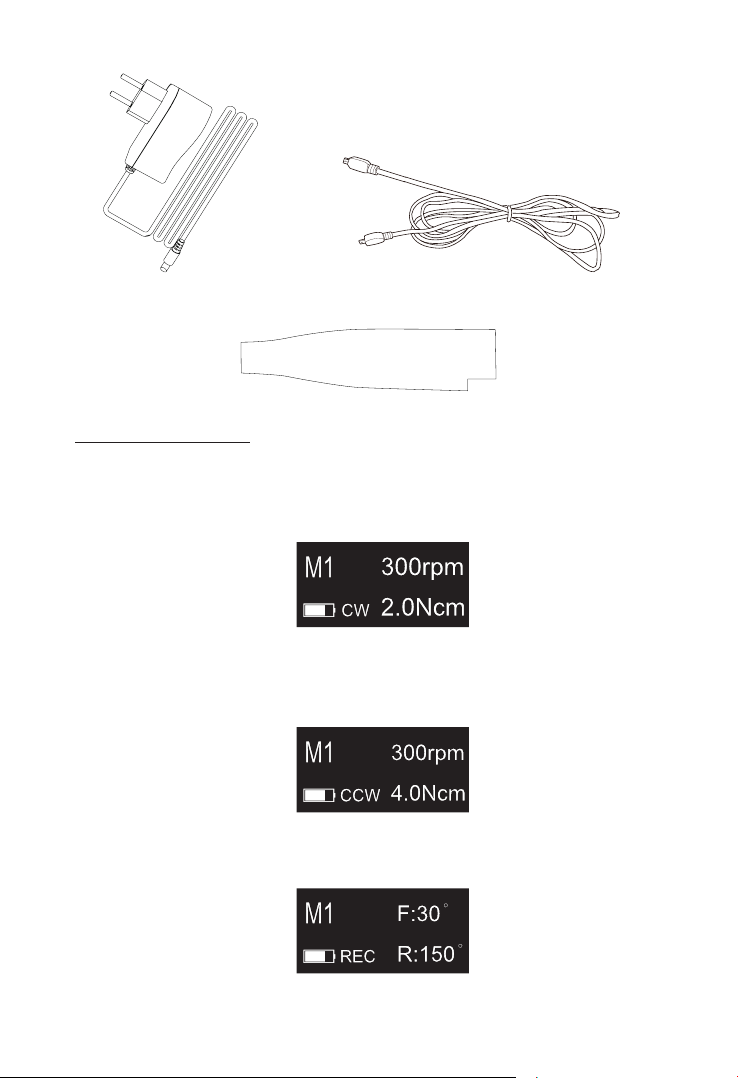

Power adapter USB Wire
Disposable insulation sleeves

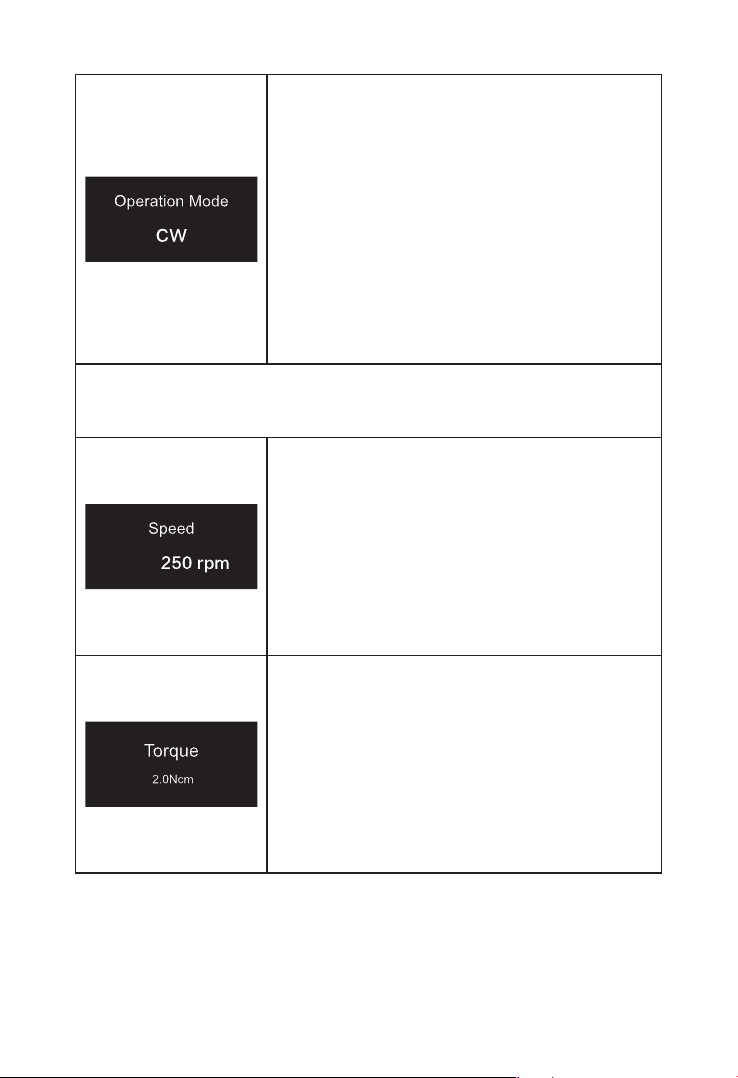

2.2 Display Screens
2.2.1 Display Screens for 4 Operation Modes and Standby
2.2.1.2 CW Mode
The motor handpiece rotates forward 360º, clockwise direction. Used
rotaty les likes WOODPECKER W3-Pro.
2.2.1.3 CCW Mode
The motor handpiece rotates counterclockwise direction only. This
mode is used to inject calcium hydroxide and other medicant. When this
mode is being used, a double-beep sounds continuously.

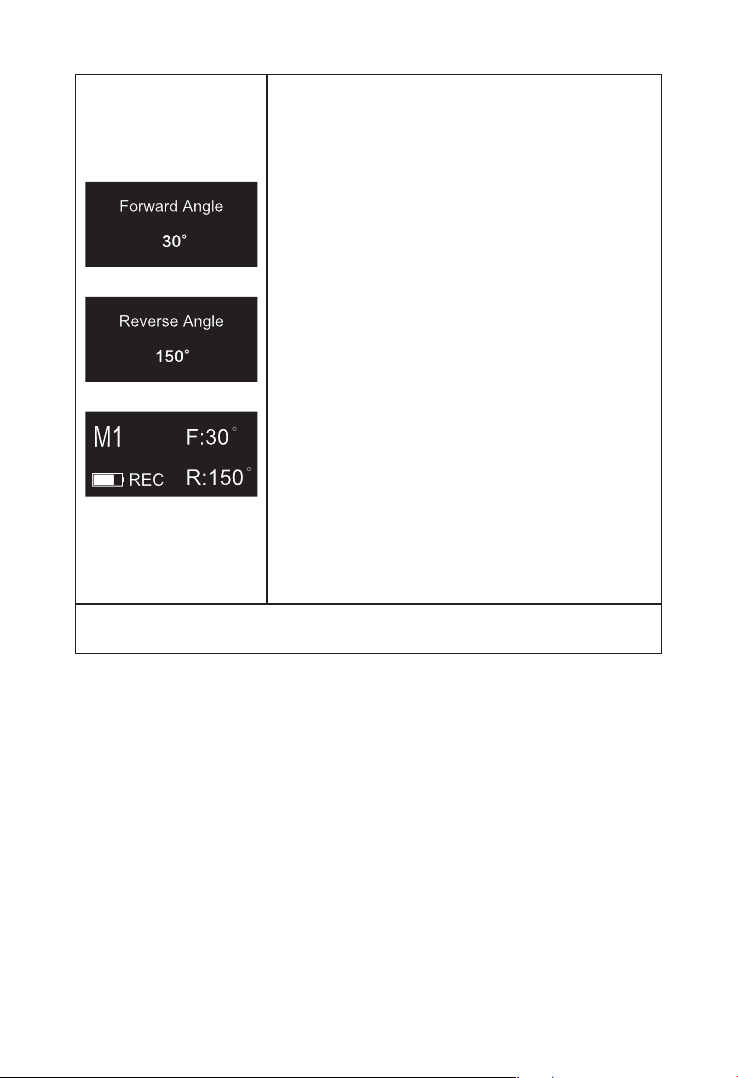

2.2.1.4 REC Mode
Reciprocating mode.
F: Forward angle, R: Reverse angle

7
Adjustable every 10 degrees, adjustment range: 20º-400º.
It is suggested that the difference between the forward angle and
reverse angle should be greater than or equal to 120 degrees, otherwise,
root canals cannot be prepared eectively.
Forward Angle<Reverse Angle, such as F: 30/R: 150, eective cutting
angle is Reverse Angle, it is suitable for used the reciprocating les likes
WOODPECKER W3-ONE.
Forward Angle>Reverse Angle, such as F: 180/R: 30, eective cutting
angle is Forward Angle, it is suitable for used the reciprocating les likes
SENDONELINE S1.
Torque limit: 2.0Ncm~5.0Ncm
Speed: 100rpm,150rpm, 200rpm, 250rpm, 300rpm, 350rpm, 400rpm,
450rpm, 500rpm.
2.2.1.5 ATR Mode
ATR: Adaptive Torque Reverse function.
Normal continuous forward rotation, the forward angle can be
stepped by 10°, the angle is set between 60°-400°, and the reverse angle
defaults to 20°-forward angle. When the load of the le is greater than
the set torque limit, the le will start to rotate alternately at the set angle.
Trigger torque: 0.4~4.0Ncm
Speed: 100rpm, 150rpm, 200rpm, 250rpm, 300rpm, 350rpm,
400rpm, 450rpm, 500rpm

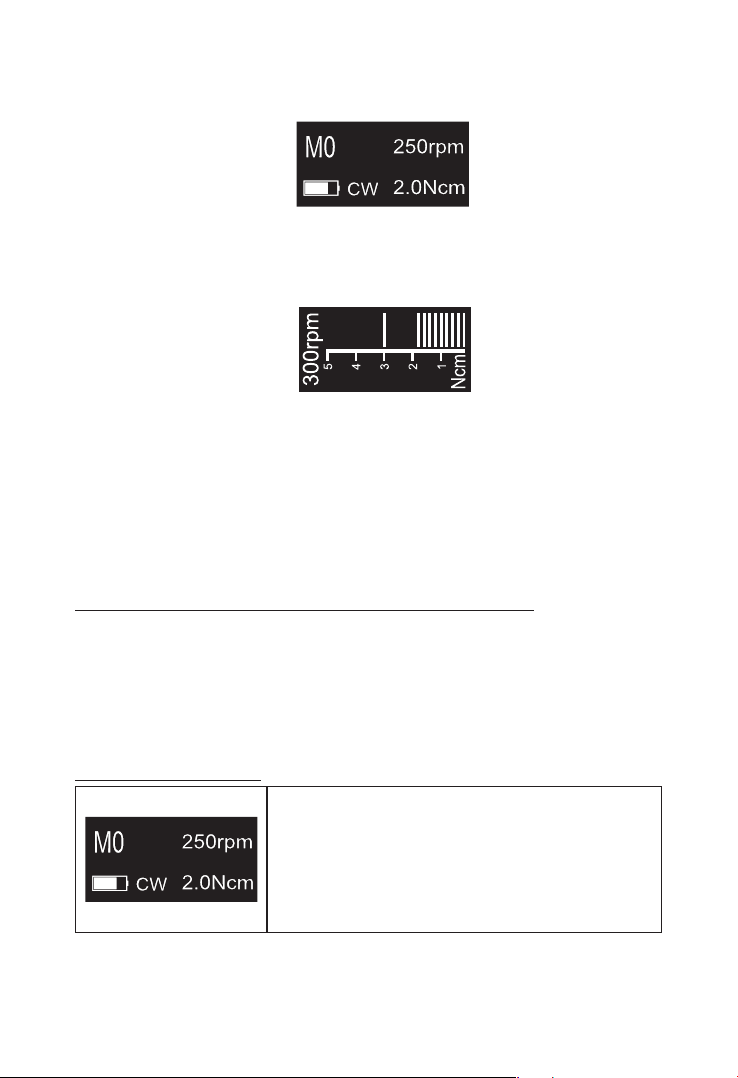

2.2.2 Torque Display
This appears when the motor is running. Meter shows the torque load
on the le.

8
2.2.3 Canal Measurement Display (Connected to the matched Apex
locator to add an apex locator function)
This appears when a file is inside the canal and the lip hook is
contacting the patient mouth. Bars in meter show the location of the le
tip.
The meter numbers 1.0, 2.0, 3.0 and digital numbers 00-16 do not
represent the actual length from the apical foramen. It simply indicates
the file progression towards the apex. The digital numbers -1 and -2
indicate that the le has passed the apex foramen. The digital number “00”
indicate that the file has reached the apex foramen. Subtract 0.5-1mm
from the measured le length as the working length. These numbers are
used to estimate the canal’s working length.
2.3 Instructions for contra angle
2.3.1 The contra angle adopts precision gear transmission, and the
transmission ratio is 6:1.
2.3.2 Before the first use and after treatments, please clean and
disinfect contra angle with disinfectant of neutral PH value. After
disinfection, lubricate it with specific cleaning oil. Finally, sterilize
it under high temperature and high pressure (134℃, 2.0bar~2.3bar
(0.20MPa~0.23MPa)).
2.3.3 The contra angle can only be used cooperatively with this
device. Otherwise the contra angle will be damaged.

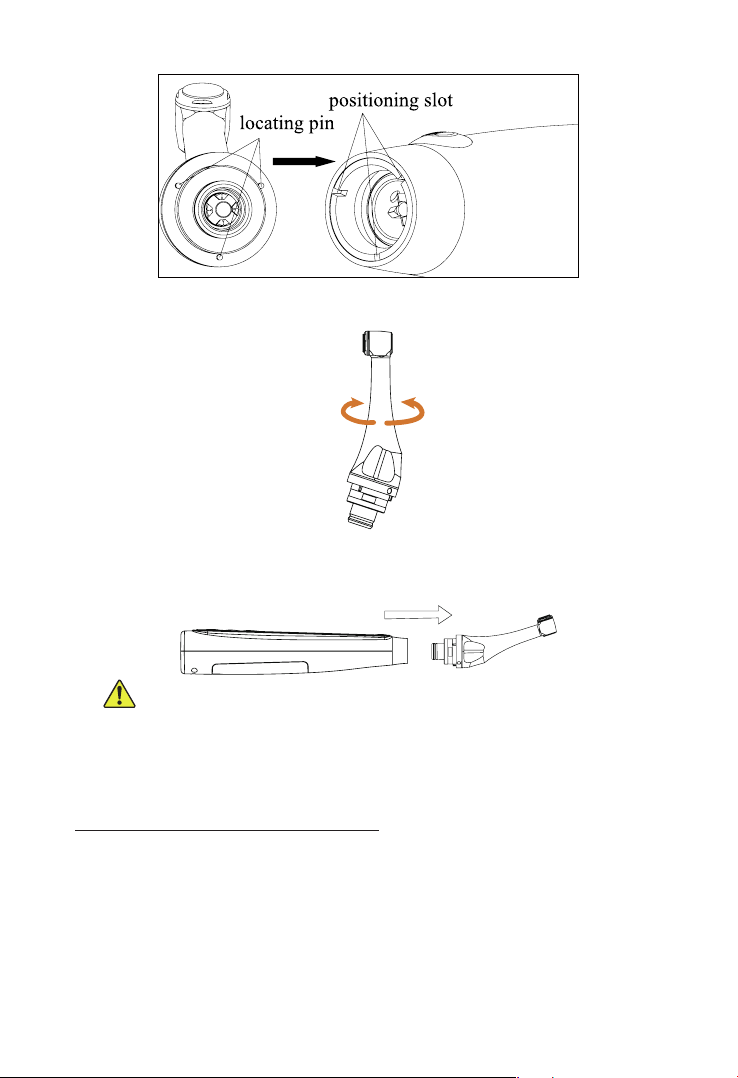

2.4 Installation and removal of contra angle.
2.4.1 Installation
Align any locating pin of the contra angle with the positioning slot
on the motor handpiece and push the contra angle horizontally. The
three locating pins on the contra angle are inserted into those three
positioning holes on the motor handpiece. A “click” sound indicates that
the installation is in place. The contra angle can be rotated 360° freely.

9
The contra angle rotates 360° so that the OLED display can always
be viewed easily.
2.4.2 Removal
Pull out the contra angle horizontally when the motor handpiece does
not run.
Warnings:
a) Before plugging in or pulling out contra angle, please rst stop the
motor handpiece.
b) After installation, please check and conrm that the contra angle
has been well installed.
2.5 Installation and removal of le
2.5.1 Installation of le
Before starting the device, plug the le into the hole of contra angle
head.
Hold down the push button on the contra angle and insert the file.
Turn the le back and forth until it is lined up with interior latch groove
and slips into place. Release the but-ton to lock the le into the contra
angle.

10
Warnings:
After plugging the file into contra angle, let go the hand on push
cover to assure that the le cannot be taken out.
Be careful when inserting les to avoid injury to ngers.
Inserting and removing files without holding the push button may
damage the chuck of contra angle.
Please use files with shanks meet the ISO standard. (ISO standard:
Ø2.334 – 2.350 mm)
2.5.2 Removal of le
Pressing the push cover, and then directly pull out the le.
Warnings:
Before plugging and pulling out the le, the motor handpiece must be
stopped.
Be careful when removing les to avoid injury to ngers.
Removing files without holding the push button will damage the
chuck of contra angle.
2.6 Installation and removal of disposable insulation sleeves
2.6.1 Installation
Before each use of the handpiece and after the handpiece is cleaned

11
and disinfected,put on a disposable isolation sleeve. Take the isolation
sleeve out of the isolation sleeve box, then insert the isolation sleeve into
the motor handpiece from the thin end of the handpiece, and install the
isolation sleeve until there is no obvious wrinkle.
After installing the disposable isolation sleeve, wrap the barrier lm
around the handpiece surface. After that, clean and disinfect the surface
of the handpiece. Refer to Chapter 6.3 for cleaning and disinfection
procedures.
2.6.2 Removing
After each use, remove the barrier lm and slowly pull the isolation
sleeve from the thin end of the handpiece.
Warming: Isolation sleeves are not reusable.
3 Function and operation of product
3.1 Button denition and settings
a. Turn power on
Press Main button to turn on motor handpiece.
b. Turn power o
Hold down the Setting button “P”, then press Main button to turn o
motor handpiece.
c. Customized program change
Press Adjusting button “+”/“-” during standby sate.
d. Parameter setting
Press Setting button “P” till target parameters, press Adjusting button
“+”/“-” to change, then press Main button or wait 5 seconds to conrm.
e. Preset program selection
Long press Setting button “P” to entry preset program during standby
state, press Adjusting button “+”/“-” to select le system , press Setting
button “P” to entry select le number, press Adjusting button “+”/“-” to
select le number, then press Main button to conrm.
f. Handpiece functions setting

12
With the motor handpiece turned o, hold down the Setting button “P”
and press Main button to entry handpiece functions setting, press Setting
button “P” till target setting, press Adjusting button “+”/“-” to adjust,
then press Main button to conrm.
3.2 Screen display
Standby interface
a. Customized program sequence
number 0-9, totally 10 programs.
b. Battery consumption
c. Set speed
d. Set torque
e. Operation mode
Working interface
a. Set speed
b. Set torque
c. Real time torque
d. Torque display scale
3.3 Terms and denition
CW Clockwise rotation, forward ration
Be applied to rotaty le
CCW
Counter clockwise rotation, reverse rotation
Be applied to special le, inject calcium
hydroxide and other solutions
REC
Reciprocating motion
Be applied to reciprocating le, path le and
rotary le protection by setting some special
angle.
ATR
Adaptive torque reverse
Up to setting torque, the motor will move with
reciprocating ATR mode ; when torque reduce to
normal value, the motor will clockwise rotate.

13
Forward Angle
Activating in REC and ATR operation mode.
ATR mode: adjustable every 10 degrees,
adjustment range: 60º-400º.
REC mode: adjustable every 10 degrees,
adjustment range: 20º-400º.
Reverse Angle
Activating in REC operation mode
Adjustable every 10 degrees, adjustment range:
20º-400º.
Activating in ATR operation mode
Adjustable every 10 degrees, adjustment range:
20º-forward angle.
Operation Mode
4 operation modes for canal shaping and
measurement.
Such as CW, CCW, REC and ATR.
Speed File rotation speed.
Torque
(Torque Limit /
Trigger Torque)
For CW and CCW modes, the torque value
(Torque Limit) that triggers reverse rotation. For
ATR mode, the torque value (Trigger Torque)
that triggers ATR action.
The options of such as Apical Action and Apical Slow Down are only
available when the matched Apex locator is connected.
AP Apical foramen.
Apical Action The le action when le tip reaches the ash bar
point.
Auto Start The le rotation starts automatically when the le
is inserted in the canal.
Auto Stop The le rotation stops automatically when the le
is taken out of the canal.
Apical Slow Down
The le slows down automatically as it
approaches the apex.
Activating in CW and CCW operation mode.
4 Operation instruction
4.1 Power on and power o
4.1.1 Starting and stopping of motor handpiece
a) Under the power o state of motor handpiece, press Main button,

14
and then the motor handpiece will enter Standby interface. The interface
displays are as follow:
Standby interface
b) Under Standby interface, press Main button, and then the motor
handpiece will enter Working interface. The interface displays are as
follow:
Working interface
c) Press the Main button again, and then the motor handpiece backs
to Standby interface.
d) Hold down the Setting button “P”, then press Main button to turn
o motor handpiece. In Standby Interface, the motor handpiece would
automatically shut down after 3 minutes without any button-pressing
operation. The motor handpiece will also automatically shut down while
it is put into the charging base.
4.2 Selecting customized program sequence number
The motor handpiece has 10 memory programs(M0-M9) and 5 preset
programs, press Adjusting button “+”/“-” to change customized program
sequence number during standby state.
M0-M9 is a memory program for canal shaping and measurement,
every memory program has its own parameters such as Operation mode,
speed and torque, all these parameters can be changed.
4.3 Parameter setting
Before starting of motor handpiece, please
check the operation mode is correct.
All the parameters must be set according to
les, make sure all the parameters are excepted
before starting of motor handpiece, otherwise
has risk of le separate.

15
It has 4 operation modes for canal shaping: CW,
CCW, REC and ATR(See chapter 3.3 Terms
and denition to get the explanations of these
modes.)
Press Setting button “P” once during standby
state, press Adjusting button “+”/“-” to select
correct Operation mode.
CCW mode is used to inject calcium hydroxide
and other medicant. When this mode is being
used, a double-beep sounds continuously,
used for indicating counter clockwise rotation
happening.
Repeatedly press Setting button “P” to check all the next level
parameters of this operation mode are expected, press Adjusting button
“+”/“-” to select if not.
The speed setting can be adjusted from 100 rpm
to1200 rpm.
Press Adjusting button “+”/“-” to increase or
decrease speed. Long press to fast increase or
fast decrease speed.
In ATR mode, speed of 100~500rpm are
available.
In REC mode, speed of 100~500rpm are
available.
The torque setting can be adjusted from 0.4Ncm
to 5Ncm.
Press Adjusting button “+”/“-” to increase or
decrease torque. Long press to fast increase or
fast decrease torque.
In ATR mode, the Trigger Torque of
0.4Ncm~4.0Ncm are available.
In REC mode, the torque of 2.0Ncm~5.0Ncm
are available.

16
Forward Angle: activating in REC and ATR
operation mode.
Reverse Angle: activating in REC and ATR
operation mode.
F: Forward Angle
R: Reverse Angle
Press Adjusting button “+”/“-” to change angle,
adjustable every 10 degrees.
It is suggested that the dierence between the
forward angle and reverse angle should be
greater than or equal to 120 degrees, otherwise,
root canals cannot be prepared eectively.
Forward Angle<Reverse Angle, such as F:
30º/R: 150º, eective cutting angle is Reverse
Angle, it is suitable for used the reciprocating
les likes WOODPECKER W3-ONE.
Forward Angle>Reverse Angle, such as F: 180º/
R: 30º, eective cutting angle is Forward Angle,
it is suitable for used the reciprocating les likes
SENDONELINE S1.
Remarks: only 60°~400° forward angles are
available in ATR mode.
The options of such as Apical Action and Apical Slow Down are only
available when the matched Apex locator is connected.

17
Actions that happen automatically when the le
tip reaches the point inside the canal determined
by the Flash Bar setting.
Benet from integration of length determination,
when the le reaches the reference point, the
motor will response according to setting, it can
be Reverse , Stop and OFF.
P ress Adjusting button “+”/“-” to change.
OFF: Disable Apical Action function, le
rotating as usual even if reach the reference
point.
Stop: automatically rotation stop when reach
the reference point, upward a little bit and will
rotate again.
Reverse: automatically reverses rotation when
reach or pass the reference point, upward a
little bit, the rotation direction will change back
again.
Rotation starts automatically when the le is
inserted into the canal and the canal length
indicator bar lights up more than 2 bars.
P ress Adjusting button “+”/“-” to change.
OFF: Motor does not start when le is inserted
into the canal. The Main button is used to start
and stop the motor handpiece.
ON: Motor starts automatically.
Rotation stops automatically when the le is
taken out of the canal and the canal length
indicator bar lights up less than 2 bars before the
le is taken out.
Press Adjusting button “+”/“-” to change.
OFF: Motor does not stop when le is taken out
the canal. The Main button is used to start and
stop the motor handpiece.
ON: Motor stops automatically.

18

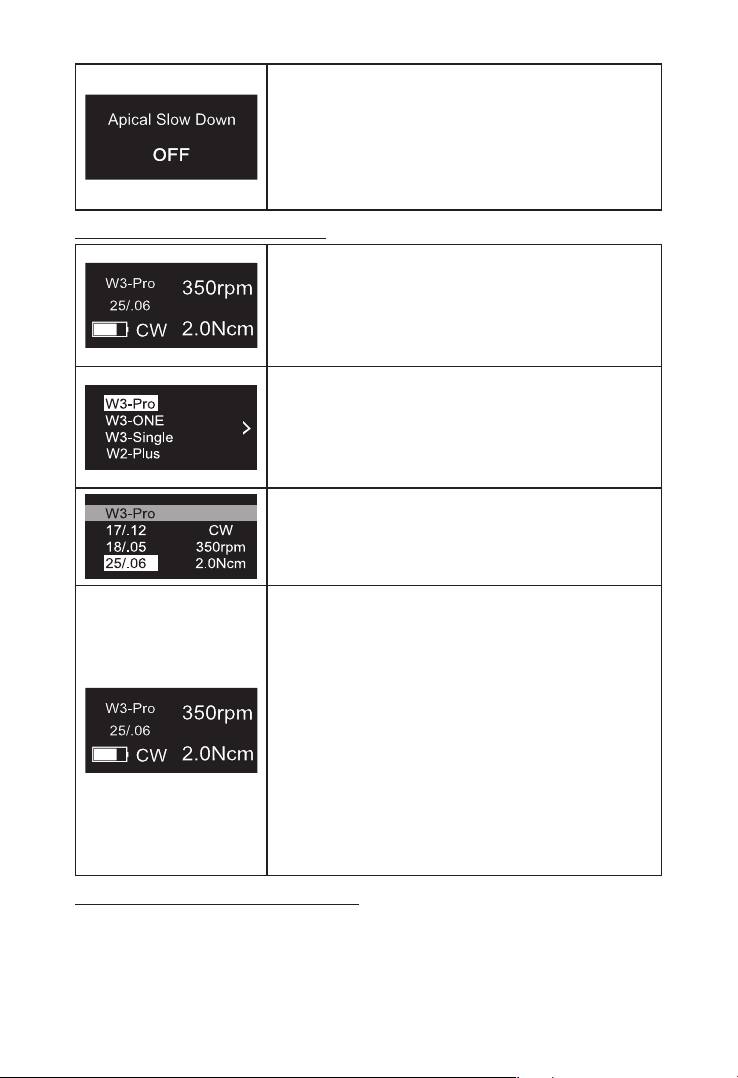

Rotation automatically slows down as the le
tip approaches the reference point.
P ress Adjusting button “+”/“-” to change.
OFF: Disable Apical Slow Down function.
ON: Rotation automatically slows down as the
le tip approaches the reference point.
4.4 Preset program selection
For convenience, we preset some common le
system.
Press Adjusting button “+”/“-” to switch to
preset program(M0-M9, preset program 1-5 ),
the interface will show as left.
Long press Setting button “P” to entry preset
program during standby state, the interface will
show as left.
Press Adjusting button “+”/“-” to select le
system.
After select le system, press Setting button
“P” to entry select le number, press Adjusting
button “+”/“-” to select le number, then press
Main button to conrm.
The parameters of "W3-Pro"can also be changed
make it dierent from default setting.
If want to change back to default setting, long
press Setting button “P” to entry preset program
during standby state, select "W3-Pro" and press
"Main" button to conrm, the default setting
will be reloaded, Turn o the motor handpiece
and then power on, the preset program can also
restore the default setting.
Changing the preset program default setting
is not recommended, otherwise has risk of le
separate.
4.5 Handpiece functions setting
With the motor handpiece turned o, hold down the Setting button “P”
and press Main button to entry handpiece functions setting, press Setting
button “P” till target setting, press Adjusting button “+”/“-” to adjust,
then press Main button to conrm.
