Woodpeckers MFT User manual
MFT Layout & Assembly Square
Owner’s Manual
The primary function of the Woodpeckers MFT Layout & Assembly
Square is to align the miter fence and the guide rail on the Festool
MFT table. However, it is also useful for setting 45 & 90-degree
angles on your table and miter saw, or larger bandsaw, as well as
clamping large workpieces.
If you think you’re missing anything, please email us at mailroom@
woodpeck.com. You can also call us at 440.238.1918 from 9:00 a.m.
to 5:00 p.m. EST Monday–Friday.

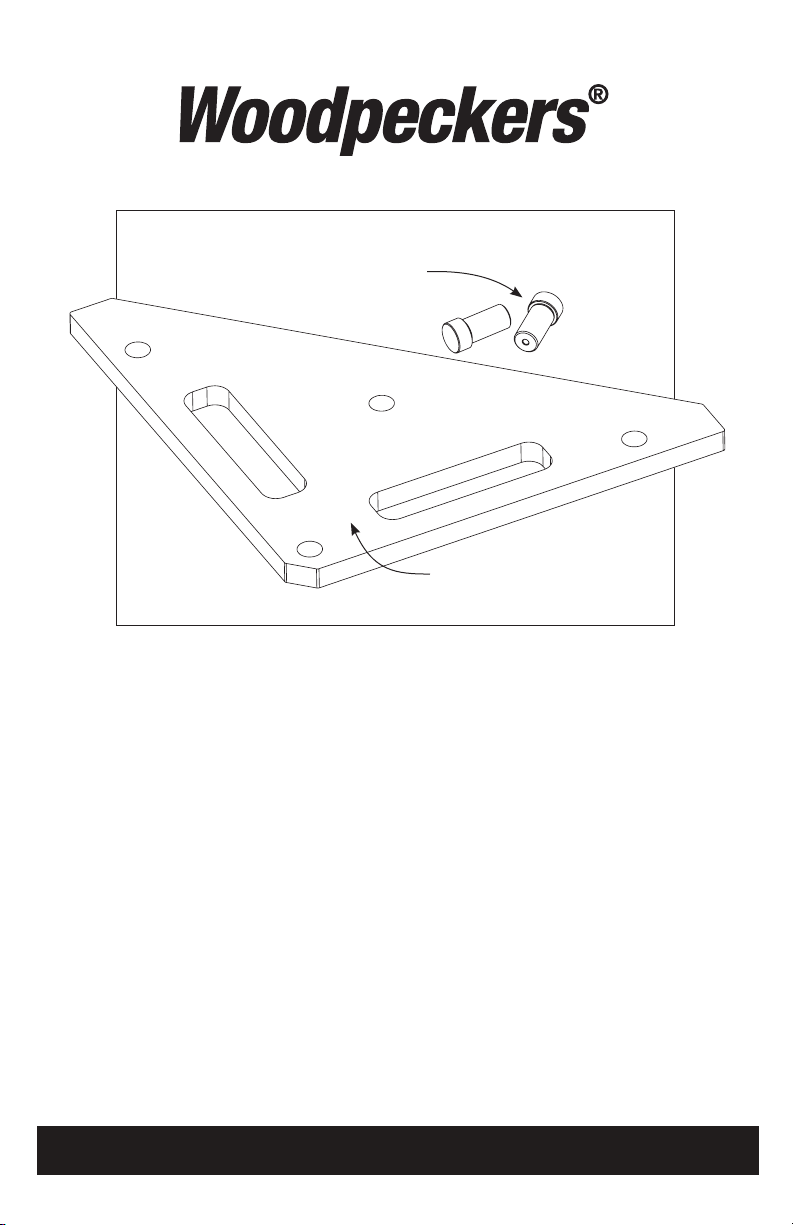

MFT Layout & Assembly
Square Dogs
MFT Layout & Assembly
Square
You can also call us at 800-752-0725 from 9:00 a.m. to 5:00 p.m. EST Monday - Friday.
2
Using the MFT Layout & Assembly Square
Set the guide rail into position. Place the MFT Layout & Assembly Square
against the guide rail.
Align the fence to the square and lock into place.
Woodpeckers®
3
Using the MFT Layout & Assembly Dog
Using the MFT Layout & Assembly for Clamping
Place the MFT Layout
& Assembly Square
on the MFT table.
Line up the holes in
the square with the
holes in the table and
insert the dog.
Woodpeckers MFT Layout & Assembly square is ideal for clamping large
workpieces to your workbench, assembly table, or MFT table. The large 11À2"
x 6" slots accommodate both the MFT style clamps as well as most F-body
style clamps. Since the square will stand without support on a level surface,
it leaves both hands available to add the clamps.
800-752-0725 · woodpeck.com
PRECISION WOODWORKING TOOLS MADE IN USA
Woodpeckers, LLC Strongsville, Ohio · woodpeck.com
© 2018 Woodpeckers, LLC
REV012618
