Woodson WGPC62ASC Owner's manual
Tel: 1300 79 1954 Web: www.stoddart.com.au Email: fse@stoddart.com.au
Page 1 of 38
Due to continuous product research and development, the information contained herein is subject to change without notice
INSTALLATION, OPERATION & MAINTENAN
INSTALLATION, OPERATION & MAINTENANINSTALLATION, OPERATION & MAINTENAN
INSTALLATION, OPERATION & MAINTENANCE
CECE
CE
Woodson Contact Toaster
–
Split Lid WGPC6 ASC
WOODSON CONTACT TOASTER – SPLIT LID
Model WGPC6 ASC
Manufactured by:
Tom Stoddart Pty Ltd
39 Forest Way, Karawatha, QLD, 4117
Ph: 07 3440 7600 (int +61 7 3440 7600)
Fax: 07 3344 1000 (int +61 7 3344 1000)
FEATURES
Gas struts assist in lifting the top platen and hold open when operating
Stainless steel platens bonded to aluminium plates combine hygiene, durability and even temperature
performance
top plates (187 x 300mm) and one large bottom plate (393 x 95mm)
One piece Stainless Steel cooking surface with a turn up on 3 sides
Assisted upper platens that utilise gas struts to enable an easy and safe lifting operation. Ensures
gentle and even pressure for optimal toasting
Eight programmable timer settings with one touch operation to achieve consistent results
Easy-clean PVC coated smooth metal conduit to route cables to upper cooking plate
4 position rotary switch allowing selection of 4 modes - Off, Top and Bottom platen, Standby and
Bottom platen only
No hidden crevices for food accumulation – extremely easy to clean
Easily removable heat shield that clips on and off, no tools required to remove
All stainless steel body construction
INSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCEINSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCE
Woodson
Contact Toaster
–
Split Lid W.GPC6 SC
Tel: 1300 791 954 Web: www.stoddart.com.au Email: fse@stoddart.com.au
Page of 3
Due to continuous product research and development, the information contained herein is subject to change without notice
Table of Contents
General Recommendations .............................................................................................................................................. 3
General Safety ..................................................................................................................................................... 3
Service ................................................................................................................................................. 3
Sharp Edges ......................................................................................................................................... 3
Power Cables ........................................................................................................................................ 3
Introduction......................................................................................................................................................... 4
Product Overview.................................................................................................................................. 4
Specifications....................................................................................................................................................... 4
Specifications....................................................................................................................................................... 5
Technical Specifications ......................................................................................................................... 5
Technical/Connection Diagram............................................................................................................... 6
Rating Plate .......................................................................................................................................... 6
Rating Plate .......................................................................................................................................... 7
Installation ..................................................................................................................................................................... 7
Installation ..................................................................................................................................................................... 8
General Precautions ............................................................................................................................................. 8
Setting Up ........................................................................................................................................................... 9
Handling............................................................................................................................................... 9
Site Preparation .................................................................................................................................... 9
Unpacking ............................................................................................................................................ 9
First Time Operation.............................................................................................................................. 9
Electrical Connection ...........................................................................................................................................10
Operation ......................................................................................................................................................................11
General Recommendations ..................................................................................................................................11
Operating Instructions........................................................................................................................................11
Operating Instructions.........................................................................................................................................1
Setting the Timers...............................................................................................................................................13
Timer Adjustment ................................................................................................................................13
Temperature Adjustment .....................................................................................................................................14
After Hours .........................................................................................................................................................14
Information..........................................................................................................................................14
Cleaning Procedure .............................................................................................................................................14
Materials Required ...............................................................................................................................14
External Surfaces .................................................................................................................................15
Internal Surfaces..................................................................................................................................15
Maintenance ..................................................................................................................................................................15
Routines .............................................................................................................................................................15
Schedules ............................................................................................................................................15
Log Books............................................................................................................................................15
Inspection............................................................................................................................................15
Faults ..................................................................................................................................................15
Stainless Steel Protection.....................................................................................................................................16
Cleaning ..............................................................................................................................................16
Corrosion Protection .............................................................................................................................16
Surface Finish ......................................................................................................................................16
Water Damage....................................................................................................................................................17
Information..........................................................................................................................................17
Access to Electrical Wiring and Mechanical Parts ....................................................................................17
Replacements .....................................................................................................................................................18
Electronic Controller, Temperature Probe...............................................................................................18
Electrical Parts .....................................................................................................................................18
Mechanical Parts ..................................................................................................................................18
For Servicing and Parts........................................................................................................................................18
Electrical Diagrams.........................................................................................................................................................19
Spare Parts/ Assembly Diagram ...................................................................................................................................... 0
Warranty ....................................................................................................................................................................... 0
Warranty ....................................................................................................................................................................... 1
Appendix 1 – Australian Warranty and Importer/Distributor Contact Details ............................................................ 1
Australian Warranty Policy & Procedure ................................................................................................................ 1
WARRANTY REQUEST FORM................................................................................................................................ 4
INSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCEINSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCE
Woodson
Contact Toaster
–
Split Lid W.GPC6 SC
Tel: 1300 791 954 Web: www.stoddart.com.au Email: fse@stoddart.com.au
Page 3 of 3
Due to continuous product research and development, the information contained herein is subject to change without notice
Disclaimer:
T e manufacturer cannot be eld responsible or liable for any injuries or damages
of any kind occurred to persons, appliances or ot ers, due to lack of conformity
wit t e instructions indicated in t is documentation.
T e manufacturer also cannot be eld responsible or liable for abuse, misuse and
lack of conformity wit t e instructions indicated in t is documentation in regards
to installation, un-installation, operation, servicing or maintenance.
All appliances made by t e manufacturer are delivered assembled and ready to
install. Any installation, un-installation, servicing, maintenance and access or
removal of any parts, panels or safety barriers t at is not permitted, does not
comply in accordance to t is documentation, or not performed by a TRAINED AND
AUTHORISED SPECIALISTS will result in t e IMMEDIATE LOSS OF THE
WARRANTY.
T e manufacturer cannot be eld responsible or liable for any unaut orized
modifications. All modifications must be approved by t e manufacturer in writing
before initiating. All modifications or works performed to t is appliance must be
performed at all times by a TRAINED AND AUTHORISED SPECIALISTS.
General Recommendations
ATTENTION
Carefully read this instruction booklet, as it contains important advice for safe installation, operation and
maintenance. Keep this booklet on hand in a safe place for future reference by other operators or service
technicians.
Do not store or use gasoline or other flammable vapours or liquids in the vicinity of this or any other appliance.
Qualified personnel, specifically trained in the following instructions, can perform installation and service of the
machine:
General Safety
Service
Stoddart, one of our agents (while under warranty), or a similarly qualified person (after warranty has expired) should
carry out any and all repairs, maintenance and services. Any repair person(s) should be instructed to read the safety
warnings within this manual before commencing work on these units.
Do not remove any cover panels that may be on the appliance.
Sharp Edges
Steel cutting processes such as those used in the construction of this appliance result in sharp edges. Whilst any such
edges are removed to the best of our ability it is always wise to take care when contacting any edge.
Particular care should be taken to avoid contact with any steel edge, and warnings should be given in regards to the
danger of such contact to any repair or maintenance person(s) prior to commencement of any servicing.
Power Cables
Ensure that any damaged power cord is replaced before further use.
INSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCEINSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCE
Woodson
Contact Toaster
–
Split Lid W.GPC6 SC
Tel: 1300 791 954 Web: www.stoddart.com.au Email: fse@stoddart.com.au
Page 4 of 3
Due to continuous product research and development, the information contained herein is subject to change without notice
Handle
Introduction
The Woodson Contact Toaster – Split Lid been specifically designed to meet the rigorous demands of a busy food
service operation.
Each Woodson Contact Toaster – Split Lid has been assembled and tested according to Stoddart Manufacturing strict
quality standards.

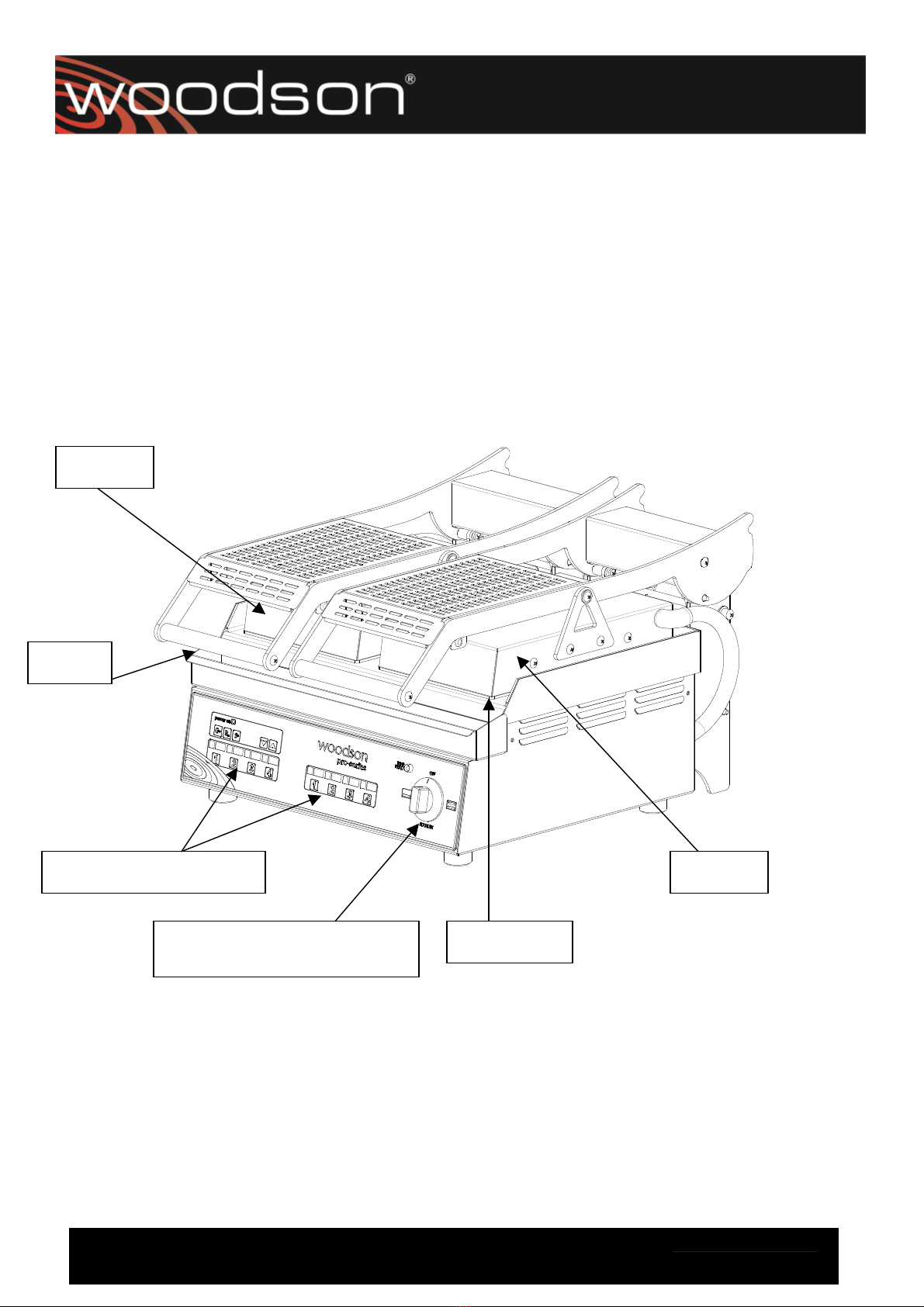

Product Overview
Configuration may vary according to model.
Temperature/timer settings
ON/OFF and platen option knob
Bottom Platen
Top Platen
Top Platen
INSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCEINSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCE
Woodson
Contact Toaster
–
Split Lid W.GPC6 SC
Tel: 1300 791 954 Web: www.stoddart.com.au Email: fse@stoddart.com.au
Page 5 of 3
Due to continuous product research and development, the information contained herein is subject to change without notice
Specifications
Technical Specifications
Safety Clearance
• A clearance of 100mm should be maintained around the toaster, more space is required if placed next to heat
susceptible items or heat emitting items
• Height when fully open approximately 765mm
SPECIFICATIONS
Model W.GPC62SC
Height 331mm (closed) 765mm (open)
Width 468mm
Depth 480mm
Voltage 40v
Power 00W
Current 10 A
Connection 10A Lead and Plug (Supplied)
Plate Size Top 188mm x 300mm
Bottom 455mm x 310mm
Mass 35 kg
Capacity 4 Sandwiches
SHIPPING
Height 500mm
Width 600mm
Depth 700mm
INSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCEINSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCE
Woodson
Contact Toaster
–
Split Lid W.GPC6 SC
Tel: 1300 791 954 Web: www.stoddart.com.au Email: fse@stoddart.com.au
Page 6 of 3
Due to continuous product research and development, the information contained herein is subject to change without notice
Technical/Connection Diagram
455
465
FRONT
VIEW
3
0
0
3
3
1
578
187
SIDE
VIEW
INSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCEINSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCE
Woodson
Contact Toaster
–
Split Lid W.GPC6 SC
Tel: 1300 791 954 Web: www.stoddart.com.au Email: fse@stoddart.com.au
Page 7 of 3
Due to continuous product research and development, the information contained herein is subject to change without notice

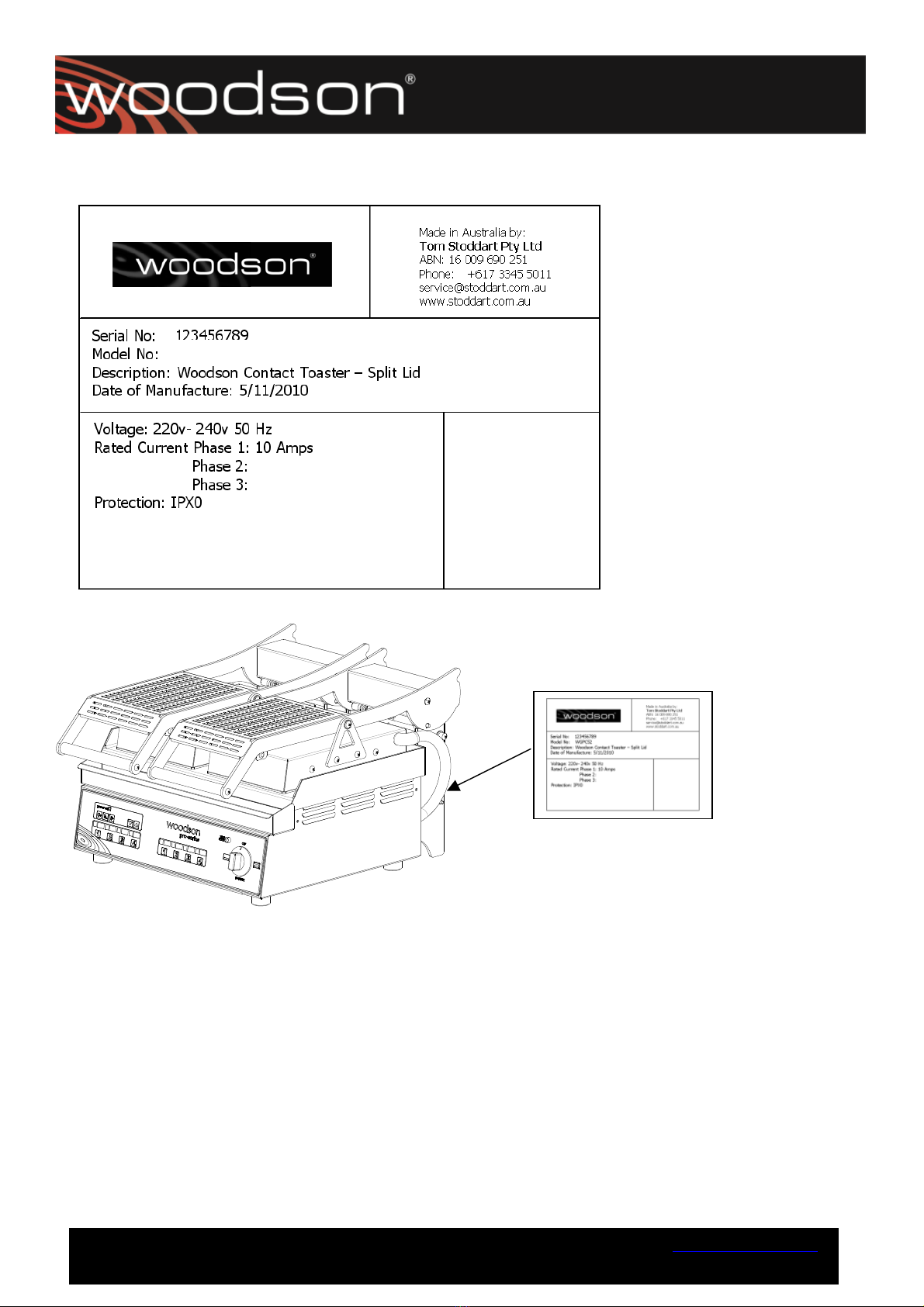

Rating Plate
The rating plate of the appliance contains identification and technical data and is located on the unit as shown below.
Sample Only
W.GPC6 SC
INSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCEINSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCE
Woodson
Contact Toaster
–
Split Lid W.GPC6 SC
Tel: 1300 791 954 Web: www.stoddart.com.au Email: fse@stoddart.com.au
Page 8 of 3
Due to continuous product research and development, the information contained herein is subject to change without notice
WARNING!
Installation must comply wit local electrical and ealt & safety requirements.
Improper installation, adjustment, alteration, service or maintenance can cause
property damage, injury or deat .
Installation
General Precautions
Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death.
• Read the installation, operating and maintenance instructions thoroughly before installation, maintenance or
servicing this equipment
• Do NOT use this appliance for other than its intended use.
• Do NOT store explosive substances such as aerosol cans with a flammable propellant in or near this
appliance.
• Regulations require that all units be installed to the appropriate Australian standards.
• Regulations require that authorised persons carry out all electrical work.
• Only use this appliance with voltage specified on the rating label.
• Be careful not to touch moving parts.
ATTENTION
Ensure t at a trained person installs t is mac ine.
Ensure t e customer is trained on ow to use t e mac ine.
Ensure t e customer is given t e manual
INSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCEINSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCE
Woodson
Contact Toaster
–
Split Lid W.GPC6 SC
Tel: 1300 791 954 Web: www.stoddart.com.au Email: fse@stoddart.com.au
Page 9 of 3
Due to continuous product research and development, the information contained herein is subject to change without notice
Setting Up
Handling
• Use suitable means to move the appliance: e.g. a lift truck or fork pallet trucks (the forks should
reach more than halfway beneath the appliance).
Site Preparation
• Ensure the site is level and properly cleaned.
• The toaster is to be placed on a suitable bench or worktop, at a comfortable working height. (850mm –
900mm)
• Ensure the press toaster is placed on a level, stable work surface, away from other heat, water or grease
emitting devices.
Unpacking
• Check the machine for damage before and after unpacking. If machine is damaged, contact
whoever you purchased the unit from
• Wear protective gloves to unpack the appliance from the box.
• The unit is supplied fully assembled.
• Unpack and visually inspect the unit for damage or missing parts. Report any problems to the distributor or
manufacturer.
• Remove all protective plastic film, tapes, ties and packers before installing and operating. Clean off
any glue residue left over from the protective plastic film.
• Wipe all surfaces with a clean, sanitised cloth.
First Time Operation
• Read t e complete instruction manual before proceeding.
• The toaster is preset in the factory with the following settings:
o Cooking temperature 05- 10 degrees C.
o Standby 150degC
o The timers have been factory set to 1 seconds each.
o Refer to “Section 6 Setting the timers”
• Ensure the electrical cable is not damaged and does not hang over the counter, and ensure the “ON/OFF”
button is set to the “OFF” position.
• Plug the unit into the correct size power outlet.
• Your toaster is now ready to use.
INSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCEINSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCE
Woodson
Contact Toaster
–
Split Lid W.GPC6 SC
Tel: 1300 791 954 Web: www.stoddart.com.au Email: fse@stoddart.com.au
Page 10 of 3
Due to continuous product research and development, the information contained herein is subject to change without notice
Electrical Connection
WARNING!
T is mac ine must be installed in accordance wit AS/NZS 60335.1
Information
• The electrical supply shall comply with the rating plate data.
• The machine is supplied with a plug and lead (10A).
• Ensure that machine is connected to a power point with compatible power rating of 40 volts 10 amps.
• The machine must be plugged directly into the power outlet. The use of extension leads or power boards are
not to be used.
• The equipment should be earthed according to local electrical codes to prevent the possibility of electrical
shock. It requires an earthed receptacle with separate electrical lines, protected by fuses or circuit breaker of
the proper rating.
• If the supply cord is damaged, it MUST be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard. Power cable cannot be stretched kinked, pressed, during normal
operation, service or anytime
WARNING!
Some procedures in t is manual require t e power to t e equipment to be turned off and
isolated. Turn t e power OFF at t e power point and unplug t e power supply lead by t e
plug body. If t e power point is not readily accessible turn t e equipment off at t e isolation
switc or t e circuit breaker in t e switc board. Attac a yellow “CAUTION-DO NOT
OPERATE” tag. T is must be performed w ere relevant unless t e procedures specify
ot erwise.
FAILURE TO DO SO MAY RESULT IN ELECTRIC SHOCK.
INSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCEINSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCE
Woodson
Contact Toaster
–
Split Lid W.GPC6 SC
Tel: 1300 791 954 Web: www.stoddart.com.au Email: fse@stoddart.com.au
Page 11 of 3
Due to continuous product research and development, the information contained herein is subject to change without notice
Operation
General Recommendations
When using any electrical appliance, safety precautions should always be observed.
Our appliances have been designed to give high performance. Hence, the appliance must be used exclusively for the
purpose for which it has been designed.
Read these instrucitons carefully and retain for future reference
• All units MUST be installed according to the procedures stated in the installation section of this manual.
• This appliance should not be operated by person/s (including children) with reduced physical, sensory or
mental capabilities, or lack of experience or knowledge, unless they have been given supervision or
instruction concerning the safe use of the appliance by person/s responsible for their safety.
• In the case of new personnel, training is to be provided in advance.
• Do NOT use this appliance for any other purpose than its intended use.
• Do NOT store explosive substances such as aerosol cans with a flammable propellant in or near this
appliance.
• The surfaces of this unit are HOT when in operation. Signage should be displayed for personnel and
customers to warn of this.
• Keep fingers out of "pinc point" areas.
• This unit is NOT waterproof. Do NOT use jet sprays or hoses to the exterior of the appliance.
• If the power supply cord becomes damaged, it must be replaced by the manufacturer, an authorised service
agent or similarly qualified persons to avoid a hazard.
• Be careful not to touch moving parts.
• Do NOT use sharp objects to activate controls.
• If any fault is detected, disconnect the Split Lid – Contact Toaster from the mains and call the service agent.
• Do NOT use the Split Lid – Contact Toaster in an explosive atmosphere.
• Avoid exposure to direct heat and/or humidity sources.
• The manufacturer declines any liability for damages to persons and/or things due and to an improper/wrong
and/or unreasonable use of the machine.
CAUTION! THE SURFACES ON THIS UNIT ARE HOT !!!!!
INSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCEINSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCE
Woodson
Contact Toaster
–
Split Lid W.GPC6 SC
Tel: 1300 791 954 Web: www.stoddart.com.au Email: fse@stoddart.com.au
Page 1 of 3
Due to continuous product research and development, the information contained herein is subject to change without notice
Operating Instructions
1. Visually check the toaster is clean, in good repair and safe.
. Ensure that the top platen is in a closed position.
3. Turn the power switch to the desired mode i.e. Top and bottom platen for normal press toasting, Bottom platen
for Griddle style operation or Standby. The power “ON” indication light located on the L/H side control panel
and Power ready light will be illuminated. If the indicator light does not illuminate refer to the trouble shooting
section of the manual.
4.
Allow the press toaster to preheat for approximately 30 minutes. The temperature ready indicator light will
turn itself OFF once the press toaster has reached its optimum operating temperature. The press toaster is
preset to operate between 05°C - 10°C surface cooking temperature.
5. Ensure that the 8 display timers are set to the desired cook time on the control panel (
refer to
programming
the toaster instructions in this manual).
6. Lift the top platen up to a fully open position by the handle provided.
7. The top platen will remain in the open position, as it is spring-loaded.
8. Take extreme care when lifting, do not touch the cover or cooking surface to avoid skin burns.
9. Place the food product onto the cooking surface and close the top platen.
10. Ensure that the product is placed in the middle of the cooking surface, to prevent the top platen from tilting
and producing uneven product.
11. Press the appropriate display timer button (i.e. 1, ,3,4,-1, ,3,4,) to start the cooking procedure. The time
shown in the window above the corresponding button will begin to count down.
1 .
Once the count down timer reaches “000”, the timer will emit a beeping sound. Press the appropriate display
timer button again, to de-activate the timer. Lift the top platen fully to the open position and remove the
toasted product.
13.
Replace the top platens back in to the down position when the product has been removed.
14.
Periodically check the crumb tray mounted at the front of the press toaster, to ensure it does not overflow.
Take extreme care when removing the crumb tray, ensure you grab the crumb tray handle using heat resistant
gloves and do not touch the cooking surface to avoid skin burns.
NOTE!
Do not use t e press toaster until t e temperature ready lig t is off, as you will not
ac ieve optimum product quality results.
NOTE!
T e timer can be stopped if necessary, by pressing t e timer button and olding it for 3
seconds.
NOTE!
To ensure optimum product quality, t e top plate must be closed after every run, to
maintain constant temperature.
Power on light
Timer buttons
Timer displays
Temper
ature ready light
Platen control and ON/OFF knob
INSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCEINSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCE
Woodson
Contact Toaster
–
Split Lid W.GPC6 SC
Tel: 1300 791 954 Web: www.stoddart.com.au Email: fse@stoddart.com.au
Page 13 of 3
Due to continuous product research and development, the information contained herein is subject to change without notice
Setting t e Timers
• The Control panel has 8 timers located along the front of the control panel. The displays indicate the pre-
programmed times in minutes and seconds.
• The unit is configured so that is equal to 1 minute 20 seconds.
Timer Adjustment
1. Press and hold Programme Button for 3-4 seconds.
. Display 1 will flash.
3. Use the & arrow buttons to adjust time if necessary.
4. Press the Set button.
5. Repeat the above steps for the other display timer buttons if necessary (i.e. 1, ,3,4 -1, ,3,4,)
NOTE!
To c ange t e times follow t e steps below.
NOTE!
By pressing t e programme button again, it will automatically go to t e next timer
display in order of sequence, i.e. 1,2,3,4-1,2,3,4).
Clear
Set
Programme
Arrows
Display 1
Display
Display 3
Display 4
Display 1
Display
Displ
ay 3
Display 4
INSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCEINSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCE
Woodson
Contact Toaster
–
Split Lid W.GPC6 SC
Tel: 1300 791 954 Web: www.stoddart.com.au Email: fse@stoddart.com.au
Page 14 of 3
Due to continuous product research and development, the information contained herein is subject to change without notice
NOTE!
After eac cook wipe plates wit moist clot .
WARNING!
DO NOT pour water directly onto t e platen surface.
Temperature Adjustment
1. Locate the temperature calibrating screws on the rear of the toaster one marked Cook and one marked
Standby.
. Open the top platen.
3. Measure the temperature of the bottom platen in a number of different areas.
4. Note the average temperature recorded.
5. Adjust the platen temperature to the desired temperature by adjusting the screw marked Cook a small
amount. Clockwise to increase temperature and anticlockwise to decrease temperature.
6. Repeat procedure for the standby thermostat, Note the unit will need some time to cool down to the standby
set point before this setting can be calibrated.
After Hours
Information
• The unit MUST be switc ed OFF.
Cleaning Procedure
• Clean Platens Daily (10 mins)
Materials Required
• Cleaning Pad
• Cleaning Pad Holder
• Clean Sanitised Towel
• Paper Towel
• Small Container of hot water.
• Grill Cleaning Gloves
• Grill Cleaning Apron
1. Turn toaster off, remove electric cord from power point and allow to cool.
. Wipe soil from the toaster using a clean sanitised towel and small amount of water to rinse the platens using a
damp cloth. Continually rinse the towel in hot water and thoroughly rinse all platens. Wipe over unit with a clean
dry cloth.
3. Remove crumb tray. Dry wipe crumb tray and then wash, rinse and sanitise. Air-dry and replace.
IMPORTANT!
T e temperature can only be adjusted after t e toaster as been turned on and allowed to
operate t roug 2-3 cycles.
INSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCEINSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCE
Woodson
Contact Toaster
–
Split Lid W.GPC6 SC
Tel: 1300 791 954 Web: www.stoddart.com.au Email: fse@stoddart.com.au
Page 15 of 3
Due to continuous product research and development, the information contained herein is subject to change without notice
WARNING!
T e external surfaces of t is unit are NOT waterproof, do NOT ose.
WARNING!
If any electrical wires are damaged, t e unit must NOT be switc ed
ON until t e parts ave been fixed as injury or deat can occur.
External Surfaces
• Clean the stainless steel and metal parts with warm (not hot) soapy water and a sponge.
• Rinsed the stainless steel and metal parts with clean, fresh water.
• After cleaning, thoroughly wipe the stainless steel and metal parts dry with a soft cloth. Do NOT let water
pool on the unit. Check crevices and folds.
Internal Surfaces
• Clean the internal surfaces with warm (not hot) soapy water and a sponge.
• After cleaning, thoroughly wipe the stainless steel and elements with a soft cloth.
Maintenance
Routines
Schedules
• To maintain optimal performance, maintenance and cleaning schedules must be regular and thorough.
• The unit should be cleaned at the end of every workday.
Log Books
• Log books should be kept for all cleaning and maintenance of this unit.
Inspection
• Surfaces should be checked at least once a week for damage or deterioration.
• As part of the maintenance, a qualified tec nician MUST check the controls, mechanical parts and
electrical wiring for damage, deterioration or need of adjustment.
Faults
• Not repairing small faults immediately can cause a complete breakdown. If any small faults occur, have them
attended to promptly by a qualified tec nician.
• All faults should be reported to the distributor and manufacturer.
INSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCEINSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCE
Woodson
Contact Toaster
–
Split Lid W.GPC6 SC
Tel: 1300 791 954 Web: www.stoddart.com.au Email: fse@stoddart.com.au
Page 16 of 3
Due to continuous product research and development, the information contained herein is subject to change without notice
Stainless Steel Protection
Cleaning
• For cleaning a stain on the surface of the stainless steel, check the cleaning section of the operation manual.
• All metal surfaces should be checked while cleaning for damage, scuffs or scapes as these can lead to rust
and further damage to the product.
Corrosion Protection
• Stainless steel exhibits good resistance to corrosion however, if not properly maintained stainless steel can
rust.
• Any sign of mild rust or corrosion should be thoroughly cleaned with warm soapy water and dried as soon as
possible.
• NEVER use abrasive pads or cleaners for cleaning.
• Medium rust or corrosion can treated by a commercial cleaning agent that contains
citric/oxalic/nitric/phosphoric. Do NOT use cleaning agents with chlorides or other harsh chemicals as this
can cause corrosion. A lemon slice or a few drops few drops of lemon juice added to the water can be used
as a substitute. After treatment, wash with warm (not hot) soapy water and dry thoroughly.
• Thoroughly wipe the surfaces dry after cleaning and do NOT let water pool on the unit. Check crevices and
folds for pooling.
• If an abrasive product is used while cleaning, thoroughly dry the unit and leave in an open or oxidised area
for the stainless steel protective layer to replenish.
• When using, ensure all liquids and moisture is cleaned up straight away. Food liquids such as juices from
vegetables and fruits should NOT be left on preparation surfaces.
• Do NOT leave items on the stainless steel such as cutting boards, rubber mats and bottles.
Surface Finish
• To protect the polish, stainless steel should be dried by wiping a dry soft cloth in the same direction as
grained polish.
• For NON-food contact surfaces, a light oil can be wiped on the surfaces with a cloth to enhance the stainless
steel surface. Wipe in the direction of the grain.
• Some commercial stainless stain cleaners can leave residue or film on the metal; this may trap fine particles
of food on the surface, thus deeming the surfaces not food safe.
INSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCEINSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCE
Woodson
Contact Toaster
–
Split Lid W.GPC6 SC
Tel: 1300 791 954 Web: www.stoddart.com.au Email: fse@stoddart.com.au
Page 17 of 3
Due to continuous product research and development, the information contained herein is subject to change without notice
WARNING!
Maintenance of electrical or mec anical parts MUST be performed by a qualified
tec nician only
WARNING!
If any water damage occurs, t e unit must NOT be switc ed ON.
WARNING!
Switc t e unit OFF at t e main power supply before any maintenance or
servicing.
CAUTION!
All due care as been taken in manufacturing, but t ere may be SHARP EDGES
around t e internal sections.
Water Damage
Information
• Water damage to the electrical and mechanical parts of unit can occur through incorrect cleaning of this unit
with a hose or high pressure cleaner, check the cleaning section of the operation manual for correct cleaning
procedures
• If accidental water damage occurs allow the unit to dry and ensure the unit is checked by a qualified
tec nician before switching the unit ON.
• All water damage that is not due to construction or mechanical faults is not covered by warranty.
Access to Electrical Wiring and Mechanical Parts
INSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCEINSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCE
Woodson
Contact Toaster
–
Split Lid W.GPC6 SC
Tel: 1300 791 954 Web: www.stoddart.com.au Email: fse@stoddart.com.au
Page 18 of 3
Due to continuous product research and development, the information contained herein is subject to change without notice
Replacements
Electronic Controller, Temperature Probe
• The electronic controller and temperature probe can be replaced by the manufacturer.
• Both MUST be replaced by a qualified tec nician.
Electrical Parts
• All electrical parts can be replaced by the manufacturer or others.
• All electrical parts MUST be replaced by a qualified tec nician.
Mechanical Parts
• All mechanical parts can be replaced by the manufacturer or others.
• All mechanical parts MUST be replaced by a qualified tec nician.
For Servicing and Parts
Stoddart Manufacturing:
Sales: 1300 791 954
Service/Spares: 1300 307 89
Fax: (07) 3344 1000
Sales: fse@stoddart.com.au
Customer Service: service@stoddart.com.au
Spare Parts: spares@stoddart.com.auTroubleshooting
Task Type - (O) = Operator (T) = Tec nician Task
Problem Possible Causes Task Possible Corrective Action
Not Heating Unit not turned “on” at the
power socket. O Turn power to “on” at the power socket on the wall.
Not Heating
“On/Off” switch on control
panel not turned on to
correct Mode.
O Turn Rotary Power switch to desired mode on the
control panel.
Not Heating Thermal Safety fuse blown T Call service technician.
Plates too Cold Allow ready light to turn off
before cooking. O
Plates too Cold Temperature requires
adjusting. T Refer to temperature adjustment in the manual
Plates too Hot Temperature requires
adjusting. T Refer to temperature adjustment in the manual
Plates not hot Element failure. T Test & replace the element if necessary.
WARNING!
Tec nician tasks only to be completed by qualified service people.
C eck faults before calling service tec nician.
INSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCEINSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCE
Woodson
Contact Toaster
–
Split Lid W.GPC6 SC
Tel: 1300 791 954 Web: www.stoddart.com.au Email: fse@stoddart.com.au
Page 19 of 3
Due to continuous product research and development, the information contained herein is subject to change without notice
Electrical Diagrams
INSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCEINSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCE
Woodson
Contact Toaster
–
Split Lid W.GPC6 SC
Tel: 1300 791 954 Web: www.stoddart.com.au Email: fse@stoddart.com.au
Page 0 of 3
Due to continuous product research and development, the information contained herein is subject to change without notice
Spare Parts/ Assembly Diagram
Table of contents
Other Woodson Toaster manuals
