Woodson WTOVx Owner's manual
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster
–
WTOVx
WOODSON VERTICAL TOASTER
Models WTOV5 & WTOV6
FEATURES
Switch allows user the choice of 2, 4 or all slice operation
Stainless steel construction
Operates with element timer
Toast stays warm ready for lift up
Easy-clean removable crumb tray
Heavy duty commercial elements for durability and long life
Supplied with chrome wire guides to locate bread in correct
Option for 5 or 6 slice models
Suits 135mm x 120mm slices
Wide toasting slots take product up to 20mm thick
Ideal for the toasting of bread and similar products
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 1
Table of Contents
General Recommendations................................................................................3
General Safety.................................................................................................................3
Service................................................................................................................3
Sharp Edges ........................................................................................................3
Power Cables.......................................................................................................3
Introduction ....................................................................................................................4
Product Overview.................................................................................................4
Specifications...................................................................................................................5
Technical Specifications ........................................................................................5
Technical/Connection Diagram ..............................................................................6
Rating Plate.........................................................................................................8
Installation.......................................................................................................9
General Precautions .........................................................................................................9
Setting Up.....................................................................................................................10
Handling............................................................................................................10
Site Preparation .................................................................................................10
Unpacking .........................................................................................................10
First Time Operation...........................................................................................10
Electrical Connection......................................................................................................11
Operation.......................................................................................................12
General Recommendations .............................................................................................12
Operating Instructions....................................................................................................13
Operation..........................................................................................................13
After Hours........................................................................................................13
Cleaning Procedure........................................................................................................14
External Surfaces ...............................................................................................14
Maintenance...................................................................................................14
Maintenance...................................................................................................15
Routines........................................................................................................................15
Schedules..........................................................................................................15
Log Books..........................................................................................................15
Inspection .........................................................................................................15
Faults................................................................................................................15
Stainless Steel Protection................................................................................................16
Cleaning............................................................................................................16
Corrosion Protection...........................................................................................16
Surface Finish....................................................................................................16
Water Damage ..............................................................................................................17
Information .......................................................................................................17
Access to Electrical Wiring and Mechanical Parts ...................................................17
Replacements................................................................................................................18
Electrical Parts ...................................................................................................18
Mechanical Parts................................................................................................18
Servicing and Replacement Information Line....................................................................18
Troubleshooting..............................................................................................19
Electrical Diagrams .........................................................................................20
WTOV5.........................................................................................................................20
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 2
WTOV6.........................................................................................................................21
Spare Parts/ Assembly Diagram .......................................................................22
WTOV6.........................................................................................................................22
Warranty........................................................................................................23
Appendix 1 – Australian Warranty and Importer/Distributor Contact Details ........................23
Australian Warranty Policy & Procedure............................................................................23
WARRANTY REQUEST FORM...........................................................................................26
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 3
Disclaimer:
The manufacturer cannot be held responsible or liable for any in
j
uries or dama
g
es
of any kind occurred to persons, appliances or others, due to lack of conformity
with the instructions indicated in this documentation.
The manufacturer also cannot be held responsible or liable for abuse, misuse and
lack of conformity with the instructions indicated in this documentation in re
g
ards
to installation, un-installation, operation, servicing or maintenance.
All appliances made by the manufacturer are delivered assembled and ready to
install. Any installation, un-installation, servicing, maintenance and access or
removal of any parts, panels or safety barriers that is not permitted, does not
comply in accordance to this documentation, or not performed by a TRAINED AND
AUTHORISED SPECIALISTS will result in the IMMEDIATE LOSS OF THE
WARRANTY.
The manufacturer cannot be held responsible or liable for any unauthorized
modifications. All modifications must be approved by the manufacturer in writing
before initiating. All modifications or works performed to this appliance must be
performed at all times by a TRAINED AND AUTHORISED SPECIALISTS.
General Recommendations
ATTENTION
Carefully read this instruction booklet, as it contains important advice for safe installation, operation and
maintenance. Keep this booklet on hand in a safe place for future reference by other operators or service
technicians.
Do not store or use gasoline or other flammable vapours or liquids in the vicinity of this or any other appliance.
Qualified personnel, specifically trained in the following instructions, can perform installation and service of the
machine:
General Safety
Service
Stoddart, one of our agents, or a similarly qualified person(s) should carry out any and all repairs, maintenance
and services. Any repair person(s) should be instructed to read the safety warnings within this manual before
commencing work on these units.
Do not remove any cover panels that may be on the appliance.
Sharp Edges
Steel cutting processes such as those used in the construction of this appliance result in sharp edges. Whilst any
such edges are removed to the best of our ability it is always wise to take care when contacting any edge.
Particular care should be taken to avoid contact with any steel edge, and warnings should be given in regards to
the danger of such contact to any repair or maintenance person(s) prior to commencement of any servicing.
Power Cables
Ensure that any damaged power cord is replaced before further use.
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 4
Introduction
The Woodson Vertical Toaster has been specifically designed to meet the rigorous demands of a busy food service
operation. The Woodson WTOV5 and WTOV6 Vertical Toasters are ideal for use in toasting bread and similar
products.
Each Woodson Vertical Toaster has been assembled and tested according to Stoddart’s strict quality standards.
Product Overview
Configuration may vary according to model.

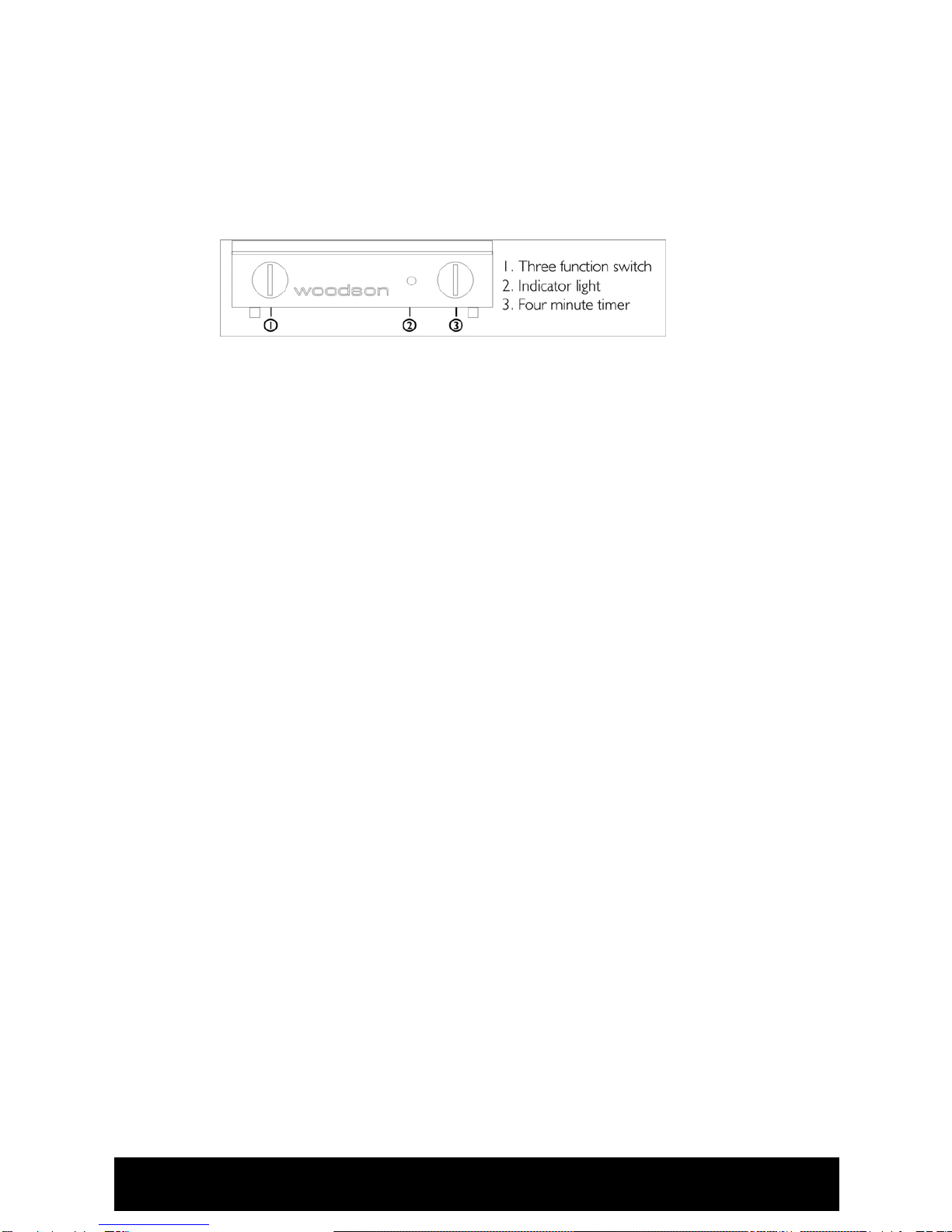

Unit Controls
Br
ead
S
l
ots
H
a
n
d
l
e
Crumb Tray
R
ubbe
r F
eet
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 5
Specifications
Technical Specifications
SPECIFICATIONS
Model WTOV5 WTOV6
Height 289mm 289mm
Width 351mm 351mm
Depth 259mm 259mm
Voltage 220-240V, 50Hz
Power 2400W 2800W
Connection 10A Plug and Lead 15A Plug and Lead
Amps 10A 15A
Elements 6 @ 400W 7 @ 400W
Capacity 5 Bread Slices 6 Bread Slices
SHIPPING
Height 400mm 400mm
Width 500mm 500mm
Depth 400mm 400mm
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 6

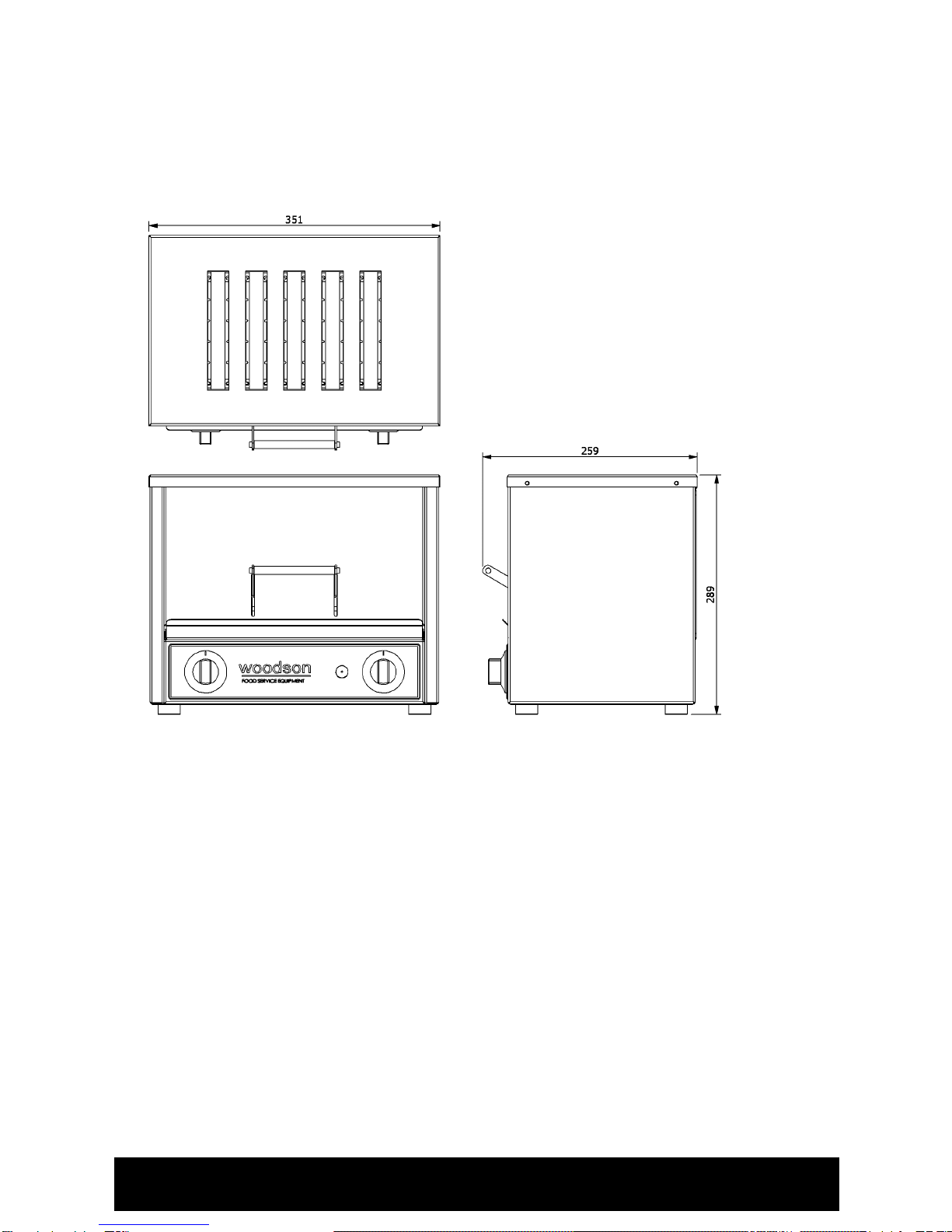

Technical/Connection Diagram
WTOV5
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 7
WTOV6
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 8

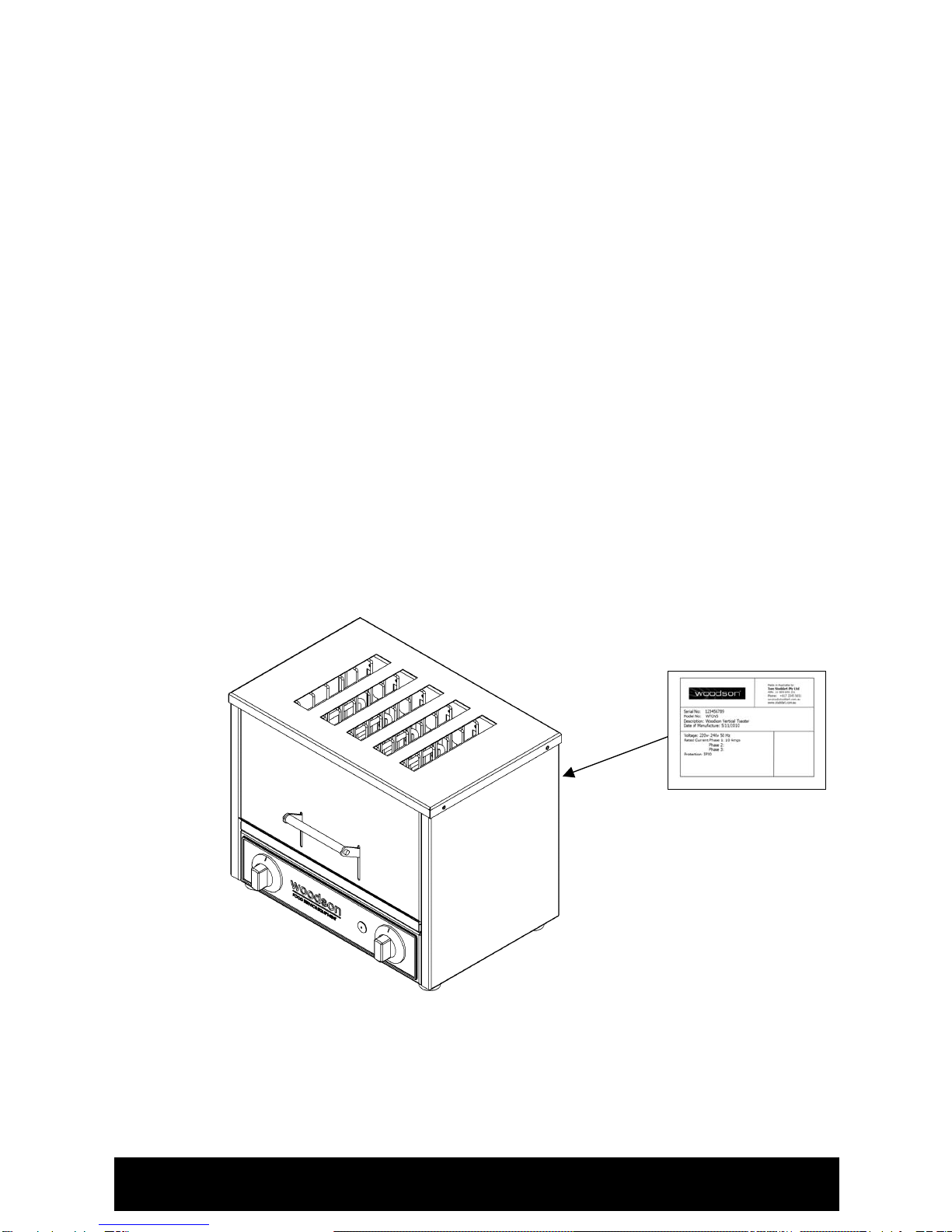

Rating Plate
The rating plate of the appliance contains identification and technical data and is located on the unit as shown
below.
Sample Only
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 9
WARNING!
Installation must comply with local electrical and health & safety requirements.
Improper installation, adjustment, alteration, service or maintenance can cause
property damage, injury or death.
Installation
General Precautions
Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death.
Read the installation, operating and maintenance instructions thoroughly before installation, maintenance
or servicing this equipment
Do NOT use this appliance for other than its intended use.
Do NOT store explosive substances such as aerosol cans with a flammable propellant in or near this
appliance.
Regulations require that all units be installed to the appropriate Australian standards.
Regulations require that authorised persons carry out all electrical work.
Only use this appliance with voltage specified on the rating label.
Be careful not to touch moving parts.
ATTENTION
Ensure that a trained person installs this machine.
Ensure the customer is trained on how to use the machine.
Ensure the customer is given the manual
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 10
Setting Up
Handling
Use suitable means to move the appliance: eg. A lift truck or fork pallet trucks (the forks should
reach more than halfway beneath the appliance).
Site Preparation
Ensure the site is level and properly cleaned.
The toaster is to be placed on a suitable bench or worktop, at a comfortable working height. (850mm –
900mm)
Ensure the toaster is placed on a level, stable work surface, away from other heat, water or grease
emitting devices.
Allow an air gap between the machine and other objects or surfaces. We recommend a minimum gap of
100mm for normal operational use (if the machine is near any heat sensitive material we suggest you
allow additional space). Please consult national and local standards to ensure that your machine is
positioned in accordance with any existing requirement.
The toaster is supplied with 4 rubber feet to reduce slip.
Unpacking
Check the machine for damage before, during and after unpacking. If machine is damaged, contact the
dealer. Should any item have physical damage, report the details to the freight company and to the agent
responsible for the despatch within seven (7) days of receipt. No claims will be accepted or processed
after this period.
Wear protective gloves to unpack the appliance from the box.
The unit is supplied fully assembled.
Remove all protective plastic film, tapes, ties and packers before installing and operating. Clean
off any glue residue left over from the protective plastic film.
Wipe all surfaces with a clean, sanitised cloth.
First Time Operation
Read the complete instruction manual before proceeding.
Plug the unit into a power source. Ensure the electrical cable is not damaged and does not hang over the
counter, and the “ON/OFF” button is set to the “OFF” position.
Your toaster is ready to use.
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 11
Electrical Connection
WARNING!
This machine must be installed in accordance with AS/NZS 60335.1
Information
The electrical supply shall comply with the rating plate data.
The WTOV5 is supplied with a 10Amp plug and lead whilst the WTOV6 is supplied with a 15Amp plug and
lead
Ensure that machine is connected to a power point with compatible power rating.
The machine must be plugged directly into the power outlet. The use of extension leads or power boards
are not to be used.
The equipment should be earthed according to local electrical codes to prevent the possibility of electrical
shock. It requires an earthed receptacle with separate electrical lines, protected by fuses or circuit
breaker of the proper rating.
If the supply cord is damaged, it MUST be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard. Power cable cannot be stretched kinked, pressed, during
normal operation, service or anytime
WARNING!
Some procedures in this manual require the power to the equipment to be turned off and
isolated. Turn the power OFF at the power point and unplug the power supply lead by the
plug body. If the power point is not readily accessible turn the equipment off at the isolation
switch or the circuit breaker in the switchboard. Attach a yellow “CAUTION-DO NOT
OPERATE” tag. This must be performed where relevant unless the procedures specify
otherwise.
FAILURE TO DO SO MAY RESULT IN ELECTRIC SHOCK.
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 12
Operation
General Recommendations
When using any electrical appliance, safety precautions should always be observed.
Our appliances have been designed to give high performance. Hence, the appliance must be used exclusively for
the purpose for which it has been designed.
Read these instrucitons carefully and retain for future reference
All units MUST be installed according to the procedures stated in the installation section of this manual.
This appliance should not be operated by person/s (including children) with reduced physical, sensory or
mental capabilities, or lack of experience or knowledge, unless they have been given supervision or
instruction concerning the safe use of the appliance by person/s responsible for their safety.
In the case of new personnel, training is to be provided in advance.
Do NOT use this appliance for any other purpose than its intended use.
Do NOT store explosive substances such as aerosol cans with a flammable propellant in or near this
appliance.
The surfaces of this unit are HOT when in operation. Signage should be displayed for personnel and
customers.
Keep fingers out of "pinch point" areas. Clearances between the doors, pans and panels are necessarily
small.
This unit is NOT waterproof. Do NOT use jet sprays or hoses to the exterior of the appliance.
If the power supply cord becomes damaged, it must be replaced by the manufacturer, an authorised
service agent or similarly qualified persons to avoid a hazard.
Do NOT use machine if power supply cord is damaged.
Be careful not to touch moving parts.
Do NOT use sharp objects to activate controls.
If any fault is detected, disconnect the unit from the mains and call the service agent.
Do NOT use the unit in an explosive atmosphere.
Avoid exposure to direct heat and/or humidity sources.
The manufacturer declines any liability for damages to persons and/or things due and to an
improper/wrong and/or unreasonable use of the machine.
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 13
Operating Instructions
Operation
This unit may be used to toast 2, 4 or All (5 or 6) slices of bread.
To toast two slices
Place slices in the two far left hand slots and put the function switch to the “2” position
To toast four slices
Place slices in the four far left hand slots and put the function switch to the “4” position
To toast all slices
Place slices in the slots and put the function switch to the “ALL” position
Turn the timer to three minutes when toasting from a cold machine and about two minutes once the machine is
warm (unit will not operate until timer is activated). The pilot light on the right side will glow red to indicate that
the toast is being cooked. When cooking time has expired, an alarm will sound and the machine will automatically
switch off.
Press the handle down to lift toast so it can be removed
It is important to have the slice selector switch located to the correct number of slices being toasted. If you
toast only 2 slices, but have the switch set at ALL slices, your end piece of bread will receive additional heat
meaning it will brown more on one slice of the bread.
After Hours
The unit MUST be switched OFF.
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 14
WARNING!
The external surfaces of this unit are NOT waterproof, do NOT hose.
CAUTION!
DO NOT spray Stainless Cleaner onto the cooking surface
NOTE!
Some cleaning agents can damage stainless steel. For this reason we recommend
cleaning with soapy water. Woodson do not take any responsibility for damage
caused by the use of inappropriate cleaning agents.
In some areas, particularly seaside environments, stainless steel can be subject to
surface discolouration or “tea staining”. This can be removed with an appropriate
cleaning agent which contains 10% sodium citrate. Ask your supplier of cleaning
chemicals for a suitable brand.
CAUTION!
DO NOT use Steel Wool or other abrasive cleaners.
Cleaning Procedure
As with any toaster there will be a regular build up of crumbs in your machine. Undertake the following procedure
on a regular basis (daily).
Slide out the crumb tray and empty all crumbs.
Turn the machine upside down and shake gently to remove any additional crumbs.
External Surfaces
Clean the stainless steel and metal parts with warm (not hot) soapy water and a sponge.
Rinsed the stainless steel and metal parts with clean, fresh water.
After cleaning, thoroughly wipe the stainless steel and metal parts dry with a soft cloth. Do NOT let water
pool on the unit. Check crevices and folds.
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 15
WARNING!
If any electrical wires are damaged, the unit must NOT be switched
ON until the parts have been fixed as injury or death can occur.
Maintenance
Routines
Schedules
To maintain optimal performance, maintenance and cleaning schedules must be regular and thorough.
The unit should be cleaned at the end of the every work day.
Log Books
Log books should be kept for all cleaning and maintenance of this unit.
Inspection
Surfaces should be checked at least once a week for damage or deterioration.
As part of the maintenance, a qualified technician MUST check the controls, mechanical parts and
electrical wiring for damage, deterioration or need of adjustment.
Faults
Not repairing small faults immediately can cause a complete breakdown. If any small faults occur, have
them attended to promptly by a qualified technician.
All faults should be reported to the distributor and manufacturer.
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 16
Stainless Steel Protection
Cleaning
For cleaning a stain on the surface of the stainless steel, check the cleaning section of the operation
manual.
All metal surfaces should be checked while cleaning for damage, scuffs or scapes as these can lead to rust
and further damage to the product.
Corrosion Protection
Stainless steel exhibits good resistance to corrosion however, if not properly maintained stainless steel can
rust.
Any sign of mild rust or corrosion should be thoroughly cleaned with warm soapy water and dried as soon
as possible.
NEVER use abrasive pads or cleaners for cleaning.
Medium rust or corrosion can treated by a commercial cleaning agent that contains
citric/oxalic/nitric/phosphoric acid. Do NOT use cleaning agents with chlorides or other harsh chemicals
as this can cause corrosion. A lemon slice or a few drops few drops of lemon juice added to the water can
be used as a substitute. After treatment, wash with warm (not hot) soapy water and dry thoroughly.
Thoroughly wipe the surfaces dry after cleaning and do NOT let water pool on the unit. Check crevices and
folds for pooling.
If an abrasive product is used while cleaning, thoroughly dry the unit and leave in an open or oxidised
area for the stainless steel protective layer to replenish.
When using, ensure all liquids and moisture is cleaned up straight away. Food liquids such as juices from
vegetables and fruits should NOT be left on preparation surfaces.
Do NOT leave items on the stainless steel such as cutting boards, rubber mats and bottles.
Surface Finish
To protect the polish, stainless steel should be dried by wiping a dry soft cloth in the same direction as
grained polish.
For NON-food contact surfaces, a light oil can be wiped on the surfaces with a cloth to enhance the
stainless steel surface. Wipe in the direction of the grain.
Some commercial stainless stain cleaners can leave residue or film on the metal; this may trap fine
particles of food on the surface, thus deeming the surfaces not food safe.
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 17
WARNING!
Maintenance of electrical or mechanical parts MUST be performed by a qualified
technician only
WARNING!
If any water damage occurs, the unit must NOT be switched ON.
WARNING!
Switch the unit OFF at the main power supply before any maintenance or
servicing.
CAUTION!
All due care has been taken in manufacturing, but there may be SHARP EDGES
around the internal sections.
Water Damage
Information
Water damage to the electrical and mechanical parts of unit can occur through hosing on or around the
unit.
Improper cleaning of the unit can lead to water damage. Check the cleaning section of the operation
manual for more information.
If water damage occurs allow the unit to dry and ensure the unit is checked by a qualified technician
before switching the unit ON.
All water damage that is not due to construction or mechanical faults is not covered by warranty.
Access to Electrical Wiring and Mechanical Parts
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 18
Replacements
Electrical Parts
All electrical parts can be replaced by the manufacturer.
All electrical parts MUST be replaced by a qualified technician.
Mechanical Parts
All mechanical parts can be replaced by the manufacturer.
All mechanical parts MUST be replaced by a qualified technician.
Servicing and Replacement Information Line
All Parts
Stoddart Manufacturing:
Sales: 1300 791 954
Customer Service: 1300 307 289
Fax: (07) 3344 6166
Spare Parts: spares@stoddart.com.au
This manual suits for next models
2
Table of contents
Other Woodson Toaster manuals
