Workrite ES2E5472EOC User manual

Workrite Ergonomics | (800) 959–9675 www.workriteergo.com 1 of 12
Box1 Box2
Box3 Box4
Box5
J4 mm Allen Wrench Qty: 1
RPower cord Qty: 1
NCable Spool Qty: 3
O⁄" White Leg Cable Loops Qty: 10
BRear Bracket Qty:2
BRear Bracket Qty:1
CConnector Bracket Qty: 1
CConnector Bracket Qty: 1
ALegs Qty: 2
EShort Bracket Qty: 3
MControl Box Qty: 1
KCorner Foot Qty: 1
FLe End Bracket Qty: 1
GRight End Bracket Qty: 1
HCorner End Bracket Qty: 1
D#M6 × 12 mm Flat Head Cap Screw
Qty: 8
D#M6 × 12 mm Flat Head Cap Screw
Qty: 4
D#M6 × 12 mm Flat Head Cap Screw
Qty: 12
P#8 × ⅝" Pan Head Screw Qty: 10
I#12 × ¾" Pan Head Laminate Top Screw
Qty: 52
Parts Included, Frame Set
Assembly & Installation Instructions:
Essentia 3-Leg Workcenter ES2E5472EOC &
ES3E5472EOC
L#M6 × 16 mm Flat Head Cap Screw
Qty: 4
QExtension Cable Qty: 1
A Leg Qty: 1
O⁄" White Leg Cable Loops Qty: 5
D#M6 × 12 mm Flat Head Cap Screw
Qty: 6
P#8 × ⅝" Pan Head Screw Qty: 5
Required & Sold Separately
Foot Kit
Basic or Programmable Switch
Top

2 of 12 Workrite Ergonomics | (800) 959–9675 www.workriteergo.com

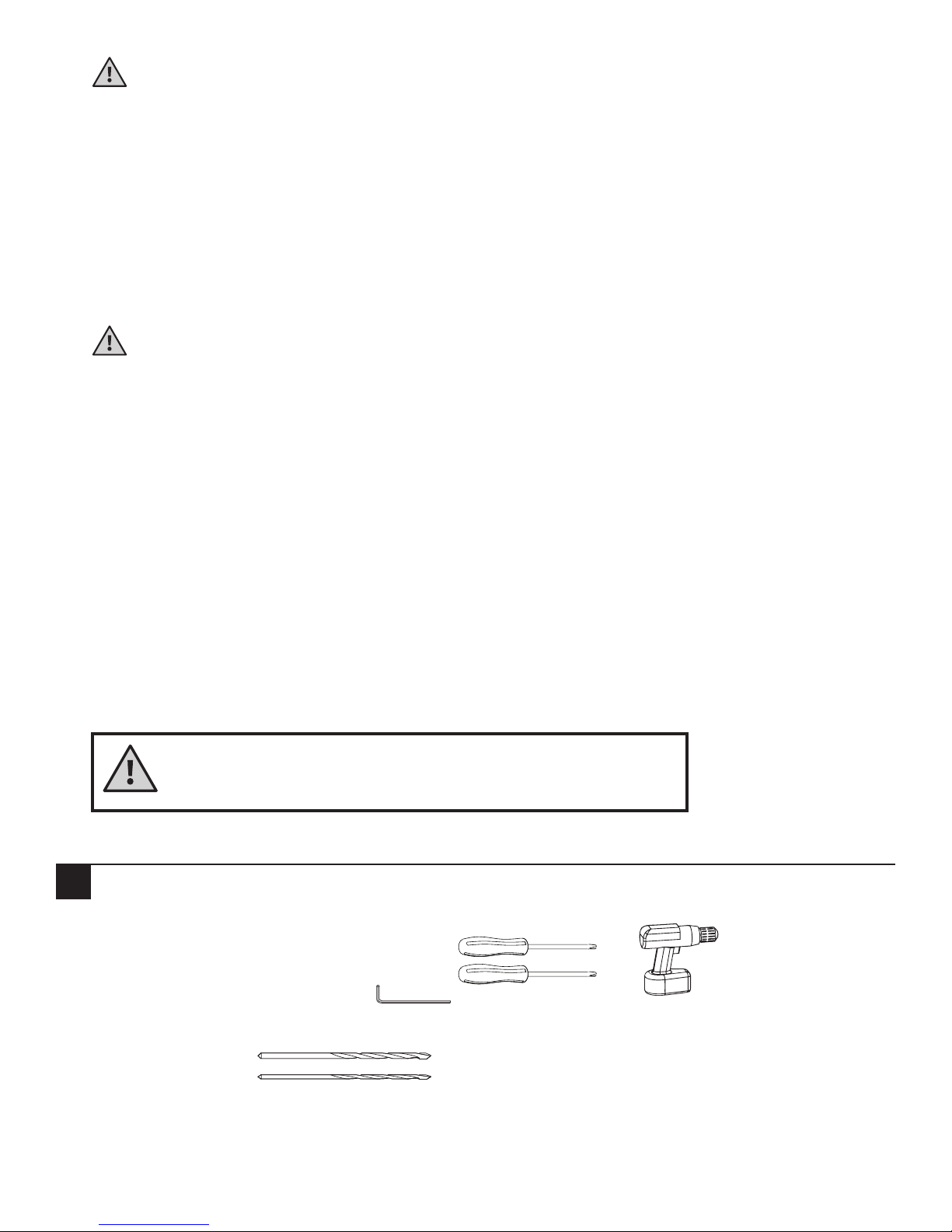

Verify that you have all the tools needed for the assembly
You will need the following tools:
#2 tip Phillips screwdriver or drill/driver
#3 tip Phillips screwdriver or drill/driver
M4 tip bit or 4mm Wrench (M)
If you do not have a Workrite worksurface, you will also need:
⅛" pilot drill bit
⁄" pilot drill bit
WARNING: Maximum loading of table assembly is 300 lb. (136 kg.). Maximum load includes the weight of the table top
itself, any equipment placed upon it, and any equipment suspended or hanging under it. Loading should be evenly distributed over table
surfaces. “Payload Capacity" is the Workrite Ergonomics recommended maximum loading which includes the Workrite sourced table top.
Essentia 3-LEG
V = 120 VAC, 60 Hz / 8 A maximum
IMPORTANT SAFETY INSTRUCTIONS:
When using an electrical furnishing, basic precautions should always be followed, including the following:
Read all instructions before using this Essentia Workcenter.
DANGER:To reduce the risk of electric shock, always unplug this Essentia Workcenter from the electrical outlet before
cleaning.
WARNING:To reduce the risk of burns, fire, electric shock, or injury to persons:
1. Unplug from outlet before putting on or taking o parts.
2. Close supervision is necessary when this furnishing is used by, or near children, invalids, or disabled persons.
3. Use this furnishing only for its intended use as described in these instructions. Do not use attachments not recommended by the
manufacturer.
4. Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or
dropped into water. Return the furnishing to a service center for examination and repair.
5. Keep the cord away from heated surfaces.
6. Do not use outdoors.
7. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
8. To disconnect, remove plug from outlet.
9. Each surface intended to support an equipment payload of 300 pounds.
FOR COMMERCIAL USE ONLY
SAVE THESE INSTRUCTIONS
or
IMPORTANT NOTE!
You must complete initialization (Step 14) at the end of
assembly or your workcenter WILL NOT FUNCTION PROPERLY.
✓

Workrite Ergonomics | (800) 959–9675 www.workriteergo.com 3 of 12

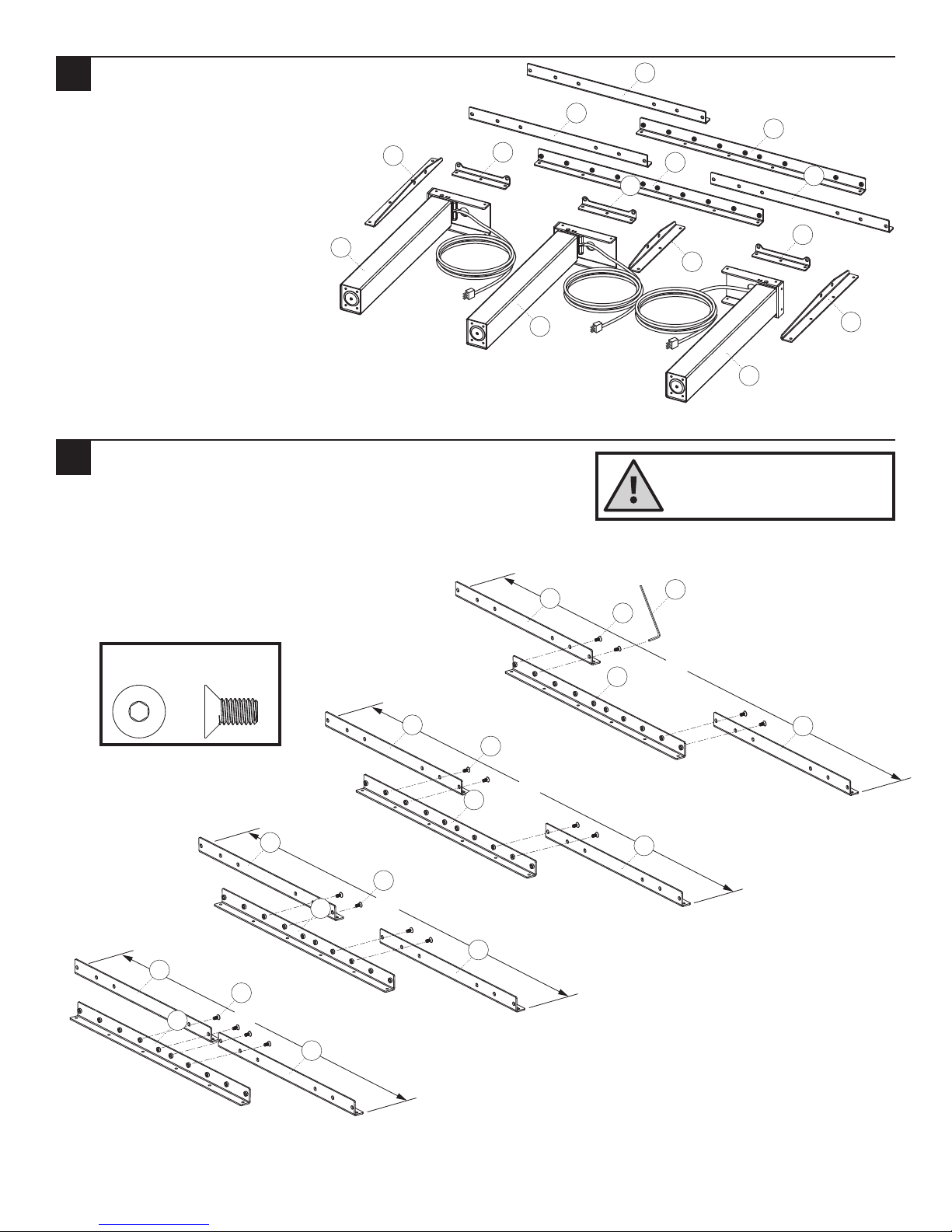

Layout Legs and Brackets
Check your cartons against the list
on page 1 to verify that you have all
the parts needed.
Place Legs (A) and Brackets (B, C, E
and F) on the floor.
Assemble Connected Rear Bracket Set
Assemble Rear Brackets (B) to Connector Bracket (C) using #M6 ×
10 mm Flat Head Cap Screws (D).
Use this guide to determine the correct holes for mounting
based on the width of your workcenter.
Tighten securely.
61"
55"
49"
43"
D#M6 × 12 mm Flat Head Cap Screw
B
E
E
E
B
C
C
B
H
1
Use with 52"×23"
or 58"×29" widths
Use with 58"×23"
or 64"×29" widths
2To avoid stripping the threads, always
insert and make the first few turns
of the screw BY HAND with an Allen
wrench (J), ensuring it is in straight.
Use with 64"×23"
or 70"×29" widths
Use with 70"×23"
or 76"×29" widths
A
F
G
A
A
B
D
D
D
D
C
C
C
C
B
B
B
B
B
B
B
J
Hardware at actual size
Note!
Only use the #M6 × 12 mm Flat
Head Cap Screw (D) for assembly.

4 of 12 Workrite Ergonomics | (800) 959–9675 www.workriteergo.com

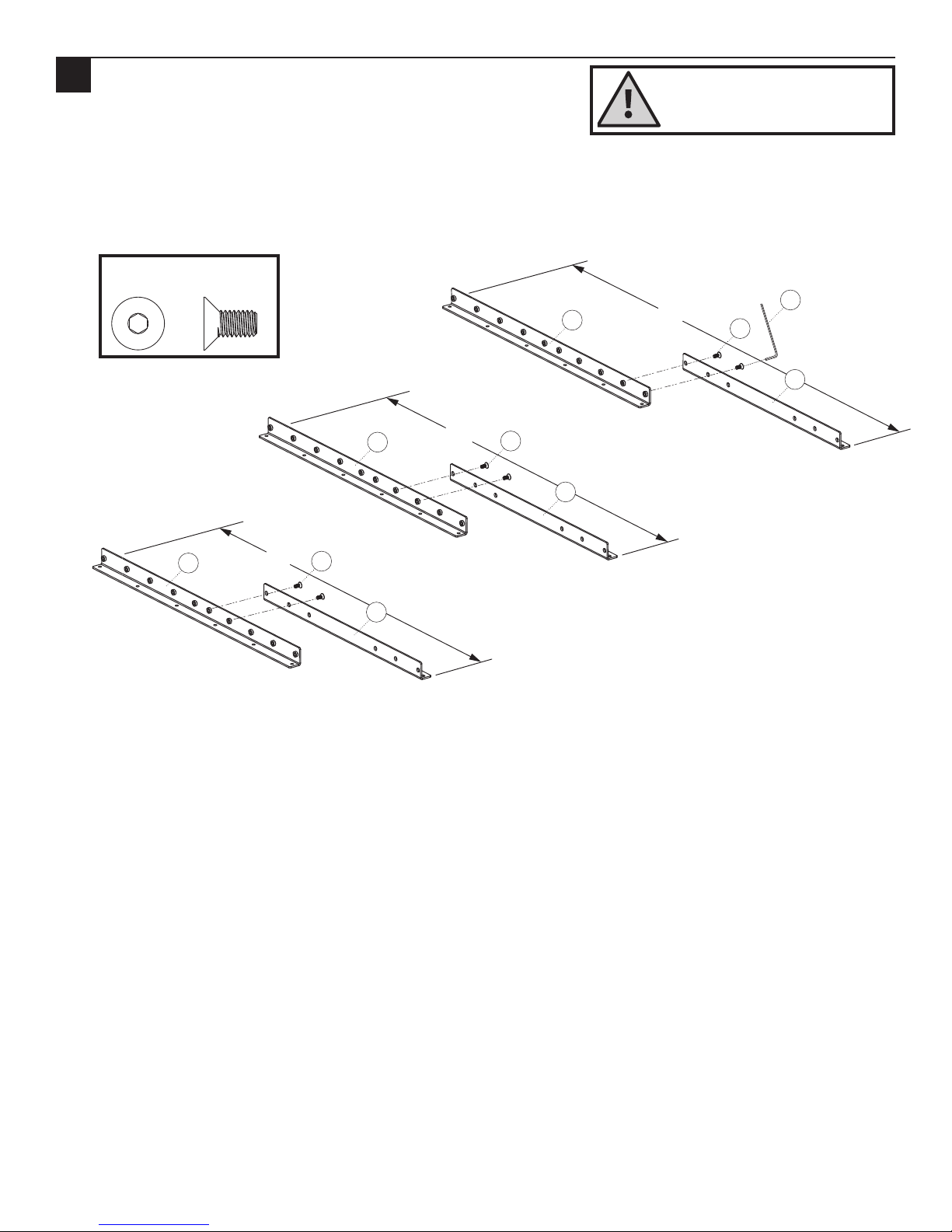

Assemble Floating Rear Bracket Set
Assemble Rear Brackets (B) to Connector Bracket (C) using #M6 ×
10 mm Flat Head Cap Screws (D).
Use this guide to determine the correct holes for mounting
based on the width of your workcenter.
Tighten securely.
43"
37"
34"
To avoid stripping the threads, always
insert and make the first few turns
of the screw BY HAND with an Allen
wrench (J), ensuring it is in straight.
Hardware at actual size
Use with 58"×29"
52"×29", or
52"×23"widths
Use with 64"× 29"
or 58"×23" widths
Use with 70"× 23",
70"×29" or
64"×23" widths
3
D
D
D
C
C
C
B
B
B
J
D#M6 × 12 mm Flat Head
Cap Screw
Note!
Only use the #M6 × 12 mm Flat Head
Cap Screw (D) for assembly.

Workrite Ergonomics | (800) 959–9675 www.workriteergo.com 5 of 12

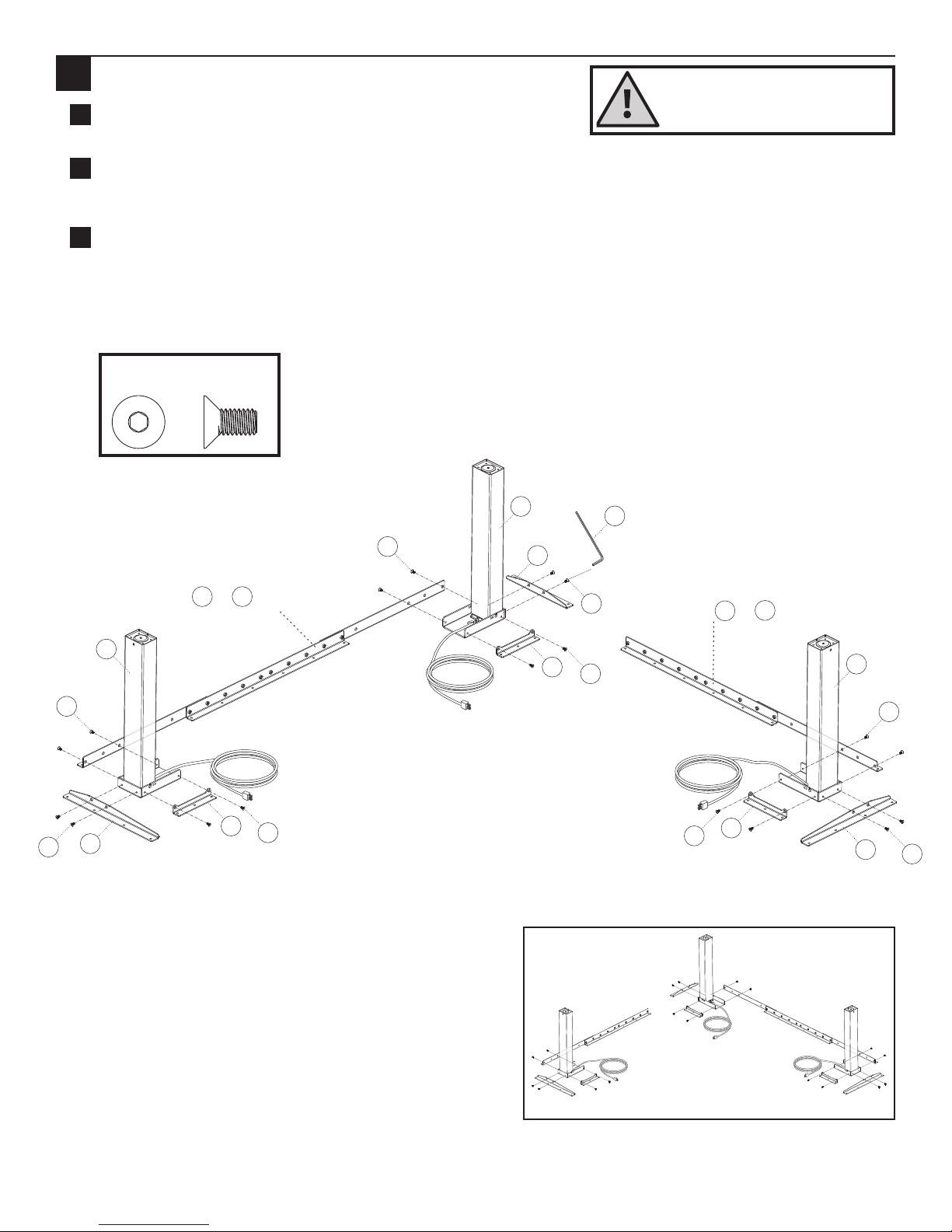

Attach Short & Medium Brackets
Attach Short Brackets (E) using #M6×12 mm Flat Head Cap Screws
(D) to both legs.
Attach Right End Bracket (G) to sides of the Right Leg (A) using Flat Cap Screws (D). Attach Le End Bracket (F) to
sides of the Le Leg (A) using Flat Cap Screws (D). Attach Center Bracket (H) to the Center Leg (A) using Flat Cap
Screw (D).
Attach both the Connected Rear Bracket (B & C assembled) and Floating Rear Bracket (B) using Flat Cap Screws
(D).
Make sure the Connected Side Bracket is on the longer of the two sides.
Tighten securely.
Note: The right bracket will be on your le and vice
versa when the assembly is seen upside down.
Note: Le configurations will assemble as a mirror
images of these instructions.
Le configuration
Le Leg
Center Leg
Right Leg
Three piece
Connected Rear Bracket
B& Cassembled Floating Rear
Bracket B& C
a
b
c
To avoid stripping the threads, always
insert and make the first few turns
of the screw BY HAND with an Allen
wrench (J), ensuring it is in straight.
4
Right Bracket Le Bracket
ED
DD
D
D
J
D
D
D
D
E
E
H
A
A
F
G
A
Hardware at actual size
D#M6 × 12 mm Flat Head Cap Screw
Caution!
Only use the #M6 × 12 mm Flat Head
Cap Screw (D) for assembly. Use of
longer screws will damage legs.

6 of 12 Workrite Ergonomics | (800) 959–9675 www.workriteergo.com
Attach Base to Pre-Drilled Workrite Worksurface
If you have a non-Workrite worksurface, skip to Step 6
Position leg assembly to align mounting holes in brackets to pre-drilled holes in worksurface.
Attach at the six corner locations using #12×¾" Pan Head Laminate Top Screws (I). If you use an electric
screwdriver, be sure it is on the lowest torque setting to avoid stripping the holes in the top.
With frame set positioned and the six corner screws secure, attach the frame set using the remaining using
#12×¾" Pan Head Laminate Top Screws (I).
Tighten securely.
Skip to Step 7.
5
a
a
a
a
b
2 screws per
End Bracket
(2 installed in step 6c)
3 screws per
Short Bracket
1 screw per
Center Bracket
(2 installed in step 5b)
18 screws per
Connected Rear Bracket 12 screws per
Floating Rear Bracket
c
c
c
c
c
c
II
I
I
I
I
b
b
b
b
b
b
I#12 × ¾" Pan Head
Laminate Top Screw
Hardware at actual size

Workrite Ergonomics | (800) 959–9675 www.workriteergo.com 7 of 12
Attach Base to Worksurface - Non-
Workrite Tops
Position Leg Assembly 2.875" from the sides
and 6.125" from the front of the worksurface,
making sure it runs parallel to the back edge
of the worksurface.
Use ⅛" drill bit to drill pilot holes at the six
corner locations. You may wish to mark your drill
bit so you do not drill any more than ¾" deep
and damage your worksurface top.
Do not drill all the way through worksurface!
Attach at the six corner locations using #12 × ¾" Pan Head Laminate Top Screws (I). If you use an electric
screwdriver, be sure it is on the lowest torque setting to avoid stripping the holes in the top.
With frame set positioned and the four corner screws secure, drill pilot holes first then attach the frame set using
the remaining #12×¾" Pan Head Laminate Top Screws (I).
Tighten securely.
>¾"
6.125"
23"– 30" 23"– 30"
2.875"
6.125"
2.875"
Parallel to edge
Parallel to edge
a
aa
b
b
b
bb
b
b
Note: Avoid trip or tip hazards!
For uniquely shaped, non-standard worksurfaces, it is the installers
responsibility to position the worksurface to minimize extended
overhangs and position feet fully under the worksurface.
6
2 screws per
End Bracket
(2 installed in step 6c)
3 screws per
Short Bracket
1 screw per
Center Bracket
(2 installed in step 6c)
18 screws per
Connected Rear Bracket 12 screws per
Floating Rear Bracket
I
I
I
I
I
I
I#12 × ¾" Pan Head Laminate Top Screw
Hardware at actual size
c
c
c
c
c
c
c
d
d
d
d
d
d

8 of 12 Workrite Ergonomics | (800) 959–9675 www.workriteergo.com
Attach Control Box & Cable Spools to Worksurface
Position Control Box (M).
If you have a Workrite worksurface:
Locate the two pilot holes for the Control Box and proceed to Step 8b.
If you do not have a Workrite worksurface:
Place Control Box (M) in position and use a pencil to mark pilot hole placement. Control Box should be placed
towards rear center of worksurface as shown. Remove Control Box and drill pilot holes where marked. Do not
drill all the way through tabletop!
With Control Box (M) positioned over pilot holes, attach with two #12 × ¾" Pan Head Screws (I).
Attach Cable Spool (N) with the #12 × ¾" Pan Head Screw (I) to underside of worksurface. If you do not have a
Workrite worksurface, mount Cable Spools (N) in a convenient location between legs and control box. Lay out
Leg Cables (A) to be sure they all reach the Control Box.
Attach Feet (sold separately)
Refer to foot kit instructions for steps to install your
outside feet.
Attach Center Foot (U) to bottom of center leg (G) with
Flat Head Cap Screw (V) Using Allen Wrench (M) and
tighten securely.
L
a
b
c
K
8
7
N
N
M
A
A
A
N
I
I
I
I
I
L#M6 × 16 mm Flat Head Cap Screw
I#12 × ¾" Pan Head Laminate Top Screw
Hardware at actual size
Hardware at actual size
Note!
Only use the #M6 × 16 mm Flat Head
Cap Screw (L) supplied with Corner
Foot and Foot Kit for assembly.

Workrite Ergonomics | (800) 959–9675 www.workriteergo.com 9 of 12
Attach Cable Loops and Route Cables
Route cables as shown, using Cable Spools (K) to take up any slack. Use Extension Cable (W) for Leg cable (G)
furthest from Control Box (J).
Attach White Leg Cable Loops (O) to underside of worksurface using #8 × ⅝" Pan Head Screw (P) making sure
to wrap the Cable Loop around the cable prior to attaching. If you do not have a Workrite worksurface, attach
cable loops in a convenient locations between legs or control and the control box.
Attach Switch (sold separately)
Refer to switch instructions for steps to install your switch.
or
P#8 × ⅝" Pan Head Screw
A
A
A
R
A
A
A
Q
Q
O
Q
O
O
M
10
9
P
P
O
O
O
Black Cable
Loops and
screws from
switch kit
" White Cable Loops
(O) on leg cable (A)
" White Cable
Loops (O) on leg
cables (A)
Hardware at actual size
Extension Cable (Q)
connection

10 of 12 Workrite Ergonomics | (800) 959–9675 www.workriteergo.com
Connect Leg Cables, Control Cable and Power Cord to Control Box
Connect the Leg Cable (A) to the six position leg ports “M1” & “M2” on the Control Box (M).
Connect Extension Cable (Q) to the six position leg port “M3” on the Control Box (M)
Insert the Control Cable into the switch port “HS” on the Control Box (M).
Insert the Power Cord (R) into the power port on the Control Box (M).
b
b
a
a
c
c
d
d
AAQ
R
M
M
11
Power Cord (L) in Power Port
Switch Cable
into Switch
Port “HS"
Leg Cable (G) or
Extension (W) into
Leg Ports “M1",
“M2" & M3

Workrite Ergonomics | (800) 959–9675 www.workriteergo.com 11 of 12

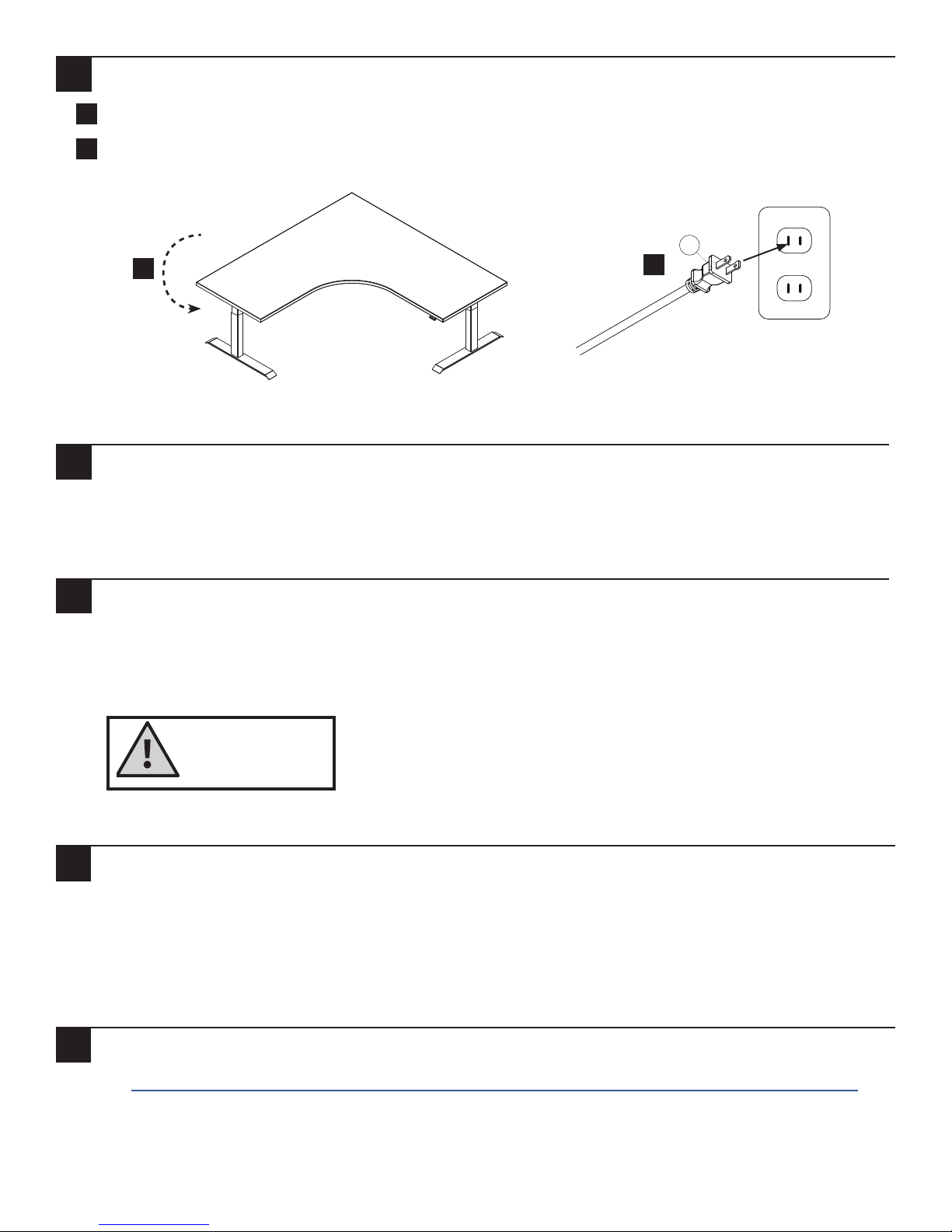

Put Workcenter Upright and Connect Power Cord to the Power Supply
Turn the workcenter over into an upright position.
Plug the Power Cord (L) into the power outlet.
Initialize Legs
Aer all legs and the switch are connected, and the power cord has been plugged in, hold the down arrow on
the switch until the legs make a short motion down and then back up. This initializes and synchronizes the
workcenter legs.
Adjust Feet Glides
If necessary, adjust leveling glides on the feet to level the worksurface. Unscrew to increase height, screw in to
decrease height.
Cleaning instructions
To clean the Essentia legs, apply cleaner to a so cloth.
Suggested cleaners: Windex or Formula 409.
Do not use solvents and do not saturate or spray cleaners directly to workcenter base.
You must complete this
initialization step or your
workcenter will NOT
function properly.
Hold down the down arrow
until workcenter moves
slightly upwards!
Replacement Parts
Visit http://workriteergo.com/documentation/other/workrite_ergonomics_pricing_specification_guide.pdf for
replacement parts.
L
ab
12
✓
13
14
b
a
✓

12 of 12 Workrite Ergonomics | (800) 959–9675 www.workriteergo.com
#1500242- Rev D
