WORKSWELL GIGE WFOV User manual

User Manual
Release date: 8th of March, 2018
End users Validity date: till next revision
Revision Number: 1.6

Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
All pictures are only for illustration.
Real values may vary.

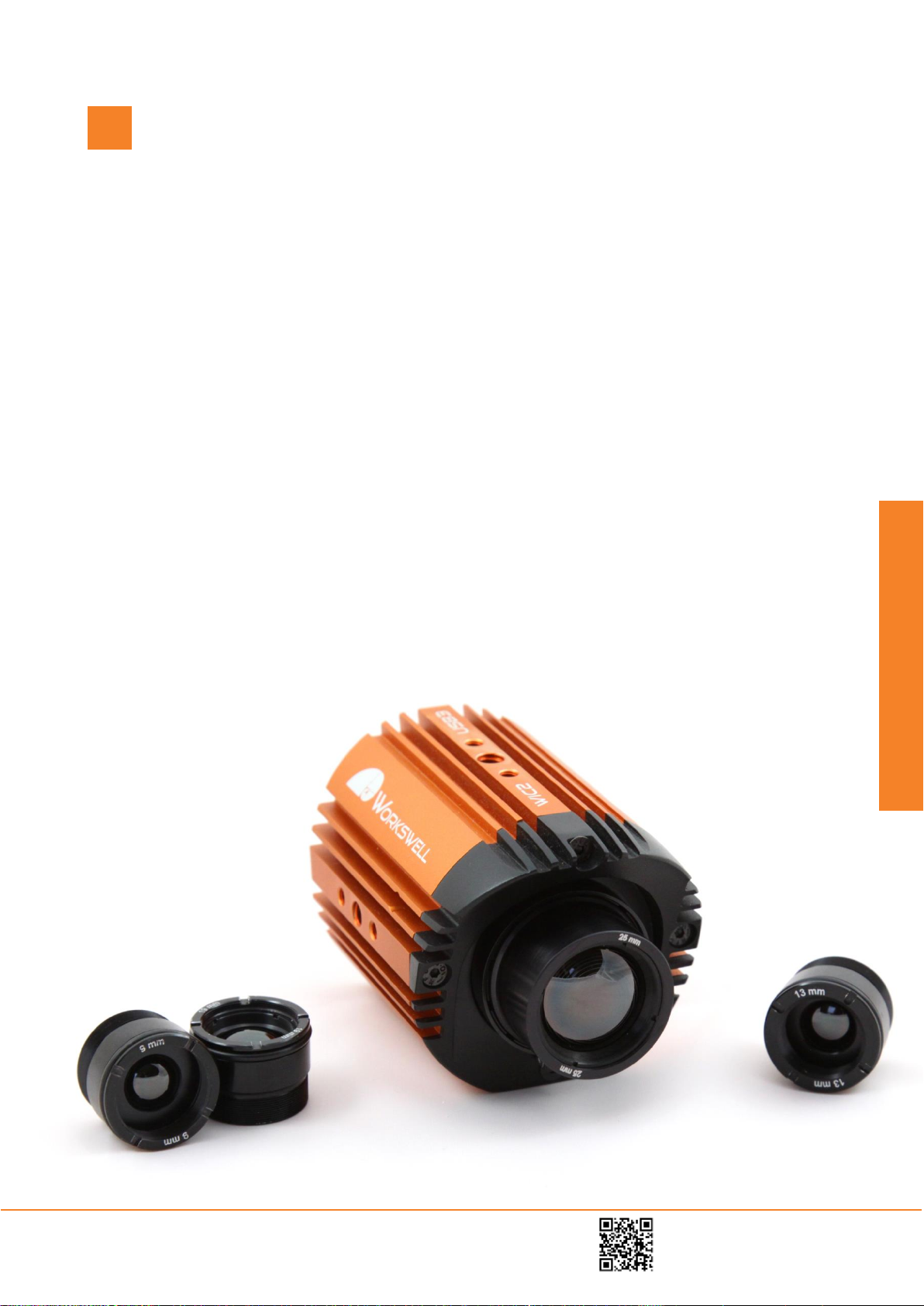

Workswell Infrared Camera
Workswell Infrared Cameras („WIC“) are designed and manufactured for easy and user-friendly integration
for all machine vision applications as well as R&D projects. All Workswell Infrared Cameras use the newest
Long Wave Infrared Detector Technology. Customers can choose from three types of detector resolution:
640 x 512 or 336 x 256 pixel format.
WIC are powered directly from USB3 or Ethernet cable instead of external supply adapter. Internal
electronics is protected by metal enclosure. Very low power consumption decreases needs for special
cooling and large camera dimensions. WIC are fully compatible with USB3 and Gigabit Ethernet protocol.
Workswell CorePlayer software automatically detects a camera, configures an address and ensures a
camera connection. All WIC use 14 RAW data format or calculated temperature values. Image can be
shown in different color palletes with interactive side bar and measurement tools. Users can manage
camera parameters such as Gain, NUC, Factory Reset, etc. There is also tutorial application, Linux and
Windows dll libraries and C# application code available. CorePlayer Application Workswell CorePlayer is
included for free of charge in every WIC package.
Introduction

Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
All pictures are only for illustration.
Real values may vary.
Workswell Infrared Camera
Legal Disclaimer
All products (software, hardware or firmware) manufactured by Workswell s.r.o. are warranted against defective materials and
workmanship for a period of twelve (12) months, provided such products have been under normal storage and use in accordance
with herein instructions.
The warranty extends only to the original purchaser and is not transferable. It is not applicable to any product which has been
subjected to misuse, neglect, accident or abnormal conditions of operation.
In the case of a defect in a product covered by this warranty the product must not be further used in order to prevent additional
damage. The purchaser shall promptly report any defect to Workswell s.r.o. or its authorized distributor or this warranty will not
apply.
Workswell s.r.o. will, at its option, repair or replace any such defective product free of charge if, upon inspection, it proves to be
defective in material or workmanship and provided that it is returned to Workswell within the said twelve-month period.
Nobody but Workswell s.r.o. is allowed to open or modify such product.
Workswell s.r.o. has no other obligation or liability for defects than those set forth above. No other warranty is expressed or
implied. Workswell s.r.o. shall not be liable for any direct, indirect, special, incidental or consequential loss or damage, whether
based on contract, tort or any other legal theory.
Copyright
© Workswell s.r.o. All rights reserved worldwide. No parts of the software including source code may be reproduced, transmitted,
transcribed or translated into any language or computer language in any form or by any means, electronic, magnetic, optical,
manual or otherwise, without the prior written permission of Workswell s.r.o.
Names and marks appearing on the products herein are either registered trademarks or trademarks of Workswell s.r.o. All other
trademarks, trade names or company names referenced herein are used for identification only and are the property of their
respective owners.

Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
All pictures are only for illustration.
Real values may vary.
Workswell Infrared Camera
Warnings and Cautions...................................................................................................................................... 2
General information and conditions ................................................................................................................. 2
Package Content................................................................................................................................................ 2
Help and FAQ..................................................................................................................................................... 2
Workswell Infrared Camera Specification......................................................................................................... 2
IFOV and Field of View calculator...................................................................................................................... 2

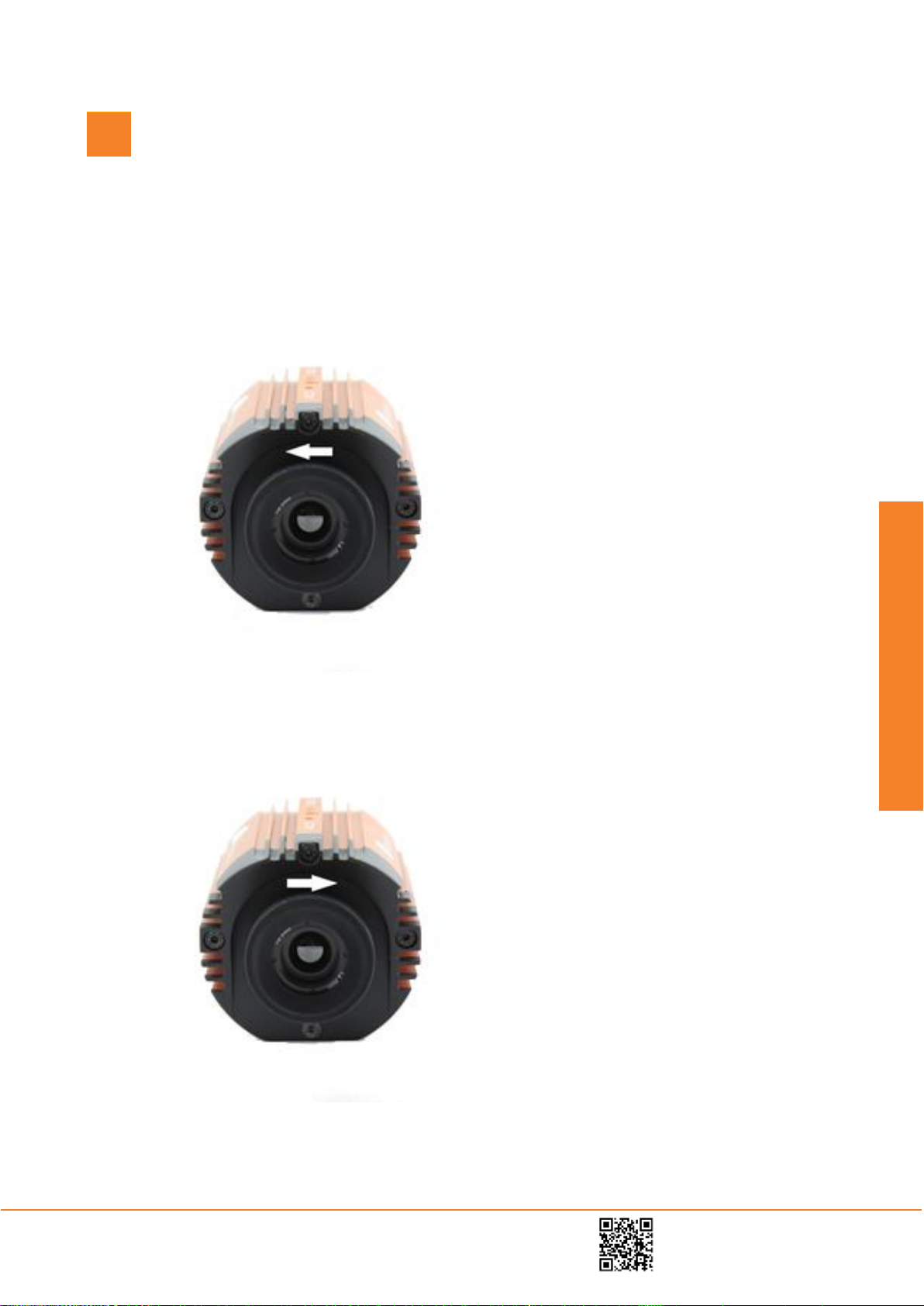

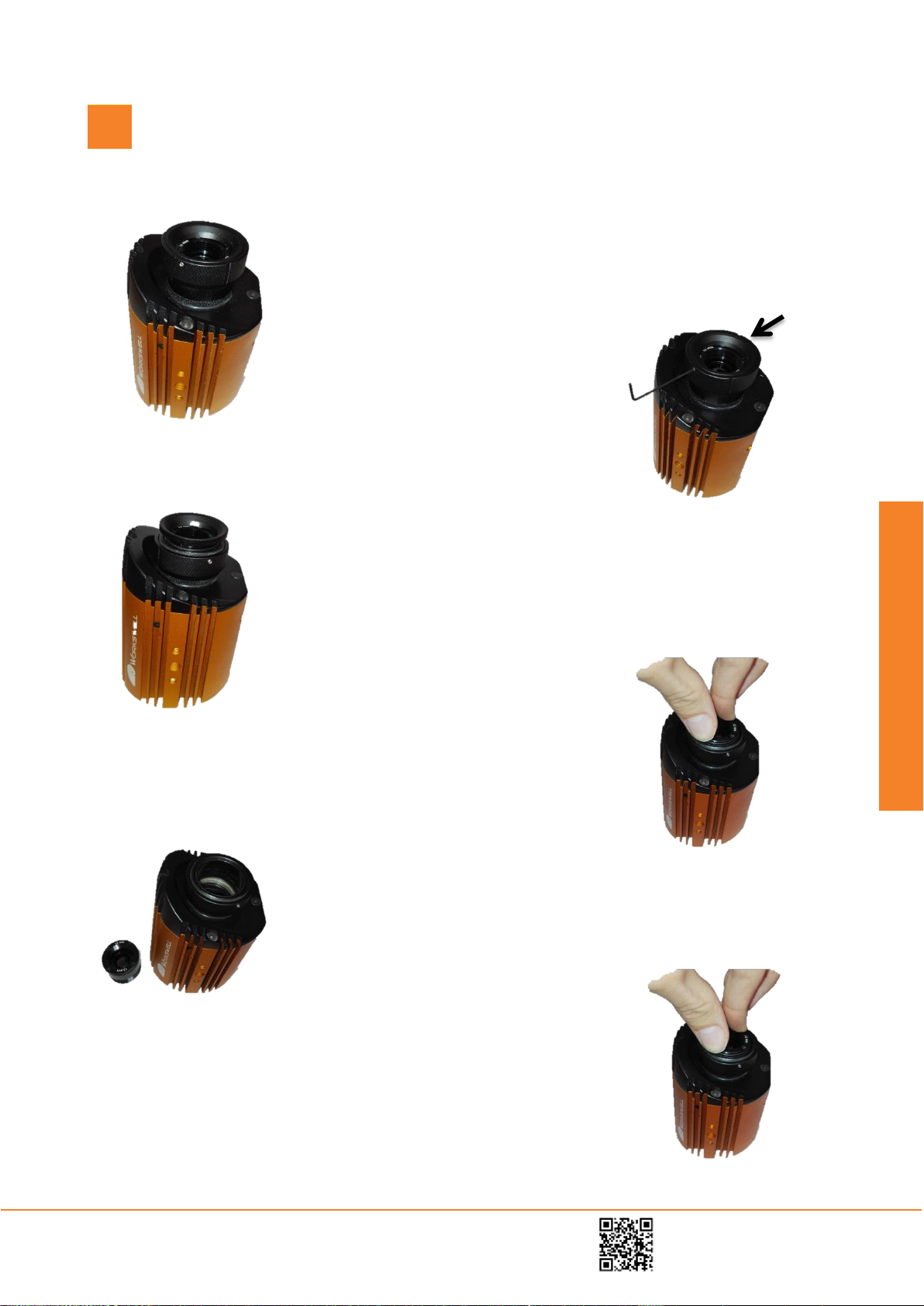

Changing lenses................................................................................................................................................. 2

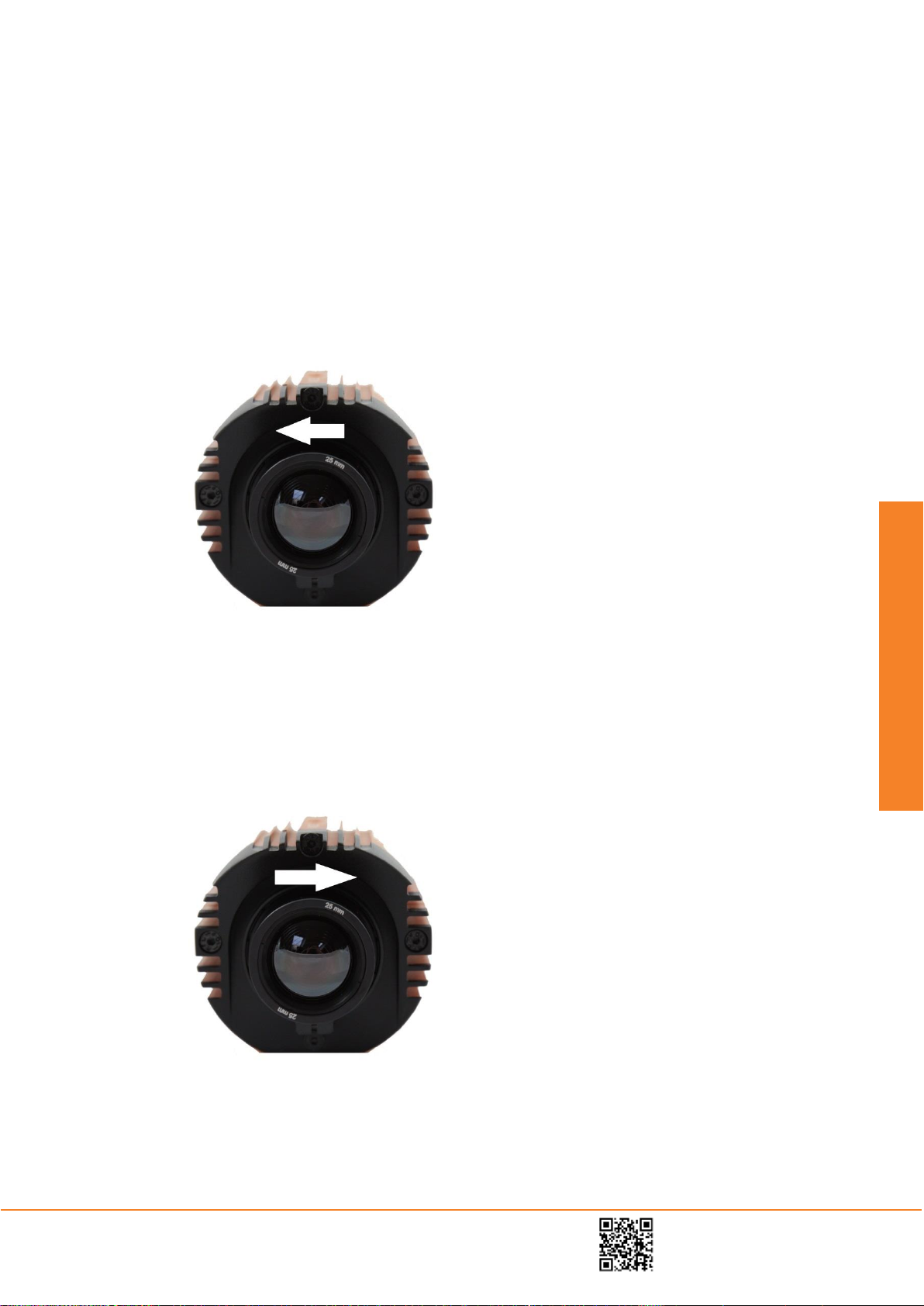

High temperature filter ..................................................................................................................................... 2

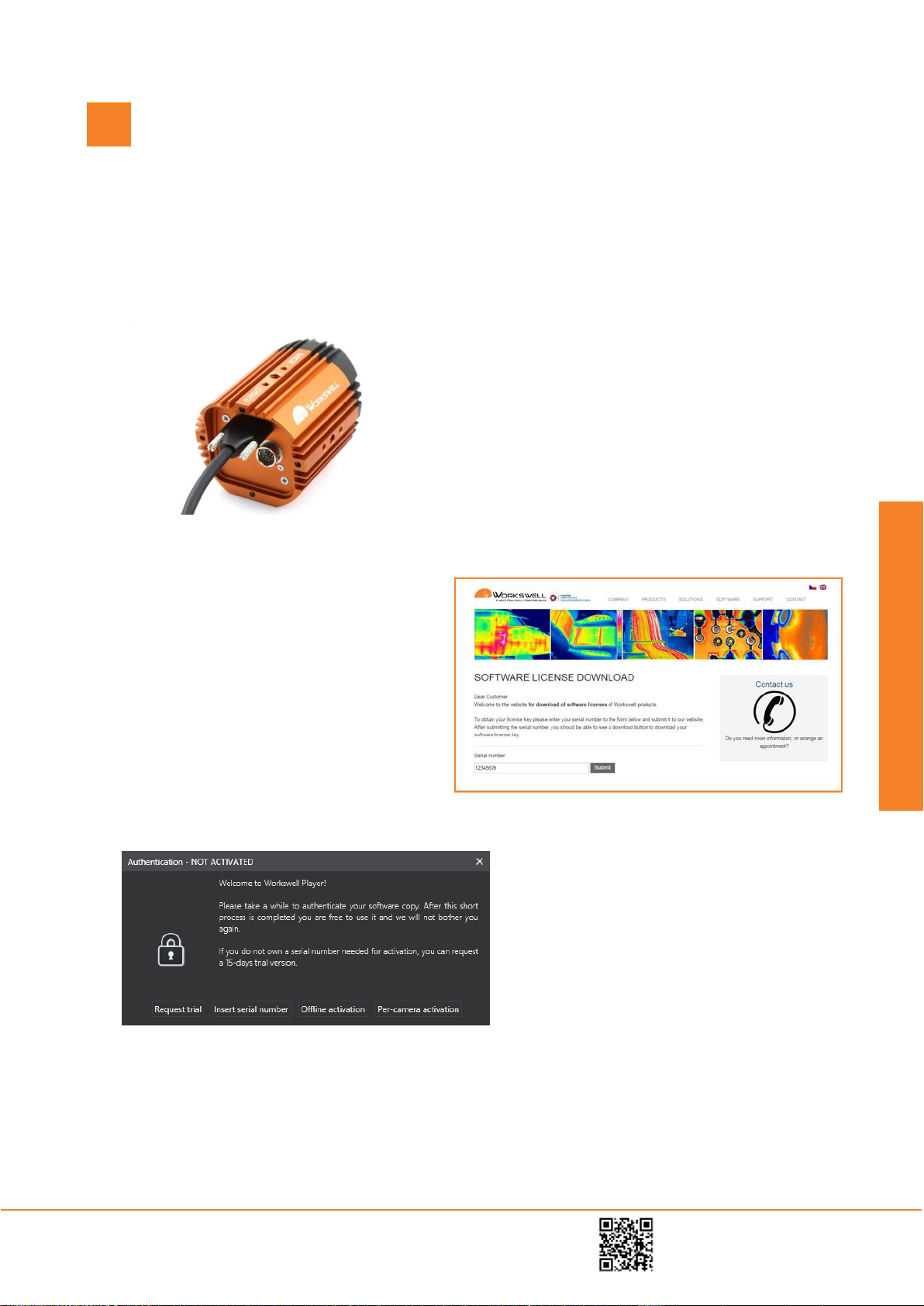

Connect camera to PC ....................................................................................................................................... 2
Analog output.................................................................................................................................................... 2
Adding back cover ............................................................................................................................................. 2
Maintanance...................................................................................................................................................... 2
Contacts............................................................................................................................................................. 2
Contents

5
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
All pictures are only for illustration.
Real values may vary.
Workswell Infrared Camera
Warnings
Any interference and noncertified service operations into the product leads to an automatic loss of
warranty.
Notifications
Do not use or store the device in conflict with the storage and operating conditions laid down in this
manual (only for hardware).
Do not point the infrared camera (with or without the lens cover) at strong energy sources, for
example, devices that cause laser radiation, or the sun. This can have an unwanted effect on the
accuracy of the camera. It can also cause damage to the detector in the camera.
Do not use the Workswell WIC in temperatures more than +50°C (+122°F). High temperatures can
cause damage to the camera.
Do not use the Workswell WIC in temperatures less than -15°C (+5°F). Low temperatures can cause
damage to the camera.
Do not apply solvents or equivalent liquids to the cameras, the cables, or other items. Damage to
the items can occur.
Be careful when you clean the infrared lens. The lens has an anti-reflective coating which is easily
damaged. Do not use too much force to clean the infrared lens. This can cause damage to the anti-
reflective coating.
The encapsulation rating is only applicable when all the openings on the all components of the
system are sealed with their correct covers, hatches, or caps.
Before using the product, please check that there is no visible damage or malfunction. If there are any
visible signs of damage or other defect on the device, then on no account should it be installed or put into
operation.
Warnings and Cautions

6
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
All pictures are only for illustration.
Real values may vary.
Workswell Infrared Camera
General information and conditions
Repairs & return merchandise authorization (RMA)
An RMA number is required for Workswell to process returned products, whether the product is under
warranty or out of warranty. International returns must be coordinated in advance of shipment in order to
adhere to import requirements. Please get information on servic[email protected].
Calibration including general maintenance
General maintenance is done in conjunction with calibration, to verify and update camera status before
calibration. Shipping cost is not included in the price.
Placing an order
All orders must be placed on [e-mail] together with ordering sheet. The ordering sheet must
contain all necessary information about Distributor (customer), shipment address and ordered equipment
together with ordering codes. Without this information shall not be the order accepted.
EXPORT STATEMENT
These commodities are for commercial end use only. They may not be used in the design, development,
production, or use of nuclear, chemical or use of nuclear, chemical or biological weapons or missiles and
not be sold transferred or exported to Belarus, Burma (Myanmar), Ivory Coast (Côte d’Ivoire), Libya,
Zimbabwe, Cuba, Iran, North Korea, Sudan, Russia and Syria.
Workswell Infrared Camera

7
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
All pictures are only for illustration.
Real values may vary.
Workswell Infrared Camera
Package Content
Confirm that the package contains the items listed below.
Workswell Infrared Camera
USB3 Cable (USB3 version)
Ethernet Cable (2x) (GigE Version)
PoE Adapter (GigE Version)
Adding back cover and front cover (optional)
Calibration certificate
Download Card
Quick Start Guide
Hard transport case
Download Card
The Download Card gains the cardholder access to download the relevant documents, including the user
manual in electronic form, and software on the website www.workswell.eu.
Package Content

8
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
All pictures are only for illustration.
Real values may vary.
Workswell Infrared Camera
General Instructions
try to find an answer by searching this User Manual
contact your dealer
search Workswell s.r.o. website at http://www.workswell.eu,
send an email to [e-mail]
Help and FAQ

9
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
All pictures are only for illustration.
Real values may vary.
Workswell Infrared Camera
Thermal and optical data
Resolution
640 x 512 pixels or 336 x 256 pixels
Framerate
60Hz or 30 Hz (or 9 Hz available on request for non-ITAR delivery)
Temperature ranges
-25°C to +150°C
-40°C °C to +550°C (optional up to 1 500°C with special filter)
Accuracy
±2% or ±2°C
Temperature sensitivity
≤0.03°C (30mK) @ 30°C
Spectral Range
7.5 –13.5 μm
Dynamic range
14bit radiometric temperature data, 14bit RAW data
Calibration
Yes, calibrated both temperature ranges
Detector Type
Uncooled VOx microbolometer
Lenses
Interchangeable and focusable, various field of view
Available Lenses
18°, 25°, 30°, 45°, 69°
Focus
Manual continuous (Min. focus distance depends on lens)
Communication and Power Supply Interface
Ethernet version
Gigabit Ethernet, RJ-45 connector
USB3 version
USB3, Thumbscrews lock micro USB connector
Analog video output
PAL/NTSC video format (only for USB3 version)
Input Supply Voltage
5 V DC for USB3, Power over Ethernet 48V type
Power Dissipation
< 1.3 W (max. 3 W during NUC calibration time)
Mechanical data
Dimensions for USB3 version
97 x 65 x 63 mm for IP40 for WFOV, 186 x 65 x 63 mm for IP65 for WFOV,
Dimensions for GIGE version
106 x 65 x 63 mm for IP40 for WFOV, 179 x 65 x 63 mm for IP65 for WFOV,
Weight
360 g for GIGE WFOV model (without back and front IP65 cover)
Mounting and tripod
4 x 1/4-20 UNC thread and 10 x M4
Internal Protection
IP 65 with plugin back cover (IP 40 without)
Workswell Infrared Camera Specification

10
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
All pictures are only for illustration.
Real values may vary.
Workswell Infrared Camera
Operating Environment
Operating temperature
-10°C to +50°C
Storage temperature
-30°C to +60°C
Humidity
5% to 95% non-condensing
Content of delivery
Workswell infrared camera, calibration certificate, software CorePlayer, cables, PoE (GigE
version), download card, hard transport case
Thermal Camera Settings
Source of image
As a source of image can be used full image (full sensor size) or only a part of the image
specified by a rectangle ROI tool
Framerate
According to the camera you can change frame-rate from 1Hz to 30Hz
Calibration
Using Calibration button you can activate NUC (non-uniformity compensation) to reach the
best image quality and camera signal stabilization
Play/Pause
Using Play/Pause icon you can start and pause real time image streaming
Start
recording/Snapshot
During radiometric thermal video acquisition (using Start capture button) you can save
snapshots (Radiometric JPG) at the same time
AVI Record
User can save live video streaming directly as AVI format. It is possible to change framerate
and bitrate and display into the video Palette bar, Bottom bar and ROI
Thermal Image Settings
Palette
User can choose from 14 palettes –BlackRed, BlueRed, BWRGB, Fire, FLIR Iron, Gradient,
Gray, Iron1, Natural, Rainbow, Sepia, Steps, Temperature, WBRGB
Interpolation
To obtain a smooth image without pixelization, user can interpolate the image
Units
Temperature can be displayed and calculated in °C or °F
Acquisition Parameters
Emissivity (continuously in range 0.01 –1.0 with step 0,01) and Reflected temperature
Advanced Parameters
In CorePlayer can be set/changed other parameters as Atmospheric temperature, Humidity,
Distance and Transmission of external optics
Temperature Range
Interactive temperature range can be used in manual or automatic mode. Using it you can
change the color distribution of temperatures to e.g. highlight details.
Isothermal Mode
User can set Isothermal mode of the image. CorePlayer offers four types of isotherms:
Below, Above, Between and Below and Above.
Report generation
Report Contents
There are automatically shown thermal images and time graphs and parameters of the
image: emissivity, reflected temperature, atmospheric temperature, humidity, distance and
transmission of external optics
Additional Information
User can insert into a report: protocol name, date and time of measurement, company logo,
user/company name and additional information about measured area

11
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
All pictures are only for illustration.
Real values may vary.
Workswell Infrared Camera
Measurement features
ROI analysis
User can insert into the image variety of measurement tools/ROI: Point, Line, Polyline and
Rectangle. User can insert more ROIs into one image, change its color, replace it or delete
ROIs that a user can see in the top-right subwindow
Zoom
User can zoom real-time streamed data, the acquired image or sequence –continuously,
each mouse scroll zooms 0,5x
Measured Values
In each ROI can be measured and visualized Min, Max, and Average temperature. User can
save temperature values from the ROI as CSV file
Graphs
Thermal Scanner
Temperature values for Line ROI could be visualized in Thermal Scanner. User can select
number of lines and temperature range (manual or automatic)
Thermal Profile
All measured data can be displayed in real time Thermal Profile (for Line ROI). User can
adjust range of graph axis and see the measurement Target Cross for fast and easy
visualization of measured graph values
Time Graph
Temperature values from all ROI tools (for real time visualization or captured sequence
measurement) can be showed into the Time Graph. User can adjust range of graph axis and
see the measurement Target Cross for fast and easy visualization of graph values. For saved
sequence can be set upper and lower limit for the temperatures in each ROI and x-axis in
relative or real time
Radiometric Sequence
Playback
Radiometric video can be played Backwards, Forwards, show Next frame or Previous frame
or play the sequence continuously in the loop
Processing
User can cut the video and save it into new file as radiometric sequence.
Additional functions
Export
User can export images into different file formats - save *.seq file as Radiometric JPEG, PNG
or CSV file. Radiometric sequence can be exported to AVI file
Presentation Mode
For presentation purposes the live stream or acquired image can be displayed in full screen
mode with image related controls.
User Interface
Intuitive and well-arranged user interface. User can change layout of sub-windows or
restore layout to defaults
Image Information
The information about saved image in sub-window: filename, camera type, captured date,
resolution, emissivity and reflected temperature
Camera Information
CorePlayer shows information about connected camera: IP and MAC address, Camera
manufacturer, Camera model, Name, Serial number and Resolution
GPS Support
CorePlayer supports integration of GPS data from standard GPS receiver and display the
position in Google Maps

12
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
All pictures are only for illustration.
Real values may vary.
Workswell Infrared Camera
Resolution 640 x 512 pixels
Field of view
Spatial resolution IFOV
Min focus distance
Focal length 9 mm
FOV 69° x 56°
1.889 mrad from 1 meter
7 cm
Focal length 13 mm
FOV 45° x 37°
1.308 mrad from 1 meter
15 cm
Focal length 19 mm
FOV 32° x 26°
0.895 mrad from 1 meter
20 cm
Focal length 25 mm
FOV 25° x 20°
0.683 mrad from 1 meter
40 cm
Resolution 336 x 256 pixels
Field of view
Spatial resolution
Min focus distance
Focal length 6.8 mm
FOV 45.6° x 35.5°
2.5 mrad from 1 meter
5 cm
Focal length 9 mm
FOV 35° x 27°
1.889 mrad from 1 meter
7 cm
Focal length 13 mm
FOV 25° x 19°
1.308 mrad from 1 meter
15 cm
Focal length 19 mm
FOV 17° x 13°
0.895 mrad from 1 meter
20 cm
Focal length 25 mm
FOV 13° x 10°
0.683 mrad from 1 meter
40 cm
IFOV and Field of View calculator

13
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
All pictures are only for illustration.
Real values may vary.
Workswell Infrared Camera
Focusing the camera
WFOV Lens
The infrared camera has adjustable focus. You use sharpening mechanism mounted on lens for focusing of
WFOV lens.
In order to focus on short distance,
gently rotate the lens counter-
clockwise. During this movement,
the lens extends from the camera
body. If the lens can rotate too
easily, you probably get on the
edge of the focus range. Trying to
rotate the lens more may cause the
lens to fall out.
In order to focus on long distance
(or infinity) gently rotate the lens
clockwise. During this movement,
the lens retracts to the camera
body. If the lens can rotate too
hard, you probably get on the edge
of the focus range. Trying to rotate
the lens more may cause the lens
to damage.
Short distance
Short distance
Long distance
Long distance

14
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
All pictures are only for illustration.
Real values may vary.
Workswell Infrared Camera
NFOV Lens
The infrared camera has adjustable focus. You have to loosen the locking screw on the bottom of lens and
rotate whole lens for focusing NFOV lens.
In order to focus on short distance,
gently rotate the lens counter-
clockwise. During this movement, the
lens extends from the camera body.
If the lens can rotate too easily, you
probably get on the edge of the focus
range. Trying to rotate the lens more
may cause the lens to fall out.
In order to focus on long distance (or
infinity) gently rotate the lens
clockwise. During this movement,
the lens retracts to the camera body.
If the lens can rotate too hard, you
probably get on the edge of the focus
range. Trying to rotate the lens more
may cause the lens to damage.
Short distance
Short distance
Long distance
Long distance

15
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
All pictures are only for illustration.
Real values may vary.
Workswell Infrared Camera
Changing lenses
1. If you want change lenses, unscrew the
focusing mechanism as much as you
can.
2. Loosen the two small screws
from the side of the focusing
mechanism.
3. Screw in the outer ring below the level
of lens and take down the inner ring.
5. Put out lens and give the new one into
the camera.
6. Screw in the new lens by hand as much
as you can.
4. Unscrew lens by hand.

16
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
All pictures are only for illustration.
Real values may vary.
Workswell Infrared Camera
7. Insert the inner ring on the lens, but
make sure that lens lock into lugs of
inner ring.
8. Hold the inner ring by hand and
outer ring unscrew to the same
level with the inner ring
9. Screw in the two small screws from the
side of the focusing mechanism and
lenses are changed.

17
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
All pictures are only for illustration.
Real values may vary.
Workswell Infrared Camera
High temperature filter
1. Put the high temperature
filter on focusing mechanism
to the groove.
2. Screw in small screw from the
side of the high temperature
filter.

18
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
All pictures are only for illustration.
Real values may vary.
Workswell Infrared Camera
Connect camera to PC
USB3
1) Download and install software CorePlayer (link on Download Card).
2) Connect USB3 cable to camera screw
fastening screws and connect cable to
USB3 port on PC.
3) Download license file from our website
(link on Download Card), for download
license, insert serial number of camera.
4) Connect camera to CorePlayer, select
Per-camera activation
and insert license.

19
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
All pictures are only for illustration.
Real values may vary.
Workswell Infrared Camera
GigE
1) Download and install software CorePlayer (link on Download Card).
2) Connect first Ethernet cable to camera
and PoE adapter to port POWER+DATA
OUT. Second Ethernet cable connect to
PC and PoE adapter to port LAN IN.
3) Download license file from our website
(link on Download Card), for download
license, insert serial number of camera.
4) Connect camera to CorePlayer, select
Per-camera activation and insert
license.

20
Phone numbers
E-mail and Web
ID
Headquarters
[phone]
[email protected]
Reg. No.: 29048575
Libocka 653/51b
[phone]
www.workswell.eu
VAT No. CZ29048575
Prague, Czech Republic
All pictures are only for illustration.
Real values may vary.
Workswell Infrared Camera

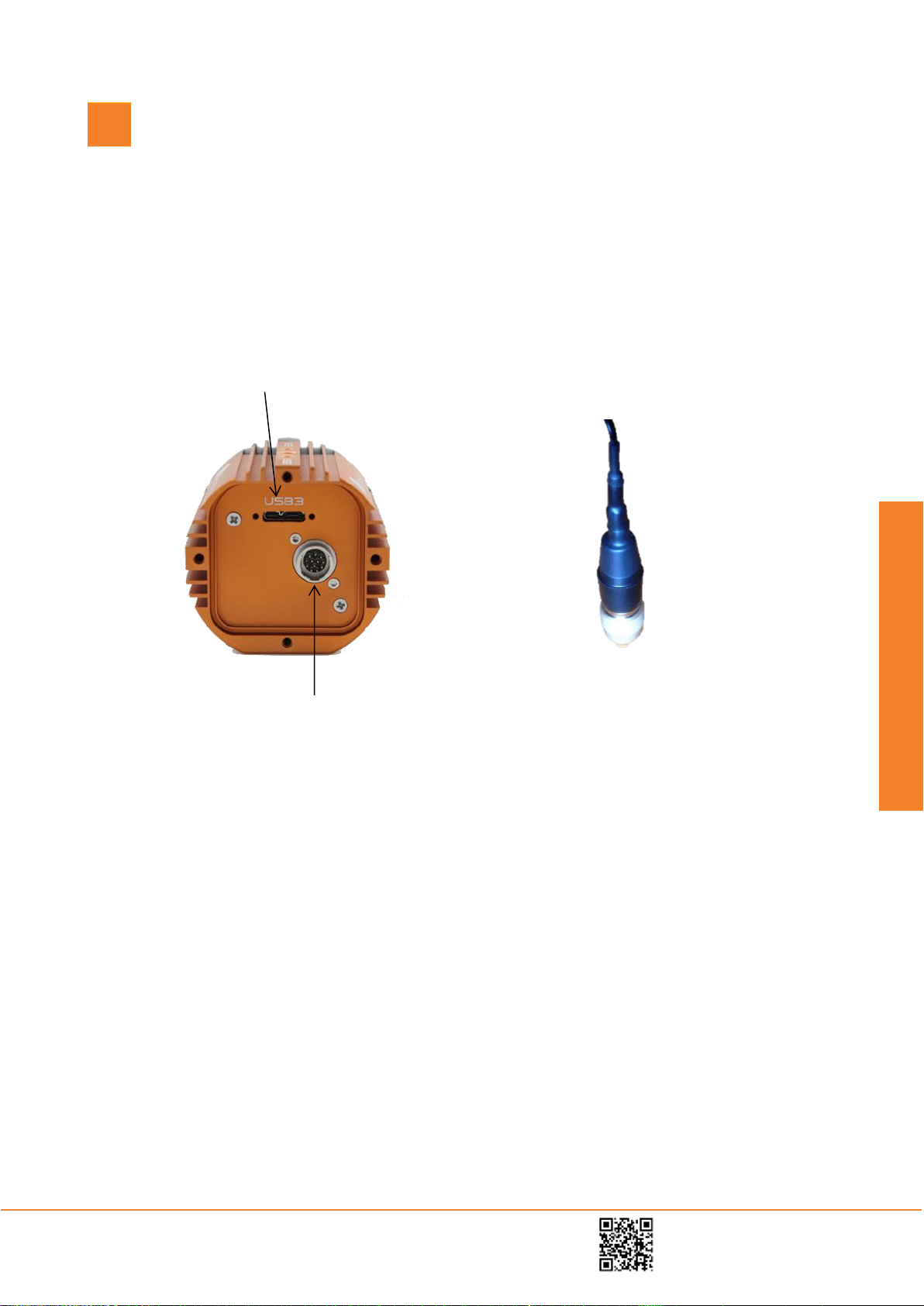

Analog output
The USB3 infrared camera is equipped with both analog video output and USB3 port to transfer the images
directly to a computer with CorePlayer software. In both cases, it is required to supply +5V DC through the
micro USB3 connector.
micro USB3
(power supply and PC connection)
Analog video output
