Worx WG775E Installation manual

Cordless Lawn Mower WG775E
SAFETY AND OPERATING MANUAL

2
Cordless Lawn Mower WG775E
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING! Read all safety warnings
and all instructions. Failure to follow
the warnings and instructions may result in
electric shock, fire and/or serious injury.
Carefully read the instructions for the
safe operation of the machine.
Save all warnings and instructions for
future reference.
- This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
- Children should be supervised to ensure
that they do not play with the appliance.
TRAINING
a) Read the instructions carefully. Be familiar
with the controls and the proper use of the
equipment;
b) Never allow children or people unfamiliar
with these instructions to use the
lawnmower. Local regulations can restrict
the age of the operator;
c) Never mow while people, especially
children, or pets are nearby;
d) Keep in mind that the operator or user
is responsible for accidents or hazards
occurring to other people or their property.
PREPARATION
a) While mowing, always wear substantial
footwear and long trousers. Do not operate
the equipment when barefoot or wearing
open sandals;
b) Thoroughly inspect the area where the
equipment is to be used and remove
all objects which can be thrown by the
machine;
c) Before using, always visually inspect to
see that the blades, blade bolts and cutter
assembly are not worn or damaged.
Replace worn or damaged blades and bolts
in sets to preserve balance.
d) On multi-bladed machines, take care as
rotating one blade can cause other blades
to rotate.
OPERATION
a) Mow only in daylight or in good artificial
light;
b) Avoid operating the equipment in wet
grass, where feasible;
c) Always be sure of your footing on slopes;
d) walk, never run;
e) For wheeled rotary machines, mow across
the face of slopes, never up and down;
f) Exercise extreme caution when changing
direction on slopes;
g) Do not mow excessively steep slopes;
h) Use extreme caution when reversing or
pulling the lawnmower towards you;
i) Stop the blade(s) if the lawnmower has to
be tilted for transportation when crossing
surfaces other than grass, and when
transporting the lawnmower to and from
the area to be mowed;
j) Never operate the lawnmower with
defective guards, or without safety devices,
for example deflectors and/or grass
catchers, in place;
k) Switch on the motor carefully according to
instructions and with feet well away from
the blade(s);
l) Do not tilt the lawnmower when switching
on the motor, except if the lawnmower has
to be tilted for starting In this case, do not
tilt it more than absolutely necessary and
lift only the part which is away from the
operator;
m) Do not put hands or feet near or under
rotating parts. Keep clear of the discharge
opening at all times;
n) Not to touch the blades before the
disabling device has been removed and the
blades have come to a complete stop;
o) To remove the disabling device
– Whenever leaving the machine unattended,
– Before clearing a blockage,
– Before checking, cleaning or working on
the machine,
– After striking a foreign object,
– Whenever the machine starts vibrating
abnormally.

3
Cordless Lawn Mower WG775E
MAINTENANCE AND STORAGE
a) Keep all nuts, bolts and screws tight to
be sure the equipment is in safe working
condition;
b) Check the grass catcher frequently for wear
or deterioration;
c) Replace worn or damaged parts for safety.
SAFETY WARNINGS FOR
BATTERY ChARGERS
WARNING! Read all safety warnings
and all instructions. Failure to follow
the warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for
future reference.
- This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
- Children should be supervised to ensure
that they do not play with the appliance.
ADDITIONAL SAFETY
INSTRUCTIONS FOR YOUR
BATTERY ChARGER
1. Before charging, read the instructions.
2. After charging, disconnect the battery
charger from the supply mains.Then
remove the chassis connection and then
the battery connection.
3. Do not charge a leaking battery.
4. Do not use chargers for works other than
those for which they are designed.
5. Before charging, ensure your charger is
matching the local AC supply.
6. For indoor use, or do not expose to rain.
7. The charging device must be protected
from moisture.
8. Do not use the charging device in the open.
9. Do not short out the contacts of battery or
charger.
10.Respect the polarity “+/-“ when charging.
11. Do not open the unit and keep out of the
reach of children.
12.Do not charge the batteries of other
manufactures or ill-suited models.
13.Ensure that the connection between the
battery charger and battery is correctly
positioned and is not obstructed by foreign
bodies.
14.Keep battery charger’s slots are free of
foreign objects and protect against dirt
and humidity. Store in a dry and frost-free
place.
15.When charging batteries, ensure that the
battery charger is in a well-ventilated area
and away from inflammable materials.
Batteries can get hot during charging.
Do not overcharge any batteries. Ensure
that batteries and chargers are not left
unsupervised during charging.
16.Do not recharge non-rechargeable
batteries, as they can overheat and break.
17. Longer life and better performance can
be obtained if the battery pack is charged
when the air temperature is between 18°C
and 24°C. Do not charge the battery pack
in air temperatures below 4.5°C, or above
40.5°C.This is important as it can prevent
serious damage to the battery pack.
18.Charge only battery pack of the same
model provided by WORX and of models
recommended by WORX.
SAFETY WARNINGS FOR
BATTERY PACk
a) Do not dismantle, open or shred cells
or battery pack.
b) Do not short-circuit a battery pack. Do
not store battery packs haphazardly
in a box or drawer where they may
short-circuit each other or be
short-circuited by conductive
materials. When battery pack is not in use,
keep it away from other metal objects, like
paper clips, coins, keys, nails, screws or
other small metal objects, that can make a
connection from one terminal to another.
Shorting the battery terminals together

4
Cordless Lawn Mower WG775E
may cause burns or a fire.
c) Do not expose battery pack to heat or
fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to
mechanical shock.
e) In the event of battery leaking, do not
allow the liquid to come into contact
with the skin or eyes. If contact has
been made, wash the affected area
with copious amounts of water and
seek medical advice.
f) Seek medical advice immediately
if a cell or battery pack has been
swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with
a clean dry cloth if they become dirty.
i) Battery pack needs to be charged
before use. Always refer to this
instruction and use the correct
charging procedure.
j) Do not maintain battery pack on
charge when not in use.
k) After extended periods of storage,
it may be necessary to charge
and discharge the battery pack
several times to obtain maximum
performance.
l) Battery pack gives its best
performance when it is operated at
normal room temperature (20°C ±
5°C).
m)When disposing of battery packs,
keep battery packs of different
electrochemical systems separate
from each other.
n) Recharge only with the charger
specified by WORX. Do not use any
charger other than that specifically
provided for use with the equipment.
A charger that is suitable for one type of
battery pack may create a risk of fire when
used with another battery pack.
o) Do not use any battery pack which
is not designed for use with the
equipment.
p) Keep battery pack out of the reach of
children.
q) Retain the original product literature
for future reference.
r) Remove the battery from the
equipment when not in use.
s) Dispose of properly.
ADDITIONAL SAFETY
RULES FOR LEAD ACID
BATTERY:
1. Working in the vicinity of a lead-acid
battery is dangerous. Battery pack
generates explosive gases during normal
battery operation. For this reason it is of the
utmost importance that each time before
using your charger, you read and follow the
instructions provided exactly.
2. Never smoke or allow an open spark or
flame in the vicinity of the battery.
3. Use charger for charging a lead-acid battery
pack only.
4. Never place the charger directly above
or below the battery pack being charged;
gases or fluids from the battery pack will
corrode and damage the charger. Locate
the charger as far away from the battery
pack as DC cables permit.
5. Do not operate charger in a closed-in area
or restrict ventilation in any way.

5
Cordless Lawn Mower WG775E
SYMBOLS
Read instruction handbook before
operation this machine
Only use the battery charger
indoors
Keep bystanders away.
Beware of sharp blades. Blades
continue to rotate after the motor
is switched off - Remove disabling
device before maintenance.
Fuse
T 2 A time lag fuse with rated
current of 2 A
The output plug is with positive
center pole and negative outer pole
Lead-acid batteryThis product
has been marked with a symbol
relating to ‘separate collection’ for
all battery packs and battery pack. It
will then be recycled or dismantled
in order to reduce the impact on the
environment. Battery packs can be
hazardous for the environment and
for human health since they contain
hazardous substances.
Batteries may enter water cycle if
disposed improperly, which can
be hazardous for ecosystem. Do
not dispose of waste batteries as
unsorted municipal waste.
Do not burn
C-Tick approval mark

6
Cordless Lawn Mower WG775E
1
5
6
7
8
9
10
11
2
3
4

7
Cordless Lawn Mower WG775E
1. SWITCH LEVER
2. CABLE CLIP
3. GRASS BAG FILLING INDICATOR
4. GRASS COLLECTION BAG
5. SAFETY KEY
6. UPPER HANDLE
7. HANDLE KNOB
8. LOWER HANDLE
9. SAFETY FLAP
10. BATTERY PACK*
11. MOTOR COVER
12. CHARGER* (See Fig. A)
13. BLADE BOLT (See Fig. M1)
14. BLADE (See Fig. M1)
* Not all the accessories illustrated or described are included in standard delivery.

8
Cordless Lawn Mower WG775E
TEChNICAL DATA
Voltage 24V
Cutting diameter 40cm
Cutting height 20-70mm
Cutting height positions 6 positions
Grass collection capacity 50L
Battery capacity 10Ah
Battery type Lead acid
Battery model WA3218
Charging time 10-12hrs
Charger model WA3749
Charger rating Input: AC 110-240V, 50/60Hz
Machine weight 23kg
ACCESSORIES
Battery pack (WA3218) 1
Charger (WA3749) 1
Grass collection bag 1
We recommend that you purchase your accessories from the same store that sold you the tool.
Use good quality accessories marked with a well-known brand name. Choose the type according
to the work you intend to undertake. Refer to the accessory packaging for further details. Store
personnel can assist you and offer advice.

9
Cordless Lawn Mower WG775E
INTENDED USE
This product is intended for domestic lawn mowing.
ChARGER SAFETY RULES
1. Plug charger directly into an electrical outlet. DO
NOT ABUSETHE CORD. Never carry charger by
cord. Do not disconnect the charger from the outlet
or mower by pulling it by the cord.
2. CAUTION: To reduce the risk of fire, electrical
shock, or personal injury do not attempt to use
this charger with any other product.
Likewise, do not attempt to charge the battery with
any other charger.
3. Do not service mower with charger or safety key
installed.
4. Do not operate a damaged charger. Replace
damaged cords or charger immediately at an
authorized WORX service center.
5. Always charge the mower in a dry area protected
from the weather. Do not expose the mower or
charger to rain. Do not charge in wet locations. Do
not charge mower when temperature is above 104°F
(40°C) or below 41°F (5°C).
6. Keep the mower and charger away from water, heat
sources, (Such as radiators, heaters, stoves...etc.)
flames, or chemicals. Be careful not to damage the
charger cord, by keeping cord away from sharp edges.
ChARGING PROCEDURE
1. Charging can be carried out only with the battery
REMOVED from the machine (See Fig. A)
2. Insert the plug of the charger into the wall
receptacle, the Charging indicator light will be green.
3. Plug the charger connector into the receptacle on the
battery, the light will switch to be red indicating that
you have power and the battery is being charged.
4. The light will turn to be green when charging is
completed;
5. Always keep the battery connect with the charger
and the charger is powered on. After the battery
is fully charged, the green light will turn on.The
charger will not switch off and will continue charging
to make sure the capacity stays above 90%.
NOTE: If the battery is Defective, the red light
will Flash.
12
A

10
Cordless Lawn Mower WG775E
BATTERY CARE
The battery in your cordless lawnmower is a 24-volt
sealed lead acid system.The mower can be stored in
any position without fear of leakage.
• For optimal battery life and performance the battery
should be fully charged every 2 months during storage
• Foroptimalbatterylifeandperformancethebattery
should be fully charged after each use
• Storethebatteryinacooldrylocation.
• The battery can be safely stored down to 14°F (-10°C).
• Thebatterydoesnotneedtobefullydischarged
before recharging.
• Initially2to3chargingcyclesmayberequiredafter
purchase to achieve maximum run time capacity.
ADDITIONAL BATTERIES can be obtained from the
Customer Helpline.
ASSEMBLY
IMPORTANT! Before you assemble the lawn
mower, check the accessories according above
information, make sure the accessories are completed.

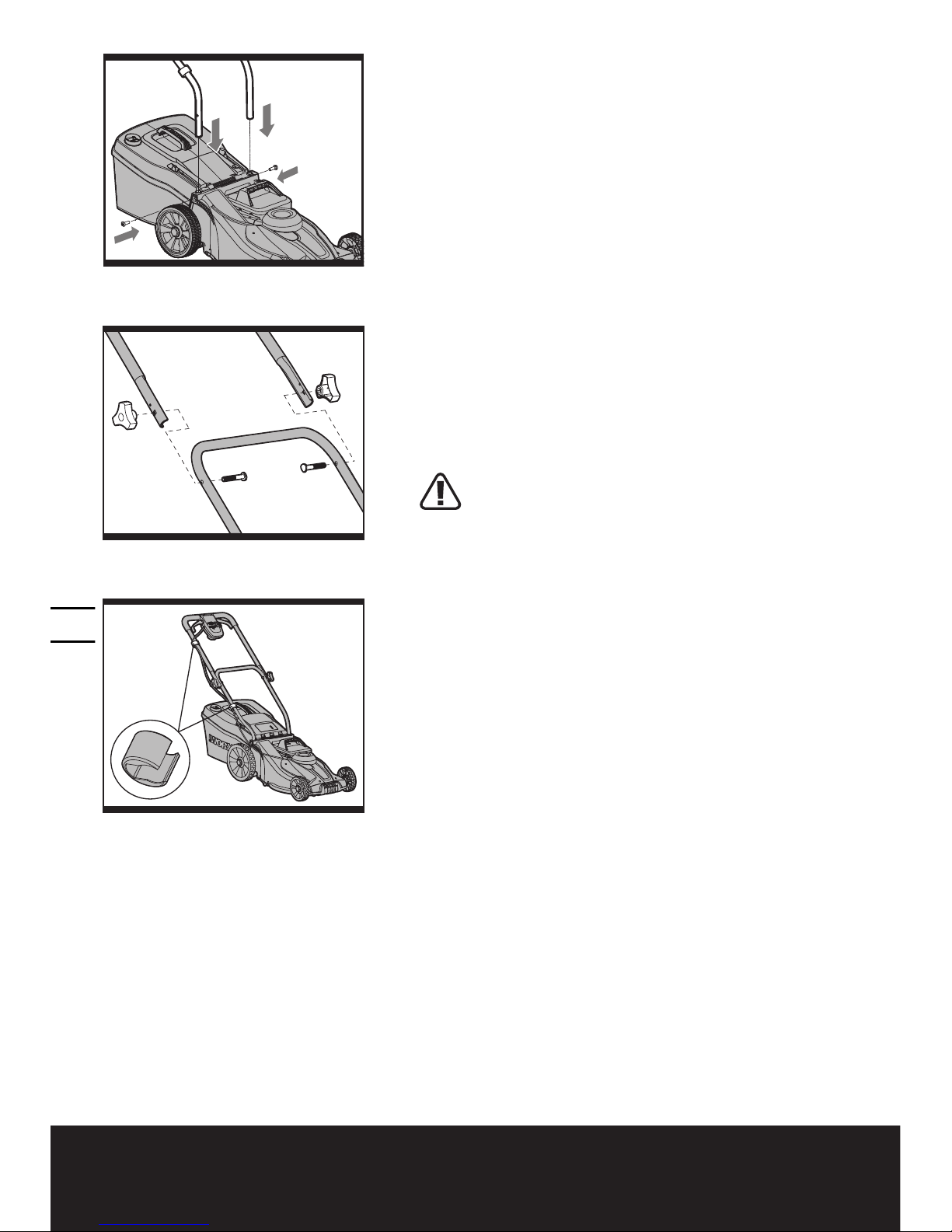

1. FITTING THE HANDLE (See Fig. B1, B2, B3)
1) Remove the screws (X 2) on the both side of deck.
(See Fig. B1)
2) Insert the lower handle (8) into the holes on the deck
provided.
3) Secure with the screws provided. (See Fig. B1)
4) Attach the upper handle (6) with the bolts and Handle
Knobs (7) to the lower handle (8). (See Fig. B2)
5) Screw on the two Handle knobs. Check that the
handle is FULLY secured.
NOTE: Ensure the bolts are fully inserted through
the handles before fitting the handle knobs.
6) Attach the cable clips (2) provided, to the upper and
lower handle. Insert the cable into the clips ensuring
there is enough cable slack. (See Fig. B3)
B1
B2
B3

11
Cordless Lawn Mower WG775E
2. GRASS COLLECTION BAG ASSEMBLY
Connect the grass box handle to the box top as shown
in Fig C1-C4.
Step 1 Press the front of the handle briefly. (See Fig.
C2)
Step 2 Then push it forward. (See Fig. C2)
Step 3 Push down the back of the handle. (See Fig. C2)
Step 4 Finally, clip the plastic clips over the metal
frame. (See Fig. C3)
WARNING: Don’t fit the handle in reversed
direction. Fit the handle as shown in Fig. C1.
Front
Back
C1
1
2
3
C2
C3
C4

12
Cordless Lawn Mower WG775E
3. GRASS COLLECTION BAG FITTING
(See Fig. D1, D2, D3)
1) Turn the mower off, wait until blade stops and
remove safety key (5).
2) Raise the safety flap (9) and hold it up, ensure that
the mulching insert has been removed.
3) Pick up the grass collection bag by the handle, and
position grass collection bag on the lower hooks (a)
on the mower deck (See Fig. D2).
4) Release the safety guard to lock the grass bag into
position. Ensure the grass collection bag is installed
securely (See Fig. D3).
NOTE: Depress the grass collection bag slightly to
ensure that it is completely installed.
4. REMOVING/EMPTYING
Hold the grass collection bag, lift the safety flap (9) and
hold up. Remove grass collection bag (4).
WARNING! Always check the safety flap can
close the discharge outlet tightly before using.
Never lift the safety flap (9) when the lawn mower is
being used without fitted grass collection bag.
1
2
D1
a
D2
D3

13
Cordless Lawn Mower WG775E
5. FITTING/REMOVING BATTERY
(See Fig. E1, E2)
REMOVING BATTERY
Pull out the battery with the battery handle directly.
(See Fig. E1)
NOTE: Be careful not to drop the battery onto your foot
or on the ground when removing it.
FITTING BATTERY
Put the battery into the battery container; make sure the
battery is fitted correctly. (See Fig. E2)
OPERATION
1. STARTING AND STOPPING
( See Fig. F1, F2)
WARNING! The blade continues to rotate for a
few seconds after the machine is switched off.
Allow the motor/blade to stop rotating before switching
“on” again. Do not rapidly switch off and on.
STARTING
1) Insert safety key into the housing of the switch box.
2) Slide the key to the right and hold in position.
3) Pull the lever bar towards the handle and the mower
will start.
4) Release the safety key.
STOPPING
Release the switch lever.
E1
E2
1
F1
1
2
F2

14
Cordless Lawn Mower WG775E

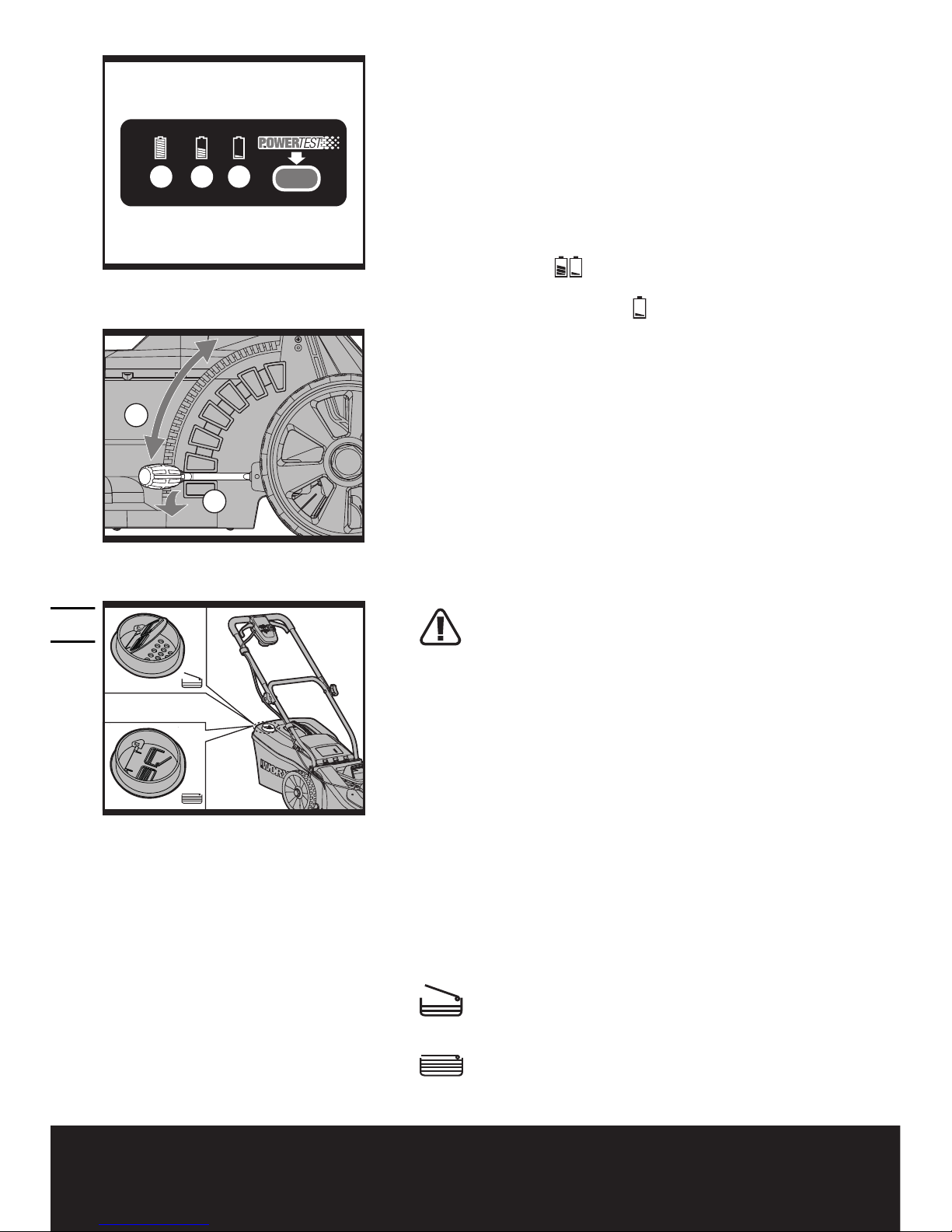

2. BATTERY STATUS LED’S (See Fig. G)
NOTE: The Status LED’s will indicate the battery
condition when the button on the battery is
pressed.
The LED’s constantly senses and displays the battery
condition as follows:
Press the button “POWERTEST”, the light button is
illuminated.
When the three green lights are illuminated, the battery
is in a highly charged condition.
When two lights ( ) are illuminated, the battery is in a
moderately charged condition.
When only one green light ( ) is illuminated, the
battery charge is depleted.
Before using your new mower for the first time, it is
recommended that the unit be charged overnight to
ensure that the battery is fully charged.
IMPORTANT
When only one light is illuminated, your battery
is overly discharged, even though the mower
may still be capable of cutting grass. Continuing
to operate your lawnmower with the battery in
this discharged condition may reduce the life and
performance of your battery.
3. ADJUSTING THE CUTTING HEIGHT (See Fig. H)
WARNING! Stop, release switch lever and wait
until the motor stops before adjusting height.The
blades continue to rotate after the machine is switched
off, a rotating blade can cause injury.
CAUTION: Do not touch rotating blades.
For the first cutting of the season, a high cutting
adjustment should be selected.The lawnmower can be
set to 6 cutting heights between 20mm and 70mm. For
this purpose, move the cutting height adjustment lever
outwards then adjust to the preferred position.
4. GRASS BAG FILLING INDICATOR
( See Fig. I)
To remind you immediately to empty when the grass
collection bag is full, the mower provides an indicator
on the top of bag to show the collection status. And you
can follow as below:
Empty status: flap floats (a)
Fully status: flap falls down (b)
G
1
2
H
a
b
I

15
Cordless Lawn Mower WG775E
5. REAR DISCHARGE (See Fig. J)
The mower provides a rear discharge function, so that
you can mower without bag collection.The debris will
be discharged from the rear chute.
6. MOWING TIPS
NOTE: Always inspect area where mower is to be
used and remove all stones, sticks, wire, metal
and other debris which might be thrown by the
rotating blade.
1. Mow across the face of slopes, never up-and-down.
Exercise extreme caution when changing direction
on slopes. Do not mow excessively steep slopes.
Always maintain good footing.
2. Release switch lever to turn mower “OFF” when
crossing any graveled area (stones can be thrown by
the blade).
3. Set mower at highest cutting height when mowing
in rough ground or in tall weeds. Removing too
much grass at one time can cause circuit breaker to
trip, which stops mower.
4. If a grass bag is used during the fast growing
season, the grass may tend to clog up at the
discharge opening. Release switch lever to turn
mower “OFF” and remove the safety key. Remove
the grass bag and shake the grass down to the back
end of the bag. Also clean out any grass or debris
which may be packed around the discharge opening.
Replace the grass collection bag.
5. If mower should start to vibrate abnormally, release
switch lever to turn mower “OFF” and remove safety
key. Check immediately for cause. Vibration is a
warning of trouble. Do not operate mower until a
service check has been made.
6. ALWAYS RELEASE SWITCH LEVER TO TURN
MOWER “OFF” AND REMOVE SAFETY KEY
WHEN LEAVING IT UNATTENDED EVEN FOR A
SHORT PERIOD OF TIME.
MAINTENANCE
WARNING: Stop the mower and remove the
safety key before removing the grass bag.
NOTE: To ensure long and reliable service, perform
the following maintenance procedures regularly. Check
for obvious defects such as a loose, dislodged or a
damaged blade, loose fittings, and worn or damaged
components. Check that the covers and guards are
all undamaged and are correctly attached to mower.
J

16
Cordless Lawn Mower WG775E
Carry out any necessary maintenance or repairs before
operating mower. If the mower should happen to fail
despite regular maintenance, please call our customer
helpline for advice.
BLADE SHARPENING
KEEP BLADE SHARP FOR BEST MOWER
PERFORMANCE. A DULL BLADE DOES NOT CUT
GRASS CLEANLY OR MULCH PROPERLY.
WEAR PROPER EYE PROTECTION WHILE REMOVING,
SHARPENING, AND INSTALLING BLADE. ENSURE
THAT SAFETY KEY IS REMOVED.
Sharpening the blade twice during a mowing season
is usually sufficient under normal circumstances. Sand
causes the blade to dull quickly. If your lawn has sandy
soil, more frequent sharpening may be required.
REPLACE BENT OR DAMAGED BLADE IMMEDIATELY.
WHEN SHARPENING THE BLADE:
1. Make sure blade remains balanced.
2. Sharpen blade at the original cutting angle.
3. Sharpen cutting edges on both ends of blade,
removing equal amounts of material from both
ends.
TO SHARPEN BLADE IN A VISE
(See Fig. K)
1. Be sure the switch lever is released, the blade
has stopped and the safety key removed before
removing the blade.
2. Remove blade from mower. See instructions for
removing and attaching blade.
3. Secure blade K-1 in a vise K-2.
4. Wear safety glasses and be careful not to cut
yourself.
5. Carefully file the cutting edges of the blade with a
fine tooth file K-3 or sharpening stone.
6. Check balance of blade. See instructions for blade
balancing.
7. Replace blade on mower and tighten securely. Refer
to instructions below.
BLADE BALANCING (See Fig. L)
Check balance of blade by placing center hole in blade
L-1 over a nail or screwdriver shank L -2, clamped
horizontally in a vise L-3. If either
end of the blade rotates downward, file that end. Blade
is properly balanced when neither end drops.
K-1
K-2
K-3
K
L-1
L-2
L-3
L

17
Cordless Lawn Mower WG775E
BLADE MAINTENANCE (See Fig. M1, M2)
Renew your metal blade after 50 hours mowing or 2
years, which ever is the sooner-regardless of condition.
Follow these procedures to remove and replace the
blade.You will need garden gloves (not provided) and
a spanner wrench (not provided) to remove the blade.
Hold the blade (14) and unscrew the blade bolt (13)
counter-clockwise using a spanner wrench, and then
remove blade.
To re-assemble, position the blade (14) with the cutting
edges towards the ground.Then securely tighten the
blade bolt (13).
STORAGE: (See Fig. N)
Stop the mower and always remove the safety key.
Clean the exterior of the machine thoroughly using
a soft brush and cloth. Do not use water, solvents or
polishes. Remove all grass and debris, especially from
the ventilation slots.
Turn the machine on its side and clean the blade area. If
grass cuttings are compacted in the blade area, remove
with a wooden or plastic implement.
Store the machine in a dry place. Do not place other
objects on top of the machine.
To aid storage, release the handle knobs, and rotate or
fold the upper handle.
13
14
M1
M2
N

Copyright © 2014, Positec. All Rights Reserved.
2CLM04FPK11001A0
