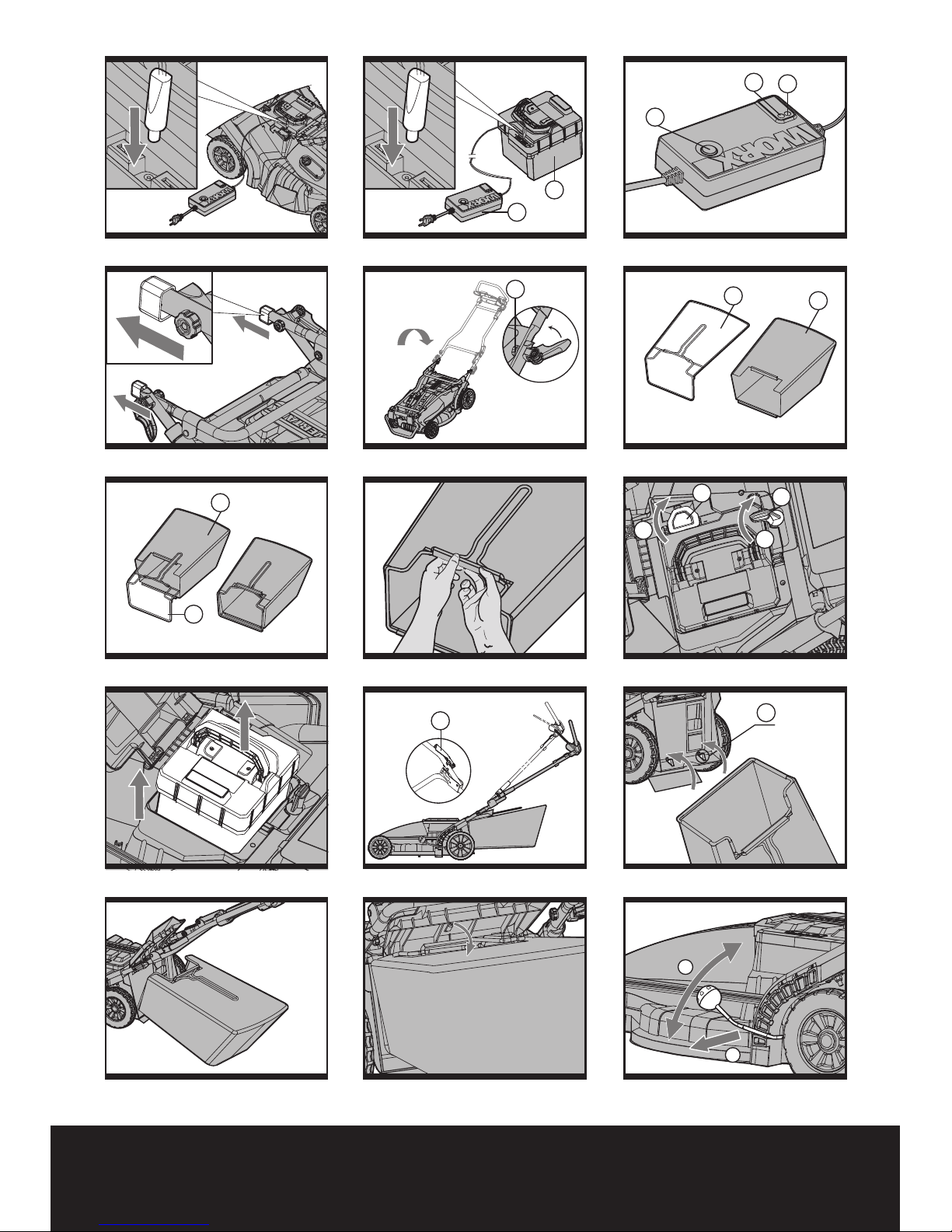

A B1 B2
C1 C2 D1
D2 D3 E1
E2 F G1
G2 G3 H

76
P-1
P-2
P-3
O-1
O-2
O-3
17
13
9
e
2
2
1
12
2
1
2
3
4
5
0
2
1
12
12

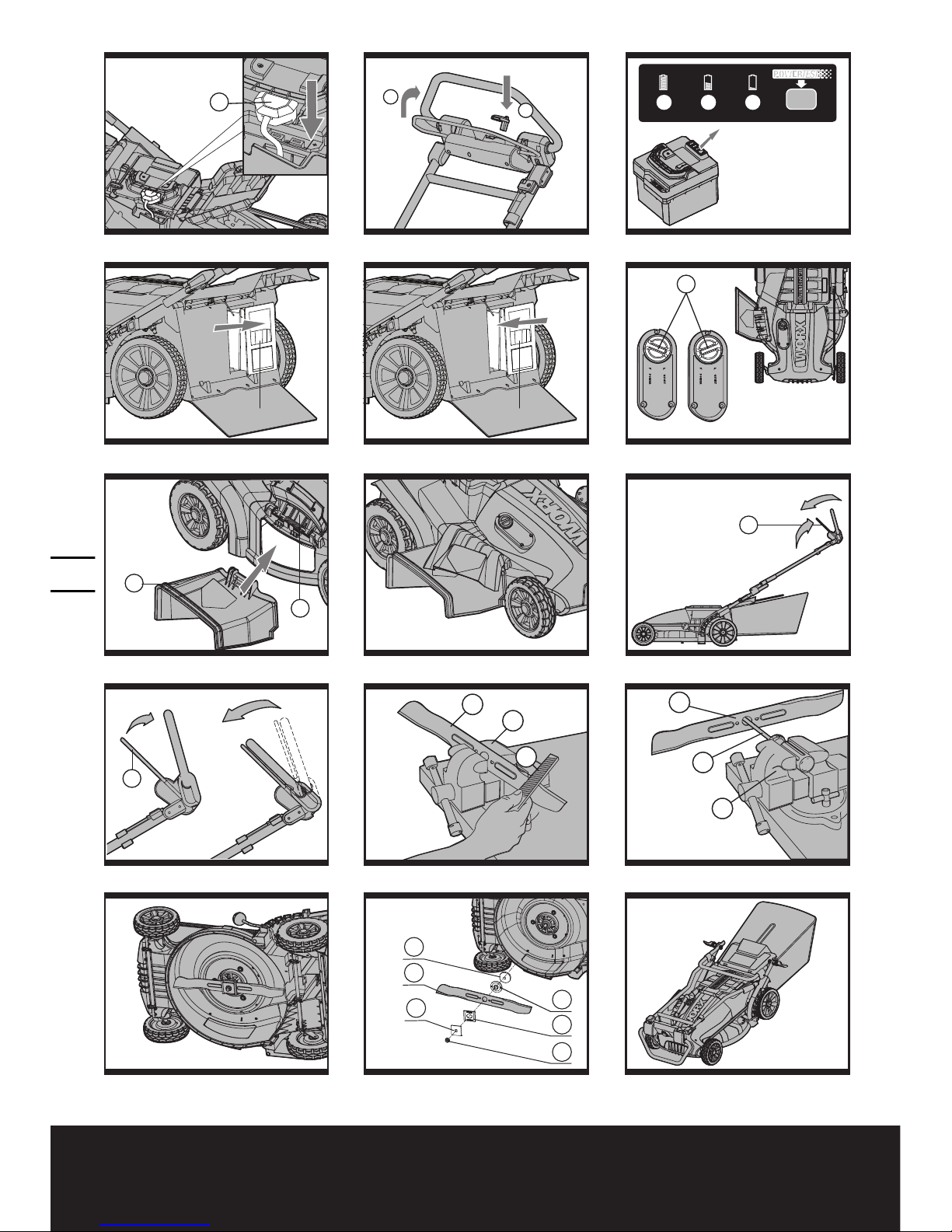

I1 I2 J
K1 K2 L
M1 M2 N1
N2 O P
Q R S

76
Cordless self-propelled lawn mower
EN
1. UPPER HANDLE
2. SWITCH LEVER
3. SAFETY KEY
4. LOWER HANDLE
5. HANDLE HEIGHT ADJUSTMENT LEVER
6. LOCK CAM LEVER
7. SAFETY GUARD
8. BATTERY HOUSING COVER
9. SIDE-DISCHARGE COVER
10. CUTTING HEIGHT ADJUSTMENT LEVER
11. GRASS COLLECTION BAG
12. MULCHING PLUG (See K1)
13. SIDE-DISCHARGE CHUTE (See M1)
14. SCREW KNOB (See C2)
15. BATTERY PACK *(See B)
16. CHARGER *(See B)
17. WORK MODE DIAL
18. CHARGED INDICATOR LIGHT (GREEN) (See B2)
19. CHARGING INDICATOR LIGHT (RED) (See B2)
* Not all the accessories illustrated or described are included in standard delivery.

98
Cordless self-propelled lawn mower
EN
98
TECHNICAL DATA
Power input 36V
Cutting diameter 46cm
Front wheel diameter 178mm
Rear wheel diameter 210mm
Cutting height 30-80mm
Cutting height positions 6
Grass collection capacity 55L
Battery type Lead acid
Battery model WA3220
Charging time 16 hrs approx.
Charger model WA3723
Charger rating Input: AC 220~240V 50/60Hz,45W Output: 42.5V, 1.0A
Machine weight 39.5kg
NOISE / VIBRATION INFORMATION
A weighted sound pressure LPA: 79dB(A), KPA: 3dB(A) (TURBO mode)
LPA: 74dB(A), KPA: 3dB(A) (QUIET mode)
A weighted sound power Both speed: LWA: 92dB(A)
Wear ear protection when sound pressure is over 80dB(A)
Typical weighted vibration value 4.5m/s2, K: 1.5m/s2
ACCESSORY
Grass collection bag 1
Charger (WA3723) 1
Side-discharge chute 1
Mulching plug 1
Battery pack (WA3220) 1
We recommend that you purchase your accessories from the same store that sold you the
tool. Use good quality accessories marked with a well-known brand name. Choose the type
according to the work you intend to undertake. Refer to the accessory packaging for further
details. Store personnel can assist you and offer advice.

98
98
Cordless self-propelled lawn mower
EN
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING! Read all safety warnings
and all instructions. Failure to follow
the warnings and instructions may result in
electric shock, fire and/or serious injury.
Carefully read the instructions for the
safe operation of the machine.
Save all warnings and instructions for
future reference.
- This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the
appliance by a person responsible for
their safety.
- Children should be supervised to ensure
that they do not play with the appliance.
TRAINING
a) Read the instructions carefully. Be familiar
with the controls and the proper use of
the equipment;
b) Never allow children or people unfamiliar
with these instructions to use the
lawnmower. Local regulations can restrict
the age of the operator;
c) Never mow while people, especially
children, or pets are nearby;
d) Keep in mind that the operator or user
is responsible for accidents or hazards
occurring to other people or their
property.
PREPARATION
a) While mowing, always wear substantial
footwear and long trousers. Do not
operate the equipment when barefoot or
wearing open sandals;
b) Thoroughly inspect the area where the
equipment is to be used and remove
all objects which can be thrown by the
machine;
c) Before using, always visually inspect to
see that the blades, blade bolts and cutter
assembly are not worn or damaged.
Replace worn or damaged blades and
bolts in sets to preserve balance;
d) On multi-bladed machines, take care as
rotating one blade can cause other blades
to rotate.
OPERATION
a) Mow only in daylight or in good artificial
light;
b) Avoid operating the equipment in wet
grass, where feasible;
c) Always be sure of your footing on slopes;
d) Walk, never run;
e) For wheeled rotary machines, mow
across the face of slopes, never up and
down;
f) Exercise extreme caution when changing
direction on slopes;
g) Do not mow excessively steep slopes;
h) Use extreme caution when reversing or
pulling the lawnmower towards you;
i) Stop the blade(s) if the lawnmower has to
be tilted for transportation when crossing
surfaces other than grass, and when
transporting the lawnmower to and from
the area to be mowed;
j) Never operate the lawnmower with
defective guards, or without safety
devices, for example deflectors and/or
grass catchers, in place;
k) Switch on the motor carefully according
to instructions and with feet well away
from the blade(s);
l) Do not tilt the lawnmower when
switching on the motor, except if the
lawnmower has to be tilted for starting
In this case, do not tilt it more than
absolutely necessary and lift only the part
which is away from the operator;
m) Do not put hands or feet near or under
rotating parts. Keep clear of the discharge
opening at all times;
n) Not to touch the blades before the
disabling device has been removed and
the blades have come to a complete stop;
o) To remove the disabling device
– Whenever leaving the machine
unattended,
– Before clearing a blockage,
– Before checking, cleaning or working

1110
Cordless self-propelled lawn mower
EN
1110
on the machine,
– After striking a foreign object,
– Whenever the machine starts
vibrating abnormally.
MAINTENANCE AND STORAGE
a) Keep all nuts, bolts and screws tight to
be sure the equipment is in safe working
condition;
b) Check the grass catcher frequently for
wear or deterioration;
c) Replace worn or damaged parts for
safety.
BATTERY TOOL USE AND CARE
a) Recharge only with the charger
specified by the manufacturer. A
charger that is suitable for one type of
battery pack may create a risk of fire
when used with another battery pack.
b) Use power tools only with
specifically designated battery
packs. Use of any other battery packs
may create a risk of injury and fire.
c) When battery pack is not in use,
keep it away from other metal
objects, like paper clips, coins, keys,
nails, screws or other small metal
objects, that can make a connection
from one terminal to another.
Shorting the battery terminals together
may cause burns or a fire.
d) Under abusive conditions, liquid
may be ejected from the battery;
avoid contact. If contact accidentally
occurs, flush with water. If liquid
contacts eyes, additionally seek
medical help. Liquid ejected from the
battery may cause irritation or burns.
ADDITIONAL SAFETY
INSTRUCTIONS FOR YOUR
BATTERY CHARGER
1. Before charging, read the instructions.
2. If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in
order to avoid a hazard.
3. After charging, disconnect the battery
charger from the supply mains.Then
remove the battery pack.
4. Do not charge a leaking battery.
5. Do not use chargers for works other than
those for which they are designed.
6. Before charging, ensure your charger is
matching the local AC supply.
7. The charging device must be protected
from moisture.
8. Do not use the charging device in the
open.
9. Do not short out the contacts of battery or
charger.
10. Respect the polarity “+/-“ when charging.
11. Do not open the unit and keep out of the
reach of children.
12. Do not charge the batteries of other
manufactures or ill-suited models.
13. Ensure that the connection between the
battery charger and battery is correctly
positioned and is not obstructed by
foreign bodies.
14. Keep battery charger’s slots are free of
foreign objects and protect against dirt
and humidity. Store in a dry and frost-free
place.
15. When charging batteries, ensure that the
battery charger is in a well-ventilated area
and away from inflammable materials.
Batteries can get hot during charging.
Do not overcharge any batteries. Ensure
that batteries and chargers are not left
unsupervised during charging.
16. Do not recharge non-rechargeable
batteries, as they can overheat and break.
17. Longer life and better performance can
be obtained if the battery pack is charged
when the air temperature is between 18oC
and 24oC. Do not charge the battery pack
in air temperatures below 4.5oC, or above
40.5oC.This is important as it can prevent
serious damage to the battery pack.

1110
1110
Cordless self-propelled lawn mower
EN
Only use the battery charger
indoors
Thrown objects from mower deck.
Waste electrical products should
not be disposed of with household
waste. Please recycle where
facilities exist. Check with your
Local Authority or retailer for
recycling advice.
SYMBOLS
Read instruction handbook before
operation this machine
Keep bystanders away
Blade continues to rotate after
the machine is switched off. Wait
until all machine components
have completely stopped before
touching them
Beware of sharp blades. Blades
continue to rotate after the motor
is switched off- Remove disabling
device before maintenance
Do not expose to rain or water
Do not burn
Do not dispose of batteries. Return
exhausted batteries to your local
collection or recycling point.
Contains Pb battery. Battery must
be recycled or disposed of properly.
Slip on slope.
Severing of toes or fingers-Rotary
mower blade.

1312
Cordless self-propelled lawn mower
EN
1312
INTENDED USE
This product is intended for domestic lawn
mowing.
CHARGER SAFETY RULES
1. Plug charger directly into an electrical
outlet. DO NOT ABUSE THE CORD.
Never carry charger by cord. Do not
disconnect the charger from the outlet or
mower by pulling it by the cord.
2. CAUTION:To reduce the risk of fire,
electrical shock, or personal injury do
not attempt to use this charger with any
other product.
Likewise, do not attempt to charge the
mower with any other charger.
3. Do not service mower with charger or
safety key installed.
4. Do not operate a damaged charger. Replace
damaged cords or charger immediately at
an authorized WORX service center.
5. Always charge the mower in a dry area
protected from the weather. Do not expose
the mower or charger to rain. Do not charge
in wet locations. Do not charge mower
when temperature is above 104°F (40°C) or
below 41°F (5°C).
6. Keep the mower and charger away from
water, heat sources, (Such as radiators,
heaters, stoves...etc.) flames, or chemicals.
Be careful not to damage the charger cord,
by keeping cord away from sharp edges.
CHARGING PROCEDURE
(See A, B1, B2)
1. Charging can be carried out either with the
battery FITTED (See A) or REMOVED from
the machine (See B1).
2. Plug the charger connector into the
receptacle on the battery. (See A, B1)
3. Insert the plug of the charger into the wall
receptacle.
4. Press the button (a) on the charger for
several seconds till the red light come on
indicating that you have power and the
battery is being charged. (See B2 )
5. The red light (19) will turn off and the green
light (18) will come on when charging
is complete (approximately 16 hours to
charge a fully discharged battery) (See B2 )
6. After the battery is fully charged the green
light will turn on and stay it for 15 seconds
to indicate a full charge. After 15 seconds
the green light and charges will turn off to
save power.
NOTE: If the battery is defective, the
red light on the charger will flash.
The lights will only function when
the charger is connected to both the
battery and wall receptacle.
7. The charger is a smart charger and can stay
connects to the battery and wall receptacle
for extant periods of time without fear
of damaging the battery or charger.The
charger will automatically cycle on and off
periodically to ensure the battery is fully
charged.
BATTERY CARE
The battery in your cordless lawnmower is a
36-volt sealed lead acid system.The mower
can be stored in any position without fear of
leakage.
• Foroptimalbatterylifeandperformance
the battery should be fully charged every 2
months during storage
• Foroptimalbatterylifeandperformance
the battery should be fully charged after
each use
• Storethebatteryinacooldrylocation.
• Thebatterycanbesafelystoreddownto
14°F (-10°C).
• Thebatterydoesnotneedtobefully
discharged before recharging.
• Initially2to3chargingcyclesmay
be required after purchase to achieve
maximum run time capacity.
The battery is maintenance free.
ASSEMBLY/ADJUSTMENT
WARNING! Do not connect the battery
and/or the safety key before product is
completely assembled.

1312
1312
Cordless self-propelled lawn mower
EN
1. ASSEMBLING THE HANDLE (See C1,
C2)
Remove the packaging end cap (See C1).
Raise the handle section into place and secure
by tightening the two Lock cam levers.
Check that the handle is FULLY secured.
The cam lever (6) pressure can be adjusted
by adjusting the screw knob (14) clockwise/
counter-clockwise. DO NOT OVER TIGHTEN.
2. ASSEMBLING THE GRASSBAG (See
D1, D2 & D3)
1) Before starting to assemble the grass bag
(c) to the frame (b), check that the grass bag
is positioned to slip over the frame.
2) Slide the grass bag onto the frame.
3) Assemble the top clips to the frame, then
assemble the two side clips and the bottom
clip last.
3. FITTING/REMOVING BATTERY (See E1,
E2)
REMOVING BATTERY
Disconnect the connector (e), then rotate the
battery locking knob (d) counter-clockwise.
Remove the battery by lifting it out of the
mower by the battery handle. (See E2)
NOTE: Be careful not to drop the battery onto
your foot or on the ground when removing it.
FITTING BATTERY
Put the battery into the battery container, press
the battery connector (e) and then rotate the
battery locking knob (d). (See E1)
4. HANDLE ADJUSTMENT (See F)
The upper handle can be adjusted to 3
different height positions. Release the locking
cam lever, set the upper handle to one of the
three height positions, and make sure to insert
the pin into the hole.Then reset the locking
cam lever.
NOTE: Always check that the upper handle is
fixed firmly.
5. INSTALLING THE GRASS BAG
(See G1, G2 & G3)
FITTING
1) Turn the mower off, wait until blade stops
and remove safety key.
2) Raise the safety flap and hold it up, ensure
that the mulching plug has been removed.
3) Pick up the grass bag by the handle, and
position grass bag on the lower hooks (f)
on the mower deck.
4) Release the safety guard to lock the grass
bag into position. Ensure the grass bag is
installed securely.
NOTE: Depress the grass bag slightly to
ensure that it is completely installed.
REMOVING/EMPTYING
Lift the safety guard and hold it up.The grass
bag will drop automatically.
6. ADJUSTING THE CUTTING HEIGHT
(See H)
WARNING! Stop, release switch lever
and wait until the motor stops before
adjusting height.The blades continue to rotate
after the machine is switched off, a rotating
blade can cause injury.
CAUTION: Do not touch rotating blade.
For the first cutting of the season, a high
cutting adjustment should be selected.
The lawnmower can be set to 6 cutting heights
between 30mm and 80mm. For this purpose,
move the cutting height adjustment lever
outwards then adjust to the preferred position.
OPERATION
1. STARTING AND STOPPING(See I1, I2)
WARNING!The blade continues to
rotate for a few seconds after the
machine is switched off. Allow the motor/blade
to stop rotating before switching “on” again.
Do not rapidly switch off and on.

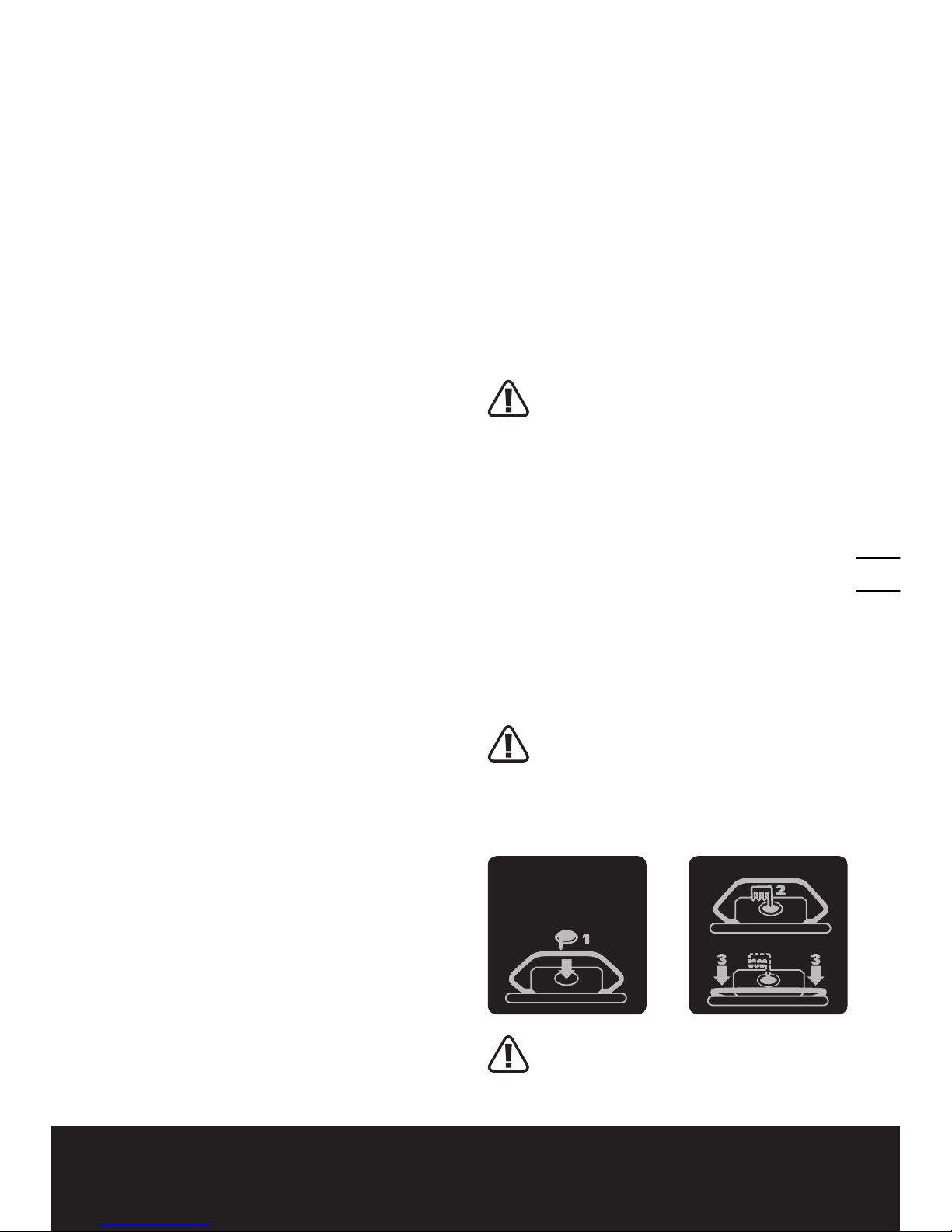

STARTING:
TO
START ENGINE
1. Insert
Key
2. Push Key
3. Pull bar
WARNING!The battery is disconnected
from your lawn mower and you must
insert the connector into the battery socket

1514
Cordless self-propelled lawn mower
EN
1514
before use.
1) Insert safety key (3) into the housing of the
switch box.
2) Push down the key, until safety key is fully
seated inside housing.
3) Press and hold the safety key, squeeze the
switch lever bar (2) towards the handle and
the mower will start.
4) Release the safety key.
STOPPING
Release the switch lever bar (2).
2. BATTERY STATUS LED’S (See J)
NOTE: Battery Status LED’s are not active
in charging mode. The Status LED’s will
indicate the battery condition when the
button on the battery is pressed.
The LED’s constantly senses and displays the
battery condition as follows:
Press the button “POWERTEST”, the light
button is illuminated.
When the three green lights are illuminated,
the battery is in a highly charged condition.
When two lights ( ) are illuminated, the
battery is in a moderately charged condition.
When only one green light ( ) is illuminated,
the battery charge is depleted.
Before using your new mower for the first
time, it is recommended that the unit be
charged overnight to ensure that the battery is
fully charged.
IMPORTANT
When only one light is illuminated,
your battery is overly discharged, even
though the mower may still be capable
of cutting grass. Continuing to operate
your lawnmower with the battery in this
discharged condition may reduce the life
and performance of your battery.
3. REMOVING MULCHING PLUG (See K1)
To remove the mulching plug (12) so that
you can bag the grass or discharge with the
optional discharge chute, follow the steps
listed below:
1) Shut the mower off, wait until the blade
stops and remove the safety key.
2) Raise the safety guard and hold it up.
3) Grasp the middle of the insert, lift and pull
out the mulching plug completely.
4) The safety guard is spring loaded.When
you release it, the guard will return to the
closed position.
4. INSTALLING MULCHING PLUG (See K2)
1) Turn the mower off, wait until the blade
stops and remove the safety key.
2) Raise the safety guard and hold it up.
3) Slide the mulching plug (12) into the
discharge opening until it is firmly in
contact with the deck.
4) Release safety guard and ensure it is
properly closed.
5. WORK MODE DIAL (See L)
Status1: QUIET mode
Select QUIET mode (17) when mowing in
everyday conditions, removing approximately
20mm of grass at a time.
Status2: TURBO mode
Set the dial toTURBO mode (17) when cutting
dense or overgrown grass.
6. INSTALLING SIDE-DISCHARGE CHUTE
(See M1 & M2)
Using the mulching plug and side-discharge
chute (13), the grass can be discharged from
the side of the machine.
To assemble the side-discharge insert, raise
the side-discharge cover (9) and hold it up,
position the side-discharge chute (13) onto the
hooks, then release the cover to lock the side-
discharge insert into position.
7. PacesetterTM SELF-PROPEL DRIVE
SYSTEM (See N1 & N2)
To operate the self-propel drive, hold the
switch lever (2) down to the handle and walk
with your hands comfortably gripping the
upper handle and your elbows at your sides.
The faster you walk the faster the mower will
travel.
To stop the self propel drive, simply stop
walking, or release the switch level (2).
NOTE: The Pacesetter™ drive system will
operate with or without the mower blade
turned on.

1514
1514
Cordless self-propelled lawn mower
EN
8. MOWING TIPS
NOTE: Always inspect area where mower
is to be used and remove all stones,
sticks, wire, metal and other debris
which might be thrown by the rotating
blade.
1) Mow across the face of slopes, never up-
and-down. Exercise extreme caution when
changing direction on slopes. Do not mow
excessively steep slopes. Always maintain
good footing.
2) Release switch lever to turn mower “OFF”
when crossing any graveled area (stones
can be thrown by the blade).
3) Set mower at highest cutting height when
mowing in rough ground or in tall weeds.
Removing too much grass at one time can
cause circuit breaker to trip, which stops
mower.
4) If a grass bag is used during the fast
growing season, the grass may tend to clog
up at the discharge opening. Release switch
lever to turn mower “OFF” and remove
the safety key. Remove the grass bag and
shake the grass down to the back end of
the bag. Also clean out any grass or debris
which may be packed around the discharge
opening. Replace the grass bag.
5) If mower should start to vibrate abnormally,
release switch lever to turn mower “OFF”
and remove safety key. Check immediately
for cause. Vibration is a warning of trouble.
Do not operate mower until a service check
has been made.
6) ALWAYS RELEASE SWITCH LEVERTO
TURN MOWER “OFF” AND REMOVE
SAFETY KEY WHEN LEAVING IT
UNATTENDED EVEN FOR A SHORT PERIOD
OFTIME.
9. MULCHING MOWING TIPS
While mulching, your new mower is designed
to cut the grass clippings into small pieces
and distribute them back into the lawn. Under
normal conditions, the mulched grass will
biodegrade quickly to provide nutrients to the
lawn.
Please review the following recommendations
for optimum mulching performance.
1) Avoid mowing when the grass is wet from
rain or dew. Wet grass may form clumps
which interfere with the mulching action
and reduce runtime.
The best time to mow grass is in the late
afternoon when the grass is dry and the
newly cut area will not be exposed to direct
sunlight.
2) For best mulching performance, set the
cutting height to remove about one third
of the grass blade length, ideally no more
than 1.5 inch at one time. If the lawn is
overgrown, it may be necessary to increase
the cut height to reduce the pushing effort
and prevent overloading the motor. For
extremely heavy mulching, it is advisable
to first cut at a high cut height setting,
and then re-cut to the final cut height.
Otherwise, make narrower cuts and mow
slowly.
NOTE:The motor is protected by a safety
cut out which is activated when the
blade becomes jammed or if the motor
is overloaded. The safety cut out will
only reset when the switch lever 2 is
released. Clear any obstruction and
wait for a few minutes for the safety
cut out to reset before continuing to
use the mower. At this time do not
operate the switch lever 2 as this will
prolong the reset time of the safety
cut out. If the mower cuts out again
increase the height of cut to reduce
the load on the motor.
3) For best performance, keep the mower
housing free of built-up grass. From time to
time turn off mower and wait for the blade
to come to a complete stop.Then unplug
the safety key and turn mower on its side.
Using an object such as a stick, wipe out
any accumulation of grass in the blade
area. Be careful of the sharp edges of the
blade. Clean often in wet, new grass, and
always after every use.
4) Certain types of grass or grass conditions
may require that an area be mulched a
second time to fully disperse the grass
throughout the lawn.
If cutting a second time, it is advisable
to cut perpendicular (across) the first cut
pattern. DO NOT CHANGE CUT PATTERN

1716
Cordless self-propelled lawn mower
EN
1716
IN ANY WAYTHAT WOULD CAUSE
MOWING DOWN A HILL.
5) Change your cutting pattern from week to
week.This will help prevent matting and
graining of the lawn.
MAINTENANCE
WARNING: Stop the mower and
remove the safety key before
removing the grass bag.
NOTE:To ensure long and reliable service,
perform the following maintenance
procedures regularly. Check for obvious
defects such as a loose, dislodged or a
damaged blade, loose fittings, and worn
or damaged components. Check that the
covers and guards are all undamaged and
are correctly attached to mower. Carry out
any necessary maintenance or repairs before
operating mower. If the mower should happen
to fail despite regular maintenance, please call
our customer helpline for advice.
BLADE SHARPENING
KEEP BLADE SHARP FOR BEST MOWER
PERFORMANCE. A DULL BLADE DOES NOT
CUT GRASS CLEANLY OR MULCH PROPERLY.
WEAR PROPER EYE PROTECTION WHILE
REMOVING, SHARPENING, AND INSTALLING
BLADE. ENSURETHAT SAFETY KEY IS
REMOVED.
Sharpening the blade twice during a mowing
season is usually sufficient under normal
circumstances. Sand causes the blade to dull
quickly. If your lawn has sandy soil, more
frequent sharpening may be required.
REPLACE BENT OR DAMAGED BLADE
IMMEDIATELY.
WHEN SHARPENING THE BLADE:
1. Make sure blade remains balanced.
2. Sharpen blade at the original cutting angle.
3. Sharpen cutting edges on both ends of
blade to keep it balanced, removing equal
amounts of material from both ends.
TO SHARPEN BLADE IN A VISE (See O)
1. Be sure the switch lever is released, the
blade has stopped and the safety key
removed before removing the blade.
2. Remove blade from mower. See
instructions for removing and attaching
blade.
3. Secure blade O-1 in a vise O-2.
4. Wear safety glasses and be careful not to
cut yourself.
5. Carefully file the cutting edges of the blade
with a fine tooth file O-3 or sharpening
stone.
6. Check balance of blade. See instructions for
blade balancing.
7. Replace blade on mower and tighten
securely. Refer to instructions below.
BLADE BALANCING (See P)
Check balance of blade by placing center hole
in blade P-1 over a nail or screwdriver shank
P-2, clamped horizontally in a vise P-3. If either
end of the blade rotates downward, file that
end. Blade is properly balanced when neither
end drops.
BLADE MAINTENANCE (See Q & R)
Renew your metal blade after 50 hours
mowing or 2 years, which ever is the sooner-
regardless of condition.
Follow these procedures to remove and
replace the blade. You will need garden
gloves (not provided) and a spanner wrench
(not provided) to remove the blade. Hold the
blade (R-2) and unscrew the blade nut (R-5)
counterclockwise using a spanner wrench.
Remove blade nut (R-5), square washer (R-4),
insulator washer (R-3), and blade (R-2).
To re-assemble, first position the blade
with the cutting edges towards the ground.
Assemble the components.
Ensure that the edges of the insulator washer
hook over the edge of the blade. Align the flats
on the square washer (R-4) with the flats on
the shaft.
Then securely tighten the blade nut.
NOTE: If the blade and insulator washer (R-3)
are cracked or damaged, replace with new
ones.

1716
1716
Cordless self-propelled lawn mower
EN
STORAGE (See S)
Stop the mower and always remove the
safety key. Clean the exterior of the machine
thoroughly using a soft brush and cloth. Do
not use water, solvents or polishes. Remove
all grass and debris, especially from the
ventilation slots.
Turn the machine on its side and clean the
blade area. If grass cuttings are compacted
in the blade area, remove with a wooden or
plastic implement.
Store the machine in a dry place. Do not place
other objects on top of the machine.
To aid storage, press the handle height
adjustment knob, and rotate or fold the upper
handle.
ENVIRONMENTAL
PROTECTION
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your Local Authority or retailer for
recycling advice.
TROUBLE SHOOTING
Problem Solution
1. Mower doesn’t run when
switch lever is activated.
A. Check to make sure safety key has been installed and
is fully seated and that button on switch housing is being
completely pushed.
B. Release switch lever to turn mower off. Remove safety key,
turn mower over and check that blade is free to turn. Clear
any obstruction. If not free, return to an authorized servicer.
Blade should turn freely.
C. Has battery been fully charged? Plug in charger and wait
for green light to come on.
2. Motor stops while mowing. A. Release switch lever to turn mower off. Remove safety key,
turn mower over and check that blade is free to turn. Clear
any obstruction. If not free, return to an authorized servicer.
Blade should turn freely.
B. Raise cutting height of wheels to highest position and start
mower.
C. Has battery been fully charged? Plug in charger and wait
for green light to come on.
D. Avoid overloading the mower. Slow down the cutting pace
by pushing mower slower or raise the cut height. Or both.
3. Mower runs but cutting
performance is unsatisfactory,
or does not cut entire lawn.
A. Has battery been fully charged? Plug in charger and wait
for green light to come on.”
B. Release switch lever to turn mower off. Remove safety key.
Turn mower over and check: Blade for sharpness - Keep blade
sharp. Deck and discharge chute for clogging.
C. Wheel height adjustment may be set too low for grass
condition. Raise cutting height.
4. Mower is too hard to push. A. Raise cutting height to reduce deck drag on grass. Check
each wheel for free rotation.

1918
Cordless self-propelled lawn mower
EN
1918
Problem Solution
5. Mower is abnormally noisy
and vibrates.
A. Release switch lever to turn mower off. Remove safety
key.Turn mower on side and check blade to ensure it has not
been bent or damaged. If blade is damaged, replace with a
replacement blade. If the underside of the deck is damaged
return mower to a Authorized service center.
B. If there is no visible damage to the blade and the mower
still vibrates: Release switch lever to turn mower off, remove
safety key and remove blade. Rotate blade 180 degrees and
retighten. If mower still vibrates, return the mower to an
authorized service center.
6. Battery charger LED’s not
on.
A. Check plug connection.
B. Replace charger.
7. Battery charger LED does
not flip to green.
A. Battery needs to be diagnosed.Take to authorized service
center.
8. Mower not picking up
clippings with bag.
A. Remove mulch plate when bagging.
B. Chute clogged. Release switch lever to turn mower off.
Remove safety key. Clear chute of grass clippings.
C. Too much cut grass. Raise cutting height of wheels to
shorten length of the cut.
D. Bag full. Empty bag more often.
9. When mulching there are
clippings visible.
A. Too much cut grass. Raise cutting height of wheels to
shorten length of the cut. Do not cut off more than 1/3 of total
length.
B. Check blade for sharpness. Always keep blade sharp.
10. Low or diminished run-
time after many uses
A. Return to Authorized Service location - may need new
battery.

1918
1918
Cordless self-propelled lawn mower
EN
PLUG REPLACEMENT
(UK & IRELAND ONLY)
If you need to replace the fitted plug then
follow the instructions below.
IMPORTANT
The wires in the mains lead are colored in
accordance with the following code:
Blue = Neutral
Brown = Live
As the colors of the wires in the electrical cord
of this appliance may not correspond with the
colored markings identifying the terminals
in your plug, proceed as follows.The wire
which is colored blue must be connected to
the terminal which is marked with N.The wire
which is colored brown must be connected to
the terminal which is marked with L.
WARNING! Never connect live or
neutral wires to the earth terminal of the
plug. Only fit an approved 13Amp BS1363/A
plug and the correct rated fuse.
NOTE: If a moulded plug is fitted and has to
be removed take great care in disposing of the
plug and severed cable, it must be destroyed
to prevent engaging into a socket.
Connect
Blue to N
(neutral)
Outer sleeve
firmly clamped
Cable grip
Brown L (live)
13 Amp fuse approved
to BS1362

2120
Cordless self-propelled lawn mower
EN
2120
EC DECLARATION OF
CONFORMITY
We,
POSITEC Germany GmbH
Neuer Höltigbaum 6
22143 Hamburg
Declare that the product
Description
WORX Cordless self-propelled lawn
mower
Type WG789E
Function Mowing grass
Complies with the following Directives,
EC Machinery Directive
2006/42/EC
EC Low Voltage Directive
2006/95/EC
EC Electromagnetic Compatibility Directive
2004/108/EC
Noise Emission in the Environment by
Equipment for Use Outdoors Directive
2000/14/EC amended by 2005/88/EC
Conformity assessment procedure as per
Annex VI.
Measured Sound Power Level:
89.0dB(A) (TURBO mode)
84.5dB(A) (QUIET mode)
Declared Guaranteed Sound Power Level
92dB(A)
The notified body involved
Name: Intertek Testing & Certification
Ltd
Address: Davy Avenue, Knowlhill, Milton
Keynes, MK5 8NL
Standards conform to,
EN 60335-1
EN 60335-2-77
EN ISO 3744
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3
EN 62233
EN 60335-2-29
The person authorized to compile the technical
file,
Name: Russell Nicholson
Address: Positec Powertools (Europe)
LTD
Pinewood, Chineham Business Park,
Basingstoke, Hampshire, RG24 8AL,
United Kingdom
2010/10/21
Jacky Zhou
POSITEC Quality Manager
