WowWee ROBORAPTOR 8095 User manual

USER’S MANUAL
ITEM NO. 8095
ROBORAPTOR
A Fusion of Technology and Personality
™

Table of Contents
• Roboraptor™ Overview ............................................................................. 1
• Controller Index ...................................................................................... 2
• Battery Details .......................................................................................... 3
• Basic Operation ......................................................................................... 4
• Advanced Operation .................................................................................. 5
Free-Roam & Guard Modes ........................................................ 5
Controlling Roboraptor™’s moods ......................................... 6
Touch Sensors ........................................................................... 7
Sound & Vision Sensors ............................................................ 8
Obstacle Avoidance .................................................................... 9
• Understanding your Roboraptor™ ........................................................... 9

1

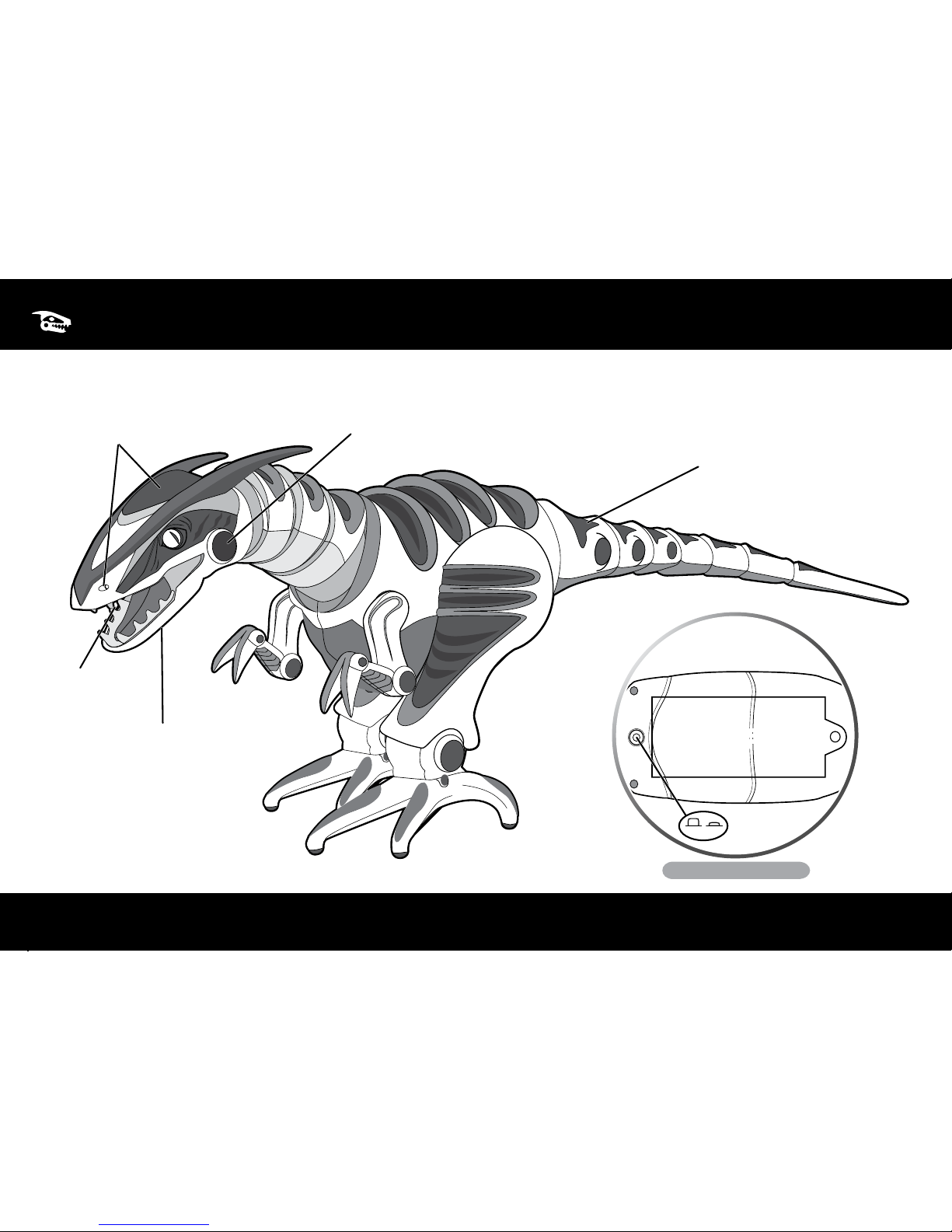

Roboraptor™
Tail Touch Sensors
Stereo Sound Sensors
Chin Touch
Sensor
Mouth Touch
Sensor
Infrared Vision
Sensors
Roboraptor™ Overview
Bottom View
Battery
Compartment
OFF
ON
Press once to
turn power ON

Remote
Controller
2
Shift
Top View
Front View
Forward
Backward
Turn
Left
Demo/
Roam
Turn
Right Tail Left/
Cautious
Mood
Back View
Battery
Compartment
Stop
Head
Clockwise/
Hunting Mood
Tail Right/
Playful Mood
Head
Counterclockwise
Bite/
GuardMode
Controller Index
Signal Indicator
Light

3
1.5V LR03
UM4 “AAA”
1.5V LR03
UM4 “AAA”
1.5V LR03
UM4 “AAA”
1.5V LR6 UM3 “AA” 1.5V LR6 UM3 “AA”
1.5V LR6 UM3 “AA” 1.5V LR6 UM3 “AA”
1.5V LR6 UM3 “AA” 1.5V LR6 UM3 “AA”
Battery Requirements:
Your Roboraptor™is powered by 6 x “AA” size batteries (not included).
Your remote controller is powered by 3 x “AAA” size batteries (not included).

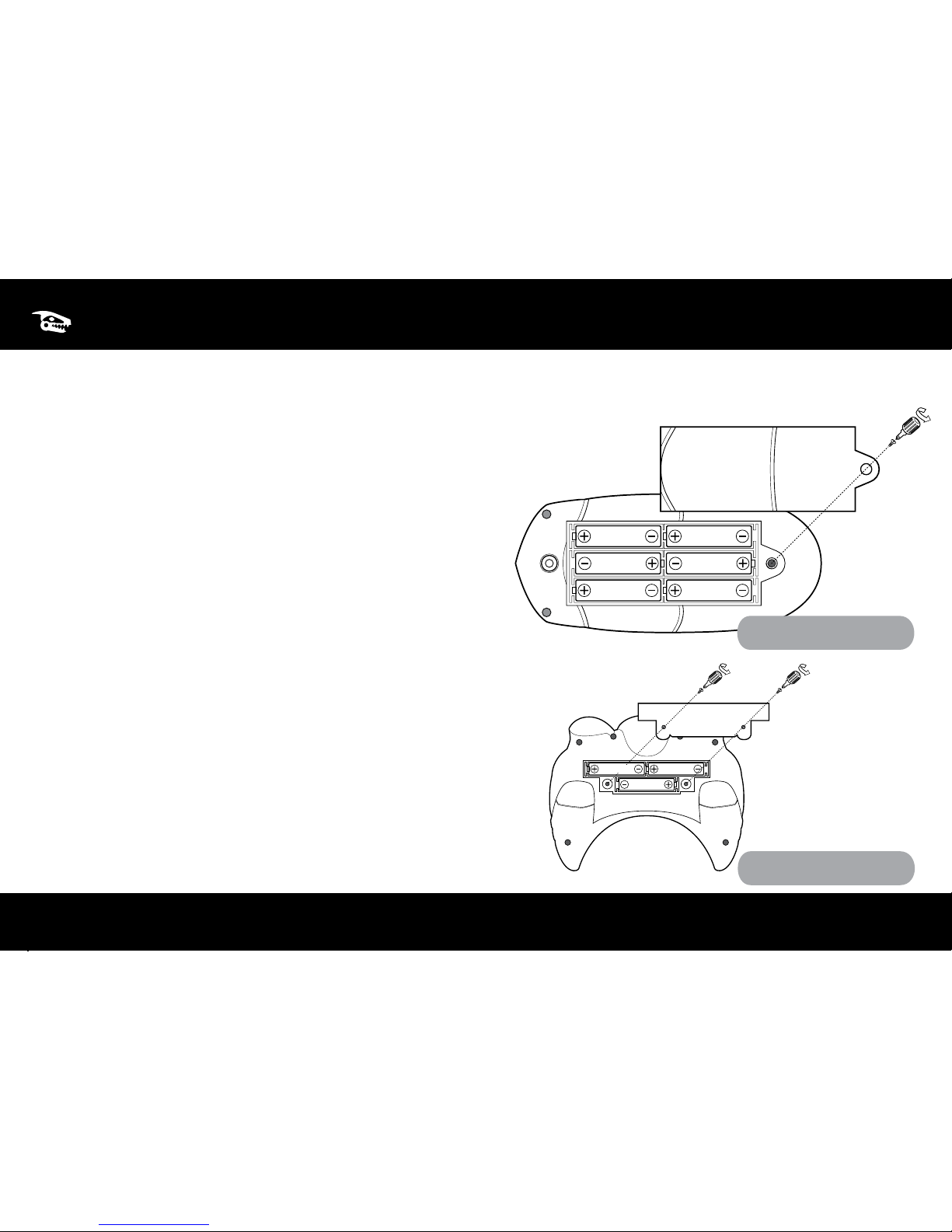

Battery Installation:
1. Before installing or changing batteries, ensure the roboraptor™’s
ON/OFF button is in the OFF position.
2. Remove the battery compartment covers using a Phillips or
crosshead screwdriver (not included).
3. Insert batteries (not included) into the Roboraptor™
and controller as shown in the diagrams.
4. Replace the battery compartment covers and the screws.
Attention: Important Battery Information
• Use only fresh batteries of the required size and
recommended type.
• Do not mix old and new batteries, different types of
batteries (Standard (Carbon zinc), alkaline, or
rechargeable), or rechargeable batteries of different
capacities.
• Remove rechargeable batteries from the toy before
recharging them.
• Rechargeable batteries are only to be charged under
adult supervision.
• Please respect the correct polarity, (+) and (-).
• Do not try to charge non-rechargeable batteries.
• Do not throw batteries into the fire.
• Replace all batteries of the same type/brand at the
same time.
• The supply terminals are not to be short circuited.
• Remove exhausted batteries from the toy.
• Batteries should be replaced by adults because of
small parts.
• Remove batteries if the toy is not going to be played
with for some time.
• The packaging has to be kept since it contains important
information. Back View of the
Remote Controller
Battery Details
Bottom View of
the Roboraptor™

4
• Hunting Gait x1: Push “Forward” once to
make Roboraptor™ move forward using his slow
predatory hunting walk.
• Walking Gait x2: While Roboraptor is moving
forward in his hunting gait, push “Forward” again
to make Roboraptor™ move forward using his
normal walking speed.
• Running Gait x3: While Roboraptor is moving
forward in his walking gait, push “Forward” again
to make Roboraptor™ move forward using his
running top speed.
• Backward x1: Push “Backward” to make
Roboraptor™ move backward.
• Turn Left x1: Push “Turn Left” once to make
Roboraptor™ turn left in place (from your point of
view).
• Turn Right x1: Push “Turn Right” once to
make Roboraptor™ turn right in place (from your
point of view).
• Walk Left x2: While Roboraptor™ is turning
left, push “Turn left” again to make Roboraptor™
walk a wide arc to the left (from your point of
view).
• Walk Right x2: While Roboraptor™ is turning
right, push “Turn Right” again to make
Roboraptor™walk a wide arc to the right (from
your point of view).
• Stop : Push “Stop” to make Roboraptor™
stop whatever he is doing.
• Head Clockwise : Push “Head Clockwise” to
make Roboraptor™rotate his head in a clockwise
direction (from your point of view). Press the
button four times to complete a full rotation.
• Head Counterclockwise : Push “Head
Counterclockwise” to make Roboraptor™rotate his
head in a counterclockwise direction (from your
point of view). Press the button four times to
complete a full head rotation.
• Tail Left : Push “Tail Left” to make
Roboraptor™move his head and tail to the left
(from your point of view).
• Tail Right : Push “Tail Right” to make
Roboraptor™move his head and tail to the right
(from your point of view).
• Bite : Push “Bite / Guard Mode” to make
Roboraptor™perform a bite.
• Demo : Push “Demo / Roam” to make
Roboraptor™ perform a demo sequence.
Turn on Roboraptor™ using the On/Off button (Refer to page 1 “Roboraptor™ Overview”).
Roboraptor™ can be controlled directly using the buttons on the remote controller.
These instructions assume that you and the Roboraptor™ are facing each other.
Basic Operation
DEMO
ROAM

5
Free-Roam Mode
Roboraptor™ will start to explore his environment autonomously in Free-Roam
Mode if left alone for more than three minutes.
Caution: [Do not put him near the edge of a table since he could fall off
when he becomes animated.]
You can also put Roboraptor™ into Free-Roam Mode manually by pressing “Shift”
and “Demo / Roam” .
While Roboraptor™ is in Free-Roam Mode he will avoid obstacles using his
Infrared Vision Sensors. Occasionally he will stop moving to see if he can
hear any sharp, loud sounds. (See “Stereo sound sensors” on page 8)
If you trigger any of Roboraptor™’s touch sensors or press a button on the
controller, Roboraptor™ will exit from Free-Roam Mode.
After 5 to 10 minutes of exploration Roboraptor™will power down. To wake
him up press the On/Off button twice.
Note: Shift will not stop Roboraptor™ from it’s Free-Roam Mode.
Guard Mode
Press “Shift” and “Bite / Guard” Mode to put Roboraptor™into Guard
Mode.
Roboraptor™will perform a head rotation to confirm that he is in Guard Mode.
In Guard Mode Roboraptor™is using his Infrared Vision Sensors and Stereo
Sound Sensors to guard the area immediately around him.
If he hears a sound or sees movement he will react with a roar and
become animated.
Occasionally Roboraptor™will turn his head and sniff.
After 30 minutes Roboraptor™will power down.
Caution: [Although Roboraptor™will not take any steps while he is in Guard
Mode, do not put him near the edge of a table since he could fall
off when he becomes animated.]
Advanced Operation
DEMO
ROAM
SHIFT
SHIFT

6
Controlling Roboraptor’s™Moods
Roboraptor™has three different moods, Hunting, Cautious and Playful. To change
Roboraptor™’s moods use the “Shift” button .
• Hunting Mood : Press “Shift” and “Head Clockwise / Hunting Mood” to put
Roboraptor™into Hunting Mood. This mood is the default mood that Roboraptor™is in
when turned on.
• Playful Mood : Press “Shift” and “Tail Right / Playful Mood” to put
Roboraptor™into playful mood.
• Cautious Mood : Press “Shift” and “Tail Left / Cautious Mood” to put
Roboraptor™into cautious Mood.
The moods determine the way Roboraptor™reacts to some of his sensors,
(see “Roboraptor™’s sensors” page 7).
Advanced Operation
SHIFT
SHIFT
SHIFT
SHIFT

7
Advanced Operation
Touch Sensors
Roboraptor™has multiple sensors which allow him to explore his
environment and respond to human interaction.
Tail Touch Sensors: Press the sensors on Roboraptor™’s tail to
see his reaction. The reaction varies depending on his mood.
Chin Touch Sensor: Press the sensor under Roboraptor™’s chin to
see his reaction. The reaction varies depending on his mood.
Mouth Touch Sensor: There is a touch sensor on the roof of
Roboraptor™’s mouth. In Hunting Mood, touching this sensor will
trigger a biting and tearing animation. In Cautious and Playful
Moods, Roboraptor will play a tug-of-war with whatever is in
his mouth.

8
Advanced Operation

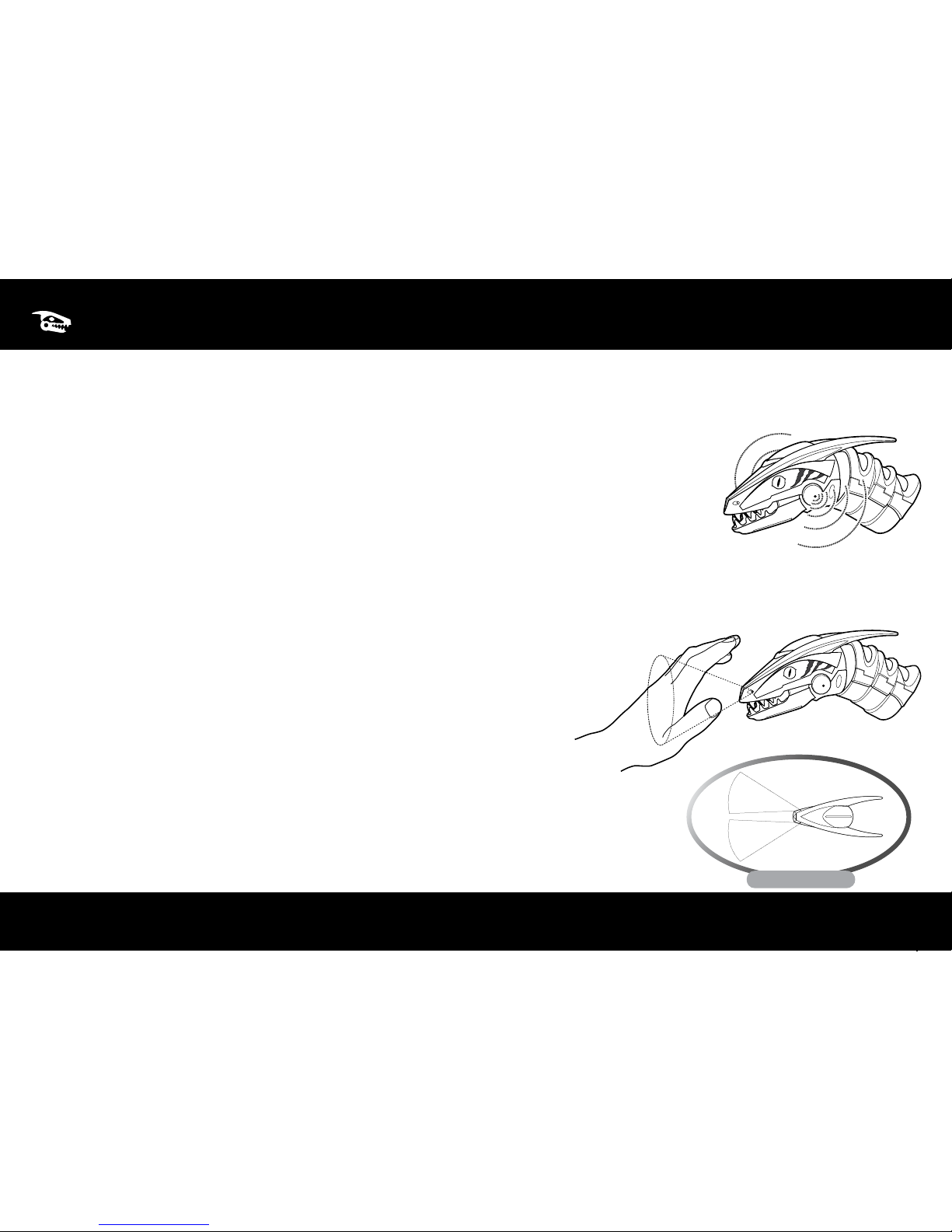

Stereo Sound Sensors:
Roboraptor™can detect sharp, loud sounds (like a clap) to his left, his right and directly ahead.
He only listens when he is not moving or making a noise.
Hunting Mood
When he hears a sharp sound to his side he will turn his head to look at
the source.
If he hears another sharp sound from the same direction he will turn his
body towards the source.
If he hears a sharp sound directly in front of him he will take a few steps
toward the source.
Cautious Mood
When he hears a sharp sound to his side he will turn his head to look at the source.
If he hears a sound straight ahead he will walk away from it.
Playful Mood
When he hears a sharp sound to his side he will turn his head to look
at the source.
If he hears a sound straight ahead, he will take a few steps
backward, then take a few steps forward.
Infrared Vision Sensors:
Roboraptor™ has Infrared Vision Sensors that enable him to
detect movement to either side of him.
The sensors react best to movement in the area just in front of
his nose as shown.
In Playful Mood Roboraptor™will nuzzle your
hand if you approach from the side.
In Cautious Mood, Roboraptor™will turn his head away
from movement to the side.
In Hunting Mood, his reactions are much less friendly!
Top View

9
Understanding Your Roboraptor™
• Roboraptor™ walks best on smooth surfaces. Use the two faster walking speeds
on rough surfaces like carpets.
• Roboraptor™responds to remote control commands more easily when you are in
front of him. He will not see as well if the controller is behind him.
• please note: infrared functions can be affected by bright sunlight,
fluorescent and electronically dimmed lighting.
• Upon activation Roboraptor™ will be sensitive to sound, vision and touch.
If you trigger the Vision Sensor on one side more than three times in a row,
Roboraptor™ will get frustrated and will turn away from you. This will also happen
if you leave him standing with his head facing a wall.
Obstacle Avoidance:
Roboraptor™uses his Vision Sensors to avoid obstacles
while wandering around.
While walking he will not be able to detect movement
so he will react to you as if you are an obstacle.
Press the “Stop” button before trying to interact with him.
Roboraptor™’s Infrared Vision System is based on
reflection. This means that he can see highly reflective
surfaces like white walls or mirrors more easily and at
greater distances.
Advanced Operation

WARNING!
This equipment may experience difficulty and/or memory loss when subjected to any electrostatic
discharge,radio frequency interference, or sudden power surge/interruption.The user is encouraged to
reset the equipment should any of these occur.
CAUTION
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant
to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation.This equipment generates,uses and can radiate radio frequency energy and,if not installed
and used in accordance with the instructions,may cause harmful interference to radio communications.
However,there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,which can be determined by
turning the equipment off and on, the user is encouraged to try and correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
- Consult the dealer or experienced radio/TV technician for help
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference
received,including interference that may cause undesired operation.
8095GB01WCO
We recommend that you retain our
address for future reference.
Product and colors may vary.
PRINTED IN CHINA.
Manufactured and distributed by
©2005 & 2013 WowWee Group Limited.
All Right Reserved.
WowWee Group Limited (Asia Ofce)
Unit 301A-C, 92 Granville Rd
T.S.T. East, Hong Kong
WowWee (North American Ofce)
6600 Decarie, Suite 200
Montreal QC, H3X 2K4, Canada
Consumer Hotline: [phone]
www.wowwee.com
