Wsdcam IPC-4300 Plus User manual

IP camera tester
User Manual
（V01.00）

Thank you for purchasing the IP camera tester. Please read the manual before using the IP camera
tester and use properly.
For using the IP camera tester safely, please first read the「Safety Information」carefully in the
manual.
The manual should be kept well in case of reference.
Keep the S/N label for after-sale service within warranty period. Product without S/N label will
be charged for repair service.
If there is any question or problem while using the IP camera tester, or damages occurred on the
product, please contact our technical Department.

Content
1 .Safety information--------------------------------------------------------------------------------------------------1
2. IP Camera Tester Introduction------------------------------------------------------------------------------------2
2.1 General------------------------------------------------------------------------------------------------------- 2
2.2 Features------------------------------------------------------------------------------------------------------ 2
2.3 Packing list---------------------------------------------------------------------------------------------------6

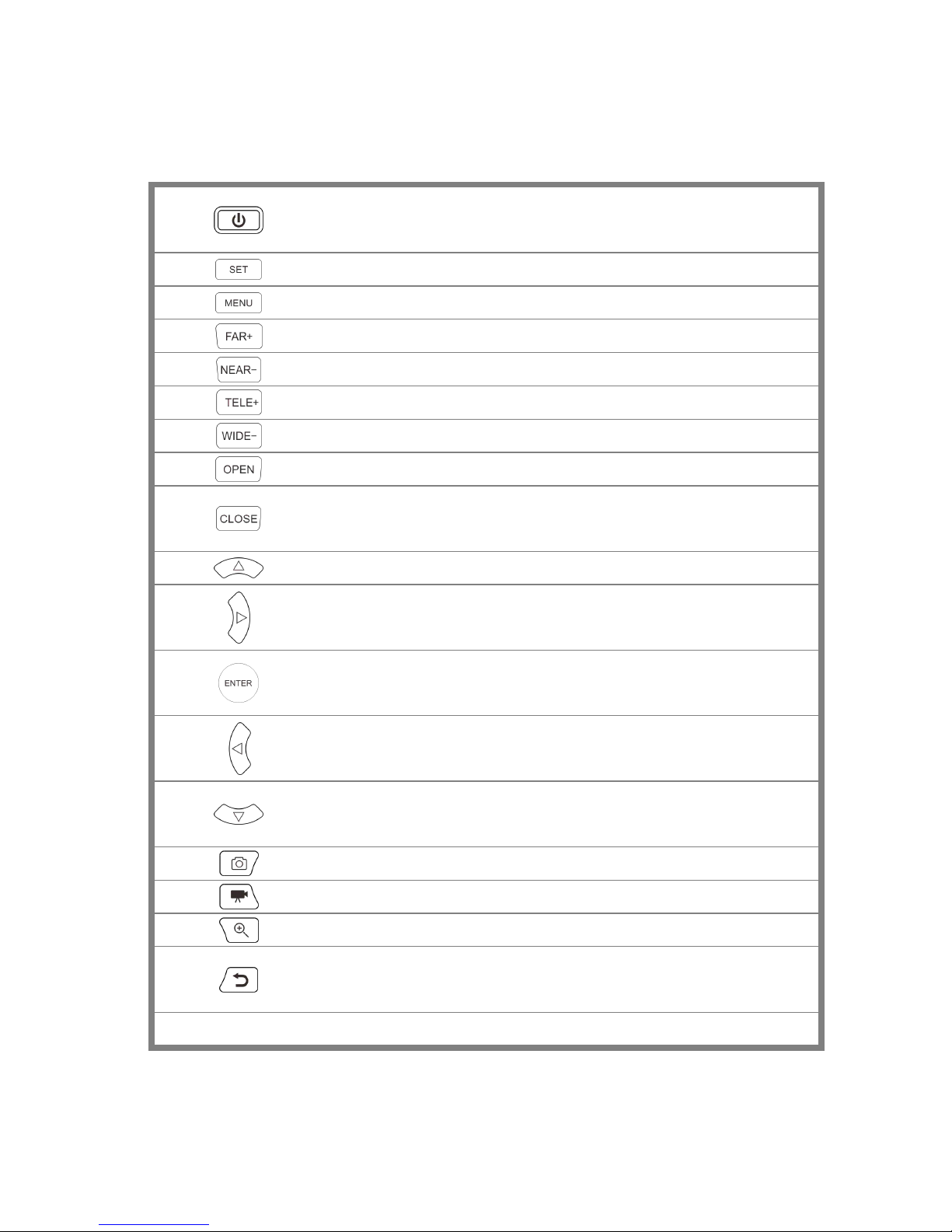

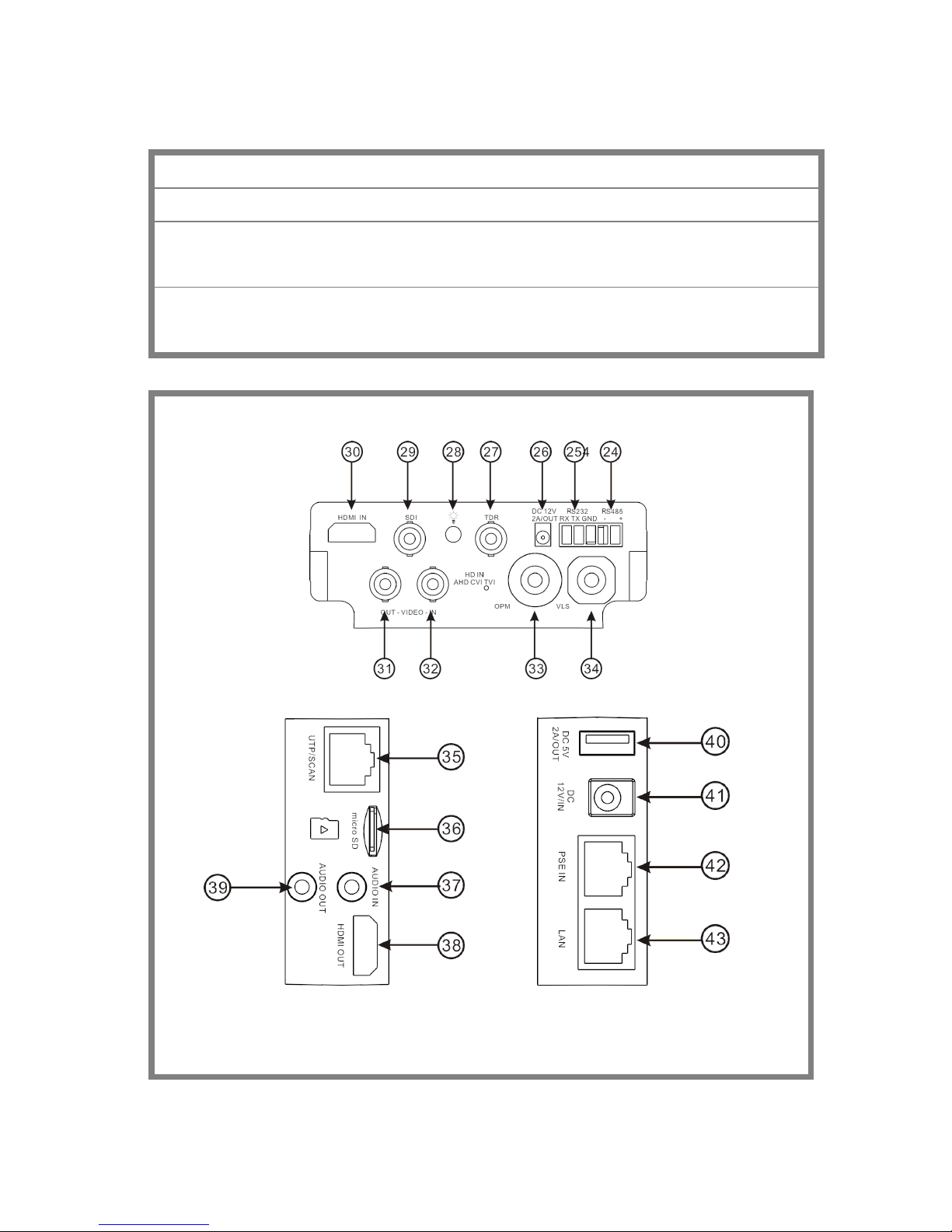

2.4 Function interface-------------------------------------------------------------------------------------------7
3. Operation-----------------------------------------------------------------------------------------------------------11
3.1 Installing the Battery--------------------------------------------------------------------------------------11
3.2 Instrument connection------------------------------------------------------------------------------------ 12
3.2.1 IP camera connection----------------------------------------------------------------------------------- 12
3.2.2 Analog camera connection-----------------------------------------------------------------------------13
3.2.3 HD Coaxial camera connection----------------------------------------------------------------- 14
3.2.4 HDMI IN ( *Optional )---------------------------------------------------------------------------15
DVR or other device’s HDMI in port connect to tester’s HDMI in port, the meter will display
input image----------------------------------------------------------------------------------------------- 15
3.3 OSD menu--------------------------------------------------------------------------------------------------15
3.3.1 Lite mode & Normal mode---------------------------------------------------------------------- 15
3.3.2 Drop-down Menu--------------------------------------------------------------------------------- 19
3.3.3 Short cut-menu------------------------------------------------------------------------------------ 20
3.3.4 Screen capture------------------------------------------------------------------------------------- 21
3.3.5 TesterPlay------------------------------------------------------------------------------------------ 21
3.3.6 Rapid video---------------------------------------------------------------------------------------- 23
3.3.7 IP discovery----------------------------------------------------------------------------------------24
3.3.8 Rapid ONVIF test--------------------------------------------------------------------------------- 25
3.3.9 IP camera test-------------------------------------------------------------------------------------- 38
3.3.10 HDMI IN ( *Optional )----------------------------------------------------------------------- 41

3.3.11 Video monitor test------------------------------------------------------------------------------- 45
3.3.12 Color-bar generator (TV OUT)---------------------------------------------------------------- 53
3.3.13 SDI Camera Test ( *Optional )-------------------------------------------------------------- 54
3.3.14 CVI camera test ( *Optional )--------------------------------------------------------------- 55
3.3.15 TVI camera test ( *Optional )----------------------------------------------------------------61
3.3.16 AHD camera test ( *Optional )-------------------------------------------------------------- 63
3.3.17 Network tool------------------------------------------------------------------------------------- 65
（1）IP address scan------------------------------------------------------------------------------------65
（2）PING Test----------------------------------------------------------------------------------------- 65
（3）Network test (Ethernet bandwidth test)------------------------------------------------------- 66
（4）Port Flashing-------------------------------------------------------------------------------------- 69
（5）DHCP server-------------------------------------------------------------------------------------- 70
（6）Trace route---------------------------------------------------------------------------------------- 70
（7）Link monitor-------------------------------------------------------------------------------------- 71
3.3.18 Rapid IP Discovery------------------------------------------------------------------------------72
3.3.19 PoE power / DC12V 2A and DC 5V 2A USB power output------------------------------ 72
3.3.20 Cable Test---------------------------------------------------------------------------------------- 73
3.3.21 RJ45 cable TDR test---------------------------------------------------------------------------- 74
3.3.22 Cable Search ( *Optional )----------------------------------------------------------------- 77
3.3.23 TDR cable test ( *Optional )-----------------------------------------------------------------78
3.3.24 PoE Voltage test--------------------------------------------------------------------------------- 81
3.3.25 12V power input test---------------------------------------------------------------------------- 82
3.3.26 Digital Multi-meter ( *Optional )----------------------------------------------------------- 83
3.3.27 Optical power meter ( *Optional )---------------------------------------------------------- 90
3.3.28 Visual Fault Locator ( *Optional )---------------------------------------------------------- 92
3.3.29 Audio Record------------------------------------------------------------------------------------ 94
3.3.30 Data monitor------------------------------------------------------------------------------------- 94
3.3.31 Audio player--------------------------------------------------------------------------------------95
3.3.32 Media Player------------------------------------------------------------------------------------- 95

3.3.33 RTSP Player--------------------------------------------------------------------------------------96
3.3.34 Hik test tool---------------------------------------------------------------------------------------97
3.3.35 Dahua test tool----------------------------------------------------------------------------------100
3.3.36 Update------------------------------------------------------------------------------------------- 103
3.3.37 Office-------------------------------------------------------------------------------------------- 104
3.3.38 LED Flashlight--------------------------------------------------------------------------------- 104
3.3.39 Browser------------------------------------------------------------------------------------------105
3.3.40 Notepad:----------------------------------------------------------------------------------------- 105
3.3.41 System Setting----------------------------------------------------------------------------------106
3.3.42 File explorer------------------------------------------------------------------------------------ 110
3.3.43 Theme--------------------------------------------------------------------------------------------112
3. 4 Audio test------------------------------------------------------------------------------------------------ 114
3.5 PoE power output---------------------------------------------------------------------------------------- 115
3.7 DC12V 2A power output------------------------------------------------------------------------------- 116
4. Specifications---------------------------------------------------------------------------------------------------- 118
4.1 General Specifications---------------------------------------------------------------------------------- 118
4.2 Multi-meter specifications------------------------------------------------------------------------------ 121
4.3 Optical power meter specifications--------------------------------------------------------------------123
4.4 Visual fault locator specifications--------------------------------------------------------------------- 124

Page.1.
1 .Safety information
◆The tester is intended to use in compliance with the local rules of the electrical usage and avoid to
apply at the places which are inapplicable for the use of electrics such as hospital, gas station etc.
◆To prevent the functional decline or failure, the product should not be sprinkled or damped.
◆The exposed part of the tester should not be touched by the dust and liquid.
◆During transportation and use, it is highly recommended to avoid the violent collision and vibration
of the tester, lest damaging components and causing failure.
◆Don’t leave the tester alone while charging and recharging. If the battery is found severely hot, the
tester should be powered off from the electric source at once. The tester should not be charged over 8
hours.
◆Don’t use the tester where the humidity is high. Once the tester is damp, power off immediately and
move away other connected cables.
◆The tester should not be used in the environment with the flammable gas.
◆Do not disassemble the instrument since no component inside can be repaired by the user. If the
disassembly is necessary indeed, please contact with the technician of our company.
◆The instrument should not be used under the environment with strong electromagnetic interference.
◆Don’t touch the tester with wet hands or waterish things.
◆Don’t use the detergent to clean and the dry cloth is suggested to use. If the dirt is not easy to remove,
the soft cloth with water or neutral detergent can be used. But the cloth should be tweaked
sufficiently.
About Digital Multi-meter
◆Before using, you must select the right input jack, function and range.
◆Never exceed the protection limit values indicated in specifications for each range of measurement.
◆When the tester is linked to a measurement circuit, do not touch unused terminals.
◆Do not measure voltage if the voltage on the terminals exceeds 660V above earth ground.
◆At the manual range, when the value scale to be measured is unknown beforehand, set the range
selector at the highest position.
◆Always be careful when working with voltages above 60V DC or 40V AC, keep fingers behind the
probe barriers while measuring.

Page.2.
◆Never connect the meter with any voltage source while the function switch is in the current,
resistance, capacitance, diode, continuity, otherwise it will damage the meter.
◆Never perform capacitance measurements unless the capacitor to be measured has been discharged
fully.
◆Never measure any of resistance, capacitance, diode or continuity measurements on live circuits.
Visual laser sources
When you turn on visual laser sources, please don’t stare at it, or will damage to eyes
When not using it, please turn it off and cover the protective cap .
2. IP Camera Tester Introduction
2.1 General
The 4.3 inch IPS touch screen IP camera monitor is designed for maintenance and installation of IP
cameras, analog cameras, TVI, CVI AHD, SDI cameras, as well as testing 4K H.264 /4k H.265 camera
by mainstream, The 960x540 resolution enables it to display network HD cameras and analog cameras
in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. The combination of
touch screen and key buttons make the IP camera tester very user- friendly.
The tester is also a great tool for Ethernet network testing. It can test PoE power voltage, PING, and IP
address searching. You can use the blue cable tracer to locate individual connected cables from a bundle
of cables. Test LAN cable for proper connection termination. Other functions include providing 24W
PoE power to your camera, HDMI IN and out, CVBS loop test , testing IP and analog at the same time,
LED Flashlight, DC 12V 2A power output and much more. Its portability, user-friendly design and
many other functions make the IP tester an essential tool for all installers or technicians.
2.2 Features
New 4.3 inch IPS touch screen cctv tester ,960*540 resolution
4 K H.264 & H .265 display image by mainstream
IP and analog testing at the same time
In HDMI IN mode, It can converter test from analog to digital with dual test window IP &
HDMI IN or Analog & HDMI in * (Optional)

Page.3.
RJ45 cable TDR test and cable quality test, to test cable pair status, length, attenuation
reflectivity, impedance, skew and other parameter.
Screen capture, long press the key “enter”, can capture screen interface and save it in any time
12V power input test
“TesterPlay” app, support Tester, PC and mobile phone display at the same time. The android
version mobile phone install “TesterPlay ” app, or install VLC player in the PC, can real-time
receiving screen information from the tester
Screen management, change function’s icons order, create new directory.
Themes: Lite and normal model can select , change the icons and desktop background ,change
sliding effect etc
Built in Wi-Fi ,display image from the wireless camera , create WIFI hotspot
Rapid video, auto scan the IP camera address, by one key to view the image.
Screen lock : password lock and pattern lock are optional
Office, quick office app (support excel, word, ppt format) doc. Editable
Rapid IP scan , auto scan whole network or other network device ‘s IP address
CVBS loop test , tester can receive and send the color bar generator ,to check BNC cable
Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time
upload and download speeds and other network parameters.
Drop-down menu : PoE power switch ,IP setting, WLAN switch , HDMI IN functions etc screen
lock, password lock screen or pattern lock
IP discovery, no need to know the first two digits of camera’s IP address , it can auto-scan the
whole network segment IP, and auto-modify tester’s IP address
Rapid ONVIF, search camera quickly, auto log in and display image from the camera, activate
Hikvision camera.
Hik test tool app is designed for activating and debugging Hikvision camera, can auto-identify
unactivated hikvision camera, also can display image from the Hikvision camera.
DH test tool app is design for Dahua Camera test, and modify IP, user name and password
parameters etc

Page.4.
ONVIF camera test, support 4K.
It is used unique hardware decoding, display image from the 4K camera via mainstream.
You can select sub-stream to test higher resolution camera
ONVIF IP camera video testing.
Compatible with H.265/H.264/MPEG4/MJPEG IP cameras, such as Dahua, HIKVISION, and
ACTI Customized service is available.
Built in Wi-Fi, can receive image from wireless camera, as well as ONVIF and customized IP
cameras.
SDI Digital camera image display, record and screen snapshot * (Optional)
HD CVI camera image display, zoom, video record and playback ,Coaxial PTZ control and call
camera OSD menu * (Optional)
HD TVI camera image display, zoom, video record and playback ,Coaxial PTZ control and call
camera OSD menu * (Optional)
AHD camera image display, zoom, video record and playback, Coaxial PTZ control and call
camera OSD menu * (Optional)
HDMI signal output, supports up to 1080P.
Analog camera image display, auto adapt and display the video format of NTSC/PAL
Support more than 30 protocols, such as PELCO-P,PELCO-D,SAMSUNG etc
Video image digital zoom to view the image in greater detail.
Snapshot function allows you to save the current image as a JPG file in the SD card.
Built in enhanced image generator, send the color, pure blue and black image, test monitor
transmission channel and debug display device, observe whether there are light spots or black
spots on the monitor
LED Flashlight.
8GB Micro SD card included.
LCD screen brightness/contrast/color Saturation adjustable
Visual fault locator, to test fiber’s bending and breakage * (Optional)

Page.5.
Optical power meter, test fiber loss and value * (Optional)
Digital Multi-meter , DC and AC voltage measurement, Resistance measurement Continuity test,
Diode measurements, Capacitance measurement * (Optional)
Video level meter PEAK video signal level, SYNC signal level, Color burst chroma level
measurement,test video signal attenuation * (Optional)
Cable tracer, by sending the audio signal, enables the blue cable tracer tester to find the
connected cable from messy cables * (Optional)
Ping test, PING is the most conventional network debugging tools; it is used for testing if the
connected IP camera or other network equipment’s Ethernet port is working normally and the IP
address is correct.
In digital IP surveillance applications, if the IP camera’s IP address is not known; the device
cannot be used. An IP address scan can quickly search for the connected IP camera or other
network device’s IP address.
The PoE voltage test can test for PoE voltage when a POE switch is supplying POE power to an
IP camera
TDR cable test, test cable open circuit and short-circuit * (Optional)
Cable test , Test LAN cable or telephone cable,UTP cable etc ,cable type and the sequence of
wires will be displayed
Support RS232/RS485,rate 600 ～115200bps adjustable
PTZ protocol analysis, control protocol command displays to check RS485 transmission
whether is normal, easy to find the fault device
PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and
sets and the preset position
DC5V 2A power output for USB charging (No USB data exchange, voltage only)
PoE power output, supply temporary power for PoE camera
DC5V 2A power output, as a power bank
Audio input and output, test and output the audio signal
7.4V Lithium Ion Polymer Battery ,Working time lasts 10 hours, after charging for 5 ~6 hours

Page.6.
2.3 Packing list
1). Tester
2). Adaptor DC12V 2A
3) Network cable tester
4) Polymer lithium ion battery (7.4V DC 5000mAh)
5). BNC cable
6). RS485 cable
7). SC,ST connector（Only for optical power meter）
8). Multi-meter test leads one pair of red and black (only for the Multi-meter models)
9). Output Power cable
10). Audio cable
11). TDR alligator clamp (only for TDR models)
12). Safety cord
13). Tool bag
14). Manual
15).8GB SD card

Page.7.
2.4 Function interface

Page.8.
1
Press more than 2 seconds, turn on or off the device ,short press to turn on or off
the menu display
2
Set key
3
Menu key
4
Near focus: Focus the image nearby
5
Far focus: Focus the image faraway
6
TELE: zoom in the image
7
WIDE: zoom out the image
8
Open/set ,Confirm the setting of parameters, open or enlarge the aperture
9
Return/Close : Return or cancel while setting parameters of the menu, close or
decrease the aperture
10
Upward, set function or add parameter. Tilt the PTZ upward
11
Rightward, select the parameter whose value will be changed. Add the value of the
parameter. Pan the PTZ right
12
Confirm key
13
Leftward, select the parameter whose value will be changed
14
Downward, set function or reduce the value of the parameter. Tilt the PTZ
downward
15
Snapshot
16
Video record
17
Open/set ,Confirm the setting of parameters, open or enlarge the aperture
18
Return/Close : Return or cancel while setting parameters of the menu, close or
decrease the aperture
19
Multimeter interface (Optional)

Page.9.
20
The power indicator: it lights green while the tester is powered on by the adapter
21
The data accepted indicator: it lights red while the data is being received
22
The RS485/RS232 data transmission indicator: it lights red while the data is being
transmitted
23
The charge indicator: it lights red while the battery is being charged. As the
charging is complete, the indicator turns off automatically
Top interface
Left interface Right interface

Page.10.
24
RS485 Interface: RS485communication for the PTZ
25
RS232 Interface: RS232 communication for the PTZ"HD IN" , AHD /TVI/CVI Coaxial
interface (Optional )
26
DC12V2A power output , for provisional DC power supply
27
TDR cable test interface
28
LED lamp
29
SDI input (BNC interface) (Optional)
30
HDMI input
31
Video image signal output（BNC interface）/cable tracer interface (Optional)
32
Video image signal input（BNC interface）/ AHD,CVI and TVI input (BNC interface)
(Optional)
33
Optical power meter interface (Optional)
34
Visible red laser source emits Interface (Optional)
35
UTP cable port: UTP cable tester port/ Cable tracer port
36
Micro SD card moveable, comes with 8GB, supports up to 32GB
37
Audio input
38
HDMI output interface
39
Audio and earphone output
40
5V2A USB power output , as power bank
41
DC12V2A charging interface
42
PSE power sourcing equipment. Tests PoE voltage
43
PoE power supply output or LAN test port (Use to test PoE or non-PoE IP camera)

Page.11.
3. Operation
3.1 Installing the Battery
The tester has built-in lithium ion polymer rechargeable battery. The battery cable inside battery
cabin should be disconnected for safety during transportation!
Prior to the use of the instrument, the battery cables inside the battery cabin should be well
connected.
Pressing the key continuously can power on or off the tester.
Notice:Pls use the original adaptor and connected cable of the device!
When the battery icon is full or the charge indicator turns off automatically, indicate the battery
charging is completed
Notice: When the Charge Indicator turns off, the battery is approximately 90%
charged. The charging time can be extended for about 1 hour and the charging time within 12
hours will not damage the battery.
Notice :Press the key several seconds to restore the default settings when the
instrument works abnormally.
Multi-meter: the red and black multi-meter pen must insert the corresponding port.
Warnings:Instrument communication port is not permitted access circuit voltage over 6V,
otherwise damage the tester.
Warnings:Not allow insert multi-meter pen in the current
terminal to measure voltage

Page.12.
3.2 Instrument connection
3.2.1 IP camera connection
Power an IP camera with an independent power supply, then connect the IP camera to the IPC tester’s
LAN port, if the link indicator of the tester’s LAN port is green and the data indicator flickers, it means
the IP camera and the IPC tester are communicating. If the two indicators don’t flicker, check if the IP
camera is powered on or the network cable is not functioning properly.
Note:1) If the IP camera requires PoE power, then connect the IP camera to the IP tester’sLAN port .
The tester will supply PoE Power for the IP camera. Click on the icon labeled POE to turn the PoE
Power off or on.
2) If use the tester’s menu to turn off the tester’s PoE power supply, the PoE switch and the power
sourcing equipment are allowed to connect to the tester’s PSE port, and the PoE power will be supplied
to the IP camera by the tester’s LAN port. On this condition, the tester cannot receive data from IP
camera, but the computer connected to the PoE switch can receive the data via the the tester.
Warning: Poe switch or PSE power sourcing equipment only can be connected to tester “PSE

Page.13.
IN” port, otherwise will damage the tester.
3.2.2 Analog camera connection
(1) Connect the camera's video output to the IP tester’s VIDEO IN. The image will display on the tester
after pushing the PTZ icon
(2) CCTV IP Tester “VIDEO OUT” interface connect to the Video input of monitor and optical video
transmitter and receiver, the image display on the tester and monitor
(3) Connect the camera or the speed dome RS485 controller cable to the tester RS485 interface ,(Note
positive and negative connection of the cable). Support RS232 PTZ controller ,connect the RS232cable
to RS232 interface of the tester

Page.14.
3.2.3 HD Coaxial camera connection
* SDI, CVI, TVI, AHD camera are classified as HD coaxial cameras. Hereby the following instruction
of how to connect SDI camera to the tester is also applied to CVI, TVI, and AHD camera.
(1) Connect the SDI camera's video output to the IP tester’s “SDI IN” interface, the image will display
on the tester. The tester only come with SDI input interface. There is no SDI output interface.
(2) Connect the SDI camera or the speed dome RS485 controller cable to the tester RS485 interface.
Support RS232 PTZ controller; connect the RS232 cable to RS232 interface of the tester.

Page.15.
3.2.4 HDMI IN ( *Optional )
DVR or other device’s HDMI in port connect to tester’s HDMI in port, the meter will display input
3.3 OSD menu
Press the key 2 seconds to turn on
Press the key 2 seconds to turn off
short press the key to enter sleep mode,press it again to test if tester work abnormally
and cannot be turned off , Press the key several seconds to turn off, the tester reset
3.3.1 Lite mode & Normal mode
Lite mode: You can easy find corresponding apps
