PC13 Piezoresistive Silicon Pressure Sensor
Features
■With constant current and
constant voltage excitation
options
■Imported highly reliable
pressure die
■Wide temperature
compensation
■Normalized output available
■Compensation board filled
with glue for protection
against moisture
■All 316L material
■High performance, all solid,
high reliability
■18 months warranty period
Applications
■Process control systems
■Pressure calibration
instruments
■Refrigeration equipment and
HVAC control
■Hydraulic systems and valves
■Level measurement
■Biomedical instruments
■Ships and navigation
■Aircraft and avionics systems
■Weaponry
Notes:
1 Do not touch the diaphragm with
hard objects, which may cause
damage to the diaphragm.
2 Please read the Instruction
Manual of the product carefully
before installation and check the
relevant information of the product.
3 Strictly follow the wiring method
for wiring, otherwise it may cause
Product overview
PC13 piezoresistive silicon pressure sensor is the core
component for the manufacture of pressure sensors and pressure
transmitters.As high-performance pressure sensitive component,
PC13 can be easily amplified and assembled into the pressure
transmitters with standard signal output.
PC13 packages diffused silicon pressure sensitive die to 316L
stainless steel housing. External pressure is transmitted to
pressure sensitive die through stainless steel diaphragm and
internally sealed silicon oil. Pressure sensitive die does not directly
contact with measured medium, forming all solid structure of
pressure measurement. So the product can be applied to a variety
of occasions, including harsh corrosive medium environment.
PC13 uses O-ring for pressure seal, which is easy to install.
The company can also undertake special customization
based on the needs of users, such as pressure sensors of all
welded structure, wide temperature compensation, high reliability,
anti-shock and anti-vibration sensors, especially for national
defense weapons and equipment.

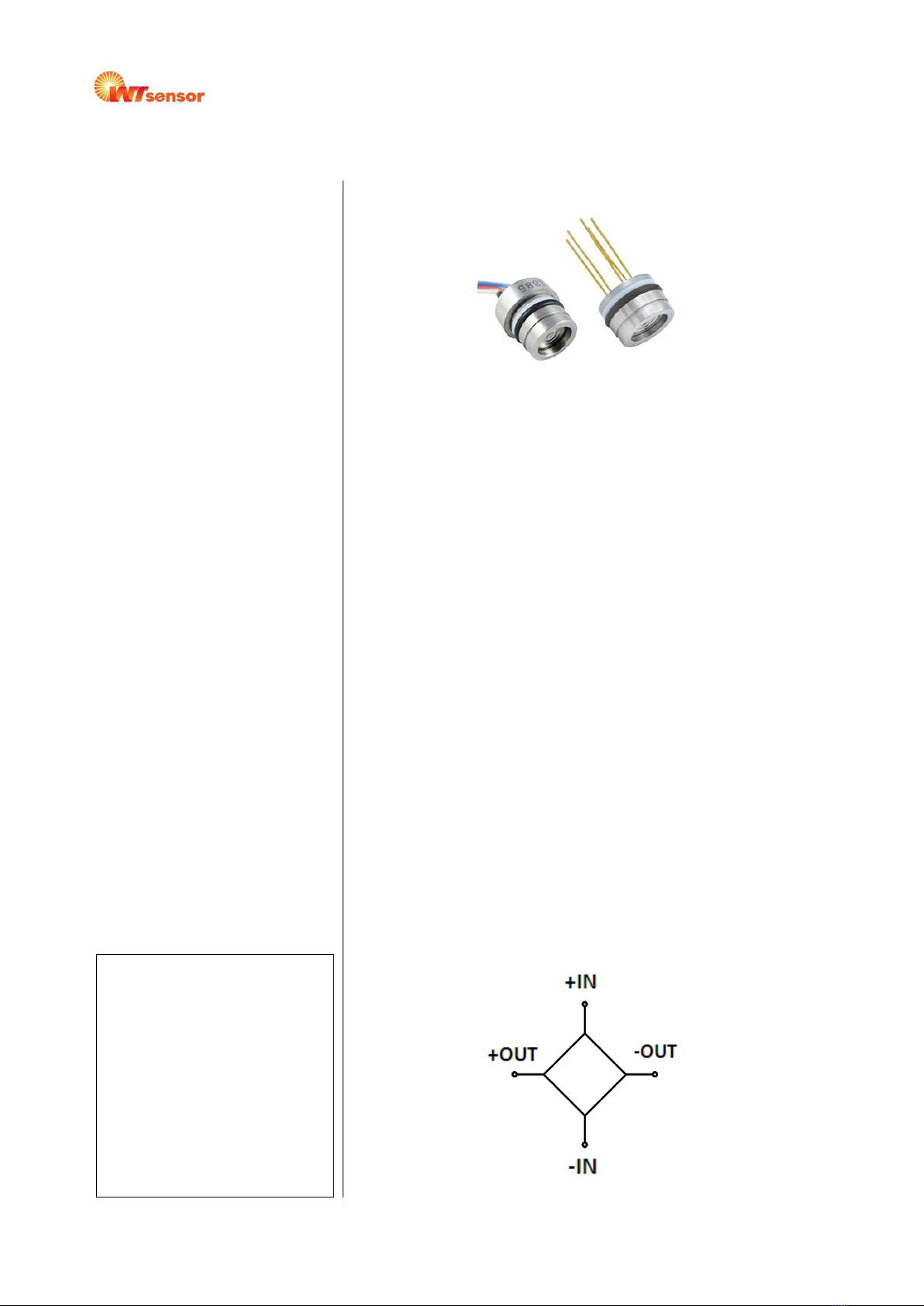

Equivalent circuit
4 wire

2 www.wtsensor.com
product damage or other potential
faults.
4 Misuse of the product may cause
danger or personal injury.
Notes:
1 Do not misuse documentation.
2 The information presented in this product sheet is for reference only.
Do not use this document as a product installation guide.
3 Complete installation, operation, and maintenance information is
provided in the instructions of the product.
4 Misuse of the product may cause danger or personal injury.
Electrical performance parameters
Pressure range
6MPa…60MPa
Pressure reference
Sealed gauge pressure
Excitation
1.5mA recommended for constant current
10V recommended for constant voltage
Input impedance
Constant current: 2kΩ～5kΩ
Constant voltage: 3kΩ～18kΩ
Electrical connection
Gold-plated KOVAR pin or silicon soft wire
Compensation temp.
Constant current: -10℃～70℃
Operating temp.
-40℃～125℃
Storage temp.
-40℃～125℃
Insulation resistance
≥200MΩ/250VDC
Response time
≤1ms (up to 90%FS)
Measured medium
All the liquids and gases compatible with 316L.
Mechanical vibration
20g (20～5000Hz)
Shock
100g (10ms)
Service life
10×106 (cycles)
Structural performance parameters
Diaphragm material
316L
Housing material
316L
Oil filling
Silicon oil
Sealing ring
Fluorine rubber
Basic parameters
Item
Condition
Min
Nominal
Max
Unit
Note
Nonlinearity
-0.3
±0.2
0.3
%FS
Note⑴
Hysteresis
-0.05
±0.03
0.05
%FS
Repeatability
-0.05
±0.03
0.05
%FS
Zero output
-2
±1
2
mV
Full scale span
output
1.5mA
10V
60
80
90
100
150
120
mV
Zero temp.
coefficient
-1.5
±0.75
1.5
%FS
Note(1)
Sensitivity temp.
coefficient
-1.5
±1.0
1.5
%FS
Note⑵

3 www.wtsensor.com
Thermal hysteresis
-0.075
±0.05
0.075
%FS
Note⑶
Long term stability
-0.3
±0.2
0.3
%FS/Year
Note:
(1) Calculate according to BFSL least square method.
(2) In the compensation temperature range, refer to 30 ℃for -10 ℃~ 70 ℃
(3) After passing high and low temperature, return to the reference temperature.
Structure and dimensions
In mm
1. PC13I 2. PC13 II
Sealed gauge pressure
Sealed gauge pressure
Electrical connection (in mm)
1. PC13I 5pins (5p) with constant-current excitation
Please confirm with the technician for the details of constant-voltage excitation.
Pin Definition
3 Excitation +(IN+)
1 or 5 Excitation -(IN-)
2 Output +(OUT+)
4 Output -(OUT-)

4 www.wtsensor.com
Electrical connection (in mm) (cont.)
2. PC13I 4wires (4w)
Wire color Definition
Red Excitation+(IN+)
Blue Excitation-(IN-)
Yellow Output+(OUT+)
White Output-(OUT-)
3. PC13II 5pins (5p) with constant-current excitation
Please confirm with the technician for the details of constant-voltage excitation.
Pin Definition
3 Excitation+(IN+)
1 or 5 Excitation-(IN-)
2 Output+(OUT+)
4 Output-(OUT-)
4. PC13II 4wires (4w)
Pin Definition
Red Excitation+(IN+)
Blue Excitation-(IN-)
Yellow Output+(OUT+)
White Output- (OUT-)
Pressure range selection
Code
Pressure
reference
Pressure range
Overpressure
Burst
pressure
O-ring
6M
S
0～6MPa
200％FS
400％FS
Fluorine rubber
10M
S
0～10MPa
200％FS
400％FS
Fluorine rubber
16M
S
0～16MPa
150％FS
300％FS
Fluorine rubber
25M
S
0～25MPa
150％FS
300％FS
Fluorine rubber
40M
S
0～40MPa
150％FS
200％FS
Fluorine rubber
60M
S
0～60MPa
150％FS
200％FS
Fluorine rubber
S: Sealed gauge pressure

5 www.wtsensor.com
How to order
PC13 I - 10M S 4w I1 C
Example: PC13I -10MS4wI1C
PC13I pressure sensor, pressure range 10MPa, sealed gauge pressure, 4 wire, 1.5mA
excitation, current compensation.
Ordering tips:
1 Pressure range can be selected higher or lower than actual conditions but should be within ±30%FS.
2 Pressure reference consists of gauge pressure, absolute pressure and sealed gauge pressure.
⑴Gauge pressure is based on the current atmospheric pressure. Generally, it refers to the
measurement of pressure which is greater than the current atmospheric pressure. Negative
pressure is a special case of gauge pressure. It refers that there is such working condition that the
pressure of work site is lower than the current atmospheric pressure.
⑵Absolute pressure is based on vacuum.
⑶As for sealed gauge pressure, PC10 uses absolute pressure die for gauge pressure product based
on the atmospheric pressure of production site. For pressure range above 6MPa, gauge pressure
cannot be selected, but only sealed gauge pressure.
3 Confirm the maximum overload of the applied system, which should be less than the overload
protection limit of the sensor, otherwise it will affect the product life or even damage the product.
4 The commonly used compensation of the product is 1.5mAconstant current compensation. Suggest to
select the option with priority.
5 The material and process for manufacturing negative pressure sensors are different from those of
positive pressure sensors. So gauge pressure sensors cannot be used as substitute of negative
pressure sensors.
6 For special requirements on performance parameters and functions of the product, please contact us.
Wotian reserves the right to make any change in this publication without notice. The information
provided is believed to be accurate and reliable as of this product sheet.
S = Sealed gauge
pressure
I1 = 1.5mA
U5 = 10V
4w = 4 wire
5p = 5 pin
C = Compensation
Product model
Pressure range

6 www.wtsensor.com
