Wyrestorm RXV-35-4K V1 User manual

4K HDR HDMI-Over-HDBaseT Receiver
with HDCP 2.2 and PoH
RXV-35-4K v1 Quickstart Guide
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
RXV-35-4K v1 Quickstart Guide | 190501
UK: [phone] | ROW: 844.280.WYRE (9973)
[e-mail]
1 of 4
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the
installation process.
Basic Wiring Diagram
IMPORTANT! Installation Requirements
• Visit the product page to download the latest rmware, document version,
additional documentation, and conguration tools.
• Read through the Wiring and Connections section for important wiring
guidelines before creating or choosing premade cables.
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
In the Box
1x RXV-35-4K Receiver
1x IR Emitter
1x IR Receiver
2x Mounting Brackets
1x 3-pin Terminal Block
1x Quickstart Guide (this document)
HDMI to display
IR TXIR RX
RXV-35-4K (Receiver)
HDMI to display
IR TXIR RX
HDMI from source
LAN Cat6a/7
A
C Mains
P
ower
Cat6a/7
Cat6a/7
Blu-r
a
y Pl
a
y
er
RXV-35-4K (Receiver)
Matrix Control Only
IR
Control System
CAB-IR-LINK (Sold Separately)
Wireless Router
MXV-0808-H2A (Matrix)
Receivers
powered by
KEY
HDMI
HDBaseT / Ethernet
Control
Power
Digital Audio
All manuals and user guides at all-guides.com

Copyright © 2019 WyreStorm Technologies | wyrestorm.com
RXV-35-4K v1 Quickstart Guide | 190501
UK: [phone] | ROW: 844.280.WYRE (9973)
[e-mail]
2 of 4
Front Panel Rear Panel
Power LED Solid: The receiver is powered On
Off: The receiver is powered Off
Status LED Flashing: The receiver is operating normally.
Off: The receiver is Not operating normally.
HDCP LED
Solid: HDCP content is present.
Flashing: HDCP content is not present.
Off: No signal.
LINK LED
Solid: Link to receiver has been established.
Flashing: Link to receiver has not been
established.
Power Input
5.5mm Screw Down Barrel Jack
Connect to the included 18V DC 1A power
supply to the transmitter or receiver. A power
supply is not required on the other end as it
will be powered using PoH.
HDBT In
HDBT Out
8-pin RJ-45 female
Connect the matrix HDBT Out to
receivers HDBT In.
IR TX
IR RX
IR TX - 3.5mm (1/8in) Mono Jack: Connect
to the supplied IR emitter to control a local
device from the remote display location via
HDBaseT.
IR RX - 3.5mm (1/8in) Stereo Jack: Connect
to the supplied IR receiver to send IR to the
remote display location via HDBaseT.
See IR TX/RX Guidelines for more
information.
RS-232 1x RS-232: 3-pin Terminal Block
HDMI In
HDMI Out
19-pin type A HDMI female
Supports HDMI and DVI/D with adapter
ACB DACB D E
All manuals and user guides at all-guides.com

Copyright © 2019 WyreStorm Technologies | wyrestorm.com
RXV-35-4K v1 Quickstart Guide | 190501
UK: [phone] | ROW: 844.280.WYRE (9973)
[e-mail]
3 of 4

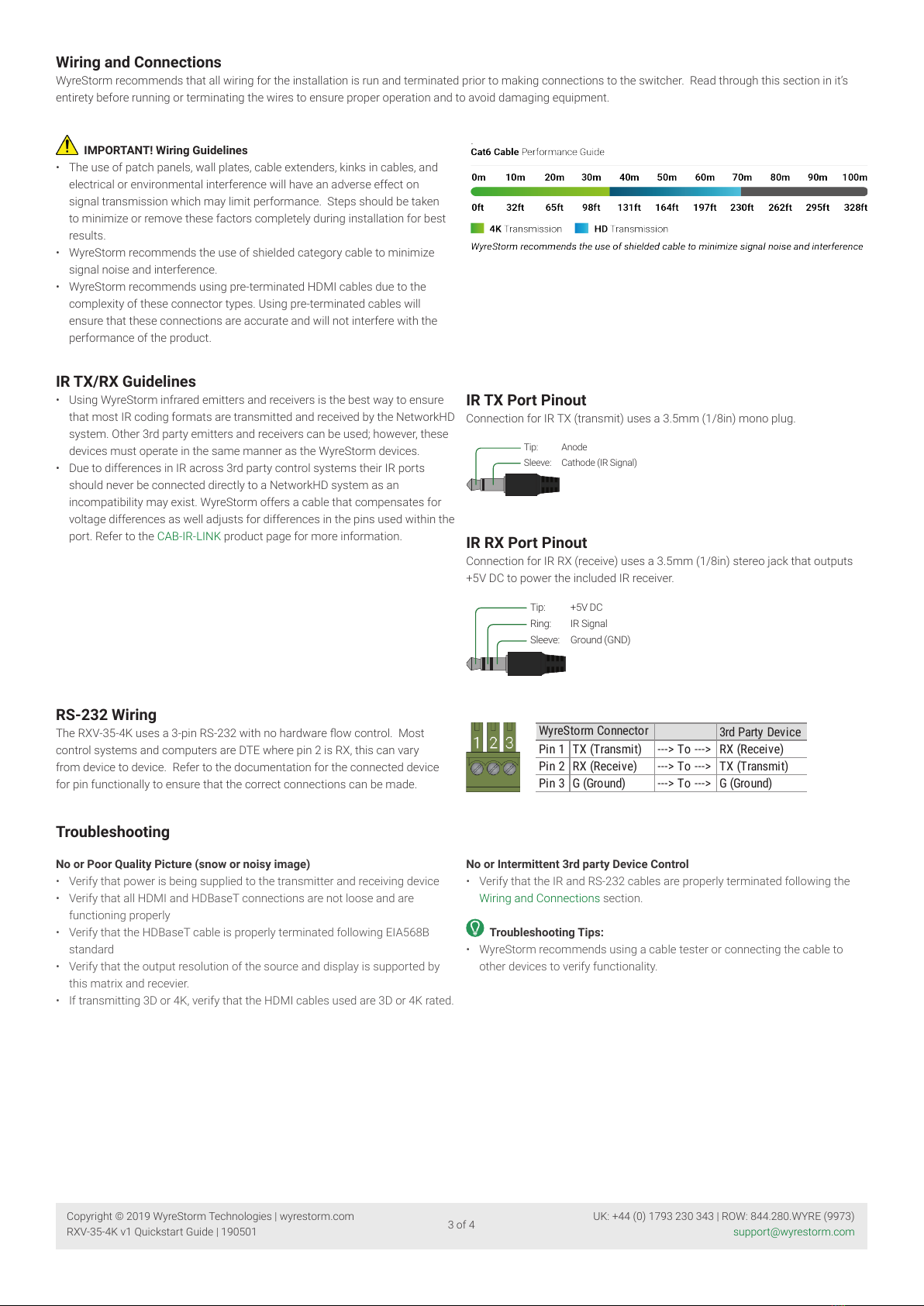

Wiring and Connections
WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in it’s
entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.
IMPORTANT! Wiring Guidelines
• The use of patch panels, wall plates, cable extenders, kinks in cables, and
electrical or environmental interference will have an adverse effect on
signal transmission which may limit performance. Steps should be taken
to minimize or remove these factors completely during installation for best
results.
• WyreStorm recommends the use of shielded category cable to minimize
signal noise and interference.
• WyreStorm recommends using pre-terminated HDMI cables due to the
complexity of these connector types. Using pre-terminated cables will
ensure that these connections are accurate and will not interfere with the
performance of the product.
.
IR TX/RX Guidelines
• Using WyreStorm infrared emitters and receivers is the best way to ensure
that most IR coding formats are transmitted and received by the NetworkHD
system. Other 3rd party emitters and receivers can be used; however, these
devices must operate in the same manner as the WyreStorm devices.
• Due to differences in IR across 3rd party control systems their IR ports
should never be connected directly to a NetworkHD system as an
incompatibility may exist. WyreStorm offers a cable that compensates for
voltage differences as well adjusts for differences in the pins used within the
port. Refer to the CAB-IR-LINK product page for more information.
IR TX Port Pinout
Connection for IR TX (transmit) uses a 3.5mm (1/8in) mono plug.
Tip: Anode
Sleeve: Cathode (IR Signal)
IR RX Port Pinout
Connection for IR RX (receive) uses a 3.5mm (1/8in) stereo jack that outputs
+5V DC to power the included IR receiver.
Tip:
Ring: IR Signal
+5V DC
Sleeve: Ground (GND)
RS-232 Wiring
The RXV-35-4K uses a 3-pin RS-232 with no hardware ow control. Most
control systems and computers are DTE where pin 2 is RX, this can vary
from device to device. Refer to the documentation for the connected device
for pin functionally to ensure that the correct connections can be made.
3rd Party Device
Pin 1 TX (Transmit) ---> To ---> RX (Receive)
Pin 2 RX (Receive) ---> To ---> TX (Transmit)
Pin 3 G (Ground) ---> To ---> G (Ground)
WyreStorm Connector
Troubleshooting
No or Poor Quality Picture (snow or noisy image)
• Verify that power is being supplied to the transmitter and receiving device
• Verify that all HDMI and HDBaseT connections are not loose and are
functioning properly
• Verify that the HDBaseT cable is properly terminated following EIA568B
standard
• Verify that the output resolution of the source and display is supported by
this matrix and recevier.
• If transmitting 3D or 4K, verify that the HDMI cables used are 3D or 4K rated.
No or Intermittent 3rd party Device Control
• Verify that the IR and RS-232 cables are properly terminated following the
Wiring and Connections section.
Troubleshooting Tips:
• WyreStorm recommends using a cable tester or connecting the cable to
other devices to verify functionality.
All manuals and user guides at all-guides.com

Specications
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
RXV-35-4K v1 Quickstart Guide | 190501
UK: [phone] | ROW: 844.280.WYRE (9973)
[e-mail]
4 of 4
Audio and Video
Inputs 1x HDBT In: 8-pin RJ-45 Female
Outputs 1x HDMI Out: 19-pin type A
Output Video Encoding HDBaseT Class B
Encoding Data Rate 9.2Gbps
End to End Latency (Max) 10μs (micro seconds)
Audio Formats
Analog: 2ch Analog
S/PDIF: 2ch LPCM | Dolby Digital/DTS up to 5.1ch
HDMI: 2ch LPCM | Multichannel up to Dolby Atmos and DTS-X
Video Resolutions (Max)
Video Resolution HDMI Cat6 Cat6a/7
1920x1080p @60Hz 12bit 15m/49ft 60m/197ft 70m/230ft
1920x1080p @60Hz 16bit 7m/23ft 60m/115ft 70m/131ft
3840x2160p @24Hz 10bit 4:2:0 HDR 3m/10ft 35m/115ft 40m/131ft
3840x2160p @30Hz 8bit 4:4:4 7m/23ft Input
15m/49ft Output 35m/115ft 40m/131ft
3840x2160p @60Hz 10bit 4:2:0 HDR 3m/10ft 35m/115ft 40m/131ft
4096x2160p @60Hz 8bit 4:2:0 7m/23ft 35m/115ft 40m/131ft
4096x2160p @60Hz 8bit 4:4:4 3m/10ft 35m/115ft 40m/131ft
Note: WyreStorm recommends the use of shielded category cable to minimize signal noise and interference
Supported Standards DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100
Maximum Pixel Clock HDMI: 600MHz | HDBaseT: 297MHz
Communication and Control
HDMI HDMI 2.0 | HDCP 2.2 | EDID | CEC | DVI/D supported with adapter (not included)
HDBaseT HDMI 2.0 | HDCP 2.2 | EDID | CEC | 1-way PoH | Bidirectional IR
CEC CEC power triggering for connected screens – Requires CEC compatibility
IR
1x IR TX: 3.5mm (1/8in) TS Mono
1x IR RX: 3.5mm (1/8in) TRS Stereo
Bidirectional over HDBaseT
RS-232 1x RS-232: 3-pin Terminal Block - 3.5mm
Power
Power Supply 18V DC (Optional)
PoH 1-way Matrix to Receiver
Max Power Consumption 12.42W
Environmental
Operating Temperature 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing
Storage Temperature -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing
Maximum BTU/hr 43 BTU/hr
Dimensions and Weight
Rack Units/Wall Box <1U
Height 15.2mm/0.6in
Width 136.4mm/5.38in
Depth 74.2mm/2.93in
Weight 0.24kg/0.53lbs
Regulatory
Safety and Emission CE | FCC | RoHS | RCM
Warranty Information
WyreStorm Technologies LLC warrants that its products to be free from defects in material and workmanship under normal use for a
period of ve (5) years from the date of purchase. Refer to the Product Warranty page on wyrestorm.com for more details on our limited
product warranty.
Note: WyreStorm reserves the right to change product specication, appearance or dimensions of this product at any time without prior notice.
