Wyrestorm TX-35-IW User manual

4K UHD HDBaseT 1-Gang In Wall Transmitter
(4K: 35m/115ft | 1080p: 70m/230ft)
TX-35-IW Quickstart Guide
Copyright © 2020 WyreStorm Technologies | wyrestorm.com
TX-35-IW Quickstart Guide | 201112
UK: [phone] | ROW: 844.280.WYRE (9973)
[email protected]
1 of 4
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the
installation process.
Basic Wiring Diagram
IMPORTANT! Installation Requirements
• Visit the product page to download the latest rmware, document
version, additional documentation, and conguration tools.
• Read through the Wiring and Connections section for important wiring
guidelines before creating or choosing premade cables.
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
In the Box
1x 2 pin Phoenix Male Connector
2x 3 pin Phoenix Male Connector
1x 1-Gang Decora Wall Plate
Device powers via PoH (12V 2A DC PSU Sold Separately)
1x Quickstart Guide (This Document)
RX-35-POH
TX-35-IW
KEY
HDMI
HDBaseT
Control
TS-280-US
IR Emitter
IR Receiver
Laptop
4K UHD Display

Copyright © 2020 WyreStorm Technologies | wyrestorm.com
TX-35-IW Quickstart Guide | 201112
UK: [phone] | ROW: 844.280.WYRE (9973)
[email protected]
2 of 4
TX-35-IW (Front/Rear)
IR Window
HDMI Input 19-pin type A HDMI female
Supports HDMI and DVI/D with adapter
Power LED Solid: The unit is powered On
Off: The unit is powered Off
Link LED
On: Indicates link established with receiving
device
Off: No link with receiver or receiver powered
off
HDBT Out
8-pin RJ-45 female
Connect the transmitter’s HDBT OUT to
receiver’s HDBT IN.
Power Input 2-pin phoenix: 12v Power Input
RS-232 3-pin phoenix for passthrough to RX
IR 3-pin phoenix for passthrough to RX
A
B
C D BA
CD

Copyright © 2020 WyreStorm Technologies | wyrestorm.com
TX-35-IW Quickstart Guide | 201112
UK: [phone] | ROW: 844.280.WYRE (9973)
[email protected]
3 of 4

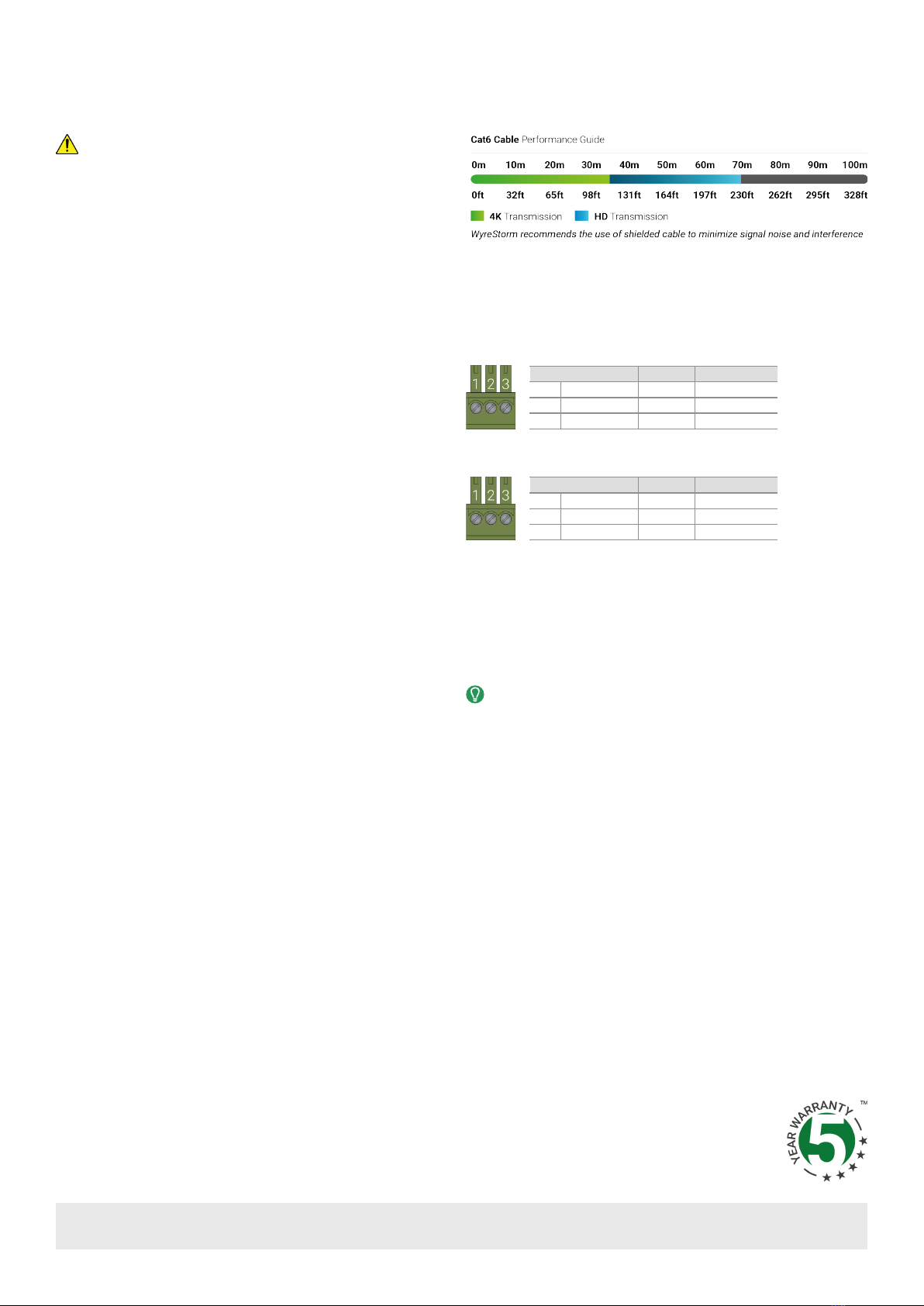

Wiring and Connections
WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in it’s
entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.
IMPORTANT! Wiring Guidelines
• The use of patch panels, wall plates, cable extenders, kinks in cables, and
electrical or environmental interference will have an adverse effect on
signal transmission which may limit performance. Steps should be taken
to minimize or remove these factors completely during installation for best
results.
• WyreStorm recommends using pre-terminated HDMI cables due to the
complexity of these connector types. Using pre-terminated cables will
ensure that these connections are accurate and will not interfere with the
performance of the product.
RS-232 Wiring
The TX-35-IW uses a 3-pin RS-232 with no hardware ow control. Most
control systems and computers are DTE where pin 2 is RX, this can vary from
device to device. Refer to the documentation for the connected device for pin
functionally to ensure that the correct connections can be made.
Refer to RS-232 Mode Settings for details on setting RS-232 modes.
3rd Party Device
Pin 1 TX (Transmit) ---> To ---> RX (Receive)
Pin 2 RX (Receive) ---> To ---> TX (Transmit)
Pin 3 G (Ground) ---> To ---> G (Ground)
WyreStorm Connector
IR Wiring
The 3-pin IR connector can be used to either transmit or receive IR signals,
based on the type of cable and pin out you use. The IR emitter or receiver being
used must support 5v for proper operation.
3rd Party Device
Pin 1 5v (Receive)---> To --->5v (Transmit)
Pin 2 IR (Transmit)---> To --->IR (Receive)
Pin 3 G (Ground) ---> To ---> G (Ground)
WyreStorm Connector
Troubleshooting
No or Poor Quality Picture (snow or noisy image)
• Verify that power is being supplied to the transmitter and receiving device.
• Verify that all HDMI and HDBaseT connections are not loose and are
functioning properly.
• Verify that the HDBaseT cable is properly terminated following EIA568B
standard.
• Verify that the output resolution of the source and display is supported by
this extender.
• If transmitting 3D or 4K, verify that the HDMI cables used are 3D or 4K rated.
No or Intermittent 3rd party Device Control
• Verify that the RS-232 cables are properly terminated following the Wiring
and Connections section.
Troubleshooting Tips:
• WyreStorm recommends using a cable tester or connecting the cable to
other devices to verify functionality.
Warranty Information
WyreStorm Technologies LLC warrants that its products to be free from defects in material and workmanship under normal use for a
period of ve (5) years from the date of purchase. Refer to the Product Warranty page on wyrestorm.com for more details on our limited
product warranty.
Note: WyreStorm reserves the right to change product specication, appearance or dimensions of this product at any time without prior notice.

Copyright © 2020 WyreStorm Technologies | wyrestorm.com
TX-35-IW Quickstart Guide | 201112
UK: [phone] | ROW: 844.280.WYRE (9973)
[email protected]
4 of 4
Specications
Transmission
Transmission Encoding HDBaseT Class B
End to End Latency 10μs (micro seconds)
Maximum Transmission Bit Rate 10.2Gbps
Audio & Video
Inputs 1x HDMI In: 19-pin type A
Outputs 1x HDBT Out: 8-pin RJ45
Maximum Pixel Clock 297MHz
Video Resolutions (Max)
Video Resolution HDMI Cat6 Cat6a/7
1920x1080p @60Hz 15m/49ft 70m/230ft 70m/230ft
3840x2160p @60Hz 8bit 4:2:0 5m/16ft 35m/115ft 35m/115ft
3840x2160p @24Hz 10bit 4:2:0 HDR 5m/16ft 35m/115ft 35m/115ft
4096x2160p @60Hz 8bit 4:2:0 5m/16ft 35m/115ft 35m/115ft
Note: WyreStorm recommends the use of shielded category cable to minimize signal noise and interference.
Supported Standards DCI | RGB | HDR10 | BT.2020
Audio Formats 2ch PCM | Multichannel LPCM | DTS-X and Dolby Atmos
Maximum Sampling Rate 192KHz
Communication and Control
HDMI v2.0 TMDS | HDCP 2.2 | EDID | DVI/D Supported with adapter
IR Passthrough; Front panel window, Rear 3-pin phoenix
RS-232 1x 3-pin Phoenix, Bidirectional passthrough
EDID Pass-through, from RX
Power
Power Supply PoH from RX; 12V DC 2A 2-pin phoenix (Optional)
Max Power Consumption 9.3W
Power-over-HDBaseT (PoH) Supported, 1-way from RX
Environmental
Operating Temperature 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing
Storage Temperature -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing
Maximum BTU 31.7 BTU/hr
Dimensions and Weight
Installation In-wall, 1-gang
Height 105mm/4.13in
Width 45mm/1.77in
Depth 38mm/1.55in
Weight 0.16kg/0.35lbs
Regulatory
Safety and Emission CE | FCC | RoHS | RCM | EAC
