Wyrestorm TX-70-POH User manual

4K HDMI over HDBaseT Transmitter
with PoH | Bi-directional IR & RS-232 (70m/230ft)
TX-70-POH Quickstart Guide
In the Box
1x TX-70-POH Transmitter
1x 2-pin Screw Down Phoenix Connector
1x 3-pin Screw Down Phoenix Connector
1x IR Emitter
1x Broadband IR Receiver (30KHz~50KHz)
2x Mounting Brackets
1x Quickstart Guide (this document)

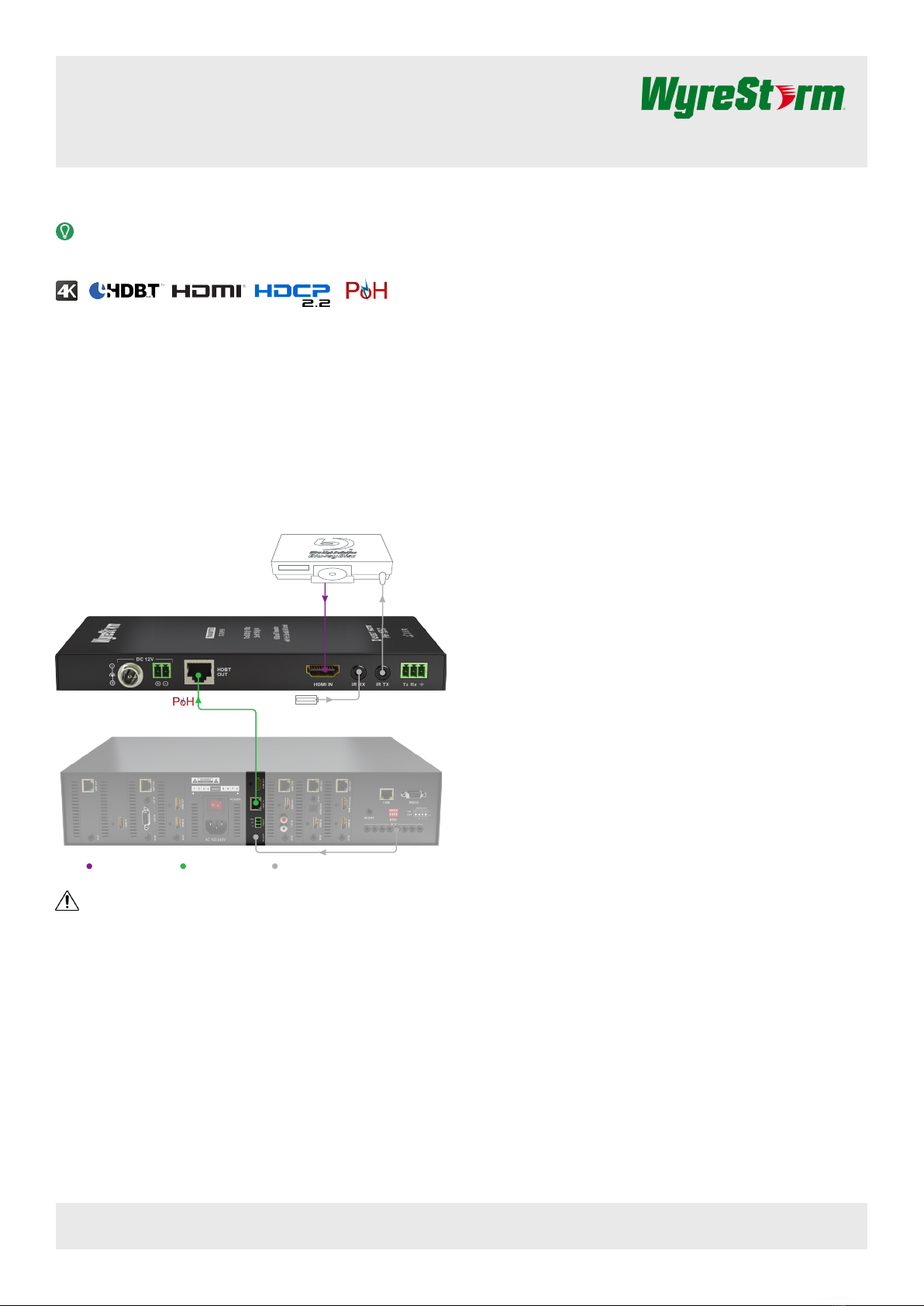

Basic Wiring Diagram
IR
Key HDMI/Digital Video HDBaseT/Ethernet
TX-70-POH
IR TX to IR Loop
(Required for remote source control)
MX-0808-PP-POH-CUSTOM with TX-POH-100
UHD Source
IMPORTANT!
Do not connect or disconnect (hot plug) the HDMI, or HDBaseT
connections while the transmitter or receiver is powered on. Doing so
may cause damage to the units or connected devices.
Additional Information
This Quickstart Guide provides the basic steps for the common uses of
this product. Refer to the Installation Guide and other documentation on
the product page for additional information.
Recommended Products
To take full advantage of the features of this receiver, WyreStorm
recommends the following products be used within the system.
• HDBaseT Matrix Switchers with HDBT In
The TX-70-POH was designed to be work with the HDBT In found on
some WyreStorm matrixes to allow remote devices to be used as a
source.
• MX-0808/1616-PP-POH-CUSTOM with TX-POH-100
• SW-1001-HDBT
• Cable for Connecting to IR Connecting Blocks/Control Systems
When connecting the IR RX to an IR connecting block or control
system, use the WyreStorm CAB-IR-LINK cable to remove the sleeve
+5V DC supplied by the IR Ext/IR RX ports.
Before Beginning
• WyreStorm recommends visiting the product page before installing
this product for updates to this Quickstart Guide as well as other
information about the product.
• Verify that all items are included in the packaging per the In The Box
list.
Pre Wire
1. Run a Cat5e/6/6a cable from the transmitter location to the matrix/
receiver location. See Supported Video Resolutions for resolution
distance restrictions. Terminate the cable per the HDMI/HDBaseT
Wiring section.
2. (Optional) If using 3rd party IR emitters or connecting blocks, run
the wire and terminate per the IR TX (Emitter) Wiring section.
3. (Optional) If using 3rd party IR receivers, run the wire and terminate
per the IR RX (Receiver) Wiring section.
4. (Optional) If using RS-232 pass-through, run the wire and terminate
per the RS-232 Wiring section.
Transmitter Installation
1. Install the matrix/receiver following the documentation provided
with the product.
2. Connect an HDMI source to the HDMI In on the transmitter using
an HDMI cable from a high quality brand such as WyreStorm
Express.
3. Using the cable created in Pre Wire step 1, connect the 8-pin RJ-45
female plug to the HDBT In jack.
4. (Optional) Using the included IR emitter or the cable created in
Pre Wire step 2, place an IR emitter onto a source device near the
device’s IR sensor. Connect the 3.5mm (1/8in) Mono Plug to an IR
TX port.
5. (Optional) Using an included IR receiver, connect the 3.5mm (1/8in)
Stereo Plug to an IR Ext port. If using a control system, use the
WyreStorm CAB-IR-LINK or the cable created in Pre Wire step 3.
6. (Optional) If using RS-232 pass-through, connect the 3-pin
connector to the RS-232 port on the receiver and the opposite end
to a port on the device being controlled.
Copyright © 2015 WyreStorm Technologies | wyrestorm.com
TX-70-POH Quickstart Guide | 151124
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
[email protected]
1 of 4
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the
installation process.
PoH-Compatible HDBaseT transmitter to send HD Video & Audio 70m/230ft over HDBaseT.

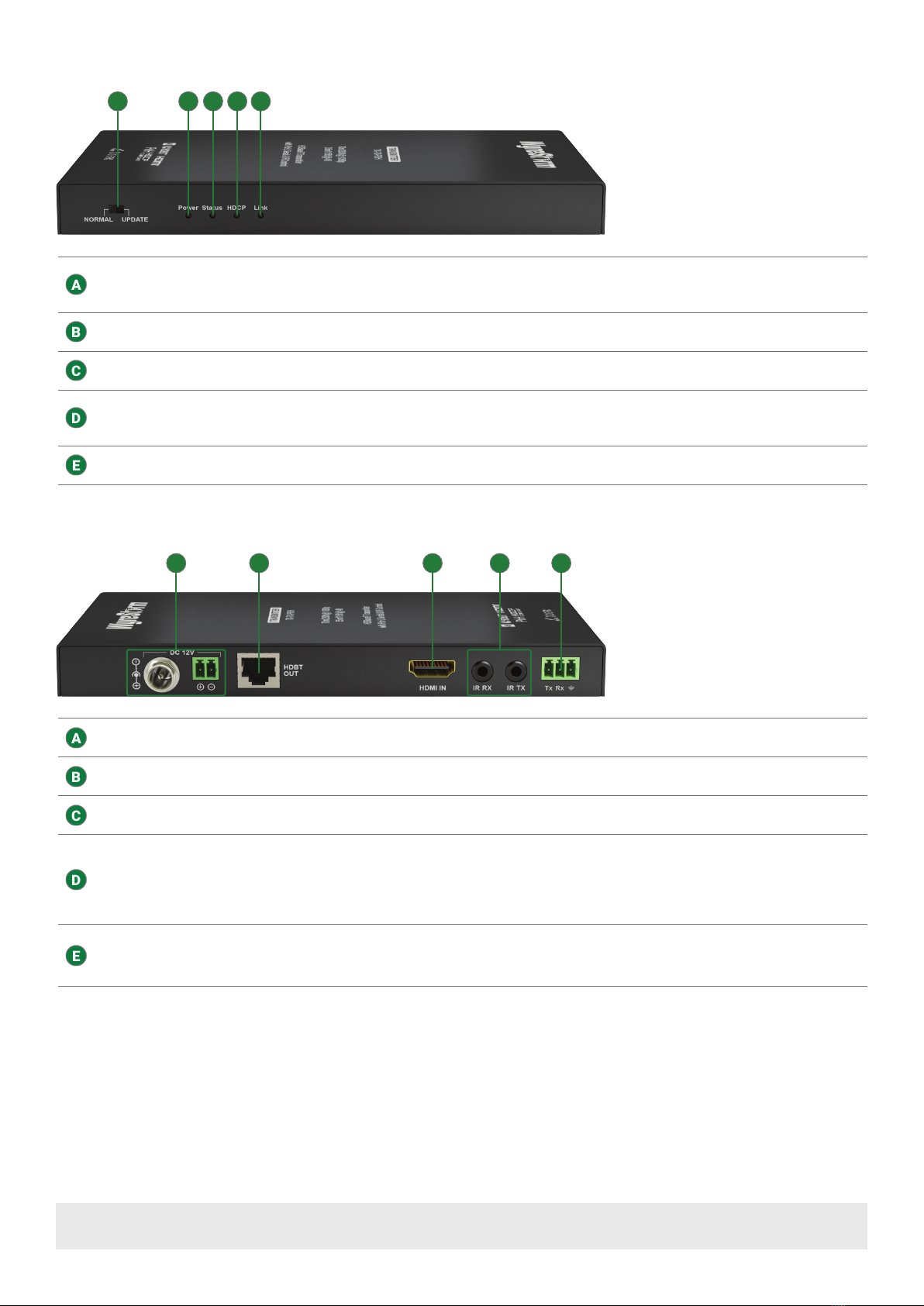

Front Panel
Rear Panel
Power In 5.5mm Male Barrel Jack
Connection to this jack is not required when using PoH. See Power Supply Wiring.
HDBT Out 8-pin RJ-45 female
Connect to the HDBT Out of a matrix or HDBaseT transmitter.
HDMI In 19-pin type A HDMI female:
Supports HDMI and DVI/D (requires adapter-not included).
IR TX/RX
IR TX - 3.5mm (1/8in) Mono Jack:
Connect to the supplied IR emitter to control a local device from the remote display location via HDBaseT.
IR RX - 3.5mm (1/8in) Stereo Jack:
Connect to the supplied IR receiver to send IR to the remote display via HDBaseT.
See IR Wiring.
RS-232
3-pin Screw Down Phoenix Connector
Used to send and receive RS-232 signals to/from the source location via HDBaseT and rmware updates. See RS-232
Wiring.
RS-232 Mode
Switches the mode for the RS-232 port.
Normal: RS-232 HDBaseT pass-through.
Update: RS-232 rmware update.
Power LED Solid: The transmitter is powered On
Off: The transmitter is powered Off
Status LED Flashing: The transmitter is operating normally.
Off: The transmitter is Not operating normally.
HDCP LED
Solid: Audio and Video signal is HDCP protected.
Flashing: Audio and Video signal is not HDCP protected.
Off: No Audio and Video signal.
LINK LED Solid: Link to receiver has been established
Flashing: Link to receiver has not been established
A B C D E
A B C D E
Copyright © 2015 WyreStorm Technologies | wyrestorm.com
TX-70-POH Quickstart Guide | 151124
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
[email protected]
2 of 4

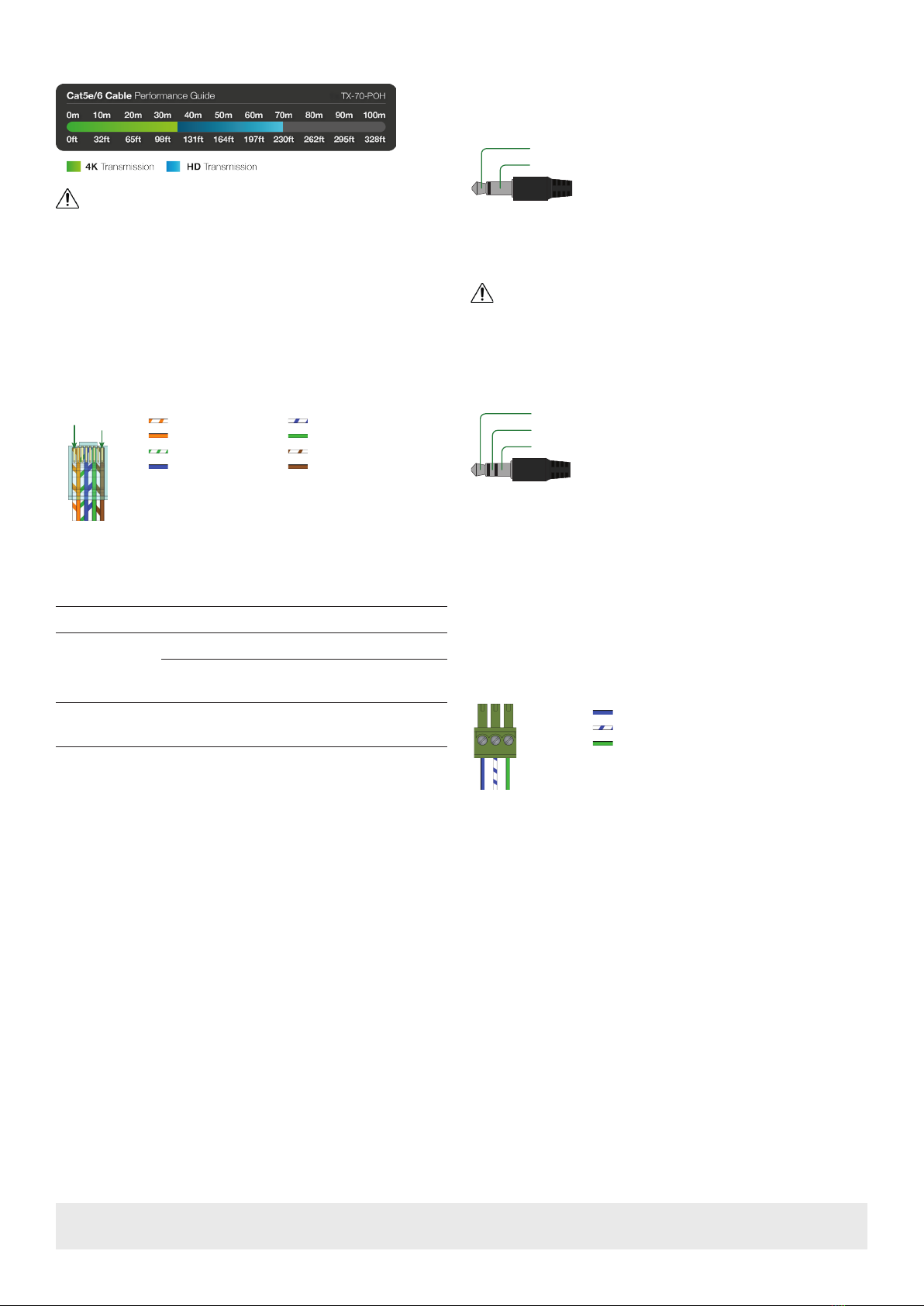

HDMI/HDBaseT Wiring
IMPORTANT! Wiring Guidelines
• The use of patch panels, wall plates, cable extenders, kinks in cables,
and electrical or environmental interference can have an adverse
effect on HDMI or HDBaseT transmission limiting performance. Steps
should be taken to minimize these factors (or remove completely)
during installation for best results.
• While similar in nature, the HDBaseT protocol is different than Ethernet
and voltages provided for PoH can be higher than those provided by
PoE. For this reason, never connect an HDBaseT link to an Ethernet
router or switch to avoid damaging the connected devices.
Wiring for HDBaseT follows the EIA T568B standard.
Pin 1
Pin 8
Wire colors shown follow EIA/TIA-568B standard.
Pin 1:
Pin 2:
Pin 3:
Pin 4:
Pin 5:
Pin 6:
Pin 7:
Pin 8:
White/Orange
Orange
White/Green
Blue
White/Blue
Green
White/Brown
Brown
Supported Video Resolutions
The type of category cable used and the distance between the
transmitter and receiver can restrict the available video resolution.
Cable Type Range Supported Resolution
Cat5/5e/6
70m/230ft 1080p@60Hz 48bit
35m/115ft 1080p@60Hz 3D
4K@60Hz 4:2:0 24bit
Cat6a 100m/328ft 1080p@60Hz 48bit
1080p@60Hz 3D
IR Wiring
IR TX (Emitter) Wiring
Connection for IR TX (transmit) uses a 3.5mm (1/8in) mono plug.
Tip: IR Signal
Sleeve: Ground (GND)
IR RX (Receiver) Wiring
Connection for IR RX (receive) uses a 3.5mm (1/8in) stereo jack that
outputs +5V DC to power the included IR receiver.
IMPORTANT! IR TX Connection Guidelines
3rd party IR receivers may require a different voltage, refer to the
documentation provided with the IR receiver before making any
connections to avoid damaging the device.
When connecting to an IR control system use the WyreStorm CAB-IR-
LINK cable to remove the sleeve +5V DC.
Tip:
Ring: IR Signal
+5V DC
Sleeve: Ground (GND)
RS-232 Wiring
RS-232 Connection Guidelines
The following wiring diagram shows the pinouts for the extender set.
While not shown, connect the TX (transmit) to RX (receive) pins at the
control system or PC side of the cable.
Most control systems and computers are DTE where pin 2 is RX, this can
vary from device to device. Refer to the documentation for the connected
device for pin functionally to ensure that the correct connections can be
made.
Wire colors shown follow EIA-561 standard.
Pin 1:
Pin 2:
TX (Transmit)
RX (Receive)
Pin 3: Ground (GND)
1 2 3
Power Supply Wiring
The TX-70-POH can receive power via PoH from a compatible HDBaseT
matrix. Should the distance or other factors prevent PoH from being
used, connect a 12V DC 1A power supply (sold separately) to the
receiver.
Copyright © 2015 WyreStorm Technologies | wyrestorm.com
TX-70-POH Quickstart Guide | 151124
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
[email protected]
3 of 4

Warranty Information
This product is covered by a 3 year limited parts and labor warranty. During this period there will be no charge for unit
repair, component replacement or complete product replacement in the event of malfunction. The decision to repair or
replace will be made by the manufacturer. This limited warranty only covers defects in materials or workmanship and
excludes normal wear and tear or cosmetic damage.
Visit the product page located at wyrestorm.com for additional information on this product including important
technical information not provided in this document and warranty terms & conditions.
Specications
Audio and Video
Inputs 1x HDMI 19-pin type A
Outputs 1x HDBaseT 8-pin RJ-45 female
Audio Formats 2ch analog and Up to 7.1 DTS-HD
Master Audio and Dolby TrueHD
Max Video Resolution 1920x1080@60Hz
(1080p60 @ 70m/230ft)
4096x2160p@60Hz 4:2:0
(4K @ 35m/115ft)
Color Depth 1080p: 48bit | 4K: 24bit
Maximum Pixel Clock 297 MHz
Maximum Bandwidth 10.2Gbps
Communication and Control
HDMI HDCP 2.2 | EDID
DVI/D supported with adapter (not
included)
HDBaseT HDCP 2.2 | EDID | PoH |
Bi-directional IR and RS-232
IR 1x 3.5mm (1/8in) Stereo (IR RX)
1x 3.5mm (1/8in) Mono(IR TX)
Bi-directional over HDBaseT
RS-232 1x 3-pin Screw Down Phoenix Connector
Bi-directional over HDBaseT
Power
Power Supply Input: 100~240V AC 50/60Hz
Output: 12V DC 1A
PoH 48V 15.4W
Max Power Consumption 3W
Environmental
Operating Temperature 32°F ~ 113°F (0°C ~ 45°C)
10% ~ 90%, non-condensing
Storage Temperature -4°F ~ 158°F (-20°C ~ +70°C)
10% ~ 90%, non-condensing
Maximum BTU 10.2 BTU/hr
Dimensions and Weight
Height 18mm/0.71in
Width 181.7mm/7.16in
Depth 94mm/3.71in
Weight 0.38kg/0.84lbs
Regulatory
Safety and Emission CE | FCC | RoHS
Troubleshooting
No or Poor Quality Picture (snow or noisy image)
• Verify that power is being supplied to the transmitter and receiving
device and that both devices are powered on.
Note:
When using PoH, to power the transmitter, verify that the HDBaseT cable
is properly terminated per the HDMI/HDBaseT Wiring section.
• Verify that the transmitter supports the output resolution of the
source. See Supported Video Resolutions.
• Verify that the receiving device and display support the output
resolution of the source.
• If transmitting 3D or 4K, verify that the HDMI cables used are 3D or 4K
rated.
• Verify that the HDBaseT cable is properly terminated per the HDMI/
HDBaseT Wiring section.
• Verify that all source and HDBaseT connections are not loose and are
functioning properly.
No or Intermittent 3rd party Device Control
• Verify that IR and RS-232 cable(s) are properly terminated per the
appropriate wiring section:
• IR: IR Wiring
• RS-232: RS-232 Wiring
• Verify that the IR emitter is located over or near the IR sensor on the
device. Move the emitter closer or further from the sensor as the IR
signal can be too strong in some cases.
• Verify that the IR receiver is in line of sight of the handheld remote.
Troubleshooting Tips:
• WyreStorm recommends using a cable tester or connecting the cable
to other devices to verify functionality.
• Use a flashlight to locate the IR receiver behind any tinted panels on
the device being controlled. It will likely appear as a small round disc.
Copyright © 2015 WyreStorm Technologies | wyrestorm.com
TX-70-POH Quickstart Guide | 151124
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
[email protected]
4 of 4
