X-CHAIR X77 User manual

Page 1
77
Live the Dream

Page 2
Table of Contents
Introduction
Color & Fabric Options
Air & Heat Massage
Key Features
Additional Features
Remote Functions
Remote Sessons
Programmed
Focused, Manual, Air
Operation & Use
Warranty
Commerical Spot

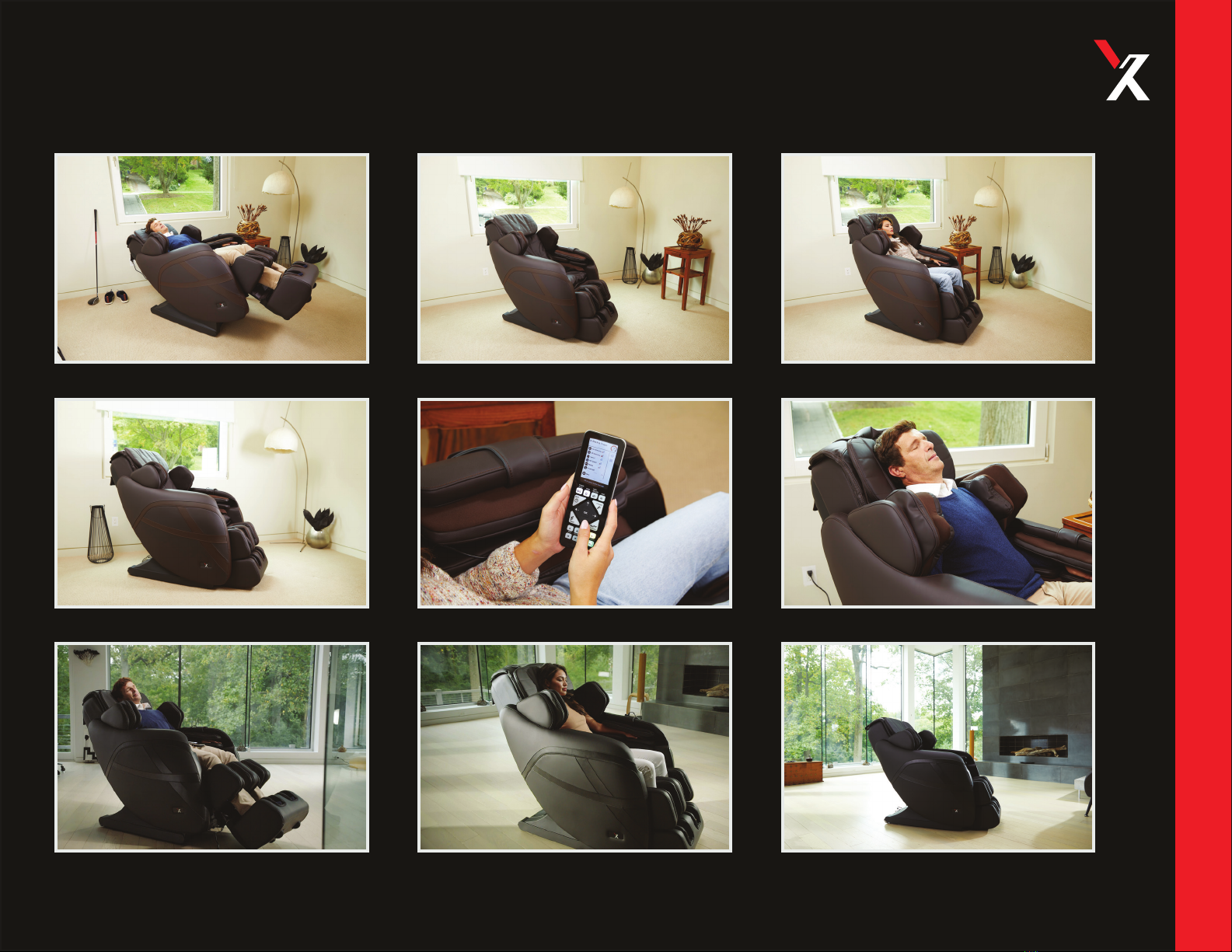

Imagery
3
4
5
6
7
8
9
10
11
13
14
15

Page 3

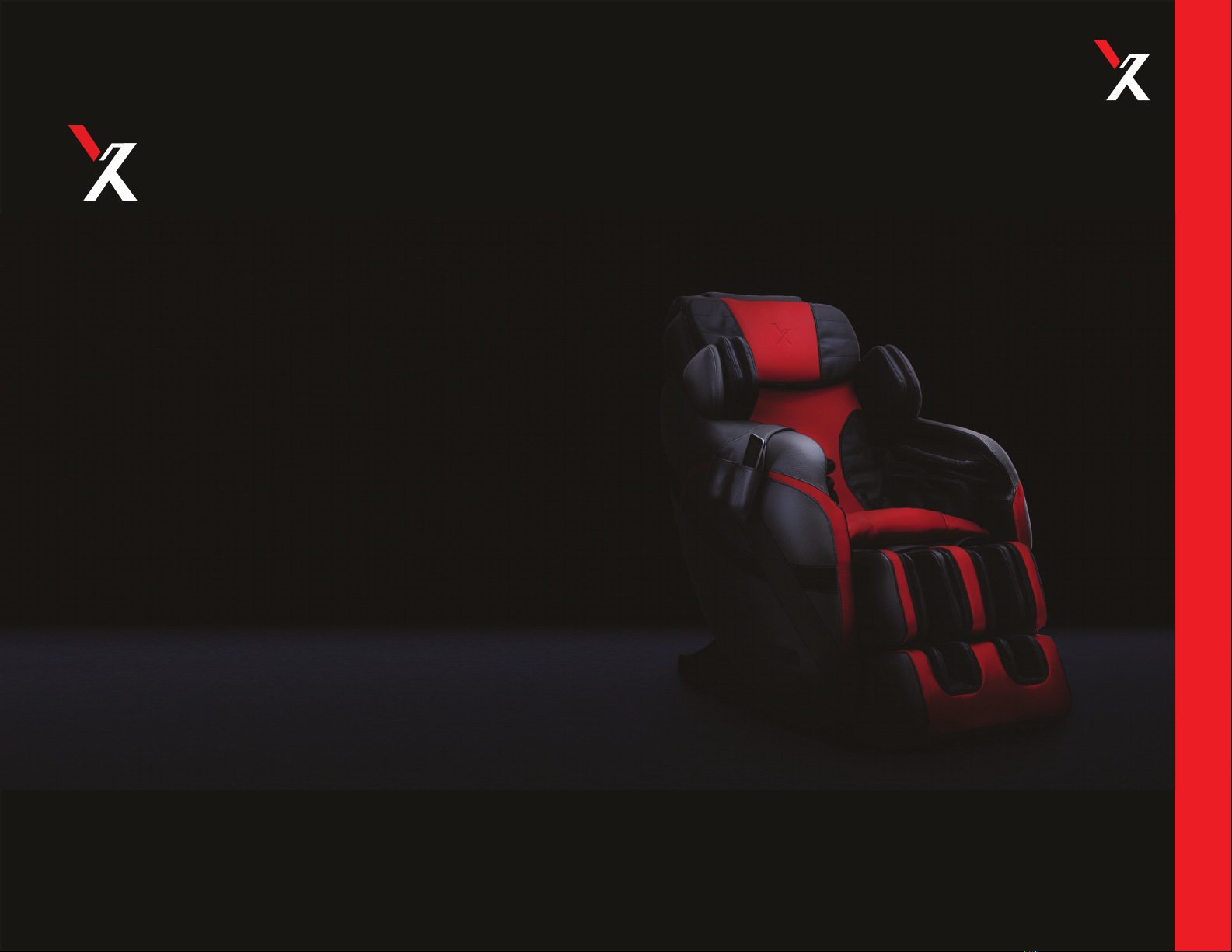

Introducing the New X77 Massage Chair
Designed to achieve total-body wellbeing through
innovative massage technology. No matter your age or
activity level, your body experiences daily stress. Work,
sleep, exercise, travel, and eating. Everything you do puts
stress on your body. For years, X-Chair’s line of office
seating products has been able to reduce the amount of
stress your body endures while working with its staple
ergonomic offerings. Now, we’re tackling the stress your
body endures outside of the office.
77

Page 4
Color & Fabric Options
Black Brisa
Black
/ Black
/ Black
Red Brisa / Black Brisa Brown Brisa
Brown
/ Brown
/ Brown
Brisa Soft-TouchBrisa Soft-Touch Brisa Soft-Touch
SynexSynex
In a category of its own, Brisa is designed, engineered and handcrafted
with butter softness, beauty, and durability in mind. The first breathable
performance fabric in its class, Brisa’s proprietary ventilation system
promotes air circulation for the highest level of seating comfort. You’ve
never felt anything like this before.
Synflex is a supple and strong fabric that is designed for comfort,
durability and easy temperature transitions. It’s embossed with a
textured grain that is both aesthetically pleasing and soft to the
touch. Synflex was specifically selected for its comfort and performace
properties to optimize your X77 Massage Chair experience - it’s sure to
be one that you sit in love with.
with Brisawith Synflex
Pricing
MAP
MAP
$7,777.77
$6,999.99
$10,370.36
$9,333.32
LIST
LIST
BRISA by Ultrafabrics

Page 5
Air & Heat Massage
Full-Body Air Massage Infrared Heat Massage
Help your body and muscles warm up so they are ready for exertion.
In addition to Heated Rollers, X77 Massage Chair offers soothing
heat under the seat and to the calves.
The full-body air massage feature provides relief to your calves,
thighs, IT bands, arms, hands, and shoulders. Your body and mind
will benefit from the healing sensations of this carefully planned
air-only massage. Perfect for people who want minimum intensity
and no tapping or kneading movements.
Shoulder Air
Hip Air
Arm Air
Calf Air
Foot Air
Seat Heat
Calf Heat
Roller Heat

Page 6
Key Features
L-Track
Segmented Arm MassageShoulder Massage
Intelligent 4D Massage Mechanism
Foot Rollers
Featuring an L-Track massage path designed to
guide the X77 4D mechanism to all the right spots
from occiput (back of your head) down to your
glutes and hamstrings. The X77 Massage Chair
L-track offers a total of 49” of back coverage.
Designed to relieve the daily tension put on your
arms and hands, the X77 has 4 air cells per arm.
This allows for segmented massage to encourage
blood flow and reduce muscle tension.
The X77 shoulder pads have air cells that inflate or
deflate based on the massage being administered.
The Shoulder Stabilizers help stretch the upper
body, keep you in the correct position while other
movements are occurring and enhance your
posture.
The X77 Massage Chair 4D massage mechanism is
designed to mobilize your spine, relax your mind,
and help you recover from your workout. X77 4D
kneads, taps, rolls (fast or slow), presses, and is
expertly choreographed to do much more. Its deep
tissue massaging capability helps improve blood
flow, work tired muscles, and promote lymphatic
flow. The unique quality and capability of the X77
4D mechanism will help you be your best every
day!
Carefully programmed and shaped to avoid over-
stimulating the soles, the foot rollers will rub, roll,
and squeeze your tired or sore feet to encourage
blood flow, work muscles, and mobilize your entire
foot.
Zero Gravity Recline
Improve blood circulation, breathe more easily and
deeply and alleviate pressure on the joints and
spine in the Zero Gravity Recline position.

Page 7
Additional Features
Acupressure Point Locator Function
Before each massage begins, the chair scans your back and
automatically customizes each massage to you. By measuring your
torso and tailoring massage movements to your body, X77 delivers
maximum customized comfort, relief, and recovery to users of varying
heights.
Stylish and Easy Remote Control
Easy to read and easy to use, our tactile remote combines style and
functional simplicity.
Wall Hugging
Designed to fit almost anywhere, the unique wall hugging technology
requires only 4” (10 cm) between the backrest and the wall.
USB Charger Port
Charge your device while you recharge your mind, body and soul.
Chromotherapy
Fitness is not only about physiological excellence, but that paired with
clear state of mind. X77 Massage Chair’s chromotherapy sessions,
that run on the screen of the remote, will help you achieve the
psychological state of mind needed to fully relax.
Heated Rollers
“Hot Rocks” style pinpoint heat is delivered through the 4D Intelligent
Massage Mechanism’s massage heads. The application of heat at the
exact point being treated means that X77 Massage Chair feels more
like human hands and helps encourage blood flow to the muscles
being worked.
Automatic Recline
The seat back can recline to 160 degrees, while the foot rest can be
adjusted up to 80 degrees.
Telescopic Leg Extension
The X77 Massage Chair adapts to your height with our customizable
Telescopic Leg Extension. When seated, simply press your feet down
on the foot placements and it will extend out to fit you perfectly. This
allows for comfortable sitting and maximizes the massage to best fit
you.
Pinpoint Calf Massage
Your calf is expertly massaged with rear and side mechanical and
air massage. The sensations which accompany X77 Massage Chair’s
calf massage will soothe your whole body and help your calves feel
revitalized and ready for whatever challenge your next day brings.

Page 8
Remote Functions
11 programmed and focused massage sessions
Power/Pause
Home
Up Arrow
Left Arrow
Warm Up Massage
Sport Massage
Down Arrow
Raise Chair Back
Raise Leg Rest
Lower Leg Rest
Lower Chair Back
Foot Rollers
Heat
Right Arrow
Cool Down Massage
OK/Select
Lower Rollers
Raise Rollers
Zero Gravity
3D Intensity Adjustment
Air Intensity Adjustment
Buttons
Power/Pause
Home/Menu
Seat Back
Control
Leg Rest
Control
Roller
Position
Control
Roller
Intensity
Adjustment
Air
Intensity
Adjustment
Foot Rollers
Heat
Quick
X-Sport
Zero Gravity
Stretch
Select/
Navigate
OK

Page 9
Remote Sessions - Programmed
Programmed
11 programmed and focused massage sessions
Vigorous roller and air
massage actions are
combined to maximize blood
ow to all the large muscle
areas. Back massage and back
mobilization help loosen and
relax tight muscles, providing
inter-vertebral traction
through back extension.
Targets the key muscles that
are typically used during the
day and encourages blood
ow to all the large muscle
groups in order speed muscle
recovery and reduce
post-exertion soreness.
Designed to mimic twisting
and stretching movements
important for core health, this
massage will combine the use
of air cells and the massage
mechanism to twist both
the body’s upper and lower
body.and lower body.
Add to your end-of-day wind
down with this light and
gentle relax routine. Relax
combines a series of massage
movements organized to
decrease swelling, help clear
away toxins and relieve tense,
sti muscles. Great for use
after work or exercise.
Carefully crafted stretching
movements including hip
rotation and back extension.
Designed to help stretch and
loosen the muscles of the
entire body; great for use
following long work periods of
concentrated inactivity.
This massage session
prepares your body for the
day. It’s characterized by
gentle massage movements,
gentle stretching, mobilization
movements to loosen your
back and peripheral air
massage to encourage blood
ow to your calves and arms.
A comprehensive, full body
massage program designed
to energize your entire body
and calm your mind.
Place yourself in the perfect
state of mind for peak
performance. Close your
eyes, imagine being at your
best, and let this session’s
methodical and rhythmic
pacing take you to a place of
condence and strength.
Recover
X-Sport
Relax
X-Core
Quick
X-Stretch
Visualize
All X-Air

Page 10
Remote Sessions - Focused, Manual & ManualAir
11 programmed and focussed massage sessions
Focused
Focused kneading massage
around the neck and
shoulders designed to help
loosen the muscles of the
upper back. Relieve tension
built up from long periods of
screen use.
The perfect session for those
who sit too long and/or for
active runners and cyclists.
Works the IT bands and the
glutes.
Encourages blood ow to this
very typical problem area.
Mobilize and stretch your low
back with this focused
session.
Glutes & IT
Bands
Neck &
Shoulders X-Back
Rolling
Knead & Pulse Knead & Tap
Manual
Pulse
Knead Tap
Manual
X77 Massage includes 6
manual massage methods
from which you can choose:
Knead, Tap, Pulse, Knead
& Tap, Knead & Pulse, and
Rolling.
Full Body Air
Shoulder & Arm Legs & Feet
Manual Air
Manual Air
X77 Massage includes 4
manual air sessions from
which you can choose:
Shoulder & Arm, Legs & Feet,
& Full Body Air.

Page 11
Operation & Use
Positioning Yourself In The Chair
Powering On
Starting a Massage Powering O
• When the chair is o, the rollers are stored in the top
of the back rest. This is known as the storage position.
If the rollers are not in the storage position, simply
reset by pressing the Power button on the remote
control before sitting on the chair.
• Sit back fully in the chair so your entire back is against
the back rest and your head is leaning into the pillow.
• Ajust the head rest so it sits just above your shoulders
and at the base of your neck. If the pillow is positioned
too high or too low, the automatic acupressure point
detection will not work correctly (see right).
• Adjust the shoulder air cell by rotating up or down until
comfortable.
• Press the Power/Pause button to turn the remote control power ON. When the
power is ON, the remote screen shows the main menu and the Power/Pause
button will glow white.
• Ensure remote power is ON. The Power/Pause button will glow white.
• Use the Remote navigation arrows to scroll through the menus. As you navigate
the menus, the black highlight indicates where the cursor is within the menu.
• Once your desired selection is highlighted, press the OK button activate the
selection.
• Upon activation, a red dot will appear to the right of the currently running
selection(s), and the upper section of the remote screen will display the name of
te massage(s) selected. The time in the upper right corner indicates estimated
massage duration.
• Choreographed massages that automatically combine the massage mechanism,
air massage, and other features are oered in the Programmed & Focused menus
(except in All X-Air, which is an air massage only program).
• Manual menu options activate a specic back mechanism function or set of
functions.
• Massages within the Manual Air menu are those that activate on the air cells.
• Press and hold the Power/Pause button for 3 seconds to turn the remote control
power OFF. When the power is OFF, the remote screen is black/blank, and the
Power/Pause button will glow red.
• If the chair has been in a reclined position it will automatically restore to the upri-
ght position when powered o.
NOTE: The remote power will automatically turn o after approximately 15 minutes of
inactivity.
NOTE: The Power/Pause button on the remote is not the Main Power switch.
YES NO
HEAD REST POSITIONING
The head rest position
matches the back of
the head
The position of the head
rest is too high
Place your elbows
between the arm unit
Insert so your palm is
facing down
Place your arms in the arm, palms down.
NOTE: When the leg rest raises, press out with your feet and the leg rest will adjust to the
appropriate length (see below).
Place your feet in the leg rest.

Page 12
Operation & Use (Continued)
Pausing a Massage
Ending a Massage
• To pause a massage, quickly prss and release the Power/Pause button. Upon
dong this the massage mechanism will immediately cease all movement, the chair
angle will remain in the exact position it was when the button was pressed, and
the Power/Pause button will ash red.
• To resume the massage, quickly press and release the Power/Pause button again.
Upon doing this the Power/Pause button will illuminate in white, and the massage
will resume from where it was stopped.
• To end a massage in the middle of an active session, you can do one of the
following:
- Press the Home/Menu button to access to the Main Menu, then use the
naviation arrows to navigate to End Massage. Once End Massage is highli-
ghted, press OK and the massage will cease; the massage mechanism will
slowly move to its storage position (upper shoulders). Please note, the chair
will remain in the reclined angle. This option leaves the chair powered on so
another massage may be selected.
- Press and hold the Power/Pause button for 3 seconds. This action will end
the session by powering o the chair. the massage mechanism will slowly
move to its sotrage position (upper shoulders) and, if the chair has been in a
reclined position, it will automatically incline to the upright position.
NOTE: Massages will automatically stop after approximately 18 minutes of activity. The chair
will remain reclined.
NOTE: Never get out of the chair without rst returning it to its full upright position.
NOTE: Never press on shoulder, or stand on foot rest to get out of chair.
NO NO

Page 13
Warranty
Our X-Chair X77 Massage Chair 3-Year Limited Warranty oers you the peace of mind and condence that comes with owning this high-quality pro-
duct. Years of trouble-free relaxation await. For an additional fee, we also oer a 5-Year Extended Limited Warranty. Our limited warranty includes
on-site service, parts, and labor in most locations in the United States and Canada. Some restrictions apply. See www.xchair.com for full warranty
details. Please keep your warranty information with your Owner’s Manual.

Page 14
Commerical Spot
https://vimeo.com/641116006

Page 15
Imagery

Page 16
77
